Heli Forklift CDD 16-D930 CDD 20-D930 Electric Pallet Stacking Trucks Parts Manual – PDF DOWNLOAD

Heli Forklift CDD 16-D930 CDD 20-D930 Electric Pallet Stacking Trucks Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Heli Forklift CDD 16-D930 CDD 20-D930 Electric Pallet Stacking Trucks Parts Manual – PDF DOWNLOAD

Language : English,Chinese
Pages :38
Downloadable : Yes
File Type : PDF

TABLE OF CONTENTS:

Heli Forklift CDD 16-D930 CDD 20-D930 Electric Pallet Stacking Trucks Parts Manual – PDF DOWNLOAD

Fig 1 Steering control system
Fig2 Handle assembly
Fig3 Switch box assembly
Fig4 Handle assembly
Fig5 Switch box assembl
Fig6 Stepped switch assembly
Fig 7 Driving system
Fig 8 Gear box assembly(old
Fig9 Gear box assembly(new
Fig10 Driving motor
Fig11 Hydraul ic system
Fig12 Hydraulic system
Fig13 Power system(old
Fig14 Power system(new
Fig15 Hydraulic power unit(old
Fig16 Hydraulic power unit(new)
Fig17 Valve assembly(new)
Fig18 Frame(old
Fig19 Frame(new
Fig20 Front wheel assembl
Fig21 Balance wheel assembly(NEW)
Fig22 Electric panel assembly(old
Fig23 Electric panel assembly(new
Fig24 Footboard assembly
Fig25 Mast assy-outer(old
Fig26 Cylinder assembly(old)
Fig27 Mast assy-outer(new
Fig28 Cylinder assembly(new)
– Fig29Mast assy-inner
Fig30 Fork & Carriage & Backres
Fig31 Fork(new
Fig32 Compartment(for footboard)
Fig33Battery assembly

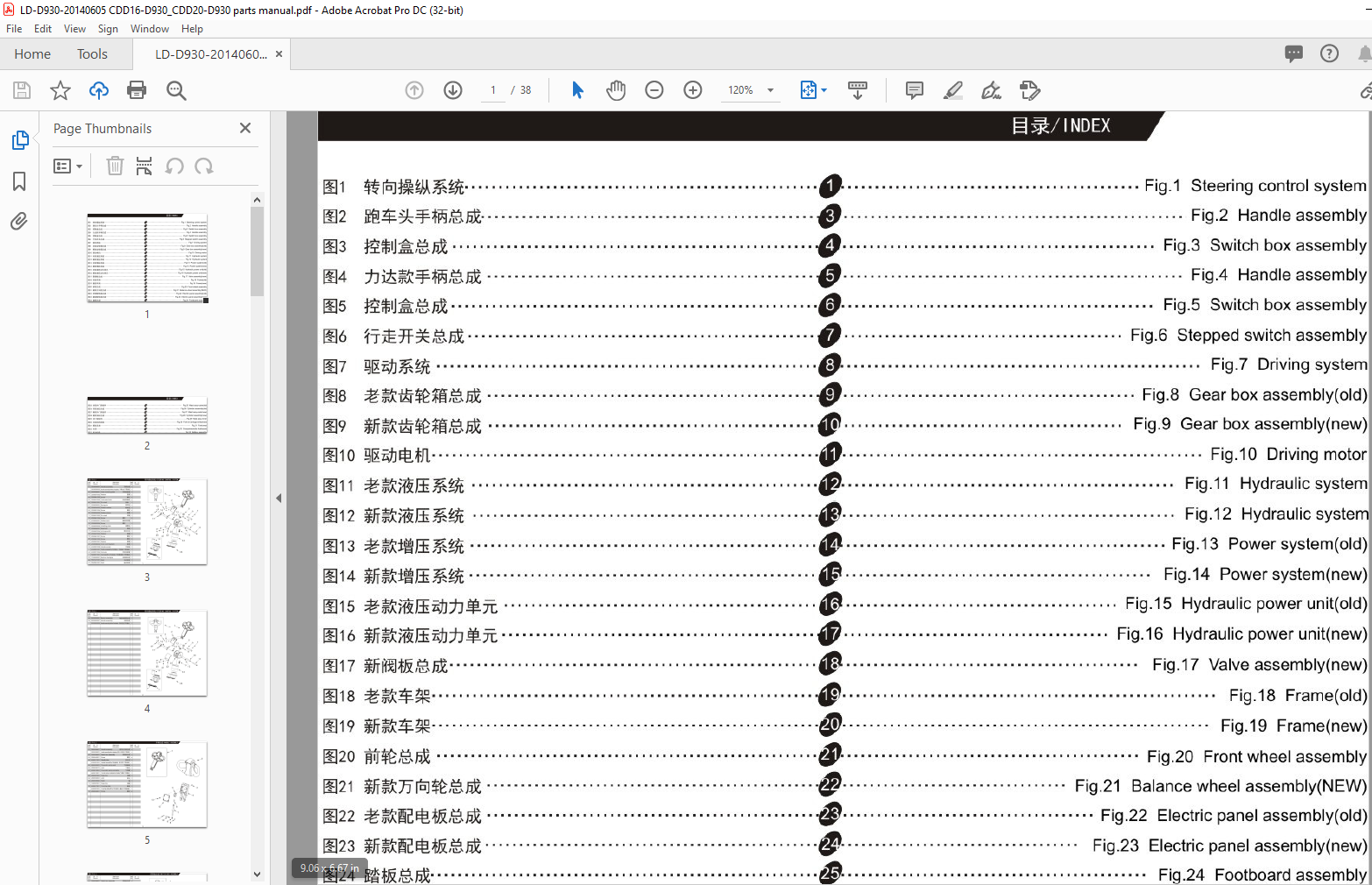

IMAGES PREVIEW OF THE MANUAL:
