Hitachi Hydraulic Excavator UH055-7 Parts List Manual(P130-4-2) – PDF DOWNLOAD

Hitachi Hydraulic Excavator UH055-7 Parts List Manual(P130-4-2) – PDF DOWNLOAD

FILE DETAILS:

Hitachi Hydraulic Excavator UH055-7 Parts List Manual(P130-4-2) – PDF DOWNLOAD

Language : English,Japanese
Pages :172
Downloadable : Yes
File Type : PDF
Size:7.03 MB

DESCRIPTION

Hitachi Hydraulic Excavator UH055-7 Parts List Manual(P130-4-2) – PDF DOWNLOAD

FOREWORD

• This parts List shows the components of UH055-7 Hydraulic excavator. The numerical parts No. index is provided at the end of this parts List. In the parts index, a part No. with “*” mark shows a new Ly added part on the parts List.
• This parts list contains the most recent information available at the time of printing, and the contents of the list are based on information in effect at that time andare subject to change without notice.
• The references in the parts list of ”LEFT”, “RIGHT”, “FRONT” and “REAR” are identified as follows. The driver’s seat is positioned “LEFT” side, and the opposite side is “RIGHT”. The front attachment is at the “FRONT”. The counterweight is attached at the “REAR”. For the track, the travel motor is at the “REAR”, and the opposite is “FRONT”.
• For the engine parts, please refer to the parts list of ISUZU diesel engine 6B81 issued separately.

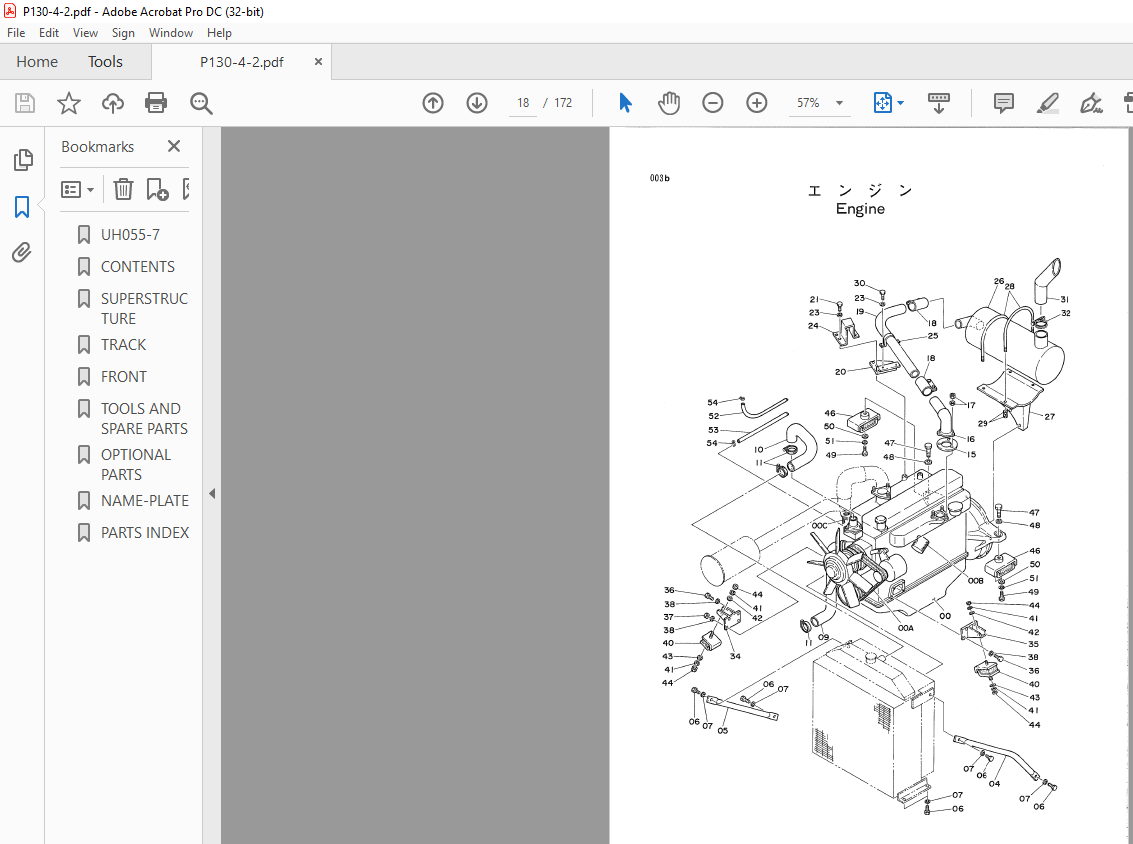

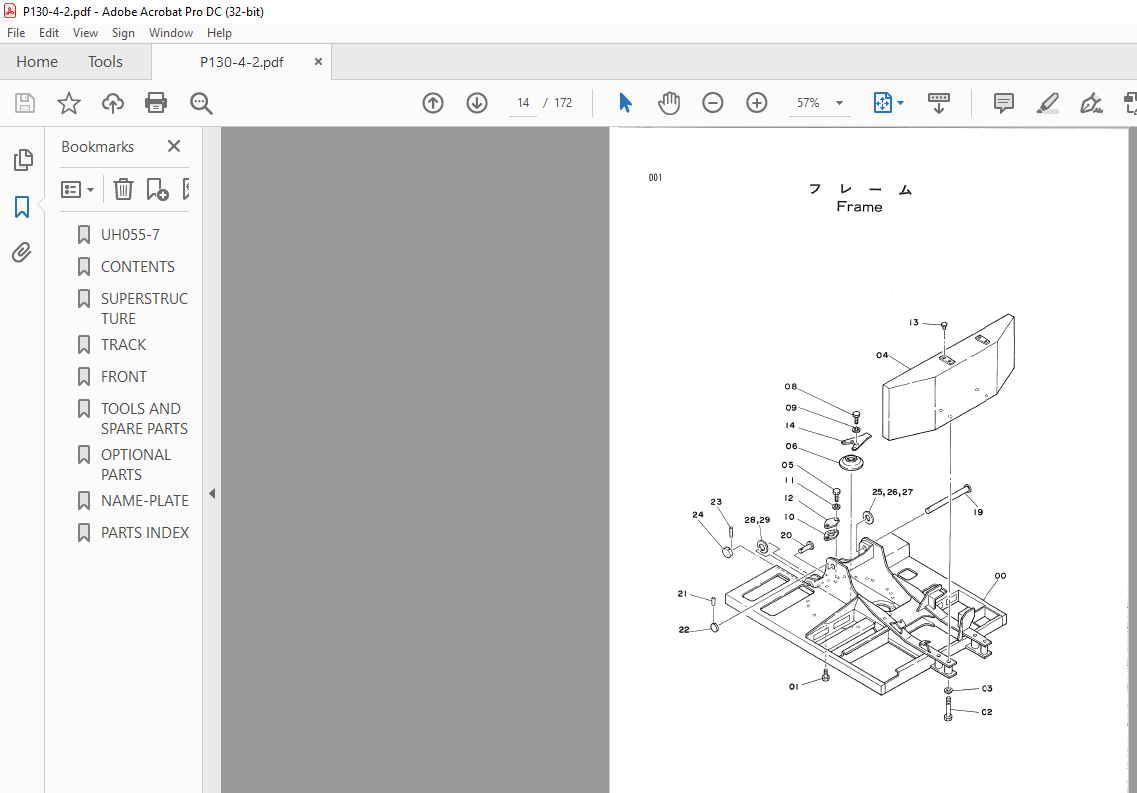

IMAGES PREVIEW OF THE MANUAL:

 TABLE OF CONTENTS:

Hitachi Hydraulic Excavator UH055-7 Parts List Manual(P130-4-2) – PDF DOWNLOAD

SUPERSTRUCTURE FRAME
ENGINE RADIATOR AIR CLEANER FUEL TANK PUMP DEVICE
SWING DEVICE OIL TANK
OIL COOLER PIPINGS
MAIN PIPINGS
ENGINE CONTROL
AUTOMATIC FUEL
CONTROL LEVER
CONTROL LEVER (2-LEVER TYPE)
LEVER STANO (L)
LEVER STANO (R)
ASSIST VALVE
CONTROL LEVER (4-LEVER TYPE)
PILOT PIPINGS
CONTROL BOX
GAUGE PANEL
ELECTRIC PARTS
CAB GROUP
CAB SEAT
COVER (1)
COVER (2)
DOOR LOCK CAR HEATER
TRACK TRACK FRAME TRAVEL DEVICE
FRONT IDLER
AOJUSTER
UPPER ROLLER
LOWER ROLLER
TRACK-LINK 500G
CENTER JOINT
TRAVEL PIPINGS
FRONT
BOOM
STO. ARM
BUCKET 0.55
FRONT PIPINGS LUBRICATE PIPINGS
TOOLS AND SPARE PARTS
TOOLS
SPARE PARTS
OPTIONAL PARTS
TRACK-LINK 600G
TRACK-LINK 710G LONG ARM
SHORT ARM
BUCKET 0.45
BUCKET 0.6
BUCKET 0.7
V-TYPE BUCKET 0.4
ONE-POINT RIPPER
NAME-PLATE
NAME-PLATE (JAPANESE)
NAME-PLATE (ENGLISH)
PARTS INDEX
