Hitachi Hydraulic Excavator UH071 UH06-5 Parts List Manual(EP740-1-2) – PDF DOWNLOAD

Hitachi Hydraulic Excavator UH071 UH06-5 Parts List Manual(EP740-1-2) – PDF DOWNLOAD

FILE DETAILS:

Hitachi Hydraulic Excavator UH071 UH06-5 Parts List Manual(EP740-1-2) – PDF DOWNLOAD

Language : English
Pages :148
Downloadable : Yes
File Type : PDF
Size:7.39 MB

DESCRIPTION

Hitachi Hydraulic Excavator UH071 UH06-5 Parts List Manual(EP740-1-2) – PDF DOWNLOAD

NOTICE

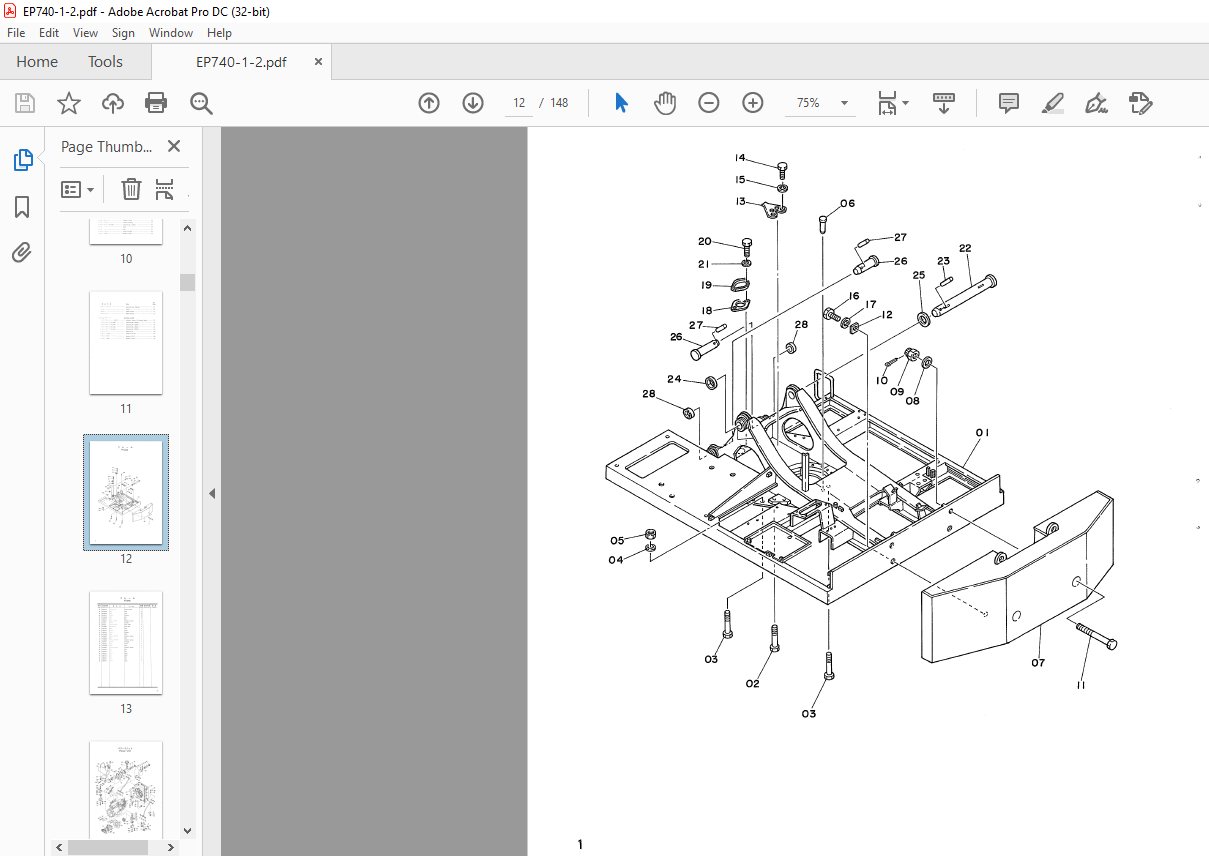

• In this parts list, illustrations are shown on odd pages and “Item” “Part No.   “Part Name” and “Q’ty” on even pages. The shown parts are not only the current parts but also the previous ones for UH071. And the index of part numbers is given at the end of this parts list.
• The direction described in this parts list such as “Left” “Right” “Front” “Rear” are provided as follows. Where the operator’s seat is positioned is left side, and the opposite side is right. Where the front attachment is equipped is front and in the rear side the prime mover is mounted.
• As to the track, where the travelling motors are equipped is the rear side and the opposite is front side. As to the engine parts, refer to the “Engine Parts List”.

1. HOW TO ORDER PARTS
When ordering machine parts you are requested to mention clearly “Parts Name”, “Parts No.  and “Q’ ty” of parts in
demand together with the “Model of Machine”  and “Machine Serial No.”

(Examples)
Description
( 1) Model of Machine UH071 }These are shown on Name Plate in Cab
(2) Machine Serial No. 740-0101
( 3) Parts No. A8181165 } Ordering Parts
(4) Parts Name O-Ring
( 5) Q’ty 2 }Ordering Q ‘ty

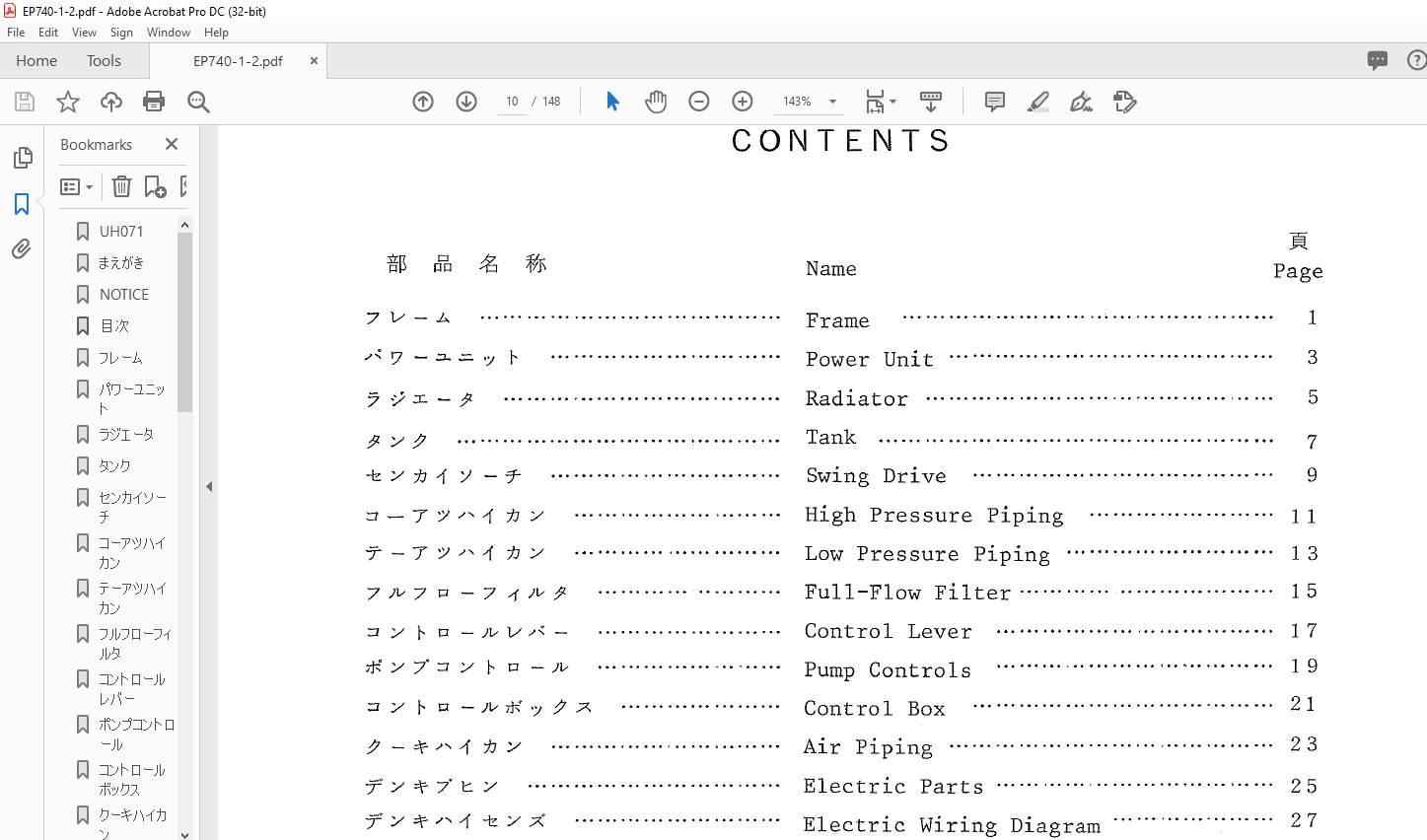

TABLE OF CONTENTS:
