Hitachi Hydraulic Excavator UH122 Parts List Manual(EP171-2-3) – PDF DOWNLOAD

Hitachi Hydraulic Excavator UH122 Parts List Manual(EP171-2-3) – PDF DOWNLOAD

FILE DETAILS:

Hitachi Hydraulic Excavator UH122 Parts List Manual(EP171-2-3) – PDF DOWNLOAD

Language : English, Japanese
Pages :240
Downloadable : Yes
File Type : PDF
Size:7.41 MB

DESCRIPTION

Hitachi Hydraulic Excavator UH122 Parts List Manual(EP171-2-3) – PDF DOWNLOAD

FOREWORD

• This parts List shows the components of UH122 and UH122LC Hydraulic excavator. If a page where the parts of those machines are shown, the following indication is described on the top of the page.
• <EXAMPLE>
  INDICATION APPLICABLE MODEL
  ·····(STD TRACK) UH122
  ·····CLC TRACK) UH122LC
• The numerical parts No. index is provided at the end of this parts List. In the parts index, a part No. with”*” mark shows a newly added part on the parts List.
• This parts List contains the most recent information available at the time of printing, and the contents of the List are based on information in effect at that time and are subject to change without notice.
• The references in the parts List of “LEFT”, “RIGHT”, “FRONT” and “REAR” are identified as follows. The driver’s seat is positioned “LEFT” side, and the opposite side is “RIGHT”. The front attachment is at the “FRONT”. The counterweight is attached at the” REAR”. For the track, the travel motor is at the “REAR”, and the opposite is “FRONT”.
• For the engine parts, please refer to the parts List of ISUZU diesel engine E120PN issued separately.

1. HOW TO ORDER PARTS
When ordering parts, Please specify the following items as shown in the following example.

(EXAMPLE)
(1) Model of Machine:(UH122) Shown on Name-Plate in front of revolving frame
(2) Machine Serial No.(171-0101)
(3) Part No.(A81O165) Ordering Parts
(4) Part Name:(O-RING)
(5) Q’ty.(2) Ordering Q’ty
(6) Purchaser’s Name and Address

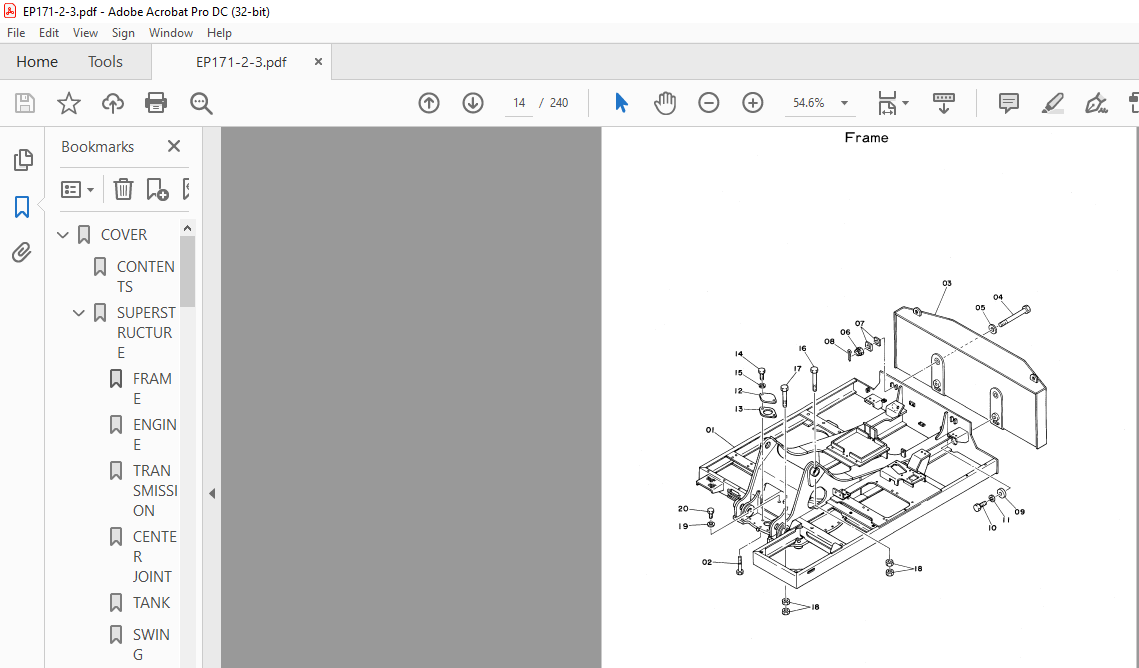

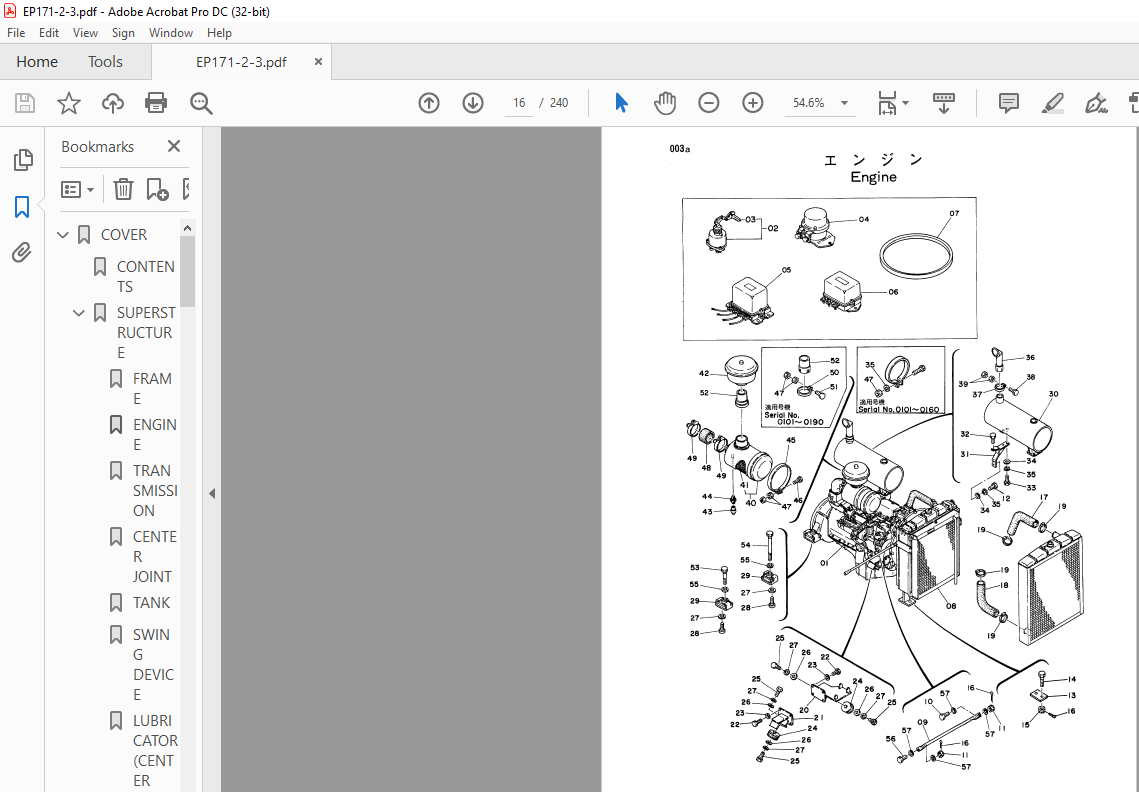

IMAGES PREVIEW OF THE MANUAL:
