Hitachi Hydraulic Excavator UH172 Upper Machine Parts List Manual(EP 123-1-4A) – PDF DOWNLOAD

Hitachi Hydraulic Excavator UH172 Upper Machine Parts List Manual(EP 123-1-4A) – PDF DOWNLOAD

FILE DETAILS:

Hitachi Hydraulic Excavator UH172 Upper Machine Parts List Manual(EP 123-1-4A) – PDF DOWNLOAD

Language : English
Pages :94
Downloadable : Yes
File Type : PDF
Size:6.43 MB

DESCRIPTION

Hitachi Hydraulic Excavator UH172 Upper Machine Parts List Manual(EP 123-1-4A) – PDF DOWNLOAD

NOTICE

• In this parts list, illustrations are shown on odd pages and “Item” “Part No.” “Part Name” and “Q’ty” on even pages. The shown parts are not the current parts but also the previous ones for the upper machine of UH172.
• The direction described in this parts list such as “Left” “Right” “Front” “Rear” are provided as follows. Where the operator’s seat is positioned is left side, and the opposite side is right. Where the front attachment is equipped is front and in the rear side the prime mover is mounted. As to the track, where the travelling motors are equipped is the rear side and the opposite is front side.
• As to the engine parts, refer to the “Engine Parts List

1. HOW TO ORDER PARTS

When you order parts, you are requested to mention clearly “Part Name”, “Part No.” and “Q’ty” of parts together with the “Model of Machine” and “Machine Serial No.”.

(Examples)
Description
( 1) Model of Machine (UH172) }These are shown on Name Plate
(2) Machine Serial No. (123-0601)
( 3) Parts No. A810165 } Ordering Parts
(4) Parts Name O-Ring
( 5) Q’ty 2 }Ordering Q ‘ty
(6) Purchaser’s Name and Address

TABLE OF CONTENTS:

Hitachi Hydraulic Excavator UH172 Upper Machine Parts List Manual(EP 123-1-4A) – PDF DOWNLOAD

Frame
Engine
Radiator
Pump Mission
Swing Device
Oil Tank
Oil cooler Piping
Full-Flow Filter
Drain Piping
Bypass Filter Piping
Bypass Filter Main Piping
Main Piping No.l
Main Piping No.2
Engine Control Lever
Operation Lever
Pilot Piping No1
Pilot Piping No2
Pilot Filter
Air Piping
Air Filter
Fuel Piping
Car Heater Piping
Electric Parts
Electric Wiring

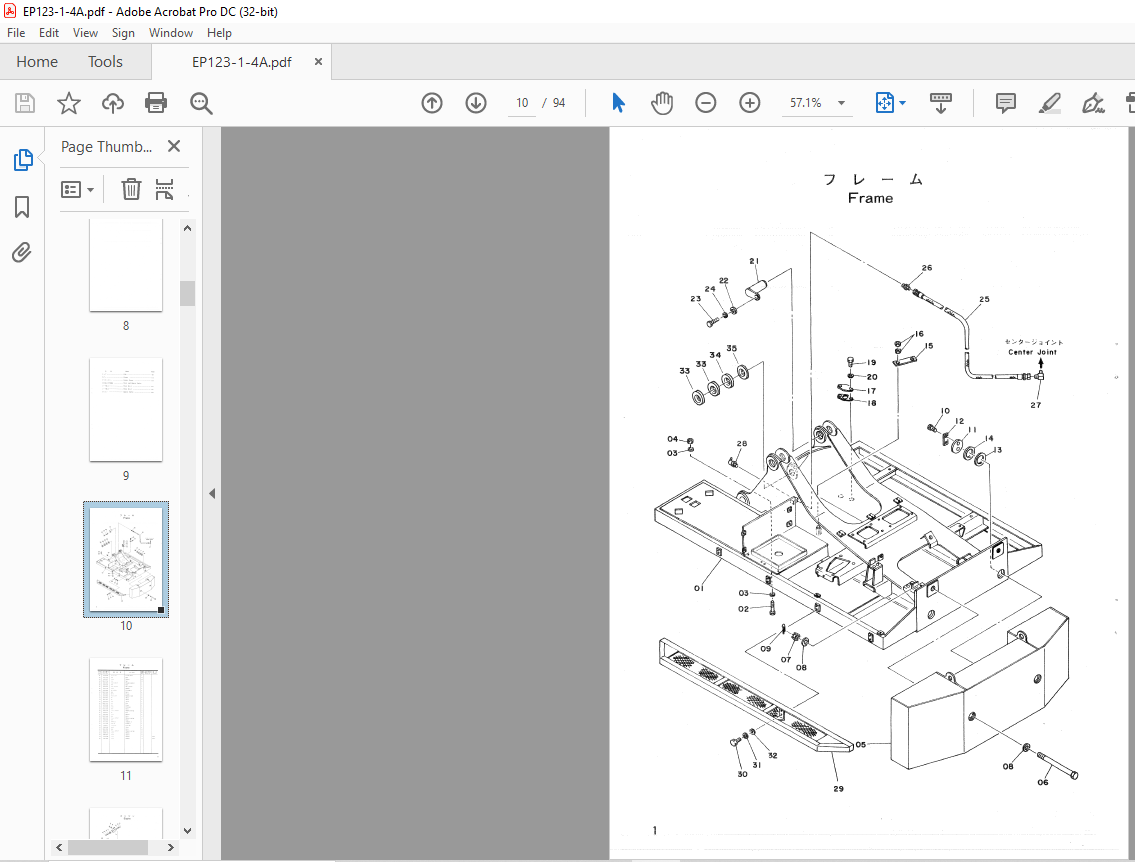

IMAGES PREVIEW OF THE MANUAL:
