DESCRIPTION:

Hitachi UH02 Hydraulic Excavator Parts List Manual – PDF DOWNLOAD

• In this parts list, illustration are shown on odd pages and “Item” ”Parts No.” “Parts Name 11 and 11Q 1ty11 on even pages. The shown parts are not only the current parts but also the original ones. The contents of service kit and parts index are shown in finis of this parts list.
• The location described in this parts list such as “Left” “Right” “Front” “Rear” are provided as follows. Where the driver’s seat is positioned is left side, and the opposite side is right. Where the front attachment is equipped is front and in the rear side the prime mover is mounted.
• As to the track, where the travelling motors are equipped is the rear side and the opposite is front side whichever position of track may take against revolving frame in actual operation.
• As to the parts of front attachment, refer to the 11 Front Attachment Parts List”. As to the engine parts, refer to the 11 Engine Parts List”.

1. HOW TO ORDER PARTS
When ordering machine parts you are requested to mention clearly 11Parts Name”, “Parts No. 11 and 11Q’ty11 of parts in
demand together with the 11Model of Machine”  and “Machine
Serial No.”

(Examples)
Description
( 1) Model of Machine UH02 }These are shown on Name Plate in front of revolving frame
(2) Machine Serial No. 141-0105
( 3) Parts No. 215203 } Ordering Parts
(4) Parts Name Alex
( 5) Q’ty 2 }Ordering Q ‘ty
(6) Purchaser’s Name
and Address

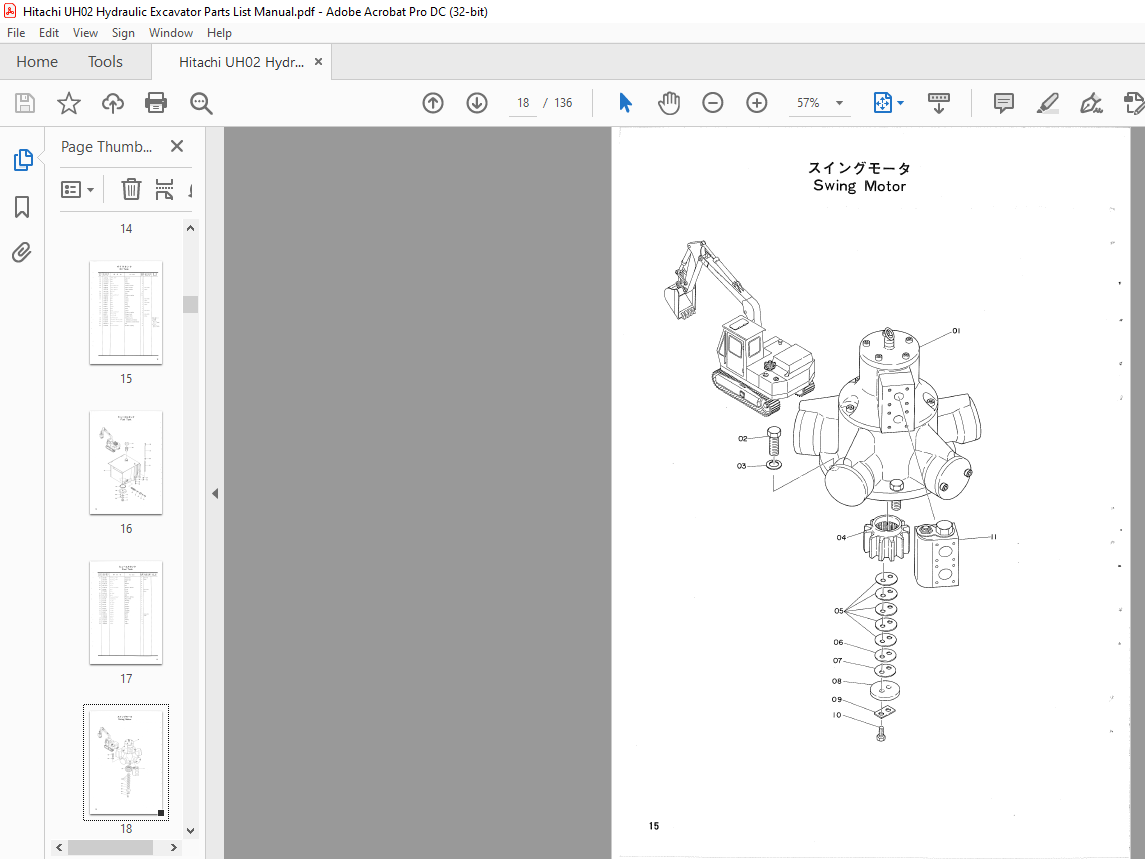

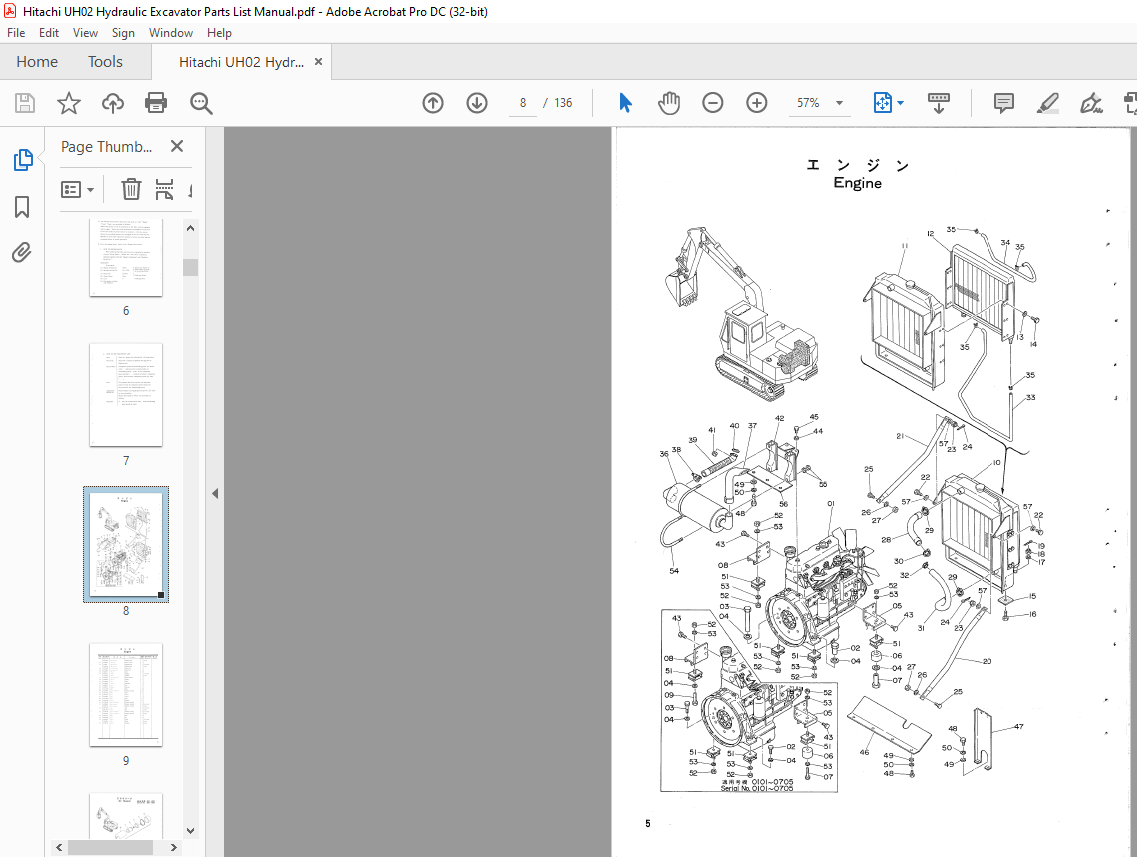

IMAGES PREVIEW OF THE MANUAL:
