Hitachi UH06-5 UH071 Hydraulic Components Parts List Manual(P7409-H-1) – PDF DOWNLOAD

Hitachi UH06-5 UH071 Hydraulic Components Parts List Manual(P7409-H-1) – PDF DOWNLOAD

FILE DETAILS:

Hitachi UH06-5 UH071 Hydraulic Components Parts List Manual(P7409-H-1) – PDF DOWNLOAD

Language : English
Pages :92
Downloadable : Yes
File Type : PDF
Size:8.07 MB

DESCRIPTION

Hitachi UH06-5 UH071 Hydraulic Components Parts List Manual(P7409-H-1) – PDF DOWNLOAD

NOTICE

This Parts List covers the hydraulic component<, used on the Hitachi hydraulic Excavator H06-5, UH07L For the parts med in the basic machine, refer to basic machine parts list. For the engine parts. refer to the engine parts list.

1. HOW TO ORDER
To order parts, always ,specify the machine model. serial number, Hitachi part number. part name. part number designated b\ the component supplier to Hitachi, and required quantity.

• * In ordering parts. be SUIT to specify· the hydraulic component assy· numbers marked on the name plate on the unit * As for the parts availabk on the market or specified on J IS and similar standard,
• , they are noted “A” on the RANK column in the Parts List and their standard~ ;ire on the REMAEKS column. For obtaining, order from vour nearest Hitachi’s authonzcd service shop.
• Machine serial number is marked on the name plate located in the cab. * The component parts of machines UH06-5 and UH071 are identical, place an order for any UH071 parts you need, please specify’ them refer to UH06-5. IV

TABLE OF CONTENTS:

Hitachi UH06-5 UH071 Hydraulic Components Parts List Manual(P7409-H-1) – PDF DOWNLOAD

UH06-5, UH071…. 1
Contents………11
Pump………….13
Motor…………29
Valve;control….47
Cylinder;oil…..59
Valve…………75
Parts index……87

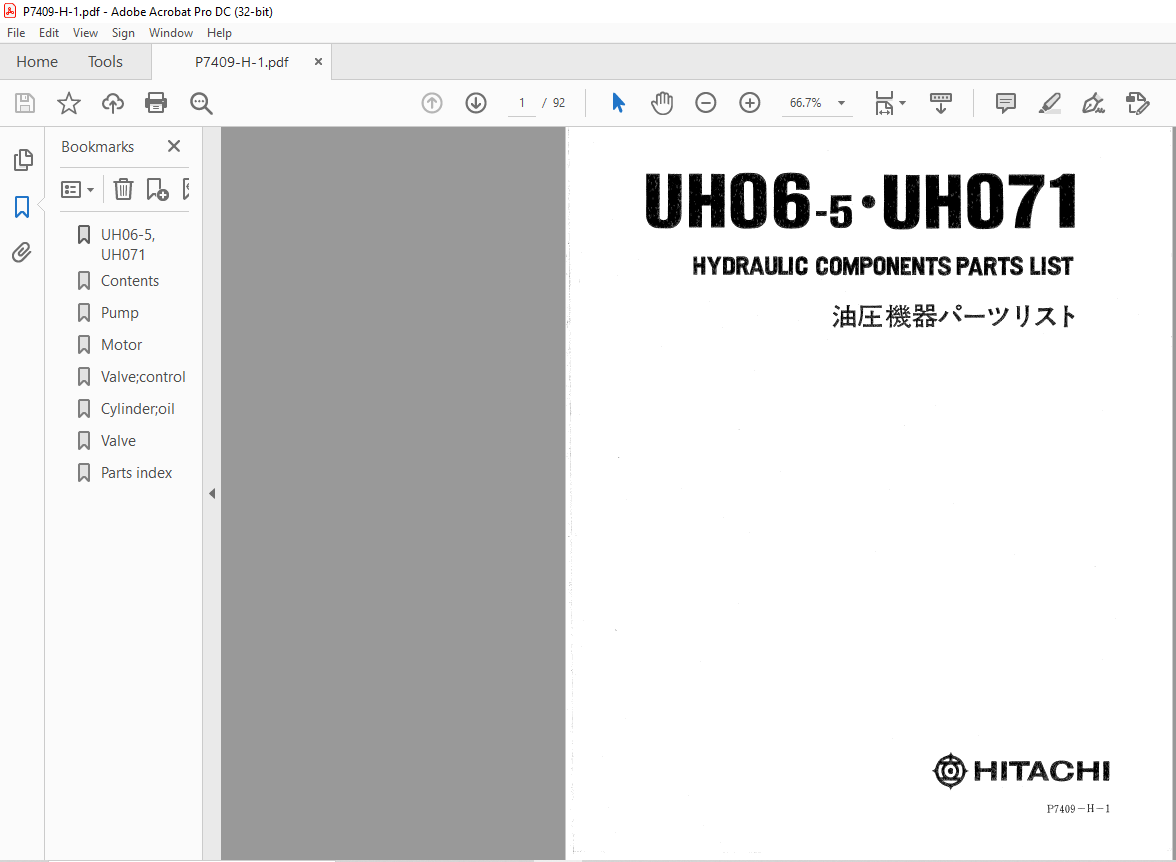

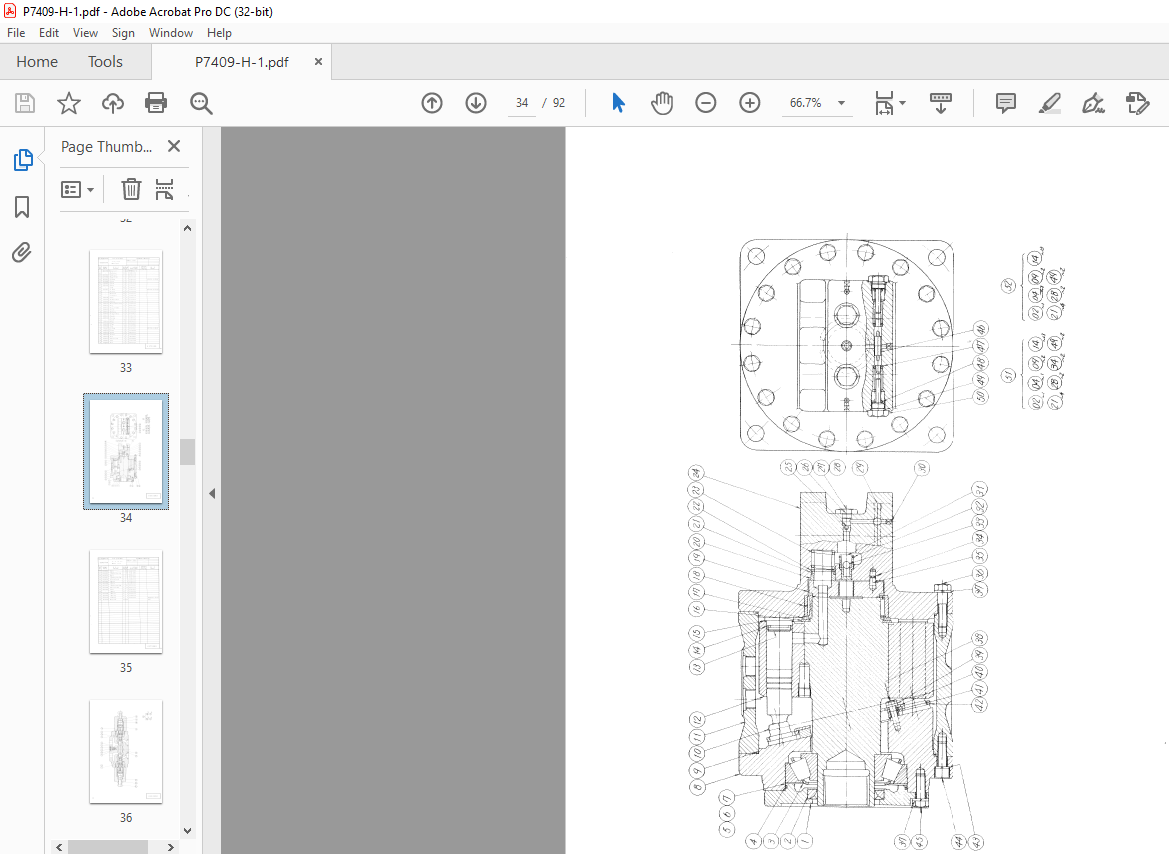

IMAGES PREVIEW OF THE MANUAL:
