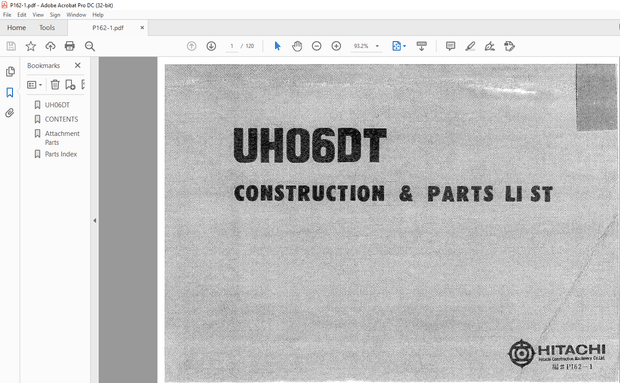

Hitachi UH06DT Construction & Parts List Manual P162-1 – PDF DOWNLOAD

Hitachi UH06DT Construction & Parts List Manual P162-1 – PDF DOWNLOAD

FILE DETAILS:

Hitachi UH06DT Construction & Parts List Manual P162-1 – PDF DOWNLOAD

Language : English
Pages :120
Downloadable : Yes
File Type : PDF
Size:8.86 MB

DESCRIPTION

Hitachi UH06DT Construction & Parts List Manual P162-1 – PDF DOWNLOAD

Instructions for Ordering  Parts and the Parts Number

• In this parts list, Drawning  of assembly are shown on even pages, and “Item” ”Parts No.” “Name of parts” and” ‘ of parts for l unit on odd.
• The relation of position:  on the machine body should be understood as follow; Where the driver’s seat is positioned is the left side, the right being on the opposite side, and where the boom is equipped is the front, in the Rear being installed the prime mover the drive tumbler, which is drawn under the side of engine room in the catalogue is also termed the Rear driving tumbler which ever position may take in actual operation.
• When ordering machine parts you are requested to mention clearly the name, the number, and the quantity of parts in demand together with the Type-Form of machine of machine for which the parts are in need the machine number.
• It is requested to use part which are supplied from the reliable source, and it is most advisable to use Hitachi genuine part. As for the engine parts, refer to the Parts List of PERKINSE 6-3541 Diesel Engine. Figures shown in remarks column indicate serial number of the machines this parts list is applied for.

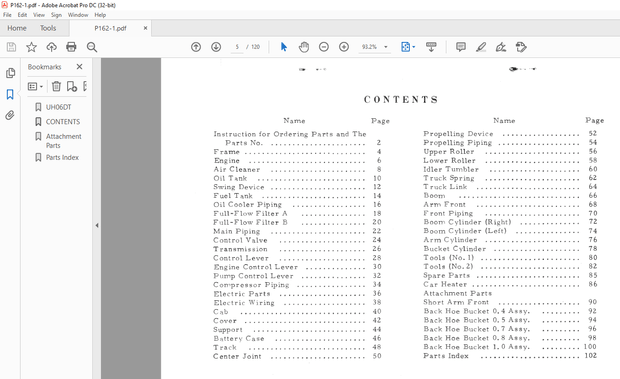

TABLE OF CONTENTS:

Hitachi UH06DT Construction & Parts List Manual P162-1 – PDF DOWNLOAD

Name
Instruction for Ordering Parts and The
Parts No
Fr a me
Engine
Air Cleaner
OilT::ink
Swing Device
Fuel Tank
Oil Cooler Piping
Full-Flow Filter A
Full-Flow Filter B
Main Piping
Control Valve
Transmission
Control Lever
Engine Control Lever
Pump Control Lever
Compressor Piping
Electric Parts
Electric Wiring
Cover
Support
B;:tteryCase
Track
Center Joint
Name
Propelling Device
Propelling Piping
Upper Roller
Lower Roller
Idler Tumbler
Truck Spring
Truck Link
Boom ·
Arm Front
Front Piping
Boom Cylinder (Right)
Boom Cylinder (Left)
Arm Cylinder
Bucket Cylinder
Tools (No 1)
Tools(No2)
Sp are Parts
Car Heater
Attachment Parts
Short Arn1 Front
Back Hoe Bucket 0 4 Assy ”
Back Hoe Bucket 0 5 Assy
Back Hoe Bucket O 7 Assy ‘
Back Hoe Bucket 0 8 Assy
Back Hoe Bucket 1 0 Assy
Parts Index

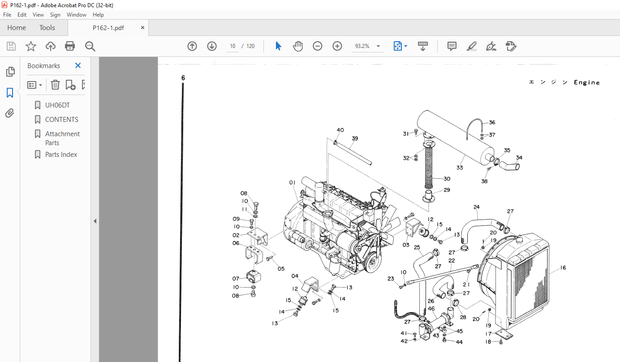

IMAGES PREVIEW OF THE MANUAL:
