Hyosung MS3 125 Parts Manual - PDF DOWNLOAD

Hyosung MS3 125 Parts Manual - PDF DOWNLOAD

FILE DETAILS:

Hyosung MS3 125 Parts Manual - PDF DOWNLOAD

Language :English
Pages :104
Downloadable : Yes
File Type : PDF

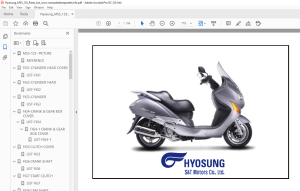

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Hyosung MS3 125 Parts Manual - PDF DOWNLOAD

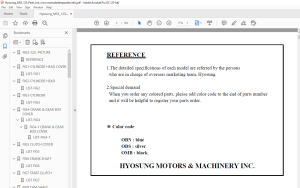

REFERENCE

1.The detailed specifications of each model are referred by the persons who are in charge of overseas marketing team, Hyosung. 2.Special demand When you order any colored parts, please add color code to the end of parts number and it will be helpful to register your parts order.

TABLE OF CONTENTS:

Hyosung MS3 125 Parts Manual - PDF DOWNLOAD

MS3-125 -PICTURE 1
REFERENCE 2
FIG1-CYLINDER HEAD COVER 4
LIST-FIG1 5
FIG2-CYLINDER HEAD 6
LIST-FIG2 7
FIG3-CYLINDER 8
LIST-FIG3 9
FIG4-CRANK & GEAR BOX COVER 10
LIST-FIG4 11
FIG4-1 CRANK & GEAR BOX COVER 12
LIST-FIG4-1 13
FIG5 CLUTCH COVER 14
LIST FIG5 15
FIG6 CRANK SHAFT 16
LIST FIG6 17
FIG7 START CLUTCH 18
LIST FIG7 19
FIG8 CAM SHAFT 20
LIST FIG8 21
FIG9 CAM CHAIN 22
LIST FIG9 23
FIG10 THROTTLE BODY 24
LIST FIG10 25
FIG11 AIR CLEANER 26
LIST FIG11 27
FIG12 MUFFLER 28
LIST FIG12 29
FIG13 CONNECTOR 30
LIST FIG13 31
FIG14 OIL PUMP 32
LIST-FIG14 33
FIG 15-RADIATOR 34
LIST-FIG15 35
FIG15-1 RADIATOR 36
LIST-FIG15-1 37
FIG16-TRANS MISSION 38
LIST-FIG16 39
FIG17-DRIVEN PULLEY 40
LIST FIG17 41
FIG18-START MOTOR 42
LIST- FIG18 43
FIG19-MAGNETO 44
LIST-FIG19 45
FIG20-IGNITION COIL 46
LIST FIG20 47
FIG21 SPEED METER 48
LIST FIG21 49
FIG22 HEAD LAMP 50
LIST FIG22 51
FIG23 BATTERY 52
LIST FIG23 53
FIG24 REAR COMBI LAMP 54
LIST FIG24 55
FIG25 WIRING HARNESS 56
LIST FIG25 57
FIG26 FRAME 58
LIST FIG26 59
FIG26-1 FRAME 60
LIST FIG 26-1 61
FIG27 CENTER STAND 62
LIST-FIG27 63
FIG28 FUEL TANK 64
LIST FIG28 65
FIG29 SEAT 66
LIST FIG29 67
FIG29-1 SEAT 68
LIST FIG29-1 69
FIG30-REAR FENDER 70
LIST FIG30 71
FIG31 SIDE COVER 72
LIST FIG31 73
FIG32 LEG SHIELD FRONT 74
LIST FIG32 75
FIG33 LEG SHIELD REAR 76
LIST FIG33 77
FIG34 FRONT FORK 78
LIST FIG34 79
FIG35 LEG SHIELD COVER 80
LIST FIG35 81
FIG36 FRONT WHEEL 82
LIST FIG36 83
FIG37 HANDLE BAR 84
LIST FIG37 85
FIG38 HANDLE COVER 86
LIST FIG38 87
FIG39 HANDLE SWITCH 88
LIST FIG39 89
FIG40 CALIPER-FT-LH 90
LIST FIG40 91
FIG40-1 CALIPER-FT-RH 92
LIST FIG40-1 93
FIG41-FRONT MASTER CYLINDER 94
LIST-FIG41 95
FIG41-1 REAR MASTER CYLINDER 96
LIST FIG41-1 97
FIG42 REAR SHOCK ABSORBER 98
LIST FIG42 99
FIG43 REAR WHEEL 100
LIST FIG43 101
FIG44 REAR CALIPER 102
LIST FIG44 103
LABEL FOR MS3-125 104
