Hyundai Forklift 20/25/30/33DF-7 Service Manual 2023 – PDF DOWNLOAD
Hyundai Forklift 20/25/30/33DF-7 Service Manual 2023 – PDF DOWNLOAD
FILE DETAILS:
Hyundai Forklift 20/25/30/33DF-7 Service Manual 2023 – PDF DOWNLOAD
Language : English
Pages : 244
Downloadable : Yes
File Type : PDF

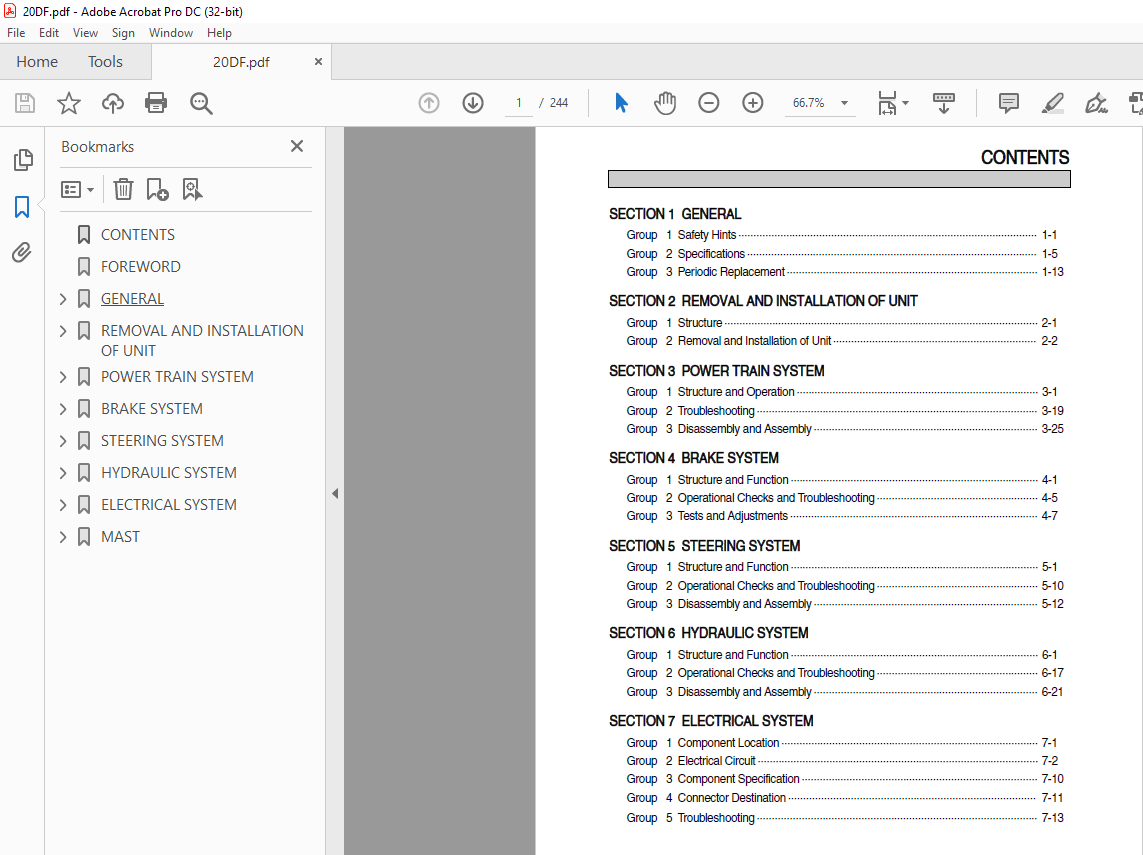

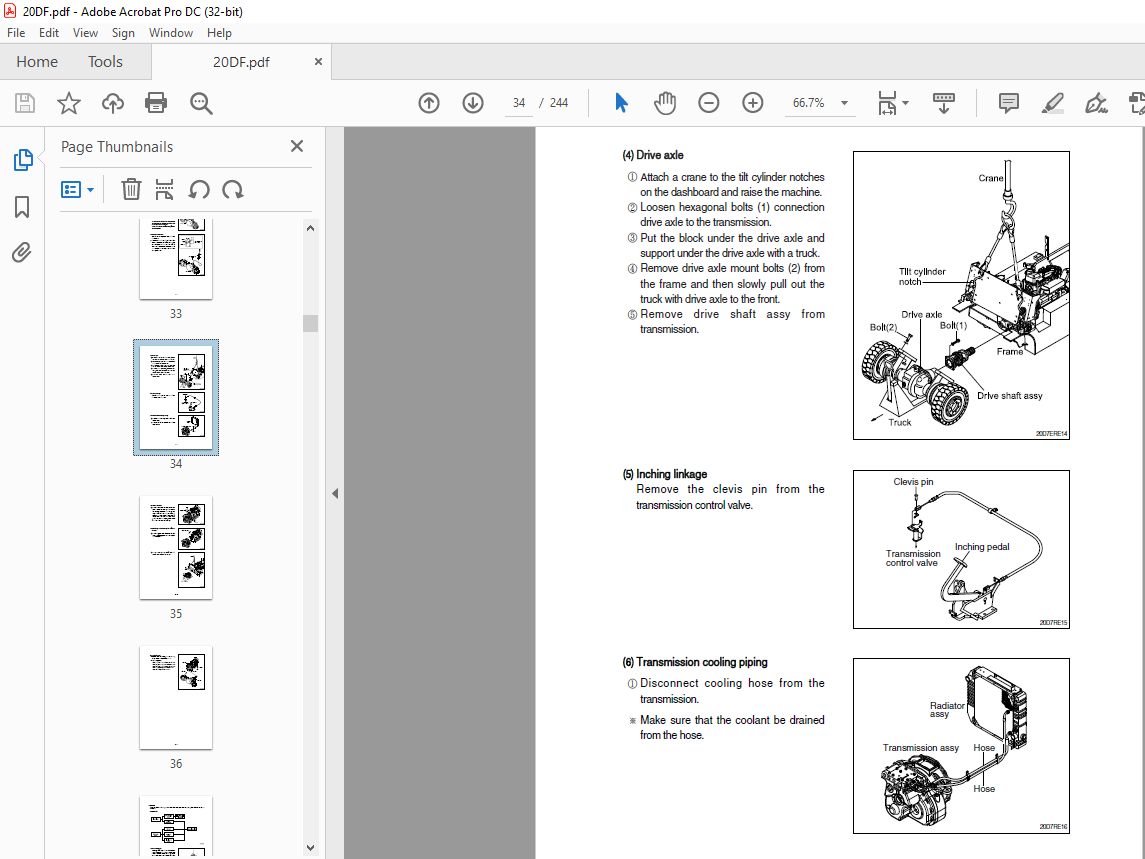

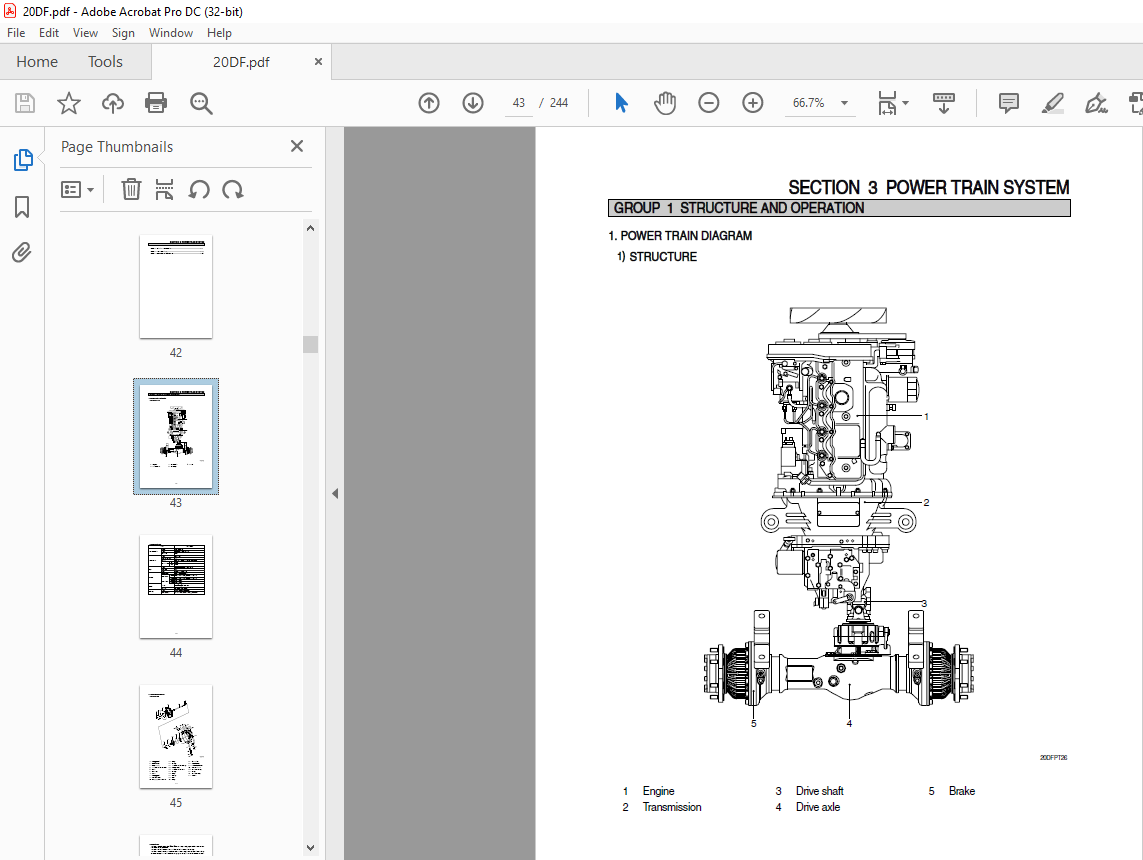

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Hyundai Forklift 20/25/30/33DF-7 Service Manual 2023 – PDF DOWNLOAD This service manual has been prepared as an aid to improve the quality of repairs by giving the serviceman an accurate understanding of the product and by showing him the correct way to perform repairs and make judgments. Make sure you understand the contents of this manual and use it to full effect at every opportunity. This service manual mainly contains the necessary technical information for operations performed in a service workshop. For ease of understanding, the manual is divided into the following sections: **SECTION 1: GENERAL**This section gives general information about the machine and explains safety hints for maintenance. **SECTION 2: REMOVAL & INSTALLATION OF UNIT**
This section explains the procedures and techniques of removing and installing each component. **SECTION 3: POWER TRAIN SYSTEM**
This section explains the structure of the transmission as well as control valve and drive axle. **SECTION 4: BRAKE SYSTEM**
This section explains the brake piping, each component, and operation. **SECTION 5: STEERING SYSTEM**
This section explains the structure of the steering unit, priority valve, trail axle, as well as steering circuit and operation. **SECTION 6: HYDRAULIC SYSTEM**
This section explains the structure of the gear pump, main control valve, as well as work equipment circuit, each component, and operation. **SECTION 7: ELECTRICAL SYSTEM**
This section explains the electrical circuit and each component. It serves not only to give an understanding of the electrical system but also serves as reference material for troubleshooting. **SECTION 8: MAST**
This section explains the structure of the mast, carriage, backrest, and forks.
TABLE OF CONTENTS:
Hyundai Forklift 20/25/30/33DF-7 Service Manual 2023 – PDF DOWNLOAD
CONTENTS......................................... 1 FOREWORD......................................... 3 GENERAL.......................................... 11 1. SAFETY HINTS.............................. 12 2. SPECIFICATIONS............................ 16 3. PERIODIC REPLACEMENT...................... 24 REMOVAL AND INSTALLATION OF UNIT................. 25 1. STRUCTURE................................. 26 2. REMOVAL AND INSTALLATION OF UNIT.......... 27 POWER TRAIN SYSTEM............................... 42 1. STRUCTURE AND OPERATION................... 43 2. TROUBLESHOOTING........................... 61 3. DISASSEMBLY AND ASSEMBLY.................. 67 BRAKE SYSTEM.....................................126 1. STRUCTURE AND FUNCTION....................127 2. OPERATIONAL CHECKS AND TROUBLESHOOTING....131 3. TESTS AND ADJUSTMENTS.....................133 STEERING SYSTEM..................................135 1. STRUCTURE AND FUNCTION....................136 2. OPERATIONAL CHECKS AND TROUBLESHOOTING....145 3. DISASSEMBLY AND ASSEMBLY..................147 HYDRAULIC SYSTEM.................................172 1. STRUCTURE AND FUNCTION....................173 2. OPERATIONAL CHECKS AND TROUBLESHOOTING....189 3. DISASSEMBLY AND ASSEMBLY..................193 ELECTRICAL SYSTEM................................209 1. COMPONENT LOCATION........................210 2. ELECTRICAL CIRCUIT........................218 3. COMPONENT SPECIFICATION...................219 4. CONNECTOR DESTINATION.....................220 5. TROUBLESHOOTING...........................222 MAST.............................................223 1. STRUCTURE.................................224 2. OPERATIONAL CHECKS AND TROUBLESHOOTING....228 3. ADJUSTMENT................................231 4. REMOVAL AND INSTALLATION..................234
