Hyundai Forklift Trucks 35DS-7E Service Manual - PDF DOWNLOAD

Hyundai Forklift Trucks 35DS-7E Service Manual - PDF DOWNLOAD

FILE DETAILS:

Hyundai Forklift Trucks 35DS-7E Service Manual - PDF DOWNLOAD

Language : English
Pages : 213
Downloadable : Yes
File Type : PDF

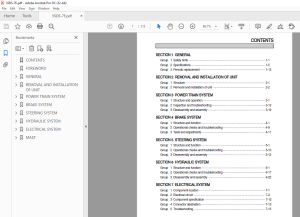

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Hyundai Forklift Trucks 35DS-7E Service Manual - PDF DOWNLOAD

SECTION 1 GENERAL
Group 1 Safety hints 11
Group 2 Specifications 15
Group 3 Periodic replacement 113
SECTION 2 REMOVAL AND INSTALLATION OF UNIT
Group 1 Structure21
Group 2 Removal and installation of unit22
SECTION 3 POWER TRAIN SYSTEM
Group 1 Structure and operation 31
Group 2 Inspection and troubleshooting 313
Group 3 Disassembly and assembly 319
SECTION 4 BRAKE SYSTEM
Group 1 Structure and function 41
Group 2 Operational checks and troubleshooting 49
Group 3 Tests and adjustments411
SECTION 5 STEERING SYSTEM
Group 1 Structure and function 51
Group 2 Operational checks and troubleshooting 510
Group 3 Disassembly and assembly 512
SECTION 6 HYDRAULIC SYSTEM
Group 1 Structure and function61
Group 2 Operational checks and troubleshooting 617
Group 3 Disassembly and assembly 622
SECTION 7 ELECTRICAL SYSTEM
Group 1 Component location 71
Group 2 Electrical circuit 72
Group 3 Component specification 712
Group 4 Connector destination 713
Group 5 Troubleshooting 715
SECTION 8 MAST
Group 1 Structure81
Group 2 Operational checks and troubleshooting 85
Group 3 Adjustment88
Group 4 Removal and installation811

DESCRIPTION:

Hyundai Forklift Trucks 35DS-7E Service Manual - PDF DOWNLOAD

FOREWORD:

STRUCTURE:

• This service manual has been prepared as an aid to improve the quality of repairs by giving the serviceman an accurate understanding of the product and by showing him the correct way to perform repairs and make judgements.
• Make sure you understand the contents of this manual and use it to full effect at every opportunity.
• This service manual mainly contains the necessary technical information for operations performed in a service workshop.

For ease of understanding, the manual is divided into the following sections.

SECTION 1 GENERAL:

• This section gives the general information of the machine and explains the safety hints for maintenance.

SECTION 2 REMOVAL & INSTALLATION OF UNIT:

• This section explains the procedures and techniques of removal and installation of each component.

SECTION 3 POWER TRAIN SYSTEM:

• This section explains the structure of the transmission as well as control valve and drive axle.

SECTION 4 BRAKE SYSTEM:

• This section explains the brake piping, each component and operation.

SECTION 5 STEERING SYSTEM:

• This section explains the structure of the steering unit, priority valve, trail axle as well as steering circuit and operation.

SECTION 6 HYDRAULIC SYSTEM:

• This section explains the structure of the gear pump, main control valve as well as work equipment circuit, each component and operation.

SECTION 7 ELECTRICAL SYSTEM:

• This section explains the electrical circuit and each component. It serves not only to give an understanding electrical system, but also serves as reference material for troubleshooting.

SECTION 8 MAST:

• This section explains the structure of mast, carriage, backrest and forks.
• The specifications contained in this service manual are subject to change at any time and without any advance notice.
• Contact your HYUNDAI distributor for the latest information.

G.B 03/03/25
