Hyundai R60CR-9A Compact Excavator Service Manual 2023 - PDF
Hyundai R60CR-9A Compact Excavator Service Manual 2023 – PDF DOWNLOAD
The Hyundai R60CR-9A Compact Excavator Service Manual 2023 in PDF format provides detailed instructions for maintenance and repairs. With comprehensive procedures, diagrams, and specifications, it ensures efficient servicing. Download for expert guidance in optimizing your compact excavator’s performance.
FILE DETAILS:
Hyundai R60CR-9A Compact Excavator Service Manual 2023 – PDF DOWNLOAD
Language : English
Pages : 537
Downloadable : Yes
File Type : PDF

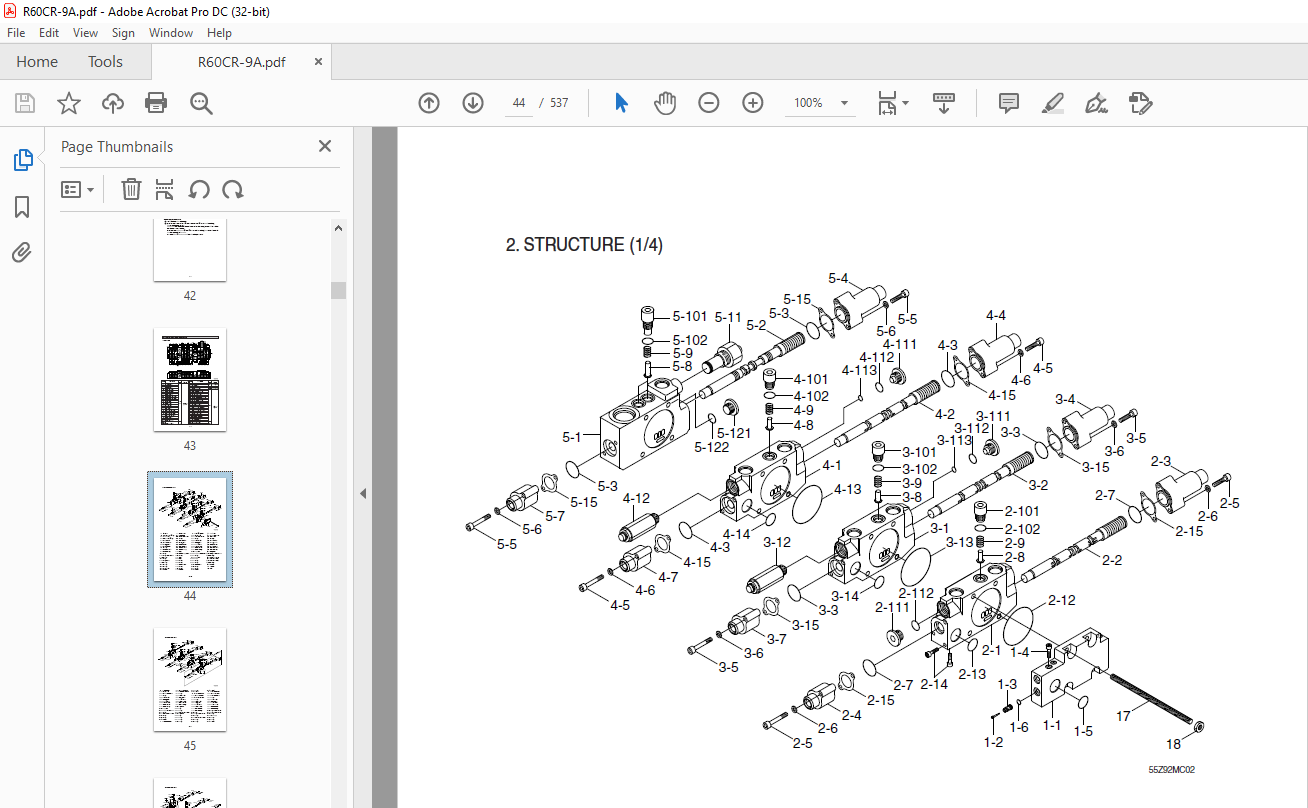

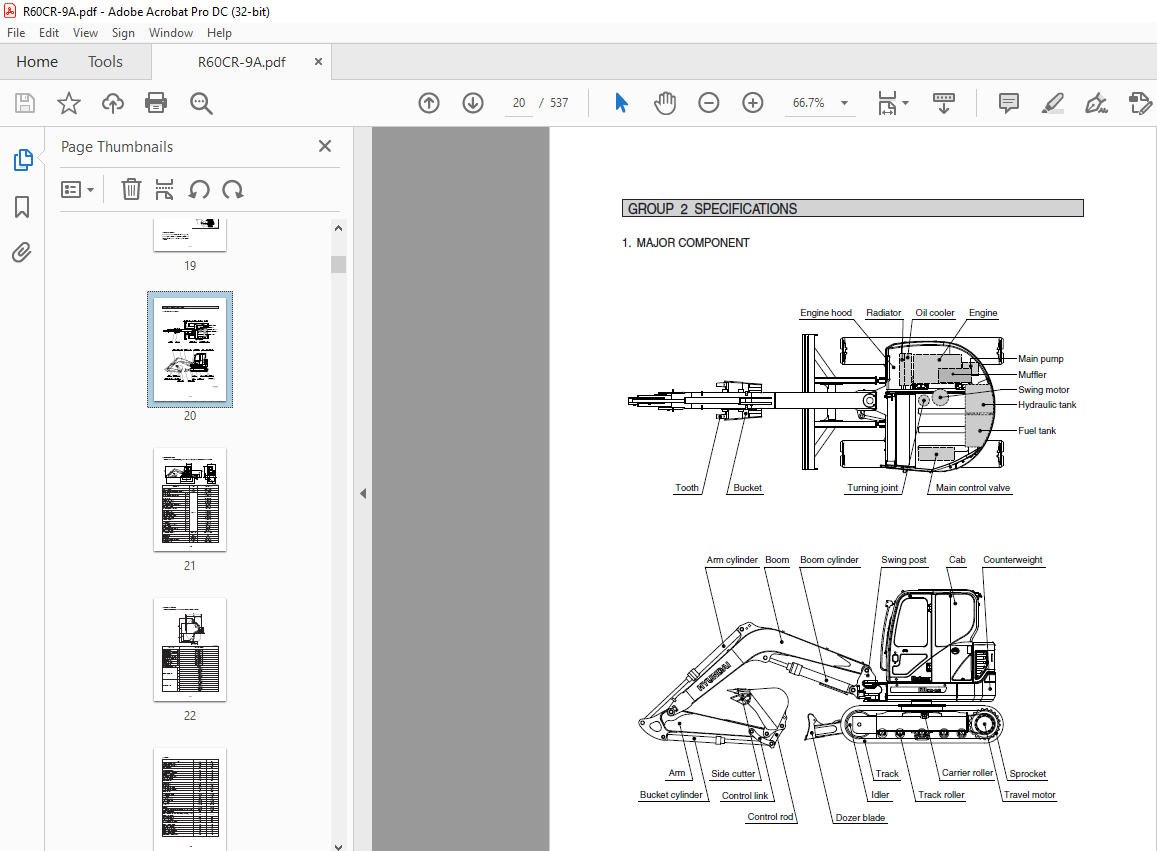

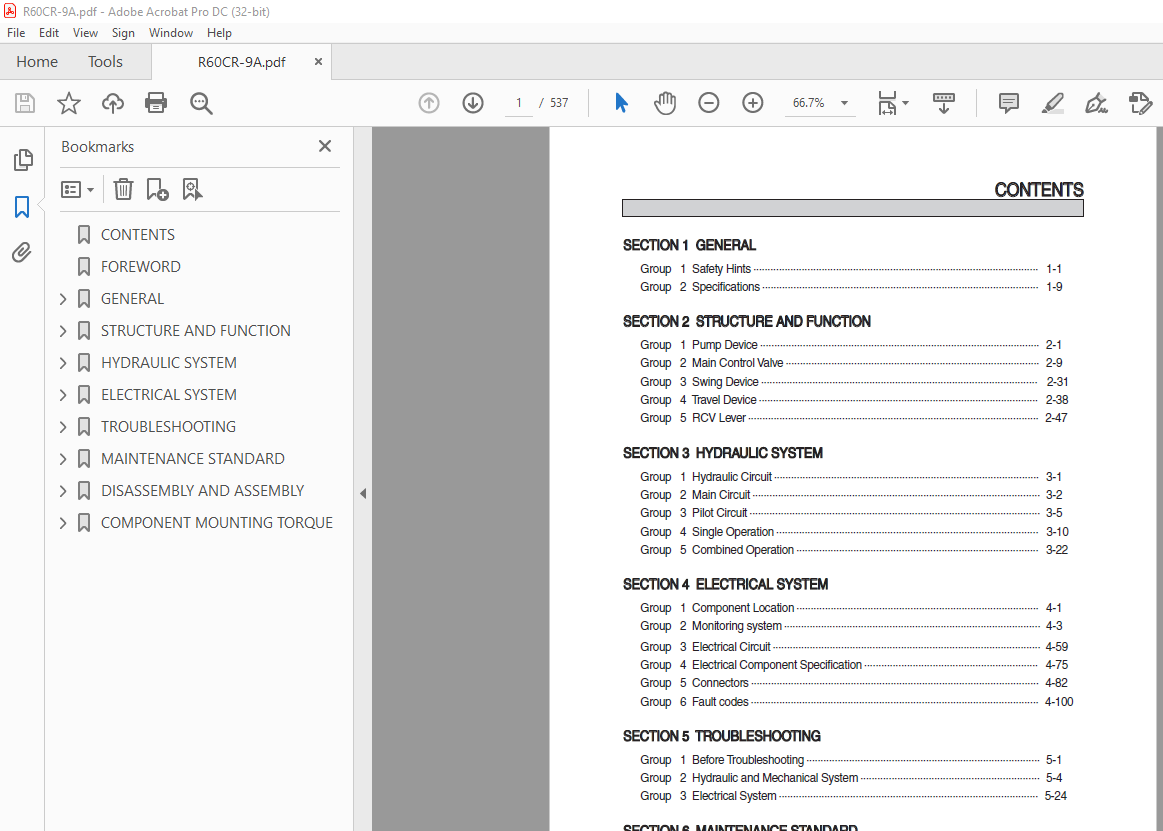

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Hyundai R60CR-9A Compact Excavator Service Manual 2023 – PDF DOWNLOAD
FOREWORD GENERAL 1. Safety hints 2. Specifications STRUCTURE AND FUNCTION 1. Pump device 2. Main control valve 3. Swing device 4. Travel motor 5. RCV Lever HYDRAULIC SYSTEM 1. Hydraulic circuit 2. Main circuit 3. Pilot circuit 4. Single operation 5. Combined operation ELECTRICAL SYSTEM 1. Component location 2. Monitoring system 3. Electric circuit 4. Electrical component specification 5. Connectors 6. Fault codes TROUBLESHOOTING 1. Before troubleshooting |
2. Hydraulic and mechanical system 3. Electrical system MAINTENANCE STANDARD 1. Operational performance test 2. Major component 3. Track and work equipment DISASSEMBLY AND ASSEMBLY 1. Precaution 2. Tightening torque 3. Pump device 4. Main control valve 5. Swing device 6. Travel device 7. RCV Lever 8. Turning joint 9. Boom, arm and bucket cylinders 10. Undercarriage 11. Work equipment COMPONENT MOUNTING TORQUE 1. Introduction guide 2. Engine system 3. Electric system 4. Hydraulic system 5. Undercarriage 6. Structure 7. Work equipment |
DESCRIPTION:
Hyundai R60CR-9A Compact Excavator Service Manual 2023 – PDF DOWNLOAD
FOREWORD
1. STRUCTURE
This service manual has been prepared as an aid to improve the quality of repairs by giving the
serviceman an accurate understanding of the product and by showing him the correct way to
perform repairs and make judgements. Make sure you understand the contents of this manual and
use it to full effect at every opportunity.
This service manual mainly contains the necessary technical information for operations performed in
a service workshop.
For ease of understanding, the manual is divided into the following sections.
SECTION 1 GENERAL
This section explains the safety hints and gives the specification of the machine and major
components.
SECTION 2 STRUCTURE AND FUNCTION
This section explains the structure and function of each component. It serves not only to give an
understanding of the structure, but also serves as reference material for troubleshooting.
SECTION 3 HYDRAULIC SYSTEM
This section explains the hydraulic circuit, single and combined operation.
SECTION 4 ELECTRICAL SYSTEM
This section explains the electrical circuit, monitoring system and each component. It serves not
only to give an understanding electrical system, but also serves as reference material for trouble
shooting.
SECTION 5 TROUBLESHOOTING
This section explains the troubleshooting charts correlating problems to causes.
SECTION 6 MAINTENANCE STANDARD
This section gives the judgement standards when inspecting disassembled parts.
SECTION 7 DISASSEMBLY AND ASSEMBLY
This section explains the order to be followed when removing, installing, disassembling or
assembling each component, as well as precautions to be taken for these operations.
SECTION 8 COMPONENT MOUNTING TORQUE
This section shows bolt specifications and standard torque values needed when mounting
components to the machine.
The specifications contained in this shop manual are subject to change at any time and without any
advance notice. Contact your HYUNDAI distributor for the latest information.
