Isuzu 1998-1999 Trooper Electrical Troubleshooting Wiring Diagram Manual - PDF DOWNLOAD

Isuzu 1998-1999 Trooper Electrical Troubleshooting Wiring Diagram Manual - PDF DOWNLOAD

FILE DETAILS:

Isuzu 1998-1999 Trooper Electrical Troubleshooting Wiring Diagram Manual - PDF DOWNLOAD

Language : English
Pages : 397
Downloadable : Yes
File Type : PDF

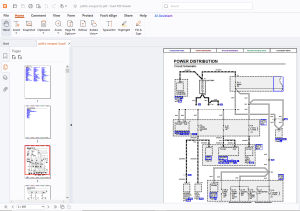

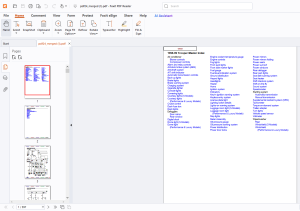

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Isuzu 1998-1999 Trooper Electrical Troubleshooting Wiring Diagram Manual - PDF DOWNLOAD

Air conditioner
Blower controls
Compressor controls
Alarm and relay controls
Anti-lock brake system (ABS)
Anti-theft system
A/T shift indicator
Automatic transmission controls
Back-up lights
Brake lights
Brake warning system
Charging system
Cigarette lighter
Console lights
Cornering lights
Courtesy lights (S-Models)
Courtesy lights
(Performance & Luxury Models)
Cruise control
Dash fuse box
Dash lights
Defoggers
Door mirror
Rear window
Digital clock
Dome light (S-Models)
Dome light
(Performance & Luxury Models)
Engine coolant temperature gauge
Engine controls
Fog lights
Front park lights
Front side marker lights
Fuel gauge
Fuel level indication system
Ground distribution
Hazard lights
Headlights
Heater
Horns
Ignition system
Indicators
Key-in ignition warning system
Keyless entry system
License plate light
Lighting switch details
Lights-on warning system
Luggage room light (S-Models)
Luggage room light
(Performance & Luxury Models)
Map lights
Meter Assembly
Oil pressure gauge
Oil pressure warning system
Power distribution
Power door locks
Power mirrors
Power mirrors folding
Power seats
Power sunroof
Power windows
Rear defogger
Rear park lights
Seat belt warning system
Seat heater
Shift interlock system
Shift-on-the-fly
Sound system
Speedometer
Starting system
Automatic transmission
Manual transmission
Supplemental restraint system (SRS)
Tachometer
Torque-on-demand system
Trailer adapter
Turn lights
Vehicle speed sensor
Voltmeter
Wiper/washer
Rear
Windshield (S-Models)
Windshield
(Performance & Luxury Models)
POWER DISTRIBUTION
Component Index
Anti-theft Horn
Dash Fuse Box
ECM or PCM Main Relay
Electronic Brake Control Module (EBCM)
Engine or Powertrain Control Module (ECM or PCM)
Fog Light Relay
Fuel Pump Relay
Fuse/Relay Box
Generator
Heater and A/C Relay
Horn Relay
Lighting Relay
SRS Fuse Box
Starter
Starter Relay
Starter Switch
Taillight Relay
