John Deere 332E Skid Steer Loader Parts Catalog Manual (PC11187)

File Details:

John Deere 332E Skid Steer Loader Parts Catalog Manual (PC11187)

Manual Language:English
Pages: 852
Size: 229 MB
Downloadable:Yes
Printable:Yes

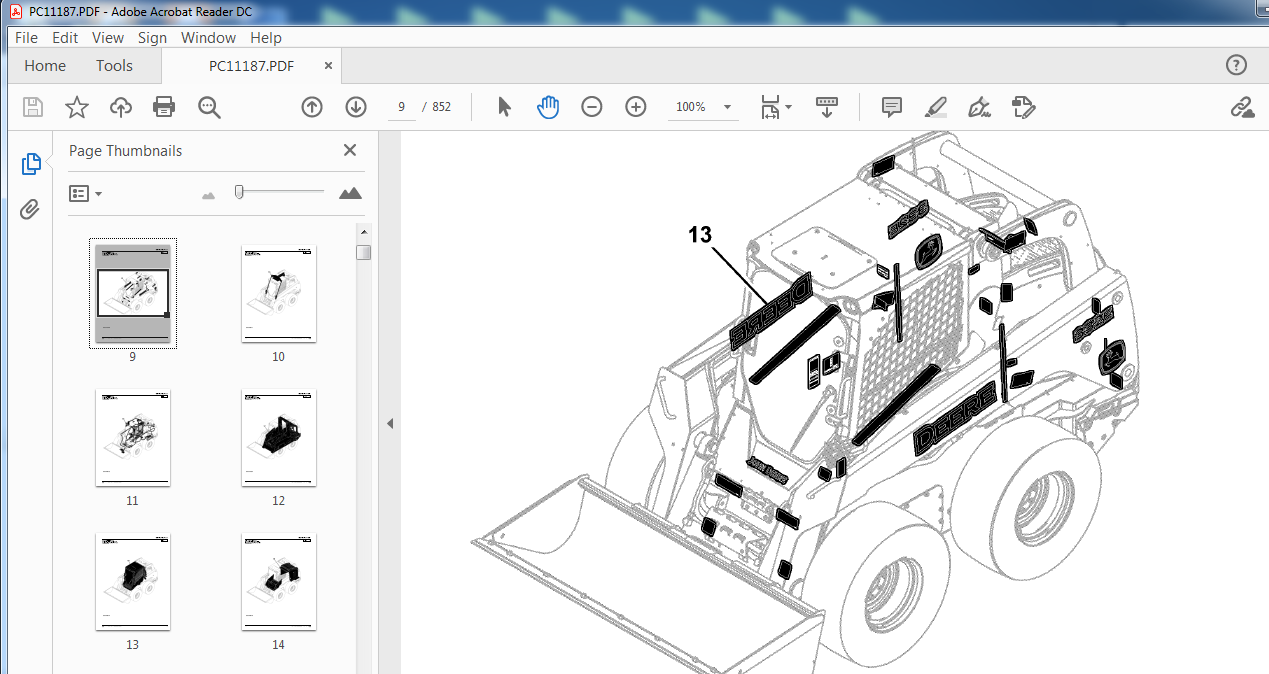

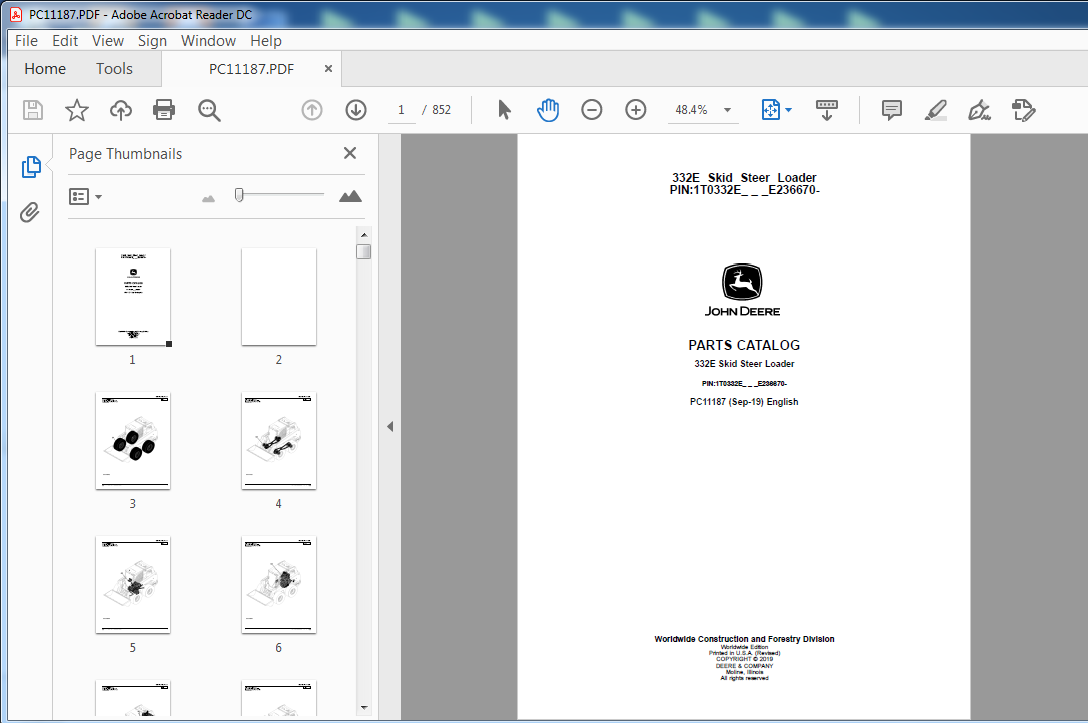

Image Preview:

Description:

John Deere 332E Skid Steer Loader Parts Catalog Manual (PC11187)

To The Customer
The part numbers in this Parts Catalog were correct at the time of publication. Per John Deere policy, we continuously improve our products. Therefore, when ordering parts verify the part numbers with your dealer.
SI Units of Measure
Metric dimensions are provided as applicable throughout this parts catalog.
Bolt and Cap Screw Strength Identification
Bolts and cap screws required to have high-strength qualities equivalent to metric property class 10.9 (SAE grade 8) or higher are identified throughout this catalog by the description 10.9, 12.9 or 14.9. All standard bolts and cap screws are metric property class 8.8 (SAE grade 5) or lower.
Serial Number Listing Information
Serial number information is listed to show on which machines each part can be used; for example:
– The part can be used on all products.
000000 – The part can be used on products beginning with the serial number listed.
– 000000 The part can be used on products up to and including the serial number listed.
000000 – 000000 The part can be used on products between and including the serial number listed.
When XXXXXX’s are listed in place of a serial number, a serial number change was made, but the exact serial number was not available at the time of publication.
Direction Arrow
Arrows are used with illustrations to indicate the front of the unit. “Right-Hand” and “Left-Hand” sides are determined by facing in direction of machine forward travel.
Box-Enclosed Illustrations
Box-enclosed keyed parts in the illustration are available as a service assembly or an attachment. These parts may also include parts not available for service. The illustrations may not show all individual parts of an attachment. A box not keyed includes non-current parts.
Complete Goods Listings
Complete Goods are listed in bold face type. Order separately. Do not include on replacement part order.
Orientation of Engine
Right Hand (RH) and Left Hand (LH) sides are determined by standing at flywheel and facing the engine.
John Deere Remanufactured Components
The REMAN parts listed in this catalog are intended for the repair or replacement of failed or worn original equipment components. John Deere Reman components are manufactured to stringent John Deere standards and produced to original John Deere specifications that incorporates the latest design and performance improvement updates

01 Wheels & Tires & Tracks
0111 Powered Wheels, Rim 71
02 Axles, Differentials & Suspension Systems
0201 Drive Axle Hsg & Support (Inc Final Drives) 81
03 Transmission
0315 Controls 87
0325 Input Drive Shafts & U-joints 105
0361 Trans Oil Pump & Drive 109
0362 Trans Control Valve 133
0363 Trans Oil Lines 151
0364 Transmission Filter, Cooler & Auxiliary Reservoir 165
0367 Hydraulic Motor-pump Comb 171
04 Engine AT374436
0404 Cylinder Block 183
05 Engine Auxiliary System
0505 Cold Weather Starting Aids 237
0510 Engine Cooling Systems 247
0512 Fan 257
0515 Engine Speed Controls 261
0521 Air Cleaner and Piping 271
0522 Air Pre-cleaner 275
0531 Muffler and Exhaust Pipe 281
0534 Exhaust Aftertreatment 287
0540 Engine Mounting 291
0560 External Fuel Supply Systems 303
0578 Sensors 311
10 Service Brakes
1063 Service Brake Links, Hoses & Fittings 317
13 Miscellaneous Vehicle
1322 Labels & Trademarks 325
1332 Export Shipping 335
15 Equipment Attaching
1512 Towbar 341
16 Vehicle Electrical Systems
1671 Batteries, Support, and Cables 347
1672 Alternator, Regulator, And Charging System Wiring 351
1673 Vehicle Lighting System 355
1674 Wiring Harnesses And Switches 361
1675 System Controls 385
1676 Instruments And Indicators 395
1677 Motors And Actuators 413
1679 Software 419
17 Frame Chassis Or Supporting Structure
1741 Engine Or Main Frame 425
1742 Equipment Or Secondary Frame 435
1749 Chassis Weights 441
18 Operator’s Station
1807 Special Noise Control Items 453
1811 ROPS, FOPS, OPS, Or Body Frame 467
1813 Body Sides, Doors, Shields And Glazing 489
1814 Windshield and Wipers 531
1821 Seat And Seat Belts 539
1830 Heating and Air Conditioning 571
1831 Heater, Hoses, and Controls 577
1832 Air Conditioning System Compressor and Drive 587
1833 Condenser, Evaporator & Lines 593
19 Sheet Metal and Styling
1910 Hood Or Engine Enclosure 603
20 Safety, Convenience, and Miscellaneous
2001 Radio 621
2002 Mirror 627
2004 Warning Devices Including Horn and Reverse Alarm 631
2008 Reflectors and SMV Sign 647
2010 Miscellaneous 651
2013 Anti-Theft 655
21 Vehicle Main Hydraulic System
2121 Hydraulic Pumps And Drives 660
2162 Hydraulic Selective Control and Load Holding Valves 665
2163 Hydraulic Lines and Hoses 673
2164 Hydraulic Reservoir, Filter and Cooler 719
2167 Hydraulic Motors 727
31 Loader
3102 Bucket (Including Teeth) 745
3104 Attachment Coupler 765
3115 Controls Linkage 773
3143 Moveable Frame 777
3162 Control and Load Holding Valves 781
3163 Lines, Hoses, and Fittings 795
3165 Hydraulic Cylinders 821
