John Deere 332G Skid Steer Loader Parts Catalog Manual PDF DOWNLOAD

John Deere 332G Skid Steer Loader Parts Catalog Manual (PC15046)

File Details:

John Deere 332G Skid Steer Loader Parts Catalog Manual (PC15046)

• Manual Language:English
• Pages: 540
• Size: 157 MB
• Downloadable:Yes
• Printable:Yes

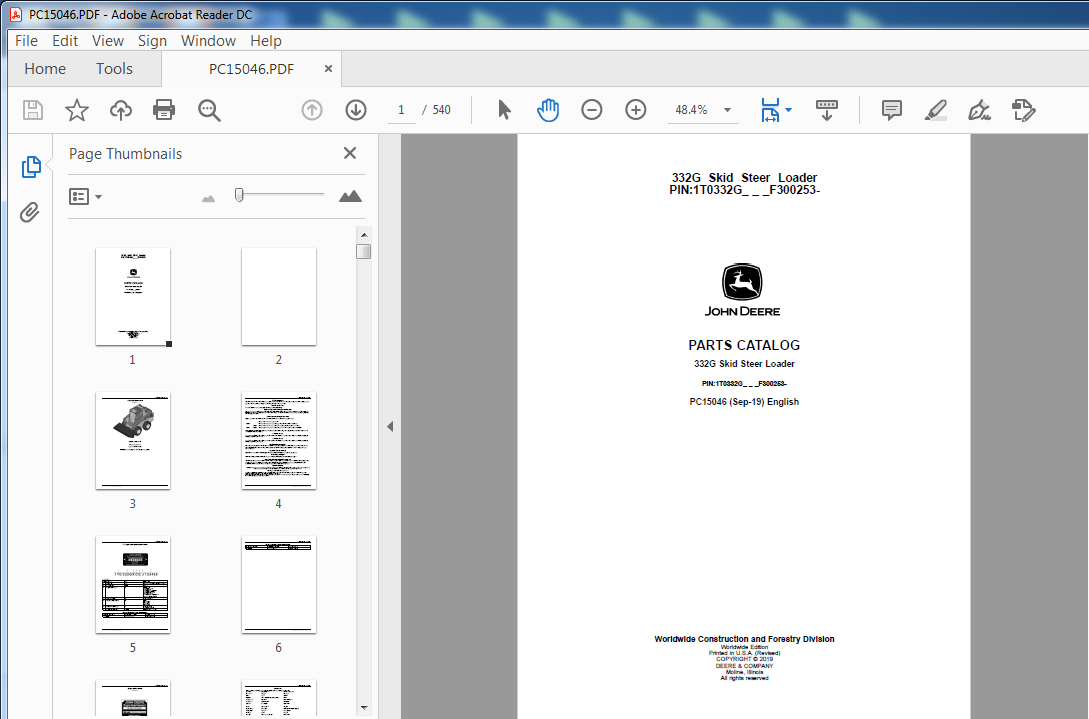

Image Preview:

Description:

John Deere 332G Skid Steer Loader Parts Catalog Manual (PC15046)

To The Customer
The part numbers in this Parts Catalog were correct at the time of publication. Per John Deere policy, we continuously improve our products. Therefore, when ordering parts verify the part numbers with your dealer.
SI Units of Measure
Metric dimensions are provided as applicable throughout this parts catalog.
Bolt and Cap Screw Strength Identification
Bolts and cap screws required to have high-strength qualities equivalent to metric property class 10.9 (SAE grade 8) or higher are identified throughout this catalog by the description 10.9, 12.9 or 14.9. All standard bolts and cap screws are metric property class 8.8 (SAE grade 5) or lower.
Serial Number Listing Information
Serial number information is listed to show on which machines each part can be used; for example:
– The part can be used on all products.
000000 – The part can be used on products beginning with the serial number listed.
– 000000 The part can be used on products up to and including the serial number listed.
000000 – 000000 The part can be used on products between and including the serial number listed.
When XXXXXX’s are listed in place of a serial number, a serial number change was made, but the exact serial number was not available at the time of publication.
Direction Arrow
Arrows are used with illustrations to indicate the front of the unit. “Right-Hand” and “Left-Hand” sides are determined by facing in direction of machine forward travel.
Direction Arrow
Arrows are used with illustrations to indicate the front of the unit. “Right-Hand” and “Left-Hand” sides are determined by facing in direction of machine forward travel.
Box-Enclosed Illustrations
Box-enclosed keyed parts in the illustration are available as a service assembly or an attachment. These parts may also include parts not available for service. The illustrations may not show all individual parts of an attachment. A box not keyed includes non-current parts.
Complete Goods Listings
Complete Goods are listed in bold face type. Order separately. Do not include on replacement part order.
Orientation of Engine
Right Hand (RH) and Left Hand (LH) sides are determined by standing at flywheel and facing the engine.
John Deere Remanufactured Components
The REMAN parts listed in this catalog are intended for the repair or replacement of failed or worn original equipment components. John Deere Reman components are manufactured to stringent John Deere standards and produced to original John Deere specifications that incorporates the latest design and performance improvement updates. Manual Identifier
IMPORTANT: Use only supporting manuals designated for your specific machine. If an incorrect manual is chosen, improper parts selection may occur. Verify product identification number (PIN) when choosing the correct manual.
Choosing the Correct Supporting Manuals
John Deere equipment is available in different machine configurations based on the various markets into which they are sold. Different supporting manuals exist for different machine configurations. When necessary, product identification numbers are listed on the front covers of the manuals. These numbers are used to identify the correct supporting manual for your machine.

Table Of Contents:

John Deere 332G Skid Steer Loader Parts Catalog Manual (PC1504601 Wheels & Tires & Tracks
0110 Powered Wheels, Tires & Fastenings 40
0111 Powered Wheels, Rim 42
02 Axles, Differentials & Suspension Systems
0201 Drive Axle HSG & Support (Including Final Drives) 56
03 Transmission
0315 Controls 58
0325 Input Drive Shafts & U-joints 62
0361 Transmission Oil Pump and Drive 64
0362 Transmission Control Valve 74
0363 Transmission Oil Lines 76
0364 Transmission Filter, Cooler & Auxiliary Reservoir 78
0367 Hydraulic Motor-Pump Combination 82
04 Engine AT436698
0407 Engine Oiling System 86
0429 Fan Drive – Damper, Idler, Pulleys, & Belt 88
0432 Finish Assembly, Engine 94
05 Engine Auxiliary System
0505 Cold Weather Starting Aids 140
0510 Engine Cooling Systems 144
0512 Fan 148
0515 Engine Speed Controls 150
0521 Air Cleaner & Piping 152
0522 Air Pre-cleaner 154
0530 External Exhaust System 158
0531 Muffler & Exhaust Pipe 160
0534 Exhaust Aftertreatment 162
0540 Engine Mounting 168
0563 Fuel Lines & Fittings 172
0564 Fuel Tank 182
10 Service Brakes
1063 Service Brake Links, Hoses & Fittings 184
13 Miscellaneous Vehicle
1322 Labels & Trademarks 186
1390 Vehicle Test 192
15 Equipment Attaching
1512 Towbar 194
16 Vehicle Electrical Systems
1671 Batteries, Support & Cables 196
1672 Alternator, Regulator & Charging System Wiring 198
1673 Vehicle Lighting System 200
1674 Wiring Harness & Switches (If Not Included Elsewhere) 210
1675 System Controls 242
1679 Software 252
17 Frame Chassis or Supporting Structure
1741 Engine or Main Frame 254
1749 Chassis Weights 258
18 Operator’s Station
1807 Special Noise Control Items 266
1810 Operator Enclosure 274
1811 ROPS, FOPS, OPS or Body Frame 276
1813 Body Sides, Doors, Shields and Glazing 288
24 332G Skid Steer Loader PC15046 (M 1)
332G Skid Steer Loader
Table of Contents – Continued
1814 Windshield & Wipers 308
1816 Instrument & Control Mounting Structure 312
1821 Seat & Seat Belts 320
1830 Heating & Air Conditioning 336
1831 Heater, Hoses & Controls 338
1832 Air Conditioner System Compressor and Drive 340
1833 Condenser, Evaporator & Lines 344
1860 Cab/ROPS Tilt Cylinder and Plumbing 348
19 Sheet Metal & Styling
1910 Hood or Engine Enclosure 352
20 Safety, Convenience and Miscellaneous
2001 Radio 368
2002 Mirror 376
2004 Warning Devices Including Horn & Reverse Alarm 378
2008 Reflectors & SMV Sign 388
21 Vehicle Main Hydraulic System
2161 Hydraulic Pumps & Drives 390
2162 Hydraulic Selective Control & Load Holding Valves 400
2163 Hydraulic Lines & Hoses 404
2164 Hydraulic Reservoir, Filter & Cooler 418
2167 Hydraulic Motors 420
26 Global Vehicle Communication
2601 Communication Controller 426
31 Loader
3102 Bucket (Including Teeth) 430
3104 Attachment Coupler 468
3115 Controls Linkage 474
3143 Moveable Frame (Lift Arm, Etc) 476
3162 Control & Load Holding Valves 478
3163 Lines, Hoses & Fittings 498
3165 Hydraulic Cylinders 510
