John Deere 35D & 50D Excavator Operation & Tests Technical Manual (TM2263)

File Details:

John Deere 35D & 50D Excavator Operation & Tests Technical Manual (TM2263)

• Manual Language:English
• Size:15.3 MB
• Pages: 682
• Downloadable:Yes
• Format:PDF

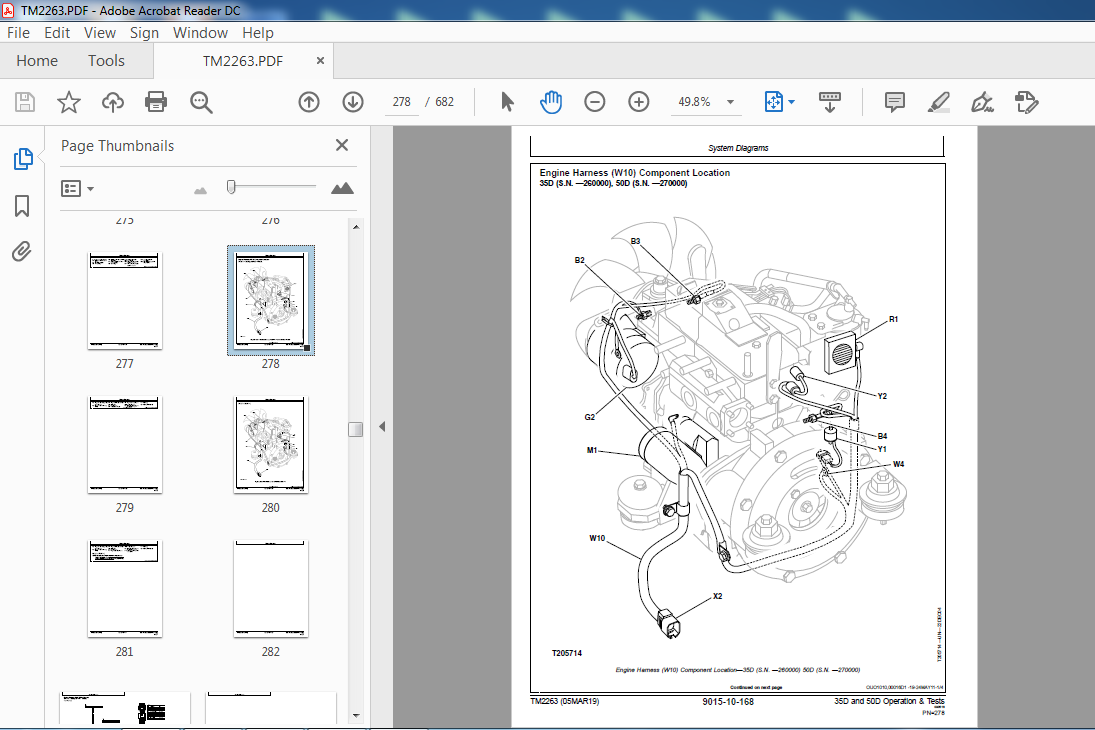

Image Preview:

Description:

John Deere 35D & 50D Excavator Operation & Tests Technical Manual (TM2263)

• This manual is written for an experienced technician. Essential tools required in performing certain service work are identified in this manual and are recommended for use.
• Live with safety: Read the safety messages in the introduction of this manual and the cautions presented throughout the text of the manual.
• Technical manuals are divided in two parts: repair and operation and tests. Repair sections tell how to repair the components. Operation and test sections help to quickly identify the majority of routine failures quickly.
• Information is organized in groups for the various components requiring service instruction. At the beginning of each group are summary listings of all applicable essential tools, service equipment and tools, other materials needed to do the job, service parts kits, specifications, wear tolerances, and torque values.
• Technical manuals are concise guides for specific machines. They are on-the-job guides containing only the vital information needed for diagnosis, analysis, testing, and repair.
• Fundamental service information is available from other sources covering basic theory of operation, fundamentals of troubleshooting, general maintenance, and basic type of failures and their causes

Table Of Contents:

John Deere 35D & 50D Excavator Operation & Tests Technical Manual (TM2263Section 9000—General Information
Group 01—Safety
Section 9005—Operational Checkout
Procedure
Group 10—Operational Checkout Procedure
Section 9010—Engine
Group 05—Theory of Operation
Group 15—Diagnostic Information
Group 25—Tests
Section 9015—Electrical System
Group 05—System Information
Group 10—System Diagrams
Group 15—Sub-System Diagnostics
Group 20—References
Section 9020—Power Train
Group 05—Theory of Operation
Group 15—Diagnostic Information
Section 9025—Hydraulic System
Group 05—Theory of Operation
Group 15—Diagnostic Information
Group 25—Tests
Section 9031—Heating and Air Conditioning
Group 05—Theory of Operation
Group 15—Diagnostic Information
Group 25—Tests
