John Deere 35D Compact Excavator Parts Catalog Manual PDF DOWNLOAD

John Deere 35D Compact Excavator Parts Catalog Manual (PC10116)

File Details:

John Deere 35D Compact Excavator Parts Catalog Manual (PC10116)

Language : English
Pages : 520
Size : 16.1 MB
Downloadable : Yes
Format : PDF

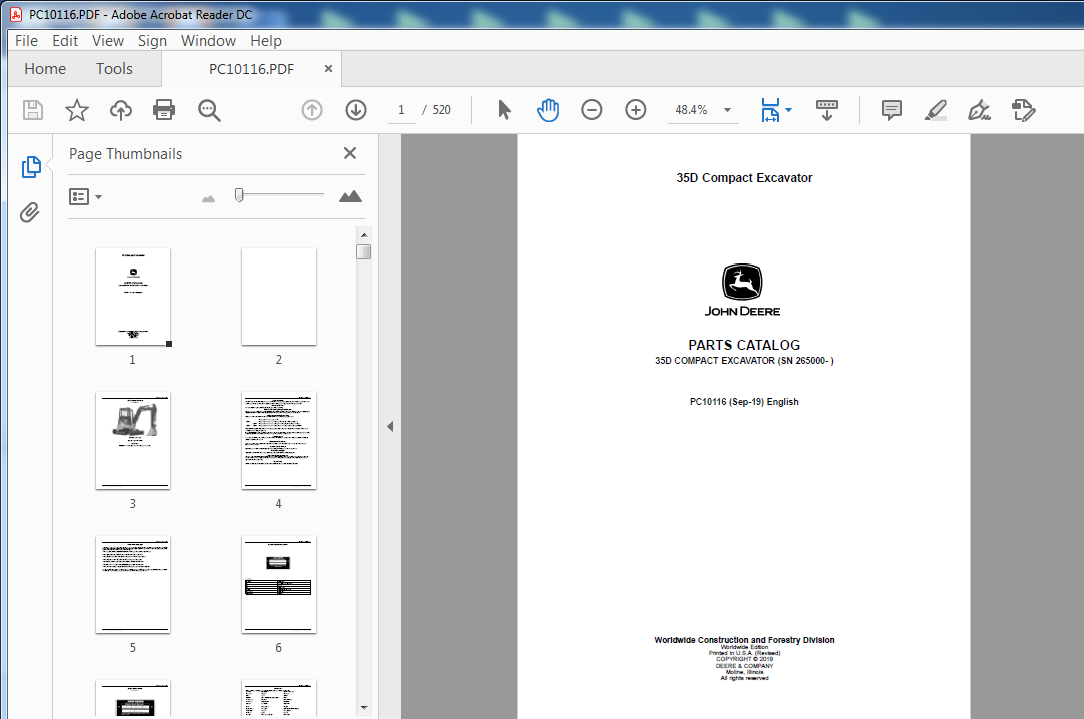

Image Preview:

Description:

John Deere 35D Compact Excavator Parts Catalog Manual (PC10116)

To The Customer
The part numbers in this Parts Catalog were correct at the time of publication. Per John Deere policy, we continuously improve our
products. Therefore, when ordering parts verify the part numbers with your dealer.
SI Units of Measure
Metric dimensions are provided as applicable throughout this parts catalog.
Bolt and Cap Screw Strength Identification
Bolts and cap screws required to have high-strength qualities equivalent to metric property class 10.9 (SAE grade 8) or higher are identified throughout this catalog by the description 10.9, 12.9 or 14.9. All standard bolts and cap screws are metric property class 8.8 (SAE grade 5) or lower.
Serial Number Listing Information
Serial number information is listed to show on which machines each part can be used; for example:
– The part can be used on all products.
000000 – The part can be used on products beginning with the serial number listed.
– 000000 The part can be used on products up to and including the serial number listed.
000000 – 000000 The part can be used on products between and including the serial number listed.
When XXXXXX’s are listed in place of a serial number, a serial number change was made, but the exact serial number was not available at the time of publication.
Direction Arrow
Arrows are used with illustrations to indicate the front of the unit. “Right-Hand” and “Left-Hand” sides are determined by facing in direction of machine forward travel.
Box-Enclosed Illustrations
Box-enclosed keyed parts in the illustration are available as a service assembly or an attachment. These parts may also include parts not available for service. The illustrations may not show all individual parts of an attachment. A box not keyed includes non-current parts.
Complete Goods Listings
Complete Goods are listed in bold face type. Order separately. Do not include on replacement part order.
Orientation of Engine
Right Hand (RH) and Left Hand (LH) sides are determined by standing at flywheel and facing the engine.
Orientation of Engine
Right Hand (RH) and Left Hand (LH) sides are determined by standing at flywheel and facing the engine.
John Deere Remanufactured Components
The REMAN parts listed in this catalog are intended for the repair or replacement of failed or worn original equipment components. John Deere Reman components are manufactured to stringent John Deere standards and produced to original John Deere specifications that incorporates the latest design and performance improvement updates.

Table Of Contents:

John Deere 35D Compact Excavator Parts Catalog Manual (PC10116)

01 Wheels & Tires & Tracks
0110 Powered Wheels, Tires & Fastenings 40
0130 Track Systems 54
02 Axles, Differentials & Suspension Systems
0260 Axles, Differentials & Suspension Systems 76
04 Engine
0400 ENGINE 88
05 Engine Auxiliary System
0505 Cold Weather Starting Aids 124
0510 Engine Cooling Systems 126
0515 Engine Speed Controls 130
0520 Intake System 134
0530 External Exhaust Systems 136
0540 Engine Mounting 140
0560 External Fuel Supply Systems 142
13 Miscellaneous Vehicle
1320 Vehicle Finish & Trim 146
16 Vehicle Electrical Systems
1674 Wiring Harnesses & Switches 154
17 Frame Chassis Or Supporting Structure
1740 Frame Installation 162
18 Operator’s Station
1810 Operator Enclosure 172
1811 ROPS, FOPS, OPS, Or Body Frame 214
1821 Seat And Seat Belts 226
1830 Heating & Air Conditioning 242
19 Sheet Metal & Styling
1910 Hood Or Engine Enclosure 262
20 Safety, Convenience & Miscellaneous
2001 Radio 284
21 Vehicle Main Hydraulic System
2161 Hydraulic Pumps & Drives 286
2163 Hydraulic Lines & Hoses 290
2164 Hydraulic Reservoir, Filter & Cooler 292
33 Excavator
3301 Blades & Side Cutters 298
3302 Bucket With Teeth 314
3315 Controls Linkage 330
3340 Backhoe & Excavator Frames 360
3344 Boom 368
3345 Bucket Linkage 374
3362 Control & Load Holding Valves 376
3363 Lines, Hoses & Fittings 434
3365 Hydraulic Cylinders 470
43 Swing, Rotation Or Pivoting System
4360 Hydraulics 484
