John Deere 410K TMC Backhoe Loader Parts Catalog Manual

File Details:

John Deere 410K TMC Backhoe Loader Parts Catalog Manual

Language : English
Pages : 1296
Size : 227 MB
Downloadable : Yes
Format : PDF
Serial No : PC11120

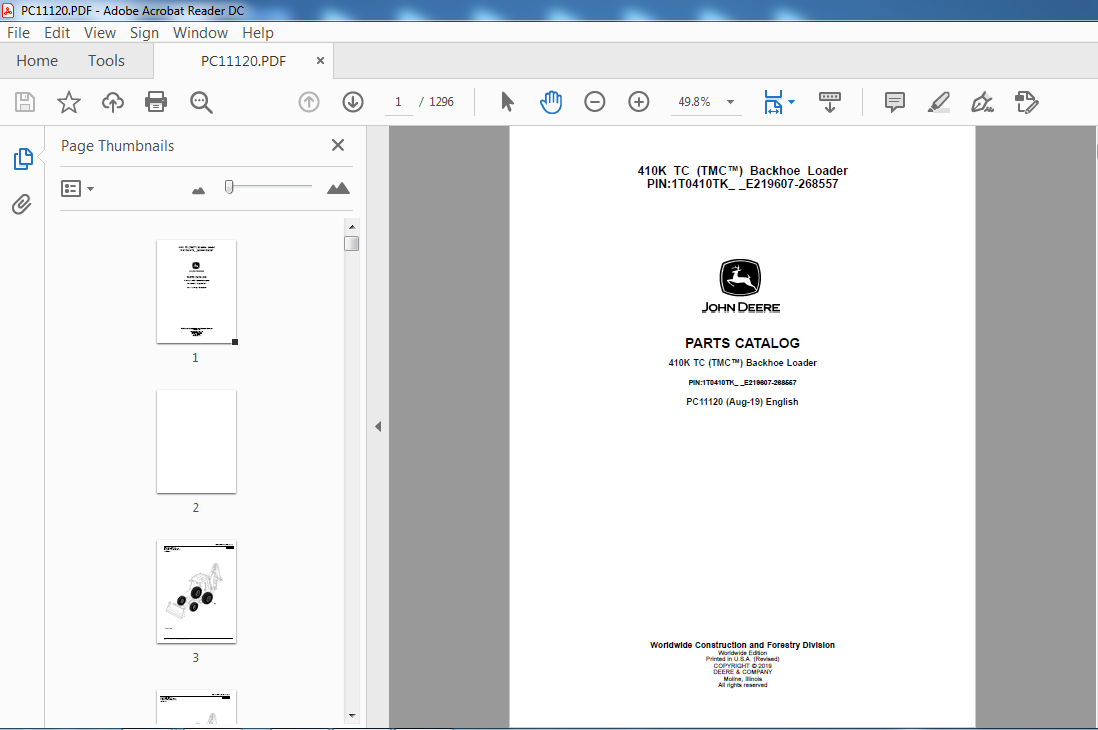

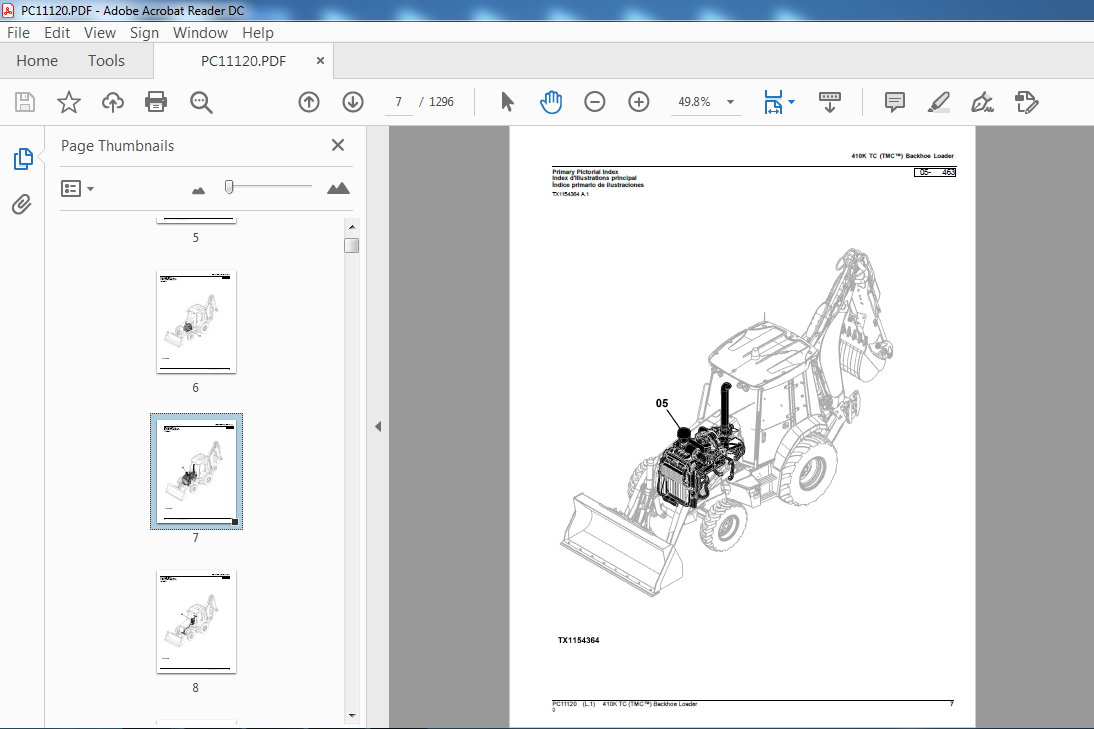

Image Preview:

, Tires & Fastenings ……………………………………………………………………………………………………………………………………….. 93
0120 Non-powered Wheels, Tires & Fastening ………………………………………………………………………………………………………………………………… 105
02 Axles, Differentials & Suspension Systems
0201 Drive Axle Housing and Support…………………………………………………………………………………………………………………………………………….. 111
0210 Differential Or Bevel Drive …………………………………………………………………………………………………………………………………………………….. 127
0225 Input Drive Shafts and U-Joints ……………………………………………………………………………………………………………………………………………… 131
0231 Fixed Tread Axle………………………………………………………………………………………………………………………………………………………………….. 135
03 Transmission
0315 Controls ……………………………………………………………………………………………………………………………………………………………………………… 151
0325 Input Drive Shafts and U-Joints ……………………………………………………………………………………………………………………………………………… 155
0341 Housing, Covers and Complete Transmissions………………………………………………………………………………………………………………………… 159
0342 Transmission Mounting Parts ………………………………………………………………………………………………………………………………………………… 195
04A Engine 4045HT073-RE546630
0400A Engine 4045HT073 ……………………………………………………………………………………………………………………………………………………………. 202
04B Engine 4045HT063-RE538513
0400B Engine 4045HT063 ……………………………………………………………………………………………………………………………………………………………. 334
05 Engine Auxiliary System
0505 Cold Weather Starting Aids …………………………………………………………………………………………………………………………………………………… 465
0510 Engine Cooling Systems……………………………………………………………………………………………………………………………………………………….. 469
0512 Fan…………………………………………………………………………………………………………………………………………………………………………………….. 479
0515 Engine Speed Controls…………………………………………………………………………………………………………………………………………………………. 485
0520 Intake System ……………………………………………………………………………………………………………………………………………………………………… 489
0530 External Exhaust Systems…………………………………………………………………………………………………………………………………………………….. 495
0560 External Fuel Supply Systems……………………………………………………………………………………………………………………………………………….. 505
09 Steering System
0962 Steering Valve and Control ……………………………………………………………………………………………………………………………………………………. 517
0963 Steering Lines, Hoses, and Fittings ………………………………………………………………………………………………………………………………………… 525
0965 Steering Cylinders ……………………………………………………………………………………………………………………………………………………………….. 529
10 Service Brakes
1011 Service Brake Active Elements………………………………………………………………………………………………………………………………………………. 535
1062 Service Brake Valve……………………………………………………………………………………………………………………………………………………………… 541
1063 Service Brake Links, Hoses & Fittings…………………………………………………………………………………………………………………………………….. 547
11 Parking Brakes
1111 Parking Brake Active Elements ………………………………………………………………………………………………………………………………………………. 557
1163 Controls Linkage ………………………………………………………………………………………………………………………………………………………………….. 561
13 Miscellaneous Vehicle
1314 License Bracket …………………………………………………………………………………………………………………………………………………………………… 569
1322 Labels & Trademarks……………………………………………………………………………………………………………………………………………………………. 573
1369 Greases, Oils, Fuels & Coolants…………………………………………………………………………………………………………………………………………….. 589
16 Vehicle Electrical Systems
1671 Batteries, Support, and Cables………………………………………………………………………………………………………………………………………………. 599
1672 Alternator, Regulator, And Charging System Wiring………………………………………………………………………………………………………………….. 611
1673 Vehicle Lighting System………………………………………………………………………………………………………………………………………………………… 615
1674 Wiring Harness & Switches …………………………………………………………………………………………………………………………………………………… 623
1675 System Controls ………………………………………………………………………………………………………………………………………………………………….. 663
1676 Instruments & Indicators ……………………………………………………………………………………………………………………………………………………….. 681
1678 Sensors………………………………………………………………………………………………………………………………………………………………………………. 687
17 Frame, Chassis, or Supporting Structure
1741 Engine Or Main Frame …………………………………………………………………………………………………………………………………………………………. 693
1746 Frame Bottom Guards ………………………………………………………………………………………………………………………………………………………….. 697
1747 Bumpers, Vehicle…………………………………………………………………………………………………………………………………………………………………. 707
PC11120 (L.1) 410K TC (TMC™) Backhoe Loader 53
410K TC (TMC™) Backhoe Loader
Table of Contents – Continued
1749 Chassis Weights ………………………………………………………………………………………………………………………………………………………………….. 711
18 Operator’s Station
1807 Special Noise Control Items ………………………………………………………………………………………………………………………………………………….. 733
1810 Operator Enclosure………………………………………………………………………………………………………………………………………………………………. 741
1811 ROPS, FOPS, OPS, Or Body Frame………………………………………………………………………………………………………………………………………. 759
1812 Platform ……………………………………………………………………………………………………………………………………………………………………………… 769
1813 Body Sides, Doors, Shields And Glazing…………………………………………………………………………………………………………………………………. 775
1814 Windshield & Wipers…………………………………………………………………………………………………………………………………………………………….. 779
1816 Instrument and Control Mounting Structure……………………………………………………………………………………………………………………………… 793
1821 Seat and Seat Belt……………………………………………………………………………………………………………………………………………………………….. 819
1830 Heating & Air Conditioning…………………………………………………………………………………………………………………………………………………….. 839
1831 Heater, Hoses, and Controls………………………………………………………………………………………………………………………………………………….. 843
1832 Air Conditioner System Compressor and Drive ………………………………………………………………………………………………………………………… 849
1833 Condenser, Evaporator & Lines……………………………………………………………………………………………………………………………………………… 855
19 Sheet Metal and Styling
1910 Hood Or Engine Enclosure ……………………………………………………………………………………………………………………………………………………. 865
1913 Miscellaneous Shields ………………………………………………………………………………………………………………………………………………………….. 871
1921 Grille and Grille Housing……………………………………………………………………………………………………………………………………………………….. 875
1927 Fenders………………………………………………………………………………………………………………………………………………………………………………. 883
20 Safety, Convenience and Miscellaneous
2001 Radio …………………………………………………………………………………………………………………………………………………………………………………. 893
2002 Mirror …………………………………………………………………………………………………………………………………………………………………………………. 901
2003 Fire Extinguisher………………………………………………………………………………………………………………………………………………………………….. 909
2004 Warning Devices Including Horn and Reverse Alarm………………………………………………………………………………………………………………… 913
2007 Sun Visor ……………………………………………………………………………………………………………………………………………………………………………. 919
2008 Reflectors & SMV Sign …………………………………………………………………………………………………………………………………………………………. 925
2010 Miscellaneous ……………………………………………………………………………………………………………………………………………………………………… 929
2012 Rental Customer Kit……………………………………………………………………………………………………………………………………………………………… 933
2014 Locking Bar…………………………………………………………………………………………………………………………………………………………………………. 937
21 Vehicle Main Hydraulic System
2161 Hydraulic Pumps & Drives …………………………………………………………………………………………………………………………………………………….. 943
2163 Hydraulic Lines & Hoses……………………………………………………………………………………………………………………………………………………….. 947
2164 Hydraulic Reservoir, Filter & Cooler………………………………………………………………………………………………………………………………………… 955
26 Global Vehicle Communication
2601 Communication Controller …………………………………………………………………………………………………………………………………………………….. 963
2602 Antennas And Cables …………………………………………………………………………………………………………………………………………………………… 971
31 Loader
3102 Bucket (Including Teeth) ……………………………………………………………………………………………………………………………………………………….. 979
3103 Forks………………………………………………………………………………………………………………………………………………………………………………….. 995
3104 Attachment Coupler ……………………………………………………………………………………………………………………………………………………………. 1001
3143 Moveable Frame………………………………………………………………………………………………………………………………………………………………… 1005
3145 Bucket Loader Linkage ……………………………………………………………………………………………………………………………………………………….. 1009
3162 Control & Load Holding Valves …………………………………………………………………………………………………………………………………………….. 1013
3163 Lines, Hoses & Fittings ……………………………………………………………………………………………………………………………………………………….. 1021
3165 Hydraulic Cylinders…………………………………………………………………………………………………………………………………………………………….. 1029
33 Backhoe & Excavator
3302 Bucket With Teeth………………………………………………………………………………………………………………………………………………………………. 1055
3304 Ripper ………………………………………………………………………………………………………………………………………………………………………………. 1109
3315 Controls Linkage………………………………………………………………………………………………………………………………………………………………… 1127
3343 Moveable Frame………………………………………………………………………………………………………………………………………………………………… 1133
3344 Boom ……………………………………………………………………………………………………………………………………………………………………………….. 1143
3345 Bucket Linkage ………………………………………………………………………………………………………………………………………………………………….. 1149
54 410K TC (TMC™) Backhoe Loader PC11120 (L.1)
410K TC (TMC™) Backhoe Loader
Table of Contents – Continued
3346 Dipperstick ………………………………………………………………………………………………………………………………………………………………………… 1153
3348 Stabilizers …………………………………………………………………………………………………………………………………………………………………………. 1157
3362 Control & Load Holding Valves …………………………………………………………………………………………………………………………………………….. 1169
3363 Lines, Hoses & Fittings ……………………………………………………………………………………………………………………………………………………….. 1201
3365 Hydraulic Cylinders…………………………………………………………………………………………………………………………………………………………….. 1219
38 Grapple
3803 Grapple Mechanism……………………………………………………………………………………………………………………………………………………………. 1241
3865 Hydraulic Cylinders…………………………………………………………………………………………………………………………………………………………….. 1255
42 Ground Conditioning Tool
4271 Mounting Frame…………………………………………………………………………………………………………………………………………………………………. 1262

Description:

John Deere 410K TMC Backhoe Loader Parts Catalog Manual

To the Customer The part numbers in this parts catalog were correct at the time your catalog was published. It is our policy to constantly improve our machines, and therefore, part numbers may change.
When ordering parts, verify part numbers through your dealer. SI Units of Measure Metric dimensions are given, where applicable, throughout this parts catalog. Bolt and Cap Screw Strength Identification Bolts and cap screws required to have high-strength qualities equivalent to SAE grade 8 are identified throughout this catalog by the description HS SAE 8 (10.9 for metric). All standard bolts and cap screws are SAE grade 5 (metric 8.8) or lower. Serial Number Listing Information Serial number information is listed to show on which machines each part can be used; for example: – The part can be used on all products. 000000 – The part can be used on products beginning with the serial number listed.
– 000000 The part can be used on products up to and including the serial number listed. 000000 – 000000 The part can be used on products between and including the serial number listed. When XXXXXX’s are listed in place of a serial number, a serial number change was made, but the exact serial number was not available when the catalog was produced. If product identification numbers or serial numbers are required for warranty claims or correspondence pertaining to this product, it is extremely important that all characters be furnished. This point cannot be overemphasized. Direction Arrow Arrows are used with illustrations to indicate the front of the unit.
“Right-Hand” and “Left-Hand” sides are determined by facing in direction of machine forward travel. Exception: For all backhoe parts, “Right-Hand” and “Left-Hand” sides, “Front” and “Rear” are determined when seated for backhoe operation. Box-enclosed Illustrations A key number, shown in the parts list, is assigned to a box enclosing all parts sold as a service assembly. A box not keyed includes non-current parts. Complete Goods Listings Complete Goods are listed in bold face type. Order separately.
Do not include on replacement part order. Orientation of Engine “Right Hand” and “Left Hand” sides are determined by standing at the flywheel and facing the engine. John Deere Reman Components The service parts listed in this catalog are intended for the repair of original equipment components. Although most service parts may be used to repair remanufactured components, the remanufacturing process may change parts sufficiently so that service parts are inadequate or not usable.
