John Deere 50G Compact Excavator Parts Catalog Manual PDF DOWNLOAD

John Deere 50G Compact Excavator Parts Catalog Manual (PC11192)

File Details:

John Deere 50G Compact Excavator Parts Catalog Manual (PC11192)

• Manual Language:English
• Size: 54.5 MB
• Pages: 588
• Downloadable:Yes
• Format:PDF

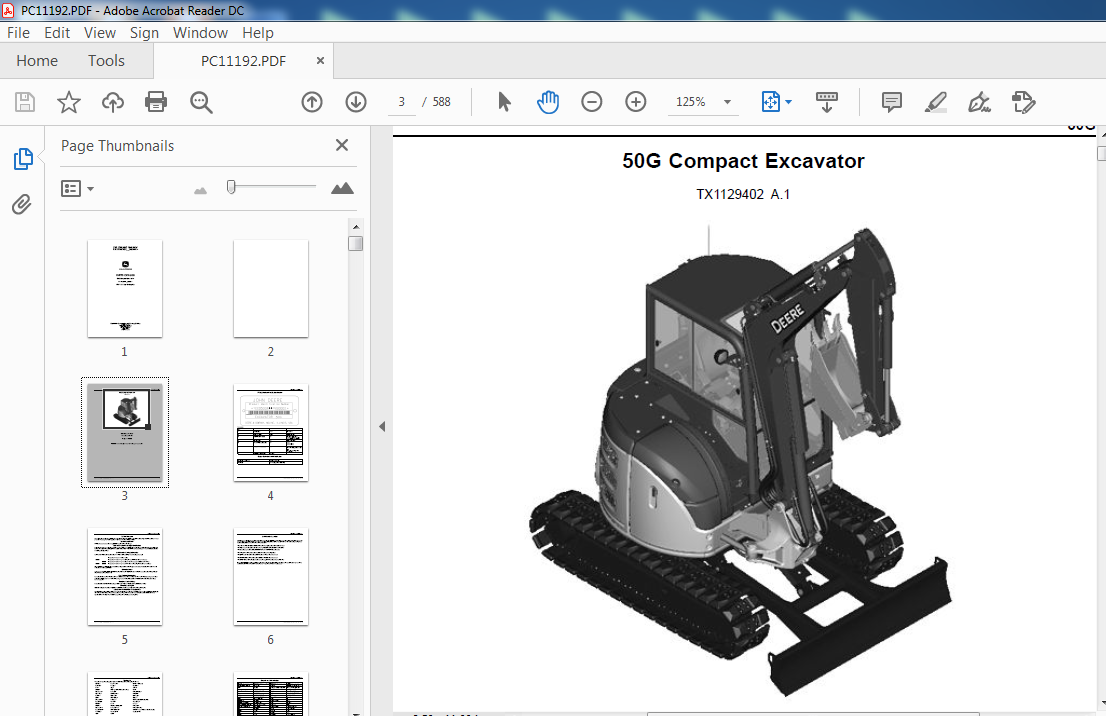

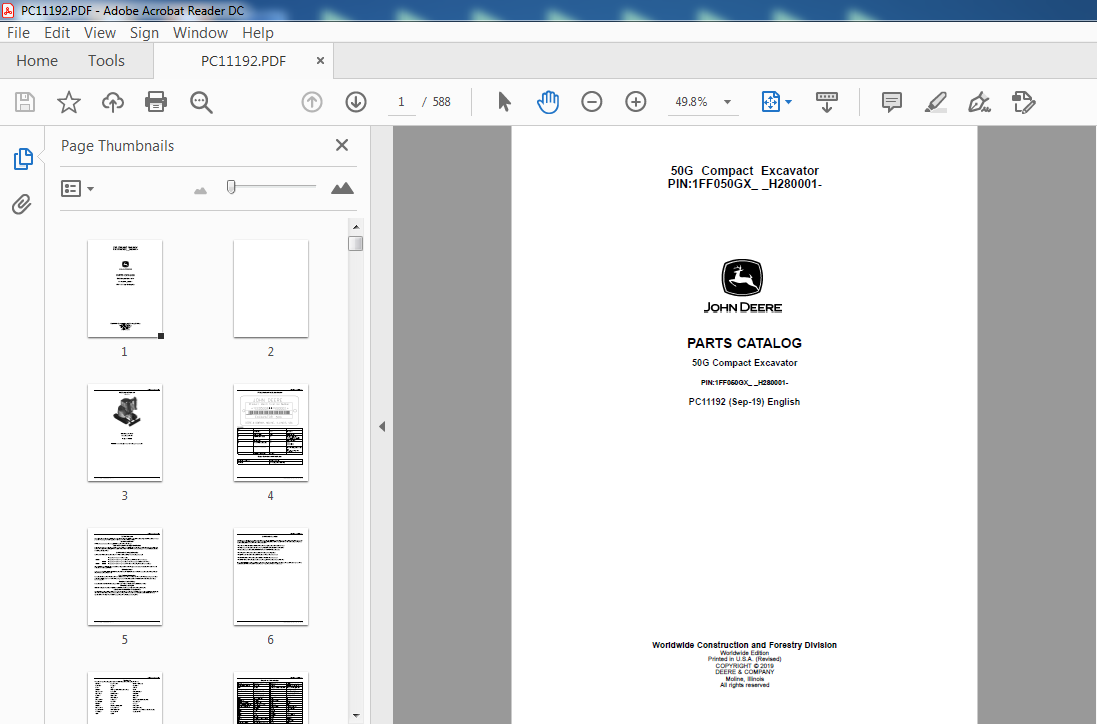

Image Preview:

Description:

John Deere 50G Compact Excavator Parts Catalog Manual (PC11192)

To The Customer
The part numbers in this Parts Catalog were correct at the time of publication. Per John Deere policy, we continuously improve our products. Therefore, when ordering parts verify the part numbers with your dealer.
SI Units of Measure
Metric dimensions are provided as applicable throughout this parts catalog.
Bolt and Cap Screw Strength Identification
Bolts and cap screws required to have high-strength qualities equivalent to metric property class 10.9 (SAE grade 8) or higher are identified throughout this catalog by the description 10.9, 12.9 or 14.9. All standard bolts and cap screws are metric property class 8.8 (SAE grade 5) or lower.
Serial Number Listing Information
Serial number information is listed to show on which machines each part can be used; for example:
– The part can be used on all products.
000000 – The part can be used on products beginning with the serial number listed.
– 000000 The part can be used on products up to and including the serial number listed.
000000 – 000000 The part can be used on products between and including the serial number listed.
When XXXXXX’s are listed in place of a serial number, a serial number change was made, but the exact serial number was not
available at the time of publication.
Direction Arrow
Arrows are used with illustrations to indicate the front of the unit. “Right-Hand” and “Left-Hand” sides are determined by facing in direction of machine forward travel.
Box-Enclosed Illustrations
Box-enclosed keyed parts in the illustration are available as a service assembly or an attachment. These parts may also include parts not available for service. The illustrations may not show all individual parts of an attachment. A box not keyed includes non-current parts.
Complete Goods Listings
Complete Goods are listed in bold face type. Order separately. Do not include on replacement part order.
Orientation of Engine
Right Hand (RH) and Left Hand (LH) sides are determined by standing at flywheel and facing the engine.
Orientation of Engine
Right Hand (RH) and Left Hand (LH) sides are determined by standing at flywheel and facing the engine.
John Deere Remanufactured Components
The REMAN parts listed in this catalog are intended for the repair or replacement of failed or worn original equipment components. John Deere Reman components are manufactured to stringent John Deere standards and produced to original John Deere specifications that incorporates the latest design and performance improvement updates.

Table Of Contents:

John Deere 50G Compact Excavator Parts Catalog Manual (PC1119201 Wheels & Tires & Tracks
0110 Powered Wheels, Tires, and Fastenings 40
0130 Track Systems 50
02 Axles, Differentials & Suspension Systems
0260 Axles, Diff & Susp Sys Hyd (Incl Fwd) 66
04 Engine
0400 ENGINE 80
05 Engine Auxiliary System
0505 Cold Weather Starting Aids 120
0510 Engine Cooling Systems 122
0520 Intake System 124
0530 External Exhaust Systems 130
0540 Engine Mounting 138
0560 External Fuel Supply Systems 144
13 Miscellaneous Vehicle
1322 Labels & Trademarks 152
16 Vehicle Electrical Systems
1674 Wiring Harness & Switches 158
17 Frame Chassis Or Supporting Structure
1740 Frame Installation 172
18 Operator’s Station
1810 Operator Enclosure 182
1811 ROPS, FOPS, OPS, Or Body Frame 232
1821 Seat And Seat Belts 244
1830 Heating & Air Conditioning 252
19 Sheet Metal & Styling
1910 Hood Or Engine Enclosure 274
20 Safety, Convenience & Miscellaneous 11192
2001 Radio 11192 306
21 Vehicle Main Hydraulic System
2121 Hyd Pumps & Drives 308
2163 Hyd Lines & Hoses 312
2164 Hyd Reservoir, Filter & Cooler 314
33 Backhoe & Excavator
3301 Blades & Side Cutters 320
3302 Bucket With Teeth 330
3315 Controls Linkage 374
3340 Backhoe & Excavator Frames 408
3344 Boom 416
3345 Bucket Linkage 420
3362 Control & Load Holding Valves 426
3363 Lines, Hoses & Fittings 472
3365 Hydraulic Cylinders 522
43 Swing, Rotation Or Pivoting System
4360 Hydraulics 550
