John Deere 624KR loader Repair Manual PDF DOWNLOAD

John Deere 624KR loader Repair Manual

File Details:

John Deere 624KR loader Repair Manual

Language : English
Pages : 378
Size : 19.5 MB
Downloadable : Yes
Format : PDF
Serial No : TM10693

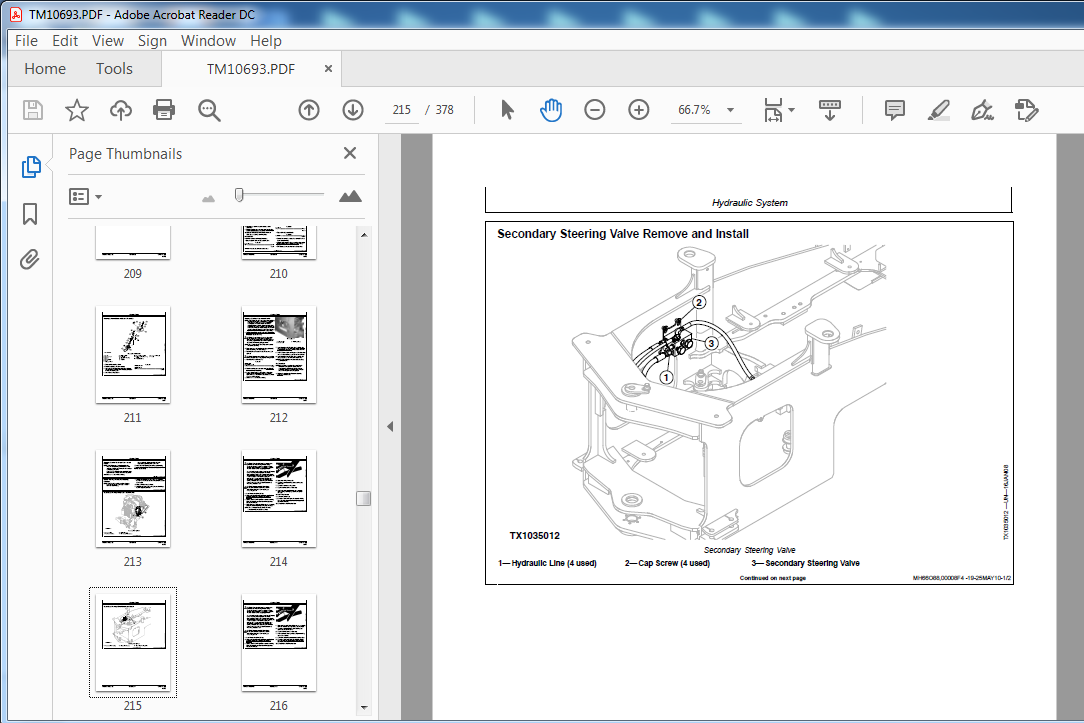

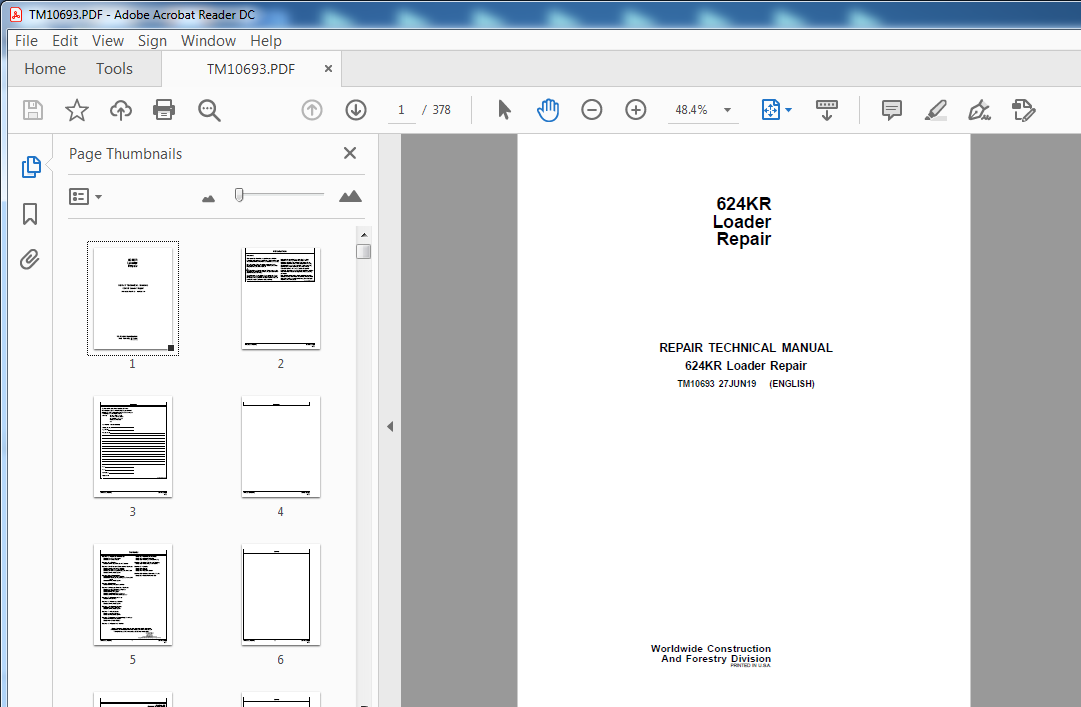

Image Preview:

Table of Contents:

John Deere 624KR loader Repair Manual

Section 00—General Information
Group 0001—Safety Information
Group 0003—Torque Values
Section 01—Wheels
Group 0110—Powered Wheels and Fasteners
Section 02—Axles and Suspension Systems
Group 0200—Removal and Installation
Group 0225—Axle Shafts and U-Joints
Group 0250—Axle Shaft, Bearings, Reduction Gears
Group 0260—Hydraulic System
Section 03—Transmission
Group 0300—Removal and Installation
Group 0350—Gears, Shafts, Bearings and Power Shift
Clutch
Group 0360—Hydraulic System
Section 04—Engine
Group 0400—Removal and Installation
Section 05—Engine Auxiliary Systems
Group 0505—Cold Weather Starting Aids
Group 0510—Cooling System
Group 0520—Intake System
Group 0530—External Exhaust System
Group 0560—External Fuel Supply Systems
Section 07—Dampener Drive
Group 0752—Elements
Section 09—Steering System
Group 0960—Hydraulic System
Section 10—Service Brakes
Group 1011—Active Elements
Group 1060—Hydraulic System
Section 11—Park Brake
Group 1111—Active Elements
Group 1160—Hydraulic System
Section 17—Frame or Supporting Structure
Group 1740—Frame Installation
Group 1749—Chassis Weights
Section 18—Operator’s Station
Group 1800—Removal and Installation
Group 1810—Operator Enclosure
Group 1830—Heating and Air Conditioning
Section 19—Sheet Metal and Styling
Group 1910—Hood or Engine Enclosure
Section 31—Loader
Group 3102—Bucket
Group 3140—Frames
Group 3160—Hydraulic System
Section 99—Dealer Fabricated Tools
Group 9900—Dealer Fabricated Tools

Description:

John Deere 624KR loader Repair Manual

• This manual is written for an experienced technician. Essential tools required in performing certain service work are identified in this manual and are recommended for use. Live with safety: Read the safety messages in the introduction of this manual and the cautions presented throughout the text of the manual.
• This is the safety-alert symbol. When you see this symbol on the machine or in this manual, be alert to the potential for personal injury. Technical manuals are divided in two parts: repair and operation and tests. Repair sections tell how to repair the components. Operation and tests sections help you identify the majority of routine failures quickly.
• Information is organized in groups for the various components requiring service instruction. At the beginning of each group are summary listings of all applicable essential tools, service equipment and tools, other materials needed to do the job, service parts kits, specifications, wear tolerances, and torque values. Technical Manuals are concise guides for specific machines.
• They are on-the-job guides containing only the vital information needed for diagnosis, analysis, testing, and repair. Fundamental service information is available from other sources covering basic theory of operation, fundamentals of troubleshooting, general maintenance, and basic type of failures and their causes.
