Kalmar DCD 40-80, DCD 90L Spare Parts Catalogue Manual 920936.0108 – PDF DOWNLOAD

Kalmar DCD 40-80, DCD 90L Spare Parts Catalogue Manual 920936.0108 – PDF DOWNLOAD

FILE DETAILS:

Kalmar DCD 40-80, DCD 90L Spare Parts Catalogue Manual 920936.0108 – PDF DOWNLOAD

Language : English
Pages : 1288
Downloadable : Yes
File Type : PDF

TABLE OF CONTENTS:

Kalmar DCD 40-80, DCD 90L Spare Parts Catalogue Manual 920936.0108 – PDF DOWNLOAD

Catalogue Instructions
Kataloganvisningar
Truck Body and Cab
Chassi och hytt
Electrical System
Elsystern
Engine and Exhaust System
Motor och avgassystem
Power Transmission
Kraftoverforing, bromsar
Compressed Air System
Tryckluftssystem
Steering System
Styrsystem
Hydraulic System
Hydraulsystem
Lifting Mast, Carriage and
Forks
Lyftstativ, vagn och gafflar
Miscellaneous Equipment
Ovrig utrustning
Numerical Register
Nummerregister

DESCRIPTION:

Kalmar DCD 40-80, DCD 90L Spare Parts Catalogue Manual 920936.0108 – PDF DOWNLOAD

Ordering spare parts:

• This catalogue should be used only when ordering spare parts from authorized Kalmar dealers.
  By using this catalogue, you will give the dealer the exact information on the spare parts you wish
  to order, thus speeding-up the deliveries.
• The spare parts are reproduced on the illustration page in plan drawings or exploded views and are
  specified in more detail on the accompanying text page. Each illustration page contains
  illustration No. and fig. No., and in addition the text page states group No., part No., quantity etc. Each group has
  its own pagination indicated by the group index located in the beginning of the group. The group
  pagination is given on the flyleaf.

When ordering spare parts, the following points should be carefully observed:

1. Always state part No., description and quantity required of each spare part.
2. When uncertain of part No. please also state the machine type designation, serial No., engine
No. and gear box No. as well as any unit numbers and special model numbers.
This information may be found on the type, engine and gear box plates. Also state the issue No. of
the spare parts catalogue. If necessary state illustration No. and fig. No.3. Always state name and address as well as means of spare parts delivery required.

• The catalogue is divided into main groups in accordance with the flyleaf at the beginning of the catalogue.
  The master catalogues list a large amount of optional equipment. This is why great emphasis is placed
  on studying the machine card which accompanies delivery of the truck at the time of ordering. (Check
  what should be known about the Machine Card).
• Orders by letter or fax must include the following information and preferably be set out according to the
  example below.

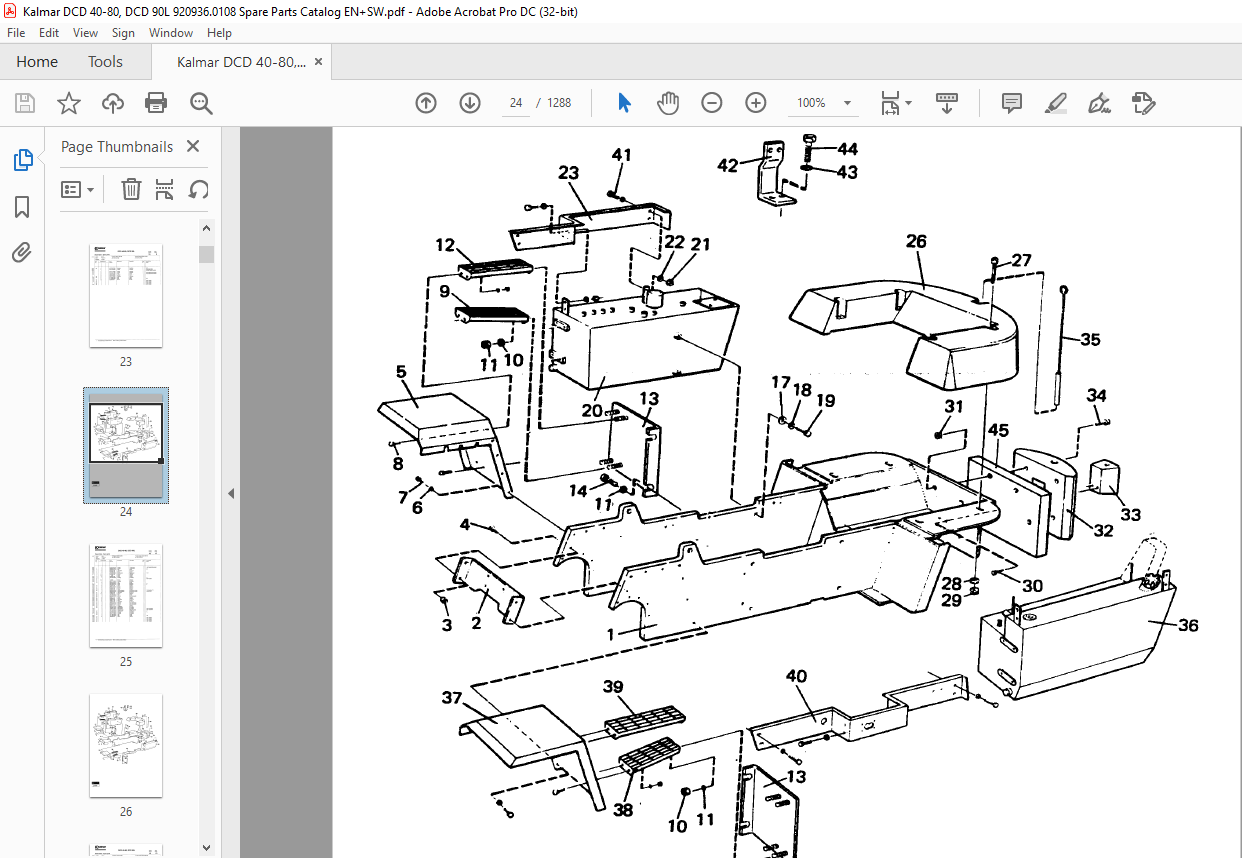

IMAGES PREVIEW OF THE MANUAL:
