FILE DETAILS:

Kalmar LMV DC 4160 – DC 4560 Technical Handbook Manual – PDF DOWNLOAD

Language : English
Pages : 278
Downloadable : Yes
File Type : PDF

DESCRIPTION:

Kalmar LMV DC 4160 – DC 4560 Technical Handbook Manual – PDF DOWNLOAD

General:
Safety rules:
• Before starting, check that nobody is in the way of the truck and its
accessories.
• The truck should be driven only by specially trained operators who are authorised to do so by the
work supervisor.
• Warning! Only authorized and qualified personnel may work with the safety system.
• Warning! If the overload safety system override function has been used, there is a risk of
forward tipping. The truck should be operated with extreme care to prevent accidents.
• The truck must not be used if Its brakes, steering or lifting equipment is faulty. Neither must it be
used if it has been repaired, modified or adjusted without the approval of the work supervisor.
• Do not exceed the lifting capacity of the truck.
• Great care must be exercised at all times when driving the machine. Always remember the great
height and width of the machine so that collision with beams, cables etc. is avoided.
• It is prohibited to start lifting a container if the red warning light TWIST-LOCK UNLOCKED is lit or if
any of the yellow warning lights TWIST-LOCK UNLOCKED or ALIGNMENT are unlift. N.B. the
ALIGNMENT warning light goes out once the lift has begun.
• If the safety system warning lamps for container coupling are not functioning, the system must be
immediately repaired. To use a truck with faulty warning lamps is a great safety risk.
• Do not drive the truck with load raised high above the ground, since the truck may overturn. The
transport must be carried out with the load as close to the truck as possible, i.e. with the boom
retracted as far as possible without obstructing vision.
• Never run hands or fingers along any tubes, pipes or hoses whilst investigating for possible leaks as
some of these lines (diesel fuel, hydraulic, steering, etc.) operate at extremely high pressures and
even the most minute of leaks can cause oil or fluid to penetrate the skin. Avoid staying close to
pressurized components or hoses.
• Always apply the parking brake before leaving the cab. Always remove the key if the truck is left
unattended.
• The parking brake may also be used as EMERGENCY BRAKE (see Brake system).
• Under no circumstances may compressed air be used to remove a hydraulic piston from its cylinder.
• Always attend to damage and wear that may be of significance to the performance and useful life of
the truck or to the safety of the personnel.
• Follow the safety rules whenever carrying out service work on the air conditioner. The refrigerant is
injurious to the skin and eyes. Only authorised personnel may empty or top up the refrigerant.
• The brake system is equipped with accumulators charged to a pressure of up to 210 bar. To prevent
accidents when working on the brake system, never disconnect any component without previously
relieving the accumulator pressure by means of the accumulator discharge valve.
• Never carry out any service work on the boom or attachmentt when the engine is running.

TABLE OF CONTENTS:

Kalmar LMV DC 4160 – DC 4560 Technical Handbook Manual – PDF DOWNLOAD

General
Chassis and cab
Electrical system
Engine
Transmission,
drive axle, brakes
Steering axle
Hydraulic system
Boom and
attachment
Periodic supervlsion

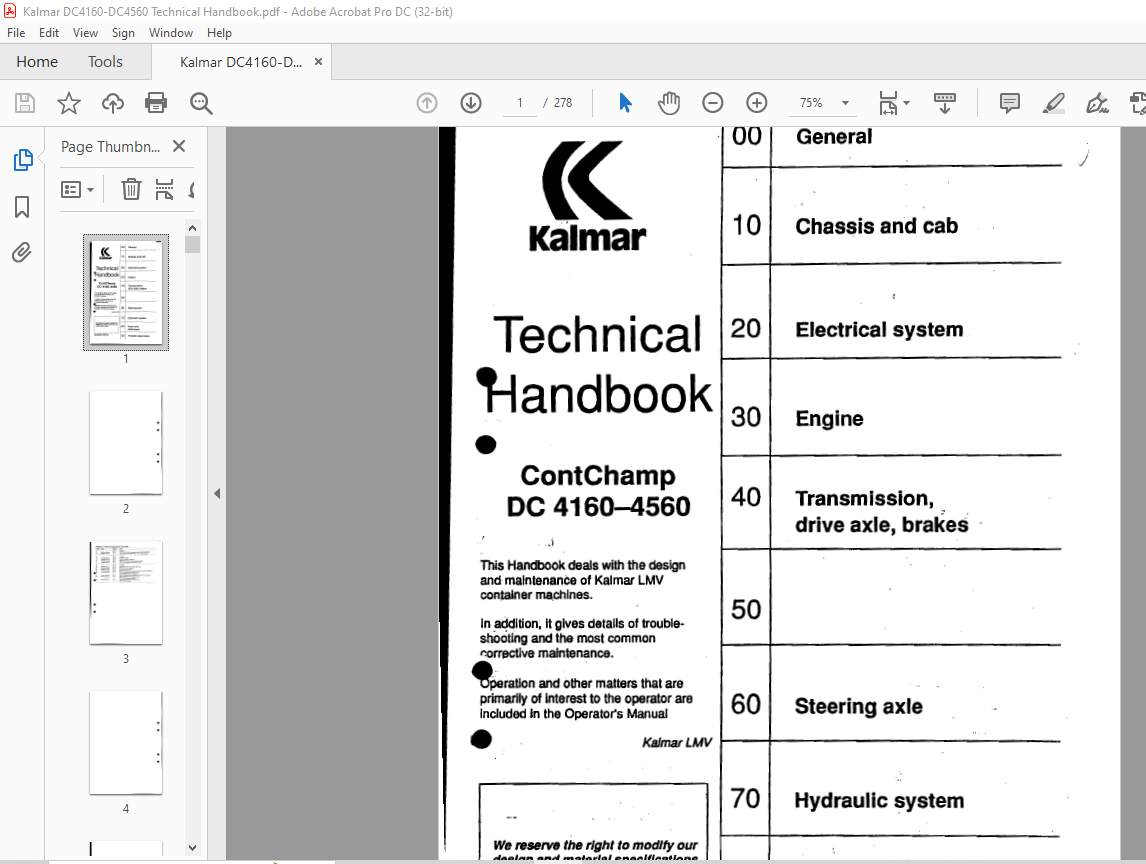

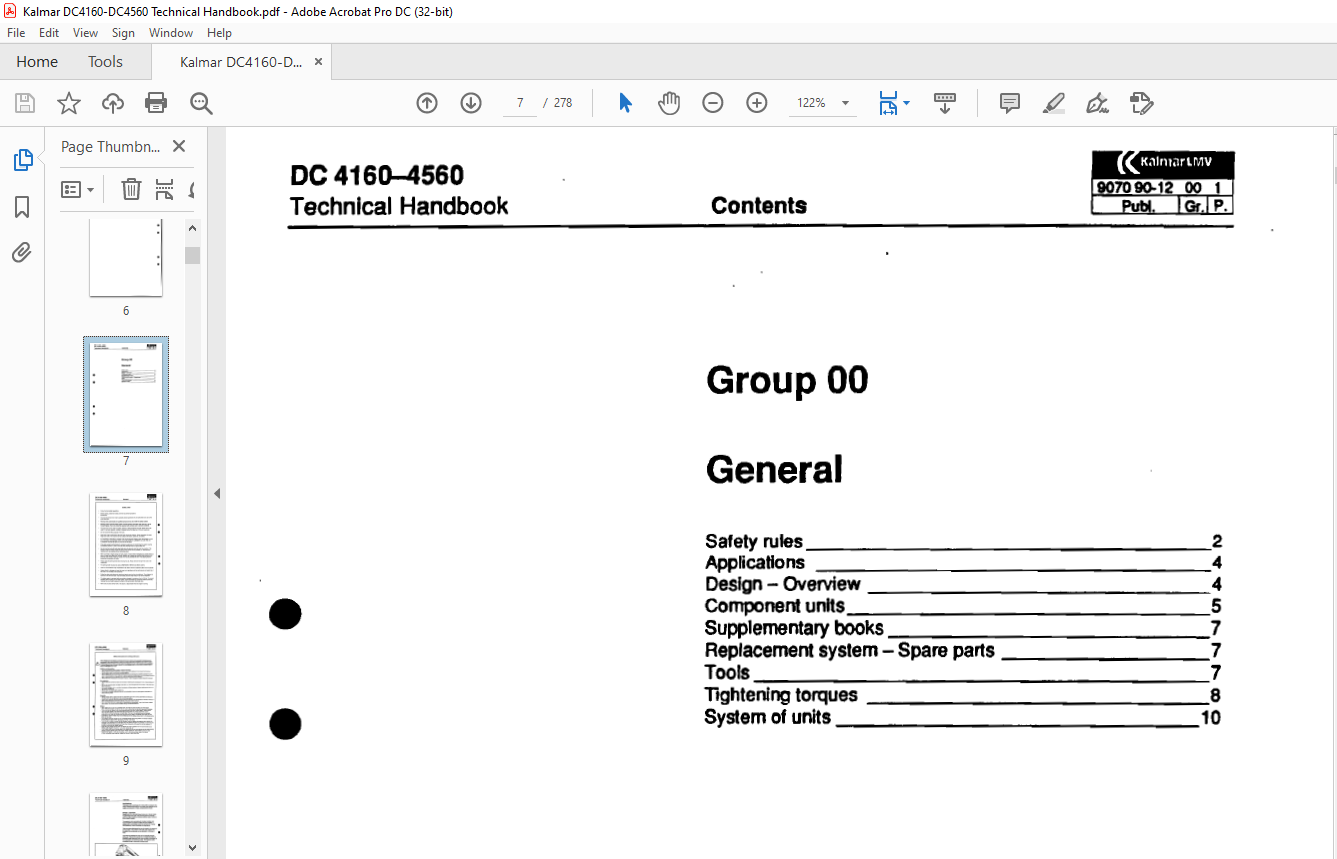

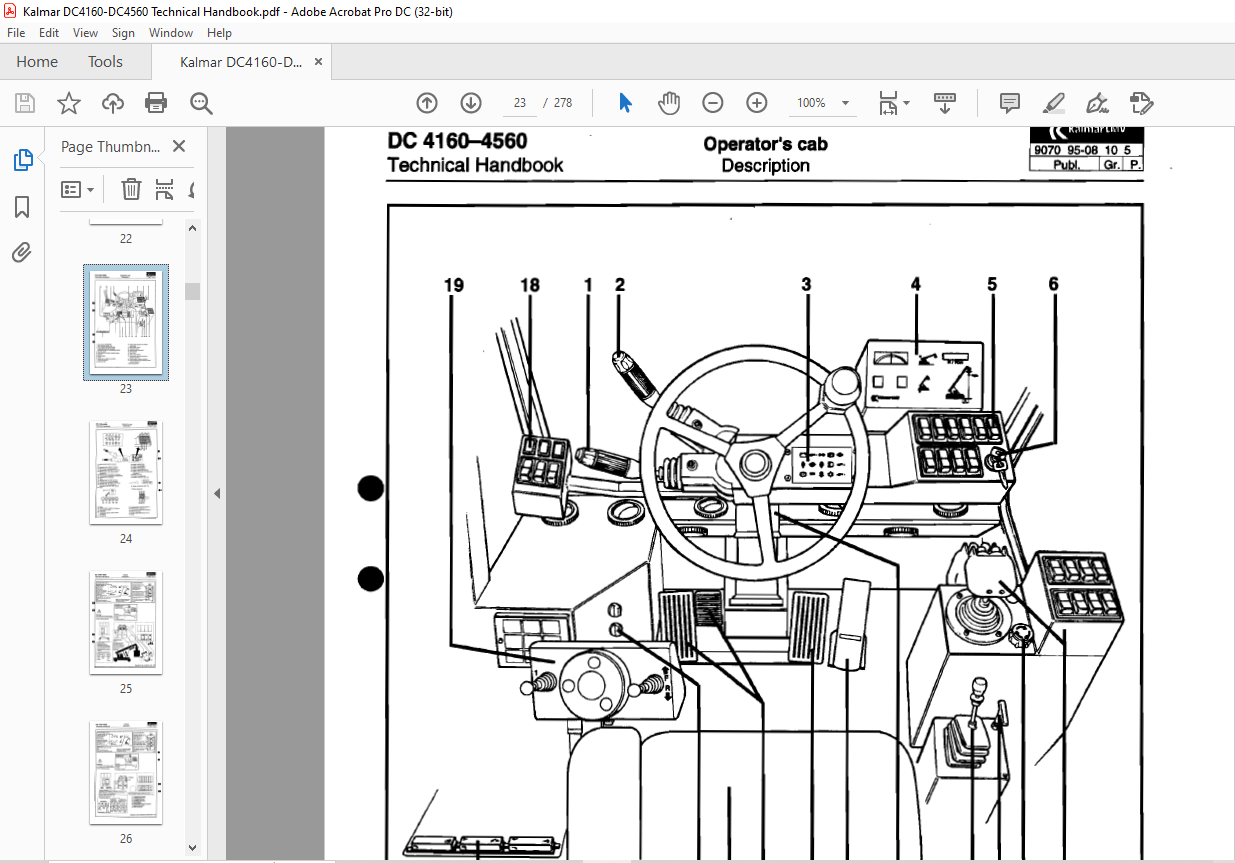

IMAGES PREVIEW OF THE MANUAL:
