Kawasaki KCM 62Z7 Wheel Loader Parts Manual 93307-00511 – PDF DOWNLOAD

Kawasaki KCM 62Z7 Wheel Loader Parts Manual 93307-00511 – PDF DOWNLOAD

FILE DETAILS:

Kawasaki KCM 62Z7 Wheel Loader Parts Manual 93307-00511 – PDF DOWNLOAD

Language : English
Pages : 176
Downloadable : Yes
File Type : PDF

Powered Ьу ISUZU 4НК1 Engine
Serial No. 62J1-0101 –

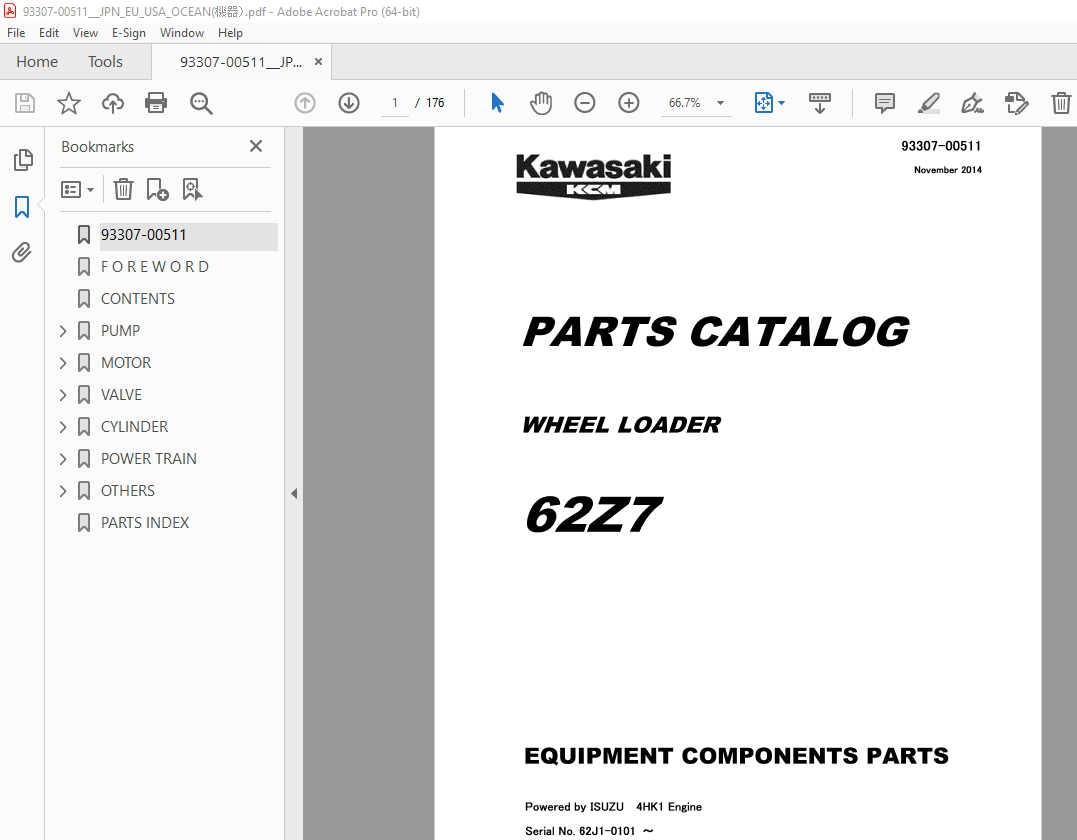

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Kawasaki KCM 62Z7 Wheel Loader Parts Manual 93307-00511 – PDF DOWNLOAD

93307-00511 1
F O R E W O R D 5
CONTENTS 13
PUMP 16
PUMP (HST) 16
ROTOR 18
UNIT,CONTROL 20
HOUSING 22
HOUSING 26
GEAR,INTERNA 28
VALVE,SOLENOID 30
FLANGE 32
VALVE,REDUCING 34
PUMP UNIT (EMERGENCY) 36
PUMP,GEAR (MAIN) 38
MOTOR 42
MOTOR,OIL (FAN) 42
MOTOR (HST)(HIGH-SPEED SIDE) 44
HOUSING 46
ROTOR 48
COVER 50
VALVE,SOLENOID 52
VALVE 54
MOTOR (HST)(LOW-SPEED SIDE) 56
HOUSING 58
COVER 60
COVER 62
VALVE 64

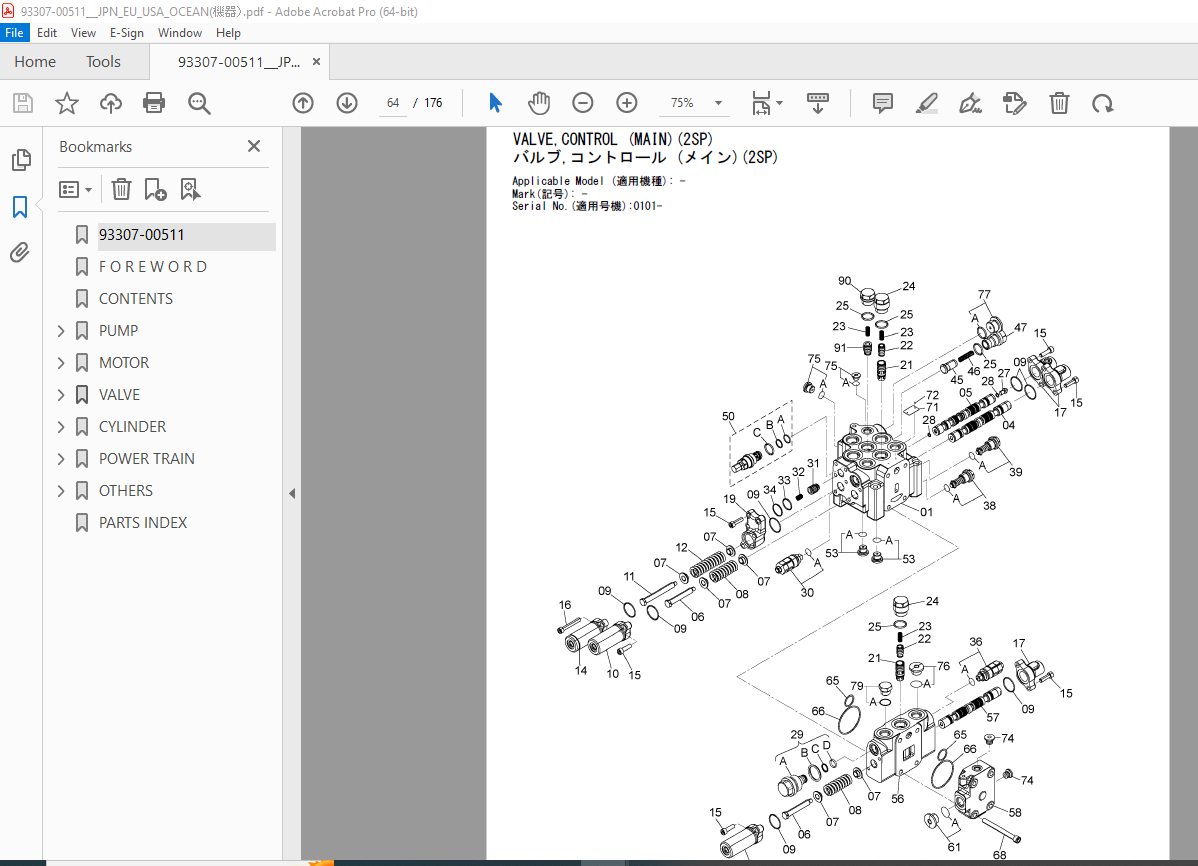

VALVE,CONTROL (MAIN)(2SP) 64
VALVE,CONTROL (MAIN)(3SP) 68
VALVE,CONTROL (MAIN)(4SP) 72
VALVE,CONTROL (RIDE CONTROL) 76
VALVE ASSY,STEERING 80
VALVE,SOLENOID 82
VALVE,BRAKE 84
VALVE (BRAKE CHARGE) 86
VALVE (MANIFOLD) 88
VALVE,PILOT （MONO-LEVER） 90
VALVE,PILOT (AUXILIARY LEVER) 94
VALVE,PILOT (AUXILIARY JOYSTICK LEVER) 96
VALVE,CONTROL (FOR FAN MOTOR) 98
VALVE,CONTROL (FOR FAN MOTOR ROTATION SWITCHING) 100
VALVE,CHECK (STEERING) 102
VALVE,PRIORITY 104
VALVE,SOLENOID (QUICK COUPLER) 106
CYLINDER 108
CYLINDER ASSY,STEERING 108
CYLINDER,LIFT 110
CYLINDER,BUCKET 112
CYLINDER (QUICK COUPLER) 114
ANGLING CYLINDER (ANP,SAP)(L) 116
ANGLING CYLINDER (ANP,SAP)(R) 118
SLIDE CYLINDER (SAP) 120
POWER TRAIN 122
TRANSMISSION 122
TRANSMISSION (1/6) 124
VALVE 126
VALVE,SOLENOID 128
TRANSMISSION (2/6) 130
TRANSMISSION (3/6) 132
TRANSMISSION (4/6) 134
TRANSMISSION (5/6) 136
TRANSMISSION (5/6) 137
TRANSMISSION (6/6) 138
AXLE ASSY,FRONT (TPD) 140
FRONT DIFFERENTIAL (TPD) 142
AXLE ASSY,REAR (TPD) 146
REAER DIFFERENTIAL (TPD) 148
DIFFERENTIAL (LSD)(OPTION) 152
PROPELLER SHAFT (FRONT) 154
PROPELLER SHAFT (REART) 156
OTHERS 122
ACCUMULATOR (BRAKE) 158
ACCUMULATOR (STEERING) 160
ACCUMULATOR (RIDE CONTROL) 162
ACCUMULATOR (PARKING BRAKE) 164
ACCUMULATOR (PILOT) 166
PARTS INDEX 168
