Kawasaki WHEEL LOADER 135Zv Parts Manual - PDF DOWNLOAD

Kawasaki WHEEL LOADER 135Zv Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Kawasaki WHEEL LOADER 135Zv Parts Manual – PDF DOWNLOAD

Language : English,
Pages :168
Downloadable : Yes
File Type : PDF

TABLE OF CONTENTS:

Kawasaki WHEEL LOADER 135Zv Parts Manual – PDF DOWNLOAD

• Before Use
• Chassis No and Manufacturer’s Serial No
• CONTENTS II
• PARTS NAME INDEX
• OPTION<HOT SLAG>
• OPTION <HOT SLAG>
FRONT CHASSIS GROUP 1
REAR CHASSIS GROUP 3
FUEL TANK GROUP 5
OIL TANK GROUP 7
FLOOR BOARD GROUP 9
STEP & HANDRAIL GROUP 11
REAR GRILLE GROUP 13
WIND SHIELD GROUP 15
COVER MOUNT 17
GREASE PIPING <FOR FRONT> 21
FRONT LAMP MOUNT 23
BATTERY MOUNT 27
ELECTRICAL WIRING – FRONT CHASSIS 29
ELECTRICAL WIRING – REAR CHASSIS 31
ELECTRICAL WIRING – FLOOR BOARD 35
DRAIN LINE 39
RADIATOR MOUNT 41
AIR COOLER LINE 43
AIR CLEANER GROUP 45
FUEL LINE 47
TRANSMISSION HYDRAULIC LINE 49
TRANSMISSION HYDRAULIC LINE <FOR SUCTI 51
OUTPUT SHAFT GROUP 53
FRONT & REAR AXLE GROUP 55
BRAKE LINE – FRONT CHASSIS 57
BRAKE LINE – FLOOR BOARD 59
BRAKE LINE – REAR CHASSIS 61
BRAKE LINE – AXLE 63
AIR BREATHER MOUNT 65
VALVE UNIT 67
BRAKE LINE – FRONT CHASSIS <FOR PARKIN 71
BRAKE LINE – REAR CHASSIS <FOR PARKING 73
ACCUMULATOR MOUNT <FOR PARKING BRAKE OV 77
VALVE MOUNT <FOR PARKING BRAKE OVERRIDE 79
LABEL MOUNT <FOR PARKING BRAKE OVERRIDE 81
LOADING HYDRAULIC LINE – FRONT CHASSI 83
LOADING HYDRAULIC LINE – REAR CHASSIS 87
LOADING HYDRAULIC LINE – REAR CHASSIS 89
LOADING HYDRAULIC LINE – REAR CHASSIS 91
LOADING HYDRAULIC LINE – STEERING CYL 95
LOADING HYDRAULIC LINE – CENTER PIN 97
PILOT HYDRAULIC LINE – FRONT CHASSIS 99
PILOT HYDRAULIC LINE – REAR CHASSIS 101
PILOT HYDRAULIC LINE – CONTROL BOX 103
OIL PUMP 105
OIL PUMP 109
OIL PUMP 113
FITTING MOUNT 115
ACCUMULATOR <FOR PARKING BRAKE OVERRIDE> 117
BOOT MOUNT 119
MARKING GROUP 121
WINDOW GLASS MOUNT 123
CAB OPTION PARTS 127
MIRROR MOUNT 129
AIR DUCT GROUP – FLOOR BOARD 131
FAN MOUNT 133
CABLE MOUNT 135
AIR DUCT MOUNT 137
• PARTS NO INDEX 140

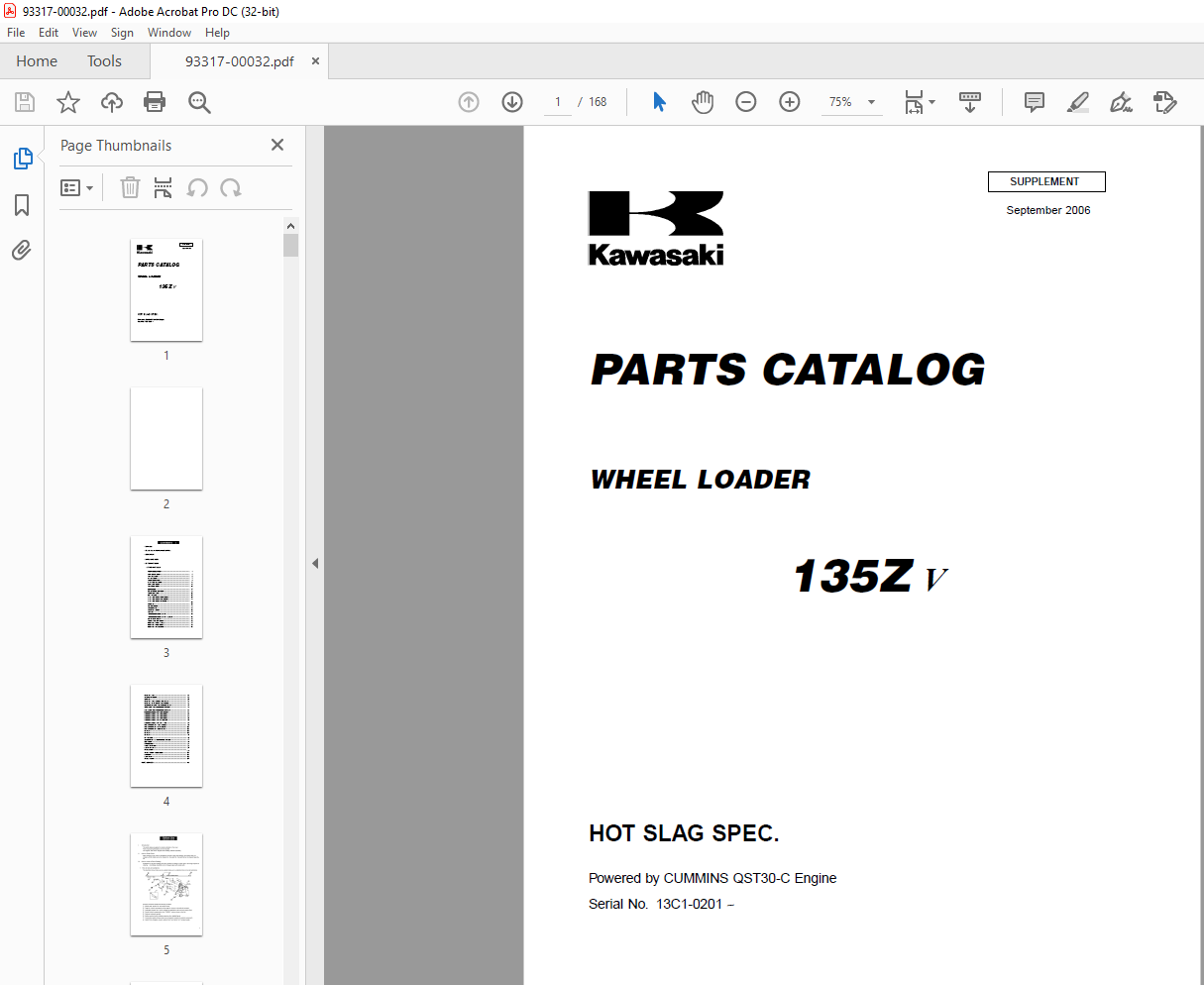

IMAGES PREVIEW OF THE MANUAL:
