KCM 95Z7 97Z7 Wheel Loader Parts Manual 93315-00463 – PDF DOWNLOAD

FILE DETAILS:

KCM 95Z7 97Z7 Wheel Loader Parts Manual 93315-00463 – PDF DOWNLOAD

Language : English
Pages : 174
Downloadable : Yes
File Type : PDF

Powered by ISUZU 6WG1 Engine
Serial No. 97J2-0101 ～

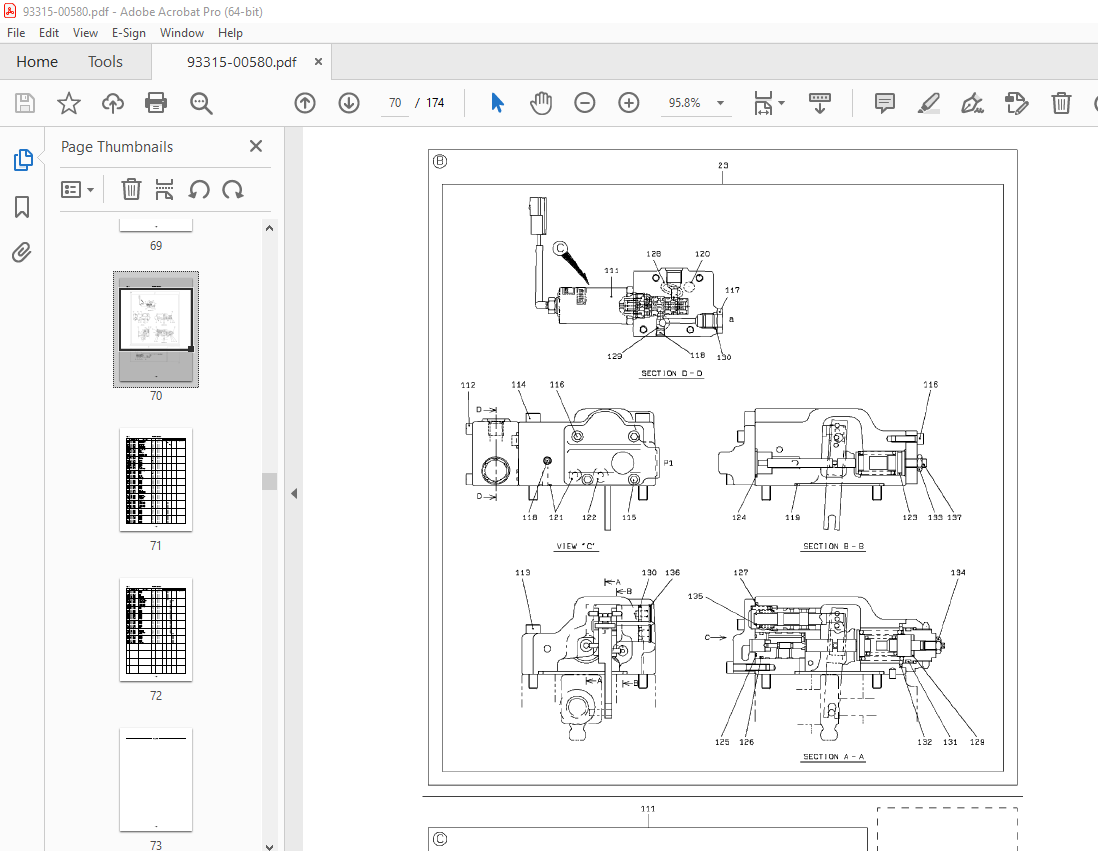

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

KCM 95Z7 97Z7 Wheel Loader Parts Manual 93315-00463 – PDF DOWNLOAD

Before Use
•Chassis No. and Manufacturer’s Serial No.
.CONTENTS II
•PARTS NAME INDEX
.95Z7B EQUIPMENT COMPONENTS PARTS
.PUMP
PUMP (MAIN)
PUMP
PUMP (EMERGENCY)
. MOTOR
FAN MOTOR
. VALVE
CONTROL VALVE.
VALVE(CONTROL)
STEERING VALVE
BRAKE VALVE
UNLOADER VALVE
PILOT VALVE
FLOW CONTROL VALVE (FOR PILOT LINE)
. CYLINDER
STEERING CYLINDER
LIFT CYLINDER
TILT CYLINDER (LH) .
TILT CYLINDER (RH)
. POWER TRAIN
TRANSMISSION
TRANSMISSION ASSY
TORQUE CONVERTER MOUNT
TORQUE CONVERTER.
EXTERNAL PIPING & ELBOW
CLUTCH ASSY
T/M CONTROL VALVE ASSY.
REDUCING VALVE ASSY
REPAIR KIT
FRONT AXLE..
REAR AXLE
FRONT DIFFERENTIAL
REAR DIFFERENTIAL
2ND PROPELLER SHAFT.
3RD PROPELLER SHAFT
. OTHERS
ORBITROL(TM)
ACCUMULATOR
•PARTS NO INDEX
