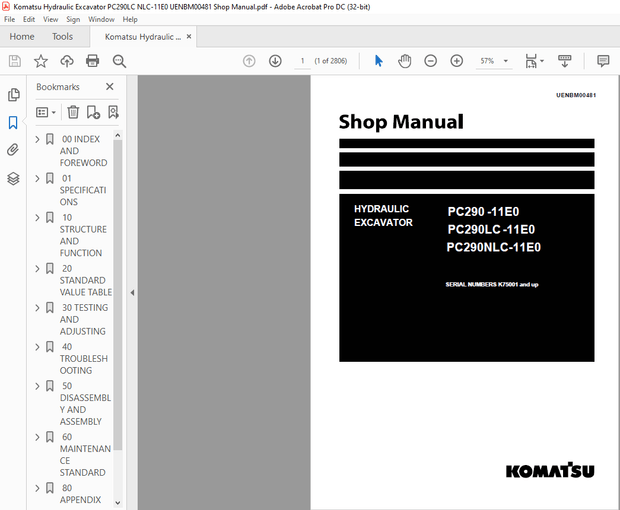

Komatsu PC290-11E0 PC290LC-11E0 PC290NLC-11E0 Hydraulic Excavator Shop Manual UENBM00481 – PDF

Komatsu PC290-11E0 PC290LC-11E0 PC290NLC-11E0 Hydraulic Excavator Shop Manual UENBM00481 – PDF DOWNLOAD

FILE DETAILS:

Komatsu PC290-11E0 PC290LC-11E0 PC290NLC-11E0 Hydraulic Excavator Shop Manual UENBM00481 – PDF DOWNLOAD

Language : English
Pages : 2806
Downloadable : Yes
File Type : PDF
Size: 150 MB

TABLE OF CONTENTS:

Komatsu PC290-11E0 PC290LC-11E0 PC290NLC-11E0 Hydraulic Excavator Shop Manual UENBM00481 – PDF DOWNLOAD

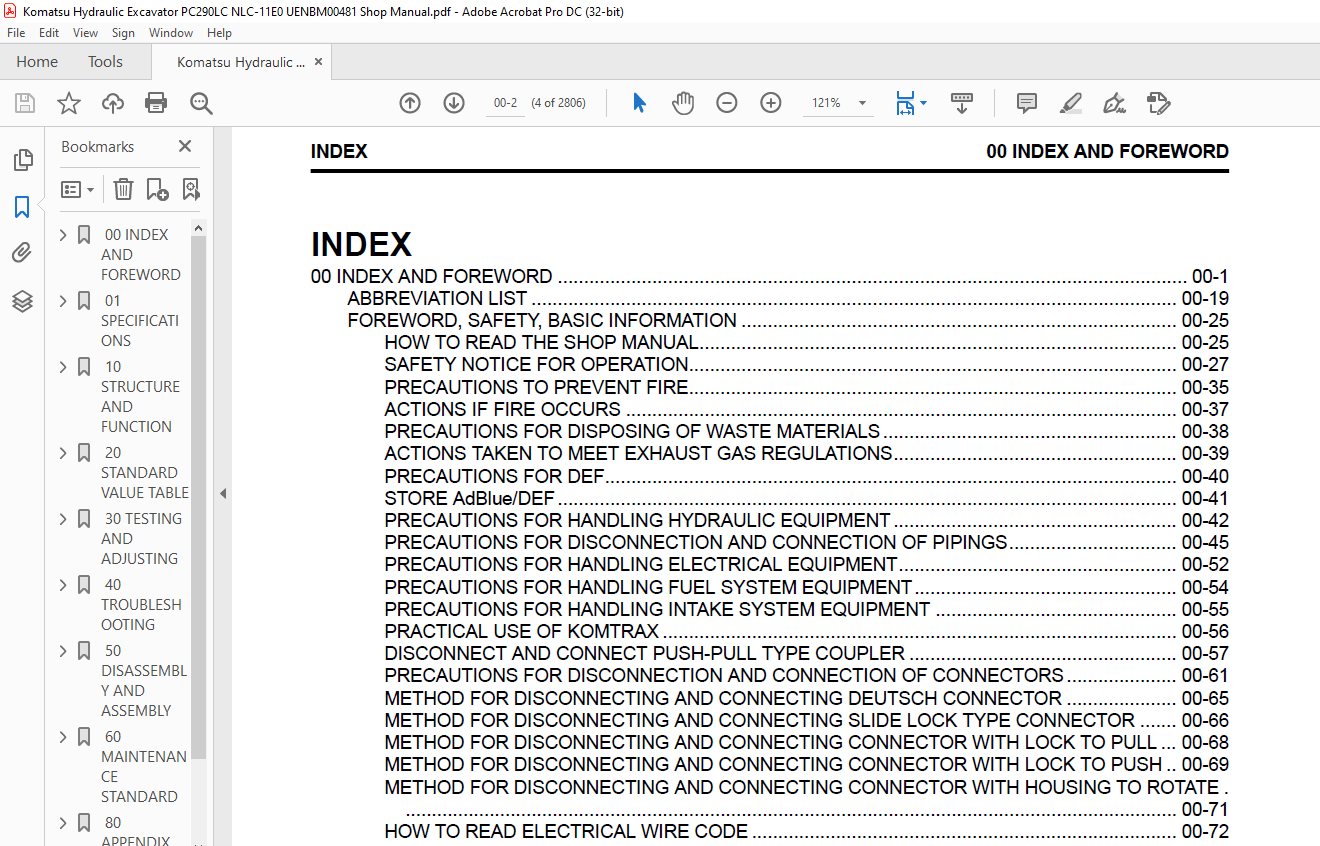

INDEX
00 INDEX AND FOREWORD 00-1
ABBREVIATION LIST 00-19
FOREWORD, SAFETY, BASIC INFORMATION 00-25
HOW TO READ THE SHOP MANUAL 00-25
SAFETY NOTICE FOR OPERATION 00-27
PRECAUTIONS TO PREVENT FIRE 00-35
ACTIONS IF FIRE OCCURS 00-37
PRECAUTIONS FOR DISPOSING OF WASTE MATERIALS 00-38
ACTIONS TAKEN TO MEET EXHAUST GAS REGULATIONS 00-39
PRECAUTIONS FOR DEF 00-40
STORE AdBlue/DEF 00-41
PRECAUTIONS FOR HANDLING HYDRAULIC EQUIPMENT 00-42
PRECAUTIONS FOR DISCONNECTION AND CONNECTION OF PIPINGS 00-45
PRECAUTIONS FOR HANDLING ELECTRICAL EQUIPMENT 00-52
PRECAUTIONS FOR HANDLING FUEL SYSTEM EQUIPMENT 00-54
PRECAUTIONS FOR HANDLING INTAKE SYSTEM EQUIPMENT 00-55
PRACTICAL USE OF KOMTRAX 00-56
DISCONNECT AND CONNECT PUSH-PULL TYPE COUPLER 00-57
PRECAUTIONS FOR DISCONNECTION AND CONNECTION OF CONNECTORS 00-61
METHOD FOR DISCONNECTING AND CONNECTING DEUTSCH CONNECTOR 00-65
METHOD FOR DISCONNECTING AND CONNECTING SLIDE LOCK TYPE CONNECTOR 00-66
METHOD FOR DISCONNECTING AND CONNECTING CONNECTOR WITH LOCK TO PULL 00-68
METHOD FOR DISCONNECTING AND CONNECTING CONNECTOR WITH LOCK TO PUSH 00-69
METHOD FOR DISCONNECTING AND CONNECTING CONNECTOR WITH HOUSING TO ROTATE
00-71
HOW TO READ ELECTRICAL WIRE CODE 00-72
EXPLANATION OF TERMS FOR MAINTENANCE STANDARD 00-76
STANDARD TIGHTENING TORQUE TABLE 00-79
CONVERSION TABLE 00-86
01 SPECIFICATIONS 01-1
CONTENTS 01-2
ABBREVIATION LIST 01-3
SPECIFICATIONS 01-9
SPECIFICATION DRAWING 01-9
WORKING RANGE DRAWINGS 01-11
SPECIFICATIONS 01-12
WEIGHT TABLE 01-15
TABLE OF FUEL, COOLANT, AND LUBRICANTS 01-17
10 STRUCTURE AND FUNCTION 10-1
CONTENTS 10-2
ABBREVIATION LIST 10-6
UREA SCR SYSTEM 10-12
LAYOUT DRAWING OF UREA SCR SYSTEM 10-13
UREA SCR SYSTEM DIAGRAM 10-18
FUNCTION OF UREA SCR SYSTEM 10-19
COMPONENT PARTS OF UREA SCR SYSTEM 10-29
BOOT-UP SYSTEM 10-38
LAYOUT DRAWING OF BOOT-UP SYSTEM 10-38
SYSTEM OPERATING LAMP SYSTEM 10-40
BATTERY DISCONNECT SWITCH 10-42
ENGINE SYSTEM 10-43
LAYOUT DRAWING OF ENGINE SYSTEM 10-43
ENGINE CONTROL SYSTEM 10-45
AUTO-DECELERATION SYSTEM 10-48
ENGINE AUTOMATIC WARM-UP SYSTEM 10-50
OVERHEAT PREVENTION SYSTEM 10-52
INDEX 00 INDEX AND FOREWORD
00-2 PC290LC-11E0, PC290NLC-11E0
TURBOCHARGER PROTECTION SYSTEM 10-55
AUTOMATIC IDLE STOP SYSTEM 10-57
COMPONENT PARTS OF ENGINE SYSTEM 10-60
COOLING SYSTEM 10-78
LAYOUT DRAWING OF COOLING SYSTEM 10-78
CONTROL SYSTEM 10-80
LAYOUT DRAWING OF CONTROL SYSTEM 10-80
MACHINE MONITOR SYSTEM 10-83
KomVision SYSTEM 10-84
KOMTRAX SYSTEM 10-88
PPC LEVERS 10-89
AUTOMATIC GREASE SYSTEM 10-91
COMPONENT PARTS OF CONTROL SYSTEM 10-106
HYDRAULIC SYSTEM 10-148
LAYOUT DRAWING OF HYDRAULIC SYSTEM 10-148
CLSS 10-154
ENGINE AND PUMP COMBINED CONTROL SYSTEM 10-173
PUMP AND VALVE CONTROL SYSTEM 10-179
COMPONENT PARTS OF HYDRAULIC SYSTEM 10-182
WORK EQUIPMENT SYSTEM 10-267
LAYOUT DRAWING OF WORK EQUIPMENT SYSTEM 10-267
STRUCTURE OF VALVE CONTROL 10-272
ONE-TOUCH POWER MAXIMIZING SYSTEM 10-274
PPC LOCK SYSTEM 10-276
WORK EQUIPMENT AND TRAVEL AUTOMATIC LOCK SYSTEM 10-277
OIL FLOW ADJUSTER SYSTEM FOR ATTACHMENT 10-279
TOOL CONTROL SYSTEM 10-282
COMPONENT PARTS OF WORK EQUIPMENT SYSTEM 10-284
SWING SYSTEM 10-313
LAYOUT DRAWING OF SWING SYSTEM 10-313
SWING CONTROL SYSTEM DIAGRAM 10-317
COMPONENT PARTS OF SWING SYSTEM 10-321
TRAVEL SYSTEM 10-335
LAYOUT DRAWING OF TRAVEL SYSTEM 10-335
TRAVEL CONTROL SYSTEM DIAGRAM 10-339
COMPONENT PARTS OF TRAVEL SYSTEM 10-341
UNDERCARRIAGE AND FRAME 10-361
LAYOUT DRAWING OF UNDERCARRIAGE 10-361
WORK EQUIPMENT 10-363
STRUCTURE OF WORK EQUIPMENT 10-363
FUNCTION OF WORK EQUIPMENT 10-364
WORK EQUIPMENT CLEARANCE ADJUSTMENT SHIM 10-365
BUCKET CLEARANCE ADJUSTMENT SHIM 10-366
CAB AND ITS ATTACHMENTS 10-367
ROPS CAB 10-367
CAB MOUNT 10-368
CAB TIPPING STOPPER 10-369
20 STANDARD VALUE TABLE 20-1
CONTENTS 20-2
ABBREVIATION LIST 20-3
STANDARD VALUE TABLE FOR ENGINE 20-9
STANDARD VALUE TABLE FOR ENGINE: PC290LC-11E0, PC290NLC-11E0 20-9
STANDARD VALUE TABLE FOR MACHINE 20-13
STANDARD VALUE TABLE FOR MACHINE: PC290LC-11E0, PC290NLC-11E0 20-13
MACHINE POSTURE AND PROCEDURE FOR MEASURING PERFORMANCE 20-26
STANDARD VALUE TABLE FOR ELECTRICAL 20-30
STANDARD VALUE TABLE FOR ELECTRICAL 20-30
30 TESTING AND ADJUSTING 30-1
00 INDEX AND FOREWORD INDEX
PC290LC-11E0, PC290NLC-11E0 00-3
CONTENTS 30-2
ABBREVIATION LIST 30-5
RELATED INFORMATION ON TESTING AND ADJUSTING 30-11
TOOLS FOR TESTING AND ADJUSTING 30-11
SKETCH OF TOOLS FOR TESTING AND ADJUSTING 30-18
ENGINE AND COOLING SYSTEM 30-20
TEST ENGINE SPEED 30-20
TEST BOOST PRESSURE 30-23
TEST EXHAUST GAS COLOR 30-25
TEST AND ADJUST VALVE CLEARANCE 30-28
TEST COMPRESSION PRESSURE 30-31
TEST BLOWBY PRESSURE 30-36
TEST ENGINE OIL PRESSURE 30-38
TEST EGR VALVE AND VGT OIL PRESSURE 30-39
TEST FUEL PRESSURE 30-41
TEST FUEL DISCHARGE, RETURN AND LEAKAGE 30-47
BLEEDING AIR FROM FUEL SYSTEM 30-54
TEST FUEL CIRCUIT FOR LEAKAGE 30-55
HANDLE CYLINDER CUT-OUT MODE OPERATION 30-57
HANDLE NO-INJECTION CRANKING OPERATION 30-58
TEST AND ADJUST AIR CONDITIONER COMPRESSOR BELT TENSION 30-59
REPLACING FAN BELT 30-61
WRITE ASH IN SOOT ACCUMULATION CORRECTION TO ENGINE CONTROLLER 30-62
TEST SCR RELATED FUNCTIONS 30-63
CLEAN AdBlue/DEF TANK 30-88
BLEED AIR FROM COOLANT CIRCUIT OF AdBlue/DEF TANK 30-92
POWER TRAIN 30-94
TEST SWING CIRCLE BEARING CLEARANCE 30-94
UNDERCARRIAGE AND FRAME 30-95
TEST AND ADJUST TRACK TENSION 30-95
HYDRAULIC SYSTEM 30-97
RELEASE REMAINING PRESSURE FROM HYDRAULIC SYSTEM 30-97
TEST AND ADJUST OIL PRESSURE IN WORK EQUIPMENT, SWING, AND TRAVEL CIRCUITS
30-103
TEST OIL PRESSURE OF CONTROL CIRCUIT 30-113
TEST AND ADJUST OIL PRESSURE IN PUMP PC CONTROL CIRCUIT 30-115
TEST AND ADJUST OIL PRESSURE IN PUMP LS CONTROL CIRCUIT 30-119
TEST OUTLET PRESSURE OF SOLENOID VALVE 30-126
TEST PPC VALVE OUTLET PRESSURE 30-130
TEST ATTACHMENT CIRCUIT OIL PRESSURE 30-132
ADJUST WORK EQUIPMENT AND SWING PPC VALVES 30-134
MEASURING AND ADJUSTING QUICK COUPLER CONTROL VALVE OUTPUT PRESSURE 30-135
TEST PUMP SWASH PLATE SENSOR 30-137
TEST THE PARTS CAUSING HYDRAULIC DRIFT IN WORK EQUIPMENT 30-138
TEST OIL LEAKAGE 30-140
BLEED AIR FROM HYDRAULIC CIRCUIT 30-143
CAB AND ITS ATTACHMENTS 30-147
TEST CAB TIPPING STOPPER 30-147
METHOD FOR ADJUSTING MIRRORS 30-148
ELECTRICAL SYSTEM 30-154
ELECTRICAL SYSTEM 30-155
SET AND OPERATE MACHINE MONITOR 30-155
METHOD FOR STARTING UP KOMTRAX TERMINAL 30-254
ADJUST REARVIEW CAMERA ANGLE 30-259
ADJUST KomVision CAMERA ANGLE 30-262
ADJUST KomVision RELATED ITEMS 30-267
HANDLE VOLTAGE CIRCUIT OF ENGINE CONTROLLER 30-286
HANDLE BATTERY DISCONNECT SWITCH 30-287
INDEX 00 INDEX AND FOREWORD
00-4 PC290LC-11E0, PC290NLC-11E0
TEST DIODES 30-288
Pm CLINIC 30-289
Pm CLINIC SERVICE 30-289
40 TROUBLESHOOTING 40-1
CONTENTS 40-2
ABBREVIATION LIST 40-13
RELATED INFORMATION ON TROUBLESHOOTING 40-19
GENERAL TROUBLESHOOTING POINTS 40-19
TROUBLESHOOTING POINTS FOR UREA SCR SYSTEM 40-20
SEQUENCE OF EVENTS IN TROUBLESHOOTING 40-32
CHECKS BEFORE TROUBLESHOOTING 40-34
INSPECTION PROCEDURE BEFORE TROUBLESHOOTING 40-36
TESTING IN ACCORDANCE WITH TESTING PROCEDURE 40-38
AUTOMATIC GREASE SYSTEM 40-61
PREPARATION TO TROUBLESHOOT ELECTRICAL SYSTEM 40-65
PROCEDURE FOR TESTING AND TROUBLESHOOTING 40-75
SYMPTOMS OF FAILURE AND TROUBLESHOOTING NUMBERS 40-78
INFORMATION DESCRIBED IN TROUBLESHOOTING TABLE 40-82
TROUBLESHOOTING METHOD FOR OPEN CIRCUIT IN WIRING HARNESS OF PRESSURE SENSOR
SYSTEM 40-84
CONNECTOR LIST AND LAYOUT 40-87
CONNECTOR CONTACT IDENTIFICATION 40-100
T-BRANCH BOX AND T-BRANCH ADAPTER TABLE 40-140
FUSE LOCATION TABLE 40-146
PRECAUTIONS FOR CLEANING AND REPLACING KDPF (KCSF and KDOC) 40-148
PREPARATION OF SHORT CIRCUIT ELECTRICAL CONNECTOR (FOR FAILURE CODES [CA1883]
AND [CA3135]) 40-152
FAILURE CODE TABLE 40-154
TROUBLESHOOTING BY FAILURE CODE (DISPLAY OF CODE) 40-172
FAILURE CODE [879AKA] 40-172
FAILURE CODE [879AKB] 40-173
FAILURE CODE [879BKA] 40-174
FAILURE CODE [879BKB] 40-176
FAILURE CODE [879CKA] 40-178
FAILURE CODE [879CKB] 40-179
FAILURE CODE [879DKZ] 40-180
FAILURE CODE [879EMC] 40-182
FAILURE CODE [879FMC] 40-183
FAILURE CODE [879GKX] 40-184
FAILURE CODE [989L00] 40-186
FAILURE CODE [989M00] 40-187
FAILURE CODE [989N00] 40-188
FAILURE CODE [A1U0N3] 40-189
FAILURE CODE [A1U0N4] 40-191
FAILURE CODE [A900FR] 40-193
FAILURE CODE [A900N6] 40-194
FAILURE CODE [A900NY] 40-195
FAILURE CODE [AA10NX] 40-196
FAILURE CODE [AB00KE] 40-198
FAILURE CODE [AQ10N3] 40-201
FAILURE CODE [AS00N3] 40-203
FAILURE CODE [AS00R2] 40-205
FAILURE CODE [AS00R3] 40-206
FAILURE CODE [AS00R4] 40-207
FAILURE CODE [AS00R5] 40-208
FAILURE CODE [AS00R6] 40-209
FAILURE CODE [AS00ZK] 40-210
FAILURE CODE [AS10KM] 40-211
00 INDEX AND FOREWORD INDEX
PC290LC-11E0, PC290NLC-11E0 00-5
FAILURE CODE [AS10NR] 40-212
FAILURE CODE [AS10NT] 40-213
FAILURE CODE [B@BAZG] 40-214
FAILURE CODE [B@BAZK] 40-215
FAILURE CODE [B@BCNS] 40-217
FAILURE CODE [B@BCQA] 40-218
FAILURE CODE [B@BCZK] 40-220
FAILURE CODE [B@HANS] 40-222
FAILURE CODE [CA115] 40-223
FAILURE CODE [CA122] 40-224
FAILURE CODE [CA123] 40-226
FAILURE CODE [CA131] 40-228
FAILURE CODE [CA132] 40-230
FAILURE CODE [CA144] 40-232
FAILURE CODE [CA145] 40-234
FAILURE CODE [CA153] 40-236
FAILURE CODE [CA154] 40-239
FAILURE CODE [CA187] 40-241
FAILURE CODE [CA221] 40-243
FAILURE CODE [CA222] 40-245
FAILURE CODE [CA227] 40-247
FAILURE CODE [CA234] 40-248
FAILURE CODE [CA238] 40-249
FAILURE CODE [CA239] 40-251
FAILURE CODE [CA249] 40-253
FAILURE CODE [CA256] 40-255
FAILURE CODE [CA271] 40-257
FAILURE CODE [CA272] 40-259
FAILURE CODE [CA322] 40-261
FAILURE CODE [CA323] 40-263
FAILURE CODE [CA324] 40-265
FAILURE CODE [CA325] 40-267
FAILURE CODE [CA331] 40-269
FAILURE CODE [CA332] 40-271
FAILURE CODE [CA343] 40-273
FAILURE CODE [CA351] 40-274
FAILURE CODE [CA352] 40-275
FAILURE CODE [CA356] 40-278
FAILURE CODE [CA357] 40-280
FAILURE CODE [CA386] 40-282
FAILURE CODE [CA428] 40-283
FAILURE CODE [CA429] 40-285
FAILURE CODE [CA435] 40-287
FAILURE CODE [CA441] 40-289
FAILURE CODE [CA442] 40-291
FAILURE CODE [CA449] 40-292
FAILURE CODE [CA451] 40-293
FAILURE CODE [CA452] 40-295
FAILURE CODE [CA488] 40-297
FAILURE CODE [CA515] 40-298
FAILURE CODE [CA516] 40-300
FAILURE CODE [CA553] 40-302
FAILURE CODE [CA555] 40-303
FAILURE CODE [CA556] 40-304
FAILURE CODE [CA559] 40-305
FAILURE CODE [CA595] 40-308
FAILURE CODE [CA687] 40-309
FAILURE CODE [CA689] 40-311
INDEX 00 INDEX AND FOREWORD
00-6 PC290LC-11E0, PC290NLC-11E0
FAILURE CODE [CA691] 40-314
FAILURE CODE [CA692] 40-316
FAILURE CODE [CA697] 40-318
FAILURE CODE [CA698] 40-319
FAILURE CODE [CA731] 40-320
FAILURE CODE [CA778] 40-322
FAILURE CODE [CA1117] 40-327
FAILURE CODE [CA1664] 40-328
FAILURE CODE [CA1669] 40-330
FAILURE CODE [CA1673] 40-331
FAILURE CODE [CA1677] 40-332
FAILURE CODE [CA1678] 40-333
FAILURE CODE [CA1682] 40-334
FAILURE CODE [CA1683] 40-336
FAILURE CODE [CA1684] 40-338
FAILURE CODE [CA1686] 40-340
FAILURE CODE [CA1691] 40-341
FAILURE CODE [CA1694] 40-344
FAILURE CODE [CA1695] 40-347
FAILURE CODE [CA1696] 40-348
FAILURE CODE [CA1712] 40-350
FAILURE CODE [CA1713] 40-353
FAILURE CODE [CA1714] 40-355
FAILURE CODE [CA1715] 40-356
FAILURE CODE [CA1776] 40-357
FAILURE CODE [CA1777] 40-360
FAILURE CODE [CA1843] 40-363
FAILURE CODE [CA1844] 40-365
FAILURE CODE [CA1879] 40-368
FAILURE CODE [CA1881] 40-370
FAILURE CODE [CA1883] 40-372
FAILURE CODE [CA1885] 40-375
FAILURE CODE [CA1887] 40-377
FAILURE CODE [CA1921] 40-379
FAILURE CODE [CA1922] 40-382
FAILURE CODE [CA1942] 40-387
FAILURE CODE [CA1993] 40-388
FAILURE CODE [CA2185] 40-391
FAILURE CODE [CA2186] 40-392
FAILURE CODE [CA2249] 40-394
FAILURE CODE [CA2271] 40-395
FAILURE CODE [CA2272] 40-398
FAILURE CODE [CA2288] 40-401
FAILURE CODE [CA2311] 40-402
FAILURE CODE [CA2349] 40-403
FAILURE CODE [CA2353] 40-406
FAILURE CODE [CA2357] 40-408
FAILURE CODE [CA2381] 40-409
FAILURE CODE [CA2382] 40-412
FAILURE CODE [CA2383] 40-415
FAILURE CODE [CA2386] 40-418
FAILURE CODE [CA2387] 40-420
FAILURE CODE [CA2555] 40-421
FAILURE CODE [CA2556] 40-424
FAILURE CODE [CA2637] 40-427
FAILURE CODE [CA2639] 40-429
FAILURE CODE [CA2771] 40-432
FAILURE CODE [CA2777] 40-438
00 INDEX AND FOREWORD INDEX
PC290LC-11E0, PC290NLC-11E0 00-7
FAILURE CODE [CA2976] 40-441
FAILURE CODE [CA3133] 40-443
FAILURE CODE [CA3134] 40-446
FAILURE CODE [CA3135] 40-448
FAILURE CODE [CA3142] 40-451
FAILURE CODE [CA3143] 40-452
FAILURE CODE [CA3144] 40-453
FAILURE CODE [CA3146] 40-455
FAILURE CODE [CA3147] 40-456
FAILURE CODE [CA3148] 40-457
FAILURE CODE [CA3151] 40-459
FAILURE CODE [CA3165] 40-465
FAILURE CODE [CA3229] 40-467
FAILURE CODE [CA3231] 40-469
FAILURE CODE [CA3232] 40-471
FAILURE CODE [CA3235] 40-475
FAILURE CODE [CA3239] 40-477
FAILURE CODE [CA3241] 40-480
FAILURE CODE [CA3242] 40-483
FAILURE CODE [CA3251] 40-486
FAILURE CODE [CA3253] 40-488
FAILURE CODE [CA3254] 40-491
FAILURE CODE [CA3255] 40-494
FAILURE CODE [CA3256] 40-498
FAILURE CODE [CA3311] 40-500
FAILURE CODE [CA3312] 40-502
FAILURE CODE [CA3313] 40-505
FAILURE CODE [CA3314] 40-506
FAILURE CODE [CA3315] 40-507
FAILURE CODE [CA3316] 40-509
FAILURE CODE [CA3317] 40-510
FAILURE CODE [CA3318] 40-511
FAILURE CODE [CA3319] 40-513
FAILURE CODE [CA3321] 40-514
FAILURE CODE [CA3322] 40-516
FAILURE CODE [CA3419] 40-518
FAILURE CODE [CA3421] 40-520
FAILURE CODE [CA3497] 40-522
FAILURE CODE [CA3498] 40-523
FAILURE CODE [CA3543] 40-524
FAILURE CODE [CA3545] 40-531
FAILURE CODE [CA3547] 40-533
FAILURE CODE [CA3558] 40-534
FAILURE CODE [CA3559] 40-536
FAILURE CODE [CA3562] 40-538
FAILURE CODE [CA3563] 40-540
FAILURE CODE [CA3567] 40-543
FAILURE CODE [CA3568] 40-546
FAILURE CODE [CA3571] 40-550
FAILURE CODE [CA3572] 40-552
FAILURE CODE [CA3574] 40-554
FAILURE CODE [CA3575] 40-556
FAILURE CODE [CA3577] 40-558
FAILURE CODE [CA3578] 40-560
FAILURE CODE [CA3582] 40-562
FAILURE CODE [CA3583] 40-568
FAILURE CODE [CA3596] 40-570
FAILURE CODE [CA3649] 40-572
INDEX 00 INDEX AND FOREWORD
00-8 PC290LC-11E0, PC290NLC-11E0
FAILURE CODE [CA3681] 40-574
FAILURE CODE [CA3682] 40-579
FAILURE CODE [CA3713] 40-585
FAILURE CODE [CA3717] 40-588
FAILURE CODE [CA3718] 40-589
FAILURE CODE [CA3725] 40-590
FAILURE CODE [CA3741] 40-593
FAILURE CODE [CA3748] 40-594
FAILURE CODE [CA3751] 40-596
FAILURE CODE [CA3755] 40-598
FAILURE CODE [CA3866] 40-600
FAILURE CODE [CA3867] 40-604
FAILURE CODE [CA3868] 40-607
FAILURE CODE [CA3899] 40-611
FAILURE CODE [CA3911] 40-613
FAILURE CODE [CA3912] 40-617
FAILURE CODE [CA3932] 40-619
FAILURE CODE [CA3933] 40-621
FAILURE CODE [CA3934] 40-623
FAILURE CODE [CA3935] 40-626
FAILURE CODE [CA3936] 40-628
FAILURE CODE [CA4151] 40-630
FAILURE CODE [CA4152] 40-634
FAILURE CODE [CA4155] 40-638
FAILURE CODE [CA4156] 40-640
FAILURE CODE [CA4157] 40-643
FAILURE CODE [CA4158] 40-645
FAILURE CODE [CA4159] 40-646
FAILURE CODE [CA4161] 40-647
FAILURE CODE [CA4162] 40-650
FAILURE CODE [CA4163] 40-653
FAILURE CODE [CA4164] 40-654
FAILURE CODE [CA4165] 40-656
FAILURE CODE [CA4166] 40-658
FAILURE CODE [CA4168] 40-659
FAILURE CODE [CA4169] 40-662
FAILURE CODE [CA4171] 40-664
FAILURE CODE [CA4249] 40-667
FAILURE CODE [CA4251] 40-669
FAILURE CODE [CA4259] 40-671
FAILURE CODE [CA4261] 40-674
FAILURE CODE [CA4277] 40-677
FAILURE CODE [CA4281] 40-681
FAILURE CODE [CA4459] 40-684
FAILURE CODE [CA4461] 40-687
FAILURE CODE [CA4658] 40-690
FAILURE CODE [CA4731] 40-694
FAILURE CODE [CA4732] 40-695
FAILURE CODE [CA4739] 40-696
FAILURE CODE [CA4768] 40-697
FAILURE CODE [CA4769] 40-699
FAILURE CODE [CA4842] 40-702
FAILURE CODE [CA4952] 40-706
FAILURE CODE [CA5115] 40-708
FAILURE CODE [CA5179] 40-711
FAILURE CODE [CA5181] 40-713
FAILURE CODE [CA5383] 40-715
FAILURE CODE [D110KB] 40-717
00 INDEX AND FOREWORD INDEX
PC290LC-11E0, PC290NLC-11E0 00-9
FAILURE CODE [D19JKZ] 40-719
FAILURE CODE [D811MC] 40-722
FAILURE CODE [D862KA] 40-723
FAILURE CODE [D8ALKA] 40-724
FAILURE CODE [D8ALKB] 40-726
FAILURE CODE [D8AQKR] 40-728
FAILURE CODE [DA20MC] 40-730
FAILURE CODE [DA22KK] 40-731
FAILURE CODE [DA25KP] 40-734
FAILURE CODE [DA26KP] 40-737
FAILURE CODE [DA29KQ] 40-740
FAILURE CODE [DA2LKA] 40-742
FAILURE CODE [DA2LKB] 40-744
FAILURE CODE [DA2QKR] 40-746
FAILURE CODE [DA2RKR] 40-749
FAILURE CODE [DAF0KM] 40-750
FAILURE CODE [DAF0MB] 40-751
FAILURE CODE [DAF0MC] 40-752
FAILURE CODE [DAF8KB] 40-753
FAILURE CODE [DAF9KQ] 40-755
FAILURE CODE [DAFGMC] 40-756
FAILURE CODE [DAFLKA] 40-757
FAILURE CODE [DAFLKB] 40-759
FAILURE CODE [DAFQKR] 40-761
FAILURE CODE [DAZ9KQ] 40-762
FAILURE CODE [DAZQKR] 40-763
FAILURE CODE [DB2QKR] 40-768
FAILURE CODE [DB2RKR] 40-773
FAILURE CODE [DBP0KM] 40-778
FAILURE CODE [DBP0KT] 40-779
FAILURE CODE [DBP5KB] 40-780
FAILURE CODE [DBP5KY] 40-783
FAILURE CODE [DBPQKR] 40-786
FAILURE CODE [DDNRKA] 40-791
FAILURE CODE [DDNRKY] 40-793
FAILURE CODE [DDNS00] 40-795
FAILURE CODE [DFB1KZ] 40-797
FAILURE CODE [DFB2KZ] 40-800
FAILURE CODE [DFB3L8] 40-803
FAILURE CODE [DFB4L8] 40-805
FAILURE CODE [DFB5KZ] 40-807
FAILURE CODE [DFB6KZ] 40-810
FAILURE CODE [DGH2KA] 40-813
FAILURE CODE [DGH2KB] 40-815
FAILURE CODE [DHA4KA] 40-817
FAILURE CODE [DHAAMA] 40-819
FAILURE CODE [DHACMA] 40-821
FAILURE CODE [DHPAMA] 40-823
FAILURE CODE [DHPBMA] 40-826
FAILURE CODE [DHS3MA] 40-829
FAILURE CODE [DHS4MA] 40-832
FAILURE CODE [DHS8MA] 40-835
FAILURE CODE [DHS9MA] 40-838
FAILURE CODE [DHSAMA] 40-841
FAILURE CODE [DHSBMA] 40-844
FAILURE CODE [DHSCMA] 40-847
FAILURE CODE [DHSDMA] 40-850
FAILURE CODE [DHSFMA] 40-853
INDEX 00 INDEX AND FOREWORD
00-10 PC290LC-11E0, PC290NLC-11E0
FAILURE CODE [DHSGMA] 40-856
FAILURE CODE [DHSHMA] 40-859
FAILURE CODE [DHSJMA] 40-862
FAILURE CODE [DHX1MA] 40-865
FAILURE CODE [DKR0MA] 40-868
FAILURE CODE [DKR1MA] 40-871
FAILURE CODE [DKULKA] 40-874
FAILURE CODE [DKULKB] 40-876
FAILURE CODE [DKULKY] 40-878
FAILURE CODE [DR10KA] 40-880
FAILURE CODE [DR12KA] 40-883
FAILURE CODE [DR20KA] 40-885
FAILURE CODE [DR21KX] 40-887
FAILURE CODE [DR30KA] 40-889
FAILURE CODE [DR31KX] 40-891
FAILURE CODE [DR40KA] 40-893
FAILURE CODE [DUMBKA] 40-895
FAILURE CODE [DUMBKB] 40-897
FAILURE CODE [DV20KB] 40-899
FAILURE CODE [DW43KA] 40-901
FAILURE CODE [DW43KB] 40-903
FAILURE CODE [DW43KY] 40-905
FAILURE CODE [DW45KA] 40-907
FAILURE CODE [DW45KB] 40-910
FAILURE CODE [DW45KY] 40-913
FAILURE CODE [DW4CKY] 40-915
FAILURE CODE [DW91KA] 40-917
FAILURE CODE [DW91KB] 40-919
FAILURE CODE [DW91KY] 40-921
FAILURE CODE [DWA2KA] 40-923
FAILURE CODE [DWA2KB] 40-925
FAILURE CODE [DWA2KY] 40-927
FAILURE CODE [DWK0KA] 40-929
FAILURE CODE [DWK0KB] 40-931
FAILURE CODE [DWK0KY] 40-933
FAILURE CODE [DWK2KA] 40-935
FAILURE CODE [DWK2KB] 40-937
FAILURE CODE [DWK2KY] 40-939
FAILURE CODE [DWK8KA] 40-941
FAILURE CODE [DWK8KB] 40-943
FAILURE CODE [DWK8KY] 40-945
FAILURE CODE [DXA8KA] 40-947
FAILURE CODE [DXA8KB] 40-949
FAILURE CODE [DXA9KA] 40-951
FAILURE CODE [DXA9KB] 40-953
FAILURE CODE [DXE0KA] 40-955
FAILURE CODE [DXE0KB] 40-956
FAILURE CODE [DXE4KA] 40-958
FAILURE CODE [DXE4KB] 40-960
FAILURE CODE [DXE4KY] 40-962
FAILURE CODE [DXE5KA] 40-964
FAILURE CODE [DXE5KB] 40-966
FAILURE CODE [DXE6KA] 40-968
FAILURE CODE [DXE6KB] 40-970
FAILURE CODE [DXE7KA] 40-972
FAILURE CODE [DXE7KB] 40-974
FAILURE CODE [DXE7KY] 40-976
FAILURE CODE [DXE8KA] 40-978
00 INDEX AND FOREWORD INDEX
PC290LC-11E0, PC290NLC-11E0 00-11
FAILURE CODE [DXE8KB] 40-980
FAILURE CODE [DXE8KY] 40-982
FAILURE CODE [DXE9KA] 40-984
FAILURE CODE [DXE9KB] 40-986
FAILURE CODE [DXE9KY] 40-988
FAILURE CODE [DXEAKA] 40-990
FAILURE CODE [DXEAKB] 40-992
FAILURE CODE [DXEAKY] 40-994
FAILURE CODE [DY20KA] 40-996
FAILURE CODE [DY20MA] 40-998
FAILURE CODE [DY2CKB] 40-1000
FAILURE CODE [DY2DKB] 40-1003
FAILURE CODE [DY2EKB] 40-1005
TROUBLESHOOTING OF ELECTRICAL SYSTEM (E-MODE) 40-1007
E-1 ENGINE DOES NOT START (ENGINE DOES NOT CRANK) 40-1007
E-2 MANUAL PREHEATING SYSTEM DOES NOT WORK 40-1013
E-3 AUTOMATIC PREHEATING SYSTEM DOES NOT WORK 40-1016
E-4 WHILE PREHEATING IS WORKING, PREHEATING MONITOR DOES NOT LIGHT UP 40-1018
E-5 WHEN STARTING SWITCH IS TURNED TO ON POSITION, MACHINE MONITOR DISPLAYS
NOTHING 40-1020
E-6 WHILE STARTING SWITCH IS TURNED TO ON POSITION (WITH ENGINE STOPPED), ENGINE
OIL LEVEL MONITOR LIGHTS UP IN YELLOW 40-1023
E-7 WHILE STARTING SWITCH IS TURNED TO ON POSITION (WITH ENGINE STOPPED), RADIATOR
COOLANT LEVEL MONITOR LIGHTS UP IN YELLOW 40-1024
E-8 ENGINE COOLANT TEMPERATURE MONITOR LIGHTS UP IN WHITE WHILE ENGINE IS RUNNING
40-1025
E-9 HYDRAULIC OIL TEMPERATURE MONITOR LIGHTS UP IN WHITE WHILE ENGINE IS RUNNING
40-1026
E-10 AIR CLEANER CLOGGING MONITOR LIGHTS UP IN YELLOW WHILE ENGINE IS RUNNING
40-1027
E-11 CHARGE LEVEL MONITOR LIGHTS UP IN RED WHILE ENGINE IS RUNNING 40-1028
E-12 FUEL LEVEL MONITOR LIGHTS UP IN RED WHILE ENGINE IS RUNNING 40-1029
E-13 WATER SEPARATOR MONITOR LIGHTS UP IN RED WHILE ENGINE IS RUNNING 40-1030
E-14 ENGINE COOLANT TEMPERATURE MONITOR LIGHTS UP IN RED WHILE ENGINE IS RUNNING
40-1031
E-15 ENGINE OIL PRESSURE MONITOR LIGHTS UP IN RED WHILE ENGINE IS RUNNING 40-1032
E-16 HYDRAULIC OIL TEMPERATURE MONITOR LIGHTS UP IN RED WHILE ENGINE IS RUNNING
40-1033
E-17 FUEL GAUGE DISPLAY DOES NOT MOVE FROM MINIMUM OR MAXIMUM 40-1034
E-18 DISPLAY OF FUEL GAUGE DIFFERS FROM ACTUAL FUEL LEVEL 40-1036
E-19 ENGINE COOLANT TEMPERATURE GAUGE DISPLAY DOES NOT MOVE FROM MINIMUM
OR MAXIMUM 40-1037
E-20 DISPLAY OF ENGINE COOLANT TEMPERATURE GAUGE DIFFERS FROM ACTUAL COOLANT
TEMPERATURE 40-1038
E-21 HYDRAULIC OIL TEMPERATURE GAUGE DISPLAY DOES NOT MOVE FROM MINIMUM OR
MAXIMUM 40-1039
E-22 DISPLAY OF HYDRAULIC OIL TEMPERATURE GAUGE DIFFERS FROM ACTUAL OIL TEMPERATURE
40-1041
E-23 SOME AREAS OF MACHINE MONITOR SCREEN ARE NOT DISPLAYED 40-1042
E-24 FUNCTION SWITCH DOES NOT OPERATE 40-1043
E-25 AUTOMATIC WARM-UP SYSTEM DOES NOT WORK (IN COLD WEATHER) 40-1044
E-26 WHEN AUTO-DECELERATOR SWITCH IS OPERATED, AUTO-DECELERATOR MONITOR
DOES NOT LIGHT UP OR DOES NOT GO OFF 40-1045
E-27 AUTO-DECELERATOR IS NOT OPERATED OR CANCELED WITH LEVER 40-1046
E-28 WHEN WORKING MODE SWITCH IS OPERATED, WORKING MODE SELECTION SCREEN IS
NOT DISPLAYED 40-1047
E-29 WHEN WORKING MODE IS CHANGED, SETTING OF ENGINE AND HYDRAULIC PUMP IS
NOT CHANGED 40-1048
INDEX 00 INDEX AND FOREWORD
00-12 PC290LC-11E0, PC290NLC-11E0
E-30 WHEN TRAVEL SPEED SWITCH IS OPERATED, TRAVEL SPEED MONITOR DOES NOT
CHANGE 40-1049
E-31 WHEN TRAVEL SPEED SELECTION IS CHANGED, ACTUAL TRAVEL SPEED DOES NOT
CHANGE 40-1050
E-32 ALARM BUZZER CANNOT BE CANCELED 40-1052
E-33 SERVICE METER IS NOT DISPLAYED, WHILE STARTING SWITCH IS IN OFF POSITION
40-1053
E-34 SERVICE MODE CANNOT BE SELECTED 40-1054
E-35 ALL OF WORK EQUIPMENTS, SWING, AND TRAVEL MECHANISM DO NOT MOVE 40-1055
E-36 ALL OF WORK EQUIPMENT, SWING, AND TRAVEL MECHANISM DO NOT LOCK 40-1058
E-37 WHEN SWING BRAKE CANCEL SWITCH IS SET TO CANCEL POSITION, MACHINE CANNOT
SWING 40-1060
E-38 WHEN SWING BRAKE CANCEL SWITCH IS SET TO NORMAL POSITION, SWING HOLDING
BRAKE DOES NOT OPERATE 40-1063
E-39 ONE-TOUCH POWER MAXIMIZING FUNCTION DOES NOT OPERATE PROPERLY, OR INDICATOR
NOT DISPLAYED ON MONITOR 40-1065
E-40 ONE-TOUCH POWER MAXIMIZING FUNCTION IS NOT CANCELLED 40-1068
E-41 ALARM DOES NOT SOUND DURING TRAVEL 40-1069
E-42 ALARM DOES NOT STOP SOUNDING WHILE MACHINE IS STOPPED 40-1071
E-43 HORN DOES NOT SOUND 40-1072
E-44 HORN DOES NOT STOP SOUNDING 40-1075
E-45 WHEN WIPER SWITCH IS OPERATED, WIPER MONITOR DOES NOT LIGHT UP OR GO OFF
40-1077
E-46 WHEN WIPER SWITCH IS OPERATED, WINDSHIELD WIPER DOES NOT OPERATE 40-1078
E-47 WHEN WINDOW WASHER SWITCH IS OPERATED, WINDOW WASHER DOES NOT OPERATE
40-1080
E-48 BOOM RAISE INDICATOR IS NOT DISPLAYED PROPERLY WITH MONITORING FUNCTION
40-1081
E-49 BOOM LOWER INDICATOR IS NOT DISPLAYED PROPERLY WITH MONITORING FUNCTION
40-1082
E-50 ARM OUT INDICATOR IS NOT DISPLAYED PROPERLY WITH MONITORING FUNCTION
40-1083
E-51 ARM IN INDICATOR IS NOT DISPLAYED PROPERLY WITH MONITORING FUNCTION 40-1084
E-52 BUCKET DUMP INDICATOR IS NOT DISPLAYED PROPERLY WITH MONITORING FUNCTION
40-1085
E-53 BUCKET CURL INDICATOR IS NOT DISPLAYED PROPERLY WITH MONITORING FUNCTION
40-1086
E-54 SWING INDICATOR IS NOT DISPLAYED PROPERLY WITH MONITORING FUNCTION 40-1087
E-55 TRAVEL INDICATOR IS NOT DISPLAYED PROPERLY WITH MONITORING FUNCTION40-1088
E-56 SERVICE INDICATOR IS NOT DISPLAYED PROPERLY WITH MONITORING FUNCTION
40-1089
E-57 ATTACHMENT HYDRAULIC CIRCUIT CANNOT BE CHANGED 40-1091
E-58 KOMTRAX SYSTEM DOES NOT OPERATE NORMALLY 40-1092
TROUBLESHOOTING FOR HYDRAULIC AND MECHANICAL SYSTEMS (H MODE) 40-1093
INFORMATION MENTIONED IN TROUBLESHOOTING TABLE (H MODE) 40-1093
SYSTEM CHART OF HYDRAULIC AND MECHANICAL SYSTEMS 40-1094
FAILURE MODE AND CAUSE TABLE 40-1096
H-1 ALL WORK EQUIPMENT, SWING AND TRAVEL DO NOT WORK 40-1105
H-2 ALL WORK EQUIPMENT, SWING AND TRAVEL LACK SPEED AND POWER 40-1106
H-3 FINE CONTROL PERFORMANCE OR RESPONSE IS POOR 40-1109
H-4 UNUSUAL NOISE IS HEARD FROM AROUND HYDRAULIC PUMP 40-1110
H-5 ENGINE SPEED DROPS LARGELY OR ENGINE STOPS 40-1111
H-6 SPEED OR POWER OF BOOM IS LOW 40-1113
H-7 ARM SPEED OR POWER IS LOW 40-1117
H-8 BUCKET SPEED OR POWER IS LOW 40-1122
H-9 WORK EQUIPMENT DOES NOT MOVE IN SINGLE OPERATION 40-1125
H-10 HYDRAULIC DRIFT OF BOOM IS LARGE 40-1126
H-11 HYDRAULIC DRIFT OF ARM IS LARGE 40-1128
00 INDEX AND FOREWORD INDEX
PC290LC-11E0, PC290NLC-11E0 00-13
H-12 HYDRAULIC DRIFT OF BUCKET IS LARGE 40-1130
H-13 WHEN SINGLE WORK EQUIPMENT IS RELIEVED HYDRAULICALLY, OTHER WORK EQUIPMENT
MOVES 40-1131
H-14 TIME LAG OF WORK EQUIPMENT IS LARGE 40-1132
H-15 ONE-TOUCH POWER MAXIMIZING FUNCTION DOES NOT OPERATE 40-1133
H-16 ATTACHMENT CIRCUIT CANNOT BE CHANGED 40-1134
H-17 OIL FLOW IN ATTACHMENT CIRCUIT CANNOT BE CHANGED 40-1135
H-18 IN COMBINED OPERATION OF WORK EQUIPMENT, EQUIPMENT HAVING HEAVIER LOAD
MOVES SLOWER 40-1136
H-19 IN COMBINED OPERATION OF SWING AND TRAVEL, TRAVEL SPEED DROPS LARGELY
40-1137
H-20 IN COMBINED OPERATION OF SWING AND BOOM RAISE, BOOM RISING SPEED IS LOW
40-1138
H-21 MACHINE DOES NOT TRAVEL STRAIGHT 40-1139
H-22 MACHINE IS NOT STEERED WELL OR STEERING POWER IS LOW 40-1141
H-23 TRAVEL SPEED IS LOW 40-1144
H-24 ONE OF TRACKS DOES NOT RUN 40-1146
H-25 TRAVEL SPEED DOES NOT CHANGE, OR TRAVEL SPEED IS TOO SLOW OR FAST 40-1147
H-26 UPPER STRUCTURE DOES NOT SWING BOTH TO THE RIGHT AND LEFT 40-1148
H-27 SWINGS ONLY IN ONE DIRECTION 40-1149
H-28 SWING ACCELERATION OR SWING SPEED IS LOW IN BOTH DIRECTIONS (RIGHT AND
LEFT) 40-1150
H-29 SWING ACCELERATION PERFORMANCE IS POOR OR SWING SPEED IS SLOW IN ONLY
ONE DIRECTION 40-1151
H-30 UPPER STRUCTURE OVERRUNS EXCESSIVELY WHEN IT STOPS SWINGING (BOTH
RIGHT AND LEFT) 40-1152
H-31 UPPER STRUCTURE OVERRUNS EXCESSIVELY WHEN IT STOPS SWINGING (ONLY ONE
DIRECTION EITHER RIGHT OR LEFT) 40-1153
H-32 SHOCK IS LARGE WHEN UPPER STRUCTURE STOPS SWINGING 40-1154
H-33 LARGE UNUSUAL NOISE IS HEARD WHEN UPPER STRUCTURE STOPS SWINGING 40-1155
H-34 SWING DRIFT ON A SLOPE IS LARGE (WHILE SWING PARKING BRAKE IS APPLIED)40-1156
H-35 SWING DRIFT ON A SLOPE IS LARGE (WHILE SWING PARKING BRAKE IS RELEASED)
40-1157
H-36 Quick coupler cylinder will not extend 40-1158
H-37 Quick coupler cylinder will not retract (but buzzer doesnot sound) 40-1160
H-38 Buzzer does not sound (but quick coupler cylinder doesretract) 40-1162
H-39 Quick coupler cylinder extends and retracts slowly 40-1164
TROUBLESHOOTING OF ENGINE (S-MODE) 40-1165
INFORMATION MENTIONED IN TROUBLESHOOTING TABLE (S MODE) 40-1165
S-1 ENGINE DOES NOT CRANK WHEN STARTING SWITCH IS TURNED TO START POSITION
40-1166
S-2 ENGINE CRANKS BUT NO EXHAUST GAS COMES OUT 40-1167
S-3 FUEL IS BEING INJECTED BUT ENGINE DOES NOT START (MISFIRING: ENGINE CRANKS
BUT DOES NOT START) 40-1168
S-4 ENGINE STARTABILITY IS POOR 40-1170
S-5 ENGINE DOES NOT PICK UP SMOOTHLY 40-1172
S-6 ENGINE STOPS DURING OPERATION 40-1174
S-7 ENGINE RUNS ROUGH OR IS UNSTABLE 40-1176
S-8 ENGINE LACKS POWER 40-1177
S-9 KDPF GETS CLOGGED IN A SHORT TIME 40-1179
S-10 ENGINE OIL CONSUMPTION IS EXCESSIVE 40-1181
S-11 OIL BECOMES CONTAMINATED QUICKLY 40-1182
S-12 FUEL CONSUMPTION IS EXCESSIVE 40-1183
S-13 OIL IS IN COOLANT (OR COOLANT SPURTS BACK OR COOLANT LEVEL GOES DOWN)
40-1184
S-14 OIL PRESSURE DROPS 40-1185
S-15 FUEL MIXES INTO ENGINE OIL 40-1187
S-16 WATER MIXES INTO ENGINE OIL (MILKY) 40-1188
INDEX 00 INDEX AND FOREWORD
00-14 PC290LC-11E0, PC290NLC-11E0
S-17 COOLANT TEMPERATURE RISES TOO HIGH (OVERHEATING) 40-1189
S-18 UNUSUAL NOISE IS HEARD 40-1190
S-19 VIBRATION IS EXCESSIVE 40-1191
S-20 AIR CANNOT BE BLED FROM FUEL CIRCUIT 40-1192
S-21 ACTIVE REGENERATION IS EXECUTED FREQUENTLY 40-1193
S-22 ACTIVE REGENERATION TAKES TIME 40-1195
S-23 WHITE SMOKE IS EXHAUSTED DURING ACTIVE REGENERATION 40-1196
S-24 AdBlue/DEF CONSUMPTION IS EXCESSIVE 40-1197
S-25 THERE IS UNUSUAL SMELL (IRRITATING ODOR) 40-1199
S-26 FOREIGN MATERIALS ENTER AdBlue/DEF (AdBlue/DEF INCREASES) 40-1200
50 DISASSEMBLY AND ASSEMBLY 50-1
CONTENTS 50-2
ABBREVIATION LIST 50-7
RELATED INFORMATION ON DISASSEMBLY AND ASSEMBLY 50-13
HOW TO READ THIS MANUAL 50-13
COATING MATERIALS LIST 50-15
SPECIAL TOOLS LIST 50-19
SKETCHES OF SPECIAL TOOLS 50-31
ENGINE AND COOLING SYSTEM 50-37
REMOVE AND INSTALL SUPPLY PUMP ASSEMBLY 50-37
REMOVE AND INSTALL INJECTOR ASSEMBLY 50-44
REMOVE AND INSTALL CYLINDER HEAD ASSEMBLY 50-57
REMOVE AND INSTALL EGR VALVE ASSEMBLY 50-83
REMOVE AND INSTALL EGR COOLER ASSEMBLY 50-87
REMOVE AND INSTALL STARTER ASSEMBLY 50-95
REMOVE AND INSTALL ALTERNATOR BELT 50-99
REMOVE AND INSTALL RADIATOR ASSEMBLY 50-103
REMOVE AND INSTALL HYDRAULIC OIL COOLER ASSEMBLY 50-107
REMOVE AND INSTALL AFTERCOOLER ASSEMBLY 50-113
REMOVE AND INSTALL ENGINE AND MAIN PUMP ASSEMBLY 50-116
REMOVE AND INSTALL ENGINE FRONT OIL SEAL 50-136
REMOVE AND INSTALL ENGINE REAR OIL SEAL 50-143
REMOVE AND INSTALL FUEL COOLER ASSEMBLY 50-147
REMOVE AND INSTALL ENGINE HOOD ASSEMBLY 50-149
REMOVE AND INSTALL FUEL TANK ASSEMBLY 50-157
REMOVE AND INSTALL AdBlue/DEF TANK ASSEMBLY 50-167
REMOVE AND INSTALL AdBlue/DEF TANK SENSOR FLANGE ASSEMBLY 50-178
REMOVE AND INSTALL AdBlue/DEF TANK SENSOR 50-189
REMOVE AND INSTALL AdBlue/DEF TANK STRAINER 50-191
REMOVE AND INSTALL AdBlue/DEF TANK FILLER PORT FILTER 50-192
REMOVE AND INSTALL KDPF ASSEMBLY 50-197
DISASSEMBLE AND ASSEMBLE OF KDPF ASSEMBLY 50-201
REMOVE AND INSTALL SCR ASSEMBLY 50-210
REMOVE AND INSTALL KDPF, SCR ASSEMBLY 50-214
REMOVE AND INSTALL KDPF, SCR ASSEMBLY BRACKET 50-226
REMOVE AND INSTALL KCCV ASSEMBLY 50-243
REMOVE AND INSTALL AdBlue/DEF MIXING TUBE 50-250
REMOVE AND INSTALL AdBlue/DEF INJECTOR 50-260
REMOVE AND INSTALL AdBlue/DEF PUMP 50-264
REMOVE AND INSTALL AdBlue/DEF HOSE 50-269
REMOVE AND INSTALL AIR CLEANER ASSEMBLY 50-283
REMOVE AND INSTALL AIR CONDITIONER COMPRESSOR ASSEMBLY 50-286
REMOVE AND INSTALL AIR CONDITIONER CONDENSER ASSEMBLY 50-291
POWER TRAIN 50-293
REMOVE AND INSTALL TRAVEL MOTOR AND FINAL DRIVE ASSEMBLY 50-293
DISASSEMBLE AND ASSEMBLE FINAL DRIVE ASSEMBLY 50-295
REMOVE AND INSTALL SWING MOTOR AND SWING MACHINERY ASSEMBLY 50-308
DISASSEMBLE AND ASSEMBLE SWING MACHINERY ASSEMBLY 50-314
00 INDEX AND FOREWORD INDEX
PC290LC-11E0, PC290NLC-11E0 00-15
REMOVE AND INSTALL SWING CIRCLE ASSEMBLY 50-325
UNDERCARRIAGE AND FRAME 50-327
SEPARATION AND CONNECTION OF TRACK ASSEMBLY 50-327
REMOVE AND INSTALL SPROCKET 50-332
REMOVE AND INSTALL IDLER AND IDLER CUSHION ASSEMBLY 50-334
DISASSEMBLE AND ASSEMBLE IDLER ASSEMBLY 50-336
DISASSEMBLE AND ASSEMBLE OF IDLER CUSHION ASSEMBLY 50-341
DISASSEMBLE AND ASSEMBLE TRACK ROLLER ASSEMBLY 50-344
DISASSEMBLEAND ASSEMBLE CARRIER ROLLER ASSEMBLY 50-348
REMOVE AND INSTALL REVOLVING FRAME ASSEMBLY 50-352
REMOVE AND INSTALL COUNTERWEIGHT ASSEMBLY 50-356
HYDRAULIC SYSTEM 50-363
REMOVE AND INSTALL CENTER SWIVEL JOINT ASSEMBLY 50-363
DISASSEMBLE AND ASSEMBLE CENTER SWIVEL JOINT ASSEMBLY 50-368
REMOVE AND INSTALL HYDRAULIC TANK ASSEMBLY 50-371
REMOVE AND INSTALL MAIN PUMP ASSEMBLY 50-377
REMOVE AND INSTALL CONTROL VALVE ASSEMBLY 50-383
DISASSEMBLE AND ASSEMBLE CONTROL VALVE ASSEMBLY 50-398
DISASSEMBLE AND ASSEMBLE WORK EQUIPMENT PPC VALVE ASSEMBLY 50-404
DISASSEMBLE AND ASSEMBLE TRAVEL PPC VALVE ASSEMBLY 50-406
REMOVE AND INSTALL QUICK COUPLER VALVE 50-409
WORK EQUIPMENT 50-411
REMOVE AND INSTALL WORK EQUIPMENT ASSEMBLY 50-411
DISASSEMBLE AND ASSEMBLE WORK EQUIPMENT CYLINDER ASSEMBLY 50-421
CAB AND ITS ATTACHMENTS 50-430
REMOVE AND INSTALL OPERATOR’S CAB ASSEMBLY 50-430
REMOVE AND INSTALL OPERATOR CAB GLASS (ADHERED GLASS) 50-443
REMOVE AND INSTALL FRONT WINDOW ASSEMBLY 50-455
REMOVE AND INSTALL FLOOR FRAME ASSEMBLY 50-464
REMOVE AND INSTALL AIR CONDITIONER UNIT ASSEMBLY 50-478
REMOVE AND INSTALL OPERATOR’S SEAT 50-491
REMOVE AND INSTALL SEAT BELT 50-496
REMOVE AND INSTALL FRONT WIPER ASSEMBLY 50-498
ELECTRICAL SYSTEM 50-512
REMOVE AND INSTALL ENGINE CONTROLLER ASSEMBLY 50-512
REMOVE AND INSTALL PUMP CONTROLLER ASSEMBLY 50-515
REMOVE AND INSTALL KomVision CONTROLLER ASSEMBLY 50-524
REMOVE AND INSTALL MACHINE MONITOR ASSEMBLY 50-527
REMOVE AND INSTALL PUMP SWASH PLATE SENSOR 50-534
REMOVE AND INSTALL MASS AIR FLOW AND TEMPERATURE SENSOR 50-536
REMOVE AND INSTALL KCCV CRANKCASE PRESSURE SENSOR 50-538
REMOVE AND INSTALL SCR TEMPERATURE SENSOR 50-541
REMOVE AND INSTALL KomVision CAMERA 50-546
REMOVE AND INSTALL KOMTRAX TERMINAL ASSEMBLY 50-552
60 MAINTENANCE STANDARD 60-1
CONTENTS 60-2
ABBREVIATION LIST 60-3
ENGINE AND COOLING SYSTEM 60-9
MAINTENANCE STANDARD OF ENGINE MOUNT 60-9
MAINTENANCE STANDARD OF COOLING SYSTEM 60-10
POWER TRAIN 60-11
MAINTENANCE STANDARD OF SWING CIRCLE 60-11
MAINTENANCE STANDARD OF SWING MACHINERY 60-12
MAINTENANCE STANDARD OF FINAL DRIVE 60-14
MAINTENANCE STANDARD OF SPROCKET 60-16
MAINTENANCE STANDARD OF SPROCKET TOOTH PROFILE FULL-SCALE DRAWING 60-17
UNDERCARRIAGE AND FRAME 60-19
MAINTENANCE STANDARD OF TRACK FRAME AND IDLER CUSHION 60-19
INDEX 00 INDEX AND FOREWORD
00-16 PC290LC-11E0, PC290NLC-11E0
MAINTENANCE STANDARD OF IDLER 60-21
MAINTENANCE STANDARD OF TRACK ROLLER 60-23
MAINTENANCE STANDARD OF CARRIER ROLLER 60-25
MAINTENANCE STANDARD OF TRACK SHOE 60-26
MAINTENANCE STANDARD OF TRIPLE SHOE 60-29
HYDRAULIC SYSTEM 60-30
MAINTENANCE STANDARD OF HYDRAULIC TANK 60-30
MAINTENANCE STANDARD OF MAIN PUMP 60-31
MAINTENANCE STANDARD OF LS-EPC VALVE 60-32
MAINTENANCE STANDARD OF PC-EPC VALVE 60-33
MAINTENANCE STANDARD OF SWING MOTOR 60-34
MAINTENANCE STANDARD OF TRAVEL MOTOR 60-37
MAINTENANCE STANDARD OF CONTROL VALVE 60-40
MAINTENANCE STANDARD OF WORK EQUIPMENT AND SWING PPC VALVE 60-50
MAINTENANCE STANDARD OF TRAVEL PPC VALVE 60-53
MAINTENANCE STANDARD OF 1ST-LINE ATTACHMENT PPC VALVE (WITH EPC VALVE) 60-56
MAINTENANCE STANDARD OF SOLENOID VALVE 60-59
MAINTENANCE STANDARD OF ATTACHMENT CIRCUIT SELECTOR VALVE (FOR HIGH PRESSURE)
60-60
MAINTENANCE STANDARD OF ATTACHMENT CIRCUIT SELECTOR VALVE (FOR LOW PRESSURE)
60-61
MAINTENANCE STANDARD OF CENTER SWIVEL JOINT 60-62
WORK EQUIPMENT 60-63
MAINTENANCE STANDARD OF WORK EQUIPMENT LINKAGE 60-63
MAINTENANCE STANDARD OF BOOM CYLINDER 60-72
MAINTENANCE STANDARD OF BOOM CYLINDER (LARGE DIAMETER PISTON) 60-73
MAINTENANCE STANDARD OF ARM CYLINDER 60-74
MAINTENANCE STANDARD OF BUCKET CYLINDER 60-75
80 APPENDIX 80-1
CONTENTS 80-2
ABBREVIATION LIST 80-4
AIR CONDITIONER SYSTEM 80-10
PRECAUTIONS FOR REFRIGERANT 80-10
AIR CONDITIONER COMPONENT 80-11
SPECIFICATIONS OF AIR CONDITIONER 80-13
CONFIGURATION AND FUNCTION OF REFRIGERATION CYCLE 80-14
OUTLINE OF REFRIGERATION CYCLE 80-15
COMPONENT PARTS OF AIR CONDITIONER SYSTEM 80-17
AIR CONDITIONER UNIT 80-17
COMPONENT PARTS OF AIR CONDITIONER UNIT 80-21
AIR CONDITIONER CONTROLLER 80-25
COMPRESSOR 80-26
CONDENSER 80-27
SENSORS FOR AIR CONDITIONER SYSTEM 80-29
EXPLANATION OF PROCEDURE FOR TESTING AND TROUBLESHOOTING OF AIR CONDITIONER
80-31
CIRCUIT DIAGRAM AND ARRANGEMENT OF CONNECTOR PINS FOR AIR CONDITIONER 80-33
AIR CONDITIONER SYSTEM DIAGRAM 80-35
INPUT AND OUTPUT SIGNALS OF AIR CONDITIONER CONTROLLER 80-36
INSTALLATION LOCATIONS OF AIR CONDITIONER PARTS AND ARRANGEMENT OF CONNECTORS
80-38
TESTING AIR LEAKAGE (DUCT) 80-42
METHOD FOR TESTING AIR LEAKAGE (DUCT) 80-42
TESTING AIR CONDITIONER USING SELF-DIAGNOSIS FUNCTION 80-44
HOW TO OPEN THE ELECTRICAL SYSTEM ABNORMALITY RECORD SCREEN IN SERVICE MODE
OF THE MACHINE MONITOR 80-45
TEST VENT (MODE) CHANGEOVER 80-46
METHOD FOR TESTING VENT (MODE) CHANGEOVER 80-46
00 INDEX AND FOREWORD INDEX
PC290LC-11E0, PC290NLC-11E0 00-17
TESTING FRESH/RECIRC AIR CHANGEOVER 80-48
METHOD FOR TESTING FRESH/RECIRC AIR CHANGEOVER 80-48
TEST SUNLIGHT SENSOR 80-49
METHOD FOR TESTING SUNLIGHT SENSOR 80-49
TEST (DUAL) PRESSURE SWITCH FOR REFRIGERANT 80-50
METHOD FOR TESTING (DUAL) PRESSURE SWITCH FOR REFRIGERANT 80-50
TEST RELAYS 80-51
METHOD FOR TESTING RELAYS 80-51
AIR CONDITIONER TROUBLESHOOTING CHART 1 80-52
AIR CONDITIONER TROUBLESHOOTING CHART 2 80-53
INFORMATION DESCRIBED IN TROUBLESHOOTING TABLE 80-56
FAILURE CODE [879AKA] 80-58
FAILURE CODE [879AKB] 80-59
FAILURE CODE [879BKA] 80-60
FAILURE CODE [879BKB] 80-62
FAILURE CODE [879CKA] 80-64
FAILURE CODE [879CKB] 80-65
FAILURE CODE [879DKZ] 80-66
FAILURE CODE [879EMC] 80-68
FAILURE CODE [879FMC] 80-69
FAILURE CODE [879GKX] 80-70
A-1 TROUBLESHOOTING FOR POWER SUPPLY SYSTEM (AIR CONDITIONER DOES NOT OPERATE)
80-72
A-2 TROUBLESHOOTING FOR COMPRESSOR AND REFRIGERANT SYSTEM (AIR IS NOT COOLED)
80-74
A-3 TROUBLESHOOTING FOR BLOWER MOTOR SYSTEM (NO AIR COMES OUT OR AIR FLOW IS
ABNORMAL) 80-77
A-4 TROUBLESHOOTING FOR FRESH/RECIRC AIR CHANGEOVER 80-79
TROUBLESHOOTING USING GAUGE PRESSURE 80-81
CONNECTION OF SERVICE TOOL 80-84
METHOD FOR CONNECTING SERVICE TOOL 80-84
PRECAUTIONS FOR DISCONNECTING AND CONNECTING HOSES AND TUBES IN AIR CONDITIONER
PIPINGS 80-86
HANDLE COMPRESSOR OIL 80-88
METHOD FOR REPLACING DESICCANT 80-90
90 CIRCUIT DIAGRAMS 90-1
CONTENTS 90-2
ABBREVIATION LIST 90-3
HYDRAULIC CIRCUIT DIAGRAM 90-9
SYMBOLS USED IN HYDRAULIC CIRCUIT DIAGRAM 90-9
HYDRAULIC CIRCUIT DIAGRAM (1/2) 90-13
HYDRAULIC CIRCUIT DIAGRAM (2/2) 90-15
ELECTRICAL CIRCUIT DIAGRAM 90-17
SYMBOLS USED IN ELECTRICAL CIRCUIT DIAGRAM 90-17
ELECTRICAL CIRCUIT DIAGRAM (1/8) 90-21
ELECTRICAL CIRCUIT DIAGRAM (2/8) 90-23
ELECTRICAL CIRCUIT DIAGRAM (3/8) 90-25
ELECTRICAL CIRCUIT DIAGRAM (4/8) 90-27
ELECTRICAL CIRCUIT DIAGRAM (5/8) 90-29
ELECTRICAL CIRCUIT DIAGRAM (6/8) 90-31
ELECTRICAL CIRCUIT DIAGRAM (7/8) 90-33
ELECTRICAL CIRCUIT DIAGRAM (8/8) 90-35
INDEX 1

DESCRIPTION:

Komatsu PC290-11E0 PC290LC-11E0 PC290NLC-11E0 Hydraulic Excavator Shop Manual UENBM00481 – PDF DOWNLOAD

SERIAL NUMBERS K75001 and up

FOREWORD, SAFETY, BASIC INFORMATION
HOW TO READ THE SHOP MANUAL
• Some of the attachments and options described in this shop manual may not be available in some areas. If
they are required, consult your Komatsu distributor.
• The materials and specifications are subject to change without notice.
• Shop Manuals are available for “machine part” and “engine part”. For the engine unit, see the shop manual
for the machine which has the same engine model.
• Actual machine may differ from the images which are contained in this manual. A typical model is shown in
the illustrations of this shop manual.
Composition of the shop manual
This shop manual contains technical information necessary to perform services in workshops. It is divided into
the following chapters for the ease of use.
00 INDEX AND FOREWORD
This section describes the index, foreword, safety, and basic information.
01 SPECIFICATIONS
This section describes the specifications of the machine.
10 STRUCTURE AND FUNCTION
This section describes the structure and operation of each component with respect to each system. “STRUCTURE
AND FUNCTION” is helpful in not only understanding the structure of each component but performing
troubleshooting.
20 STANDARD VALUE TABLE
This section describes the standard values for new machine and failure criteria for testing and adjusting, and
troubleshooting. Use the standard values table to check the standard values for testing and adjusting, and judge
troubles in troubleshooting.
30 TESTING AND ADJUSTING
This section describes the measuring tools and measuring methods for testing and adjusting as well as the adjusting
method of each part. The standard values and repair limit for TESTING AND ADJUSTING are described
in “STANDARD VALUE TABLE”.
40 TROUBLESHOOTING
This section describes troubleshooting of failure part and its remedy method on the occurrence of the failure.
Descriptions of troubleshooting are sorted by failure mode.
50 DISASSEMBLY AND ASSEMBLY
This section describes the special tools, work procedures, and safety precautions necessary for removal, installation,
disassembly, and assembly of the components and parts. In addition, tightening torques, quantity, and
weight of the coating materials, lubricants, and coolant necessary to these works are shown.
60 MAINTENANCE STANDARD
This section describes the maintenance standard value of each component. The maintenance standard shows
the criteria and remedies for disassembly and assembly.
80 THE OTHER INFORMATION
This section describes the structure and function, testing and adjusting, and troubleshooting for all of the other
components or equipment which cannot be separately classified in the appendix.
90 Circuit diagrams
This section describes hydraulic circuit diagrams and electrical circuit diagrams.

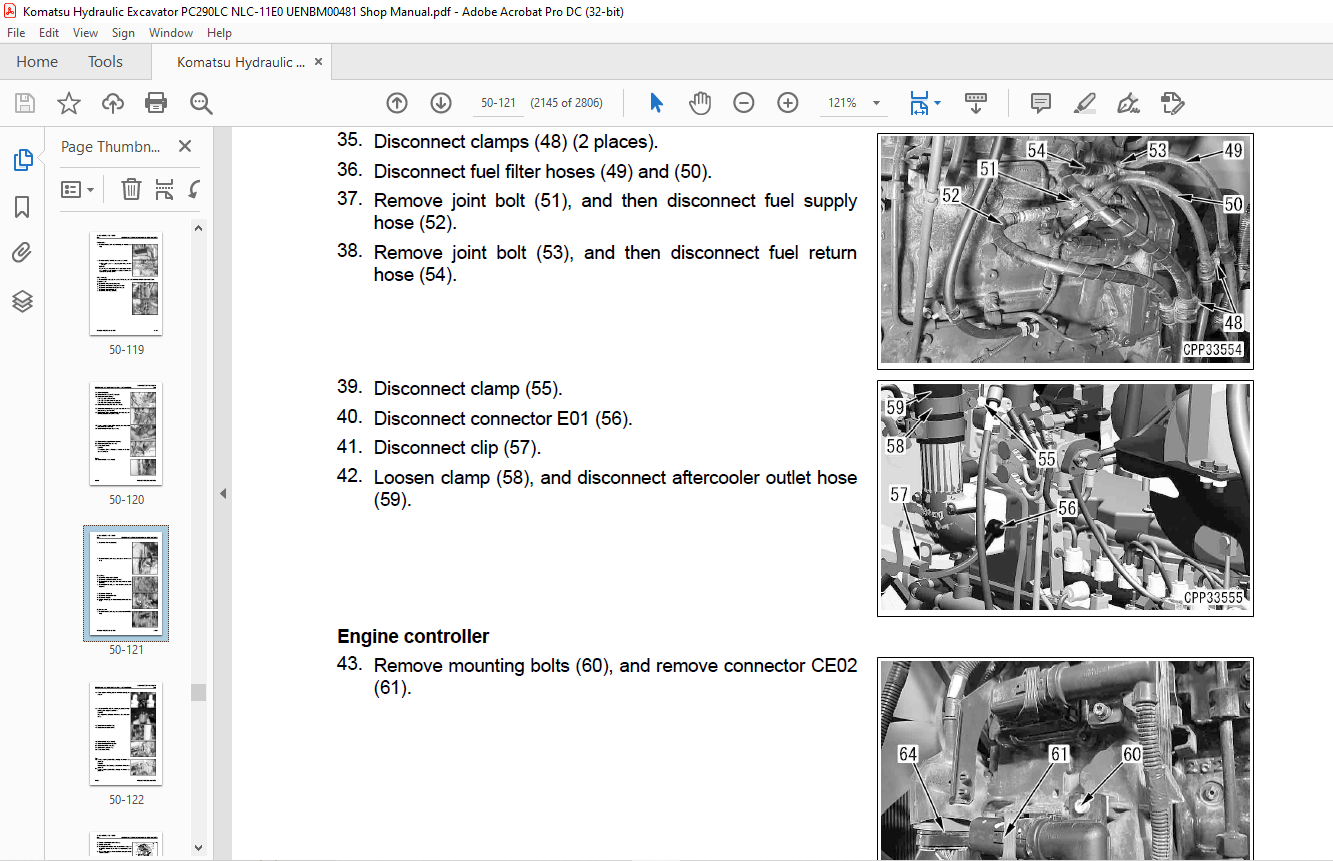

IMAGES PREVIEW OF THE MANUAL:
