DESCRIPTION:

Komatsu PC500LC-10M0 Hydraulic Excavator Shop Manual SEN06813-00 – PDF DOWNLOAD

SERIAL NUMBERS 105002 and up

FOREWORD, SAFETY, BASIC INFORMATION
HOW TO READ THE SHOP MANUAL
• Some of the attachments and options described in this shop manual may not be available in some areas. If
they are required, consult your Komatsu distributor.
• The materials and specifications are subject to change without notice.
• Shop Manuals are available for “machine part” and “engine part”. For the engine unit, see the shop manual
for the machine which has the same engine model.
• Actual machine may differ from the images which are contained in this manual. A typical model is shown in
the illustrations of this shop manual.
Composition of the shop manual
This shop manual contains technical information necessary to perform services in workshops. It is divided into
the following chapters for the ease of use.
00 INDEX AND FOREWORD
This section describes the index, foreword, safety, and basic information.
01 SPECIFICATIONS
This section describes the specifications of the machine.
10 STRUCTURE AND FUNCTION
This section describes the structure and operation of each component with respect to each system. “STRUCTURE
AND FUNCTION” is helpful in not only understanding the structure of each component but performing
troubleshooting.
20 STANDARD VALUE TABLE
This section describes the standard values for new machine and failure criteria for testing and adjusting, and
troubleshooting. Use the standard values table to check the standard values for testing and adjusting, and judge
troubles in troubleshooting.
30 TESTING AND ADJUSTING
This section describes the measuring tools and measuring methods for testing and adjusting as well as the adjusting
method of each part. The standard values and repair limit for TESTING AND ADJUSTING are described
in “STANDARD VALUE TABLE”.
40 TROUBLESHOOTING
This section describes troubleshooting of failure part and its remedy method on the occurrence of the failure.
Descriptions of troubleshooting are sorted by failure mode.
50 DISASSEMBLY AND ASSEMBLY
This section describes the special tools, work procedures, and safety precautions necessary for removal, installation,
disassembly, and assembly of the components and parts. In addition, tightening torques, quantity, and
weight of the coating materials, lubricants, and coolant necessary to these works are shown.
60 MAINTENANCE STANDARD
This section describes the maintenance standard value of each component. The maintenance standard shows
the criteria and remedies for disassembly and assembly.
80 THE OTHER INFORMATION
This section describes the structure and function, testing and adjusting, and troubleshooting for all of the other
components or equipment which cannot be separately classified in the appendix.
90 Circuit diagrams
This section describes hydraulic circuit diagrams and electrical circuit diagrams.

General precautions
If the machine is handled incorrectly, it is dangerous. Read and understand what is described in the
operation and maintenance manual before operation. Read and understand what is described in this
manual before operation.
• Read and understand the meaning of all the safety labels stuck to the machine before performing any
greasing or repairs. For the locations of the safety labels and detailed explanation of precautions, see Operation
and Maintenance Manual.
• Tools and removed parts in the workshop should be well organized. Always keep the tools and parts in their
correct places. Always keep the work area clean and make sure that there is no dust, dirt, oil, or water on
the floor. Smoke only in the designated areas. Never smoke while working.
• Keep all tools in good condition, learn the correct way to use them, and use the proper ones. Check the
tools, machine, forklift truck, service car, etc. thoroughly before starting the work.
• Always wear safety shoes and helmet when performing
any operation. Do not wear loose clothes, or clothes with
buttons missing.
• Always wear the protective eyeglasses when hitting parts
with a hammer.
• Always wear the protective eyeglasses when grinding
parts with a grinder, etc.
• When performing any operation with multiple workers, always
agree on the operating procedure before starting. Be
clear in verbal communication, and observe hand signals.
Hang “UNDER REPAIR” warning tag in the operator’s
compartment Before starting work.
• Work and operation which require license or qualification
should be performed by qualified workers.
• Welding repairs should be performed by trained and experienced welders. When performing welding work,
always wear welding gloves, apron, welding goggles, cap and other clothes suited for welding work.
• Warm up before starting the work with exercise which increases alertness and the range of motion in order
to prevent injury.
• Avoid prolonged work, and take a rest at times to keep up a good condition. Take a rest at designated safe
area.
Precautions for preparatory work:
• Place the machine on a firm and level ground, and apply the parking brake and chock the wheels or tracks
to prevent the machine from moving before adding oil or making any repairs.
• Lower the work equipment (blade, ripper, bucket, etc.) to the ground before starting work. If this is not possible,
insert the lock pin or use blocks to prevent the work equipment from falling. In addition, be sure to
lock all the control levers and hang “UNDER REPAIR” warning tag on them.
• When performing the disassembling or assembling work, support the machine securely with blocks, jacks,
or stands before starting the work.
• Remove all mud and oil from the steps or other places for going up and down on the machine. Always use the handrails, ladders or steps when for going up and down on the machine. Never jump on or off the machine. When the scaffold is not provided, use steps or stepladder to secure your footing. Do not use handrails, ladders, or steps if they are damaged or deformed. Repair it or replace it immediately.

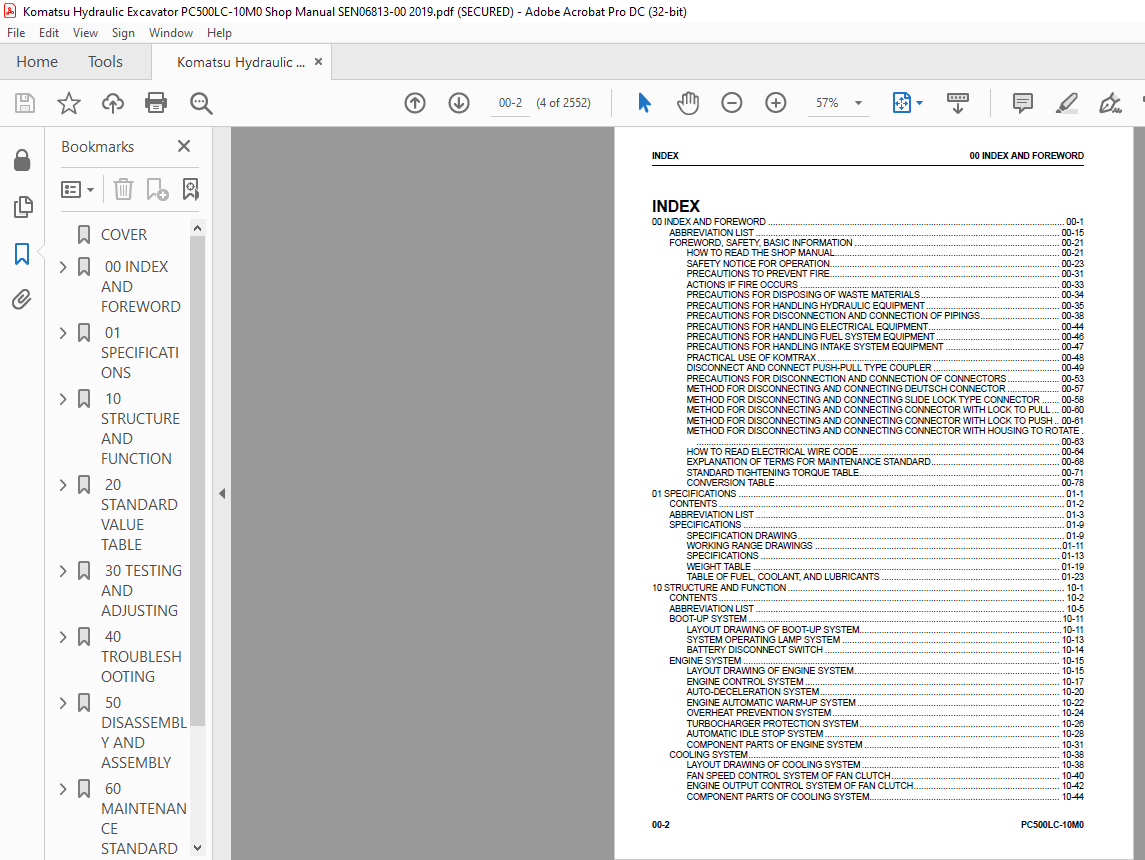

TABLE OF CONTENTS:

Komatsu PC500LC-10M0 Hydraulic Excavator Shop Manual SEN06813-00 – PDF DOWNLOAD

INDEX
00 INDEX AND FOREWORD 00-1
ABBREVIATION LIST 00-15
FOREWORD, SAFETY, BASIC INFORMATION 00-21
HOW TO READ THE SHOP MANUAL 00-21
SAFETY NOTICE FOR OPERATION 00-23
PRECAUTIONS TO PREVENT FIRE 00-31
ACTIONS IF FIRE OCCURS 00-33
PRECAUTIONS FOR DISPOSING OF WASTE MATERIALS 00-34
PRECAUTIONS FOR HANDLING HYDRAULIC EQUIPMENT 00-35
PRECAUTIONS FOR DISCONNECTION AND CONNECTION OF PIPINGS 00-38
PRECAUTIONS FOR HANDLING ELECTRICAL EQUIPMENT 00-44
PRECAUTIONS FOR HANDLING FUEL SYSTEM EQUIPMENT 00-46
PRECAUTIONS FOR HANDLING INTAKE SYSTEM EQUIPMENT 00-47
PRACTICAL USE OF KOMTRAX 00-48
DISCONNECT AND CONNECT PUSH-PULL TYPE COUPLER 00-49
PRECAUTIONS FOR DISCONNECTION AND CONNECTION OF CONNECTORS 00-53
METHOD FOR DISCONNECTING AND CONNECTING DEUTSCH CONNECTOR 00-57
METHOD FOR DISCONNECTING AND CONNECTING SLIDE LOCK TYPE CONNECTOR 00-58
METHOD FOR DISCONNECTING AND CONNECTING CONNECTOR WITH LOCK TO PULL 00-60
METHOD FOR DISCONNECTING AND CONNECTING CONNECTOR WITH LOCK TO PUSH 00-61
METHOD FOR DISCONNECTING AND CONNECTING CONNECTOR WITH HOUSING TO ROTATE
00-63
HOW TO READ ELECTRICAL WIRE CODE 00-64
EXPLANATION OF TERMS FOR MAINTENANCE STANDARD 00-68
STANDARD TIGHTENING TORQUE TABLE 00-71
CONVERSION TABLE 00-78
01 SPECIFICATIONS 01-1
CONTENTS 01-2
ABBREVIATION LIST 01-3
SPECIFICATIONS 01-9
SPECIFICATION DRAWING 01-9
WORKING RANGE DRAWINGS 01-11
SPECIFICATIONS 01-13
WEIGHT TABLE 01-19
TABLE OF FUEL, COOLANT, AND LUBRICANTS 01-23
10 STRUCTURE AND FUNCTION 10-1
CONTENTS 10-2
ABBREVIATION LIST 10-5
BOOT-UP SYSTEM 10-11
LAYOUT DRAWING OF BOOT-UP SYSTEM 10-11
SYSTEM OPERATING LAMP SYSTEM 10-13
BATTERY DISCONNECT SWITCH 10-14
ENGINE SYSTEM 10-15
LAYOUT DRAWING OF ENGINE SYSTEM 10-15
ENGINE CONTROL SYSTEM 10-17
AUTO-DECELERATION SYSTEM 10-20
ENGINE AUTOMATIC WARM-UP SYSTEM 10-22
OVERHEAT PREVENTION SYSTEM 10-24
TURBOCHARGER PROTECTION SYSTEM 10-26
AUTOMATIC IDLE STOP SYSTEM 10-28
COMPONENT PARTS OF ENGINE SYSTEM 10-31
COOLING SYSTEM 10-38
LAYOUT DRAWING OF COOLING SYSTEM 10-38
FAN SPEED CONTROL SYSTEM OF FAN CLUTCH 10-40
ENGINE OUTPUT CONTROL SYSTEM OF FAN CLUTCH 10-42
COMPONENT PARTS OF COOLING SYSTEM 10-44
INDEX 00 INDEX AND FOREWORD
00-2 PC500LC-10M0
CONTROL SYSTEM 10-45
LAYOUT DRAWING OF CONTROL SYSTEM 10-45
MACHINE MONITOR SYSTEM 10-48
KOMTRAX SYSTEM 10-50
COMPONENT PARTS OF CONTROL SYSTEM 10-51
HYDRAULIC SYSTEM 10-78
LAYOUT DRAWING OF HYDRAULIC SYSTEM 10-78
CLSS 10-82
ENGINE AND PUMP COMBINED CONTROL SYSTEM 10-101
PUMP AND VALVE CONTROL SYSTEM 10-107
COMPONENT PARTS OF HYDRAULIC SYSTEM 10-110
WORK EQUIPMENT SYSTEM 10-196
LAYOUT DRAWING OF WORK EQUIPMENT SYSTEM 10-196
ONE-TOUCH POWER MAXIMIZING SYSTEM 10-200
MACHINE PUSH-UP SYSTEM 10-202
PPC LOCK SYSTEM 10-204
WORK EQUIPMENT AND TRAVEL AUTOMATIC LOCK SYSTEM 10-205
OIL FLOW ADJUSTER SYSTEM FOR ATTACHMENT 10-207
COMPONENT PARTS OF WORK EQUIPMENT SYSTEM 10-209
SWING SYSTEM 10-227
LAYOUT DRAWING OF SWING SYSTEM 10-227
SWING CONTROL SYSTEM DIAGRAM 10-231
COMPONENT PARTS OF SWING SYSTEM 10-235
TRAVEL SYSTEM 10-253
LAYOUT DRAWING OF TRAVEL SYSTEM 10-253
TRAVEL CONTROL SYSTEM DIAGRAM 10-257
COMPONENT PARTS OF TRAVEL SYSTEM 10-259
UNDERCARRIAGE AND FRAME 10-280
LAYOUT DRAWING OF UNDERCARRIAGE 10-280
WORK EQUIPMENT 10-281
STRUCTURE OF WORK EQUIPMENT 10-281
FUNCTION OF WORK EQUIPMENT 10-282
WORK EQUIPMENT CLEARANCE ADJUSTMENT SHIM 10-283
BUCKET CLEARANCE ADJUSTMENT SHIM 10-284
CAB AND ITS ATTACHMENTS 10-285
ROPS CAB 10-285
CAB MOUNT 10-286
CAB TIPPING STOPPER 10-287
20 STANDARD VALUE TABLE 20-1
CONTENTS 20-2
ABBREVIATION LIST 20-3
STANDARD VALUE TABLE FOR ENGINE 20-9
STANDARD VALUE TABLE FOR ENGINE: PC500LC-10M0 20-9
STANDARD VALUE TABLE FOR MACHINE 20-13
STANDARD VALUE TABLE FOR MACHINE: PC500LC-10M0 20-13
MACHINE POSTURE AND PROCEDURE FOR MEASURING PERFORMANCE 20-27
30 TESTING AND ADJUSTING 30-1
CONTENTS 30-2
ABBREVIATION LIST 30-5
RELATED INFORMATION ON TESTING AND ADJUSTING 30-11
TOOLS FOR TESTING AND ADJUSTING 30-11
SKETCH OF TOOLS FOR TESTING AND ADJUSTING 30-16
ENGINE AND COOLING SYSTEM 30-18
TEST ENGINE SPEED 30-18
TEST BOOST PRESSURE 30-21
TEST EXHAUST GAS TEMPERATURE 30-24
TEST EXHAUST GAS COLOR 30-26
TEST AND ADJUST VALVE CLEARANCE 30-28
00 INDEX AND FOREWORD INDEX
PC500LC-10M0 00-3
TEST COMPRESSION PRESSURE 30-31
TEST BLOWBY PRESSURE 30-34
TEST ENGINE OIL PRESSURE 30-37
TEST EGR VALVE DRIVING OIL PRESSURE 30-39
TEST FUEL PRESSURE 30-41
TEST FUEL RETURN RATE AND LEAKAGE 30-43
BLEED AIR FROM FUEL SYSTEM 30-46
TEST FUEL CIRCUIT FOR LEAKAGE 30-49
HANDLE CYLINDER CUT-OUT MODE OPERATION 30-51
HANDLE NO-INJECTION CRANKING OPERATION 30-52
TEST FAN BELT 30-53
TEST ALTERNATOR BELT 30-54
TEST AUTOMATIC TENSIONER 30-56
TEST COOLING FAN SPEED 30-58
POWER TRAIN 30-59
TEST SWING CIRCLE BEARING CLEARANCE 30-59
UNDERCARRIAGE AND FRAME 30-60
TEST AND ADJUST TRACK TENSION 30-60
HYDRAULIC SYSTEM 30-62
RELEASE REMAINING PRESSURE FROM HYDRAULIC SYSTEM 30-62
TEST AND ADJUST OIL PRESSURE IN WORK EQUIPMENT, SWING, AND TRAVEL CIRCUITS
30-65
TEST OIL PRESSURE OF CONTROL CIRCUIT 30-76
TEST AND ADJUST OIL PRESSURE IN PUMP PC CONTROL CIRCUIT 30-78
TEST AND ADJUST OIL PRESSURE IN PUMP LS CONTROL CIRCUIT 30-82
TEST OUTLET PRESSURE OF SOLENOID VALVE 30-88
TEST PPC VALVE OUTLET PRESSURE 30-92
ADJUST WORK EQUIPMENT AND SWING PPC VALVES 30-95
TEST THE PARTS CAUSING HYDRAULIC DRIFT IN WORK EQUIPMENT 30-96
TEST OIL LEAKAGE 30-98
BLEED AIR FROM HYDRAULIC CIRCUIT 30-101
TEST AND CHARGE ACCUMULATOR (MANUFACTURED BY HYDAC) NITROGEN GAS PRESSURE
FOR ATTACHMENT (LOW PRESSURE SIDE) 30-106
TEST AND CHARGE ACCUMULATOR NITROGEN GAS PRESSURE FOR ATTACHMENT (HIGH
PRESSURE SIDE) 30-110
REPLACE ACCUMULATOR BLADDER ON HIGH PRESSURE SIDE FOR ACCUMULATOR PIPING
30-114
CAB AND ITS ATTACHMENTS 30-121
TEST CAB TIPPING STOPPER 30-121
METHOD FOR ADJUSTING MIRRORS 30-122
ELECTRICAL SYSTEM 30-129
SET AND OPERATE MACHINE MONITOR 30-129
METHOD FOR STARTING UP KOMTRAX TERMINAL 30-189
ADJUST REARVIEW CAMERA ANGLE 30-194
HANDLE VOLTAGE CIRCUIT OF ENGINE CONTROLLER 30-197
HANDLE BATTERY DISCONNECT SWITCH 30-198
TEST DIODES 30-199
Pm CLINIC 30-200
Pm CLINIC SERVICE 30-200
40 TROUBLESHOOTING 40-1
CONTENTS 40-2
ABBREVIATION LIST 40-9
RELATED INFORMATION ON TROUBLESHOOTING 40-15
GENERAL TROUBLESHOOTING POINTS 40-15
SEQUENCE OF EVENTS IN TROUBLESHOOTING 40-16
CHECKS BEFORE TROUBLESHOOTING 40-18
INSPECTION PROCEDURE BEFORE TROUBLESHOOTING 40-20
TESTING IN ACCORDANCE WITH TESTING PROCEDURE 40-22
INDEX 00 INDEX AND FOREWORD
00-4 PC500LC-10M0
PREPARATION FOR TROUBLESHOOTING OF ELECTRICAL SYSTEM 40-46
PROCEDURE FOR TESTING AND TROUBLESHOOTING 40-51
SYMPTOMS OF FAILURE AND TROUBLESHOOTING NUMBERS 40-54
INFORMATION DESCRIBED IN TROUBLESHOOTING TABLE 40-58
TROUBLESHOOTING METHOD FOR OPEN CIRCUIT IN WIRING HARNESS OF PRESSURE SENSOR
SYSTEM 40-60
CONNECTOR AND WIRING HARNESS IDENTIFICATION TABLE 40-63
CONNECTOR LAYOUT 40-116
CONNECTOR CONTACT IDENTIFICATION 40-122
T-BRANCH BOX AND T-BRANCH ADAPTER TABLE 40-162
FUSE LOCATION TABLE 40-168
PRECAUTIONS FOR CLEANING AND REPLACING KDPF (KCSF and KDOC) 40-170
PREPARATION OF SHORT CIRCUIT ELECTRICAL CONNECTOR (FOR FAILURE CODES [CA1883]
AND [CA3135]) 40-174
FAILURE CODES TABLE 40-176
TROUBLESHOOTING BY FAILURE CODE (DISPLAY OF CODE) 40-185
FAILURE CODE [602KNX] 40-185
FAILURE CODE [879AKA] 40-188
FAILURE CODE [879AKB] 40-190
FAILURE CODE [879BKA] 40-192
FAILURE CODE [879BKB] 40-196
FAILURE CODE [879CKA] 40-199
FAILURE CODE [879CKB] 40-201
FAILURE CODE [879DKZ] 40-203
FAILURE CODE [879EMC] 40-206
FAILURE CODE [879FMC] 40-208
FAILURE CODE [879GKX] 40-210
FAILURE CODE [989L00] 40-213
FAILURE CODE [989M00] 40-215
FAILURE CODE [989N00] 40-217
FAILURE CODE [A900FR] 40-218
FAILURE CODE [A900N6] 40-219
FAILURE CODE [A900NY] 40-220
FAILURE CODE [AA10NX] 40-221
FAILURE CODE [AB00KE] 40-223
FAILURE CODE [B@BAZG] 40-226
FAILURE CODE [B@BAZK] 40-230
FAILURE CODE [B@BCNS] 40-232
FAILURE CODE [B@BCQA] 40-236
FAILURE CODE [B@BCZK] 40-238
FAILURE CODE [CA111] 40-240
FAILURE CODE [CA115] 40-244
FAILURE CODE [CA122] 40-246
FAILURE CODE [CA123] 40-249
FAILURE CODE [CA131] 40-252
FAILURE CODE [CA132] 40-255
FAILURE CODE [CA135] 40-258
FAILURE CODE [CA141] 40-261
FAILURE CODE [CA144] 40-264
FAILURE CODE [CA145] 40-267
FAILURE CODE [CA153] 40-270
FAILURE CODE [CA154] 40-273
FAILURE CODE [CA187] 40-276
FAILURE CODE [CA221] 40-279
FAILURE CODE [CA222] 40-282
FAILURE CODE [CA227] 40-285
FAILURE CODE [CA234] 40-288
FAILURE CODE [CA238] 40-290
00 INDEX AND FOREWORD INDEX
PC500LC-10M0 00-5
FAILURE CODE [CA263] 40-293
FAILURE CODE [CA265] 40-296
FAILURE CODE [CA271] 40-299
FAILURE CODE [CA272] 40-302
FAILURE CODE [CA273] 40-304
FAILURE CODE [CA274] 40-307
FAILURE CODE [CA322] 40-309
FAILURE CODE [CA323] 40-312
FAILURE CODE [CA324] 40-315
FAILURE CODE [CA325] 40-318
FAILURE CODE [CA331] 40-321
FAILURE CODE [CA332] 40-324
FAILURE CODE [CA342] 40-327
FAILURE CODE [CA351] 40-331
FAILURE CODE [CA352] 40-336
FAILURE CODE [CA386] 40-339
FAILURE CODE [CA441] 40-342
FAILURE CODE [CA442] 40-346
FAILURE CODE [CA449] 40-350
FAILURE CODE [CA451] 40-355
FAILURE CODE [CA452] 40-358
FAILURE CODE [CA553] 40-361
FAILURE CODE [CA554] 40-364
FAILURE CODE [CA559] 40-368
FAILURE CODE [CA689] 40-375
FAILURE CODE [CA731] 40-379
FAILURE CODE [CA757] 40-382
FAILURE CODE [CA778] 40-386
FAILURE CODE [CA1228] 40-390
FAILURE CODE [CA1625] 40-395
FAILURE CODE [CA2185] 40-399
FAILURE CODE [CA2186] 40-401
FAILURE CODE [CA2249] 40-404
FAILURE CODE [CA2271] 40-411
FAILURE CODE [CA2272] 40-414
FAILURE CODE [CA2351] 40-417
FAILURE CODE [CA2352] 40-420
FAILURE CODE [CA2555] 40-422
FAILURE CODE [CA2556] 40-425
FAILURE CODE [D110KB] 40-429
FAILURE CODE [D19JKZ] 40-432
FAILURE CODE [D1N0KA] 40-436
FAILURE CODE [D1N0KB] 40-438
FAILURE CODE [D1N0KY] 40-440
FAILURE CODE [D811MC] 40-442
FAILURE CODE [D862KA] 40-443
FAILURE CODE [D8ALKA] 40-445
FAILURE CODE [D8ALKB] 40-448
FAILURE CODE [D8AQKR] 40-450
FAILURE CODE [DA20MC] 40-457
FAILURE CODE [DA22KK] 40-458
FAILURE CODE [DA25KP] 40-462
FAILURE CODE [DA26KP] 40-468
FAILURE CODE [DA29KQ] 40-472
FAILURE CODE [DA2LKA] 40-477
FAILURE CODE [DA2LKB] 40-480
FAILURE CODE [DA2QKR] 40-482
FAILURE CODE [DA2RKR] 40-491
INDEX 00 INDEX AND FOREWORD
00-6 PC500LC-10M0
FAILURE CODE [DAF0MB] 40-499
FAILURE CODE [DAF0MC] 40-500
FAILURE CODE [DAF8KB] 40-501
FAILURE CODE [DAF9KQ] 40-505
FAILURE CODE [DAFGMC] 40-507
FAILURE CODE [DAFLKA] 40-508
FAILURE CODE [DAFLKB] 40-511
FAILURE CODE [DAFQKR] 40-513
FAILURE CODE [DAZ9KQ] 40-521
FAILURE CODE [DAZQKR] 40-523
FAILURE CODE [DB2QKR] 40-529
FAILURE CODE [DBP0KM] 40-537
FAILURE CODE [DBP0KT] 40-538
FAILURE CODE [DBPQKR] 40-539
FAILURE CODE [DDNRKA] 40-547
FAILURE CODE [DDNRKY] 40-551
FAILURE CODE [DDNS00] 40-554
FAILURE CODE [DDPAKA] 40-557
FAILURE CODE [DGH2KA] 40-560
FAILURE CODE [DGH2KB] 40-563
FAILURE CODE [DHA4KA] 40-566
FAILURE CODE [DHE5MA] 40-568
FAILURE CODE [DHPAMA] 40-571
FAILURE CODE [DHPBMA] 40-574
FAILURE CODE [DHS3MA] 40-577
FAILURE CODE [DHS4MA] 40-580
FAILURE CODE [DHS8MA] 40-583
FAILURE CODE [DHS9MA] 40-586
FAILURE CODE [DHSAMA] 40-589
FAILURE CODE [DHSBMA] 40-592
FAILURE CODE [DHSCMA] 40-595
FAILURE CODE [DHSDMA] 40-598
FAILURE CODE [DHSFMA] 40-601
FAILURE CODE [DHSGMA] 40-604
FAILURE CODE [DHSHMA] 40-607
FAILURE CODE [DHSJMA] 40-610
FAILURE CODE [DJG1KX] 40-613
FAILURE CODE [DKR2MA] 40-616
FAILURE CODE [DKR2NX] 40-619
FAILURE CODE [DKULKA] 40-621
FAILURE CODE [DKULKB] 40-623
FAILURE CODE [DKULKY] 40-626
FAILURE CODE [DLM5KA] 40-628
FAILURE CODE [DLM5MB] 40-631
FAILURE CODE [DR10KA] 40-635
FAILURE CODE [DR21KX] 40-645
FAILURE CODE [DR31KX] 40-649
FAILURE CODE [DUMBKA] 40-653
FAILURE CODE [DUMBKB] 40-656
FAILURE CODE [DV20KB] 40-658
FAILURE CODE [DW43KA] 40-660
FAILURE CODE [DW43KB] 40-662
FAILURE CODE [DW43KY] 40-665
FAILURE CODE [DW45KA] 40-667
FAILURE CODE [DW45KB] 40-671
FAILURE CODE [DW45KY] 40-675
FAILURE CODE [DW4CKY] 40-678
FAILURE CODE [DW91KA] 40-680
00 INDEX AND FOREWORD INDEX
PC500LC-10M0 00-7
FAILURE CODE [DW91KB] 40-682
FAILURE CODE [DW91KY] 40-685
FAILURE CODE [DWA2KA] 40-687
FAILURE CODE [DWA2KB] 40-689
FAILURE CODE [DWA2KY] 40-692
FAILURE CODE [DWK0KA] 40-694
FAILURE CODE [DWK0KB] 40-696
FAILURE CODE [DWK0KY] 40-699
FAILURE CODE [DWK2KA] 40-701
FAILURE CODE [DWK2KB] 40-703
FAILURE CODE [DWK2KY] 40-706
FAILURE CODE [DWK8KA] 40-708
FAILURE CODE [DWK8KB] 40-710
FAILURE CODE [DWK8KY] 40-713
FAILURE CODE [DWN5KA] 40-715
FAILURE CODE [DWN5KB] 40-718
FAILURE CODE [DWN5KY] 40-720
FAILURE CODE [DXA8KA] 40-722
FAILURE CODE [DXA8KB] 40-725
FAILURE CODE [DXA9KA] 40-729
FAILURE CODE [DXA9KB] 40-732
FAILURE CODE [DXE0KA] 40-736
FAILURE CODE [DXE0KB] 40-738
FAILURE CODE [DXE4KA] 40-741
FAILURE CODE [DXE4KB] 40-743
FAILURE CODE [DXE4KY] 40-746
FAILURE CODE [DXE5KA] 40-748
FAILURE CODE [DXE5KB] 40-750
FAILURE CODE [DXE6KA] 40-753
FAILURE CODE [DXE6KB] 40-755
FAILURE CODE [DY20KA] 40-758
FAILURE CODE [DY20MA] 40-761
FAILURE CODE [DY2CKB] 40-764
FAILURE CODE [DY2DKB] 40-768
FAILURE CODE [DY2EKB] 40-771
FAILURE CODE [F@BBZL] 40-774
TROUBLESHOOTING OF ELECTRICAL SYSTEM (E-MODE) 40-776
E-1 ENGINE DOES NOT START (ENGINE DOES NOT CRANK) 40-776
E-2 MANUAL PREHEATING SYSTEM DOES NOT WORK 40-786
E-3 AUTOMATIC PREHEATING SYSTEM DOES NOT WORK 40-791
E-4 WHILE PREHEATING IS WORKING, PREHEATING MONITOR DOES NOT LIGHT UP 40-795
E-5 WHEN STARTING SWITCH IS TURNED TO ON POSITION, MACHINE MONITOR DISPLAYS
NOTHING 40-800
E-6 WHILE STARTING SWITCH IS TURNED TO ON POSITION (WITH ENGINE STOPPED), ENGINE
OIL LEVEL MONITOR LIGHTS UP IN YELLOW 40-805
E-7 WHILE STARTING SWITCH IS TURNED TO ON POSITION (WITH ENGINE STOPPED), RADIATOR
COOLANT LEVEL MONITOR LIGHTS UP IN YELLOW 40-807
E-8 ENGINE COOLANT TEMPERATURE MONITOR LIGHTS UP IN WHITE WHILE ENGINE IS RUNNING
40-809
E-9 HYDRAULIC OIL TEMPERATURE MONITOR LIGHTS UP IN WHITE WHILE ENGINE IS RUNNING
40-810
E-10 AIR CLEANER CLOGGING MONITOR LIGHTS UP IN YELLOW WHILE ENGINE IS RUNNING
40-811
E-11 CHARGE LEVEL MONITOR LIGHTS UP IN RED WHILE ENGINE IS RUNNING 40-813
E-12 FUEL LEVEL MONITOR LIGHTS UP IN RED WHILE ENGINE IS RUNNING 40-816
E-13 WATER SEPARATOR MONITOR LIGHTS UP IN RED WHILE ENGINE IS RUNNING 40-817
E-14 ENGINE COOLANT TEMPERATURE MONITOR LIGHTS UP IN RED WHILE ENGINE IS RUNNING
40-818
INDEX 00 INDEX AND FOREWORD
00-8 PC500LC-10M0
E-15 ENGINE OIL PRESSURE MONITOR LIGHTS UP IN RED WHILE ENGINE IS RUNNING 40-820
E-16 HYDRAULIC OIL TEMPERATURE MONITOR LIGHTS UP IN RED WHILE ENGINE IS RUNNING
40-821
E-17 FUEL GAUGE DISPLAY DOES NOT MOVE FROM MINIMUM OR MAXIMUM 40-822
E-18 DISPLAY OF FUEL GAUGE DIFFERS FROM ACTUAL FUEL LEVEL 40-825
E-19 ENGINE COOLANT TEMPERATURE GAUGE DISPLAY DOES NOT MOVE FROM MINIMUM
OR MAXIMUM 40-827
E-20 DISPLAY OF ENGINE COOLANT TEMPERATURE GAUGE DIFFERS FROM ACTUAL COOLANT
TEMPERATURE 40-828
E-21 SOME AREAS OF MACHINE MONITOR SCREEN ARE NOT DISPLAYED 40-830
E-22 HYDRAULIC OIL TEMPERATURE GAUGE DISPLAY DOES NOT MOVE FROM MINIMUM OR
MAXIMUM 40-831
E-23 DISPLAY OF HYDRAULIC OIL TEMPERATURE GAUGE DIFFERS FROM ACTUAL OIL TEMPERATURE
40-834
E-24 FUNCTION SWITCH DOES NOT OPERATE 40-836
E-25 AUTOMATIC WARM-UP SYSTEM DOES NOT WORK (IN COLD WEATHER) 40-837
E-26 WHEN AUTO-DECELERATOR SWITCH IS OPERATED, AUTO-DECELERATOR MONITOR
DOES NOT LIGHT UP OR DOES NOT GO OFF 40-839
E-27 AUTO-DECELERATOR IS NOT OPERATED OR CANCELED WITH LEVER 40-840
E-28 WHEN WORKING MODE SWITCH IS OPERATED, WORKING MODE SELECTION SCREEN IS
NOT DISPLAYED 40-842
E-29 WHEN WORKING MODE IS CHANGED, SETTING OF ENGINE AND HYDRAULIC PUMP IS
NOT CHANGED 40-843
E-30 WHEN TRAVEL SPEED SWITCH IS OPERATED, TRAVEL SPEED MONITOR DOES NOT
CHANGE 40-844
E-31 WHEN TRAVEL SPEED SELECTION IS CHANGED, ACTUAL TRAVEL SPEED DOES NOT
CHANGE 40-845
E-32 SERVICE METER IS NOT DISPLAYED, WHILE STARTING SWITCH IS IN OFF POSITION
40-847
E-33 SERVICE MODE CANNOT BE SELECTED 40-848
E-34 ALL OF WORK EQUIPMENTS, SWING, AND TRAVEL MECHANISM DO NOT MOVE 40-849
E-35 ALL OF WORK EQUIPMENT, SWING, AND TRAVEL MECHANISM DO NOT LOCK 40-853
E-36 WHEN SWING BRAKE CANCEL SWITCH IS SET TO CANCEL POSITION, MACHINE CANNOT
SWING 40-855
E-37 WHEN SWING BRAKE CANCEL SWITCH IS SET TO NORMAL POSITION, SWING HOLDING
BRAKE DOES NOT OPERATE 40-858
E-38 ONE-TOUCH POWER MAXIMIZING FUNCTION DOES NOT OPERATE PROPERLY, OR INDICATOR
NOT DISPLAYED ON MONITOR 40-860
E-39 ONE-TOUCH POWER MAXIMIZING FUNCTION IS NOT CANCELLED 40-864
E-40 HORN DOES NOT SOUND 40-866
E-41 HORN DOES NOT STOP SOUNDING 40-869
E-42 ALARM DOES NOT SOUND DURING TRAVEL 40-871
E-43 ALARM DOES NOT STOP SOUNDING WHILE MACHINE IS STOPPED 40-874
E-44 ALARM BUZZER CANNOT BE CANCELED 40-876
E-45 WHEN WIPER SWITCH IS OPERATED, WIPER MONITOR DOES NOT LIGHT UP OR GO OFF
40-877
E-46 WHEN WIPER SWITCH IS OPERATED, WINDSHIELD WIPER DOES NOT OPERATE 40-878
E-47 WHEN WINDOW WASHER SWITCH IS OPERATED, WINDOW WASHER DOES NOT OPERATE
40-881
E-48 BOOM RAISE INDICATOR IS NOT DISPLAYED PROPERLY WITH MONITORING FUNCTION
40-884
E-49 BOOM LOWER INDICATOR IS NOT DISPLAYED PROPERLY WITH MONITORING FUNCTION
40-885
E-50 ARM OUT INDICATOR IS NOT DISPLAYED PROPERLY WITH MONITORING FUNCTION
40-886
E-51 ARM IN INDICATOR IS NOT DISPLAYED PROPERLY WITH MONITORING FUNCTION 40-887
E-52 BUCKET DUMP INDICATOR IS NOT DISPLAYED PROPERLY WITH MONITORING FUNCTION
40-888
00 INDEX AND FOREWORD INDEX
PC500LC-10M0 00-9
E-53 BUCKET CURL INDICATOR IS NOT DISPLAYED PROPERLY WITH MONITORING FUNCTION
40-889
E-54 SWING INDICATOR IS NOT DISPLAYED PROPERLY WITH MONITORING FUNCTION 40-890
E-55 TRAVEL INDICATOR IS NOT DISPLAYED PROPERLY WITH MONITORING FUNCTION 40-891
E-56 SERVICE INDICATOR IS NOT DISPLAYED PROPERLY WITH MONITORING FUNCTION
40-892
E-57 ATTACHMENT HYDRAULIC CIRCUIT CANNOT BE CHANGED 40-895
E-58 KOMTRAX SYSTEM DOES NOT OPERATE NORMALLY 40-897
E-59 MACHINE PUSH-UP FUNCTION CANNOT BE CANCELED 40-899
E-60 MACHINE PUSH-UP FUNCTION DOES NOT OPERATE 40-903
TROUBLESHOOTING FOR HYDRAULIC AND MECHANICAL SYSTEMS (H MODE) 40-906
H-1 ALL WORK EQUIPMENT, SWING AND TRAVEL DO NOT WORK 40-906
H-2 ALL WORK EQUIPMENT, SWING AND TRAVEL LACK SPEED AND POWER 40-908
H-3 FINE CONTROL PERFORMANCE OR RESPONSE IS POOR 40-916
H-4 ENGINE SPEED DROPS LARGELY OR ENGINE STOPS 40-919
H-5 WHEN SINGLE WORK EQUIPMENT IS RELIEVED HYDRAULICALLY, OTHER WORK EQUIPMENT
MOVES 40-926
H-6 WORK EQUIPMENT DOES NOT MOVE IN SINGLE OPERATION 40-928
H-7 TIME LAG OF WORK EQUIPMENT IS LARGE 40-932
H-8 ONE-TOUCH POWER MAXIMIZING FUNCTION DOES NOT OPERATE 40-938
H-9 MACHINE PUSH-UP FUNCTION DOES NOT OPERATE 40-941
H-10 ATTACHMENT CIRCUIT CANNOT BE CHANGED 40-943
H-11 OIL FLOW IN ATTACHMENT CIRCUIT CANNOT BE CHANGED 40-945
H-12 IN COMBINED OPERATION OF WORK EQUIPMENT, EQUIPMENT HAVING HEAVIER LOAD
MOVES SLOWER 40-947
H-13 IN COMBINED OPERATION OF SWING AND TRAVEL, TRAVEL SPEED DROPS LARGELY
40-949
H-14 IN COMBINED OPERATION OF SWING AND BOOM RAISE, BOOM RISING SPEED IS LOW
40-950
H-15 MACHINE DOES NOT TRAVEL STRAIGHT 40-951
H-16 MACHINE IS NOT STEERED WELL OR STEERING POWER IS LOW 40-963
H-17 TRAVEL SPEED IS LOW 40-978
H-18 ONE OF TRACKS DOES NOT RUN 40-987
H-19 TRAVEL SPEED DOES NOT CHANGE, OR TRAVEL SPEED IS TOO SLOW OR FAST 40-997
H-20 UPPER STRUCTURE DOES NOT SWING BOTH TO THE RIGHT AND LEFT 40-1000
H-21 SWINGS ONLY IN ONE DIRECTION 40-1004
H-22 SWING ACCELERATION OR SWING SPEED IS LOW IN BOTH DIRECTIONS (RIGHT AND
LEFT) 40-1007
H-23 SWING ACCELERATION PERFORMANCE IS POOR OR SWING SPEED IS SLOW IN ONLY
ONE DIRECTION 40-1013
H-24 UPPER STRUCTURE OVERRUNS EXCESSIVELY WHEN IT STOPS SWINGING (BOTH
RIGHT AND LEFT) 40-1017
H-25 UPPER STRUCTURE OVERRUNS EXCESSIVELY WHEN IT STOPS SWINGING (ONLY ONE
DIRECTION EITHER RIGHT OR LEFT) 40-1019
H-26 SHOCK IS LARGE WHEN UPPER STRUCTURE STOPS SWINGING 40-1023
H-27 LARGE UNUSUAL NOISE IS HEARD WHEN UPPER STRUCTURE STOPS SWINGING40-1025
H-28 SWING DRIFT ON A SLOPE IS LARGE (WHILE SWING PARKING BRAKE IS APPLIED)40-1028
H-29 SWING DRIFT ON A SLOPE IS LARGE (WHILE SWING PARKING BRAKE IS RELEASED)
40-1030
H-30 FAN SPEED IS ABNORMAL (TOO HIGH OR LOW, OR STATIONARY) 40-1034
H-31 UNUSUAL NOISE IS HEARD FROM AROUND FAN 40-1035
H-32 UNUSUAL NOISE IS HEARD FROM AROUND HYDRAULIC PUMP 40-1036
H-33 SPEED OR POWER OF BOOM IS LOW 40-1038
H-34 ARM SPEED OR POWER IS LOW 40-1049
H-35 BUCKET SPEED OR POWER IS LOW 40-1059
H-36 HYDRAULIC DRIFT OF BOOM IS LARGE 40-1068
H-37 HYDRAULIC DRIFT OF ARM IS LARGE 40-1070
H-38 HYDRAULIC DRIFT OF BUCKET IS LARGE 40-1074
INDEX 00 INDEX AND FOREWORD
00-10 PC500LC-10M0
TROUBLESHOOTING OF ENGINE (S-MODE) 40-1077
S-1 ENGINE DOES NOT CRANK WHEN STARTING SWITCH IS TURNED TO START POSITION
40-1077
S-2 ENGINE CRANKS BUT NO EXHAUST GAS COMES OUT 40-1079
S-3 FUEL IS BEING INJECTED BUT ENGINE DOES NOT START (MISFIRING: ENGINE CRANKS
BUT DOES NOT START) 40-1082
S-4 ENGINE STARTABILITY IS POOR 40-1086
S-5 ENGINE DOES NOT PICK UP SMOOTHLY 40-1091
S-6 ENGINE STOPS DURING OPERATION 40-1095
S-7 ENGINE RUNS ROUGH OR IS UNSTABLE 40-1100
S-8 ENGINE LACKS POWER 40-1102
S-9 EXHAUST IS BLACK (INCOMPLETE COMBUSTION) 40-1108
S-10 ENGINE OIL CONSUMPTION IS EXCESSIVE 40-1112
S-11 OIL BECOMES CONTAMINATED QUICKLY 40-1116
S-12 FUEL CONSUMPTION IS EXCESSIVE 40-1119
S-13 OIL IS IN COOLANT (OR COOLANT SPURTS BACK OR COOLANT LEVEL GOES DOWN)
40-1121
S-14 OIL PRESSURE DROPS 40-1123
S-15 FUEL MIXES INTO ENGINE OIL 40-1128
S-16 WATER MIXES INTO ENGINE OIL (MILKY) 40-1130
S-17 COOLANT TEMPERATURE RISES TOO HIGH (OVERHEATING) 40-1133
S-18 UNUSUAL NOISE IS HEARD 40-1136
S-19 VIBRATION IS EXCESSIVE 40-1140
S-20 AIR CANNOT BE BLED FROM FUEL CIRCUIT 40-1143
50 DISASSEMBLY AND ASSEMBLY 50-1
CONTENTS 50-2
ABBREVIATION LIST 50-6
RELATED INFORMATION ON DISASSEMBLY AND ASSEMBLY 50-12
HOW TO READ THIS MANUAL 50-12
COATING MATERIALS LIST 50-14
SPECIAL TOOLS LIST 50-18
SKETCHES OF SPECIAL TOOLS 50-29
ENGINE AND COOLING SYSTEM 50-35
REMOVE AND INSTALL SUPPLY PUMP ASSEMBLY 50-35
REMOVE AND INSTALL INJECTOR ASSEMBLY 50-50
REMOVE AND INSTALL CYLINDER HEAD ASSEMBLY 50-64
REMOVE AND INSTALL EGR VALVE ASSEMBLY 50-88
REMOVE AND INSTALL EGR COOLER ASSEMBLY 50-95
REMOVE AND INSTALL STARTING MOTOR ASSEMBLY 50-100
METHOD FOR INSTALLING MUFFLER 50-103
REMOVE AND INSTALL ALTERNATOR BELT 50-109
REMOVE AND INSTALL FAN BELT 50-113

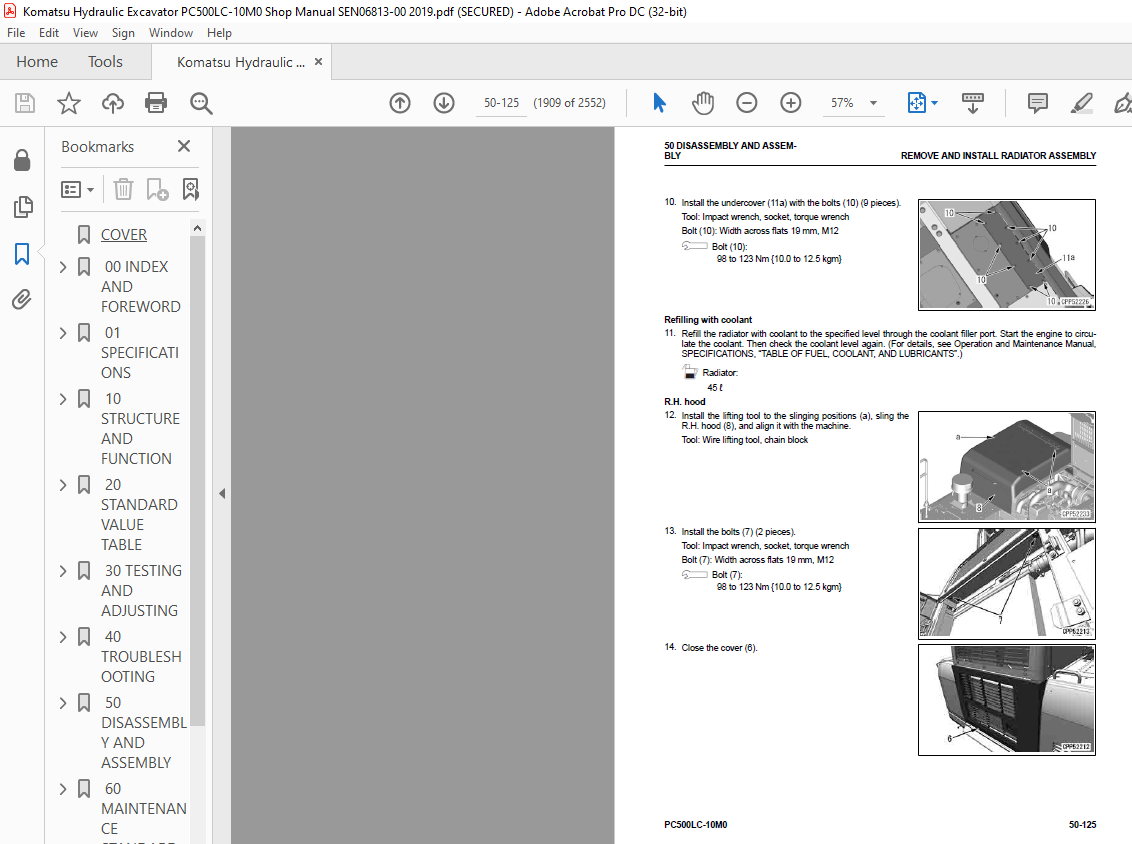

REMOVE AND INSTALL RADIATOR ASSEMBLY 50-118
REMOVE AND INSTALL HYDRAULIC OIL COOLER ASSEMBLY 50-127
REMOVE AND INSTALL AFTERCOOLER ASSEMBLY 50-134
REMOVE AND INSTALL FAN CLUTCH ASSEMBLY 50-141
REMOVE AND INSTALL FAN 50-151
REMOVE AND INSTALL ENGINE AND MAIN PUMP ASSEMBLY 50-152
REMOVE AND INSTALL ENGINE FRONT OIL SEAL 50-185
REMOVE AND INSTALL ENGINE REAR OIL SEAL 50-191
REMOVE AND INSTALL ENGINE HOOD ASSEMBLY 50-200
REMOVE AND INSTALL FUEL TANK ASSEMBLY 50-208
REMOVE AND INSTALL AIR CLEANER ASSEMBLY 50-217
REMOVE AND INSTALL AIR CONDITIONER CONDENSER ASSEMBLY 50-221
POWER TRAIN 50-225
REMOVE AND INSTALL TRAVEL MOTOR AND FINAL DRIVE ASSEMBLY 50-225
DISASSEMBLE AND ASSEMBLE FINAL DRIVE ASSEMBLY 50-230
REMOVE AND INSTALL SWING MOTOR AND SWING MACHINERY ASSEMBLY 50-244
00 INDEX AND FOREWORD INDEX
PC500LC-10M0 00-11
DISASSEMBLE AND ASSEMBLE SWING MACHINERY ASSEMBLY 50-249
REMOVE AND INSTALL SWING CIRCLE ASSEMBLY 50-262
UNDERCARRIAGE AND FRAME 50-264
SEPARATION AND CONNECTION OF TRACK ASSEMBLY 50-264
REMOVE AND INSTALL SPROCKET 50-270
REMOVE AND INSTALL IDLER AND IDLER CUSHION ASSEMBLY 50-272
DISASSEMBLE AND ASSEMBLE IDLER ASSEMBLY 50-275
DISASSEMBLE AND ASSEMBLE OF IDLER CUSHION ASSEMBLY 50-280
DISASSEMBLE AND ASSEMBLE TRACK ROLLER ASSEMBLY 50-284
DISASSEMBLEAND ASSEMBLE CARRIER ROLLER ASSEMBLY 50-288
REMOVE AND INSTALL REVOLVING FRAME ASSEMBLY 50-293
REMOVE AND INSTALL COUNTERWEIGHT ASSEMBLY 50-300
HYDRAULIC SYSTEM 50-304
REMOVE AND INSTALL CENTER SWIVEL JOINT ASSEMBLY 50-304
DISASSEMBLE AND ASSEMBLE CENTER SWIVEL JOINT ASSEMBLY 50-311
REMOVE AND INSTALL HYDRAULIC TANK ASSEMBLY 50-314
REMOVE AND INSTALL MAIN PUMP ASSEMBLY 50-327
REMOVE AND INSTALL CONTROL VALVE ASSEMBLY 50-339
DISASSEMBLE AND ASSEMBLE CONTROL VALVE ASSEMBLY 50-358
DISASSEMBLE AND ASSEMBLE WORK EQUIPMENT PPC VALVE ASSEMBLY 50-365
DISASSEMBLE AND ASSEMBLE TRAVEL PPC VALVE ASSEMBLY 50-368
WORK EQUIPMENT 50-371
REMOVE AND INSTALL WORK EQUIPMENT ASSEMBLY 50-371
DISASSEMBLE AND ASSEMBLE WORK EQUIPMENT CYLINDER ASSEMBLY 50-380
CAB AND ITS ATTACHMENTS 50-390
REMOVE AND INSTALL OPERATOR’S CAB ASSEMBLY 50-390
REMOVE AND INSTALL OPERATOR CAB GLASS (ADHERED GLASS) 50-406
REMOVE AND INSTALL FRONT WINDOW ASSEMBLY 50-419
REMOVE AND INSTALL FLOOR FRAME ASSEMBLY 50-428
REMOVE AND INSTALL AIR CONDITIONER UNIT ASSEMBLY 50-441
REMOVE AND INSTALL OPERATOR’S SEAT 50-454
REMOVE AND INSTALL SEAT BELT 50-460
REMOVE AND INSTALL FRONT WIPER ASSEMBLY 50-462
ELECTRICAL SYSTEM 50-478
REMOVE AND INSTALL ENGINE CONTROLLER ASSEMBLY 50-478
REMOVE AND INSTALL PUMP CONTROLLER ASSEMBLY 50-481
REMOVE AND INSTALL MACHINE MONITOR ASSEMBLY 50-487
REMOVE AND INSTALL KOMTRAX TERMINAL ASSEMBLY 50-495
60 MAINTENANCE STANDARD 60-1
CONTENTS 60-2
ABBREVIATION LIST 60-3
ENGINE AND COOLING SYSTEM 60-9
MAINTENANCE STANDARD OF ENGINE MOUNT 60-9
MAINTENANCE STANDARD OF COOLING SYSTEM 60-10
POWER TRAIN 60-11
MAINTENANCE STANDARD OF SWING CIRCLE 60-11
MAINTENANCE STANDARD OF SWING MACHINERY 60-13
MAINTENANCE STANDARD OF FINAL DRIVE 60-15
MAINTENANCE STANDARD OF SPROCKET 60-17
MAINTENANCE STANDARD OF SPROCKET TOOTH PROFILE FULL-SCALE DRAWING 60-18
UNDERCARRIAGE AND FRAME 60-20
MAINTENANCE STANDARD OF TRACK FRAME AND IDLER CUSHION 60-20
MAINTENANCE STANDARD OF IDLER 60-22
MAINTENANCE STANDARD OF TRACK ROLLER 60-24
MAINTENANCE STANDARD OF CARRIER ROLLER 60-26
MAINTENANCE STANDARD OF TRACK SHOE 60-27
MAINTENANCE STANDARD OF TRIPLE SHOE 60-30
HYDRAULIC SYSTEM 60-31
INDEX 00 INDEX AND FOREWORD
00-12 PC500LC-10M0
MAINTENANCE STANDARD OF MAIN PUMP 60-31
MAINTENANCE STANDARD OF SWING MOTOR 60-33
MAINTENANCE STANDARD OF TRAVEL MOTOR 60-36
MAINTENANCE STANDARD OF CONTROL VALVE 60-39
MAINTENANCE STANDARD OF WORK EQUIPMENT AND SWING PPC VALVE 60-50
MAINTENANCE STANDARD OF TRAVEL PPC VALVE 60-53
MAINTENANCE STANDARD OF 1ST-LINE ATTACHMENT PPC VALVE (WITH EPC VALVE) 60-56
MAINTENANCE STANDARD OF SOLENOID VALVE 60-60
MAINTENANCE STANDARD OF ATTACHMENT CIRCUIT SELECTOR VALVE 60-61
MAINTENANCE STANDARD OF CENTER SWIVEL JOINT 60-62
WORK EQUIPMENT 60-63
MAINTENANCE STANDARD OF WORK EQUIPMENT LINKAGE 60-63
MAINTENANCE STANDARD OF WORK EQUIPMENT LINKAGE (SE SPECIFICATION) 60-72
MAINTENANCE STANDARD OF BOOM CYLINDER 60-81
MAINTENANCE STANDARD OF ARM CYLINDER 60-82
MAINTENANCE STANDARD OF BUCKET CYLINDER 60-83
MAINTENANCE STANDARD OF BUCKET CYLINDER (SE SPECIFICATION) 60-84
80 APPENDIX 80-1
CONTENTS 80-2
ABBREVIATION LIST 80-4
AIR CONDITIONER SYSTEM 80-10
PRECAUTIONS FOR REFRIGERANT 80-10
AIR CONDITIONER COMPONENT 80-11
SPECIFICATIONS OF AIR CONDITIONER 80-13
CONFIGURATION AND FUNCTION OF REFRIGERATION CYCLE 80-14
OUTLINE OF REFRIGERATION CYCLE 80-15
COMPONENT PARTS OF AIR CONDITIONER SYSTEM 80-17
AIR CONDITIONER UNIT 80-17
COMPONENT PARTS OF AIR CONDITIONER UNIT 80-21
AIR CONDITIONER CONTROLLER 80-25
COMPRESSOR 80-26
CONDENSER 80-27
RECEIVER DRIER 80-28
SENSORS FOR AIR CONDITIONER SYSTEM 80-29
EXPLANATION OF PROCEDURE FOR TESTING AND TROUBLESHOOTING OF AIR CONDITIONER
80-31
CIRCUIT DIAGRAM AND ARRANGEMENT OF CONNECTOR PINS FOR AIR CONDITIONER 80-33
AIR CONDITIONER SYSTEM DIAGRAM 80-35
INPUT AND OUTPUT SIGNALS OF AIR CONDITIONER CONTROLLER 80-36
INSTALLATION LOCATIONS OF AIR CONDITIONER PARTS AND ARRANGEMENT OF CONNECTORS
80-38
TESTING AIR LEAKAGE (DUCT) 80-42
METHOD FOR TESTING AIR LEAKAGE (DUCT) 80-42
TESTING AIR CONDITIONER USING SELF-DIAGNOSIS FUNCTION 80-44
HOW TO OPEN THE ELECTRICAL SYSTEM ABNORMALITY RECORD SCREEN IN SERVICE MODE
OF THE MACHINE MONITOR 80-45
TEST VENT (MODE) CHANGEOVER 80-46
METHOD FOR TESTING VENT (MODE) CHANGEOVER 80-46
TESTING FRESH/RECIRC AIR CHANGEOVER 80-48
METHOD FOR TESTING FRESH/RECIRC AIR CHANGEOVER 80-48
TEST SUNLIGHT SENSOR 80-49
METHOD FOR TESTING SUNLIGHT SENSOR 80-49
TEST (DUAL) PRESSURE SWITCH FOR REFRIGERANT 80-50
METHOD FOR TESTING (DUAL) PRESSURE SWITCH FOR REFRIGERANT 80-50
TEST RELAYS 80-51
METHOD FOR TESTING RELAYS 80-51
AIR CONDITIONER TROUBLESHOOTING CHART 1 80-52
AIR CONDITIONER TROUBLESHOOTING CHART 2 80-53
00 INDEX AND FOREWORD INDEX
PC500LC-10M0 00-13
INFORMATION DESCRIBED IN TROUBLESHOOTING TABLE 80-56
FAILURE CODE [879AKA] 80-58
FAILURE CODE [879AKB] 80-60
FAILURE CODE [879CKA] 80-62
FAILURE CODE [879CKB] 80-64
FAILURE CODE [879FMC] 80-66
FAILURE CODE [879GKX] 80-68
A-1 TROUBLESHOOTING FOR POWER SUPPLY SYSTEM (AIR CONDITIONER DOES NOT OPERATE)
80-71
A-2 TROUBLESHOOTING FOR COMPRESSOR AND REFRIGERANT SYSTEM (AIR IS NOT COOLED)
80-74
A-3 TROUBLESHOOTING FOR BLOWER MOTOR SYSTEM (NO AIR COMES OUT OR AIR FLOW IS
ABNORMAL) 80-80
A-4 TROUBLESHOOTING FOR FRESH/RECIRC AIR CHANGEOVER 80-84
TROUBLESHOOTING USING GAUGE PRESSURE 80-88
CONNECTION OF SERVICE TOOL 80-91
METHOD FOR CONNECTING SERVICE TOOL 80-91
PRECAUTIONS FOR DISCONNECTING AND CONNECTING HOSES AND TUBES IN AIR CONDITIONER
PIPINGS 80-93
HANDLE COMPRESSOR OIL 80-95
90 CIRCUIT DIAGRAMS 90-1
CONTENTS 90-2
ABBREVIATION LIST 90-3
HYDRAULIC CIRCUIT DIAGRAM 90-9
SYMBOLS USED IN HYDRAULIC CIRCUIT DIAGRAM 90-9
HYDRAULIC CIRCUIT DIAGRAM (WHEN BOOM IS RAISED) 90-13
HYDRAULIC CIRCUIT DIAGRAM (WHEN UPPER STRUCTURE IS SWING TO LEFT) 90-15
HYDRAULIC CIRCUIT DIAGRAM (WHEN BOOM IS RAISED AND UPPER STRUCTURE IS SWUNG
TO LEFT) 90-17
HYDRAULIC CIRCUIT DIAGRAM (1/2) 90-19
HYDRAULIC CIRCUIT DIAGRAM (2/2) 90-21
ELECTRICAL CIRCUIT DIAGRAM 90-23
SYMBOLS USED IN ELECTRICAL CIRCUIT DIAGRAM 90-23
ELECTRICAL CIRCUIT DIAGRAM (1/7) 90-27
ELECTRICAL CIRCUIT DIAGRAM (2/7) 90-29
ELECTRICAL CIRCUIT DIAGRAM (3/7) 90-31
ELECTRICAL CIRCUIT DIAGRAM (4/7) 90-33
ELECTRICAL CIRCUIT DIAGRAM (5/7) 90-35
ELECTRICAL CIRCUIT DIAGRAM (6/7) 90-37
ELECTRICAL CIRCUIT DIAGRAM (7/7) 90-39
CONNECTOR AND WIRING HARNESS CHART 90-41
CONNECTOR AND WIRING HARNESS CHART (1/15) 90-43
CONNECTOR AND WIRING HARNESS CHART (2/15) 90-45
CONNECTOR AND WIRING HARNESS CHART (3/15) 90-47
CONNECTOR AND WIRING HARNESS CHART (4/15) 90-49
CONNECTOR AND WIRING HARNESS CHART (5/15) 90-51
CONNECTOR AND WIRING HARNESS CHART (6/15) 90-53
CONNECTOR AND WIRING HARNESS CHART (7/15) 90-55
CONNECTOR AND WIRING HARNESS CHART (8/15) 90-57
CONNECTOR AND WIRING HARNESS CHART (9/15) 90-59
CONNECTOR AND WIRING HARNESS CHART (10/15) 90-61
CONNECTOR AND WIRING HARNESS CHART (11/15) 90-63
CONNECTOR AND WIRING HARNESS CHART (12/15) 90-65
CONNECTOR AND WIRING HARNESS CHART (13/15) 90-67
CONNECTOR AND WIRING HARNESS CHART (14/15) 90-69
CONNECTOR AND WIRING HARNESS CHART (15/15) 90-71
INDEX 1

VIDEO PREVIEW OF THE MANUAL:

IMAGES PREVIEW OF THE MANUAL:
