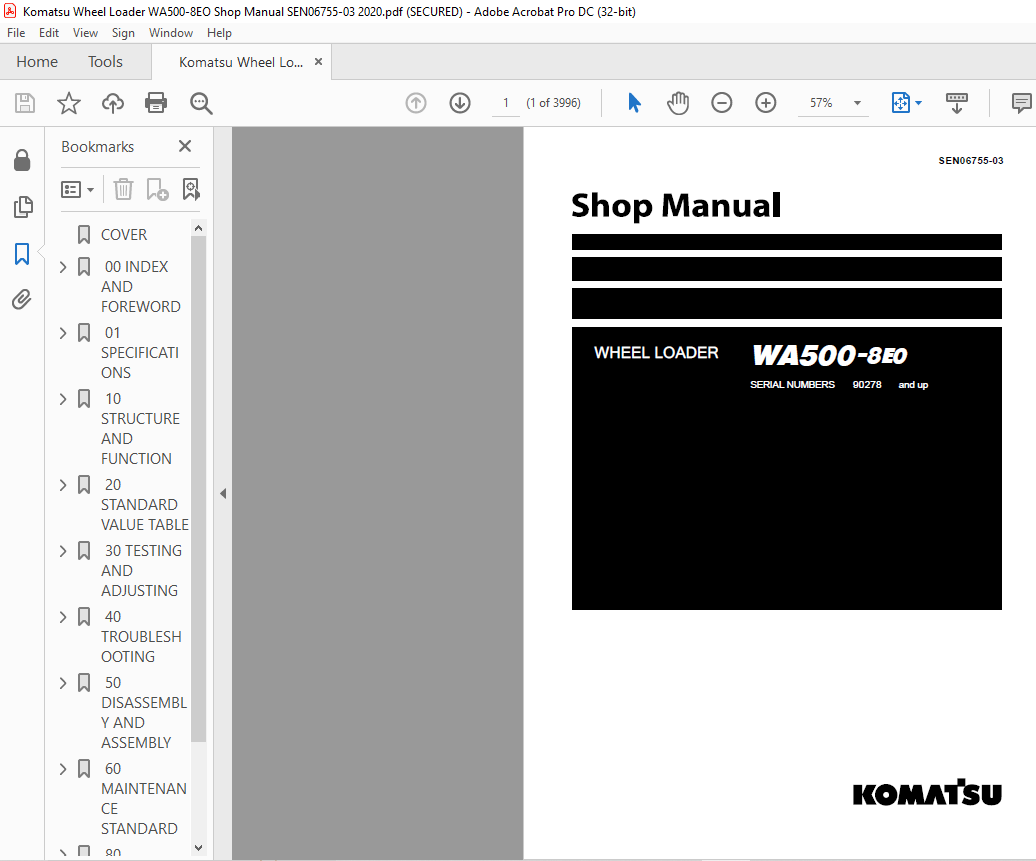

Komatsu WA500-8E0 Wheel Loader Shop Manual SEN06755-03 – PDF DOWNLOAD

Komatsu WA500-8E0 Wheel Loader Shop Manual SEN06755-03 – PDF DOWNLOAD

FILE DETAILS:

Komatsu WA500-8E0 Wheel Loader Shop Manual SEN06755-03 – PDF DOWNLOAD

Language : English
Pages : 3996
Downloadable : Yes
File Type : PDF
Size: 115 MB

DESCRIPTION:

Komatsu WA500-8E0 Wheel Loader Shop Manual SEN06755-03 – PDF DOWNLOAD

SERIAL NUMBERS 90278 and up

FOREWORD, SAFETY, BASIC INFORMATION
HOW TO READ THE SHOP MANUAL
• Some of the attachments and options described in this shop manual may not be available in some areas. If
they are required, consult your Komatsu distributor.
• The materials and specifications are subject to change without notice.
• Shop Manuals are available for “machine part” and “engine part”. For the engine unit, see the shop manual
for the machine which has the same engine model.
• Actual machine may differ from the images which are contained in this manual. A typical model is shown in
the illustrations of this shop manual.
Composition of the shop manual
This shop manual contains technical information necessary to perform services in workshops. It is divided into
the following chapters for the ease of use.
00 INDEX AND FOREWORD
This section describes the index, foreword, safety, and basic information.
01 SPECIFICATIONS
This section describes the specifications of the machine.
10 STRUCTURE AND FUNCTION
This section describes the structure and operation of each component with respect to each system. “STRUCTURE
AND FUNCTION” is helpful in not only understanding the structure of each component but performing
troubleshooting.
20 STANDARD VALUE TABLE
This section describes the standard values for new machine and failure criteria for testing and adjusting, and
troubleshooting. Use the standard values table to check the standard values for testing and adjusting, and judge
troubles in troubleshooting.
30 TESTING AND ADJUSTING
This section describes the measuring tools and measuring methods for testing and adjusting as well as the adjusting
method of each part. The standard values and repair limit for TESTING AND ADJUSTING are described
in “STANDARD VALUE TABLE”.
40 TROUBLESHOOTING
This section describes troubleshooting of failure part and its remedy method on the occurrence of the failure.
Descriptions of troubleshooting are sorted by failure mode.

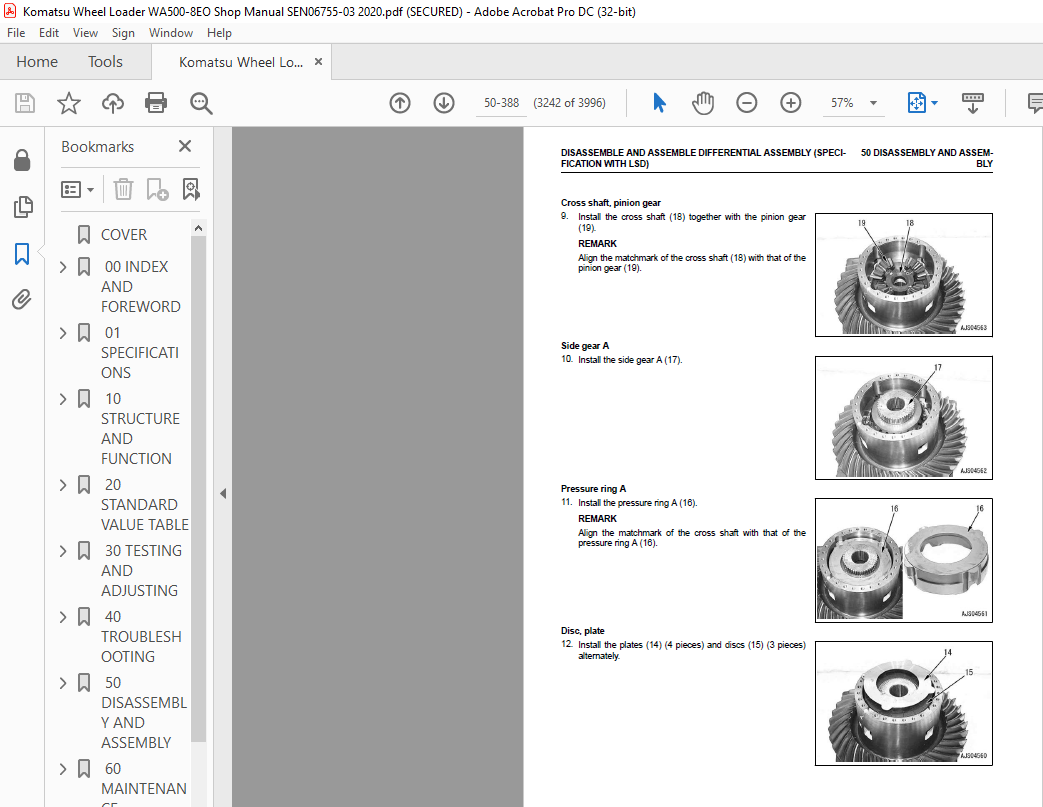

50 DISASSEMBLY AND ASSEMBLY
This section describes the special tools, work procedures, and safety precautions necessary for removal, installation,
disassembly, and assembly of the components and parts. In addition, tightening torques, quantity, and
weight of the coating materials, lubricants, and coolant necessary to these works are shown.
60 MAINTENANCE STANDARD
This section describes the maintenance standard value of each component. The maintenance standard shows
the criteria and remedies for disassembly and assembly.
80 THE OTHER INFORMATION
This section describes the structure and function, testing and adjusting, and troubleshooting for all of the other
components or equipment which cannot be separately classified in the appendix.
90 Circuit diagrams
This section describes hydraulic circuit diagrams and electrical circuit diagrams.

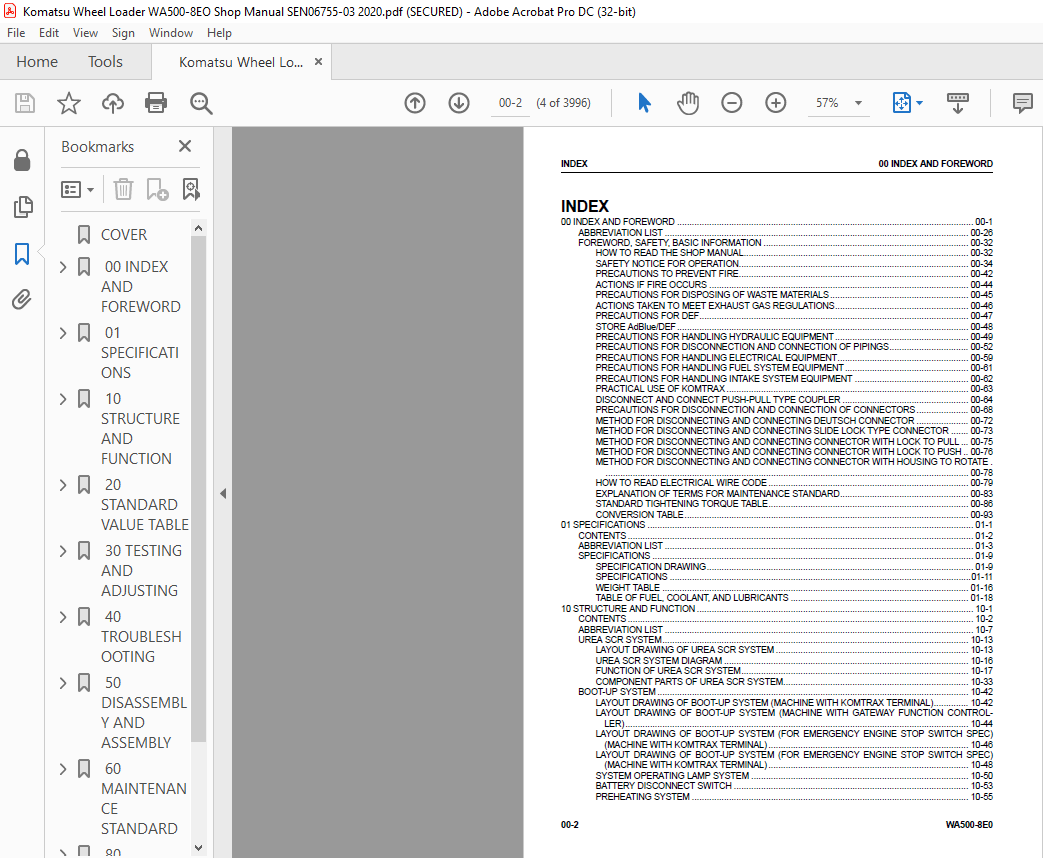

TABLE OF CONTENTS:

Komatsu WA500-8E0 Wheel Loader Shop Manual SEN06755-03 – PDF DOWNLOAD

INDEX
00 INDEX AND FOREWORD 00-1
ABBREVIATION LIST 00-26
FOREWORD, SAFETY, BASIC INFORMATION 00-32
HOW TO READ THE SHOP MANUAL 00-32
SAFETY NOTICE FOR OPERATION 00-34
PRECAUTIONS TO PREVENT FIRE 00-42
ACTIONS IF FIRE OCCURS 00-44
PRECAUTIONS FOR DISPOSING OF WASTE MATERIALS 00-45
ACTIONS TAKEN TO MEET EXHAUST GAS REGULATIONS 00-46
PRECAUTIONS FOR DEF 00-47
STORE AdBlue/DEF 00-48
PRECAUTIONS FOR HANDLING HYDRAULIC EQUIPMENT 00-49
PRECAUTIONS FOR DISCONNECTION AND CONNECTION OF PIPINGS 00-52
PRECAUTIONS FOR HANDLING ELECTRICAL EQUIPMENT 00-59
PRECAUTIONS FOR HANDLING FUEL SYSTEM EQUIPMENT 00-61
PRECAUTIONS FOR HANDLING INTAKE SYSTEM EQUIPMENT 00-62
PRACTICAL USE OF KOMTRAX 00-63
DISCONNECT AND CONNECT PUSH-PULL TYPE COUPLER 00-64
PRECAUTIONS FOR DISCONNECTION AND CONNECTION OF CONNECTORS 00-68
METHOD FOR DISCONNECTING AND CONNECTING DEUTSCH CONNECTOR 00-72
METHOD FOR DISCONNECTING AND CONNECTING SLIDE LOCK TYPE CONNECTOR 00-73
METHOD FOR DISCONNECTING AND CONNECTING CONNECTOR WITH LOCK TO PULL 00-75
METHOD FOR DISCONNECTING AND CONNECTING CONNECTOR WITH LOCK TO PUSH 00-76
METHOD FOR DISCONNECTING AND CONNECTING CONNECTOR WITH HOUSING TO ROTATE
00-78
HOW TO READ ELECTRICAL WIRE CODE 00-79
EXPLANATION OF TERMS FOR MAINTENANCE STANDARD 00-83
STANDARD TIGHTENING TORQUE TABLE 00-86
CONVERSION TABLE 00-93
01 SPECIFICATIONS 01-1
CONTENTS 01-2
ABBREVIATION LIST 01-3
SPECIFICATIONS 01-9
SPECIFICATION DRAWING 01-9
SPECIFICATIONS 01-11
WEIGHT TABLE 01-16
TABLE OF FUEL, COOLANT, AND LUBRICANTS 01-18
10 STRUCTURE AND FUNCTION 10-1
CONTENTS 10-2
ABBREVIATION LIST 10-7
UREA SCR SYSTEM 10-13
LAYOUT DRAWING OF UREA SCR SYSTEM 10-13
UREA SCR SYSTEM DIAGRAM 10-16
FUNCTION OF UREA SCR SYSTEM 10-17
COMPONENT PARTS OF UREA SCR SYSTEM 10-33
BOOT-UP SYSTEM 10-42
LAYOUT DRAWING OF BOOT-UP SYSTEM (MACHINE WITH KOMTRAX TERMINAL) 10-42
LAYOUT DRAWING OF BOOT-UP SYSTEM (MACHINE WITH GATEWAY FUNCTION CONTROLLER)
10-44
LAYOUT DRAWING OF BOOT-UP SYSTEM (FOR EMERGENCY ENGINE STOP SWITCH SPEC)
(MACHINE WITH KOMTRAX TERMINAL) 10-46
LAYOUT DRAWING OF BOOT-UP SYSTEM (FOR EMERGENCY ENGINE STOP SWITCH SPEC)
(MACHINE WITH KOMTRAX TERMINAL) 10-48
SYSTEM OPERATING LAMP SYSTEM 10-50
BATTERY DISCONNECT SWITCH 10-53
PREHEATING SYSTEM 10-55
INDEX 00 INDEX AND FOREWORD
00-2 WA500-8E0
ENGINE SHUTDOWN SECONDARY SWITCH 10-57
ENGINE SYSTEM 10-59
LAYOUT DRAWING OF ENGINE SYSTEM 10-59
ENGINE CONTROL SYSTEM 10-61
ENGINE POWER MODE SELECTOR SYSTEM 10-68
AUTOMATIC IDLE STOP SYSTEM 10-69
RPM SET 10-70
COMPONENT PARTS OF ENGINE SYSTEM 10-74
COOLING SYSTEM 10-93
LAYOUT DRAWING OF COOLING SYSTEM 10-93
COOLING FAN CONTROL SYSTEM 10-95
COMPONENT PARTS OF COOLING SYSTEM 10-100
CONTROL SYSTEM 10-114
LAYOUT DRAWING OF CONTROL SYSTEM (MACHINE WITH KOMTRAX TERMINAL) 10-114
LAYOUT DRAWING OF CONTROL SYSTEM (MACHINE WITH GATEWAY FUNCTION CONTROLLER)
10-116
MACHINE MONITOR SYSTEM 10-118
REARVIEW MONITOR SYSTEM 10-120
KOMTRAX SYSTEM 10-121
LOAD METER SYSTEM 10-123
COMPONENT PARTS OF CONTROL SYSTEM 10-130
HYDRAULIC SYSTEM 10-182
LAYOUT DRAWING OF HYDRAULIC SYSTEM 10-182
CLSS 10-183
WORK EQUIPMENT PUMP CONTROL SYSTEM 10-187
COMPONENT PARTS OF HYDRAULIC SYSTEM 10-188
POWER TRAIN SYSTEM 10-257
LAYOUT DRAWING OF POWER TRAIN SYSTEM 10-257
OPERATION OF POWER TRAIN SYSTEM 10-261
TRANSMISSION CONTROL SYSTEM 10-262
TRANSMISSION GEAR SHIFT CONTROL SYSTEM 10-264
TRANSMISSION PROTECTION FUNCTION 10-270
DIRECTIONAL SELECTOR SWITCH CONTROL FUNCTION 10-273
TRANSMISSION CUT-OFF FUNCTION 10-275
COMPONENT PARTS OF POWER TRAIN SYSTEM 10-277
WORK EQUIPMENT SYSTEM 10-340
LAYOUT DRAWING OF WORK EQUIPMENT SYSTEM 10-340
WORK EQUIPMENT SYSTEM DIAGRAM 10-342
WORK EQUIPMENT CONTROL SYSTEM 10-344
WORK EQUIPMENT NEUTRAL LOCK SYSTEM 10-349
REMOTE POSITIONER SYSTEM 10-351
BUCKET POSITIONER AND BOOM POSITIONER 10-356
AUTO-DIGGING SYSTEM 10-357
ECSS 10-359
COMPONENT PARTS OF WORK EQUIPMENT SYSTEM 10-361
STEERING SYSTEM 10-372
LAYOUT DRAWING OF STEERING SYSTEM 10-372
SECONDARY STEERING SYSTEM 10-374
JOYSTICK STEERING SYSTEM 10-375
AJSS 10-381
STEERING COLUMN 10-388
COMPONENT PARTS OF STEERING SYSTEM 10-389
BRAKE SYSTEM 10-418
LAYOUT DRAWING OF BRAKE SYSTEM 10-418
PARKING BRAKE CONTROL SYSTEM 10-421
COMPONENT PARTS OF BRAKE SYSTEM 10-423
AUTO-GREASING SYSTEM 10-442
LAYOUT DRAWING OF AUTO-GREASING SYSTEM 10-442
00 INDEX AND FOREWORD INDEX
WA500-8E0 00-3
SPECIFICATIONS OF AUTO-GREASING SYSTEM 10-443
FUNCTION OF AUTO-GREASING SYSTEM 10-445
COMPONENT PARTS OF AUTO-GREASING SYSTEM 10-446
UNDERCARRIAGE AND FRAME 10-447
FRAME, AXLE MOUNT AND CENTER HINGE PIN 10-447
TIRE 10-449
WORK EQUIPMENT 10-451
STRUCTURE OF WORK EQUIPMENT 10-451
STRUCTURE OF BUCKET 10-452
STRUCTURE OF WORK EQUIPMENT LUBRICATION 10-454
CAB AND ITS ATTACHMENTS 10-456
ROPS CAB 10-456
20 STANDARD VALUE TABLE 20-1
CONTENTS 20-2
ABBREVIATION LIST 20-3
STANDARD VALUE TABLE FOR ENGINE 20-9
STANDARD VALUE TABLE FOR ENGINE: WA500-8E0 20-9
STANDARD VALUE TABLE FOR MACHINE 20-12
STANDARD VALUE TABLE FOR MACHINE: WA500-8E0 20-12
MACHINE POSTURE AND PROCEDURE FOR MEASURING PERFORMANCE 20-33
30 TESTING AND ADJUSTING 30-1
CONTENTS 30-2
ABBREVIATION LIST 30-6
RELATED INFORMATION ON TESTING AND ADJUSTING 30-12
TOOLS FOR TESTING AND ADJUSTING 30-12
SKETCH OF TOOLS FOR TESTING AND ADJUSTING 30-22
ENGINE AND COOLING SYSTEM 30-23
TEST ENGINE SPEED 30-23
TEST BOOST PRESSURE 30-30
TESTING EXHAUST GAS TEMPERATURE 30-34
TEST EXHAUST GAS COLOR 30-36
TEST AND ADJUST VALVE CLEARANCE 30-39
TEST COMPRESSION PRESSURE 30-41
TEST BLOWBY PRESSURE 30-44
TEST ENGINE OIL PRESSURE 30-47
TEST EGR VALVE AND VGT OIL PRESSURE 30-49
TEST FUEL PRESSURE 30-51
TEST FUEL RETURN RATE AND LEAKAGE 30-53
BLEEDING AIR FROM FUEL SYSTEM 30-57
TEST FUEL CIRCUIT FOR LEAKAGE 30-59
HANDLE CYLINDER CUT-OUT MODE OPERATION 30-61
HANDLE NO-INJECTION CRANKING OPERATION 30-62
TEST KDPF, SCR AND MUFFLER STACK FOR LOOSENESS AND DAMAGE 30-63
TEST INSTALLED CONDITION OF CYLINDER HEADS AND MANIFOLDS 30-64
TEST ENGINE PIPING FOR DAMAGE AND LOOSENESS 30-65
CLEAN FUEL DOSER 30-66
WRITE INJECTOR COMPENSATION VALUE TO ENGINE CONTROLLER 30-69
WRITE ASH IN SOOT ACCUMULATION CORRECTION TO ENGINE CONTROLLER 30-76
TEST SCR RELATED FUNCTIONS 30-77
CLEAN AdBlue/DEF TANK 30-109
POWER TRAIN 30-113
TEST AND ADJUST POWER TRAIN OIL PRESSURE 30-113
ADJUST TRANSMISSION INPUT SPEED SENSOR 30-131
ADJUST TRANSMISSION OUTPUT SHAFT SPEED SENSOR 30-133
FLUSH TORQUE CONVERTER AND TRANSMISSION HYDRAULIC CIRCUIT 30-135
MOVE DISABLED MACHINE DUE TO TRANSMISSION VALVE FAILURE 30-137
TEST DRIVE SHAFT FOR LOOSENESS, BACKLASH, AND DAMAGE 30-139
STEERING SYSTEM 30-140
INDEX 00 INDEX AND FOREWORD
00-4 WA500-8E0
TEST STEERING WHEEL 30-140
TEST AND ADJUST STEERING CIRCUIT OIL PRESSURE 30-142
BLEED AIR FROM STEERING CYLINDER CIRCUIT 30-148
TEST AND ADJUST STEERING STOP VALVE 30-149
BRAKE SYSTEM 30-151
RELEASE REMAINING PRESSURE IN BRAKE ACCUMULATOR CIRCUIT 30-151
TEST WHEEL BRAKE OIL PRESSURE 30-152
TEST AND ADJUST BRAKE ACCUMULATOR CHARGE PRESSURE 30-154
TEST AND CHARGE ACCUMULATOR NITROGEN GAS PRESSURE FOR BRAKE 30-156
BLEED AIR FROM BRAKE CIRCUIT 30-165
TEST BRAKING PERFORMANCE 30-168
TEST BRAKE PEDAL 30-169
TEST AND ADJUST BRAKE PEDAL AND LINKAGE 30-170
ADJUST LEFT BRAKE PEDAL OPERATION SWITCH 30-171
TEST LOWERING OF WHEEL BRAKE PRESSURE 30-172
TEST WEAR OF WHEEL BRAKE DISC 30-175
TEST PARKING BRAKE OIL PRESSURE 30-177
TEST PARKING BRAKE PERFORMANCE 30-179
RELEASE PARKING BRAKE MANUALLY 30-180
TEST WEAR AMOUNT OF PARKING BRAKE DISC 30-183
HYDRAULIC SYSTEM 30-185
RELEASE REMAINING PRESSURE FROM WORK EQUIPMENT CIRCUIT 30-185
TEST AND ADJUST WORK EQUIPMENT OIL PRESSURE 30-187
TEST AND ADJUST WORK EQUIPMENT EPC OIL PRESSURE 30-193
BLEED AIR FROM WORK EQUIPMENT CIRCUIT 30-196
TEST COOLING FAN SPEED 30-198
TEST COOLING FAN CIRCUIT OIL PRESSURE 30-199
BLEED AIR FROM COOLING FAN CIRCUIT 30-203
TEST ECSS ACCUMULATOR NITROGEN GAS PRESSURE AND CHARGE ACCUMULATOR WITH
NITROGEN GAS 30-205
WORK EQUIPMENT 30-219
TEST AND ADJUST BUCKET POTENTIOMETER LEVER 30-219
TEST AND ADJUST BOOM POTENTIOMETER LEVER 30-221
CAB AND ITS ATTACHMENTS 30-222
TEST DIRECTIONAL LEVER 30-222
TEST WORK EQUIPMENT CONTROL LEVER 30-223
TEST MULTIFUNCTION MONO-LEVER 30-224
TEST AJSS LEVER (FOR AJSS SPEC) 30-226
TEST STEERING LOCK LEVER(FOR AJSS SPEC) 30-229
TEST AND ADJUST AJSS LEVER/FRAME ANGLE SENSOR (FOR AJSS SPEC) 30-230
TEST AND AJUST STEERING STOPPER BOLT (FOR AJSS SPEC) 30-232
ADJUST RATTLING OPERATOR’S SEAT 30-234
ELECTRICAL SYSTEM 30-235
SET AND ADJUST EACH EQUIPMENT 30-235
SET AND OPERATE MACHINE MONITOR 30-240
START UP KOMTRAX TERMINAL (MACHINE WITH KOMTRAX TERMINAL) 30-381
STOP USING OF KOMTRAX TERMINAL (MACHINE WITH KOMTRAX TERMINAL) 30-385
START UP KOMTRAX SYSTEM (MACHINE WITH GATEWAY FUNCTION CONTROLLER) 30-387
STOP USING OF KOMTRAX SYSTEM (MACHINE WITH GATEWAY FUNCTION CONTROLLER)
30-393
ADJUST REARVIEW CAMERA ANGLE 30-395
HANDLE VOLTAGE CIRCUIT OF ENGINE CONTROLLER 30-396
HANDLE BATTERY DISCONNECT SWITCH (MACHINE WITH KOMTRAX TERMINAL) 30-397
HANDLE BATTERY DISCONNECT SWITCH (MACHINE WITH GATEWAY FUNCTION CONTROLLER)
30-398
TEST DIODES 30-399
AUTO-GREASING DEVICE 30-400
BLEED THE AIR OF AUTO-GREASING SYSTEM 30-400
00 INDEX AND FOREWORD INDEX
WA500-8E0 00-5
CHANGING OF LUBRICATION TIME AND LUBRICATION INTERVAL TIMES 30-403
Pm CLINIC 30-406
Pm CLINIC SERVICE 30-406
40 TROUBLESHOOTING 40-1
CONTENTS 40-2
ABBREVIATION LIST 40-16
RELATED INFORMATION ON TROUBLESHOOTING 40-22
GENERAL TROUBLESHOOTING POINTS 40-22
TROUBLESHOOTING POINTS FOR UREA SCR SYSTEM 40-23
SEQUENCE OF EVENTS IN TROUBLESHOOTING 40-35
CHECKS BEFORE TROUBLESHOOTING 40-37
INSPECTION PROCEDURE BEFORE TROUBLESHOOTING 40-39
TESTING IN ACCORDANCE WITH TESTING PROCEDURE 40-41
ELECTRICAL SYSTEM TROUBLESHOOTING – PREPARATION 40-67
PROCEDURE FOR TESTING AND TROUBLESHOOTING 40-80
SYMPTOM AND TROUBLESHOOTING NUMBERS 40-82
INFORMATION DESCRIBED IN TROUBLESHOOTING TABLE 40-87
CONNECTOR LIST AND LAYOUT (MACHINE WITH KOMTRAX TERMINAL) 40-89
CONNECTOR LIST AND LAYOUT (MACHINE WITH GATEWAY FUNCTION CONTROLLER) 40-117
CONNECTOR CONTACT IDENTIFICATION 40-145
T-BRANCH BOX AND T-BRANCH ADAPTER TABLE 40-185
FUSE LOCATION TABLE(MACHINE WITH KOMTRAX TERMINAL) 40-191
FUSE LOCATION TABLE(MACHINE WITH GATEWAY FUNCTION CONTROLLER) 40-195
PRECAUTIONS FOR CLEANING AND REPLACING KDPF (KCSF and KDOC) 40-199
PREPARATION FOR TROUBLESHOOTING OF MACHINE MONITOR 40-203
PROCEDURES FOR CREATING HARNESS CHECKER ON MACHINE MONITOR LCD UNIT 40-205
PREPARATION OF SHORT CIRCUIT ELECTRICAL CONNECTOR (FOR FAILURE CODES [CA1883]
AND [CA3135]) 40-211
FAILURE CODES TABLE 40-213
TROUBLESHOOTING BY FAILURE CODE (DISPLAY OF CODE) 40-237
FAILURE CODE [1500L0] 40-237
FAILURE CODE [15B0NX] 40-238
FAILURE CODE [15SAL1] 40-240
FAILURE CODE [15SALH] 40-242
FAILURE CODE [15SBL1] 40-244
FAILURE CODE [15SBLH] 40-246
FAILURE CODE [15SEL1] 40-248
FAILURE CODE [15SELH] 40-250
FAILURE CODE [15SFL1] 40-252
FAILURE CODE [15SFLH] 40-254
FAILURE CODE [15SGL1] 40-256
FAILURE CODE [15SGLH] 40-258
FAILURE CODE [15SHL1] 40-260
FAILURE CODE [15SHLH] 40-262
FAILURE CODE [2F00MA] 40-265
FAILURE CODE [2F00MB] 40-269
FAILURE CODE [2G42ZG] 40-272
FAILURE CODE [2G43ZG] 40-274
FAILURE CODE [879AKA] 40-276
FAILURE CODE [879AKB] 40-278
FAILURE CODE [879BKA] 40-280
FAILURE CODE [879BKB] 40-282
FAILURE CODE [879CKA] 40-284
FAILURE CODE [879CKB] 40-286
FAILURE CODE [879DKZ] 40-288
FAILURE CODE [879EMC] 40-290
FAILURE CODE [879FMC] 40-293
FAILURE CODE [989A00] 40-296
INDEX 00 INDEX AND FOREWORD
00-6 WA500-8E0
FAILURE CODE [989L00] 40-297
FAILURE CODE [989M00] 40-298
FAILURE CODE [989N00] 40-299
FAILURE CODE [A1U0N3] 40-300
FAILURE CODE [A1U0N4] 40-302
FAILURE CODE [AA10NX] 40-304
FAILURE CODE [AB00KE] 40-306
FAILURE CODE [AB00KY] 40-308
FAILURE CODE [AQ10N3] 40-310
FAILURE CODE [AS00N3] 40-312
FAILURE CODE [AS00R2] 40-314
FAILURE CODE [AS00R3] 40-315
FAILURE CODE [AS00R4] 40-316
FAILURE CODE [AS00R5] 40-317
FAILURE CODE [AS00R6] 40-318
FAILURE CODE [AS00ZK] 40-319
FAILURE CODE [AS10KM] 40-320
FAILURE CODE [AS10NR] 40-321
FAILURE CODE [AS10NT] 40-322
FAILURE CODE [B@BAZG] 40-323
FAILURE CODE [B@BCNS] 40-324
FAILURE CODE [B@BCQA] 40-325
FAILURE CODE [B@BCZK] 40-327
FAILURE CODE [B@C7NS] 40-329
FAILURE CODE [B@CENS] 40-331
FAILURE CODE [B@HANS] 40-332
FAILURE CODE [CA115] 40-333
FAILURE CODE [CA122] 40-337
FAILURE CODE [CA123] 40-339
FAILURE CODE [CA131] 40-341
FAILURE CODE [CA132] 40-343
FAILURE CODE [CA135] 40-345
FAILURE CODE [CA141] 40-347
FAILURE CODE [CA144] 40-349
FAILURE CODE [CA145] 40-351
FAILURE CODE [CA153] 40-353
FAILURE CODE [CA154] 40-356
FAILURE CODE [CA187] 40-358
FAILURE CODE [CA221] 40-360
FAILURE CODE [CA222] 40-362
FAILURE CODE [CA227] 40-364
FAILURE CODE [CA234] 40-366
FAILURE CODE [CA238] 40-367
FAILURE CODE [CA239] 40-368
FAILURE CODE [CA249] 40-369
FAILURE CODE [CA256] 40-371
FAILURE CODE [CA271] 40-373
FAILURE CODE [CA272] 40-375
FAILURE CODE [CA273] 40-376
FAILURE CODE [CA274] 40-378
FAILURE CODE [CA322] 40-379
FAILURE CODE [CA323] 40-381
FAILURE CODE [CA324] 40-383
FAILURE CODE [CA325] 40-385
FAILURE CODE [CA331] 40-387
FAILURE CODE [CA332] 40-389
FAILURE CODE [CA343] 40-391
FAILURE CODE [CA351] 40-393
00 INDEX AND FOREWORD INDEX
WA500-8E0 00-7
FAILURE CODE [CA352] 40-395
FAILURE CODE [CA356] 40-397
FAILURE CODE [CA357] 40-399
FAILURE CODE [CA386] 40-401
FAILURE CODE [CA431] 40-403
FAILURE CODE [CA432] 40-406
FAILURE CODE [CA441] 40-410
FAILURE CODE [CA442] 40-412
FAILURE CODE [CA449] 40-414
FAILURE CODE [CA451] 40-415
FAILURE CODE [CA452] 40-417
FAILURE CODE [CA515] 40-419
FAILURE CODE [CA516] 40-421
FAILURE CODE [CA553] 40-423
FAILURE CODE [CA555] 40-424
FAILURE CODE [CA556] 40-426
FAILURE CODE [CA559] 40-428
FAILURE CODE [CA595] 40-433
FAILURE CODE [CA687] 40-435
FAILURE CODE [CA689] 40-437
FAILURE CODE [CA691] 40-439
FAILURE CODE [CA692] 40-441
FAILURE CODE [CA697] 40-443
FAILURE CODE [CA698] 40-444
FAILURE CODE [CA731] 40-445
FAILURE CODE [CA778] 40-449
FAILURE CODE [CA1117] 40-451
FAILURE CODE [CA1664] 40-453
FAILURE CODE [CA1669] 40-456
FAILURE CODE [CA1673] 40-457
FAILURE CODE [CA1677] 40-458
FAILURE CODE [CA1678] 40-459
FAILURE CODE [CA1682] 40-460
FAILURE CODE [CA1683] 40-464
FAILURE CODE [CA1684] 40-466
FAILURE CODE [CA1686] 40-468
FAILURE CODE [CA1691] 40-469
FAILURE CODE [CA1694] 40-471
FAILURE CODE [CA1695] 40-473
FAILURE CODE [CA1696] 40-475
FAILURE CODE [CA1712] 40-477
FAILURE CODE [CA1713] 40-480
FAILURE CODE [CA1714] 40-483
FAILURE CODE [CA1715] 40-484
FAILURE CODE [CA1776] 40-485
FAILURE CODE [CA1777] 40-488
FAILURE CODE [CA1843] 40-491
FAILURE CODE [CA1844] 40-493
FAILURE CODE [CA1879] 40-495
FAILURE CODE [CA1881] 40-497
FAILURE CODE [CA1883] 40-499
FAILURE CODE [CA1885] 40-502
FAILURE CODE [CA1887] 40-504
FAILURE CODE [CA1921] 40-506
FAILURE CODE [CA1922] 40-509
FAILURE CODE [CA1923] 40-514
FAILURE CODE [CA1924] 40-516
FAILURE CODE [CA1925] 40-518
INDEX 00 INDEX AND FOREWORD
00-8 WA500-8E0
FAILURE CODE [CA1927] 40-520
FAILURE CODE [CA1928] 40-522
FAILURE CODE [CA1942] 40-524
FAILURE CODE [CA1963] 40-526
FAILURE CODE [CA1977] 40-530
FAILURE CODE [CA1993] 40-532
FAILURE CODE [CA2185] 40-535
FAILURE CODE [CA2186] 40-537
FAILURE CODE [CA2249] 40-539
FAILURE CODE [CA2265] 40-544
FAILURE CODE [CA2266] 40-546
FAILURE CODE [CA2271] 40-548
FAILURE CODE [CA2272] 40-550
FAILURE CODE [CA2349] 40-552
FAILURE CODE [CA2353] 40-554
FAILURE CODE [CA2357] 40-556
FAILURE CODE [CA2381] 40-558
FAILURE CODE [CA2382] 40-560
FAILURE CODE [CA2383] 40-562
FAILURE CODE [CA2386] 40-564
FAILURE CODE [CA2387] 40-566
FAILURE CODE [CA2555] 40-568
FAILURE CODE [CA2556] 40-570
FAILURE CODE [CA2637] 40-572
FAILURE CODE [CA2639] 40-574
FAILURE CODE [CA2732] 40-576
FAILURE CODE [CA2733] 40-578
FAILURE CODE [CA2741] 40-580
FAILURE CODE [CA2765] 40-581
FAILURE CODE [CA2771] 40-582
FAILURE CODE [CA2777] 40-588
FAILURE CODE [CA2878] 40-591
FAILURE CODE [CA2881] 40-594
FAILURE CODE [CA2976] 40-597
FAILURE CODE [CA3133] 40-599
FAILURE CODE [CA3134] 40-601
FAILURE CODE [CA3135] 40-603
FAILURE CODE [CA3142] 40-606
FAILURE CODE [CA3143] 40-607
FAILURE CODE [CA3144] 40-608
FAILURE CODE [CA3146] 40-611
FAILURE CODE [CA3147] 40-612
FAILURE CODE [CA3148] 40-613
FAILURE CODE [CA3151] 40-616
FAILURE CODE [CA3165] 40-621
FAILURE CODE [CA3167] 40-624
FAILURE CODE [CA3229] 40-628
FAILURE CODE [CA3231] 40-631
FAILURE CODE [CA3232] 40-634
FAILURE CODE [CA3235] 40-639
FAILURE CODE [CA3239] 40-641
FAILURE CODE [CA3241] 40-644
FAILURE CODE [CA3242] 40-647
FAILURE CODE [CA3251] 40-650
FAILURE CODE [CA3253] 40-653
FAILURE CODE [CA3254] 40-658
FAILURE CODE [CA3255] 40-662
FAILURE CODE [CA3256] 40-665
00 INDEX AND FOREWORD INDEX
WA500-8E0 00-9
FAILURE CODE [CA3311] 40-668
FAILURE CODE [CA3312] 40-671
FAILURE CODE [CA3313] 40-674
FAILURE CODE [CA3314] 40-675
FAILURE CODE [CA3315] 40-676
FAILURE CODE [CA3316] 40-680
FAILURE CODE [CA3317] 40-681
FAILURE CODE [CA3318] 40-682
FAILURE CODE [CA3319] 40-686
FAILURE CODE [CA3321] 40-687
FAILURE CODE [CA3322] 40-688
FAILURE CODE [CA3419] 40-692
FAILURE CODE [CA3421] 40-694
FAILURE CODE [CA3497] 40-696
FAILURE CODE [CA3498] 40-697
FAILURE CODE [CA3543] 40-698
FAILURE CODE [CA3545] 40-703
FAILURE CODE [CA3547] 40-705
FAILURE CODE [CA3558] 40-706
FAILURE CODE [CA3559] 40-708
FAILURE CODE [CA3562] 40-710
FAILURE CODE [CA3563] 40-712
FAILURE CODE [CA3567] 40-715
FAILURE CODE [CA3568] 40-719
FAILURE CODE [CA3571] 40-725
FAILURE CODE [CA3572] 40-727
FAILURE CODE [CA3574] 40-729
FAILURE CODE [CA3575] 40-732
FAILURE CODE [CA3577] 40-734
FAILURE CODE [CA3578] 40-736
FAILURE CODE [CA3582] 40-738
FAILURE CODE [CA3583] 40-745
FAILURE CODE [CA3596] 40-747
FAILURE CODE [CA3649] 40-751
FAILURE CODE [CA3681] 40-754
FAILURE CODE [CA3682] 40-759
FAILURE CODE [CA3713] 40-765
FAILURE CODE [CA3717] 40-768
FAILURE CODE [CA3718] 40-769
FAILURE CODE [CA3725] 40-770
FAILURE CODE [CA3748] 40-773
FAILURE CODE [CA3751] 40-776
FAILURE CODE [CA3755] 40-778
FAILURE CODE [CA3866] 40-780
FAILURE CODE [CA3867] 40-784
FAILURE CODE [CA3868] 40-787
FAILURE CODE [CA3899] 40-791
FAILURE CODE [CA3911] 40-793
FAILURE CODE [CA3912] 40-797
FAILURE CODE [CA3932] 40-799
FAILURE CODE [CA3933] 40-801
FAILURE CODE [CA3934] 40-803
FAILURE CODE [CA3935] 40-806
FAILURE CODE [CA3936] 40-808
FAILURE CODE [CA4151] 40-810
FAILURE CODE [CA4152] 40-814
FAILURE CODE [CA4155] 40-818
FAILURE CODE [CA4156] 40-820
INDEX 00 INDEX AND FOREWORD
00-10 WA500-8E0
FAILURE CODE [CA4157] 40-823
FAILURE CODE [CA4158] 40-825
FAILURE CODE [CA4159] 40-826
FAILURE CODE [CA4161] 40-827
FAILURE CODE [CA4162] 40-830
FAILURE CODE [CA4163] 40-833
FAILURE CODE [CA4164] 40-835
FAILURE CODE [CA4165] 40-838
FAILURE CODE [CA4166] 40-841
FAILURE CODE [CA4168] 40-843
FAILURE CODE [CA4169] 40-848
FAILURE CODE [CA4171] 40-853
FAILURE CODE [CA4249] 40-858
FAILURE CODE [CA4251] 40-863
FAILURE CODE [CA4259] 40-868
FAILURE CODE [CA4261] 40-872
FAILURE CODE [CA4277] 40-875
FAILURE CODE [CA4281] 40-878
FAILURE CODE [CA4459] 40-882
FAILURE CODE [CA4461] 40-884
FAILURE CODE [CA4658] 40-887
FAILURE CODE [CA4731] 40-891
FAILURE CODE [CA4732] 40-892
FAILURE CODE [CA4739] 40-893
FAILURE CODE [CA4768] 40-894
FAILURE CODE [CA4769] 40-896
FAILURE CODE [CA4842] 40-899
FAILURE CODE [CA4952] (MACHINE WITH KOMTRAX TERMINAL) 40-902
FAILURE CODE [CA4952] (MACHINE WITH GATEWAY FUNCTION CONTROLLER) 40-904
FAILURE CODE [CA5115] 40-906
FAILURE CODE [CA5179] 40-909
FAILURE CODE [CA5181] 40-911
FAILURE CODE [CA5383] 40-913
FAILURE CODE [D160KA] 40-915
FAILURE CODE [D160KB] 40-917
FAILURE CODE [D160KY] 40-919
FAILURE CODE [D191KA] 40-921
FAILURE CODE [D191KB] 40-924
FAILURE CODE [D191KY] 40-927
FAILURE CODE [D192KA] 40-929
FAILURE CODE [D192KB] 40-931
FAILURE CODE [D192KY] 40-933
FAILURE CODE [D193KA] 40-934
FAILURE CODE [D193KB] 40-936
FAILURE CODE [D193KY] 40-938
FAILURE CODE [D193MC] 40-940
FAILURE CODE [D19JKZ] 40-942
FAILURE CODE [D1E6KA] 40-944
FAILURE CODE [D1E6KB] 40-946
FAILURE CODE [D1E6KY] 40-948
FAILURE CODE [D5ZHKA] 40-950
FAILURE CODE [D5ZHKB] 40-952
FAILURE CODE [D5ZHKZ] 40-954
FAILURE CODE [D5ZHL6] 40-957
FAILURE CODE [D5ZMLD] 40-959
FAILURE CODE [D811MC] (MACHINE WITH KOMTRAX TERMINAL) 40-961
FAILURE CODE [D811MC] (MACHINE WITH GATEWAY FUNCTION CONTROLLER) 40-962
FAILURE CODE [D862KA] (MACHINE WITH KOMTRAX TERMINAL) 40-963
00 INDEX AND FOREWORD INDEX
WA500-8E0 00-11
FAILURE CODE [D862KA] (MACHINE WITH GATEWAY FUNCTION CONTROLLER) 40-964
FAILURE CODE [D8ALKA] (MACHINE WITH KOMTRAX TERMINAL) 40-965
FAILURE CODE [D8ALKA] (MACHINE WITH GATEWAY FUNCTION CONTROLLER) 40-967
FAILURE CODE [D8ALKB] (MACHINE WITH KOMTRAX TERMINAL) 40-969
FAILURE CODE [D8ALKB] (MACHINE WITH GATEWAY FUNCTION CONTROLLER) 40-971
FAILURE CODE [D8AQK4] (MACHINE WITH KOMTRAX TERMINAL) 40-973
FAILURE CODE [D8AQK4] (MACHINE WITH GATEWAY FUNCTION CONTROLLER) 40-974
FAILURE CODE [D8AQKR] (MACHINE WITH KOMTRAX TERMINAL) 40-975
FAILURE CODE [D8AQKR] (MACHINE WITH GATEWAY FUNCTION CONTROLLER) 40-977
FAILURE CODE [D8G1KT] 40-979
FAILURE CODE [D8G6KT] 40-980
FAILURE CODE [DAF0KT] 40-981
FAILURE CODE [DAF0MB] 40-982
FAILURE CODE [DAF0MC] 40-983
FAILURE CODE [DAF3KK] 40-984
FAILURE CODE [DAF8KB] 40-986
FAILURE CODE [DAFDKB] 40-988
FAILURE CODE [DAFGMC] (MACHINE WITH KOMTRAX TERMINAL) 40-990
FAILURE CODE [DAFGMC] (MACHINE WITH GATEWAY FUNCTION CONTROLLER) 40-991
FAILURE CODE [DAFLKA] (MACHINE WITH KOMTRAX TERMINAL) 40-992
FAILURE CODE [DAFLKA] (MACHINE WITH GATEWAY FUNCTION CONTROLLER) 40-994
FAILURE CODE [DAFLKB] (MACHINE WITH KOMTRAX TERMINAL) 40-996
FAILURE CODE [DAFLKB] (MACHINE WITH GATEWAY FUNCTION CONTROLLER) 40-998
FAILURE CODE [DAFQKR] (MACHINE WITH KOMTRAX TERMINAL) 40-1000
FAILURE CODE [DAFQKR] (MACHINE WITH GATEWAY FUNCTION CONTROLLER) 40-1001
FAILURE CODE [DAQ0KK] 40-1002
FAILURE CODE [DAQ0KT] 40-1005
FAILURE CODE [DAQ0MC] 40-1006
FAILURE CODE [DAQ1KA] 40-1007
FAILURE CODE [DAQ2KK] 40-1010
FAILURE CODE [DAQ4KB] 40-1013
FAILURE CODE [DAQ9KQ] 40-1015
FAILURE CODE [DAQLKA] (MACHINE WITH KOMTRAX TERMINAL) 40-1016
FAILURE CODE [DAQLKA] (MACHINE WITH GATEWAY FUNCTION CONTROLLER) 40-1018
FAILURE CODE [DAQLKB] (MACHINE WITH KOMTRAX TERMINAL) 40-1020
FAILURE CODE [DAQLKB] (MACHINE WITH GATEWAY FUNCTION CONTROLLER) 40-1022
FAILURE CODE [DAQQKR] 40-1024
FAILURE CODE [DAQRKR] 40-1025
FAILURE CODE [DAQRMA] 40-1026
FAILURE CODE [DAZ9KQ] 40-1027
FAILURE CODE [DAZQKR] 40-1028
FAILURE CODE [DB2QKR] (MACHINE WITH KOMTRAX TERMINAL) 40-1029
FAILURE CODE [DB2QKR] (MACHINE WITH GATEWAY FUNCTION CONTROLLER) 40-1034
FAILURE CODE [DB2RKR] 40-1039
FAILURE CODE [DB90KK] 40-1045
FAILURE CODE [DB90KT] 40-1048
FAILURE CODE [DB90MC] 40-1049
FAILURE CODE [DB91KA] 40-1050
FAILURE CODE [DB92KK] 40-1053
FAILURE CODE [DB95KX] 40-1056
FAILURE CODE [DB96KX] 40-1059
FAILURE CODE [DB99KQ] 40-1061
FAILURE CODE [DB9LKA] (MACHINE WITH KOMTRAX TERMINAL) 40-1062
FAILURE CODE [DB9LKA] (MACHINE WITH GATEWAY FUNCTION CONTROLLER) 40-1064
FAILURE CODE [DB9LKB] (MACHINE WITH KOMTRAX TERMINAL) 40-1066
FAILURE CODE [DB9LKB] (MACHINE WITH GATEWAY FUNCTION CONTROLLER) 40-1068
FAILURE CODE [DB9QKR] 40-1070
FAILURE CODE [DB9RKR] 40-1071
INDEX 00 INDEX AND FOREWORD
00-12 WA500-8E0
FAILURE CODE [DB9RMA] 40-1072
FAILURE CODE [DBE5KX] 40-1073
FAILURE CODE [DBE6KX] 40-1075
FAILURE CODE [DD1ALD] 40-1077
FAILURE CODE [DDA8KY] 40-1079
FAILURE CODE [DDA9KY] 40-1081
FAILURE CODE [DDAAL6] 40-1083
FAILURE CODE [DDAAL6] 40-1085
FAILURE CODE [DDB6L4] 40-1088
FAILURE CODE [DDD1LD] 40-1091
FAILURE CODE [DDE5KA] 40-1093
FAILURE CODE [DDK3KA] 40-1095
FAILURE CODE [DDK3KB] 40-1098
FAILURE CODE [DDK4KA] 40-1101
FAILURE CODE [DDK4KB] 40-1104
FAILURE CODE [DDK5L4] 40-1106
FAILURE CODE [DDK6KA] 40-1108
FAILURE CODE [DDK6KB] 40-1111
FAILURE CODE [DDKLKA] 40-1114
FAILURE CODE [DDKLKB] 40-1116
FAILURE CODE [DDNRKY] 40-1118
FAILURE CODE [DDP5KA] 40-1120
FAILURE CODE [DDT0L4] 40-1122
FAILURE CODE [DDT4LD] 40-1124
FAILURE CODE [DDT9LD] 40-1126
FAILURE CODE [DDTALD] 40-1128
FAILURE CODE [DDW9LD] 40-1130
FAILURE CODE [DDWLLD] 40-1132
FAILURE CODE [DF10KA] 40-1134
FAILURE CODE [DF10KB] 40-1137
FAILURE CODE [DGF1KA] 40-1140
FAILURE CODE [DGF1KB] 40-1142
FAILURE CODE [DGH2KX] 40-1144
FAILURE CODE [DGR2KB] 40-1146
FAILURE CODE [DGR2KZ] 40-1148
FAILURE CODE [DGT1KA] 40-1150
FAILURE CODE [DGT1KB] 40-1152
FAILURE CODE [DH21KA] 40-1154
FAILURE CODE [DH21KB] 40-1157
FAILURE CODE [DHA4KA] 40-1159
FAILURE CODE [DHAAMA] 40-1161
FAILURE CODE [DHACMA] 40-1163
FAILURE CODE [DHPCKX] 40-1165
FAILURE CODE [DHPDKX] 40-1168
FAILURE CODE [DHQ2KX] 40-1171
FAILURE CODE [DHT1KX] 40-1173
FAILURE CODE [DHT2L6] 40-1176
FAILURE CODE [DHT5KX] 40-1178
FAILURE CODE [DHT7KX] 40-1181
FAILURE CODE [DHT8KA] 40-1184
FAILURE CODE [DHT8KB] 40-1187
FAILURE CODE [DHT8ZG] 40-1189
FAILURE CODE [DJF1KA] 40-1190
FAILURE CODE [DK30KA] 40-1192
FAILURE CODE [DK30KY] 40-1194
FAILURE CODE [DK55KA] 40-1196
FAILURE CODE [DK55KY] 40-1199
FAILURE CODE [DK55L5] 40-1201
00 INDEX AND FOREWORD INDEX
WA500-8E0 00-13
FAILURE CODE [DK59KA] 40-1202
FAILURE CODE [DK59KY] 40-1206
FAILURE CODE [DK59L8] 40-1210
FAILURE CODE [DK5AKA] 40-1215
FAILURE CODE [DK5AKY] 40-1219
FAILURE CODE [DK5BKA] 40-1223
FAILURE CODE [DK5BKY] 40-1227
FAILURE CODE [DK5BL8] 40-1231
FAILURE CODE [DK5CKA] 40-1236
FAILURE CODE [DK5CKY] 40-1240
FAILURE CODE [DK5DKA] 40-1244
FAILURE CODE [DK5DKY] 40-1247
FAILURE CODE [DK5DL8] 40-1250
FAILURE CODE [DK5EKA] 40-1255
FAILURE CODE [DK5EKY] 40-1258
FAILURE CODE [DK5FKA] 40-1261
FAILURE CODE [DK5FKY] 40-1264
FAILURE CODE [DK5FL8] 40-1267
FAILURE CODE [DK5GKA] 40-1271
FAILURE CODE [DK5GKY] 40-1274
FAILURE CODE [DKA0KA] 40-1277
FAILURE CODE [DKA0KY] 40-1280
FAILURE CODE [DKA0L0] 40-1283
FAILURE CODE [DKA1KA] 40-1286
FAILURE CODE [DKA1KY] 40-1289
FAILURE CODE [DKD0KA] 40-1292
FAILURE CODE [DKD0KY] 40-1294
FAILURE CODE [DKD0L8] 40-1296
FAILURE CODE [DLF1KA] 40-1297
FAILURE CODE [DLF1LC] 40-1299
FAILURE CODE [DLM3KA] 40-1301
FAILURE CODE [DLM3LC] 40-1303
FAILURE CODE [DLT3KA] 40-1305
FAILURE CODE [DLT3LC] 40-1307
FAILURE CODE [DPQ1KR] 40-1309
FAILURE CODE [DPQ2KR] 40-1312
FAILURE CODE [DPQ3KR] 40-1315
FAILURE CODE [DSJ0KR] 40-1319
FAILURE CODE [DT20KB] 40-1323
FAILURE CODE [DT22KB] 40-1325
FAILURE CODE [DT23KB] 40-1327
FAILURE CODE [DV00KB] 40-1329
FAILURE CODE [DW2BKA] 40-1331
FAILURE CODE [DW2BKB] 40-1332
FAILURE CODE [DW2BKY] 40-1333
FAILURE CODE [DW2BL1] 40-1334
FAILURE CODE [DW2BLH] 40-1336
FAILURE CODE [DW4PKA] 40-1338
FAILURE CODE [DW4PKB] 40-1340
FAILURE CODE [DW4PKY] 40-1342
FAILURE CODE [DW4QKA] 40-1344
FAILURE CODE [DW4QKB] 40-1346
FAILURE CODE [DW4QKY] 40-1348
FAILURE CODE [DW4RKA] 40-1350
FAILURE CODE [DW4RKB] 40-1352
FAILURE CODE [DW4RKY] 40-1354
FAILURE CODE [DW4SKA] 40-1356
FAILURE CODE [DW4SKB] 40-1358
INDEX 00 INDEX AND FOREWORD
00-14 WA500-8E0
FAILURE CODE [DW4SKY] 40-1360
FAILURE CODE [DW7BKA] 40-1362
FAILURE CODE [DW7BKB] 40-1364
FAILURE CODE [DW7BKY] 40-1366
FAILURE CODE [DWM1KA] 40-1367
FAILURE CODE [DWM1KB] 40-1369
FAILURE CODE [DWM1KY] 40-1371
FAILURE CODE [DWN6KA] 40-1373
FAILURE CODE [DWN6KB] 40-1375
FAILURE CODE [DWN6KY] 40-1377
FAILURE CODE [DWN8KA] 40-1379
FAILURE CODE [DWN8KB] 40-1381
FAILURE CODE [DWN8KY] 40-1383
FAILURE CODE [DX16KA] 40-1385
FAILURE CODE [DX16KB] 40-1387
FAILURE CODE [DX16KY] 40-1389
FAILURE CODE [DXA1KA] 40-1391
FAILURE CODE [DXA1KB] 40-1393
FAILURE CODE [DXA1KY] 40-1395
FAILURE CODE [DXF0KA] 40-1397
FAILURE CODE [DXF0KB] 40-1399
FAILURE CODE [DXF0KY] 40-1401
FAILURE CODE [DXH1KA] 40-1403
FAILURE CODE [DXH1KB] 40-1405
FAILURE CODE [DXH1KY] 40-1407
FAILURE CODE [DXH4KA] 40-1409
FAILURE CODE [DXH4KB] 40-1411
FAILURE CODE [DXH4KY] 40-1413
FAILURE CODE [DXH5KA] 40-1415
FAILURE CODE [DXH5KB] 40-1417
FAILURE CODE [DXH5KY] 40-1419
FAILURE CODE [DXH6KA] 40-1421
FAILURE CODE [DXH6KB] 40-1423
FAILURE CODE [DXH6KY] 40-1425
FAILURE CODE [DXH7KA] 40-1427
FAILURE CODE [DXH7KB] 40-1429
FAILURE CODE [DXH7KY] 40-1431
FAILURE CODE [DXH8KA] 40-1433
FAILURE CODE [DXH8KB] 40-1435
FAILURE CODE [DXH8KY] 40-1437
FAILURE CODE [DXHHKA] 40-1439
FAILURE CODE [DXHHKB] 40-1441
FAILURE CODE [DXHHKY] 40-1443
FAILURE CODE [DXHJKA] 40-1445
FAILURE CODE [DXHJKB] 40-1447
FAILURE CODE [DXHJKY] 40-1449
FAILURE CODE [DXHKKA] 40-1451
FAILURE CODE [DXHKKB] 40-1453
FAILURE CODE [DXHKKY] 40-1455
FAILURE CODE [DXHLKA] 40-1457
FAILURE CODE [DXHLKB] 40-1459
FAILURE CODE [DXHLKY] 40-1461
FAILURE CODE [DXHMKA] 40-1463
FAILURE CODE [DXHMKB] 40-1465
FAILURE CODE [DXHMKY] 40-1467
FAILURE CODE [F313KA] 40-1469
FAILURE CODE [F313KB] 40-1471
FAILURE CODE [F318KB] 40-1472
00 INDEX AND FOREWORD INDEX
WA500-8E0 00-15
FAILURE CODE [F318KY] 40-1474
FAILURE CODE [LA00L3] 40-1475
TROUBLESHOOTING OF ELECTRICAL SYSTEM (E-MODE) 40-1476
E-1 ENGINE DOES NOT START (ENGINE DOES NOT CRANK) 40-1476
E-2 MANUAL PREHEATING SYSTEM DOES NOT WORK 40-1485
E-3 AUTOMATIC PREHEATING SYSTEM DOES NOT WORK 40-1488
E-4 WHILE PREHEATING IS WORKING, PREHEATING MONITOR DOES NOT LIGHT UP 40-1491
E-5 ALL OF LCD UNIT, LED UNIT, AND METER UNIT ON MACHINE MONITOR DISPLAY NOTHING
40-1493
E-6 ALL OF LCD UNIT, LED UNIT, AND METER UNIT ON MACHINE MONITOR DISPLAY NOTHING
(FOR MACHINES EQUIPPED WITH EMERGENCY ENGINE STOP SWITCH) 40-1496
E-7 LCD UNIT ON MACHINE MONITOR DISPLAYS NOTHING 40-1499
E-8 BACKLIGHT OF LCD UNIT ON MACHINE MONITOR IS ABNORMAL, (BACKLIGHT GOES OUT
OR FLICKERS) 40-1502
E-9 LCD ON MACHINE MONITOR DOES NOT DISPLAY PROPERLY 40-1505
E-10 METER UNIT DISPLAY ON MACHINE MONITOR IS ABNORMAL 40-1508
E-11 NIGHT LIGHTING LAMP OF METER UNIT ON MACHINE MONITOR IS ABNORMAL 40-1511
E-12 LED UNIT LAMP ON MACHINE MONITOR IS ABNORMAL 40-1515
E-13 NIGHT LIGHTING LAMP OF SWITCH PANEL ON MACHINE MONITOR IS ABNORMAL OR
SWITCH DOES NOT OPERATE PROPERLY 40-1517
E-14 2 SWITCHES OPERATION OF SWITCH PANEL ON MACHINE MONITOR DOES NOT FUNCTION
40-1520
E-15 SWITCH PANEL BUZZER OF MACHINE MONITOR IS ABNORMAL 40-1523
E-16 SOME ITEMS OF GAUGES AND CAUTION LAMPS ON MACHINE MONITOR ARE NOT DISPLAYED
PROPERLY 40-1526
E-17 AdBlue/DEF LEVEL IS NOT DISPLAYED PROPERLY 40-1527
E-18 REARVIEW MONITOR DOES NOT LIGHT UP OR BACKLIGHT FLICKERS 40-1530
E-19 REARVIEW MONITOR IMAGES ARE NOT DISPLAYED CLEARLY 40-1534
E-20 REARVIEW MONITOR BRIGHTNESS CANNOT BE ADJUSTED 40-1538
E-21 NIGHT LIGHTING LAMP OF REARVIEW MONITOR IS ABNORMAL 40-1542
E-22 AIR CLEANER CLOGGING INDICATOR LAMP DOES NOT LIGHT UP 40-1544
E-23 RADIATOR COOLANT LEVEL CAUTION LAMP DOES NOT LIGHT UP 40-1546
E-24 PARKING BRAKE INDICATOR LAMP DOES NOT LIGHT WHEN THE PARKING BRAKE IS SET
TO ON (PARKING) POSITION 40-1548
E-25 WHEN FRONT BRAKE ACCUMULATOR OIL PRESSURE DROPS, THE BRAKE OIL PRESSURE
CAUTION LAMP DOES NOT LIGHT UP 40-1552
E-26 WHEN REAR BRAKE ACCUMULATOR OIL PRESSURE DROPS, THE BRAKE OIL PRESSURE
CAUTION LAMP DOES NOT LIGHT UP 40-1553
E-27 FUEL LEVEL GAUGE DOES NOT INDICATE CORRECT LEVEL 40-1554
E-28 TORQUE CONVERTER OIL TEMPERATURE GAUGE DOES NOT INCREASE, OR TORQUE
CONVERTER OIL TEMPERATURE CAUTION LAMP DOES NOT LIGHT UP 40-1556
E-29 INDICATION OF HYDRAULIC OIL TEMPERATURE GAUGE DOES NOT INCREASE, OR HYDRAULIC
OIL TEMPERATURE CAUTION LAMP DOES NOT LIGHT 40-1557
E-30 SEAT BELT CAUTION LAMP INDICATION IS ABNORMAL 40-1559
E-31 ALARM BUZZER DOES NOT SOUND 40-1561
E-32 ALARM BUZZER DOES NOT STOP SOUNDING 40-1563
E-33 KICKDOWN DOES NOT WORK WHEN KICKDOWN SWITCH IS TURNED ON 40-1564
E-34 HOLD SWITCH DOES NOT WORK WHEN IT IS PRESSED 40-1566
E-35 BRAKE DOES NOT WORK WHEN PARKING BRAKE IS APPLIED OR BRAKE DRAGS WHILE
TRAVELING WHEN PARKING BRAKE IS RELEASED 40-1568
E-36 TRANSMISSION CUT-OFF MODE IS NOT SELECTED OR NOT RELEASED 40-1572
E-37 TRANSMISSION CUT-OFF SETTING CANNOT BE RELEASED 40-1574
E-38 DIRECTIONAL SELECTOR (FNR) SWITCH MODE IS NOT SELECTED OR NOT RELEASED
40-1576
E-39 ENGINE MODE SELECTOR FUNCTION DOES NOT OPERATE NORMALLY WHEN ENGINE
POWER MODE SELECTOR SWITCH IS OPERATED 40-1578
E-40 FLOW OF LOADER PUMP DOES NOT INCREASE FROM THE MINIMUM RATE 40-1580
E-41 ECSS FUNCTION CANNOT BE SELECTED OR CANNOT BE RELEASED 40-1581
INDEX 00 INDEX AND FOREWORD
00-16 WA500-8E0
E-42 ECSS FUNCTION CANNOT BE SELECTED OR CANNOT BE RELEASED (FOR AJSS SPEC)
40-1583
E-43 HORN DOES NOT SOUND 40-1585
E-44 HORN DOES NOT SOUND (FOR AJSS SPEC) 40-1588
E-45 HORN DOES NOT STOP SOUNDING 40-1591
E-46 NONE OF HEADLAMP, CLEARANCE LAMP, AND TAIL LAMP LIGHTS 40-1594
E-47 NONE OF HEADLAMP, CLEARANCE LAMP, AND TAIL LAMP LIGHTS (FOR AJSS SPEC)
40-1596
E-48 CLEARANCE LAMP AND TAIL LAMP DO NOT LIGHT UP OR GO OUT 40-1598
E-49 CLEARANCE LAMP AND TAIL LAMP DO NOT LIGHT UP OR GO OUT (FOR AJSS SPEC)
40-1602
E-50 BOTH HIGH AND LOW BEAMS OF HEADLAMP DO NOT LIGHT UP OR GO OUT 40-1606
E-51 BOTH HIGH AND LOW BEAMS OF HEADLAMP DO NOT LIGHT UP OR GO OUT (FOR AJSS
SPEC) 40-1610
E-52 LOW BEAM OF HEADLAMP DOES NOT LIGHT UP OR GO OUT 40-1614
E-53 LOW BEAM OF HEADLAMP DOES NOT LIGHT UP OR GO OUT (FOR AJSS SPEC) 40-1616
E-54 HIGH BEAM OF HEADLAMP DOES NOT LIGHT UP OR GO OUT 40-1618
E-55 HIGH BEAM OF HEADLAMP DOES NOT LIGHT UP OR GO OUT (FOR AJSS SPEC) 40-1620
E-56 FRONT WORKING LAMP DOES NOT LIGHT UP OR GO OUT 40-1622
E-57 REAR WORKING LAMP DOES NOT LIGHT UP OR GO OUT 40-1626
E-58 ALL OF TURN SIGNAL LAMPS AND HAZARD LAMPS DO NOT LIGHT UP OR GO OUT40-1630
E-59 ALL OF TURN SIGNAL LAMPS AND HAZARD LAMPS DO NOT LIGHT UP OR GO OUT (FOR
AJSS SPEC) 40-1633
E-60 TURN SIGNAL LAMPS DO NOT LIGHT UP OR GO OUT 40-1636
E-61 TURN SIGNAL LAMPS DO NOT LIGHT UP OR GO OUT (FOR AJSS SPEC) 40-1639
E-62 HAZARD LAMP DOES NOT LIGHT UP OR GO OUT 40-1643
E-63 BRAKE LAMP DOES NOT LIGHT OR STAYS LIGHTED 40-1647
E-64 BACKUP LAMP DOES NOT LIGHT UP OR DOES NOT GO OUT 40-1651
E-65 BACKUP BUZZER DOES NOT SOUND OR CONTINUES TO SOUND 40-1655
E-66 FRONT WIPER DOES NOT OPERATE 40-1657
E-67 FRONT WIPER DOES NOT OPERATE (FOR AJSS SPEC) 40-1661
E-68 REAR WIPER DOES NOT OPERATE 40-1665
E-69 REAR WIPER DOES NOT OPERATE (FOR AJSS SPEC) 40-1668
E-70 FUEL FEED PUMP DOES NOT OPERATE OR STOP AUTOMATICALLY 40-1671
E-71 WINDOW WASHER DOES NOT OPERATE 40-1674
E-72 WINDOW WASHER DOES NOT OPERATE (FOR AJSS SPEC) 40-1677
E-73 KOMTRAX SYSTEM DOES NOT OPERATE NORMALLY 40-1680
E-74 [FCS] IS DISPLAYED ON THE SCREEN OF AUTO-GREASING PUMP 40-1681
E-75 [FLL] IS DISPLAYED ON THE SCREEN OF AUTO-GREASING PUMP 40-1683
E-76 AUTO-GREASING SYSTEM DOES NOT OPERATE OR STOP 40-1684
TROUBLESHOOTING FOR HYDRAULIC AND MECHANICAL SYSTEMS (H MODE) 40-1686
INFORMATION MENTIONED IN TROUBLESHOOTING TABLE (H MODE) 40-1686
FAILURE MODE AND CAUSE TABLE 40-1687
H-1 MACHINE DOES NOT START 40-1710
H-2 LOCKUP IS NOT RELEASED 40-1713
H-3 TORQUE CONVERTER LOCKUP CLUTCH DOES NOT ENGAGE 40-1714
H-4 TRAVEL SPEED IS SLOW, BUCKET THRUST FORCE IS WEAK, GRADABILITY IS LOW, OR
GEAR SPEED DOES NOT SHIFT 40-1715
H-5 LARGE SHOCK IS MADE WHEN MACHINE MOVES OFF OR GEAR IS SHIFTED 40-1718
H-6 LARGE TIME LAG IS OBSERVED WHEN MACHINE STARTS AND GEAR IS SHIFTED 40-1721
H-7 OIL TEMPERATURE OF TORQUE CONVERTER IS HIGH 40-1724
H-8 MACHINE DOES NOT TURN (FOR STEERING WHEEL SPEC) 40-1726
H-9 MACHINE DOES NOT TURN (JOYSTICKSTEERING SPECIFICATION) 40-1728
H-10 MACHINE DOES NOT TURN (AJSS SPECIFICATION) 40-1730
H-11 TURNING RESPONSE IS POOR (FOR STEERING WHEEL SPEC) 40-1732
H-12 TURNING RESPONSE IS POOR (JOYSTICKSTEERING SPECIFICATION) 40-1734
H-13 TURNING RESPONSE IS POOR (AJSS SPECIFICATION) 40-1736
H-14 STEERING WHEEL IS HEAVY TO OPERATE 40-1738
00 INDEX AND FOREWORD INDEX
WA500-8E0 00-17
H-15 MACHINE SWAYS OR LARGE SHOCKS ARE MADE WHILE MACHINE TURNS (FOR STEERING
WHEEL SPEC) 40-1739
H-16 MACHINE SWAYS OR LARGE SHOCKS ARE MADE WHILE MACHINE TURNS (JOYSTICKSTEERING
SPECIFICATION) 40-1741
H-17 MACHINE SWAYS OR LARGE SHOCKS ARE MADE WHILE MACHINE TURNS (AJSS SPECIFICATION)
40-1743
H-18 TURNING RADIUS DIFFERS BETWEEN RIGHT AND LEFT TURNS 40-1745
H-19 WHEEL BRAKES DO NOT WORK OR ARE WEAK 40-1746
H-20 WHEEL BRAKES ARE NOT RELEASED OR DRAG 40-1748
H-21 PARKING BRAKE DOES NOT WORK OR IT IS WEAK 40-1749
H-22 PARKING BRAKE IS NOT RELEASED OR DRAGS 40-1750
H-23 BOOM DOES NOT RISE 40-1752
H-24 BOOM MOVES SLOW OR BOOM LACKS LIFTING FORCE 40-1754
H-25 RISING BOOM SLOWS DOWN AT CERTAIN HEIGHT 40-1756
H-26 LIFT CYLINDERS DO NOT SERVE TO HOLD BUCKET ON GROUND 40-1757
H-27 HYDRAULIC DRIFT OF BOOM IS LARGE 40-1758
H-28 BOOM MOVES UP AND DOWN DURING OPERATION 40-1759
H-29 BUCKET DOES NOT TILT BACK 40-1760
H-30 BUCKET MOVES SLOW OR LACKS TILT-BACK FORCE 40-1762
H-31 BUCKET DECELERATES DURING TILT-BACK OPERATION 40-1764
H-32 BUCKET CYLINDER DOES NOT HOLD BUCKET ON GROUND 40-1765
H-33 HYDRAULIC DRIFT OF BUCKET IS LARGE 40-1766
H-34 BUCKET TILTS BACK AND FORTH DURING CARRYING LOAD (WORK EQUIPMENT VALVE
IN HOLD) 40-1767
H-35 BOOM AND BUCKET CONTROL LEVERS DO NOT MOVE SMOOTHLY AND ARE HEAVY TO
MOVE 40-1768
H-36 BOOM AND BUCKET CONTROL LEVERS DO NOT MOVE SMOOTHLY AND ARE HEAVY TO
MOVE (MULTI-FUNCTION MONO-LEVER TYPE) 40-1769
H-37 WHEN OPERATING WORK EQUIPMENT ENGINE SPEED DROPS LARGELY OR ENGINE
STOPS 40-1770
H-38 LARGE SHOCKS ARE MADE WHEN WORK EQUIPMENT STARTS TO MOVE AND STOPS
40-1771
H-39 WHEN CERTAIN WORK EQUIPMENT STALLS HYDRAULICALLY, OTHER WORK EQUIPMENT
MOVES 40-1773
H-40 E C S S (TRAVEL DAMPER) DOES NOT WORK AND MACHINE PITCHES AND BOUNCES
40-1774
H-41 FAN SPEED IS ABNORMAL (TOO HIGH OR LOW, OR STATIONARY) 40-1775
H-42 UNUSUAL NOISE IS HEARD FROM AROUND FAN 40-1776
TROUBLESHOOTING OF ENGINE (S-MODE) 40-1777
INFORMATION MENTIONED IN TROUBLESHOOTING TABLE (S MODE) 40-1777
S-1 ENGINE DOES NOT CRANK WHEN STARTING SWITCH IS TURNED TO START POSITION
40-1778
S-2 ENGINE CRANKS BUT NO EXHAUST GAS COMES OUT 40-1779
S-3 FUEL IS BEING INJECTED BUT ENGINE DOES NOT START (MISFIRING: ENGINE CRANKS
BUT DOES NOT START) 40-1780
S-4 ENGINE STARTABILITY IS POOR 40-1781
S-5 ENGINE DOES NOT PICK UP SMOOTHLY 40-1783
S-6 ENGINE STOPS DURING OPERATION 40-1785
S-7 ENGINE RUNS ROUGH OR IS UNSTABLE 40-1787
S-8 ENGINE LACKS POWER 40-1788
S-9 KDPF GETS CLOGGED IN A SHORT TIME 40-1790
S-10 ENGINE OIL CONSUMPTION IS EXCESSIVE 40-1792
S-11 OIL BECOMES CONTAMINATED QUICKLY 40-1793
S-12 FUEL CONSUMPTION IS EXCESSIVE 40-1794
S-13 OIL IS IN COOLANT (OR COOLANT SPURTS BACK OR COOLANT LEVEL GOES DOWN)
40-1795
S-14 OIL PRESSURE DROPS 40-1796
S-15 FUEL MIXES INTO ENGINE OIL 40-1798
INDEX 00 INDEX AND FOREWORD
00-18 WA500-8E0
S-16 WATER MIXES INTO ENGINE OIL (MILKY) 40-1799
S-17 COOLANT TEMPERATURE RISES TOO HIGH (OVERHEATING) 40-1800
S-18 UNUSUAL NOISE IS HEARD 40-1801
S-19 VIBRATION IS EXCESSIVE 40-1802
S-20 AIR CANNOT BE BLED FROM FUEL CIRCUIT 40-1803
S-21 ACTIVE REGENERATION IS EXECUTED FREQUENTLY 40-1804
S-22 ACTIVE REGENERATION TAKES TIME 40-1806
S-23 WHITE SMOKE IS EXHAUSTED DURING ACTIVE REGENERATION 40-1808
S-24 AdBlue/DEF CONSUMPTION IS EXCESSIVE 40-1809
S-25 THERE IS UNUSUAL SMELL (IRRITATING ODOR) 40-1811
S-26 FOREIGN MATERIALS ENTER AdBlue/DEF (AdBlue/DEF INCREASES) 40-1812
TROUBLESHOOTING FOR AUTO-GREASING SYSTEM 40-1813
OUTLINE OF FAILURE DISPLAY 40-1813
TROUBLESHOOTING FOR FCS 40-1814
TROUBLESHOOTING FOR AUTO-GREASING PUMP 40-1815
REPLACEMENT OF PUMP ELEMENT 40-1818
TROUBLESHOOTING FOR GREASE SUPPLY SYSTEM 40-1819
REPLACEMENT OF AUTO-GREASING CONTROLLER 40-1821
PROCEDURE FOR ASSEMBLING WHEN DISASSEMBLING FOR TROUBLESHOOTING 40-1822
50 DISASSEMBLY AND ASSEMBLY 50-1
CONTENTS 50-2
ABBREVIATION LIST 50-7
RELATED INFORMATION ON DISASSEMBLY AND ASSEMBLY 50-13
HOW TO READ THIS MANUAL 50-13
COATING MATERIALS LIST 50-15
SPECIAL TOOLS LIST 50-19
SKETCHES OF SPECIAL TOOLS 50-45
ENGINE AND COOLING SYSTEM 50-54
REMOVE AND INSTALL SUPPLY PUMP ASSEMBLY 50-54
REMOVE AND INSTALL INJECTOR ASSEMBLY 50-64
REMOVE AND INSTALL FUEL DOSER ASSEMBLY 50-89
REMOVE AND INSTALL CYLINDER HEAD ASSEMBLY 50-93
REMOVE AND INSTALL EGR VALVE ASSEMBLY 50-120
REMOVE AND INSTALL EGR COOLER ASSEMBLY 50-122
REMOVE AND INSTALL STARTING MOTOR ASSEMBLY 50-130
REMOVE AND INSTALL ALTERNATOR BELT 50-133
REMOVE AND INSTALL RADIATOR ASSEMBLY 50-135
REMOVE AND INSTALL COOLING FAN AND FAN MOTOR ASSEMBLY 50-147
REMOVE AND INSTALL HYDRAULIC OIL COOLER ASSEMBLY 50-153
REMOVE AND INSTALL AFTERCOOLER ASSEMBLY 50-165
REMOVE AND INSTALL POWER TRAIN OIL COOLER ASSEMBLY 50-176
REMOVE AND INSTALL ENGINE, TORQUE CONVERTER AND TRANSMISSION ASSEMBLY 50-181
DISCONNECT AND CONNECT ENGINE, TORQUE CONVERTER AND TRANSMISSION ASSEMBLY
50-216
REMOVE AND INSTALL ENGINE FRONT OIL SEAL 50-218
REMOVE AND INSTALL ENGINE REAR OIL SEAL 50-223
REMOVE AND INSTALL ENGINE HOOD ASSEMBLY 50-231
REMOVE AND INSTALL FUEL TANK ASSEMBLY 50-239
REMOVE AND INSTALL AdBlue/DEF TANK ASSEMBLY 50-245
REMOVE AND INSTALL AdBlue/DEF TANK SENSOR FLANGE ASSEMBLY 50-262
REMOVE AND INSTALL AdBlue/DEF TANK SENSOR 50-266
REMOVE AND INSTALL AdBlue/DEF TANK STRAINER 50-269
REMOVE AND INSTALL KDPF ASSEMBLY 50-271
DISASSEMBLE AND ASSEMBLE OF KDPF ASSEMBLY 50-279
REMOVE AND INSTALL SCR ASSEMBLY 50-289
REMOVE AND INSTALL KDPF, SCR ASSEMBLY 50-297
REMOVE AND INSTALL KCCV ASSEMBLY 50-304
REMOVE AND INSTALL VGT ASSEMBLY 50-309
00 INDEX AND FOREWORD INDEX
WA500-8E0 00-19
REMOVE AND INSTALL AdBlue/DEF MIXING TUBE 50-316
REMOVE AND INSTALL AdBlue/DEF INJECTOR 50-323
REMOVE AND INSTALL AdBlue/DEF PUMP 50-329
REMOVE AND INSTALL AdBlue/DEF HOSE 50-335
REMOVE AND INSTALL AIR CLEANER ASSEMBLY 50-350
REMOVE AND INSTALL AIR CONDITIONER COMPRESSOR ASSEMBLY 50-356
REMOVE AND INSTALL AIR CONDITIONER CONDENSER ASSEMBLY 50-360
POWER TRAIN 50-363
DISCONNECT AND CONNECT TORQUE CONVERTER AND TRANSMISSION ASSEMBLY 50-363
REMOVE AND INSTALL FRONT DIFFERENTIAL ASSEMBLY 50-375
DISASSEMBLE AND ASSEMBLE DIFFERENTIAL ASSEMBLY (SPECIFICATION WITH LSD) 50-379
DISASSEMBLE AND ASSEMBLE DIFFERENTIAL ASSEMBLY (SPECIFICATION WITHOUT LSD)
50-399
DISASSEMBLE AND ASSEMBLE TORQUE CONVERTER ASSEMBLY 50-415
DISASSEMBLE AND ASSEMBLE INPUT TRANSFER ASSEMBLY 50-435
DISASSEMBLE AND ASSEMBLE TRANSMISSION ASSEMBLY 50-445
DISASSEMBLE AND ASSEMBLE TRANSFER AND PARKING BRAKE ASSEMBLY 50-488
REMOVE AND INSTALL FRONT AXLE ASSEMBLY 50-515
REMOVE AND INSTALL REAR AXLE ASSEMBLY 50-519
DISASSEMBLE AND ASSEMBLE FINAL DRIVE ASSEMBLY (FRONT, REAR) 50-524
STEERING SYSTEM 50-533
REMOVE AND INSTALL STEERING VALVE ASSEMBLY 50-533
REMOVE AND INSTALL ROTARY VALVE ASSEMBLY (FOR AJSS SPEC) 50-537
BRAKE SYSTEM 50-554
DISASSEMBLE AND ASSEMBLE SLACK ADJUSTER ASSEMBLY 50-554
DISASSEMBLE AND ASSEMBLE BRAKE ACCUMULATOR CHARGE VALVE ASSEMBLY 50-555
REMOVE AND INSTALL BRAKE ASSEMBLY (FRONT, REAR) 50-557
DISASSEMBLE AND ASSEMBLE BRAKE ASSEMBLY (FRONT, REAR) 50-561
UNDERCARRIAGE AND FRAME 50-570
REMOVE AND INSTALL CENTER HINGE PIN 50-570
REMOVE AND INSTALL COUNTERWEIGHT ASSEMBLY 50-586
REMOVE AND INSTALL FULL-LENGTH FENDER ASSEMBLY 50-591
HYDRAULIC SYSTEM 50-594
REMOVE AND INSTALL HYDRAULIC TANK ASSEMBLY 50-594
REMOVE AND INSTALL WORK EQUIPMENT PUMP ASSEMBLY 50-606
REMOVE AND INSTALL DIVIDER VALVE ASSEMBLY 50-614
DISASSEMBLE AND ASSEMBLE STEERING CYLINDER ASSEMBLY 50-619
REMOVE AND INSTALL STEERING PUMP AND POWER TRAIN PUMP ASSEMBLY 50-624
REMOVE AND INSTALL COOLING FAN PUMP ASSEMBLY 50-633
REMOVE AND INSTALL CONTROL VALVE ASSEMBLY 50-639
WORK EQUIPMENT 50-645
REMOVE AND INSTALL WORK EQUIPMENT ASSEMBLY 50-645
DISASSEMBLE AND ASSEMBLE WORK EQUIPMENT CYLINDER ASSEMBLY 50-653
CAB AND ITS ATTACHMENTS 50-660
REMOVE AND INSTALL OPERATOR’S CAB ASSEMBLY 50-660
REMOVE AND INSTALL OPERATOR’S CAB GLASS (ADHERED GLASS) 50-680
REMOVE AND INSTALL AIR CONDITIONER UNIT ASSEMBLY 50-690
REMOVE AND INSTALL OPERATOR’S SEAT ASSEMBLY 50-701
REMOVE AND INSTALL SWITCH ASSEMBLY OF AJSS LEVER 50-705
REMOVE AND INSTALL SEAT BELT 50-711
ELECTRICAL SYSTEM 50-713
REMOVE AND INSTALL ENGINE CONTROLLER ASSEMBLY 50-713
REMOVE AND INSTALL WORK EQUIPMENT CONTROLLER ASSEMBLY 50-719
REMOVE AND INSTALL TRANSMISSION CONTROLLER ASSEMBLY 50-723
REMOVE AND INSTALL MONITOR CONTROLLER ASSEMBLY 50-725
REMOVE AND INSTALL MACHINE MONITOR ASSEMBLY 50-729
REMOVE AND INSTALL MASS AIR FLOW AND TEMPERATURE SENSOR 50-732
REMOVE AND INSTALL KCCV CRANKCASE PRESSURE SENSOR 50-735
INDEX 00 INDEX AND FOREWORD
00-20 WA500-8E0
REMOVE AND INSTALL SCR TEMPERATURE SENSOR 50-738
REMOVE AND INSTALL KOMTRAX TERMINAL ASSEMBLY 50-742
REMOVE AND INSTALL GATEWAY FUNCTION CONTROLLER ASSEMBLY 50-744
REMOVE AND INSTALL COMMUNICATION TERMINAL 50-746
60 MAINTENANCE STANDARD 60-1
CONTENTS 60-2
ABBREVIATION LIST 60-3
ENGINE AND COOLING SYSTEM 60-9
MAINTENANCE STANDARD OF ENGINE MOUNT 60-9
MAINTENANCE STANDARD OF JOINT 60-11
MAINTENANCE STANDARD OF BRAKE AND COOLING FAN PUMP 60-12
MAINTENANCE STANDARD OF COOLING FAN MOTOR 60-15
POWER TRAIN 60-17
MAINTENANCE STANDARD OF DRIVE SHAFT 60-17
MAINTENANCE STANDARD OF TORQUE CONVERTER 60-19
MAINTENANCE STANDARD OF LOCKUP CLUTCH ECMV 60-24
MAINTENANCE STANDARD OF TRANSMISSION 60-25
MAINTENANCE STANDARD OF TRANSMISSION CONTROL VALVE 60-33
MAINTENANCE STANDARD OF FORWARD AND REVERSE CLUTCH ECMV AND GEAR SPEED
CLUTCH ECMV 60-34
MAINTENANCE STANDARD OF TORQUE CONVERTER REGULATOR VALVE 60-35
MAINTENANCE STANDARD OF MAIN RELIEF VALVE, TORQUE CONVERTER RELIEF VALVE,
AND MAIN FLOW SELECTOR VALVE 60-36
MAINTENANCE STANDARD OF TRANSMISSION LUBRICATION RELIEF VALVE 60-38
MAINTENANCE STANDARD OF FRONT AXLE 60-39
MAINTENANCE STANDARD OF REAR AXLE 60-40
MAINTENANCE STANDARD OF FRONT CONVENTIONAL DIFFERENTIAL 60-41
MAINTENANCE STANDARD OF FRONT LIMITED SLIP DIFFERENTIAL 60-45
MAINTENANCE STANDARD OF FINAL DRIVE 60-47
STEERING SYSTEM 60-49
MAINTENANCE STANDARD OF STEERING COLUMN 60-49
MAINTENANCE STANDARD OF STEERING PUMP 60-50
MAINTENANCE STANDARD OF STEERING VALVE 60-54
MAINTENANCE STANDARD OF STEERING CYLINDER 60-55
MAINTENANCE STANDARD OF DIVERTER VALVE 60-57
MAINTENANCE STANDARD OF SECONDARY STEERING PUMP 60-58
BRAKE SYSTEM 60-59
MAINTENANCE STANDARD OF CHARGE VALVE 60-59
MAINTENANCE STANDARD OF BRAKE CIRCUIT ACCUMULATOR 60-61
MAINTENANCE STANDARD OF BRAKE VALVE 60-62
MAINTENANCE STANDARD OF SLACK ADJUSTER 60-63
MAINTENANCE STANDARD OF BRAKE 60-64
MAINTENANCE STANDARD OF PARKING BRAKE 60-66
MAINTENANCE STANDARD OF PARKING BRAKE SOLENOID VALVE 60-68
UNDERCARRIAGE AND FRAME 60-69
MAINTENANCE STANDARD OF FRAME, AXLE MOUNT AND CENTER HINGE PIN 60-69
HYDRAULIC SYSTEM 60-74
MAINTENANCE STANDARD OF HYDRAULIC TANK 60-74
MAINTENANCE STANDARD OF WORK EQUIPMENT PUMP 60-75
MAINTENANCE STANDARD OF POWER TRAIN CHARGE DUPLEX PUMP 60-77
MAINTENANCE STANDARD OF CONTROL VALVE 60-79
MAINTENANCE STANDARD OF WORK EQUIPMENT LOCK SOLENOID VALVE 60-88
WORK EQUIPMENT 60-89
MAINTENANCE STANDARD OF WORK EQUIPMENT LINKAGE 60-89
MAINTENANCE STANDARD OF BUCKET 60-93
MAINTENANCE STANDARD OF LIFT CYLINDER 60-95
MAINTENANCE STANDARD OF BUCKET CYLINDER 60-96
80 APPENDIX 80-1
00 INDEX AND FOREWORD INDEX
WA500-8E0 00-21
CONTENTS 80-2
ABBREVIATION LIST 80-4
AIR CONDITIONER SYSTEM 80-10
PRECAUTIONS FOR REFRIGERANT 80-10
AIR CONDITIONER COMPONENT 80-11
SPECIFICATIONS OF AIR CONDITIONER 80-13
CONFIGURATION AND FUNCTION OF REFRIGERATION CYCLE 80-14
OUTLINE OF REFRIGERATION CYCLE 80-15
COMPONENT PARTS OF AIR CONDITIONER SYSTEM 80-17
AIR CONDITIONER UNIT 80-17
COMPONENT PARTS OF AIR CONDITIONER UNIT 80-19
AIR CONDITIONER CONTROLLER 80-23
COMPRESSOR 80-24
CONDENSER 80-25
RECEIVER DRIER 80-26
SENSORS FOR AIR CONDITIONER SYSTEM 80-27
EXPLANATION OF PROCEDURE FOR TESTING AND TROUBLESHOOTING OF AIR CONDITIONER
80-28
CIRCUIT DIAGRAM AND ARRANGEMENT OF CONNECTOR PINS FOR AIR CONDITIONER 80-30
AIR CONDITIONER SYSTEM DIAGRAM 80-33
INPUT AND OUTPUT SIGNALS OF AIR CONDITIONER CONTROLLER 80-34
INSTALLATION LOCATIONS OF AIR CONDITIONER PARTS AND ARRANGEMENT OF CONNECTORS
80-36
TESTING AIR CONDITIONER USING SELF-DIAGNOSIS FUNCTION 80-42
HOW TO OPEN THE ELECTRICAL SYSTEM ABNORMALITY RECORD SCREEN IN SERVICE MODE
OF THE MACHINE MONITOR 80-43
CHECK TEMPERATURE CONTROL FUNCTION 80-45
METHOD FOR CHECKING TEMPERATURE CONTROL FUNCTION 80-45
TEST VENT (MODE) CHANGEOVER 80-47
METHOD FOR TESTING VENT (MODE) CHANGEOVER 80-47
TESTING FRESH/RECIRC AIR CHANGEOVER 80-49
METHOD FOR TESTING FRESH/RECIRC AIR CHANGEOVER 80-49
TEST EVAPORATOR TEMPERATURE SENSOR 80-51
TEST RELAYS 80-53
METHOD FOR TESTING RELAYS 80-53
AIR CONDITIONER TROUBLESHOOTING CHART 1 80-55
AIR CONDITIONER TROUBLESHOOTING CHART 2 80-56
INFORMATION DESCRIBED IN TROUBLESHOOTING TABLE 80-59
FAILURE CODE [879AKA] 80-61
FAILURE CODE [879AKB] 80-63
FAILURE CODE [879BKA] 80-65
FAILURE CODE [879BKB] 80-67
FAILURE CODE [879CKA] 80-69
FAILURE CODE [879CKB] 80-71
FAILURE CODE [879DKZ] 80-73
FAILURE CODE [879EMC] 80-75
FAILURE CODE [879FMC] 80-78
A-1 TROUBLESHOOTING FOR POWER SUPPLY SYSTEM (AIR CONDITIONER DOES NOT OPERATE)
80-81
A-2 TROUBLESHOOTING FOR COMPRESSOR AND REFRIGERANT SYSTEM (AIR IS NOT COOLED)
80-84
A-3 TROUBLESHOOTING FOR BLOWER MOTOR SYSTEM (NO AIR COMES OUT OR AIR FLOW IS
ABNORMAL) 80-87
A-4 TROUBLESHOOTING FOR FRESH/RECIRC AIR CHANGEOVER 80-91
TROUBLESHOOTING USING GAUGE PRESSURE 80-93
CONNECTION OF SERVICE TOOL 80-96
METHOD FOR CONNECTING SERVICE TOOL 80-97
INDEX 00 INDEX AND FOREWORD
00-22 WA500-8E0
PRECAUTIONS FOR DISCONNECTING AND CONNECTING HOSES AND TUBES IN AIR CONDITIONER
PIPINGS 80-98
HANDLE COMPRESSOR OIL 80-100
90 CIRCUIT DIAGRAMS 90-1
CONTENTS 90-2
ABBREVIATION LIST 90-5
HYDRAULIC CIRCUIT DIAGRAM 90-11
SYMBOLS USED IN HYDRAULIC CIRCUIT DIAGRAM 90-11
HYDRAULIC CIRCUIT DIAGRAM (FOR STEERING WHEEL AND JOYSTICK STEERING SPEC)
90-15
HYDRAULIC CIRCUIT DIAGRAM (FOR AJSS SPEC) 90-17
HYDRAULIC CIRCUIT DIAGRAM OF BRAKE SYSTEM 90-19
POWER TRAIN HYDRAULIC CIRCUIT DIAGRAM 90-21
HYDRAULIC AUTO-GREASING DIAGRAM 90-23
ELECTRICAL CIRCUIT DIAGRAM 90-25
SYMBOLS USED IN ELECTRICAL CIRCUIT DIAGRAM 90-25
ELECTRICAL CIRCUIT DIAGRAM OF MACHINE (MACHINE WITH KOMTRAX TERMINAL) (1/6)
90-29
ELECTRICAL CIRCUIT DIAGRAM OF MACHINE (MACHINE WITH KOMTRAX TERMINAL) (2/6)
90-31
ELECTRICAL CIRCUIT DIAGRAM OF MACHINE (MACHINE WITH KOMTRAX TERMINAL) (3/6)
90-33
ELECTRICAL CIRCUIT DIAGRAM OF MACHINE (MACHINE WITH KOMTRAX TERMINAL) (4/6)
90-35
ELECTRICAL CIRCUIT DIAGRAM OF MACHINE (MACHINE WITH KOMTRAX TERMINAL) (5/6)
90-37
ELECTRICAL CIRCUIT DIAGRAM OF MACHINE (MACHINE WITH KOMTRAX TERMINAL) (6/6)
90-39
ELECTRICAL CIRCUIT DIAGRAM OF MACHINE (MACHINE WITH GATEWAY FUNCTION CONTROLLER)
(1/6) 90-41
ELECTRICAL CIRCUIT DIAGRAM OF MACHINE (MACHINE WITH GATEWAY FUNCTION CONTROLLER)
(2/6) 90-43
ELECTRICAL CIRCUIT DIAGRAM OF MACHINE (MACHINE WITH GATEWAY FUNCTION CONTROLLER)
(3/6) 90-45
ELECTRICAL CIRCUIT DIAGRAM OF MACHINE (MACHINE WITH GATEWAY FUNCTION CONTROLLER)
(4/6) 90-47
ELECTRICAL CIRCUIT DIAGRAM OF MACHINE (MACHINE WITH GATEWAY FUNCTION CONTROLLER)
(5/6) 90-49
ELECTRICAL CIRCUIT DIAGRAM OF MACHINE (MACHINE WITH GATEWAY FUNCTION CONTROLLER)
(6/6) 90-51
ELECTRICAL CIRCUIT DIAGRAM OF MACHINE (FOR EMERGENCY ENGINE STOP SWITCH
SPEC) (MACHINE WITH KOMTRAX TERMINAL) (1/6) 90-53
ELECTRICAL CIRCUIT DIAGRAM OF MACHINE (FOR EMERGENCY ENGINE STOP SWITCH
SPEC) (MACHINE WITH KOMTRAX TERMINAL) (2/6) 90-55
ELECTRICAL CIRCUIT DIAGRAM OF MACHINE (FOR EMERGENCY ENGINE STOP SWITCH
SPEC) (MACHINE WITH KOMTRAX TERMINAL) (3/6) 90-57
ELECTRICAL CIRCUIT DIAGRAM OF MACHINE (FOR EMERGENCY ENGINE STOP SWITCH
SPEC) (MACHINE WITH KOMTRAX TERMINAL) (4/6) 90-59
ELECTRICAL CIRCUIT DIAGRAM OF MACHINE (FOR EMERGENCY ENGINE STOP SWITCH
SPEC) (MACHINE WITH KOMTRAX TERMINAL) (5/6) 90-61
ELECTRICAL CIRCUIT DIAGRAM OF MACHINE (FOR EMERGENCY ENGINE STOP SWITCH
SPEC) (MACHINE WITH KOMTRAX TERMINAL) (6/6) 90-63
ELECTRICAL CIRCUIT DIAGRAM OF FLOOR (FOR STEERING WHEEL AND JOYSTICK STEERING
SPEC) (MACHINE WITH KOMTRAX TERMINAL) (1/10) 90-65
ELECTRICAL CIRCUIT DIAGRAM OF FLOOR (FOR STEERING WHEEL AND JOYSTICK STEERING
SPEC) (MACHINE WITH KOMTRAX TERMINAL) (2/10) 90-67
ELECTRICAL CIRCUIT DIAGRAM OF FLOOR (FOR STEERING WHEEL AND JOYSTICK STEERING
SPEC) (MACHINE WITH KOMTRAX TERMINAL) (3/10) 90-69
00 INDEX AND FOREWORD INDEX
WA500-8E0 00-23
ELECTRICAL CIRCUIT DIAGRAM OF FLOOR (FOR STEERING WHEEL AND JOYSTICK STEERING
SPEC) (MACHINE WITH KOMTRAX TERMINAL) (4/10) 90-71
ELECTRICAL CIRCUIT DIAGRAM OF FLOOR (FOR STEERING WHEEL AND JOYSTICK STEERING
SPEC) (MACHINE WITH KOMTRAX TERMINAL) (5/10) 90-73
ELECTRICAL CIRCUIT DIAGRAM OF FLOOR (FOR STEERING WHEEL AND JOYSTICK STEERING
SPEC) (MACHINE WITH KOMTRAX TERMINAL) (6/10) 90-75
ELECTRICAL CIRCUIT DIAGRAM OF FLOOR (FOR STEERING WHEEL AND JOYSTICK STEERING
SPEC) (MACHINE WITH KOMTRAX TERMINAL) (7/10) 90-77
ELECTRICAL CIRCUIT DIAGRAM OF FLOOR (FOR STEERING WHEEL AND JOYSTICK STEERING
SPEC) (MACHINE WITH KOMTRAX TERMINAL) (8/10) 90-79
ELECTRICAL CIRCUIT DIAGRAM OF FLOOR (FOR STEERING WHEEL AND JOYSTICK STEERING
SPEC) (MACHINE WITH KOMTRAX TERMINAL) (9/10) 90-81
ELECTRICAL CIRCUIT DIAGRAM OF FLOOR (FOR STEERING WHEEL AND JOYSTICK STEERING
SPEC) (MACHINE WITH KOMTRAX TERMINAL) (10/10) 90-83
ELECTRICAL CIRCUIT DIAGRAM OF FLOOR (FOR EUROPEAN UNION AND JAPAN) (MACHINE
WITH GATEWAY FUNCTION CONTROLLER) (1/11) 90-85
ELECTRICAL CIRCUIT DIAGRAM OF FLOOR (FOR EUROPEAN UNION AND JAPAN) (MACHINE
WITH GATEWAY FUNCTION CONTROLLER) (2/11) 90-87
ELECTRICAL CIRCUIT DIAGRAM OF FLOOR (FOR EUROPEAN UNION AND JAPAN) (MACHINE
WITH GATEWAY FUNCTION CONTROLLER) (3/11) 90-89
ELECTRICAL CIRCUIT DIAGRAM OF FLOOR (FOR EUROPEAN UNION AND JAPAN) (MACHINE
WITH GATEWAY FUNCTION CONTROLLER) (4/11) 90-91
ELECTRICAL CIRCUIT DIAGRAM OF FLOOR (FOR EUROPEAN UNION AND JAPAN) (MACHINE
WITH GATEWAY FUNCTION CONTROLLER) (5/11) 90-93
ELECTRICAL CIRCUIT DIAGRAM OF FLOOR (FOR EUROPEAN UNION AND JAPAN) (MACHINE
WITH GATEWAY FUNCTION CONTROLLER) (6/11) 90-95
ELECTRICAL CIRCUIT DIAGRAM OF FLOOR (FOR EUROPEAN UNION AND JAPAN) (MACHINE
WITH GATEWAY FUNCTION CONTROLLER) (7/11) 90-97
ELECTRICAL CIRCUIT DIAGRAM OF FLOOR (FOR EUROPEAN UNION AND JAPAN) (MACHINE
WITH GATEWAY FUNCTION CONTROLLER) (8/11) 90-99
ELECTRICAL CIRCUIT DIAGRAM OF FLOOR (FOR EUROPEAN UNION AND JAPAN) (MACHINE
WITH GATEWAY FUNCTION CONTROLLER) (9/11) 90-101
ELECTRICAL CIRCUIT DIAGRAM OF FLOOR (FOR EUROPEAN UNION AND JAPAN) (MACHINE
WITH GATEWAY FUNCTION CONTROLLER) (10/11) 90-103
ELECTRICAL CIRCUIT DIAGRAM OF FLOOR (FOR EUROPEAN UNION AND JAPAN) (MACHINE
WITH GATEWAY FUNCTION CONTROLLER) (11/11) 90-105
ELECTRICAL CIRCUIT DIAGRAM OF FLOOR (FOR AJSS SPEC) (MACHINE WITH KOMTRAX TERMINAL)
(1/9) 90-107
ELECTRICAL CIRCUIT DIAGRAM OF FLOOR (FOR AJSS SPEC) (MACHINE WITH KOMTRAX TERMINAL)
(2/9) 90-109
ELECTRICAL CIRCUIT DIAGRAM OF FLOOR (FOR AJSS SPEC) (MACHINE WITH KOMTRAX TERMINAL)
(3/9) 90-111
ELECTRICAL CIRCUIT DIAGRAM OF FLOOR (FOR AJSS SPEC) (MACHINE WITH KOMTRAX TERMINAL)
(4/9) 90-113
ELECTRICAL CIRCUIT DIAGRAM OF FLOOR (FOR AJSS SPEC) (MACHINE WITH KOMTRAX TERMINAL)
(5/9) 90-115
ELECTRICAL CIRCUIT DIAGRAM OF FLOOR (FOR AJSS SPEC) (MACHINE WITH KOMTRAX TERMINAL)
(6/9) 90-117
ELECTRICAL CIRCUIT DIAGRAM OF FLOOR (FOR AJSS SPEC) (MACHINE WITH KOMTRAX TERMINAL)
(7/9) 90-119
ELECTRICAL CIRCUIT DIAGRAM OF FLOOR (FOR AJSS SPEC) (MACHINE WITH KOMTRAX TERMINAL)
(8/9) 90-121
ELECTRICAL CIRCUIT DIAGRAM OF FLOOR (FOR AJSS SPEC) (MACHINE WITH KOMTRAX TERMINAL)
(9/9) 90-123
ELECTRICAL CIRCUIT DIAGRAM OF FLOOR (FOR AJSS SPEC) (MACHINE WITH GATEWAY
FUNCTION CONTROLLER) (1/10) 90-125
ELECTRICAL CIRCUIT DIAGRAM OF FLOOR (FOR AJSS SPEC) (MACHINE WITH GATEWAY
FUNCTION CONTROLLER) (2/10) 90-127
INDEX 00 INDEX AND FOREWORD
00-24 WA500-8E0
ELECTRICAL CIRCUIT DIAGRAM OF FLOOR (FOR AJSS SPEC) (MACHINE WITH GATEWAY
FUNCTION CONTROLLER) (3/10) 90-129
ELECTRICAL CIRCUIT DIAGRAM OF FLOOR (FOR AJSS SPEC) (MACHINE WITH GATEWAY
FUNCTION CONTROLLER) (4/10) 90-131
ELECTRICAL CIRCUIT DIAGRAM OF FLOOR (FOR AJSS SPEC) (MACHINE WITH GATEWAY
FUNCTION CONTROLLER) (5/10) 90-133
ELECTRICAL CIRCUIT DIAGRAM OF FLOOR (FOR AJSS SPEC) (MACHINE WITH GATEWAY
FUNCTION CONTROLLER) (6/10) 90-135
ELECTRICAL CIRCUIT DIAGRAM OF FLOOR (FOR AJSS SPEC) (MACHINE WITH GATEWAY
FUNCTION CONTROLLER) (7/10) 90-137
ELECTRICAL CIRCUIT DIAGRAM OF FLOOR (FOR AJSS SPEC) (MACHINE WITH GATEWAY
FUNCTION CONTROLLER) (8/10) 90-139
ELECTRICAL CIRCUIT DIAGRAM OF FLOOR (FOR AJSS SPEC) (MACHINE WITH GATEWAY
FUNCTION CONTROLLER) (9/10) 90-141
ELECTRICAL CIRCUIT DIAGRAM OF FLOOR (FOR AJSS SPEC) (MACHINE WITH GATEWAY
FUNCTION CONTROLLER) (10/10) 90-143
ELECTRICAL CIRCUIT DIAGRAM OF FLOOR (FOR EMERGENCY ENGINE STOP SWITCH SPEC)
(MACHINE WITH KOMTRAX TERMINAL) (1/8) 90-145
ELECTRICAL CIRCUIT DIAGRAM OF FLOOR (FOR EMERGENCY ENGINE STOP SWITCH SPEC)
(MACHINE WITH KOMTRAX TERMINAL) (2/8) 90-147
ELECTRICAL CIRCUIT DIAGRAM OF FLOOR (FOR EMERGENCY ENGINE STOP SWITCH SPEC)
(MACHINE WITH KOMTRAX TERMINAL) (3/8) 90-149
ELECTRICAL CIRCUIT DIAGRAM OF FLOOR (FOR EMERGENCY ENGINE STOP SWITCH SPEC)
(MACHINE WITH KOMTRAX TERMINAL) (4/8) 90-151
ELECTRICAL CIRCUIT DIAGRAM OF FLOOR (FOR EMERGENCY ENGINE STOP SWITCH SPEC)
(MACHINE WITH KOMTRAX TERMINAL) (5/8) 90-153
ELECTRICAL CIRCUIT DIAGRAM OF FLOOR (FOR EMERGENCY ENGINE STOP SWITCH SPEC)
(MACHINE WITH KOMTRAX TERMINAL) (6/8) 90-155
ELECTRICAL CIRCUIT DIAGRAM OF FLOOR (FOR EMERGENCY ENGINE STOP SWITCH SPEC)
(MACHINE WITH KOMTRAX TERMINAL) (7/8) 90-157
ELECTRICAL CIRCUIT DIAGRAM OF FLOOR (FOR EMERGENCY ENGINE STOP SWITCH SPEC)
(MACHINE WITH KOMTRAX TERMINAL) (8/8) 90-159
INDEX 1

VIDEO PREVIEW OF THE MANUAL:

IMAGES PREVIEW OF THE MANUAL:
