KUBOTA DIESEL ENGINE V3307-DI-T-E3B-WL TC1 Parts Manual – PDF DOWNLOAD

KUBOTA DIESEL ENGINE V3307-DI-T-E3B-WL TC1 Parts Manual – PDF DOWNLOAD

FILE DETAILS:

KUBOTA DIESEL ENGINE V3307-DI-T-E3B-WL TC1 Parts Manual – PDF DOWNLOAD

Language : English,
Pages :64
Downloadable : Yes
File Type : PDF

TABLE OF CONTENTS:

KUBOTA DIESEL ENGINE V3307-DI-T-E3B-WL TC1 Parts Manual – PDF DOWNLOAD

CRANK CASE1
501000 OIL PAN 2
501200 DIPSTICK AND GUIDE·3
502000 CYLINDER HEAD 4
503000 INLET VALVE AND EXHAUST VALVE 5
504000 ROCKER ARM SHAFT ·6
505000 HEAD COVER7
510000 FRONT COVER 8
511000 PISTON AND CRANKSHAFT9
512000 CAMSHAFT AND IDLE GEAR SHAFT··12
515000 FLYWHEEL··13
520000 INJECTION PUMP UNIT14
520200 INJECTION PUMP HOUSING 15
521000 INJECTION PUMP16
521700 FUEL PUMP COVER··17
522000 FUEL CAMSHAFT 18
523000 GOVERNOR 19
524000 FORK LEVER (GOVERNOR) ·20
525000 RESTRICTION ADJUSTING BOLT·21
525500 STOP SOLENOID·22
531000 FUEL FILTER··23
532500 SEPARATOR ··24
540000 NOZZLE HOLDER AND GLOW PLUG··25
545000 INJECTION PIPE ··26
550500 DYNAMO AND PULLEY27
551500 DYNAMO [COMPONENT PARTS] ··28
554000 STARTER··29
555000 STARTER [COMPONENT PARTS] ·30
556000 OIL SWITCH/THERMOMETER·31
560000 WATER FLANGE AND THERMOSTAT 32
561000 WATER PUMP33
561200 WATER PIPE ··34
567000 FAN AND PULLEY35
571000 INLET MANIFOLD·36
572000 EXHAUST MANIFOLD37
572300 EGR VALVE·38
572400 EGR COOLER 39
572600 TURBO CHARGER··40
580000 OIL PIPE (TURBO CHARGER) ·41
582000 OIL COOLER ··42
586500 GLOW LAMP AND TIMER43
588000 ACCESSORIES AND SERVICE PARTS··44
589000 LABEL AND OPERATOR’S MANUAL 45
591000 UPPER GASKET KIT [OPTION]46
592000 LOWER GASKET KIT [OPTION] ··47
593000 METAL KIT [OPTION]·48
594000 PISTON KIT [OPTION]50
■ NUMERICAL INDEX 51

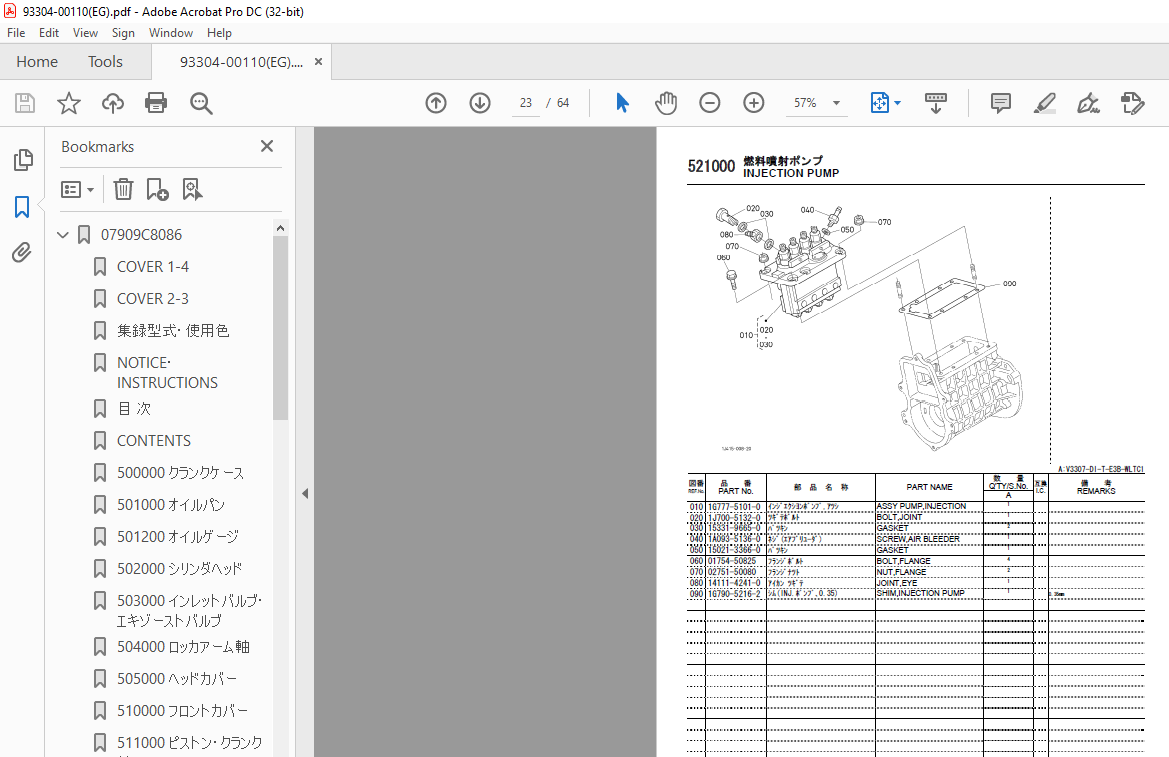

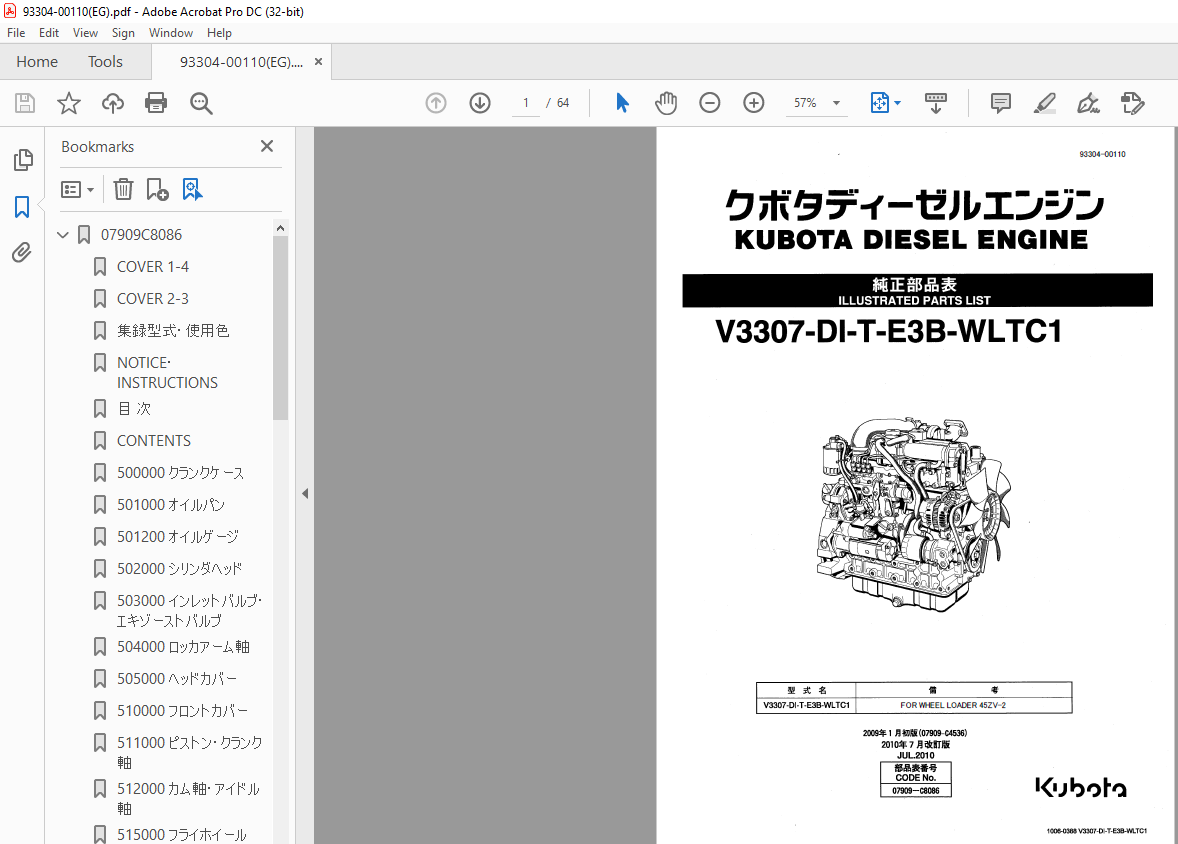

IMAGES PREVIEW OF THE MANUAL:
