Kubota F1900 F1900E Tractor Workshop Manual – PDF DOWNLOAD

FILE DETAILS:

Kubota F1900 F1900E Tractor Workshop Manual – PDF DOWNLOAD

Language : English
Pages : 320
Downloadable : Yes
File Type : PDF
Size: 211 MB

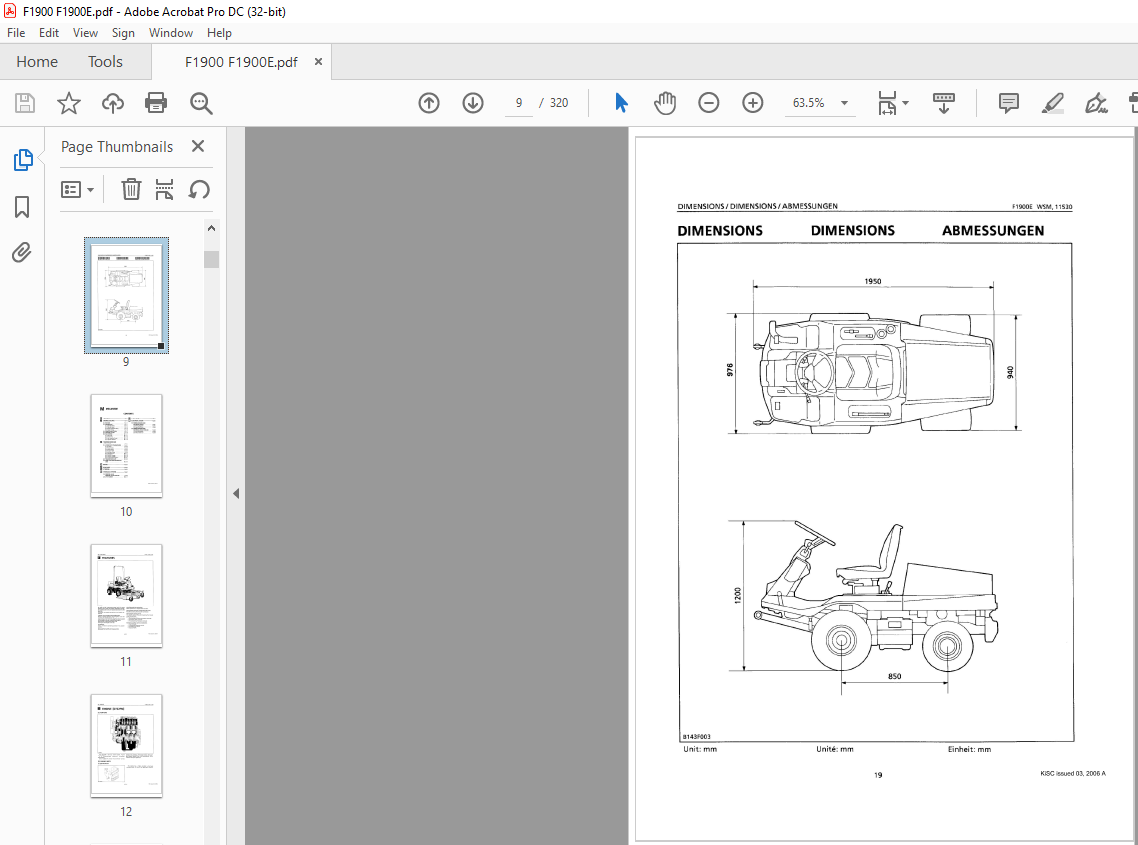

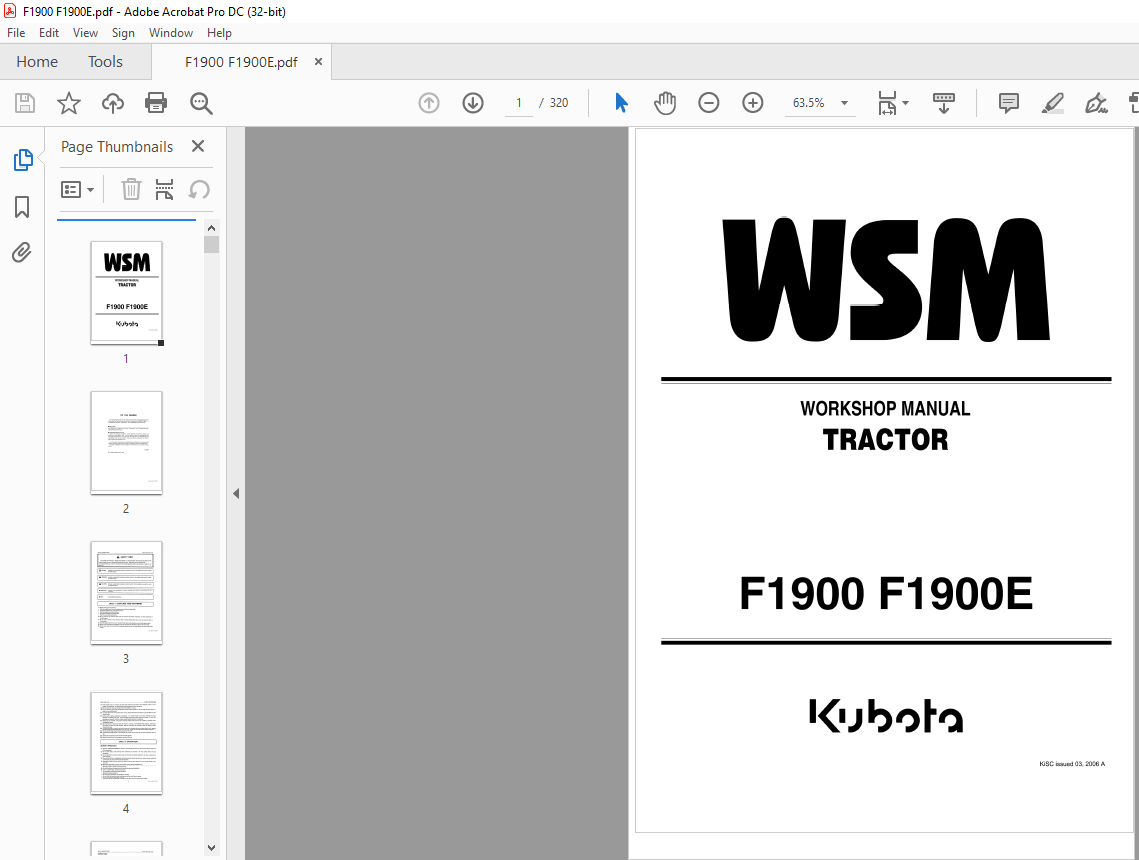

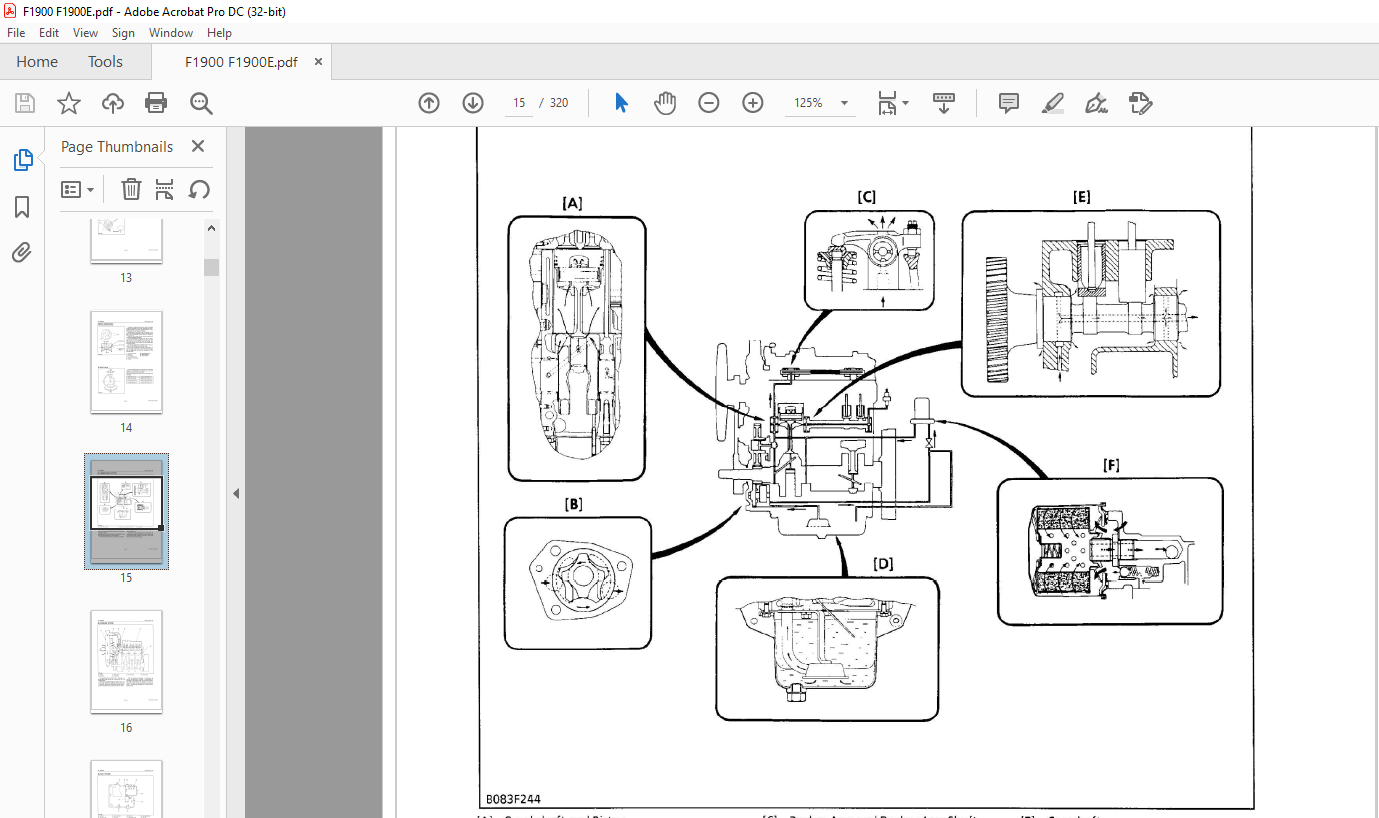

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Kubota F1900 F1900E Tractor Workshop Manual – PDF DOWNLOAD

TO THE READER:
This Workshop Manual has been prepared to provide servicing personnel with
information on the mechanism, service and maintenance of KUBOTA F1900E . It
is divided into two parts, “Mechanism” and ” Disassembling and Servicing” .
■ Mechanism
Information on the construction and function are included in this section. This
part should be understood before proceeding with troubleshooting,
disassembling and servicing.
■ Disassembling and Servicing
Under the heading “General” comes general precautions, check and
maintenance and special tools. For each section, there are troubleshooting,
servicing specification lists, checking and adjusting, disassembl ing and
assembling, and servicing which cover procedures, precautions, factory
specifications and allowable limits.
All information, illustrations and specifications contained in this manual are
based on the latest production information available at the time of publication.
The right is reserved to make changes in all information at any time without
notice.

SAFETY SERVICING AND REPAIRING:
(1) Before working on the machine :
• Park the machine on a firm and level ground, and set the parking brake.
• Lower the implement or mower to the ground.
• Stop the engine, and remove the key.
• Disconnect the battery’s ground cable.
• Clean the work area and machine.
(2) Do not work on the machine while under the influence of alcohol, medication, or other substances or
while fatigued.
(3) Do not wear a necktie, scarf, necklace, loose or bulky clothing when you work near mach i ne tools or
moving parts.
(4) Use tools appropriate to the work. Makeshift tools, parts, and procedures will not make good repairs.
(5) When servicing is performed together by two or more persons, take care to perform all work safely.
(6) Do not work under the machine that is supported solely by a jack. Always support the machine by safety
stands.
(7) If the engine must be running to do same work, make sure the area is well ventilated, Never run the
engine in a closed area. The exhaust gas contains poisonous carbon monoxide.
(8) Do not touch the rotating or hot parts while the engine is running.
(9) Fuel is extremely flammable and explosive under certain conditions. Do not smoke or allow flames or
sparks in your working area.
(10) To avoid sparks from an accidental short circuit, always disconnect the battery’s ground cable first and
connect it last.
(11) Sulfuric acid in battery electrolyte is poisonous. It is strong enough to burn skin, clothing and cause
blindness if splashed into eyes. Keep electrolyte away from eyes, hands and clothing. If you spill
electrolyte on yourself, flush with water, and get medical attention immediately.
(12) Battery gas can explode. Keep sparks and open flame away from the top of battery, especially when
charging the battery.
(13) Never remove the radiator cap while the engine is running, or immediately after stopping. Otherwise,
hot water will spout out from radiator. Wait for more than ten minutes to cool the radiator, before
removing the cap.
(14) Escaping fluid (fuel or hydraulic oil) under pressure can penetrate the skin causing serious injury. Relieve
pressure before disconnecting hydraulic or fuel lines. Tighten all connections before applying pressure.
(15) Do not start the engine by shorting across starter terminals.
(16) Unauthorized modifications to the machine may impair the function and/ or safety and affect machine
life.
(17) Do not alter or remove any part of machine safety system.
(18) Keep a first aid kit and fire extinguisher handy at all times.
SAFETY OPERATION
[BEFORE OPERATION]
(1) Read the “OPERA TOR’S MANUAL” carefully. Be thoroughly familiar with the controls and the proper use
of the equipment.
(2) Do not wear loose, bulky clothing when operating the machine. Do wear safety shoes and eye
protection.
(3) Do not operate the machine while under the influence of alcohol, medication, or other substances or
while fatigued.
(4) Never allow children or inadequately trained persons to operate the machine. Keep everyone, especially
children and pets, away from the area of operation.
(5) Thoroughly inspect the area where the machine is to be used, Remove all sticks, stones, bottles, cans,
wires,etc.
(6) Remove all debris (string, wire or cords) which might wrap around blade shafts.
(7) Keep all shields and safety devices in place. If a shield, safety device or decal is missing. defective or
damaged, repair or replace it before operating.
(8) Use only implements, attachments and accessories approved by KUBOTA.
(9) Fuel is very flammable. Handle fuel carefully.
• Use a properly and approved safety container.
• Refuel the machine outdoors.
• Shut off engine and allow itto cool before refueling.
• Do not refuel the machine while smoking or when near open flame or sparks.
• Do not overflow fuel while filling fuel tank.
• Install the fuel tank cap securely, and clean up any spilled fuel before starting the engine.
