FILE DETAILS:

Kubota Tractor BX25 RCK54(P)-23BX RCK60B-23BX LA240 BT601 Workshop Manual – PDF DOWNLOAD

Language : English
Pages : 448
Downloadable : Yes
File Type : PDF
Size: 19.3 MB

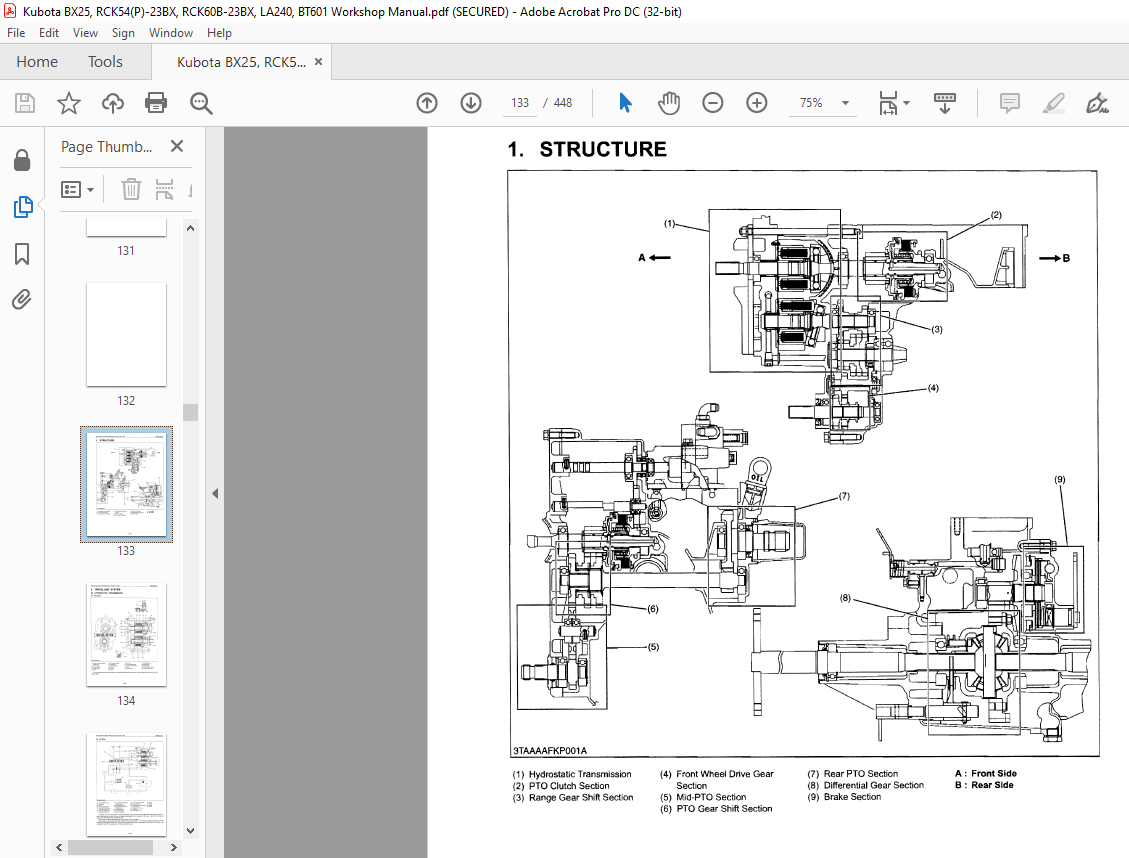

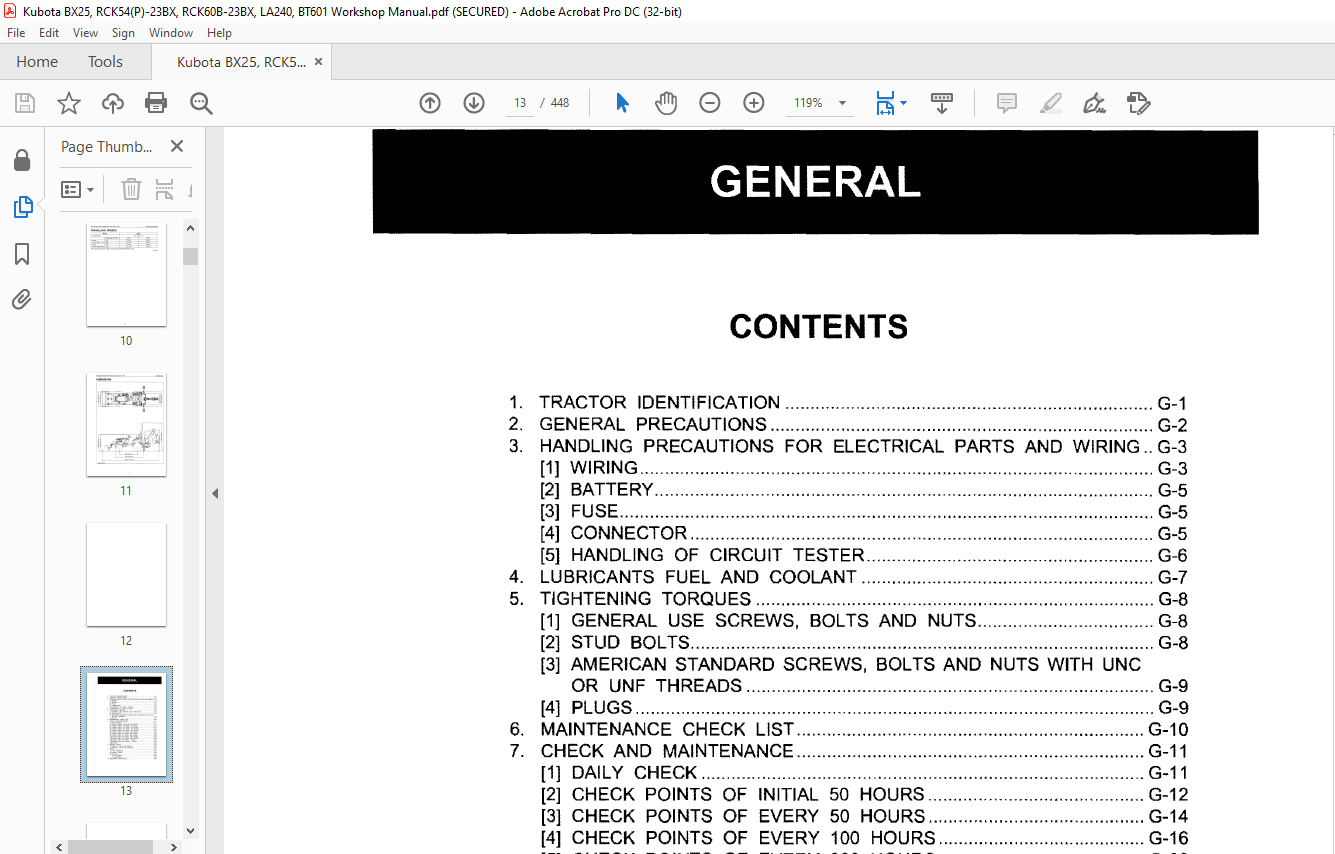

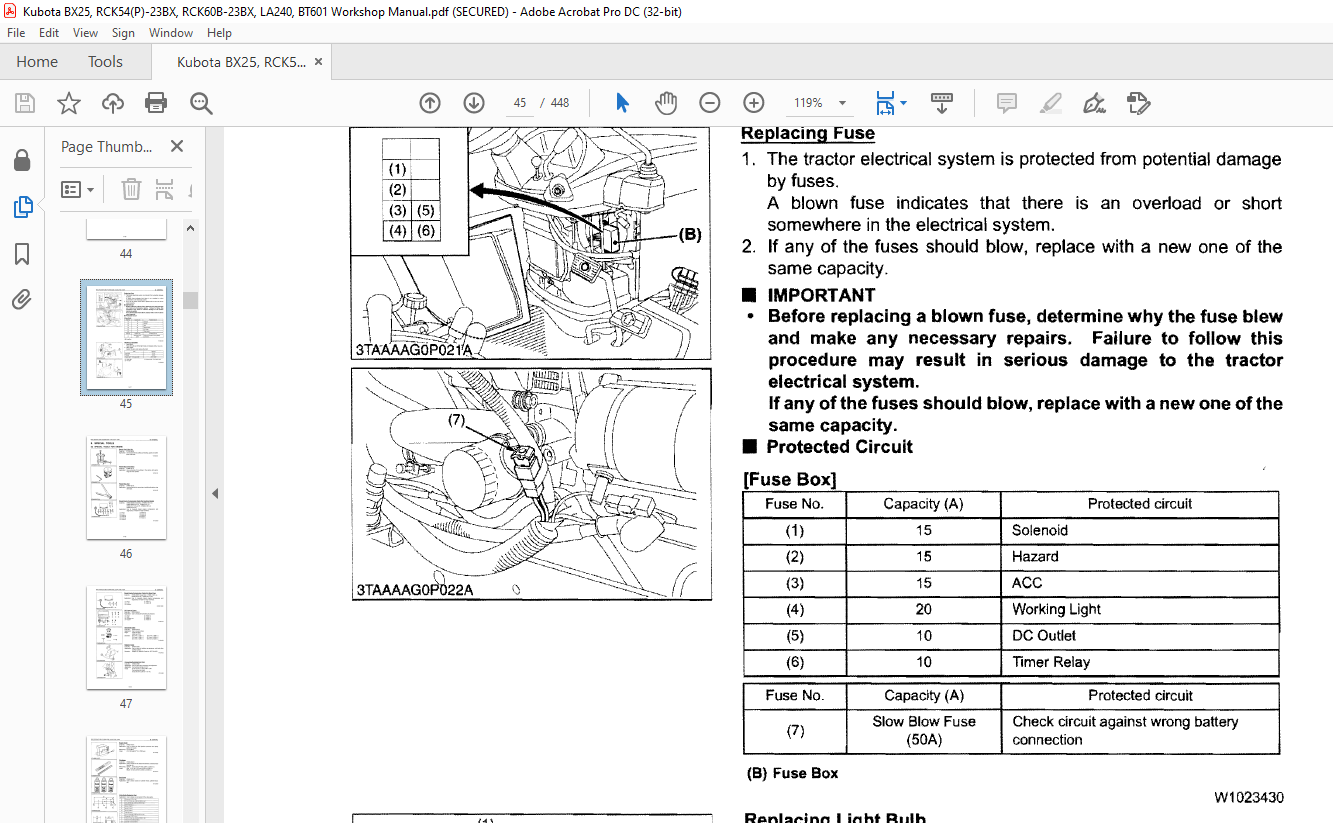

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Kubota Tractor BX25 RCK54(P)-23BX RCK60B-23BX LA240 BT601 Workshop Manual – PDF DOWNLOAD

SAFETY INSTRUCTIONS
SAFETY STARTING
•Do not start the engine by shorting across starter terminals or bypassing the safety start switch.
•Do not alter or remove any part of machine safety system.
•Before starting the engine, make sure that all shift levers are in neutral positions or in disengaged positions.
•Never start the engine while standing on ground.
Start the engine only from operator’s seat.
SAFETY WORKING
•Do not work on the machine while under the influence of alcohol, medication, or other substances or while fatigued.
•Wear close fitting clothing and safety equipment appropriate to the job.
•Use tools appropriate to the work. Makeshift tools, parts, and procedures are not recommended.
•When servicing is performed together by two or more persons, take care to perform all work safely.
•Do not work under the machine that is supported solely by a jack. Always support the machine by safety stands.
•Do not touch the rotating or hot parts while the engine is running.
•Never remove the radiator cap while the engine is running, or immediately after stopping. Otherwise, hot water will spout out from radiator. Only remove radiator cap when cool enough to touch with bare hands. Slowly loosen the cap to first stop to relieve pressure before removing completely.
•Escaping fluid (fuel or hydraulic oil) under pressure can penetrate the skin causing serious injury. Relieve pressure before disconnecting hydraulic or fuel lines. Tighten all connections before applying pressure.
•Do not open high-pressure fuel system. High-pressure fluid remaining in fuel lines can cause serious injury. Do not disconnect or attempt repair fuel lines, sensors, or any other components between the high-pressure fuel pump and injectors on engines with high pressure common rail fuel system.
•High voltage exceeding 100 V is generated in the ECU, and is applied to the injector. Pay sufficient caution to electric shock when performing work activities.

TABLE OF CONTENTS:

Kubota Tractor BX25 RCK54(P)-23BX RCK60B-23BX LA240 BT601 Workshop Manual – PDF DOWNLOAD

KUBOTA MODEL BX25 TRACTOR WITH RCK54(P)-23BX RCK60B-23BX LA240 BT601 ATTACHMENTS 1
SAFETY INSTRUCTIONS 1
SPECIFICATIONS 9
TRAVELLING SPEEDS 10
DIMENSIONS 11
GENERAL 13
ENGINE 63
MECHANISM 63
SERVICING 69
TRANSAXLE 131
MECHANISM 131
SERVICING 153
FRONT AXLE 201
MECHANISM 201
SERVICING 207
STEERING 223
MECHANISM 223
SERVICING 229
HYDRAULIC 241
MECHANISM 241
SERVICING 255
ELECTRICAL 275
MECHANISM 275
SERVICING 291
MOWER 323
LOADER 365
BACKHOE 397
