Kymco MX ER 125/150 Service Manual - PDF DOWNLOAD

Kymco MX ER 125/150 Service Manual - PDF DOWNLOAD

FILE DETAILS:

Kymco MX ER 125/150 Service Manual - PDF DOWNLOAD

Language : English
Pages : 211
Downloadable : Yes
File Type : PDF

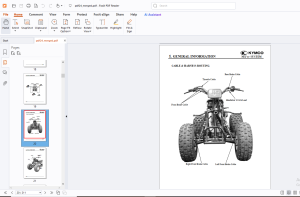

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Kymco MX ER 125/150 Service Manual - PDF DOWNLOAD

GENERAL INFORMATION 1FRAME COVERS/EXHAUST MUFFLER 2INSPECTION/ADJUSTMENT 3LUBRICATION SYSTEM 4FUEL SYSTEM 5ENGINE REMOVAL/INSTALLATION 6CYLINDER HEAD/VALVES 7CYLINDER/PISTON 8DRIVE AND DRIVEN PULLEYS 9FINAL REDUCTION/TRANSMISSION SYSTEM 10CRANKCASE/CRANKSHAFT/ BALANCE SHAFT 11FRONT WHEEL/FRONT BRAKE/ FRONT SUSPENSION/STEERING SYSTEM 12REAR WHEEL /SWING ARM/HYDRAULIC BRAKE 13BATTERY/CHARGING SYSTEM/A.C. GENERATOR 14IGNITION SYSTEM 15STARTING SYSTEM 16LIGHTS/SWITCHES 17ONLY ATVON ROAD AVAILABLE 18

DESCRIPTION:

Kymco MX ER 125/150 Service Manual - PDF DOWNLOAD

PREFACE:

• This Service Manual describes the technical features and servicing procedures for the KYMCO MX’er 125/150.
• Section 1 contains the precautions for all operations stated in this manual. Read them carefully before starting any operation.
• Section 2 is the removal/installation procedures for the frame covers which are subject to higher removal/installation frequency during maintenance and servicing operations.
• Section 3 describes the inspection/ adjustment procedures, safety rules and service information for each part, starting from periodic maintenance.
• Sections 4 through 17 give instructions for disassembly, assembly and inspection of engine, chassis frame and electrical equipment.
• Most sections start with an assembly or system illustration and troubleshooting for the section. The subsequent pages give detailed procedures for the section.

 GENERAL INFORMATION:

  MX’er SYSTEM

SERVICE PRECAUTIONS:

•  Make sure to install new gaskets, O-rings, circlips, cotter pins, etc. when reassembling.
• When tightening bolts or nuts, begin with larger-diameter to smaller ones at several times, and tighten to the specified torque diagonally.
• Use genuine parts and lubricants.
• When servicing the motorcycle, be sure to use special tools for removal and installation.
• After disassembly, clean removed parts. Lubricate sliding surfaces

G.B 15/03/25
