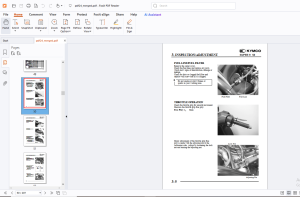

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Kymco Super9 50 Service Manual - PDF DOWNLOAD

GENERAL INFORMATION 1EXHAUST MUFFLER/FRAME COVERS 2INSPECTION/ADJUSTMENT 3LUBRICATION SYSTEM 4ENGINE REMOVAL/INSTALLATION 5CYLINDER HEAD/CYLINDER/PISTON 6KICK STARTER/DRIVE PULLEY/CLUTCH/DRIVEN PULLEY 7FINAL REDUCTION 8A.C. GENERATOR 9CRANKCASE/CRANKSHAFT 10COOLING SYSTEM 11CARBURETOR 12STEERING HANDLEBAR/FRONT WHEEL/FRONT BRAKE/FRONT SHOCK ABSORBER/FRONT FORK 13REAR BRAKE/REAR FORK/REAR WHEEL/REAR SHOCK ABSORBER` 14ELECTRICAL EQUIPMENT 15INSTRUMENT/SWITCHES/LIGHTS 16 EVAPORATIVE/EXHAUST EMISSION CONTROL SYSTEM 16

DESCRIPTION:

Kymco Super9 50 Service Manual - PDF DOWNLOAD

PREFACE:

• This Service Manual describes the technical features and servicing procedures for the KYMCO Super9 50.
• Section 1 contains the precautions for all operations stated in this manual. Read them carefully before any operation is started.
• Section 2 is the removal/installation procedures for the frame covers which are subject to higher removal/installation frequency during maintenance and servicing operations.
• Section 3 describes the inspection/ adjustment procedures, safety rules and service information for each part, starting from periodic maintenance.
• Sections 5 through 12 give instructions for disassembly, assembly and adjustment of engine parts. Section 13 is the removal/ installation of chassis. Section 15 states the testing and measuring methods of electrical equipment.
• Most sections start with an assembly or system illustration and troubleshooting for the section. The subsequent pages give detailed procedures for the section.

GENERAL INFORMATION:

SUPER 9 50

SERVICE PRECAUTIONS:

•  Make sure to install new gaskets, Orings, circlips, cotter pins, etc. when reassembling.
• When tightening bolts or nuts, begin with larger-diameter to smaller ones at several times, and tighten to the specified torque diagonally. n Use genuine parts and lubricants.
• When servicing the motorcycle, be sure to use special tools for removal and installation.
• After disassembly, clean removed parts. Lubricate sliding surfaces with engine oil before reassembly.

G.B 15/03/25
