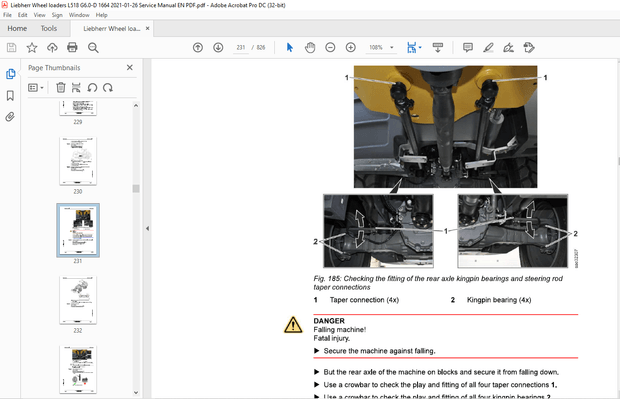

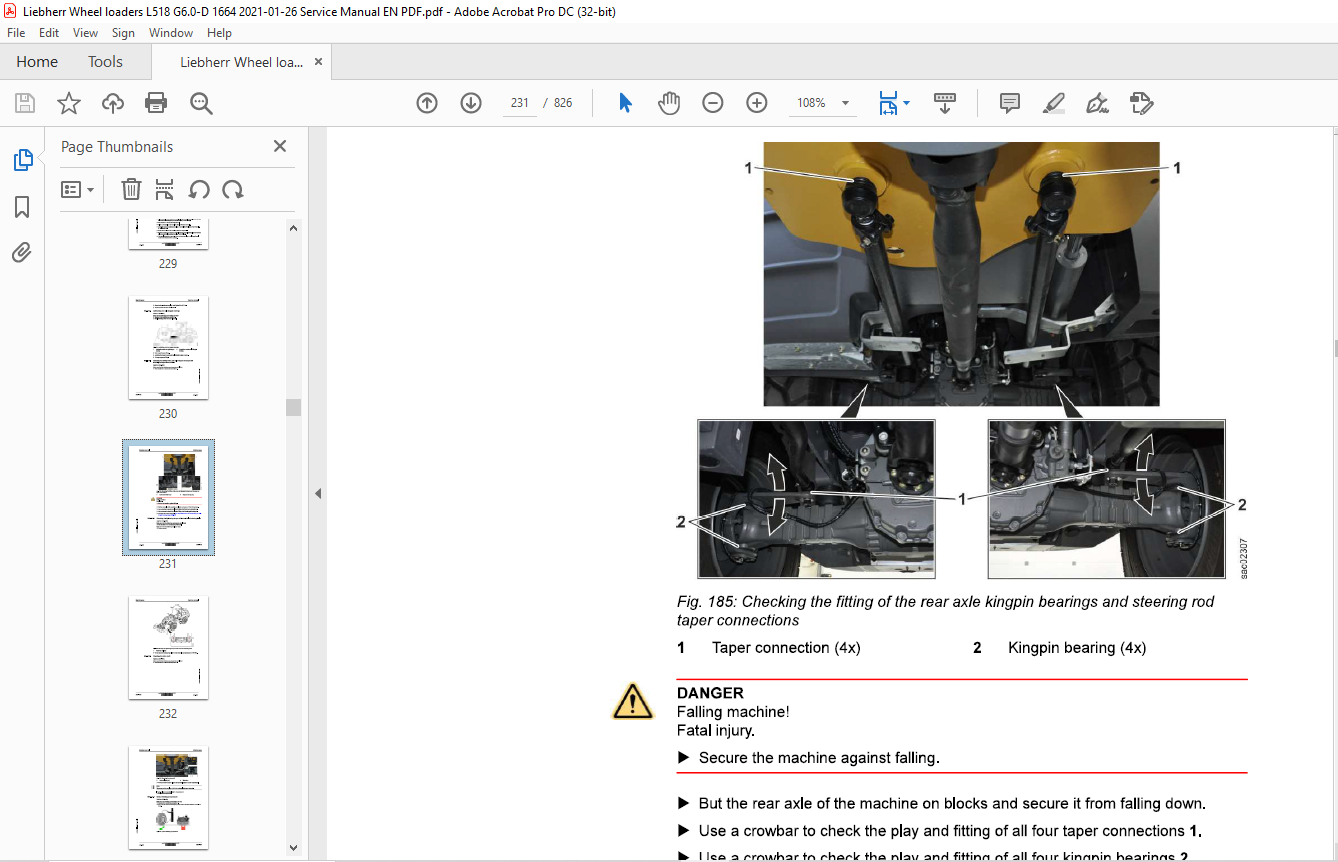

IMAGES PREVIEW OF THE MANUAL:

FILE DETAILS:

Liebherr Wheel loaders L 518-1664 Service manual – PDF DOWNLOAD

Language : English
Pages : 826
Downloadable : Yes
File Type : PDF
Size:127 MB

DESCRIPTION:

Liebherr Wheel loaders L 518-1664 Service manual – PDF DOWNLOAD

PrefaceNotes for users

• This service manual is designed for trained specialist staff of the Liebherr organisation and their dealers.
• This service manual contains specialist knowledge for repairing Liebherr construc- tion machines. Basic specialist knowledge on electronics, hydraulics, mechanics and engine technology is not contained in this service manual. Therefore special- ized training and qualifications are necessary. Liebherr recommends participating in the Liebherr training program for construction machines.

In this service manual you will find information on:

— Special tools— Technical data— Maintenance intervals and maintenance tasks— Adjustment procedures— Structure and function descriptions— Removal and installation tasks— Circuit diagrams, hydraulic plans and technical drawings

• You will find information on controls and operation in the operator’s manual. Information on spare parts are in the spare parts catalogue. Please observe the local accident prevention laws.
• You can find information on repairs of machine parts in the service documentation under “Wheel loader – repair instructions”.

Introduction:Intended Use:1.1. Laws, Rules, Guidelines and Safety Regulations

To ensure safe operation:

• Consult with the worksite manager about safety regulations at the place of use.
• Adhere to safety regulations at the place of use.
• Follow traffic regulations.
• Adhere to valid guidelines provided by insurers (for example, employers’ professional liability insurance companies, accident insurance, etc.).
• Avoid working methods that can endanger safety.
• Follow all intervals specified for recurrent checks and inspections as outlined in this operator’s manual.

1.2. Intended Use of Wheel Loader

The wheel loader is used to pick up, move, and dump the following materials:

• Soil
• Stones
• Broken rocks
• Bulk materials

This applies to a standard machine under normal operating conditions. Special applications are described in a separate options operator’s manual.

To ensure the intended use:

• Adhere to the operator’s manual.
• Follow maintenance intervals.
• Carry out inspection and maintenance tasks.
• Follow the specifications in the technical data.
• When using the machine on public roads, ensure it complies with applicable national regulations.
• Only lift loads with intended working attachments (fork prongs, crane boom), which must be properly fitted and functioning.
• Ensure that machines used underground (for mining and tunnel construction) are fitted with systems to reduce exhaust emissions (such as diesel particulate filters).
• Adhere to the requirements of each individual country for underground operation.
• For special uses, use special working attachments and, if necessary, special safety equipment.
• Exclusively mount and use special working attachments with approval and as per the stipulations of the manufacturer of the basic machine.

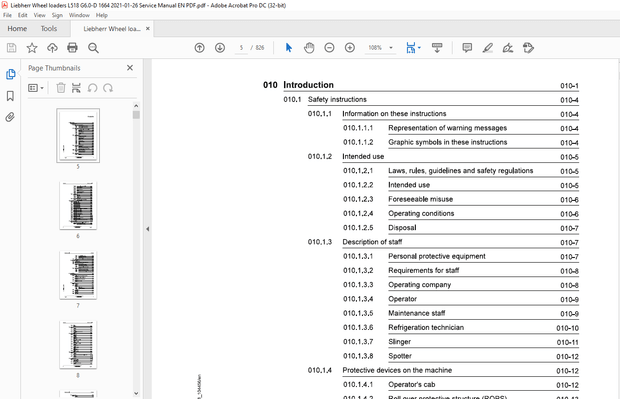

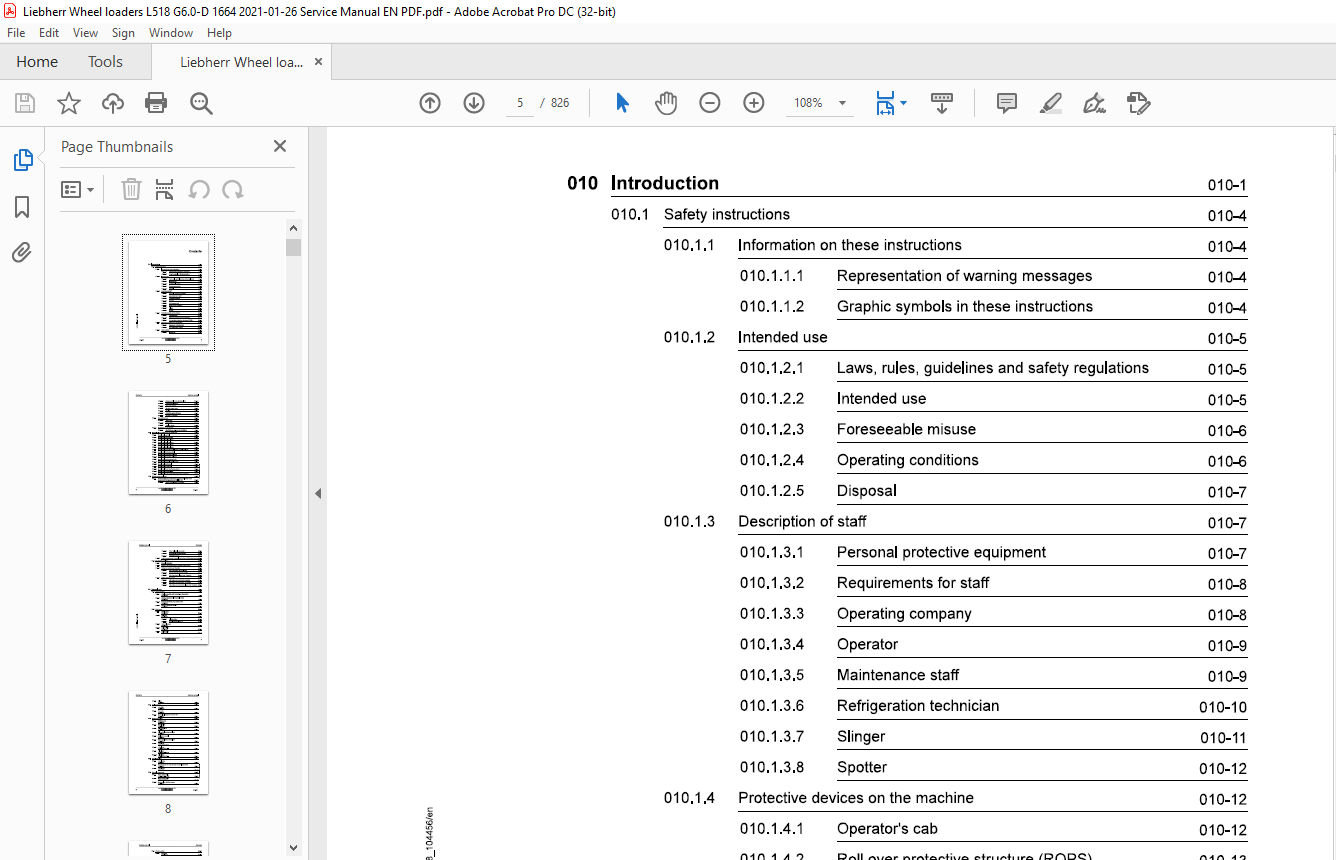

TABLE OF CONTENTS:

Liebherr Wheel loaders L 518-1664 Service manual – PDF DOWNLOAD

Contents010 Introduction 010-1
010.1 Safety instructions 010-4
010.1.1 Information on these instructions 010-4
010.1.1.1 Representation of warning messages 010-4
010.1.1.2 Graphic symbols in these instructions 010-4
010.1.2 Intended use 010-5
010.1.2.1 Laws, rules, guidelines and safety regulations 010-5
010.1.2.2 Intended use 010-5
010.1.2.3 Foreseeable misuse 010-6
010.1.2.4 Operating conditions 010-6
010.1.2.5 Disposal 010-7
010.1.3 Description of staff 010-7
010.1.3.1 Personal protective equipment 010-7
010.1.3.2 Requirements for staff 010-8
010.1.3.3 Operating company 010-8
010.1.3.4 Operator 010-9
010.1.3.5 Maintenance staff 010-9
010.1.3.6 Refrigeration technician 010-10
010.1.3.7 Slinger 010-11
010.1.3.8 Spotter 010-12
0101.4 Protective devices on the machine 010-12
010.1.4.1 Operator’s cab 010-12
010.1.4.2 Roll over protective structure (ROPS) 010-13
010.1.4.3 Falling object protective structures (FOPS) 010-13
0101.5 Emergency equipment on the machine 010-13
010.1.5.1 Emergency exit (standard) 010-13
010.1.5.2 Fire extinguisher (option) 010-14
010.1.6 Safe operation 010-14
010.1.6.1 Intoxicants 010-14
010.1.6.2 Dangerous fuels and operating fluids 010-14
010.1.6.3 Transporting machine 010-15
010.1.6.4 Access to machine 010-15
010.1.6.5 Machine danger zone 010-16
010.1.6.6 Visibility 010-16
010.1.6.7 Protection against vibration 010-17
010.1.6.8 Operation of machine 010-18
010.1.7 Safe maintenance 010-21
010.1.7.1 Spare parts 010-21
010.1.7.2 Heavy parts 010-21
010.1.7.3 Regular checks 010-22
010.1.8 Modifications to the machine 010-22
010.1.8.1 Modifications, add-ons and retrofittings 010-22
Special tools for maintenance and repair work 010-23
010.21 Special tools, general 010-23
010.2.2 Special tools for the engine 010-25
010.2.3 Special tools for lift cylinders 010-29
010.2.4 Special tools for lift cylinders 010-30
010.2.5 Special tools for tilt cylinders 010-30
010.2.6 Special tools for tilt cylinders 010-31
010.2.7 Special tools for quick coupler locking hydraulic cylinder 010-32
010.2.8 Special tools for steering wheel 010-32
010.2.9 Special tools for steering cylinders 010-32
010.2.10 Special tools for steering cylinders 010-33
010.2.11 Special tools for the service brake 010-33
010.2.12 Special tools for the electrical system 010-34
010.2.13 Special tools for front axle 010-35
010.2.14 Special tools for rear axle 010-35
010.2.15 Special tools for air conditioning system 010-36
010.2.16 Special tools for cab glazing 010-37
010.2.17 Special tools for the central lubrication system (Liebherr) 010-38Standards and regulationsPrestressing forces and tightening torques for bolts with metric
standard and fine threads as per DIN ISO 261010.3.1.2 Other applicable documents 010-39
010.3.1.3 Modifications and descriptions 010-40
010.3.1.4 Tightening torques 010-40
010.3.2 Liebherr standards for assembly instructions and tightening torques010-46
010.4 Preservation guidelines 010-47
010.41 General information 010-47
010.4.2 Machine out of service for an unknown period of time 010-47
0104.3 Putting the machine out of service 010-48
010.4.3.1 Out of service for up to 2 months 010-48
010.4.3.2 Out of service for up to 12 months 010-49
010.4.3.3 Out of service for longer than 12 months 010-50
0104.4 Putting back into service 010-50
010.4.4.1 After being out of service for 2 months 010-50
010.4.4.2 After being out of service for 12 months 010-51
0104.43 After being out of service for longer than 12 months 010-51
020 Technical data 020-1
020.1 Overall machine 020-5
020.1.1 Complete machine with bucket (z-bar kinematics)
L518-1664; 020-5
020.1.2 Working attachment: light material bucket
L518-1664; 020-6
020.1.3 Working attachment: high dump bucket
1518-1664; 020-7
020.14 Working attachment: forklift
L518-1664; 020-9
020.2 Drive group 020-11
020.2.1 Diesel engine
L518-1664; 020-11
020.22 Fuel tank
1518-1664; 020-12
020.2.2.1 Plastic version 020-12
020.2.2.2 Diesel exhaust fluid tank 020-12
020.2.3 Fuel level sensor
L518-1664; 020-12
020.24 Fuel pre-filter
L518-1664; 020-13
0202.5 Fuel fine filter
L518-1664; 020-13L518-1664copyright ® Liebherr-Werk Bischofshofen GmbH 2021LIEBHERR 7
Contents Service manual
020.2.6 Clutch
L518-1664; 020-13
020.3 Cooling system 020-14
020.3.1 Fan pump
L518-1664; 020-14
020.3.2 Fan motor
L518-1664; 020-14
020.3.3 Hydraulic oil temperature sensor B8
1518-1664; 020-14
020.4 Working hydraulics 020-15
020.4.1 Working pump
1518-1664; 020-15
020.4.2 Control block
L518-1664; 020-15
020.4.3 Pilot control unit
1518-1664; 020-15
020.4.4 Pilot control hydro accumulator
L518-1664; 020-16
020.4.5 Stabilisation module
L518-1664; 020-16
020.46 Ride control hydro accumulator
1518-1664; 020-16
020.4.7 Lift cylinder
1518-1664/0-59975; 020-16
020.4.8 Lift cylinder
L518-1664/59976-; 020-17
020.4.9 Tilt cylinder
L518-1664/0-60128; 020-17
020.4.10 Tilt cylinder
L518-1664/60129-; 020-17
020.5 Travel hydraulics 020-18
020.5.1 Travel pump
1518-1664; 020-18
020.5.2 Pressure sensor for high pressure of travel pump B102
L518-1664; 020-18
020.5.3 Travel motor
1518-1664; 020-18
020.6 Hydraulic components 020-20
020.6.1 Return suction filter
L518-1664/0-57748; 020-20
020.6.2 Return suction filter
L518-1664/57749-; 020-20
020.6.3 Breather filter with filler strainer
L518-1664; 020-20
copyright © Liebher-Werk Bischofshofen GmbH 2021
8 LIEBHERR L518-1664LBH/M12204905/12/211-20210128_104456/en
LBH/M2204905/12/211-20210128_104456/enService manualContents020.7 Steering system 020-21
020.7.1 Servostat
L518-1664; 020-21
020.7.2 Steering cylinder
L518-1664/0-59997; 020-21
020.7.3 Steering cylinder
L518-1664/59998-; 020-21
020.8 Brake system 020-22
0208.1 Drum brake
L518-1664; 020-22
020.8.2 Inch/brake unit
L518-1664; 020-22
020.8.3 Brake light pressure switch B12
L518-1664; 020-22
020.9 Electrical system 020-23
020.9.1 Central control unit (Master 4)
L518-1664/0-60066; 020-23
020.9.2 Central control unit (Master5-Mini)
L518-1664/60067-; 020-23
0209.3 Compact module
L518-1664; 020-23
020.9.4 Battery0209.5 Voltage transformer020.96 Reversing camera
020.10 Gearbox 020-25
020.10.1 Transmission
L518-1664; 020-25
020.10.2 Output B101 speed sensor
L518-1664; 020-25
020.10.3 Hydro accumulator for external servo pressure and service brake
L518-1664; 020-25
020.11 Axles and drive shafts 020-26
020.11.1 Front axle
L518-1664; 020-26
020.11.2 Front axle with engageable differential lockout (option)
L518-1664; 020-26
020.11.3 Rear axle
L518-1664; 020-26
020.11.4 Rear axle when front axle has engageable differential lockout
(option)
L518-1664; 020-27
copyright ® Liebherr-Werk Bischofshofen GmbH 2021
L518-1664 LIEBHERR 9
ContentsService manual020.11.5 Drive shaftL518-1664; 020-27
020.11.6 Tyres
1518-1664; 020-27
020.11.6.2 Tyres for timber work 020-28
020.11.6.3 Special tyres 020-29
020.12 Working attachment 020-30
020.12.1 Quick coupler locking hydraulic cylinder
1518-1664; 020-30
020.13 Operator’s cab, heating and air conditioning 020-31
020.13.1 Dryer
L518-1664; 020-31
020.13.2 Pressure switches
L518-1664; 020-31
020.14 Lubrication system 020-32
020.14.1 Central lubrication pump EP1
1518-1664; 020-32
020.14.2 Progressive distributor
L518-1664; 020-32
020.1421 MXF 020-32
020.1422 MXF 25 020-32
020.14.23 MXF 45 020-32
020.14.2.4 MX-F75 020-33
020.14.2.5 MX-F105 020-33
030 Maintenance 030-1
030.1 Maintenance and inspection schedule 030-10
030.2 Filling quantities and lubrication chart 030-15
030.21 Recommended lubricants
1518-1664; 030-15
030.2.2 Fuel and operating fluid filling quantity
L518-1664; 030-15
030.3 Lubricants and fuels 030-16
030.3.1 General information on lubricants and fuels 030-16
030.3.1.1 General questions 030-16
030.3.1.2 Safety data sheets 030-16
030.3.1.3 Technical data sheets 030-16
030.3.1.4 Specific Liebherr standards 030-16
030.3.2 General information on changing lubricants and fuels 030-16030.3.3 Converting hydraulic system from mineral oils to biodegradable
hydraulic fluids 030-17
030.34 Diesel fuels
L518-1664/0-57748; 030-17
030.3.4.1 Minimum quality requirement 030-17
030.3.4.2 Operating temperatures of diesel fuels 030-17
030.34.3 Minimum quality requirement 030-18
030.3.5 Diesel fuels
L518-1664/57749-; 030-18
030.3.5.1 Minimum quality requirement 030-18
030.3.5.2 Operating temperatures of diesel fuels 030-18
030.3.5.3 Minimum quality requirement 030-18
0303.6 Diesel exhaust fluid
L518-1664; 030-19
030.3.6.1 Liebherr recommendation 030-19
030.3.6.2 Minimum quality requirement 030-19
030.3.7 Engine oils
L518-1664; 030-19
030.3.7.1 Liebherr recommendation 030-19
030.3.7.3 Minimum quality requirement 030-19
030.3.8 Refrigerant
L518-1664; 030-20
030.3.9 Coolant
L518-1664; 030-20
030.3.9.1 Requirements for the water used 030-20
030.3.9.2 Antifreeze and corrosion inhibitor 030-20
030.3.9.3 Minimum quality requirement 030-21
030.3.10 Hydraulic oil
L518-1664; 030-21
030.3.10.1 Liebherr recommendation 030-21
030.3.10.2 Minimum quality requirement 030-21
030.3.10.3 Oil analysis 030-22
030.3.10.4 Oil change 030-22
030.3.11 Transmission
L518-1664; 030-22
030.3.11.1 Liebherr recommendation 030-22
030.3.11.2 Minimum quality requirement 030-22
030.3.12 Axle oil
L518-1664; 030-23
copyright ® Liebherr-Werk Bischofshofen GmbH 2021
L518-1664 LIEBHERR 1″
Contents Service manual
030.3.12.1 Liebherr recommendation 030-23
030.3.12.2 Minimum quality requirement 030-23030.3.13 Brake oil
1518-1664; 030-23
030.3.13.1 Liebherr recommendation 030-23
030.3.14 Lubrication grease
L518-1664; 030-24
030.3.14.1 Liebherr recommendation 030-24
030.3.14.2 Minimum quality requirement 030-24
030.3.15 Windscreen washer fluid
L518-1664; 030-24
030.3.15.1 Liebherr recommendation 030-24
030.3.15.2 Minimum quality requirement 030-24
030.3.16 Refrigerant oil for air conditioning compressor
L518-1664; 030-24
030.3.16.1 Liebherr recommendation 030-24
030.4 Maintenance tasks 030-25
030.4.1 Safety precautions
1518-1664; 030-25
030.4.2 Preparatory tasks for maintenance 030-25
030.4.2.1 Maintenance positions
1518-1664; 030-26
0304.2.2 Service hatches
1518-1664; 030-27
0304.23 Turning off the battery main switch
1518-1664; 030-29
030.4.3 Overall machine 030-30
030.4.3.1 Checking the machine is in the proper condition
L518-1664; 030-30
0304.3.2 Removing loose parts, dirt, ice and snow from
machine
1518-1664; 030-32
030.4.3.3 Cleaning the machine
L518-1664; 030-32
030.4.3.4 Replacing VCI capsules
1518-1664; 030-35
0304.3.5 Oil analyses
030.4.4 Drive group 030-44
030.4.4.1 Checking diesel engine oil levelChanging the engine oilL518-1664; 030-45
Changing the diesel engine oil filter1518-1664; 030-47
Diesel engine: checking V-ribbed beltL518-1664; 030-48
Changing the V-ribbed belt on the diesel engineL518-1664; 030-50
Checking diesel engine valve clearanceL518-1664; 030-51
Diesel engine: changing the oil separator filtercartridge1518-1664; 030-54
Diesel engine: Checking the crankcase bleedersystemL518-1664; 030-54
Diesel engine: Checking the glow plugs1518-1664; 030-55
Draining condensate and sediment from the fuel tank
1518-1664; 030-56
Draining off condensate from the fuel pre-filterL518-1664; 030-57
Changing the fuel pre-filter element1518-1664; 030-58
Changing the fuel fine filter elementL518-1664; 030-60
Bleeding the fuel systemL518-1664; 030-61Exhaust system: changing filter cartridge of diesel
exhaust fluid pump
L518-1664; 030-62Exhaust system: changing filter cartridge of diesel
exhaust fluid pre-filter
L518-1664/57749-; 030-63Cleaning the service cover and dust discharge valve
of the air filter system1518-1664; 030-65
Cleaning or changing main element of air filtersystem1518-1664; 030-66
Changing the safety element of the air filter system
L518-1664; 030-69Checking that diesel engine intake and exhaust
system is in good condition and not loose or leaking1518-1664; 030-70
Cleaning or changing the diesel particulate filter
L518-1664; 030-73L518-1664copyright ® Liebherr-Werk Bischofshofen GmbH 2021LIEBHERR 13
Contents Service manual
030.4.5 Cooling system 030-76
030.4.5.1 Checking the coolant level in the cooling system1518-1664; 030-76
0304.5.2 Coolant: checking anti-freeze and corrosion protec-
tion agent concentration
1518-1664; 030-78
0304.53 Cleaning the cooling system
L518-1664; 030-86
0304.5.4 Changing coolant in cooling system
1518-1664; 030-87
030.4.6 Working hydraulics 030-89
030.4.6.1 Cleaning and lubricating the pilot control unit
L518-1664; 030-89
030.4.7 Hydraulic components 030-90
030.4.7.1 Checking oil level in hydraulic tank
1518-1664; 030-90
030.4.7.2 Draining off condensate and sediment from the
hydraulic tank
L518-1664; 030-92
0304.7.3 Changing the hydraulic tank return suction filter
cartridge
1.518-1664/0-57748; 030-93
030.4.7.4 Hydraulic tank: changing filter cartridge in return-
suction filter
L518-1664/57749-; 030-94
0304.7.5 Changing the hydraulic tank breather filter
L518-1664; 030-95
0304.76 Hydraulic tank: changing oil
1518-1664; 030-96
030.4.8 Steering system 030-99
030.4.8.1 Test steering
1518-1664; 030-99
030.4.8.2 Steering cylinder: lubricating bearing
L518-1664; 030-99
030.4.9 Brake system 030-100
030.4.9.1 Testing service brake and parking brake
1518-1664; 030-100
030.4.9.2 Checking the oil level in the brake system
L518-1664; 030-101
030.4.9.3 Checking gap and wear on service brake linings
1518-1664; 030-103
030.4.9.4 Checking service brake discs for wear
L518-1664; 030-104
030.4.10 Electrical system 030-10030.4.10.1 Checking function of the lighting and hornL518-1664; 030-106
030.4.10.2 Checking the battery fluid levels and terminals1518-1664; 030-107
030.4.10.3 Use the control lever to change the travel directionswitch rocker and cap.L518-1664; 030-109
Gearbox 030-111
030.4.11.1 Transmission: checking the oil level1518-1664; 030-111
030.4.11.2 Changing transmission oilL518-1664; 030-112
Axles and drive shafts 030-113
030.4.12.1 Checking the axle oil levels1518-1664; 030-113
030.4.12.2 Changing the axle oil1518-1664; 030-115
030.4.12.3 Lubricating rear axle kingpin bearingsL518-1664; 030-118
030.4124 Checking the fitting of the rear axle kingpin bearingsand steering rod taper connectionsL518-1664; 030-118
030.4.12.5 Checking the tightening torque of the front axlefastening bolts1518-1664; 030-119
030.4.126 Checking the drive shaftL518-1664; 030-120
030.4.12.7 Tyres: checking tyre pressure1518-1664; 030-121
030.4.12.8 Checking the wheel tightness1518-1664; 030-122
Steel parts of the basic machine 030-122
030.4.13.1 Lubricating the articulated bearing and rear oscil-lating bearingL518-1664; 030-122
030.4.13.2 Lubricating the articulation stops1518-1664; 030-123
030.4.13.3 Cooler hood: lubricating moving parts with pene-trating oilL518-1664; 030-124
030.4.13.4 Engine bonnet: lubricating moving parts with pene-trating oil1518-1664; 030-124
030.4.13.5 Service hatches: cleaning and maintaining seals1518-1664; 030-125L518-1664copyright ® Liebherr-Werk Bischofshofen GmbH 2021LIEBHERR 15
Contents Service manual030.4.14 Working attachment 030-126030.4.14.1 Lubricating the lift arms and working attachment1518-1664; 030-126
0304.14.2 Checking the lift arm bucket bearing bushingsL518-1664; 030-127
030.4.14.3 Checking lift arm bucket stopsL518-1664; 030-127
030.4.14.4 Lubricating and testing bearings on quick coupler1518-1664; 030-128030.4.15 Operator’s cab, heating and air conditioning 030-129030.4.15.1 Cleaning operator’s cab air filter1518-1664; 030-129
030.4.15.2 Changing the cab air filterL518-1664; 030-130
030.4.15.3 Safety belt: checking condition and function1518-1664; 030-131
0304.154 Windscreen washer system: testingL518-1664; 030-132
030.4.15.5 Windscreen washer system: filling windscreenwasher fluidL518-1664; 030-132030.4.15.6 Operator’s cab: lubricating locking mechanism and
cylinder with penetrating oil1518-1664; 030-133
030.4.15.7 Operator’s cab: cleaning and maintaining seals
L518-1664; 030-133030.4.15.8 Checking the indicator bead in the air conditioning
dryer-collector unit1518-1664; 030-134
0304.15.99 Heating and air conditioning unit: Testing function
1518-1664; 030-135
030.4.16 Lubrication system 030-136
030.4.16.1 Central lubrication system: checking level in grease
reservoir
L518-1664; 030-1360304.16.2 Central lubrication system: checking pipes, hoses
and lubrication points for leaks and damage.1518-1664; 030-137
030.4.16.3 Central lubrication system: checking lubrication of
bearings
L518-1664; 030-138
030.5 Testing and adjustment checklist
L518-1664; 030-139
030.6 Testing and adjustment tasks 030-144copyright © Liebher-Werk Bischofshofen GmbH 202116 LIEBHERR L518-1664LBH/M12204905/12/211-20210128_104456/en
LBH/M2204905/12/211-20210128_104456/enService manual Contents
0306.1 Safety precautions
L518-1664; 030-144
030.6.2 Overall machine 030-144
030.6.2.1 Preparing for adjustment procedures
L518-1664; 030-144
030.6.2.2 Hydraulic oil and coolant: operating temperature
L518-1664; 030-146
030.6.2.3 Service management
1518-1664; 030-147
030.6.3 Drive group 030-148
030.6.3.1 Pedals: calibration
1518-1664; 030-148
030.6.3.2 Diesel engine speed
L518-1664; 030-150
030.6.3.3 Reading the diesel engine service files
1518-1664; 030-150
0306.4 Cooling system 030-152
030.6.4.1 Fan motor: fan speed proportional solenoid
L518-1664; 030-152
0306.5 Working hydraulics 030-155
030.6.5.1 Control valve block: secondary pressure relief valves
1518-1664; 030-155
030.6.5.2 Control valve block: working hydraulics LS pressure
relief valve
L518-1664; 030-157
030.6.5.3 Stabilisation module (option), safety valve
1518-1664; 030-158
030.6.5.4 Ride control hydro accumulator (option): nitrogen
filling
L518-1664; 030-160
030.6.6 Hydraulic components 030-163
030.6.6.1 Checking the hydraulic lines for damage
1518-1664; 030-163
030.6.7 Travel hydraulics 030-168
030.6.7.1 Travel pump high pressure sensor B102: Deviation
L518-1664; 030-168
030.6.7.2 Travel pump replenishing pressure relief valve
1518-1664; 030-169
030.6.7.3 Travel pump: high pressure relief valves
1518-1664; 030-171
030.6.7.4 Travel pump: pressure cut-off
1518-1664; 030-174
030.6.7.5 Travel pump: manual block curve calibration
L518-1664; 030-176
copyright ® Liebherr-Werk Bischofshofen GmbH 2021
L518-1664 LIEBHERR 17
ContentsService manual030.6.8030.6.9030.6.7.6 Travel pump: automatic block curve calibration (from
software version (Master4) 020 or from serial number60030)1518-1664; 030-178
030.6.7.7 Travel motor: manual calibration (maximum swivelangle)L518-1664; 030-178
030.6.7.8 =Travel motor: manual calibration (minimum swivelangle)1518-1664; 030-180
Brake system 030-182
030.6.8.1 Inching brake pedal: basic settingL518-1664; 030-182
030.6.8.2 Angle sensor for inching function: checking basicsetting1518-1664; 030-184
030.6.8.3 Service brake: brake pressure in 1st brake circuit1518-1664; 030-185030.6.8.4 Service brake: pressure reducing valve for service
brake supply pressureL518-1664; 030-186
Electrical system 030-188
030.6.9.1 Central control unit (Master4) Creating a Servicefile1.518-1664/0-600066; 030-188
030.6.9.2 Central control unit (Master5): creating service fileL518-1664/600067-; 030-191
030.6.9.3 Updating the central controller softwareL518-1664/0-60066; 030-192
030.6.9.4 Central control unit (Master5): software update1L.518-1664/60067-; 030-194
030.6.9.5 Setting the IP addresses of the central control unit(Master4)1518-1664; 030-198
030.6.9.6 Resetting the central control unit (Master4)L518-1664/0-60066; 030-201
030.6.9.7 Central control unit (Master5): resetting to factorysettings1L.518-1664/60067-; 030-202030.6.9.8 Central control unit (Master5): connecting Sculi diag-
nostic software1L.518-1664/60067-; 030-204
030.6.9.9 Central control unit (Master5): connecting LiFT func-tionL518-1664/60067-; 030-207
030.6.9.10 Addressing CAN module and checking system infor-mation
030.6.10.1 Travel hydraulics: external servo pressure reducing
valve
L518-1664; 030-210
030.6.10.2 Hydro accumulator for external servo pressure and
service brake: nitrogen filling
L518-1664; 030-212
030.6.11 Axles and drive shafts 030-215
030.6.11.1 Tyres: setting radius
L518-1664; 030-215
030.6.12 Operator’s cab, heating and air conditioning 030-216
030.6.12.1 Formatting the display and reinstalling the software
(Display4)
L518-1664; 030-216
0306.13 Options 030-217
030.6.13.1 LiDAT: connecting to LIiDAT module
L518-1664; 030-217
030.6.13.2 LiDAT: software update for LiDAT module
1518-1664; 030-219
030.6.13.3 LiDAT: creating report and snapshot
1518-1664; 030-221
040 Drive group 040-1
040.1 Engine 040-2
040.1.1 Diesel engine overview
L518-1664; 040-2
040.1.2 Electrical components of the diesel engine
L518-1664; 040-6
040.1.3 Fuel system 040-16
040.1.3.1 Overview of the fuel system
1518-1664; 040-16
040.1.3.2 Fuel level sensor
L518-1664; 040-17
040.1.3.3 Fuel pre-filter
L518-1664; 040-19
040.1.3.4 Fuel fine filter
L518-1664; 040-20
040.14 Air filter system 040-21
040.1.4.1 Air filter
1518-1664; 040-21
040.1.5 Exhaust system 040-21
040.1.5.1 Overview of exhaust system
L518-1664; 040-22
copyright ® Liebherr-Werk Bischofshofen GmbH 2021
L518-1664 LIEBHERR 19
Contents Service manual
040.1.5.2 Diesel particulate filter (DPF): overview
L518-1664; 040-24
040.1.5.3 SCR system
1518-1664; 040-28
040.1.5.4 Sampling module
L518-1664; 040-32
040.1.5.5 Diesel exhaust fluid pre-filter
L518-1664/57749~; 040-33
040.2 Clutch
L518-1664; 040-34
050 Cooling system 050-1
050.1 Overview of cooling system
L518-1664; 050-2
050.2 Cooling system hydraulics 050-4
050.2.1 Overview of cooling system hydraulics
1L518-1664/0-57748; 0504
050.2.2 Overview of cooling system hydraulics
L518-1664/57749-; 050-7
050.2.3 Fan pump
L518-1664; 050-10
050.2.4 Fan motor
1518-1664; 050-11
050.3 Cooling system electronics 050-13
050.3.1 General overview of electronic control system
L518-1664; 050-13
050.3.2 Temperature sensor for coolant
1518-1664; 050-16
050.3.3 Hydraulic oil temperature sensor
L518-1664; 050-17
050.3.4 Temperature sensor for charge air
1518-1664; 050-18
050.4 Cooler 050-20
050.4.1 Cooler unit
L518-1664; 050-20
050.5 Reversible fan drive 050-21
050.5.1 Overview of reversible fan drive
L518-1664/0-57748; 050-21
050.5.2 Overview of reversible fan drive
L518-1664/57749-; 050-24
050.5.3 Fan reversal valve block
1518-1664; 050-28
copyright © Liebher-Werk Bischofshofen GmbH 2021
20 LIEBHERR L518-1664LBH/M12204905/12/211-20210128_104456/en
LBH/M2204905/12/211-20210128_104456/enService manualContents060 Working hydraulics 060-1
060.1 Overview of working hydraulics
L518-1664/0-57748; 060-2
060.2 Overview of working hydraulics
1L518-1664/57749-; 060-8
060.3 Working pump
L518-1664; 060-14
060.4 Control block
1518-1664; 060-15
060.5 Pilot control 060-26
060.5.1 Overview of pilot control unit
L518-1664; 060-27
060.5.2 Pilot control unit
1518-1664; 060-31
060.5.3 Pilot pressure for solenoid valve
L518-1664; 060-33
060.6 Ride control 060-35
0606.1 Overview of ride control system
L518-1664; 060-35
060.6.2 Stabilisation module
L518-1664; 060-39
060.7 Pipe break protection 060-44
060.7.1 Pipe break protection: overview
L518-1664; 060-44
060.7.2 Valve block for pipe break protection
L518-1664; 060-46
060.7.3 Solenoid valve for release of the ride control
L518-1664; 060-47
070 Travel hydraulics 070-1
070.1 Overview of travel hydraulics
L518-1664/0-57748; 070-2
070.2 Overview of travel hydraulics
1L518-1664/57749-; 070-9
070.3 Travel pump
L518-1664; 070-16
070.4 Travel motors 070-31
0704.1 Travel motor
1518-1664; 070-31
080 Hydraulic components 080-1
080.1 Hydraulic system: overview
1L518-1664/0-48858; 080-2
copyright ® Liebherr-Werk Bischofshofen GmbH 2021
L518-1664 LIEBHERR 2
ContentsService manual080.2 Hydraulic system: overviewL518-1664/48859-57748; 080-6
080.3 Hydraulic system: overview
L518-1664/57749-; 080-10
080.4 Hydraulic tank 080-14
080.4.1 Overview of hydraulic tank
L518-1664/0-57748; 080-14
080.4.2 Overview of hydraulic tank
L518-1664/57749-; 080-16
080.4.3 Return-suction filter
1L518-1664/0-57748; 080-19
080.4.4 Return suction filter
L518-1664/57749-; 080-25
080.4.5 Breather filter
L518-1664; 080-31
090 Steering system 090-1
090.1 Steering system overview
L518-1664/0-57748; 090-2
090.2 Steering system overview
L518-1664/57749-; 090-6
090.3 Servostat
L518-1664; 090-10
100 Brake system 100-1
100.1 Overview of brake system
L518-1664/0-48858; 100-2
100.2 Overview of brake system
L518-1664/48859-57748; 100-8
100.3 Overview of brake system
L518-1664/57749-; 100-15
100.4 Service brake 100-22
100.4.1 Inch/brake unit
L518-1664; 100-22
100.4.2 Inching function angle sensor
1518-1664; 100-29
100.4.3 Brake light pressure switch
L518-1664; 100-30
100.4.4 Drum brake
1518-1664; 100-32
100.5 Parking brake 100-36
100.5.1 Parking brake solenoid valve
L518-1664; 100-36
copyright © Liebher-Werk Bischofshofen GmbH 2021
22 LIEBHERR L518-1664LBH/M12204905/12/211-20210128_104456/en
LBH/M2204905/12/211-20210128_104456/enService manualContents100.5.2 Orifice bypass solenoid valveL518-1664/48859-; 100-37
110 Electrical system 110-1
110.1 Overview of electrical system
L518-1664; 110-3
110.2 Lighting
1518-1664; 110-7
110.3 Circuit diagrams
1518-1664; 110-9
110.4 Electronic control unit 110-11
110.4.1 General overview of the electronic control system
L518-1664/0-60066; 110-11
110.4.2 General overview of electronic control system
L518-1664/60067-; 110-13
110.4.3 Central control unit (Master4)
L518-1664/0-60066; 110-14
110.4.4 Central control unit (Master5 Mini)
L518-1664/60067-; 110-19
110.45 Modules 110-21
1104.51 Overview of compact module
1518-1664; 110-21
110.4.5.2 Compact module
1518-1664; 110-23
110.5 Electrical components of the driver’s cab 110-29
110.5.1 Overview of electrical components in the operator’s cab
L518-1664; 110-29
110.5.2 Fuse boards
L518-1664; 110-31
110.56.3 Door contact switch
L518-1664; 110-33
110.6 Electrical components in the rear section 110-34
110.6.1 Battery installation
L518-1664; 110-34
110.7 Rear area monitoring with camera 110-36
110.7.1 Overview of rear area monitoring with camera
L518-1664; 110-36
110.7.2 Camera
L518-1664; 110-37
120 Gearbox 120-1
120.1 Overview of the transmission
L518-1664; 120-2
copyright ® Liebherr-Werk Bischofshofen GmbH 2021
L518-1664 LIEBHERR 23
ContentsService manual120.2 Transmission hydraulics 120-7
120.2.1 Overview of transmission hydraulics
L518-1664/0-57748; 120-7
120.2.2 Overview of transmission hydraulics
L518-1664/57749-; 120-13
120.2.3 Gear shifting
L518-1664; 120-18
120.2.4 Valve block for pressure reducing valves
L518-1664; 120-20
120.2.5 Travel motor bypass solenoid valve
1518-1664; 120-22
120.3 Transmission electronics 120-24
120.3.1 Gearbox: electrical system
L518-1664; 120-24
120.3.2 Output speed sensor
1518-1664; 120-26
120.3.3 Hall sensor for gear indicator
L518-1664; 120-27
130 Axles and drive shafts 130-1
130.1 Axles 130-2
130.1.1 Front axle
L518-1664; 130-2
130.1.2 Rear axle
L518-1664; 130-4
130.1.3 Engageable differential lockout 130-5
130.1.3.1 Overview of engageable differential lockout
1L518-1664/0-57748; 130-6
130.1.3.2 Overview of engageable differential lockout
L518-1664/57749-; 130-7
130.1.3.3 Valve block for parking brake and differential lockout
L518-1664; 130-9
130.2 Cardan shafts 130-11
130.2.1 Drive shaft
L518-1664; 130-11
140 Steel parts of the basic machine 140-1
140.1 Vehicle frame 140-2
140.1.1 Articulation bearing
1518-1664; 140-2
140.1.2 Articulation lock
L518-1664; 140-3
copyright © Liebher-Werk Bischofshofen GmbH 2021
24 LIEBHERR L518-1664LBH/M12204905/12/211-20210128_104456/en
LBH/M2204905/12/211-20210128_104456/enService manual Contents
150 Working attachment 150-1
150.1 Lift arms for Z kinematics 150-2
160.1.1 Lift arms for Z kinematics
L518-1664; 150-2
150.2 Quick coupler 150-4
160.2.1 Quick coupler
L518-1664; 160-4
160.2.2 Quick coupler hydraulics 150-5
160.2.2.1 Overview of quick coupler hydraulics
L518-1664/0-51094; 150-5
150.2.2.2 Overview of quick coupler hydraulics
L518-1664/51095-; 160-7
160.2.2.3 Valve block for quick coupler
1518-1664; 150-9
160 Operator’s cab, heating and air conditioning 160-1
160.1 Overview of the operator’s cab, heating and air conditioning unit
L518-1664; 160-2
160.2 Display and control elements 160-4
160.2.1 Display
L518-1664; 160-4
160.2.2 Control lever
L518-1664; 160-4
160.2.3 Accelerator pedal
L518-1664; 160-6
160.3 Heating, ventilation, air conditioning 160-8
160.3.1 Overview of heating, ventilation and air conditioning system
L518-1664; 160-8
160.3.2 Heating and air conditioning unit 160-13
160.3.2.1 Heating and air conditioning unit
L518-1664; 160-14
160.3.2.2 Blower
1518-1664; 160-16
160.4 Air conditioning 160-17
160.4.1 Air conditioning (optional)
1518-1664; 160-17
160.4.2 Air conditioning compressor
L518-1664; 160-18
160.4.3 Condenser
L518-1664; 160-20
160.4.4 Dryer-collector unit
L518-1664; 160-20
copyright ® Liebherr-Werk Bischofshofen GmbH 2021
L518-1664 LIEBHERR 25
Contents Service manual
160.4.5 Air conditioning pressure switch
L518-1664; 160-22
170 Lubrication system 170-1
170.1 Liebherr automatic central lubrication system 170-2
170.1.1 Automatic central lubrication system: overview
L518-1664; 170-2
170.1.2 Central lubrication pump EP-1
1518-1664; 170-6
170.1.3 Progressive distributor MX-F
1518-1664; 170-9
190 Options 190-1
190.1 LiDAT 190-2
190.1.1 Overview of LiDAT
1518-1664; 190-2
190.1.2 LiDAT on machine
L518-1664/0-50943; 190-4
190.1.3 LiDAT on machine
L518-1664/50944-; 190-5
190.1.4 LiDAT module (LiTU2)
L518-1664/0-50943; 190-7
190.1.5 LiDAT module (LiTU3)
L518-1664/50944-; 190-9
200 Diagnosis 200-1
200.1 Malfunctions 200-2
200.1.1 Warning symbols 200-2
200.1.2 SCR system warning symbols 200-2
200.1.3 Service code indicator in the display 200-3
200.2 Troubleshooting 200-5
200.2.1 Replacing fuses 200-5
200.2.1.1 Fuses on fuse board in operator’s cab 200-5
200.2.1.2 Fuses in right of engine compartment 200-8
copyright © Liebher-Werk Bischofshofen GmbH 2021
26 LIEBHERR L518-1664LBH/M12204905/12/211-20210128_104456/en
LBH/M2204905/12/211-20210128_104456/en010 IntroductionContents010.1 Safety instructions 010-4010.1.1 Information on these instructions 010-4010.1.1.1 Representation of warning messages 010-4010.1.1.2 Graphic symbols in these instructions 010-4010.1.2 Intended use 010-5010.1.2.1 Laws, rules, guidelines and safety regulations 010-5010.1.2.2 Intended use 010-5010.1.2.3 Foreseeable misuse 010-6010.1.2.4 Operating conditions 010-6010.1.2.5 Disposal 010-7010.1.3 Description of staff 010-7010.1.3.1 Personal protective equipment 010-7010.1.3.2 Requirements for staff 010-8010.1.3.3 Operating company 010-8010.1.3.4 Operator 010-9010.1.3.5 Maintenance staff 010-9010.1.3.6 Refrigeration technician 010-10010.1.3.7 Slinger 010-11010.1.3.8 Spotter 010-12010.1.4 Protective devices on the machine 010-12010.1.4.1 Operator’s cab 010-12010.1.4.2 Roll over protective structure (ROPS) 010-13010.1.4.3 Falling object protective structures (FOPS) 010-13010.1.5 Emergency equipment on the machine 010-13010.1.5.1 Emergency exit (standard) 010-13010.1.5.2 Fire extinguisher (option) 010-14010.1.6 Safe operation 010-14
copyright ® Liebherr-Werk Bischofshofen GmbH 2021L518-1664 LIEBHERR 010-1
IntroductionService manual010.2010.3010.1.6.1 Intoxicants 010-14
010.1.6.2 Dangerous fuels and operating fluids 010-14
010.1.6.3 Transporting machine 010-15
010.1.6.4 Access to machine 010-15
010.1.6.5 Machine danger zone 010-16
010.1.6.6 Visibility 010-16
010.1.6.7 Protection against vibration 010-17
010.1.6.8 Operation of machine 010-18
010.1.7 Safe maintenance 010-21
010.1.7.1 Spare parts 010-21
010.1.7.2 Heavy parts 010-21
010.1.7.3 Regular checks 010-22
010.1.8 Modifications to the machine 010-22
010.1.8.1 Modifications, add-ons and retrofittings 010-22
Special tools for maintenance and repair work 010-23
010.2.1 Special tools, general 010-23
010.2.2 Special tools for the engine 010-25
010.2.3 Special tools for lift cylinders 010-29
010.24 Special tools for lift cylinders 010-30
010.2.5 Special tools for tilt cylinders 010-30
010.2.6 Special tools for tilt cylinders 010-31
010.2.7 Special tools for quick coupler locking hydraulic cylinder 010-32
010.2.8 Special tools for steering wheel 010-32
010.2.9 Special tools for steering cylinders 010-32
010.2.10 Special tools for steering cylinders 010-33
010.2.11 Special tools for the service brake 010-33
010.2.12 Special tools for the electrical system 010-34010.2.13 Special tools for front axle 010-35
010.2.14 Special tools for rear axle 010-35
010.2.15 Special tools for air conditioning system 010-36
010.2.16 Special tools for cab glazing 010-37
010.2.17 Special tools for the central lubrication system (Liebherr) 010-38
Standards and regulations 010-39
010.3.1 Prestressing forces and tightening torques for bolts with metricstandard and fine threads as per DIN ISO 261 010-39010.3.1.1 Range of application and purpose 010-39
010.3.1.2 Other applicable documents 010-39
010.3.1.3 Modifications and descriptions 010-40010.3.1.4 Tightening torques010.3.2 Liebherr standards for assembly instructions and tightening torques010-46
Preservation guidelines 010-47
010.4.1 General information 010-47
0104.2 Machine out of service for an unknown period of time 010-47
0104.3 Putting the machine out of service 010-48
010.4.3.1 Out of service for up to 2 months 010-48
010.4.3.2 Out of service for up to 12 months 010-49
010.4.3.3 Out of service for longer than 12 months 010-50
010.44 Putting back into service 010-50
010.4.4.1 After being out of service for 2 months 010-50
010.4.4.2 After being out of service for 12 months 010-51010.4.4.3 After being out of service for longer than 12 months 010-51L518-1664
