Mahindra Tractor 16 Series 2216 Gear & HST Parts Manual – PDF DOWNLOAD

Mahindra Tractor 16 Series 2216 Gear & HST Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Mahindra Tractor 16 Series 2216 Gear & HST Parts Manual – PDF DOWNLOAD

Language : English
Pages : 193
Downloadable : Yes
File Type : PDF
Size: 26.5 MB

DESCRIPTION:

Mahindra Tractor 16 Series 2216 Gear & HST Parts Manual – PDF DOWNLOAD

INTRODUCTION

Following is a brief summary of the simplified system used in compling this Parts Catalogue.

1. This Parts Catalogue is the list of all service or spare parts for the following tractors and engine.
   Tractor models :3316H,3316G
   Engine model:S3L3-Y3T11RH
2. The parts number contains the letter AG BP,or K: this indicates the color as follows:
   AG: black BP : red K : black(heat-resistant)

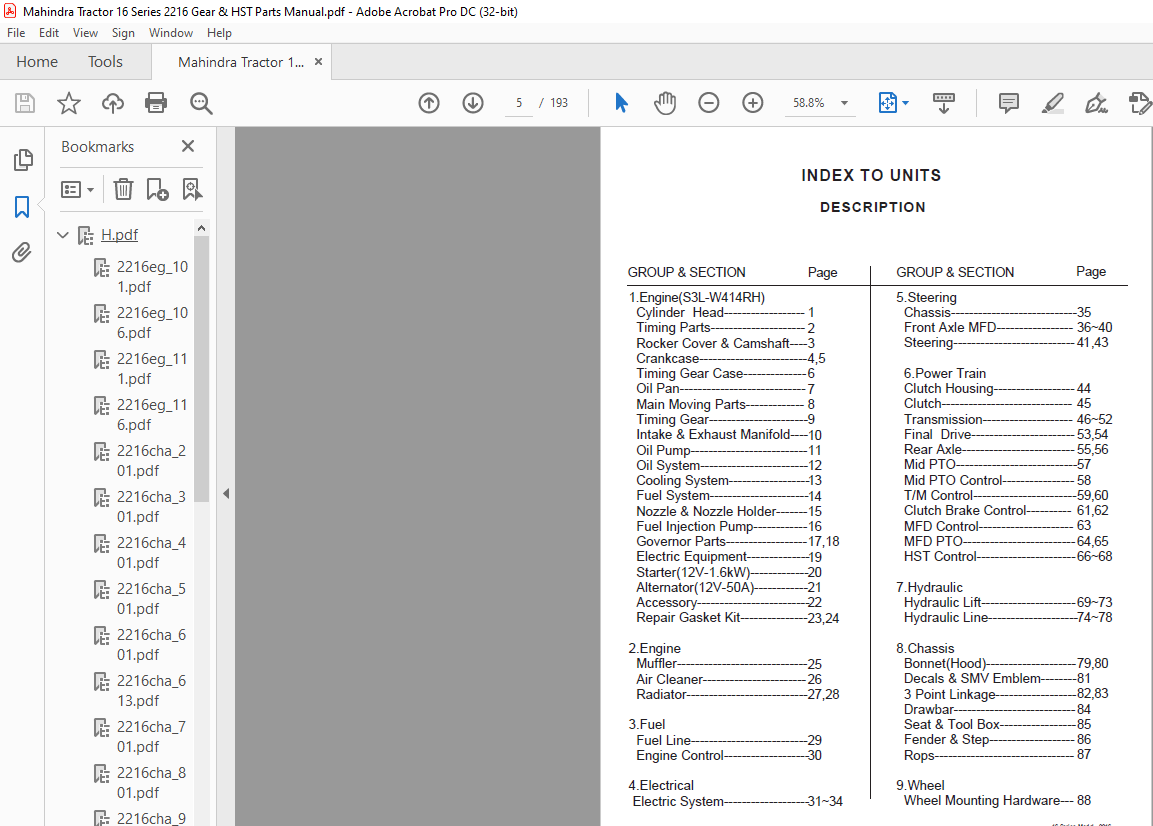

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Mahindra Tractor 16 Series 2216 Gear & HST Parts Manual – PDF DOWNLOAD

1.Engine(S3LW414RH)
Cylinder Head
Timing Parts
Rocker Cover & Camshaft
Crankcase
Timing Gear Case
Oil Pan
Main Moving Parts
Timing Gear
Intake & Exhaust Manifold
Oil Pump
Oil System
Cooling System
Fuel System
Nozzle & Nozzle Holder
Fuel Injection Pump
Governor Parts
Electric Equipment
Starter(12V1.6kW)
Alternator(12V50A)
Accessory
Repair Gasket Kit
2.Engine
Muffler
Air Cleaner
Radiator
3.Fuel
Fuel Line
Engine Control
4.Electrical
Electric System
GROUP & SECTION Page GROUP & SECTION Page
5.Steering
Chassis
Front Axle MFD
Steering
6.Power Train
Clutch Housing
Clutch
Transmission
Final Drive
Rear Axle
Mid PTO
Mid PTO Control
T/M Control
Clutch Brake Control
MFD Control
MFD PTO
HST Control
7.Hydraulic
Hydraulic Lift
Hydraulic Line
8.Chassis
Bonnet(Hood)
Decals & SMV Emblem
3 Point Linkage
Drawbar
Seat & Tool Box
Fender & Step
Rops
9.Wheel
Wheel Mounting Hardware
A.Option Equipment
Auxiliary Valve Kit
Working Light
Draft Control
MID PTO Kit
Horn Kit
