Mahindra Tractor 55B Backhoe For 1640 Operator’s Manual – PDF DOWNLOAD

SERIAL NUMBER 55B-1001 AND LATER

SAFETY PRECAUTIONS AND DECALS
SAFETY ALERT SYMBOL

• This is the safety alert symbol. It is used to alert you to potential physical injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. In addition to the design and configuration of equipment, hazard control and accident prevention are dependent upon the awareness, concern, prudence and proper training of personnel in the operation, transport, maintenance and storage of equipment.
• Lack of attention to safety can result in accident, personal injury, reduction of efficiency and worst of all – loss of life. Watch for safety hazards and correct deficiencies promptly. Use the following safety precautions as a general guide to safe operations when using this machine.
• Additional safety precautions are used throughout this manual for specific operating and maintenance procedures. Read this manual and review the safety precautions often until you know the limitations. Do not allow children or untrained persons to operate equipment. Do not operate equipment under the influence of drugs or alcohol

GENERAL OPERATION

GENERAL OPERATION DIRECTIONS: The terms right, left, front and back shall be determined from the position of the operator when seated in the operating position on the backhoe.

ENGINE SPEED

The speed at which the backhoe operates is partially dependent on engine RPM. Use a moderate engine speed to start and increase it as your experience permits. Refer to “DIMENSIONS AND SPECIFICATIONS” for hydraulic flow volume requirements. When powering from tractor systems with higher output, reduce engine RPM to obtain acceptable backhoe operating speed.

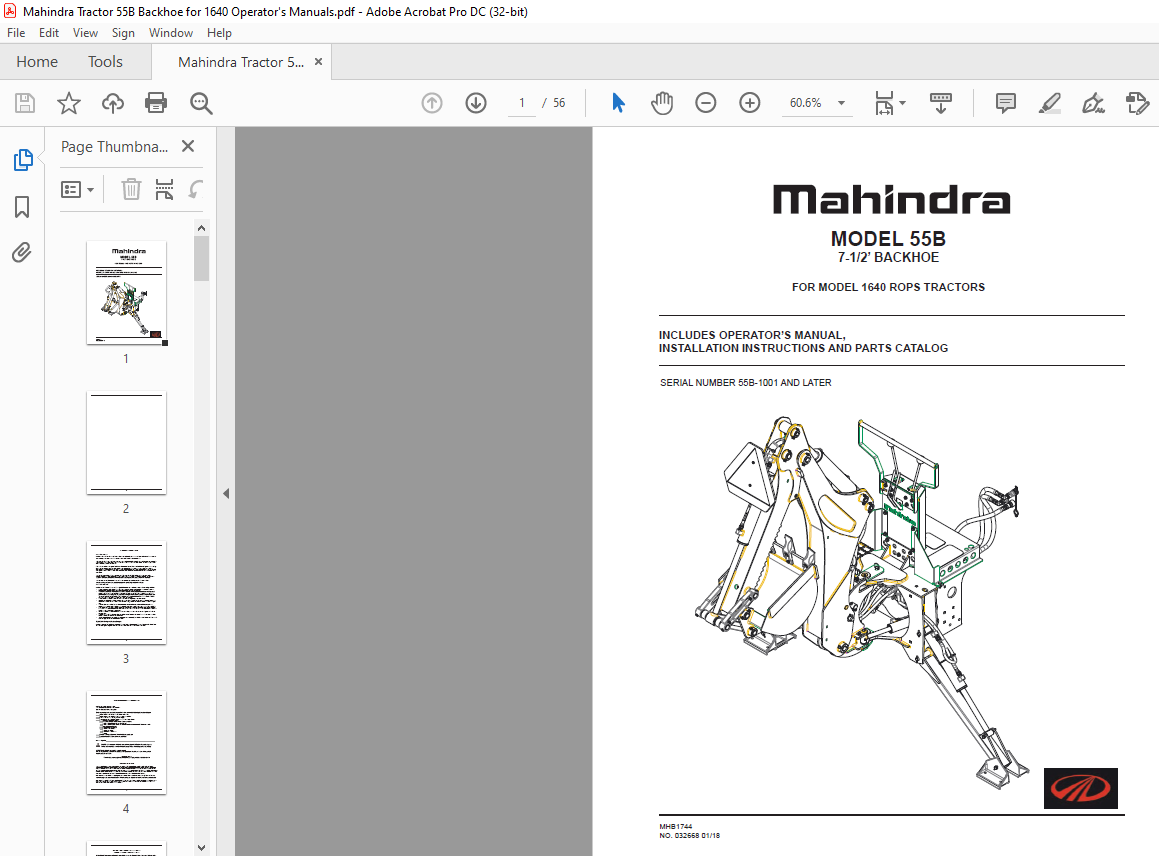

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Mahindra Tractor 55B Backhoe For 1640 Operator’s Manual – PDF DOWNLOAD

TABLE OF CONTENTS
SAFETY PRECAUTIONS AND DECALS 5
GENERAL OPERATION 11
TRANSPORTING BACKHOE 14
BACKHOE SERVICE 18
INSTALLING BACKHOE TO TRACTOR 20
VALVE REPAIR-DISASSEMBLY 23
HYDRAULIC TROUBLE SHOOTING 24
ASSEMBLY 26
ROTATING SEAT OPERATION 27
BASE BACKHOE PARTS BREAK-DOWN 29
HYDRAULIC CYLINDER PARTS BREAK-DOWN 44
BACKHOE BUCKETS, STREET PAD KIT 49
CONTROL VALVE PARTS BREAK-DOWN 50
SPECIFICATIONS 52
TORQUE CHARTS 53
