FILE DETAILS:

Malaguti F12 F12 Liquid Cooled Service Manual - PDF DOWNLOAD

Language : English, French, Spanish, German
Pages : 282
Downloadable : Yes
File Type : PDF

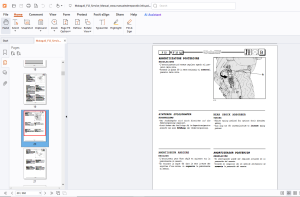

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Malaguti F12 F12 Liquid Cooled Service Manual - PDF DOWNLOAD

Table of Contents

1. Technical Data
2. Identification
3. Main Components
4. Controls
5. Dashboard
   • Dashboard Wiring Replacement
   • Odometer and Clock Removal
   • Dashboard Removal (Lower Part)
6. Tanks
   • Fuel Tank Removal
   • Coolant Tank Removal
7. Idle Tuning
8. Shock Absorber Tuning
9. Steering Adjustment
10. Body
    • Fairings
      • Fairing Removal
    • Front Handlebar Cover and Dashboard
      • Dashboard Wiring Replacement
      • Odometer and Clock Removal
      • Dashboard Removal (Lower Part)
    • Handlebar Controls Removal
    • Inspection and Component Removal
      • Front Shield Removal
      • Front Fender Removal
      • Inspection Cover Removal
      • Rear Fairing Removal
      • Kickstand Removal
      • Footboard Removal
      • Leg Guard Removal
      • Front Wheel Removal
      • Rear Wheel Removal
      • Exhaust Pipe Removal
11. Fork Assembly
    • Fork Leg Assembly Removal
    • Fork Leg Removal
    • Fork Removal
12. Brakes
    • Front Brake Caliper Removal
    • Front Brake Pad Wear Check
    • Rear Brake Pad Wear Check
13. Key Components
    • Key Starter Unit Removal
    • Oil Reservoir Removal
    • Float Removal
    • Radiator Removal
    • Engine Removal
14. Air and Fuel System
    • Air Cleaner Maintenance
    • Fuel Filter Maintenance
15. Electrical Components
    • Spark Plug Access
    • Lighting
      • Headlight Bulb Replacement
      • Beam Adjustment
      • Taillight Bulb Replacement
      • Direction Indicators Bulb Replacement
    • Dashboard Internals
      • Dashboard Bulb Replacement
      • Warning Light LED Replacement
    • Electrical Components Maintenance
      • Relay Replacement
      • Battery Replacement (Electrolyte Level Check)
      • Fuse Replacement
      • Location of Electrical Components
    • Wiring Diagrams
      • F12 Wiring Diagram
      • F12 Wiring Diagram (Alternate Version)
16. Dimensional Frame Check

DESCRIPTION:

Malaguti F12 F12 Liquid Cooled Service Manual - PDF DOWNLOAD

INTRODUCTION:

•All checks, maintenance, repairs or replacements of spare parts in the vehicles manufactured by Malaguti are to be performed by skilled and expert technical personnel with specific experience in state-of-the-art technology and full knowledge of the quickest and most rational procedures, technical characteristics, setting values and tightening torques, information as to which may only be properly and exhaustively provided by the manufacturer.•The present set of SERVICE MANUALS provides mechanics operating on Malaguti vehicles, whether working out of authorised service centres or self-employed, the essential information for operating in accordance with the latest Good Working Practices and Work Safety regulations.•The present publications provide all the necessary information for routine procedures on all the MALAGUTI vehicles currently in production at the date of issue. The information provided deals with the main components and systems of the motor vehicle, with just a few notes on some parts relating to the engine. Some basic technical information has been intentionally omitted as it is considered to be common knowledge.•Additional information is available in the ENGINE SERVICE MANUAL (see Minarelli and Franco Morini Service Manuals) and in the SPARE PARTS CATALOGUES of each model.•It is important that before referring to the specific motor-bike manual, the information given in this general section be carefully read as it provides all the essential hints and guidelines for best consulting the various topics and main technical subjects.
