Man Marine Diesel Engine R6-800 D2876 Le423 R6-730 D2876 Le433 Service Repair Workshop Manual - PDF

Man Marine Diesel Engine R6-800 D2876 Le423 R6-730 D2876 Le433 Service Repair Workshop Manual - PDF

IMAGES:

TABLE OF CONTENTS:

Preface
Instructions
Engine type classification
Safety regulations
Fault table
General note
Commission ingaftereng ineoverhaul

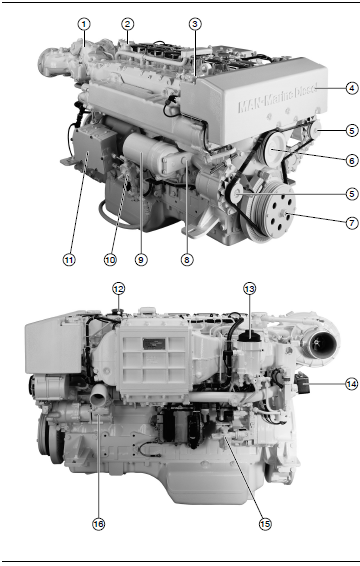

Engine views

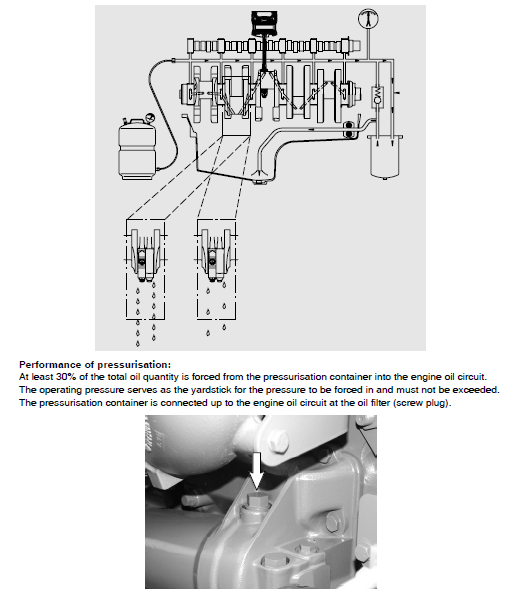

Schematic diagramof enginelubrication
Schematic diagramof coolingsystem
Schematic diagramof fuelsystem
Schematic diagramof enginetiming
Fuel system

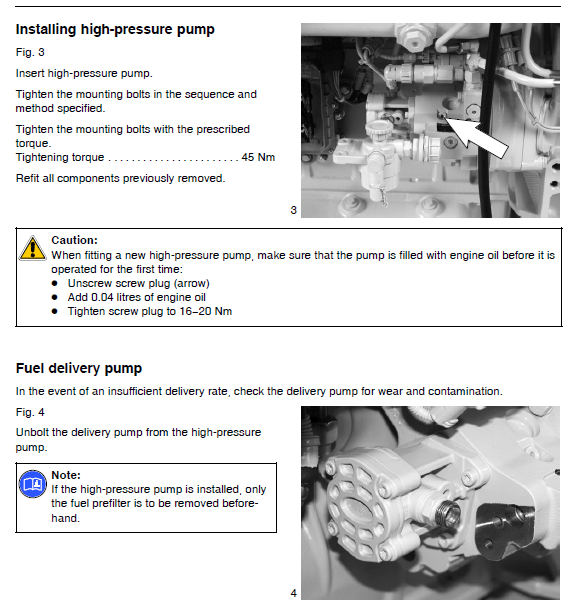

Removing and installing high pressure pump
Removing and installing the high pressure lines
Removing and installing the rail
Removing and installing the injectors
Fuel prefllter
Removing and installing the Fuel Service Centre, replacing the filter cartridge
Cooling system
Draining and filling coolant
Removing and install ingthenno stats
Removingandi nstall ingexpansion tank
Removingand installing coolant pump
Repairing coolant pump
Cleaning cooling system
Removing and install ingheat exchanger
Removing and installing pipe clusterfor heat exchanger
Clean ingheat exchanger pipe cluster
Removing andinstall ingseawater pump
Removing/metalling/strippingsea water pump
Changing impeller ofaea water pump
