Manitowoc Crane 14000 Parts Manual 605331 – PDF DOWNLOAD

Manitowoc Crane 14000 Parts Manual 605331 – PDF DOWNLOAD

The Manitowoc Crane 14000 Parts Manual (605331) is a vital PDF guide for assembly, disassembly, and maintenance. With part numbers, schematics, and troubleshooting tips, it supports efficient repairs, ensuring optimal crane performance. Download for essential assistance.

FILE DETAILS:

Manitowoc Crane 14000 Parts Manual 605331 – PDF DOWNLOAD

Language : English
Pages : 942
Downloadable : Yes
File Type : PDF

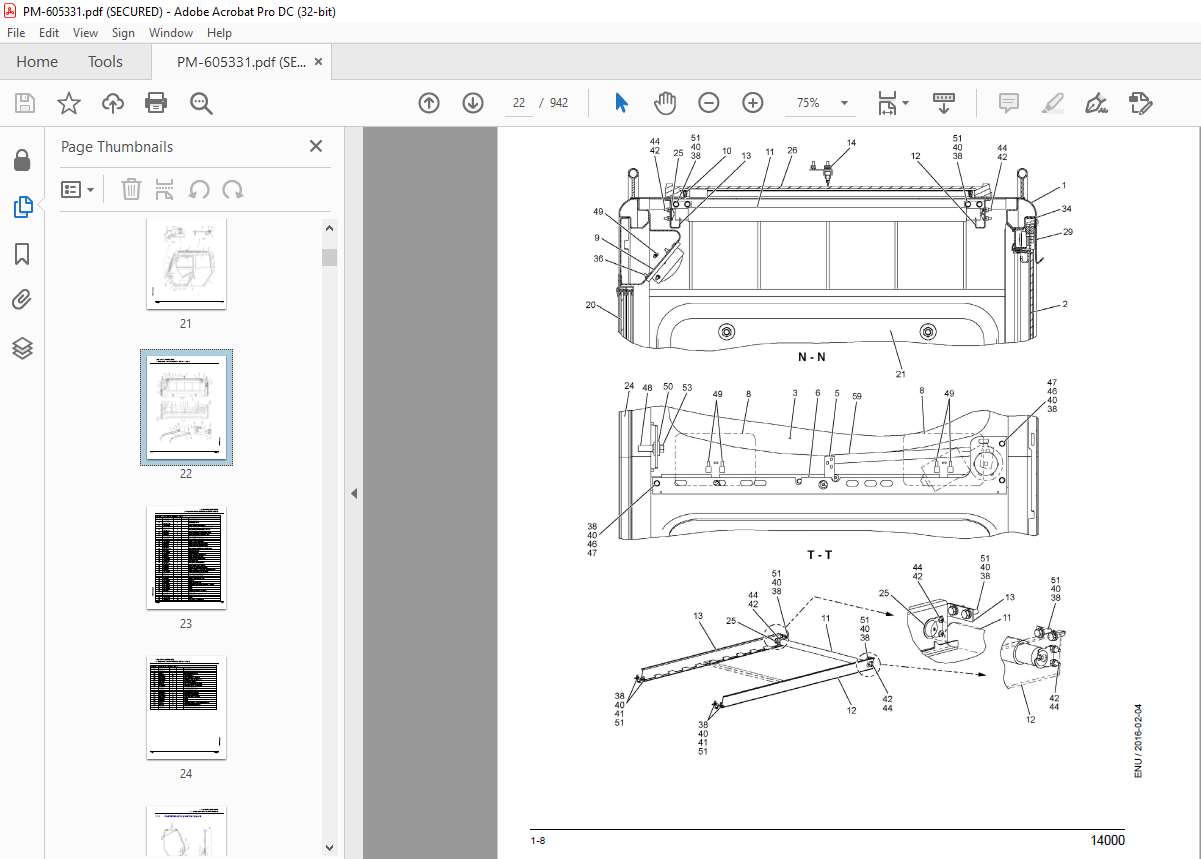

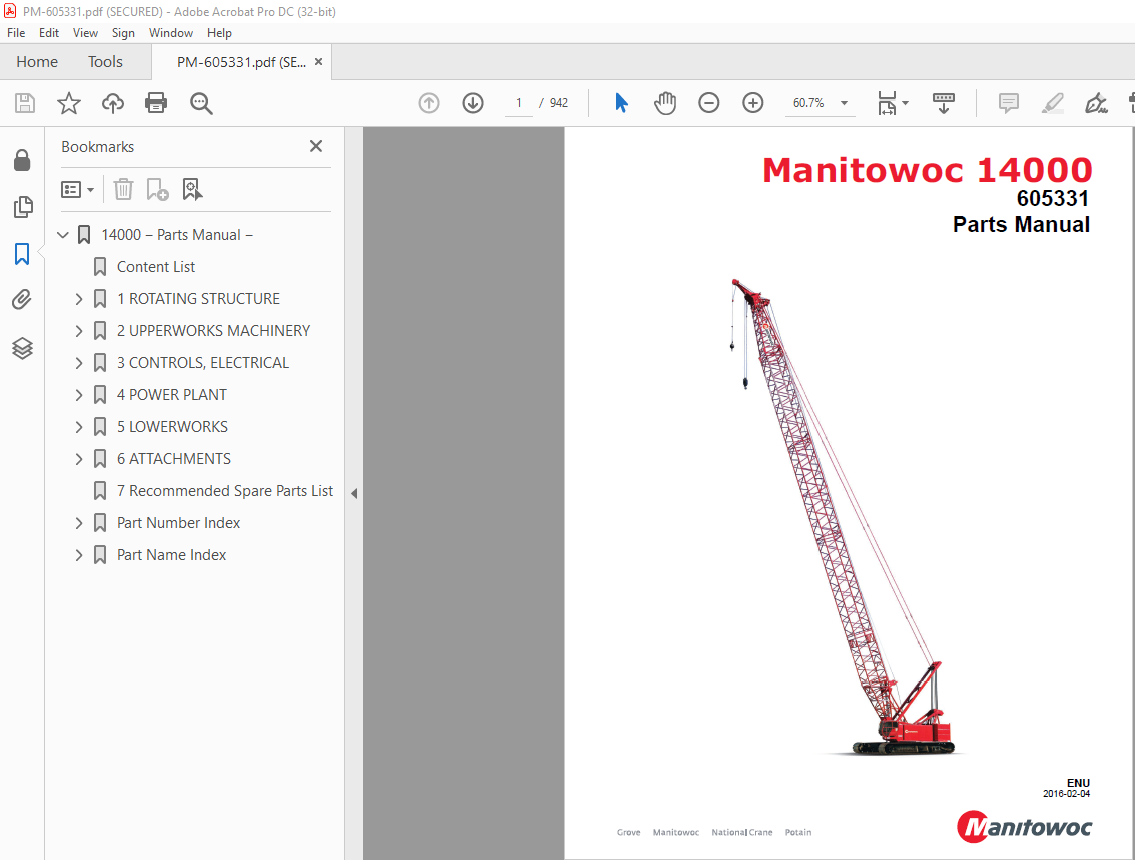

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Manitowoc Crane 14000 Parts Manual 605331 – PDF DOWNLOAD

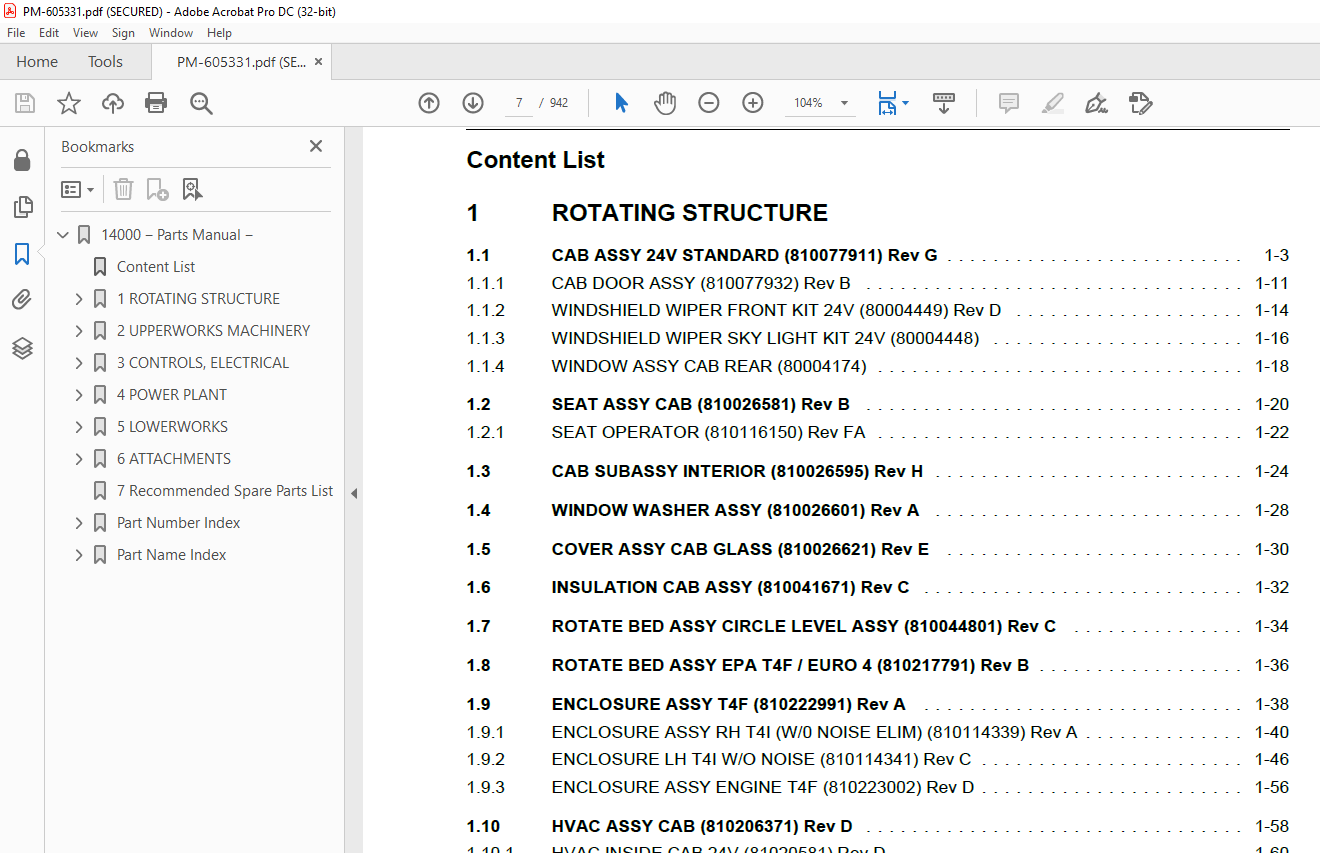

14000 ‒ Parts Manual ‒ 1
Content List 7
1 ROTATING STRUCTURE 15
1 1 CAB ASSY 24V STANDARD (810077911) Rev G 17
1 1 1 CAB DOOR ASSY (810077932) Rev B 25
1 1 2 WINDSHIELD WIPER FRONT KIT 24V (80004449) Rev D 28
1 1 3 WINDSHIELD WIPER SKY LIGHT KIT 24V (80004448) 30
1 1 4 WINDOW ASSY CAB REAR (80004174) 32
1 2 SEAT ASSY CAB (810026581) Rev B 34
1 2 1 SEAT OPERATOR (810116150) Rev FA 36
1 3 CAB SUBASSY INTERIOR (810026595) Rev H 38
1 4 WINDOW WASHER ASSY (810026601) Rev A 42
1 5 COVER ASSY CAB GLASS (810026621) Rev E 44
1 6 INSULATION CAB ASSY (810041671) Rev C 46
1 7 ROTATE BED ASSY CIRCLE LEVEL ASSY (810044801) Rev C 48
1 8 ROTATE BED ASSY EPA T4F / EURO 4 (810217791) Rev B 50
1 9 ENCLOSURE ASSY T4F (810222991) Rev A 52
1 9 1 ENCLOSURE ASSY RH T4I (W/0 NOISE ELIM) (810114339) Rev A 54
PANEL ENCL ASSY (810004710) Rev A 56
PANEL ENCL ASSY (A085560) Rev D 58
1 9 2 ENCLOSURE LH T4I W/O NOISE (810114341) Rev C 60
PANEL ENCL ASSY (810025150) Rev B 62
PANEL ENCL ASSY (A085500) Rev D 64
PANEL ENCL ASSY (A085550) Rev E 66
PANEL ENCL ASSY (A179670) Rev D 68
1 9 3 ENCLOSURE ASSY ENGINE T4F (810223002) Rev D 70
1 10 HVAC ASSY CAB (810206371) Rev D 72
1 10 1 HVAC INSIDE CAB 24V (81020581) Rev D 74
1 11 COUNTERWEIGHT ASSY (A158181) Rev H 78
1 12 CAB MOUNTING ASSY W/NON TILT CAB (A158842) Rev M 80
1 13 CAB MOUNTING ASSY (A158849) Rev M 83
1 14 PLATFORM ASSY RH (A158961) Rev D 88
1 15 PLATFORM ASSY LH (A158971) Rev C 90
1 16 BUSHING ASSY (A168791) Rev A 92
1 17 MIRROR ASSY CAB (A171371) Rev B 94
1 18 ROTATE BED ASSY PIN INSTALLATION (A180031) Rev A 96
1 19 NAMEPLATE & DECAL ASSY (EN) (A180141) Rev FA 98
1 20 PINPULLER ASSY BOOM HINGE PINS W/GUARD (A190921) Rev C 100
1 20 1 CYL HYD 4 0 BORE X 17 STROKE DBL ACT (3856070) Rev B 102
1 21 BEAM ASSY CWT ALIGNMENT (A196989) Rev B 104
2 UPPERWORKS MACHINERY 106
2 1 TANK HYD ASSY TIER 3/4 (810114941) Rev C 108
2 1 1 VALVE BUTTERFLY CODE61-80 (A164280) Rev B 112
2 1 2 BREATHER VENT TANK H20 VAPOR 35CFM (A164380) Rev B 114
2 1 3 FILTER HYD RETURN TO TANK -40 PORTS (A179080) 116
2 2 PIPING HYD ASSY FREEFALL & RIGGING VALVE (810203351) Rev B 118
2 2 1 VALVE ASSY FREE FALL/RIG PROP PRESS RED (A179760) Rev B 124
2 3 PIPING HYD ASSY FAN DRIVE & COOLER T3/T4 (810203392) Rev D 126
2 4 DRUM BOOM HOIST ASSY (A158131) Rev H 132
2 4 1 GEAR BOX PLANETARY BOOM HOIST (4652110) Rev B 134
BRAKE ASSY (2721510) 138
SEAL KIT GEARBOX (4652115) 140
BRAKE STACK/SEAL KIT (2721515) 144
2 4 2 MOTOR HYD PISTON VARI W/L2 & SPD SENSOR (A171460) Rev B 146
VALVE, SOLENOID (24V) (9632220674) 150
2 5 DRUM ASSY MAIN (A158901) Rev W 152
2 5 1 DRIVE PLANETARY HOIST (A165450) Rev E 156
KIT, GEARBOX SEAL (9527200061) 158
KIT, BRAKE (9527200052) 160
2 5 2 HYD MOTOR PISTON VARIABLE (810016100) Rev C 162
VALVE, SOLENOID (24V) (9632220674) 166
2 6 DRIVE SWING ASSY (A158941) Rev E 168
2 6 1 DRIVE PLANETARY SWING 140 96:1 (A165400) Rev B 170
2 6 2 MOTOR HYD PISTON FIXED 55 CC/REV (A165770) Rev D 174
2 7 PAWL ASSY BOOM HOIST (A159001) Rev F 176
2 7 1 LEVER W/289827 & 289829 BUSHINGS (1957674) Rev FA 178
2 7 2 CYL HYD 1 5 BORE X2 375 STROKE DBL ACT (3855980) Rev FA 180
2 8 PIPING HYD ASSY POWER PLANT SUCTION (A164708) Rev E 182
2 9 PIPING HYD ASSY ROT BED F/R HOIST & TRVL (A164758) Rev AG 185
2 9 1 MANIFOLD ASSY SWING CIRCUIT (A195549) Rev D 196
2 9 2 VALVE LOOP FLUSHING (7034760) Rev A 198
2 9 3 VALVE LOOP FLUSHING (7034950) Rev C 200
2 9 4 VALVE SHUTTLE (7041300) Rev FA 202
2 9 5 VALVE SOLENOID 2 POS 4 WAY SIZE D03 24V (A025420) Rev D 204
2 10 PIPING HYD ASSY PWR PLANT RETURN TO TANK (A165551) Rev W 206
2 10 1 Q DSCN FITTING HYD COUPLER 12ORB X-12 (3754390) Rev C 210
2 10 2 Q DSCN FITTING HYD NIPPLE -12 ORB X-12 (3754400) Rev C 212
2 11 PIPING HYD ASSY ROTATE BED ACCESSORY SYS (A166111) Rev D 214
2 11 1 VALVE SOLENOID 3 POS 4 WAY SIZE D03 24V (A025410) Rev C 216
2 11 2 VALVE SOLENOID 2 POS 4 WAY SIZE D03 24V (A025420) Rev D 218
2 12 PIPING HYD ASSY W/DRUM #3 (A166112) Rev D 220
2 12 1 VALVE SOLENOID 2 POS 4 WAY SIZE D03 24V (A025420) Rev D 222
2 13 PIPING HYD ASSY LESS CAB RAISING CYL (A166115) Rev D 224
2 14 PIPING HYD ASSY ROT BED LIVE MAST (A169191) Rev N 226
2 14 1 VALVE HYD SUN DBL C-BAL (7041130) Rev FA 230
2 15 PIPING HYD ASSY GANTRY CYLS (A169291) Rev L 232
2 15 1 VALVE COUNTERBALANCE 3,600 PSI SETTING (A042970) Rev A 236
2 16 PIPING HYD ASSY ROT BED PINPULLER BOOM (A169301) Rev C 238
2 17 PIPING HYD ASSY HOIST PAWL (A174001) Rev A 240
2 18 PIPING HYD ASSY ROT BED ROUTE TO BOOM (A185251) Rev W 242
2 18 1 Q DSCN FITTING HYD COUPLER 12ORB X-12 (3754390) Rev C 246
2 18 2 Q DSCN FITTING HYD COUPLER 12ORB X-12 (3754390) Rev C 248
2 18 3 Q DSCN FITTING HYD COUPL -20 ORB X -16 (3759510) Rev FA 250
2 18 4 HYD VALVE SELECT DS-100HP 06SAE PORT (7034800) Rev FA 252
2 18 5 VALVE DIRECTIONAL CNTRL SELECTOR (A113480) Rev D 254
2 18 6 Q DISCON FITTING NIPPLE 20 CODE 62 X 20 (A175240) Rev D 256
2 19 PIPING HYD ASSY W/AUX DRUM PREP/EQUIP (A185252) Rev W 258
2 19 1 Q DSCN FITTING HYD COUPLER 12ORB X-12 (3754390) Rev C 262
2 19 2 Q DSCN FITTING HYD NIPPLE -12 ORB X-12 (3754400) Rev C 264
2 19 3 Q DSCN FITTING HYD COUPL -20 ORB X -16 (3759510) Rev FA 266
2 19 4 Q DSCN FITTING HYD NIPPLE -16 ORB X-20 (3759520) Rev FA 268
2 19 5 Q DISCON FITTING COUPLER CODE 62 20 X 20 (A175230) Rev D 270
2 19 6 Q DISCON FITTING NIPPLE 20 CODE 62 X 20 (A175240) Rev D 272
2 20 PIPING HYD ASSY W/AUX DRUM EQUIP (A185253) Rev W 274
2 20 1 Q DSCN FITTING HYD NIPPLE -12 ORB X-12 (3754400) Rev C 278
2 20 2 Q DSCN FITTING HYD NIPPLE -16 ORB X-20 (3759520) Rev FA 280
2 20 3 VALVE LOOP FLUSHING (7034950) Rev C 282
2 20 4 VALVE SOLENOID 3 POS 4 WAY SIZE D03 24V (A025410) Rev C 284
2 20 5 VALVE SOLENOID 2 POS 4 WAY SIZE D03 24V (A025420) Rev D 286
2 20 6 Q DISCON FITTING COUPLER CODE 62 20 X 20 (A175230) Rev D 288
2 20 7 Q DISCON FITTING NIPPLE 20 CODE 62 X 20 (A175240) Rev D 290
2 20 8 Q DSCN FITTING HYD COUPL -20 ORB X -16 (3759510) Rev FA 292
2 20 9 VALVE RELIEF ACCUMU REPLACEMENT 30 PSI (A176770) Rev A 294
2 21 PIPING HYD ASSY LESS FREEFALL DRUMS (A185255) Rev W 296
2 22 PIPING HYD ASSY CARBODY W/CARBODY JACKS (A186283) Rev D 298
2 22 1 VALVE DIRECTIONAL CNTRL 6SECT W/O RELIEF (A165750) Rev C 302
3 CONTROLS, ELECTRICAL 304
3 1 CONSOLE CAB CONTROL ASSY (810026551) Rev D 306
3 2 CAB ASSY CONTROL WIRING (810026561) Rev G 309
3 3 ELEC CAB ASSY NORTH AMER STANDARD (810026567) Rev G 312
3 4 ELEC CAB ASSY LESS FREEFALL DRUMS (810026569) Rev G 314
3 5 CONSOLE FRONT ASSY LESS RADIO (810026653) Rev H 316
3 6 CONSOLE FRONT ASSY (810026658) Rev J 318
3 6 1 ELEC ACCESS ASSY RADIO RADIO (810032391) Rev C 320
3 7 CONSOLE CNTRL ASSY OVERHEAD (810026662) Rev B 322
3 8 CONSOLE CONTROL ASSY REAR (810026881) Rev D 324
3 9 PEDAL FOOT ASSY CAB (810032381) Rev F 326
3 9 1 PEDAL FOOT ASSY THROTTLE CONTROL (A020191) Rev FA 328
3 10 PEDAL FOOT ASSY CAB (810032385) Rev F 330
3 11 ESI ROTATING BED WIRING (810165081) Rev D 332
3 11 1 SENSOR ASSY MAST FLANGE (A111262) Rev FA 338
3 11 2 BOOM STOP ASSY AUTOMATIC FOR #76 BOOM (A174331) Rev C 340
SWITCH ASSY BOOM TOP (810102319) Rev FA 342
3 11 3 SWITCH ASSY SET UP REMOTE W36 (810179150) Rev FA 346
3 12 ELEC CONTROL ASSY LESS BAIL LIMITS (810165084) Rev D 348
3 13 ELEC CONTROL ASSY LESS CAB TILT (810165086) Rev D 350
3 14 ELEC CONTROL ASSY WITH AUTO LUBE (810165087) Rev D 352
3 15 ELEC CONTROL ASSY LESS RIGGING WINCH (81016508B) Rev D 354
3 16 ELEC CONTROL ASSY BOOM BUTT (810165091) Rev A 356
3 17 ELEC CNTRL ASSY BOOM WIRING & LIMITS (A162201) Rev R 358
3 17 1 SWITCH ASSY BLOCK UP LIMIT (1957499) Rev C 362
LEVER ASSY (1770804) Rev C 364
3 17 2 CONTROLLER ASSY BOOM TOP (A168882) Rev F 366
CONTROLLER BOOM & JIB TOP SUBASSY (A168903) Rev F 368
3 17 3 CLAMP CABLE ASSY (A182331) Rev A 370
3 18 ELEC CONTROL ASSY UPPER BOOM POINT (A162202) Rev R 372
3 18 1 SWITCH ASSY BLOCK UP LIMIT (1957499) Rev C 374
LEVER ASSY (1770804) Rev C 376
3 19 ELEC CONTROL ASSY W/FIXED JIB (A162203) Rev R 378
3 19 1 SWITCH ASSY BLOCK UP LIMIT (1957499) Rev C 380
LEVER ASSY (1770804) Rev C 382
3 20 CONSOLE RH ASSY (A162801) Rev H 384
3 20 1 CONTROLLER JOYSTICK SINGLE AXIS W/INDICT (810087540) Rev B 386
3 20 2 JOYSTICK SINGLE AXIS (A024670) Rev B 388
3 20 3 CONTROLLER JOYSTICK SINGLE AXIS W/INDICT (810087550) Rev B 390
3 21 CONSOLE RH ASSY SWITCH FOR T4 PWR PLT (A162809) Rev H 392
3 22 CONSOLE LH ASSY (A162901) Rev E 394
3 22 1 CONTROLLER DUAL AXIS JOYSTICK W/ROT IND (810087530) Rev A 396
3 22 2 CONTROLLER JOYSTICK SINGLE AXIS FRICTION (A024680) Rev B 398
4 POWER PLANT 400
4 1 POWER PLANT ASSY 340 HP QSL9 T4F (810217801) Rev D 402
4 1 1 CLEANER AIR ASSY (810079471) Rev C 404
4 1 2 BATTERY ASSY QSL9 T3 T4I T4F (810247801) Rev A 406
4 1 3 PIPING FUEL ASSY (810237361) Rev B 408
4 1 4 AIR CONDITIONER & HEATER ASSY QSL 340HP (810136971) Rev L 410
KIT AIR CONDITIONING (810138840) Rev D 414
KIT AIR COND ENGINE QSL 24 V (810205730) Rev B 416
4 1 5 EXHAUST ASSY DEF SYSTEM INSTL QSL9 T4F (810203551) Rev E 418
TANK FUEL ASSY 10 GAL DEF (810219330) Rev C 420
4 1 6 EXHAUST ASSY COOLANT LINESINSTL QSL9T4F (810203561) Rev E 422
MANIFOLD ASSY DEF COOLANT (810219310) Rev A 424
4 1 7 EXHAUST ASSY 340HP QSL T4F (810203571) Rev D 426
FILTER ASSY DOC HORIZ SISO QSL T4F (81022524) Rev A 428
4 1 8 POWER PLANT ASSY QSL9T4F ENG/PUMP DRIVE (810217811) Rev A 430
DRIVE PUMP ASSY FREEFALL (810127022) Rev H 432
CLUTCH RELEASE ASSY (810130911) Rev C 520
ENGINE 340 HP QSL9 T4F (810193350) Rev C 522
CLUTCH ASSY W/HOUSING AND GREASE PIPING (A097351) Rev FA 524
4 1 9 COOLER ASSY 340 HP QSL9 T4F (810217821) Rev A 530
PANEL ENCL ASSY (810118482) Rev B 536
COOLER ASSY QSL9 T4F 2434 157 0000 (810217830) Rev B 538
4 1 10 ESI 24VDC ENG WIRING T4F (810223101) Rev C 550
BOX JUNCTION AFTERTREATMENT (810241640) Rev B 554
BOX JUNCTION ASSY GRID HEATER (A011147) Rev FA 556
4 2 CLUTCH ASSY W/HOUSING AND GREASE PIPING (A097352) Rev FA 558
4 3 POWER PLANT ASSY LESS FREEFALL (810217812) Rev A 560
4 4 TANK FUEL ASSY (A158871) Rev E 562
4 4 1 TANK FUEL ASSY AS PURCHASED (A166012) Rev F 564
FILLER FUEL ASSY VENTED W/10 MICR FIL (810182880) Rev D 566
5 LOWERWORKS 568
5 1 CARBODY ASSY (A158172) Rev H 570
5 1 1 CRAWLER ASSY (A159076) Rev N 572
ROLLER INTERMEDIATE CRAWLER (1965944) Rev FA 578
CYLINDER HYD CRAWLER ADJUSTMENT (3856530) 580
PUMP HYD HAND PUMP (A041430) 582
DRIVE CRAWLER ASSY (810182731) Rev B 584
5 1 2 PINPULLER ASSY CARBODY-CRAWLER (A159111) Rev B 604
CYL HYD 4 0 BORE X 21STROKE DBL ACT (3856470) Rev FA 606
5 1 3 PIPING HYD ASSY CARBODY W/NO BRAKE USH (A186281) Rev D 608
5 1 4 JOINT ROTATING UNION MOUNTING ASSY (810095071) Rev A 616
JOINT ROTATING UNION SWVL W/WEAR BANDS (810090270) Rev B 618
5 1 5 MOUNT MOTOR ASSY TRAVEL DRIVE (810195541) Rev B 620
BRAKE TRAVEL (2721420) Rev FA 622
MOTOR HYD PISTON VARIABLE 160 CC (810000090) Rev FA 628
5 2 CWT ASSY CARBODY-STANDARD PAINT (A159131) Rev B 634
5 3 OUTRIGGER CARBODY ASSY (A159151) Rev E 636
5 3 1 OUTRIGGER PAD SUB-ASSEMBLY (1754551) Rev FA 640
5 3 2 CYL HYD 42 00 STROKE DOUBLE ACTING (810017760) Rev FA 642
KIT, SEAL (90001207) 644
5 4 GREASE PIPING ASSY CRAWLERS (A159178) Rev G 646
5 4 1 KIT AUTO LUBE CRAWLERS (A181230) Rev D 650
PUMP GREASE ELEC 24 VDC/2 0A (A121370) 652
VALVE ASSY 6 BANK (A067160) Rev A 654
VALVE ASSY 14 BANK 125 NPTF (A182430) 656
5 5 GREASE PIPING ASSY TURNTABLE BEARING (A159181) Rev G 658
6 ATTACHMENTS 660
6 1 ANCHOR UNIV WR JOINT ASSY (0903171) Rev A 664
6 1 1 SOCKET/WEDGE ASSY 1 00 (6462460) Rev C 666
6 2 SHAFT ASSEMBLY JIB POINT (0903185) Rev C 668
6 3 UPPER BOOM POINT ASSY (1704191) Rev L 670
6 3 1 SHEAVE ASSY 30 DIA 1 125 ROPE (1712501) Rev F 672
6 3 2 SOCKET/WEDGE ASSY 1 00 (6462460) Rev C 674
6 4 DECAL DANGER BOOM SECTIONS (1759161) Rev FA 676
6 5 JIB #134 JIB STOP ASSY (1793321) Rev FB 678
6 5 1 WIRE ROPE GUIDE FOR JIB STOP (1793701) Rev A 682
6 6 JIB STOP #134 JIB STOP ASSY (1793327) Rev FA 684
6 6 1 WIRE ROPE GUIDE SUBASSY (1793891) Rev A 686
6 7 HOOK & WT BALL 15 TON 1150# 1WIRE ROPE (2182140) Rev FA 688
6 7 1 SOCKET/WEDGE ASSY 1 00 (6462460) Rev C 690
6 8 BLOCK 30 TON 1 0 ROPE (A184840) Rev B 692
6 9 CATWALK ASSY 12 0 M #76 INSERT (810166781) Rev B 694
6 10 CATWALK ASSY 9M #76 TOP (810166792) Rev B 696
6 11 CATWALK ASSY 5 5M #76 INSERT (810166801) Rev B 698
6 12 PLATFORM CATWALK ASSY (810166822) Rev B 700
6 13 CAT WALK ASSY 6M #76 INSERT (810169492) Rev B 702
6 14 MAST RAISING ASSY LIVE MAST (A158141) Rev F 704
6 14 1 MAST LIVE ASSY (A158151) Rev E 706
SHEAVE ASSY 20 DIA 1ROPE W/BEARING (1957089) Rev FA 710
STRAP ASSY (A163874) Rev A 712
6 14 2 CYL HYD 4 00 BORE X 53 00 STROKE (A161360) Rev D 714
KIT, SEAL (9372221086) 716
6 15 BUTT 5 5 M #76 ASSY (A161071) Rev J 718
6 15 1 GUIDE WIRE ROPE ASSY BOOM BUTT (A165971) Rev D 720
SHEAVE WIRE ROPE ASSY 1 0 26MM X 27OD (A167374) Rev C 722
6 15 2 BOOM STOP ASSY (A178671) Rev B 724
6 15 3 BOOM ANGLE INDICATOR ASSEMBLY (1687791) Rev FA 726
6 16 TOP ASSY #76, 9 00M (A161113) Rev G 728
6 16 1 GUIDE WIRE ROPE ASSY (A166319) Rev F 730
SHEAVE ASSY 27 00 1 125 (1767996) Rev D 732
6 16 2 BOOM POINT LOWER ASSY BOOM #76 (A166409) Rev H 734
SOCKET/WEDGE ASSY 1 00 (6462460) Rev C 736
SHEAVE ASSY 30 DIA FOR 1 00ROPE CAST (81033848) Rev A 738
6 17 INSERT 12 0 M #76 ASSY (A161153) Rev B 740
6 18 INSERT 6 0 M #76 ASSY (A161173) Rev B 742
6 19 INSERT 12 0 M #76 ASSY W/BACKSTAY LUG (A161233) Rev B 744
6 20 INSERT 5 50 M ASSY #76 W/AUX SHEAVES (A161693) Rev C 746
6 21 SHEAVE ASSY INSERT 5 50M #76 BOOM (A163951) Rev A 748
6 21 1 SHEAVE WIRE ROPE ASSY UPPER (A163961) Rev B 750
SHEAVE ASSY 24 1 0 ROPE (810171442) Rev C 752
6 21 2 SHEAVE WIRE ROPE ASSY LOWER (A163991) Rev B 754
SHEAVE ASSY 24 1 0 ROPE (810171442) Rev C 756
6 22 INSERT 3 0 M #76 ASSY (A166043) Rev B 758
6 23 GUIDE WIRE ROPE ASSY W/1 LINE OVR LWR PT (A166312) Rev F 760
6 24 ARRANGEMENT W/(2) SHEAVES IN BOOM PT (A166402) Rev H 762
6 24 1 SHEAVE ASSY 30 DIA FOR 1 00ROPE CAST (81033848) Rev A 764
6 25 DRUM LUFFING ASSY (A171761) Rev E 766
6 25 1 GEAR BOX PLANETARY BOOM HOIST (4652110) Rev B 769
BRAKE ASSY (2721510) 774
SEAL KIT GEARBOX (4652115) 776
BRAKE STACK/SEAL KIT (2721515) 780
6 25 2 MOTOR HYD PISTON VARI W/L2 & SPD SENSOR (A171460) Rev B 782
VALVE, SOLENOID (24V) (9632220674) 786
6 26 PAWL ASSY LUFFING HOIST (A177811) Rev C 788
6 26 1 PAWL SUBASSY (1933224) Rev FA 790
6 27 BOOM ASSY #76 LADDER STORAGE (A179621) Rev A 792
6 28 ANEMOMETER ASSY W/#134 FIX JIB (A181252) Rev H 794
6 29 ANEMOMETER ASSY INDICATOR (A181259) Rev H 796
6 29 1 SENSOR WIND SPEED (A044140) Rev FA 798
6 29 2 CONTROLLER ASSY WIND SPEED (A180590) Rev E 800
6 30 GANTRY ASSY (A197881) Rev C 802
6 30 1 LINK PENDANT W/290037 BUSHING (1766244) Rev B 808
6 30 2 SOCKET/WEDGE ASSY 7/8 (6462450) Rev A 810
6 30 3 BACKHITCH ASSY (A160601) Rev E 812
BACKHITCH PINPULLER ASSY (A161841) Rev A 814
6 30 4 LINK ASSY CWT HANDLING RH (A161624) Rev A 820
6 30 5 LINK ASSY CWT HANDLING LH (A161674) Rev A 822
6 30 6 ROLLER ASSY (A192001) Rev B 824
6 30 7 ROLLER ASSY (A192861) Rev A 826
6 30 8 ROLLER ASSY (A192881) Rev A 828
6 30 9 CYL HYD ASSY (A197951) Rev B 830
CYL HYD 8 0 BORE X 42 0 STROKE (A194990) Rev E 832
7 Recommended Spare Parts List 836
Part Number Index 837
