Manitowoc Crane 3900 Parts Manual SN 3929 PDF

Manitowoc Traditional Crane 3900 Parts Manual SN 3929 –  PDF DOWNLOAD

FILE DETAILS:

Manitowoc Traditional Crane 3900 Parts Manual SN 3929 –  PDF DOWNLOAD

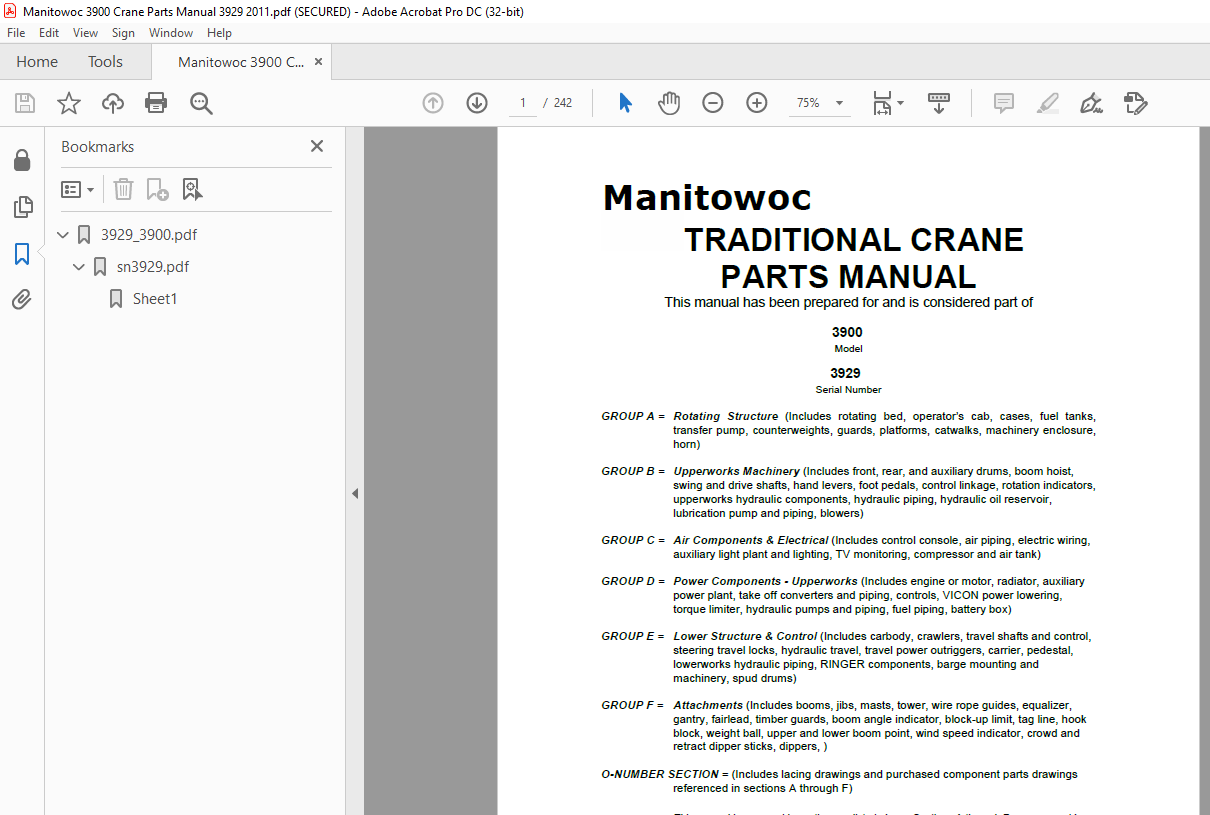

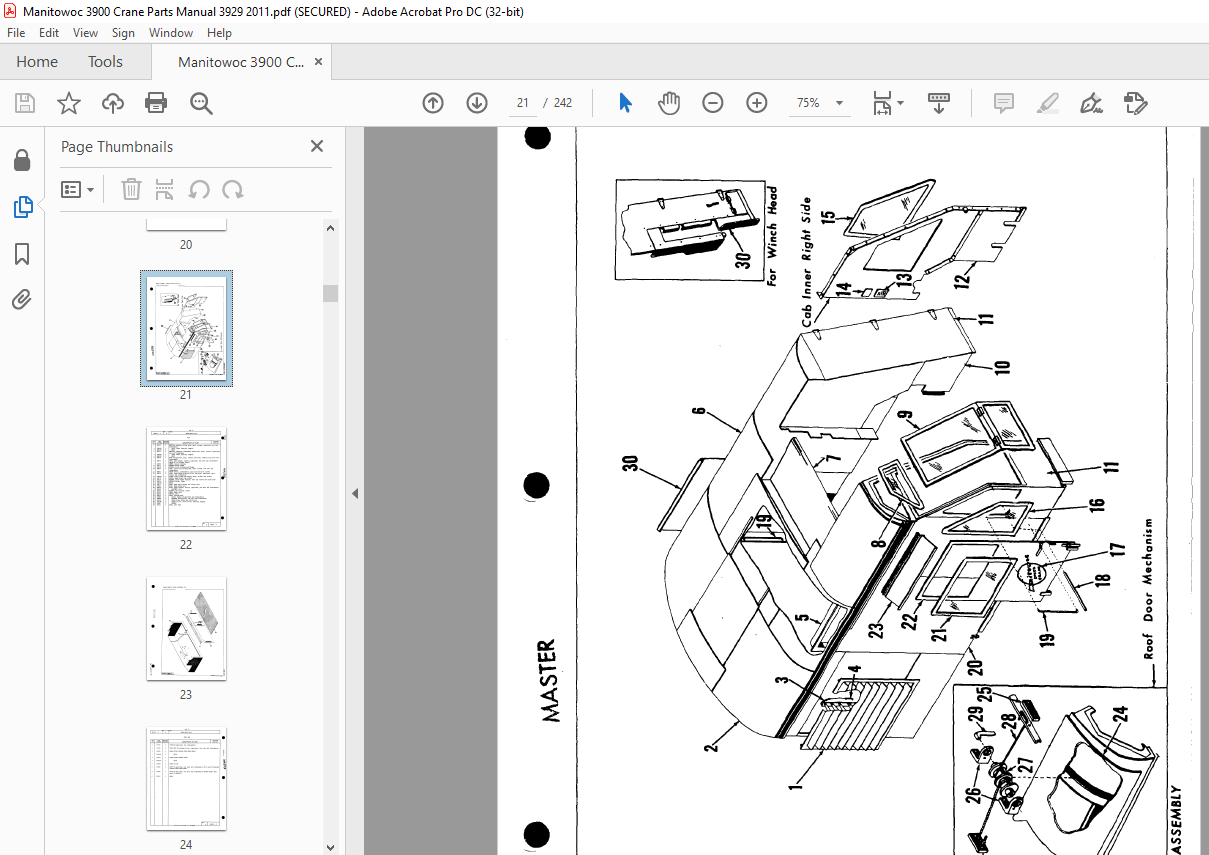

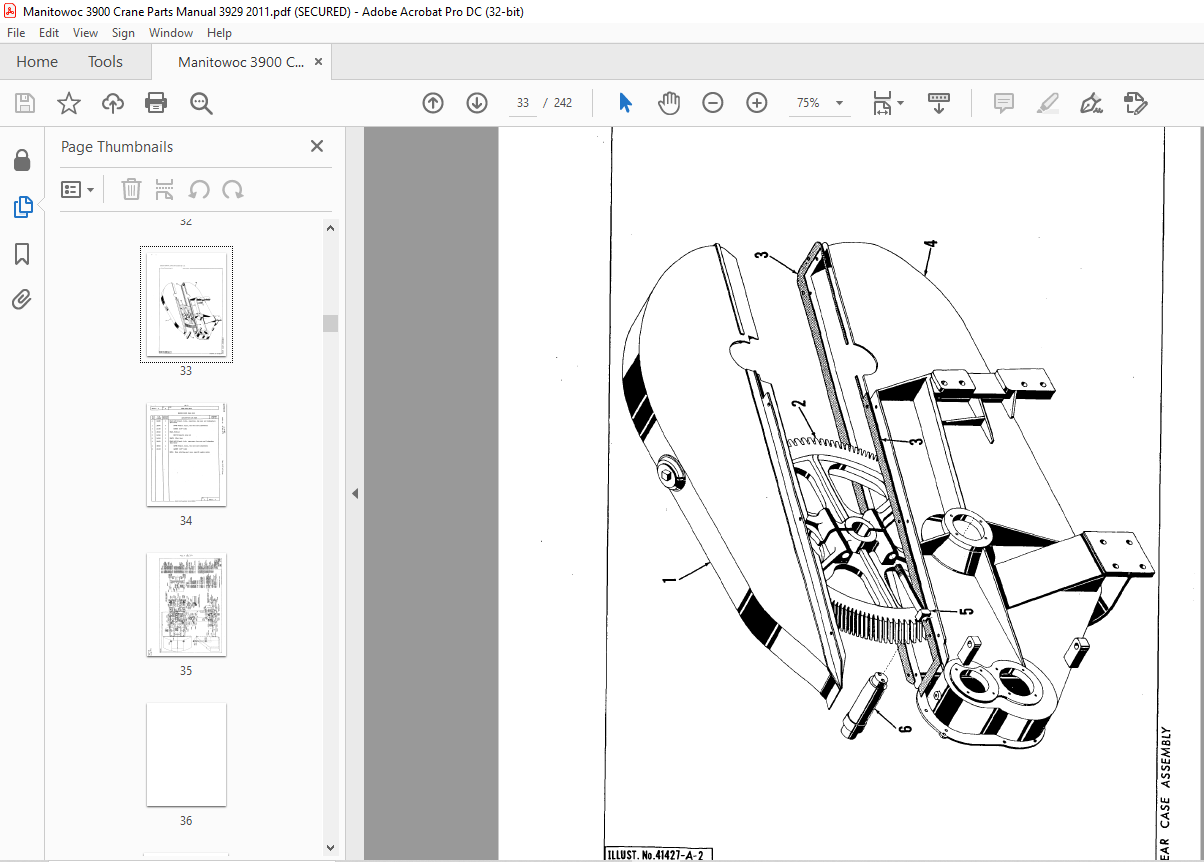

The Manitowoc Traditional Crane 3900 Parts Manual (SN 3929) in PDF format is an essential resource for maintenance. With detailed diagrams and genuine part details, it facilitates efficient repairs and servicing for the Manitowoc Traditional Crane 3900 with serial number 3929.

Language : English
Pages :242
Downloadable : Yes
File Type : PDF

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Manitowoc Traditional Crane 3900 Parts Manual SN 3929 –  PDF DOWNLOAD

PARTS MANUAL ALPHABETICAL INDEX
DESCRIPTION
PUBLICATION
REV
START DATE
END DATE
GROUP
“A” Frame
Air Piping
Air Piping
Air Piping
Air Piping
Boom
Boom Angle Indicator
Boom Hoist Auxiliary Brake
Boom Hoist Control, Independent
Boom Hoist Drive Shaft, Independent
Boom Hoist, Independent
Boom Point Sheave Guard
Boom Stop, Clutch Throw-Ou
Boom Stop, Mechanical
Boom Stop, Mechanical
Cab
Cab
Cab Lighting
Carbody
Carbody
Carbody
Carbody Lubrication Piping
Chain & Gear Case
Chain & Gear Case
Compressor & PipinG
Compressor & Piping
Compressor & Piping
Compressor & Piping
Control Console
Countershaft, Drum Drive
Crawlers
Dragline Fairlead
Drum Brake – Front
Drum Brake – Front
Drum Brake – Front
Drum Clutch Control/Band
Drum Clutch Control/Band
Drum Shaft – Front
Engine & Clutch Control
Engine & Clutch Control
Engine & Clutch Contro
Engine & Clutch Control
Guard Rollers On “A” Frame
Hand Levers
Hook & Weight Ball
Horizontal Travel Shaft
King Pin & Vertical Travel Shaft
Lubrication Pump & Piping (Sump)
Main Drive Shaft
Main Drive Shaft
Main Drive Shaft
Main Drive Shaft Control
Main Drive Shaft Control
Pendant Storage
Platform
Power Plant
Power Take Off – Transmission Case
Reduced Pressure Closing or Auto Take-Up
Rotating Bed Lubrication Piping
PARTS MANUAL ALPHABETICAL INDEX
DESCRIPTION
PUBLICATION
REV
START DATE
END DATE
GROUP
Rotating Bed/Hoist Frame/Transporter Platform
Slide Pinion Control
Slide Pinion Shaft (Intermediate Travel or Swing Shaft)
Steering Control
Steering Control
Swing Shaft
Tagline
Tool BoX
Travel Lock Control
Wire Rope Guard
Wire Rope Guide

GROUP A = Rotating Structure (Includes rotating bed, operator’s cab, cases, fuel tanks,
transfer pump, counterweights, guards, platforms, catwalks, machinery enclosure,
horn)
GROUP B = Upperworks Machinery (Includes front, rear, and auxiliary drums, boom hoist,
swing and drive shafts, hand levers, foot pedals, control linkage, rotation indicators,
upperworks hydraulic components, hydraulic piping, hydraulic oil reservoir,
lubrication pump and piping, blowers)
GROUP C = Air Components & Electrical (Includes control console, air piping, electric wiring,
auxiliary light plant and lighting, TV monitoring, compressor and air tank)
GROUP D = Power Components – Upperworks (Includes engine or motor, radiator, auxiliary
power plant, take off converters and piping, controls, VICON power lowering,
torque limiter, hydraulic pumps and piping, fuel piping, battery box)
GROUP E = Lower Structure & Control (Includes carbody, crawlers, travel shafts and control,
steering travel locks, hydraulic travel, travel power outriggers, carrier, pedestal,
lowerworks hydraulic piping, RINGER components, barge mounting and
machinery, spud drums)
GROUP F = Attachments (Includes booms, jibs, masts, tower, wire rope guides, equalizer,
gantry, fairlead, timber guards, boom angle indicator, block-up limit, tag line, hook
block, weight ball, upper and lower boom point, wind speed indicator, crowd and
retract dipper sticks, dippers, )
O-NUMBER SECTION = (Includes lacing drawings and purchased component parts drawings
referenced in sections A through F)
This manual is arranged in sections as listed above. Sections A through F are arranged by
group numerical order with an index after each section tab. An alphabetical index for groups
A Through F combined is located after the O-number Section. The O-number section is
arranged in numerical order by O-number. Following this cover page are the Basic
Specifications, Warranty Information, Tool List (if applicable) Outline Dimensions, Weights,
and Dealer Listing.
