Manitowoc Crane 3900 Parts Manual SN 39409 PDF

Manitowoc  Traditional Crane 3900 Parts Manual SN 39409 – PDF DOWNLOAD

The Manitowoc Traditional Crane 3900 Parts Manual (SN 39409) in PDF format is a vital guide for maintenance, offering detailed diagrams and genuine part information. Simplifying repairs and upkeep, it ensures efficient servicing for the Manitowoc Traditional Crane 3900 with serial number 39409.

FILE DETAILS:

Manitowoc  Traditional Crane 3900 Parts Manual SN 39409 – PDF DOWNLOAD

Language : English
Pages :242
Downloadable : Yes
File Type : PDF

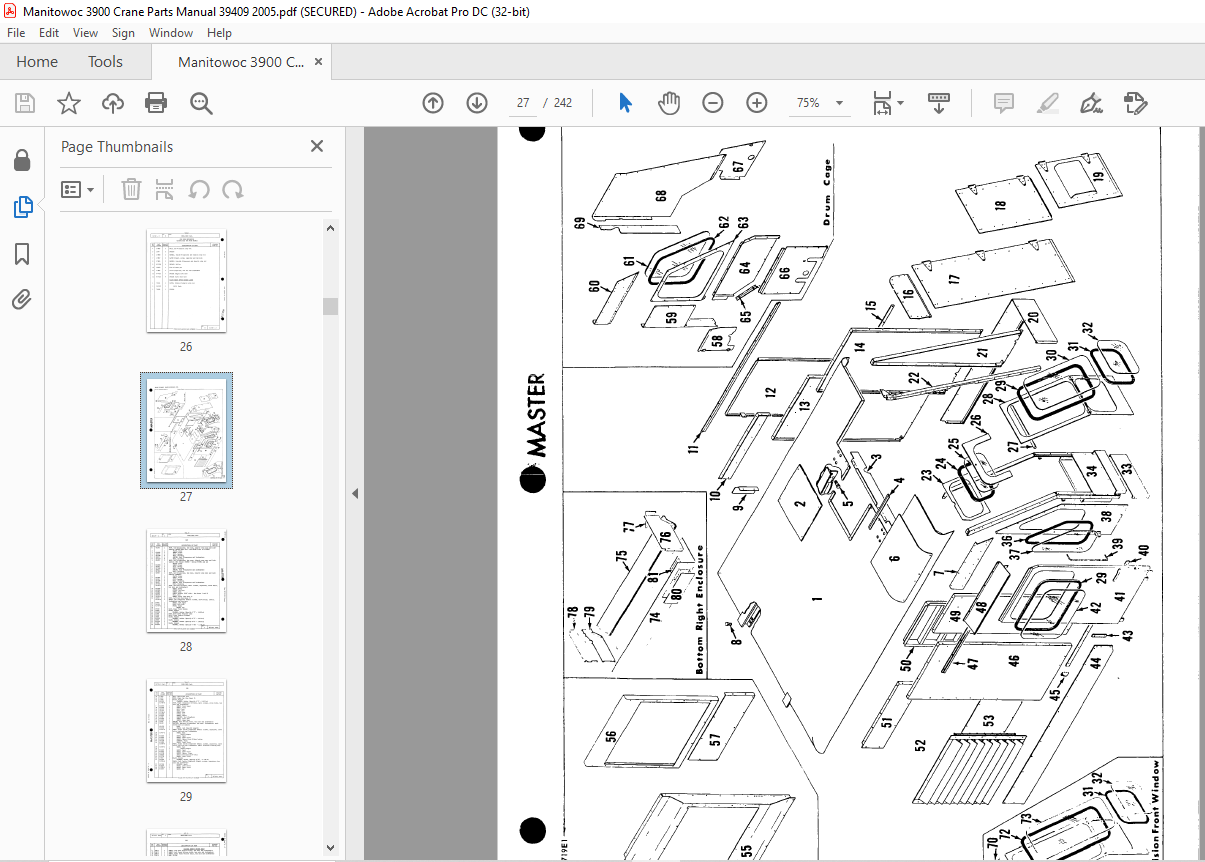

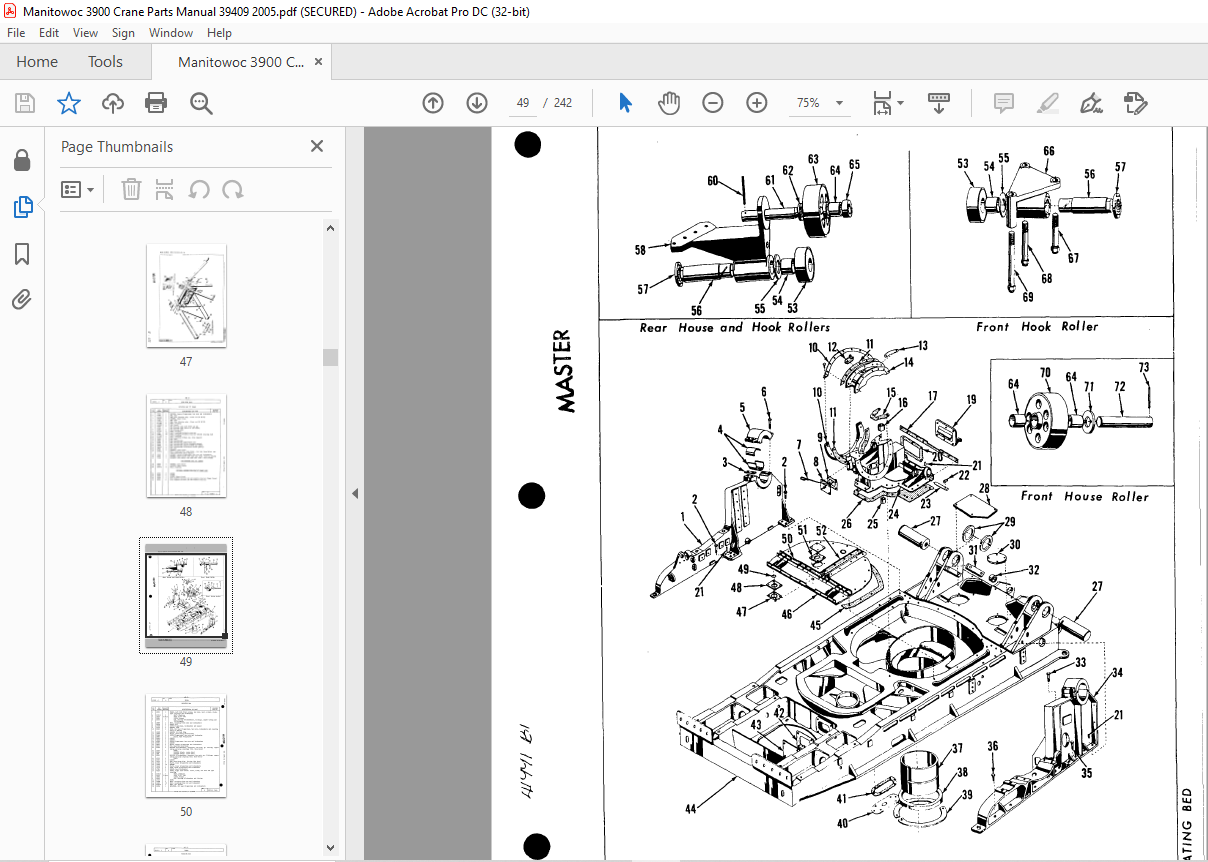

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Manitowoc  Traditional Crane 3900 Parts Manual SN 39409 – PDF DOWNLOAD

LIFTCRANE – (“A” machine) w/38″/Treads , outside crawler
chains, counterweight, 170′ No 6 boom, gantry & back
hitch, block and standard boom hoist
LIFTCRANE -(“B” machine) w/48″ Treads, counterweight,
170′ Ha 6 boom, gantry & back hitch, block and standard
boom hoist 235,833 Lbs
UPPER WORKS – (“A” machine) w/any engine, standard boom
hoist Less boom, gantry & back hitch and block 53,750_ Lbs
UPPER WORKS – (“B” machine) w/any engine, standard boom
hoist Less boom, gantry & back hitch and block 56,950 Lbs
CARBODY with Roller Path, Ring Gear & King Pin, less Crawlers 30,720 Lbs
CRAWLERS, 20′ 4″ w/48″ treads (Double weight for two) 23,620 Lbs
CRAWLERS, 20′ 4″ w/38″ treads (Double weight for two) 19,317 Lbs
NOTE: Outside Crawler Chain – ADD to each Crawler 1,500 Lbs
SELF-REMOVING COUNTERWEIGHT (3 piece)
Inner 28,810 or 32,000 Lbs
Middle 22,550 or 26,500 Lbs
Outer 11,970 or 15,500 Lbs
BOOM NO 6 – 100 Ton
Boom Butt 3,700 Lbs
Boom Top (Equipped) 5,310 Lbs
Boom Insert – 10 Feet 892 Lbs
Boom Insert – 20 Feet 1,815 Lbs
Boom Insert – 30 Feet ” 2,548 Lbs
BOOM NO 8 – 100 Ton
Boom Butt 3,260 Lbs
Boom Top (Equipped) : 4,930 Lbs
Boom Insert – 10 Feet 840 Lbs
Boom Insert – 20 Feet 1,750 Lbs
Boom Insert – 30 Feet 2,224 Lbs
GANTRY AND BACK HITCH STRAPS 3,840 Lbs
TAGLINE -Model 1248 Plus 754 Lbs
JIB – 30′ w/strut, less cable 1,570 Lbs
JIB – 50′ Light Sectional w/strut, less cable 1,925 Lbs
JIB – 50′ Tubular Sectional w/strut, less cable 1,920 Lbs
JIB – 40′ Heavy Sectional w/strut, less cable 2,950 Lbs
INSERT, Jib – Light Sectional – 10 Feet Incl Pendant & Hardware 210 Lbs
INSERT, Jib – Tubular Sectional – 10 Feet Incl Pendant & Hardware 265 Lbs
INSERT, Jib – Heavy Sectional – 10 Feet Incl Pendant & Hardware 425 Lbs
BLOCK ASSEMBLY – 100 Ton 1,455 Lbs
DRAGLINE FAIRLEAD w/Guide Rollers, Strut and Dirt Pan 1,850 Lbs
DRAGLINE FAIRLEAD w/Cheek Plates, Strut and Dirt Pan 1,800 Lbs
IND BOOM HOIST in place of Standard – ADD 1,950
IND SWING AND SWING LOCK – ADD 1,947

GROUP A = Rotating Structure (Includes rotating bed, operator’s cab, cases, fuel tanks,
transfer pump, counterweights, guards, platforms, catwalks, machinery enclosure,
horn)
GROUP B = Upperworks Machinery (Includes front, rear, and auxiliary drums, boom hoist,
swing and drive shafts, hand levers, foot pedals, control linkage, rotation indicators,
upperworks hydraulic components, hydraulic piping, hydraulic oil reservoir,
lubrication pump and piping, blowers)
GROUP C = Air Components & Electrical (Includes control console, air piping, electric wiring,
auxiliary light plant and lighting, TV monitoring, compressor and air tank)
GROUP D = Power Components – Upperworks (Includes engine or motor, radiator, auxiliary
power plant, take off converters and piping, controls, VICON power lowering,
torque limiter, hydraulic pumps and piping, fuel piping, battery box)
GROUP E = Lower Structure & Control (Includes carbody, crawlers, travel shafts and control,
steering travel locks, hydraulic travel, travel power outriggers, carrier, pedestal,
lowerworks hydraulic piping, RINGER components, barge mounting and
machinery, spud drums)
GROUP F = Attachments (Includes booms, jibs, masts, tower, wire rope guides, equalizer,
gantry, fairlead, timber guards, boom angle indicator, block-up limit, tag line, hook
block, weight ball, upper and lower boom point, wind speed indicator, crowd and
retract dipper sticks, dippers, )
O-NUMBER SECTION = (Includes lacing drawings and purchased component parts drawings
referenced in sections A through F)
This manual is arranged in sections as listed above. Sections A through F are arranged by
group numerical order with an index after each section tab. An alphabetical index for groups
A Through F combined is located after the O-number Section. The O-number section is
arranged in numerical order by O-number. Following this cover page are the Basic
Specifications, Warranty Information, Tool List (if applicable) Outline Dimensions, Weights,
and Dealer Listing.
