The Manitowoc Crane 8000 (Tier 3 Engine) Parts Manual (SN 8501000) in PDF format is a vital resource for maintenance and repairs. Detailed insights into components aid in efficient troubleshooting and part identification. Download for essential reference, ensuring peak performance of the Manitowoc Crane 8000.

Model 8000 and Model 8500
Tier 2 (S/N 8501001 through 8501017)
Tier 3 (S/N 8501018 and up.)

FILE DETAILS:

Manitowoc Crane 8000 (Tier 3 Engine) Parts Manual 8501000 – PDF DOWNLOAD

Language : English
Pages :1241
Downloadable : Yes
File Type : PDF

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Manitowoc Crane 8000 (Tier 3 Engine) Parts Manual 8501000 – PDF DOWNLOAD

ROTATING STRUCTURE
6 9999407547 FAN ASSY 3
(OPTION)
7 9999407613 HOIST ASSEMBLY 5
BOOM HOIST
21 9999423802 SWING BEARING LUB. LINES 9
24 9999425385 FLOOR PLATE ASSY 11
25 9999423455 PUMP HYD.LINES 13
(SUCTION)
26 9999423456 PUMP HYD.LINES 15
(CONTROL)
27 9999423525 HYD LINES, DELIVERY 17
(DELIVER)
9999405345 FILTER, INLINE 19
29 9999429404 RH DECK HYD LINES 25
32 9999423767 MAIN VALVE HYD.LINES 31
33 9999428373 GANTRY CYLINDER HYD. LINE 35
9999428444 CONNECTOR ASSY 37
(GANTRY VALVE)
34 9999428371 SWING CONTROL HYD. LINES 41
36 9999423171 FLOOR CONTROL HYD. LINES 45
37 9999407789 CONTROL LINES, FLOOR 49
(WITH FREE FALL)
40 9999408077 HYD LINES, RETURN 51
(WITH FREE FALL)
41 9999423531 DRAIN LINES 55
43 9999423214 WINCH HYD. LINES 59
(FOR RONT&REAR DRUM)
44 9999423216 WINCH HYD. LINES 61
(FOR BOOM DRUM)
46 9999429944 PANEL ASSY CONSOLE SWING FREE 63
49 9999428589 OIL COOLER HYD.LINES 65
51 9999423086 LOWER HYD. LINES 67
56 9999428579 HYD.OIL COOLING@LINES 73
9999423226 CONNECTOR ASSY 77
9999423241 CONNECTOR ASSY 79
57 9999429943 PANEL ASSY CONSOLE LH STAND 81
PUMP ASSY, HYD HOIST 83
62 9999430568 PUMP ASSY, HYD 85
73 9999430556 GUARD INSTAL 89
9999407300 MIRROR 91
9999428035 INSULATION ASSY 93
(L.H. GUARD)
9999429460 GUARD ASSY, LH 95
9999427833 L.H. GUARD ASSY 97
9999427841 INSULATION ASSY 101
(L.H. GUARD)
9999427842 INSULATION ASSY 105
(L.H. GUARD)
9999429407 LH GUARD ASSY 109
9999427833 L.H. GUARD ASSY 113
9999427841 INSULATION ASSY 117
(L.H. GUARD)
9999427842 INSULATION ASSY 121
(L.H. GUARD)
9999429407 LH GUARD ASSY 125
74 9999430416 GUARD INSTAL LH GUARD 129
W/OUT THIRD DRUM
75 9999427425 COVER ASSY, DRUM 133
9999423379 COVER ASSY, DRUM 137
76 9999423337 SWING BEARING COVER 139
78 9999429949 COVER ASSY UNDER 141
9999429950 COVER ASSY UNDER 143
79 9999429543 RH DECK ASSY 147
80 9999429542 RH DECK INSTAL CAB BTM 149
9999429558 STEP ASSY 151
81 9999429544 LH DECK INSTAL 155
82 9999428399 GUARD ASSY 157
(FRONT)
9999427896 FRONT GUARD ASSY 159
83 9999430557 COVER ASSY, DRUM 161
16mm ROPE DRUM
84 9999423396 COVER ASSY 163
(SWING FRAME)
COVER ASSY 165
(SWING FRAME)
88 9999430458 PUMP ASSY, GEAR 167
AUX. ACTUATOR
89 9999430459 PUMP ASSY, GEAR 169
COOLER
9999421479 PUMP ASSEMBLY – HYDRAULIC GEAR 171
94 9999423794 LUB. LINES 173
(FRONT/REAR)
95 9999423793 LUB.LINES 175
(BOOM)
117 9999423670 WASHER TANK ASSY 177
118 9999428367 WASHER TANK INSTAL 179
121 9999429924 CAB INSTAL PIPE CAB/STD 183
9999429846 CAB ASSY 191
9999422656 SASH ASSY 197
9999427371 LOCK ASSY 199
9999427352 ROLL BLIND 201
9999427399 SUN VISOR ASSY 203
9999427382 DOOR ASSY 207
9999427375 RUBBER SHEET ASSY 211
(OPERATORS ROOM)
122 9999428340 WIPER INSTAL 213
(FOR FRONT LOWER WINDOW)
123 9999428359 R.H. GUARD INSTAL 215
9999428360 R.H. GUARD ASSY 219
124 9999423408 COVER ASSY 221
129 9999430563 DECK ASSY 223
9999428088 DECK ASSY, L/H 225
9999428438 DECK ASSY, R/H 227
152 9999428354 BACKSTOP ASSY 229
9999428355 BOOM BACKSTOP ASSY 231
185 9999408332 DRUMLOCKLUB.LINES 233
190 9999423568 HYDRAULIC LINES INSTALLATION-CARRIER 237
191 9999425592 HYD LINES ASSY 241
9999425490 HYD.LINES ASSY 245
194 9999427732 HYD. LINES ASSY 247
9999424265 VALVE INSTALLATION 249
9999424121 ACCUMULATOR INSTALLATION 251
LINES
9999424267 VALVE INSTALLATION 253
9999427743 4-SECTION VALVE HYD. LINES 255
(MOTOR BRAKE)
195 9999408205 HYDRAULIC LINES INSTALLATION-CARRIER 257
9999423243 CONNECTOR ASSY 259
199 9999407870 HYDRAULIC LINES INSTALLATION-CARRIER 261
200 9999423218 HYDRAULIC LINES INSTALLATION-CARRIER 263
205 9999425545 DRUM COVER ASSY 265
216 9999423688 COUNTERWEIGHT ASSY 267
218 9999429958 FRAME ASSY UPP 269
9999428591 RUBBER ASSY 273
219 9999423700 C/W REMOVALE DEVICE 277
(OPTION)
9999408222 PIN ASSY 279
220 9999425615 C/W REMOVAL DEVICE(OPTION) 283
221 9999429413 C/W REMOVAL DEVICE 287
222 9999428374 C/W REMOVAL HYD. LINES 291
(C/W REMOVAL DEVICE)
223 9999428583 HYD LINES, C/W 293
(OPTION)
231 9999425497 LABEL ASSY 295
234 9999429420 A/C INDOOR UNIT 299
9999423252 AIR CONDITIONER UNIT 303
235 9999428580 AIR CONDITIONER 309
(OUTDOOR UNIT)
9999428771 CONDITIONER ASSY,AIR 313
9999423258 COVER ASSY 315
236 9999428375 UPPER FINAL 319
237 9999423791 UPP FINAL 321
(ENGINE CONTROL SWITCH)
9999425653 UPPER FINAL 323
9999425562 SEAT ASSY 325
239 9999428377 UPPER FINAL 327
9999407300 MIRROR 329
240 9999429736 UPPER FINAL PEDAL COVER 331
241 9999428376 UPPER FINAL 333
(ANTI-SLIP)
242 9999429415 UPPER FINAL 335
246 9999427904 RADIO INSTAL 337
(COVER)
247 9999429422 RADIO INSTAL OPTION 339
249 9999425415 CALL ASSY/ONE-WAY 341
(OPTION)
251 9999424223 GRIP INSTALLATION – DRUM TURN SENSOR 343
(FOR DRUM TURN DETECT/OPTION)
9999407221 GRIP ASSY 345
252 9999428362 HANDRAIL INSTAL 347
(OPTION)
253 9999425561 GUARD INSTAL 349
(LEFT WINDOW/OPTION)
9999425434 GUARD ASSEMBLY 351
254 9999425599 MIRROR INSTAL 353
(OPTION)
255 9999429568 MIRROR INSTAL 355
258 9999429962 CAMERA INSTAL RR MONITOR 359
9999425334 CAMERA 361
263 9999425401 HEAD GUARD 363
(OPTION)
264 90012731 HANDRAIL ASM (8500) 365
265 9999429973 HANDRAIL ASSY TOP FACE OF LH GUARD 367
266 90012732 HANDRAIL ASM (8500) 369
267 9999429974 HANDRAIL ASSY TOP FACE OF RH GUARD 371
268 90012733 HANDRAIL ASM (8500) 373
269 9999429952 PLATFORM ASSY, AUX 377
9999429953 PLATFORM ASSY AUX 381
270 9999429954 PLATFORM ASSY, AUX 385

STEP ASSY RH DECK 387
271 9999429946 PANEL ASSY DUST PROOF PANEL 389
272 9999425663 LEVEL GAUGE INSTAL 391
(OPTION)
9999407516 LEVELGAUGE INSTAL 393
273 9999427901 LIFE HAMMER INSTAL 395
(OPTION)
277 9999406133 PLATE ASSY 397
278 9999425673 DRUM TURN SENSOR INSTAL 399
9999422717 SENSOR 401
UPPERWORKS MACHINERY
2 9999427404 WINCH INSTAL 403
(BOOM)
3 9999427405 WINCH INSTAL 405
(BOOM)
4 9999430460 MOTOR ASSY, HYD BOOM 407
9999407847 MOTOR ASSY, HYD. 409
5 9999430551 SHAFT ASSY 411
16 9999425571 SWING REDUCT INSTAL 413
9999421465 SWING REDUCT INSTAL 415
17 9999408081 REDUCTION ASSY,SWING 417
9999408079 REDUCTION ASSY,SWING 421
18 9999430461 MOTOR ASSY, SWING 425
28 9999429979 CNTRL LINES, VALVE RH DECK 427
9999424118 ACCUMULATOR HYD. 429
LINES
9999424258 VALVE INSTALLATION 431
(FUNCTION CUT/SWING PARKING BRAKE)
9999426185 8-SECTION VALVE INSTAL 433
9999426145 RETURN BLOCK @HYD LINES 435
HYD.LINES
9999426184 5-SECTION VALVE INSTAL 437
9999428400 4-SECTION VALVE INSTAL 441
30 9999430570 VALVE, CONTROL 443
MAIN / PROPEL
31 9999430571 VALVE ASSY, CONTROL 445
VALVE ASSY, CONTROL 447

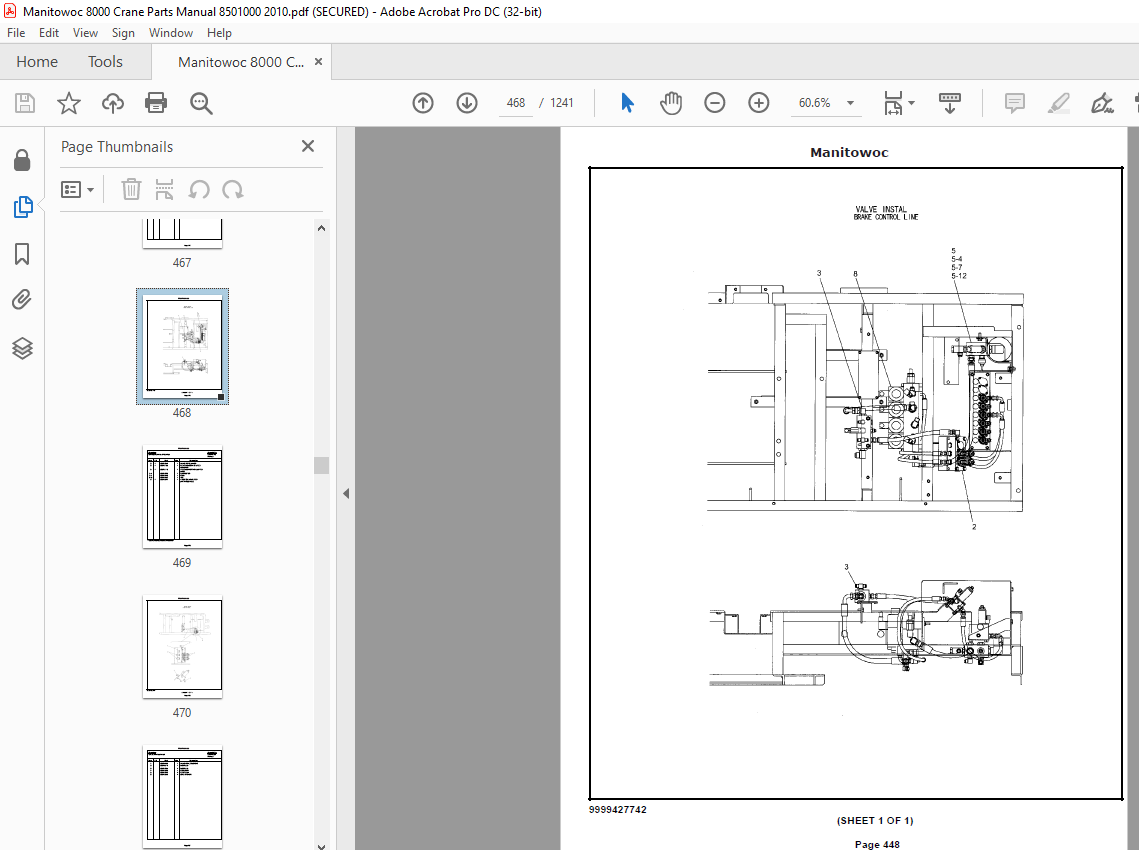

39 9999427742 BRAKE CONTROL HYD.LINES 449
9999424264 VALVE INSTALLATION 451
9999424193 RETURN BLOCK HYD. LINES 453
HYD.LINES
9999424119 ACCUMULATOR INSTALLATION 455
LINES
9999425647 4-SECTION VALVE ASSY 457
(WITH FREE FALL)
42 9999423766 2 SECTIONS VALVE 459
(2nd TRAVEL SPEED)
47 9999423764 VALVE INSTAL 463
48 9999430559 VALVE ASSY, CONTROL 465
9999407100 VALVE CONTROL 467
50 9999429403 CLAMP ASSY 469
52 9999423677 SWIVEL JOINT INSTAL 473
54 9999428391 HYD. OIL TANK ASSY 475
(FOR FREE FALL)
55 9999430566 TANK ASSY, HYD 477
9999430567 TANK ASSY, HYD 481
65 9999428614 COUPLING 483
148 9999422992 WINCH INSTALLATION – FRONT 487
(WITH FREE FALL)
149 9999429931 WINCH INSTAL W/ FREE/AUX 491
150 9999429932 WINCH INSTAL W/ FREE/AUX 493
157 9999422994 HOIST ASSEMBLY 497
(FRONT)
158 9999430569 MOTOR ASSY, HYD 499
FOR THIRD WINCH
163 9999422995 HOIST ASSEMBLY 503
(REAR)
176 9999407612 WINCH ASSY 505
9999421464 REDUCTION UNIT ASSY 507
187 9999425427 WINCH INSTAL 511
188 9999425428 WINCH INSTAL 515
189 9999425429 WINCH ASSY 517
VALVE ASSY, CNTRL 519
JIB / THIRD
196 9999423172 HYDRAULIC LINES INSTALLATION-CARRIER 521
197 9999423173 HYDRAULIC LINES INSTALLATION-CARRIER 523
198 9999407790 HYDRAULIC LINES INSTALLATION-CARRIER 525
202 9999423570 PLUG ASSY 527
203 9999429965 SHEAVE ASSY GANTRY 529
CONTROLS, AIR/ELECTRICAL
8 9999427900 CONTROL ASSY 533
9 9999429977 LEVER ASSY CNTRL 537
RH STAND/MAIN AUX BOOM
9999421467 GRIP ASSY 539
(BOOM)
10 9999427847 CONTROL LEVER ASSY 543
(SWING)
9999427830 PANEL ASSY, L/H 547
(BYPASS SWITCH)
11 9999430695 LEVER ASSY, CONTROL ENG 551
9999430554 PANEL ASSY, LH 555
12 9999428363 CONTROL LEVER ASSY 559
(CRAWLER)
9999423573 LEVER ASSY, CONTROL 561
(CRAWLER)
13 9999426153 CONTROL LEVER ASSY (PROPEL) 563
(PROPEL)
14 9999424216 CONTROL LEVER ASSY (PROPEL) 565
(PROPEL)
LOCK)
15 9999424256 REMOTE CONTROL V.INSTAL 567
(BOOM/FRONT/REAR)
22 9999428586 SWING LOCK ASSY 571
23 9999408768 PEDAL ASSEMBLY 575
35 9999429966 CNTRL LINES SWING 579
45 9999428577 PANEL ASSY 581
9999428578 PANEL ASSY 583
77 9999429923 MONITOR INSTAL GAUGE CLUSTER 585
90 9999430693 ELEC ASSY BYPASS SWITCH 587
Item Part Description Page
91 9999424271 LAMP ASSY INSTAL 589
(WITH FREE FALL)
92 9999423810 DRUM LOCK ASSY 591
(FRONT/REAR)
93 9999423809 DRUMLOCK ASSY 593
(BOOM)
96 9999427822 ELEC ASSY 597
(R.H. DECK)
9999427840 JUNCTION BOX ASSY 599
97 9999429940 HARNESS ASSY LH DECK 603
98 9999429971 HARNESS ASSY RH DECK 605
99 9999428343 ELEC ASSY 609
(REV. FRAME)
9999423588 SWITCH ASSEMBLY – LIMIT 611
(BASE MACHINE SIDE)
100 9999429936 HARNESS ASSY REV FRAME 613
101 9999429937 HARNESS ASSY REV FRAME 615
102 9999427821 ELEC ASSY 619
(FLOOR PLATE)
103 9999429938 HARNESS ASSY FLOOR 621
104 9999429939 HARNESS ASSY FLOOR 623
105 9999430694 HARNESS ASSY FLOOR 627
106 9999427728 RELAY BOX ASSY 629
107 9999429976 RELAY BOX ASSY 631
108 9999430696 RELAY BOX ASSY 633
109 9999429975 RELAY BOX ASSY 635
110 9999430697 RELAY BOX ASSY ADD RELAY 637
111 9999427820 ELEC ASSY 639
(L.H. GUARD)
112 9999429935 HARNESS ASSY LH GUARD 641
113 9999428351 ELEC ASSY 645
(CAB)
9999428347 PANEL ASSY 647
(LEFT SIDE)
114 9999429972 HARNESS ASSY CAB 649
115 9999429393 ELEC ASSY LH DECK 655
9999429473 RELAY ASSY 659
Item Part Description Page
116 9999429941 HARNESS ASSY ENGINE 663
119 9999423798 BATTERY INSTALLATION 665
120 9999423800 BATTERY ASSY 667
(STD. 150AH)
181 9999429919 HARNESS ASSY 669
182 9999427899 CONTROL ASSY 671
183 9999423118 CONTROL ASSY 675
9999408184 PEDAL ASSEMBLY 677
184 9999408348 DRUMLOCK ASSY 681
186 9999429421 POTENTIOMETER 683
206 9999425942 HARNESS ASSY 685
207 9999429928 ELEC ASSY GANTRY 687
208 9999429929 ELEC ASSY BASE MACHINE 689
213 9999429956 SWITCH ASSY LIMIT HOOK OVERHOIST 693
9999429957 SWITCH ASSY LIMIT 695
214 9999429922 SWITCH ASSY 697
LIMIT FOR AUX SHEAVE & JIB
9999429957 SWITCH ASSY LIMIT 699
215 9999430558 MOMENT LIMITER ASSY 701
217 9999423616 SWING ALARM LAMP 703
224 9999422963 REMOTE CONTROL ASSY 705
248 9999429926 CALL ASSY ONE-WAY 707
COVER FOR EXPORT MODEL
250 9999427903 SWITCH INSTAL 709
(FOR DRUM TURN SENSOR/OPTION)
256 9999429963 CAMERA INSTAL DRUM MONITOR 713
9999425335 CAMERA 715
257 9999429961 CAMERA INSTAL BOOM DRUM MONITOR 719
9999425335 CAMERA 721
259 9999428338 MONITOR INSTAL 727
9999425276 SWITCH BOX ASSY 731
9999428339 TELEVISION MONITOR 733
260 9999425290 MONITOR INSTAL 737
Item Part Description Page
274 9999429964 PEDAL ASSY, BOOM HOIST/LH SIDE 743
275 9999423672 PEDAL ASSY 745
(RIGHT/OPTION)
276 9999427850 PEDAL ASSY 747
(LIGHT&LEFT/OPTION)
POWER PLANT
58 9999429934 ENGINE INSTAL 753
59 9999428726 ENGINE, HINO 757
60 9999428585 PUMP ASSY 759
63 9999430560 POWER DIVIDER 763
64 9999428588 POWER DIVIDER 767
66 9999429942 MUFFLER INSTAL 769
67 9999429947 FUEL LINES ENGINE/STD 773
68 9999429948 FUEL LINES ENGINE 777
69 9999428572 RADIATOR INSTAL 779
70 9999428740 RASIATOR ASSY 781
71 9999430553 CLEANER ASSY, AIR 783
72 9999428762 CLEANER ASSY, AIR 785
85 9999423274 PUMP INSTALLATION – FUEL 787
86 9999407892 TANK ASSEMBLY – FUEL 791
87 9999430555 TANK INSTAL, FUEL STD 793
201 9999427456 CLUTCH VALVE INSTAL 795
LOWERWORKS
19 9999423560 SWING BEARING ASSY 797
20 9999430561 BEARING ASSY, SWING 799
53 9999421656 SWIVEL JOINT 801
125 9999429955 DRIVE ASSY, CRAWLER 803
9999430096 REDUCT ASSY, PROPEL 805
9999429959 REDUCT ASSY PROPEL 807
9999429959 REDUCT ASSY PROPEL 811
126 9999430562 TUMBLER 815
127 9999407301 IDLER ASSY 817
128 9999422943 IDLER ADJUST ASSY 819
130 9999429967 ROLLER ASSY 821
Item Part Description Page
9999427314 UPPERROLLER ASSY 823
9999429921 ROLLER ASSY 825
131 9999422977 COVER ASSEMBLY – FRAME 827
132 9999422980 LINK ASSY 829
134 9999423563 STEP ASSY 831
135 9999429933 AXLE ASSY CARBODY 835
136 9999428563 LOWER FRAME 837
137 9999423697 SHOE ASSY(36ff) 839
CRANE ATTACHMENTS
1 9999407674 TRAVELING KIT 841
(OPTION)
133 9999422989 CYLINDER ASSY 843
138 9999423093 LOW.BOOM ASSY 845
9999423763 SPREADER GUIDE ASSY 847
9999427454 UPP.SPREADER ASSY 849
9999423589 SWITCH ASSEMBLY – LIMIT 851
(BOOMSIDE)
9999408197 ANGLE METER INSTAL 853
139 9999429405 UPP BOOM ASSY 855
9999423743 SHEAVE ASSY, B.POINT 857
9999423744 SHEAVE ASSEMBLY – IDLER 859
9999401069 ROLLER ASSY, GUIDE 861
140 9999423141 INSERT BOOM(10ft) 863
141 9999423142 INSERT BOOM(20ft) 865
142 9999407762 INSERT BOOM(40ft) 867
143 9999407763 INSERT BOOM(40ft WITH RUG) 869
144 9999400742 BOOMGUY CABLE 871
(BASE)
145 9999430182 GUY CABLE ASSY 10FT INSERT 873
9999408646 BOOMGUY CABLE 875
(10ft)
146 9999430183 GUY CABLE 20FT INSERT 877
9999408648 BOOMGUY CABLE 879
(20ft)
147 9999408327 BOOMGUY CABLE 881
(40ft)
XII
Manitowoc
Manitowoc Cranes

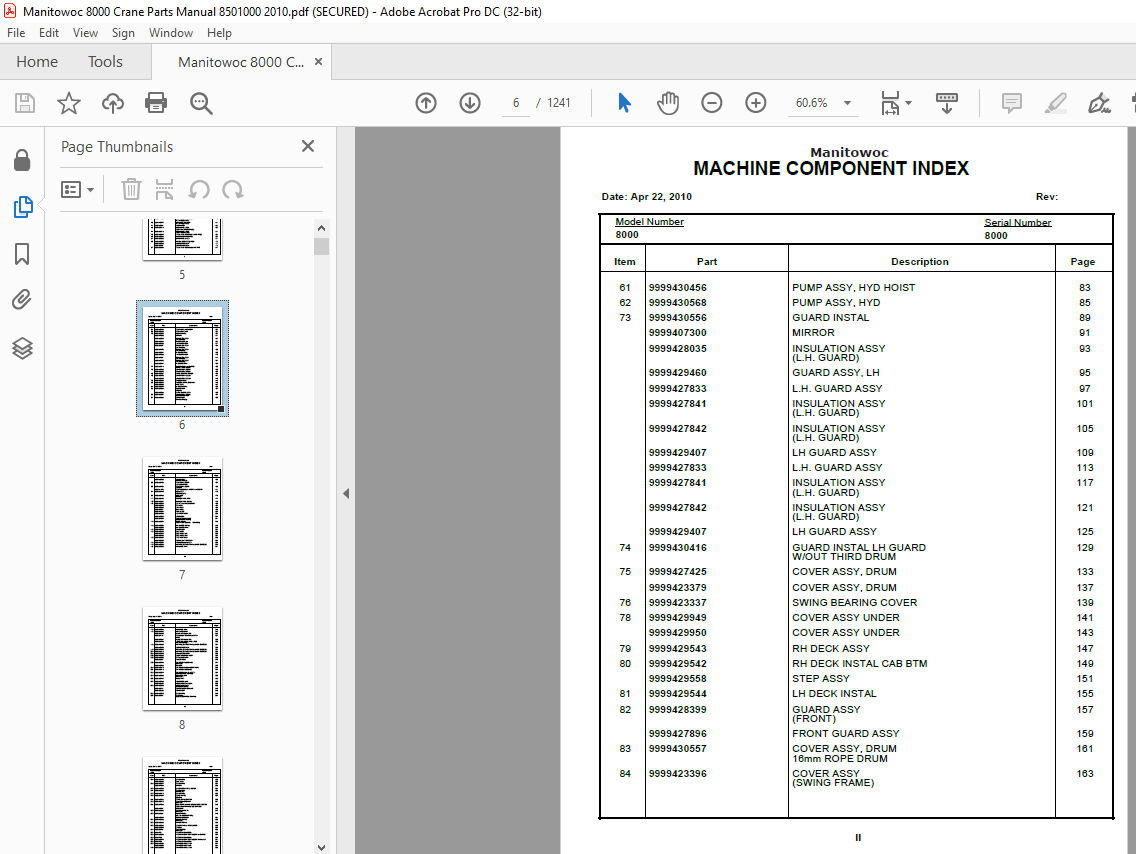

MACHINE COMPONENT INDEX
Date: Apr 22, 2010 Rev:
Model Number
8000
Serial Number
8000
Item Part Description Page
151 9999408209 CABLE ROLLER ASSY 883
153 9999407827 JIB ASSY 885
9999408288 SHEAVE ASSY, J.POINT 887
9999407855 STRUT ASSY, JIB 889
154 9999407836 INSERTJIB 891
(10ft)
155 9999401379 INSERTJIB 893
(20ft)
156 9999408328 CABLE – JIB GUY 895
159 9999408329 CABLE – JIB GUY 897
(10ft INSERT BOOM)
160 9999430185 GUY CABLE ASSY 20FT INSERT JIB 899
9999404251 CABLE – JIB GUY 901
(20ft INSERT BOOM)
161 9999425132 GUIDE ROLLER ASSY 903
(FOR INSERT JIB)
162 9999408255 SHEAVE ASSY, AUX 905
164 9999429978 WIRE 907
165 9999429417 WIRE ROPE ASSY MAIN 909
9999401111 SOCKET ASSY 911
166 9999429418 WIRE ROPE ASSY AUX 913
9999401111 SOCKET ASSY 915
167 9999429416 WIRE ROPE ASSY BOOM 917
168 9999429968 WIRE ROPE ASSY FRT 919
9999401111 SOCKET ASSY 921
169 9999429969 WIRE ROPE ASSY RR 923
9999401111 SOCKET ASSY 925
170 9999400757 ROPE 927
171 9999407545 BALL, HOOK 929
172 90000631 HOOK BLOCK 931
173 9999421257 HOOK BLOCK 933
174 9999429927 HOOK BLOCK 937
55t/FOR MACHINE TO ASIA, AFRICA
175 9999428557 HOOK BLOCK 939
Item Part Description Page
177 9999430564 GANTRY ASSY 943
9999408312 LOWER SPREADER ASSY 945
9999423801 GANTRYLUB.LINES 947
9999430565 GANTRY ASSY, SUB 951
178 9999427446 GANTRY ASSY 955
179 9999428366 TAGLINE HYD. LINES 959
9999425419 TAGLINE ASSY 961
180 9999428380 TAGLINEGUIDE ASSY 963
9999408347 GUIDESHEAVE ASSY 965
9999421740 SHEAVE ASSY 967
204 9999407474 IDLER SHEAVE ASSY 969
209 9999425937 SAFETY DEVICE HARNESS 971
(BOOM ANGLE SENSOR INSTAL)
210 9999428353 OVERHOIST PREVENTVE DEVICE 975
(FOR BOOM BASE & IN SERT BOOM)
211 9999428352 OVERHOIST PREVENTIVE DEVICE 979
(FOR BOOM TIP)
212 9999425454 SAFETY DEVICE HARNESS 981
(FOR JIB)
225 9999429197 LABEL ASSY. 987
9999429198 LABEL ASSY. 993
226 9999429196 LABEL ASSY. 997
227 9999429419 LABEL ASSY THIRD 1003
228 9999425391 LABEL ASSY 1005
229 9999425392 LABEL ASSY 1007
230 9999429925 LABEL ASSY 1009
FOR INDICATING MTG DIRECTION OF UPPER
BOOM ROPE SOCKET
232 9999429200 LABEL ASSY. 1011
233 9999429945 LABEL ASSY 1013
FOR BOOM W/ TOP&BOTTOM SURFACE
243 9999430552 TOOL ASSY 1015
244 9999427843 SPARE PARTS KIT 1017
245 9999427844 SPARE PARTS KIT 1019
262 9999408333 EXTINGUISHER INSTAL 1021
Item Part Description Page
279 2182140 BALL ASSEMBLY – 15 TON OVERHAUL 1023
(COMPLETE ASSEMBLY)
280 A10617 HOOK BLOCK ASSEMBLY – 50 TON 1025
3 SHEAVE
(COMPLETE ASSEMBLY)
281 A10619 BALL ASSEMBLY – 12 TON OVERHAUL 1027
(COMPLETE ASSEMBLY)
282 A10621 BALL ASSEMBLY – 7 TON OVERHAUL 1029
(COMPLETE ASSEMBLY)
283 A10622 HOOK BLOCK ASSEMBLY – 75 TON 1031
4 SHEAVE
(COMPLETE ASSEMBLY)
284 A10632 HOOK BLOCK ASSEMBLY – 100 TON 1035
4 SHEAVE
(COMPLETE ASSEMBLY)
285 A10641 HOOK BLOCK ASSEMBLY – 60 TON 1039
4 SHEAVE
(COMPLETE ASSEMBLY)
286 A18115 BALL ASSEMBLY – 12 TON OVERHAUL 1043
(COMPLETE ASSEMBLY)
287 A18117 BALL ASSEMBLY – 15 TON OVERHAUL 1045
