Manitowoc Crane MLC100-1 Parts Manual SN 91001008 – PDF DOWNLOAD

Manitowoc Crane MLC100-1 Parts Manual SN 91001008 – PDF DOWNLOAD

The Manitowoc Crane MLC100-1 Parts Manual (SN 91001008) is a downloadable PDF guide for maintenance. It includes specifications, diagrams, and part numbers, facilitating accurate component identification for effective operational support.

FILE DETAILS:

Manitowoc Crane MLC100-1 Parts Manual SN 91001008 – PDF DOWNLOAD

Language : English
Pages : 533
Downloadable : Yes
File Type : PDF

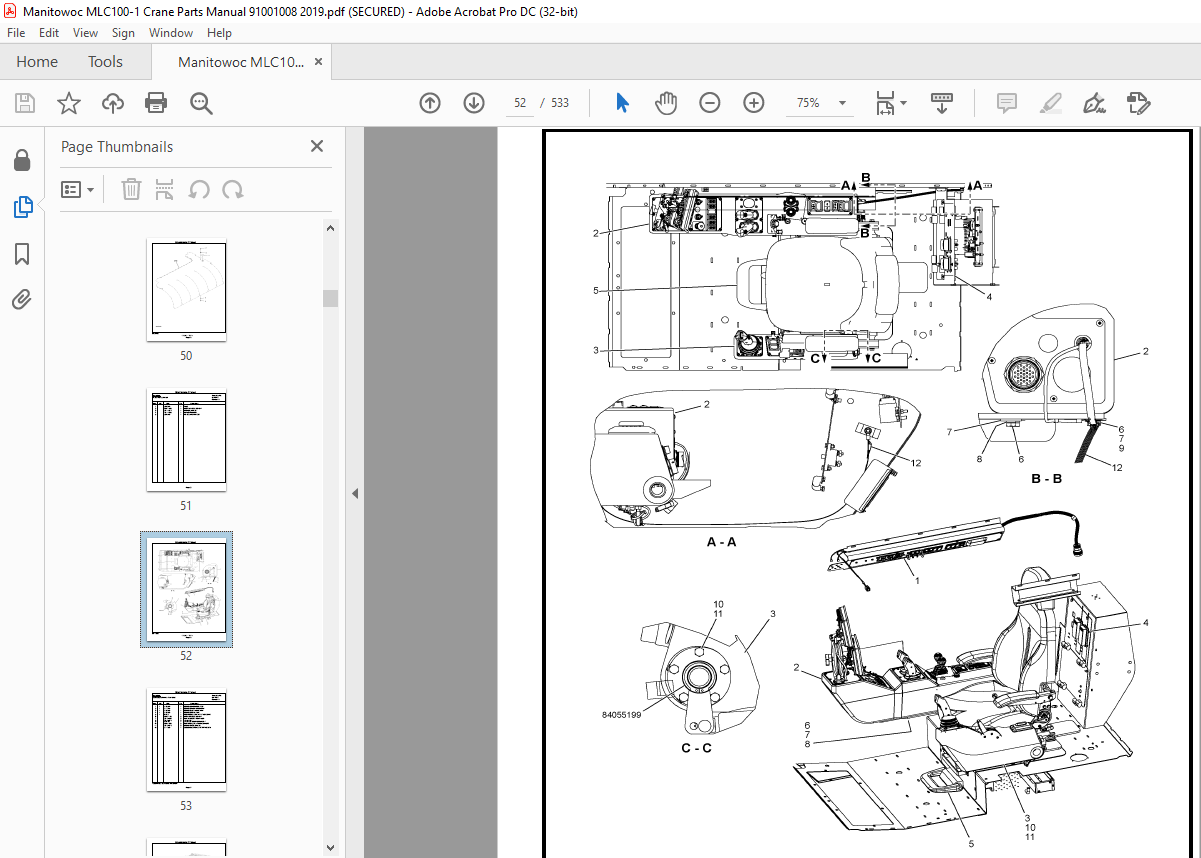

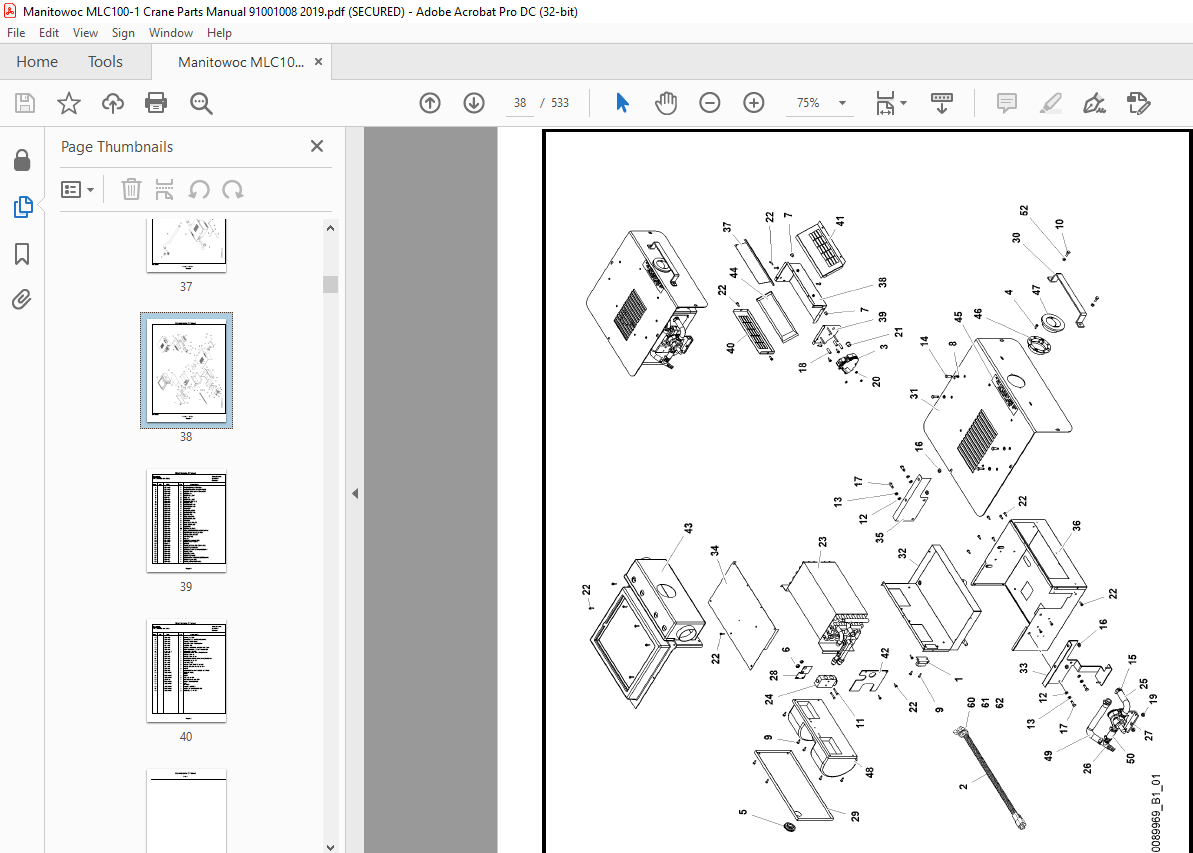

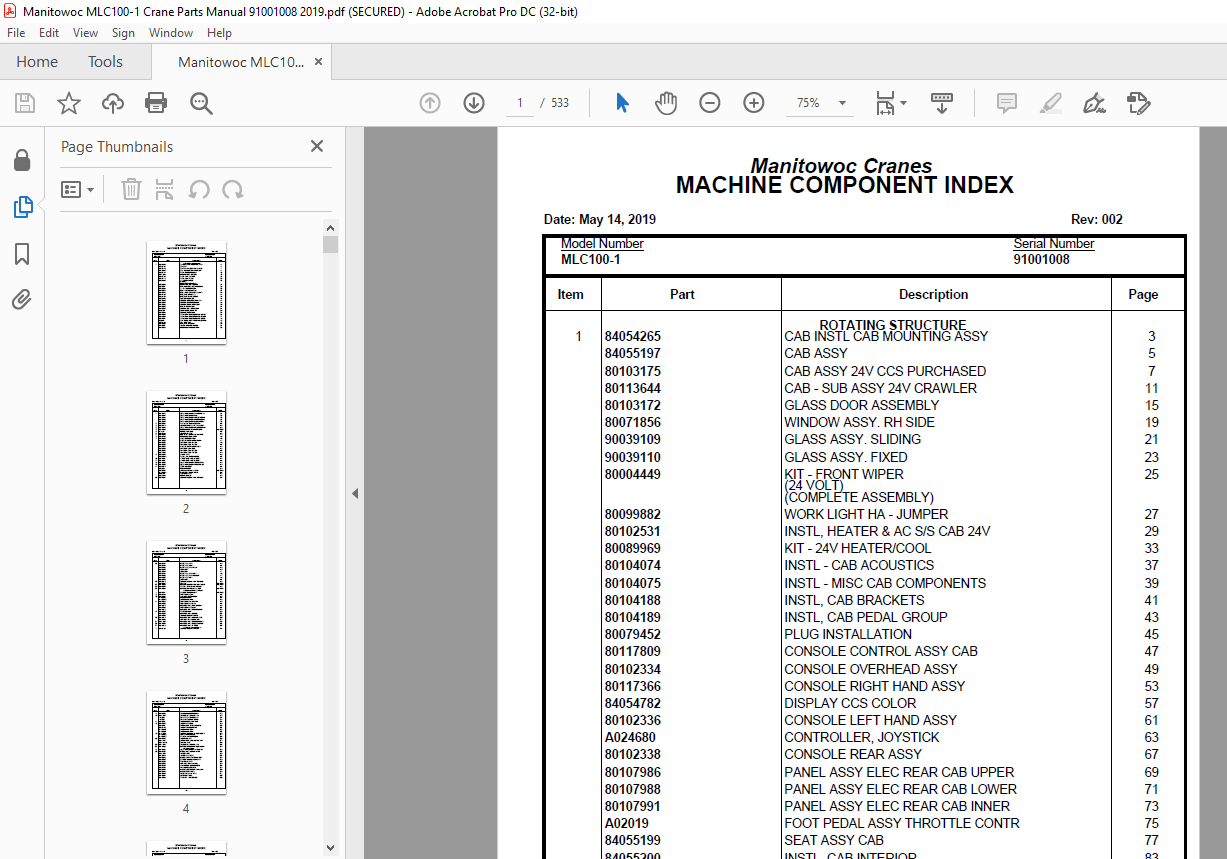

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Manitowoc Crane MLC100-1 Parts Manual SN 91001008 – PDF DOWNLOAD

ROTATING STRUCTURE
1 84054265 CAB INSTL CAB MOUNTING ASSY 3
84055197 CAB ASSY 5
80103175 CAB ASSY 24V CCS PURCHASED 7
80113644 CAB – SUB ASSY 24V CRAWLER 11
80103172 GLASS DOOR ASSEMBLY 15
80071856 WINDOW ASSY. RH SIDE 19
90039109 GLASS ASSY. SLIDING 21
90039110 GLASS ASSY. FIXED 23
80004449 KIT – FRONT WIPER 25
(24 VOLT)
(COMPLETE ASSEMBLY)
80099882 WORK LIGHT HA – JUMPER 27
80102531 INSTL, HEATER & AC S/S CAB 24V 29
80089969 KIT – 24V HEATER/COOL 33
80104074 INSTL – CAB ACOUSTICS 37
80104075 INSTL – MISC CAB COMPONENTS 39
80104188 INSTL, CAB BRACKETS 41
80104189 INSTL, CAB PEDAL GROUP 43
80079452 PLUG INSTALLATION 45
80117809 CONSOLE CONTROL ASSY CAB 47
80102334 CONSOLE OVERHEAD ASSY 49
80117366 CONSOLE RIGHT HAND ASSY 53
84054782 DISPLAY CCS COLOR 57
80102336 CONSOLE LEFT HAND ASSY 61
A024680 CONTROLLER, JOYSTICK 63
80102338 CONSOLE REAR ASSY 67
80107986 PANEL ASSY ELEC REAR CAB UPPER 69
80107988 PANEL ASSY ELEC REAR CAB LOWER 71
80107991 PANEL ASSY ELEC REAR CAB INNER 73
A02019 FOOT PEDAL ASSY THROTTLE CONTR 75
84055199 SEAT ASSY CAB 77
84055200 INSTL, CAB INTERIOR 83
84055201 ESI CAB INTERIOR WIRING 87
80108575 WINDSHIELD WASHER ASSY 89
Manitowoc Cranes
MACHINE COMPONENT INDEX
Date: May 14, 2019 Rev: 002
Model Number Serial Number
MLC100-1 91001008
Item Part Description Page
II
1 80115677 DECAL KIT MLC100-1 STANDARD EN 91
80115687 DECAL KIT MLC100-1 CAB 93
80115688 DECAL KIT MLC100-1 LOWERWORKS 95
80115689 DECAL KIT MLC100-1 UPPERWORKS 97
80115690 DECAL KIT MLC100-1 BASIC BOOM 99
2 80109482 ACCESSORY SUN VISOR CAB 101
2 84054310 SLEWING RING BRG INSTALL ASSY 103
2 80115696 DECAL KIT MLC100-1 NOMENCLATUR 105
2 80114334 DIAGRAM OUTLINE DIMENSIONS NO DWG
3 A171371 MIRROR ASSY CAB 107
3 84054266 SLEW DRIVE ASSY 109
4 80102500 LUBE SYST TURNTABLE BEARING 111
6 80103734 PIN PULLER ASSY, CTWT 113
7 84054270 FRAME SUPPORT ASSY 115
80116959 FRAME PLATFORM ASSY RIGHT 117
80105550 PLATFORM ASSY 935 MM 119
80105553 PLATFORM ASSY 782 MM 121
84054272 FRAME PLATFORM ASSY LEFT 123
80104559 PLATFORM ASSY CAB 125
80105550 PLATFORM ASSY 935 MM 127
80114489 PLATFORM ASSY 774 MM 129
8 84054245 GANTRY ASSY 133
7826000641 SOCKET, 3/4” OPEN WEDGE 137
10 80117551 KIT NON-SKID TAPE MLC100-1 139
11 80117551 KIT NON-SKID TAPE MLC100-1 141
12 80117552 DECAL KIT MLC100-1 SERIES 2 CW 143
13 80117553 DECAL KIT MLC100-1 FREEFALL OP 145
17 84054316 PARTS BOX ASSY 147
3856530 JACK CYLINDER 149
80107447 SLING 3L X 40.4MT X 1.37M NO DWG
810249430 VALVE ASSY QUICK DRAIN 151
A041430 PUMP HYD HAND 153
80075460 WEIGHT-LMI A2B 155
22 84057027 COUNTERWEIGHT ASSY SERIES 2 157
Manitowoc Cranes
MACHINE COMPONENT INDEX
Date: May 14, 2019 Rev: 002
Model Number Serial Number
MLC100-1 91001008
Item Part Description Page
III
25 84054267 ENCLOSURE ASSY 159
84054268 ENCLOSURE RIGHT 161
80107782 ENCLOSURE ASSY RIGHT 165
80108370 DOOR ASSY 169
80114094 DOOR ASSY 171
84054269 ENCLOSURE ASSY LEFT 175
80107993 ENCLOSURE ASSY COOLER 177
80107994 ENCLOSURE LEFT 179
80108370 DOOR ASSY 181
26 84054314 COUNTERWEIGHT ASSY ROT BED 183
80102497 PENDANT NO DWG
32 80115399 MOD 84054243 ROT BED BRKT WELD NO DWG
35 80102504 BRACKET INSTL CTWT RAISING 185
99 80118896 MOD 84054244 WELD ROT BED NO DWG
UPPERWORKS MACHINERY
1 84054321 SCHEMATIC HYDRAULIC NO DWG
9 84054260 HOIST ASSY BOOM 187
10 80107687 PAWL ASSY BOOM HOIST 189
81019943 CYLINDER HYDR 191
810238652 SWITCH LIMIT ASSY 193
11 80107023 HOIST ASSY OPTION FF/FF 195
84054328 HOIST ASSY DRUM 1 FF 197
80116314 HYD LINES INSTL FRNT DRUM FF 199
84054329 HOIST ASSY DRUM 2 FF 201
80116312 HYD LINES INSTL REAR DRUM FF 203
14 84054336 DRUM AUX ASSY 205
84054333 HYD LINES INSTL DRUM 3 207
84054334 ESI DRUM 3 EQUIPPED RB 209
20 80116315 HYD LINES INSTL SUCTION ASSY 213
80117629 TANK 314 L RET FILTRATION 217
21 80101629 HYD LINES INSTL DRUM CIRCUITS 221
22 80116343 HYD LINES INSTL ACCESSSORIES 231
27 80116313 HYD LINES INSTL FF PREP 237
CONTROLS, ELECTRICAL
7 84055195 ESI DRUM 3 EQUIPPED CAB 241
Manitowoc Cranes
MACHINE COMPONENT INDEX
Date: May 14, 2019 Rev: 002
Model Number Serial Number
MLC100-1 91001008
Item Part Description Page
IV
8 80107595 ESI ANEMOMETER POSN LT 243
10 80101324 ESI FREEFALL DRUMS 1 & 2 245
1965299 PEDAL FRONT DRUM BRAK 247
1965309 PEDAL REAR DRUM BRAKE 249
11 80109831 ESI BOOM POS LIGHT CAB 251
15 84054249 ESI ROTATING BED 255
80107601 SWITCH ASSY SETUP REMOTE 257
84055178 ESI ROT BED MOUNTING 261
810238651 SWITCH LIMIT ASSY 265
810238651 SWITCH LIMIT ASSY 267
18 810316421 ESI POSITION LIGHT & ANEMOMETE 269
810209900 SENSOR WIND SPEED 271
810250570 SUBASSY POSITION LIGHT 273
23 80107600 ESI SECOND A2B 275
80091847 SWITCH ASSY. ATB, W/DUST CAP 277
9333102633 A2B FLAG ASSY 279
30 80111866 ESI FREEFALL DRUMS 1 & 2 281
38 80119805 MOD 84055178 ESI ROT BED MOUNT 283
POWER PLANT
3 80115697 DECAL KIT MLC100-1 T4F ENGINE 285
23 84054252 ENGINE INSTL POWER PLANT 287
80101949 BATTERY ASSY 289
80115674 BATTERY BOX ASSY 291
80105328 ENGINE ASSY PUMP DRIVE Q6.7 293
80102235 ADAPTER TORQUE COUPLING 295
84054258 PUMP DRIVE ASSY 297
80105340 TANK FUEL INSTL 100 GAL 299
84054255 FUEL CIRCUIT CUMMINS QSB 301
84054256 HVAC AC/HEATER ASSY 305
80027884 A/C CONDENSER-VERT. MTG. 24V. 307
80109243 AIR COND KIT HOSES 309
80115289 COVER INSTL DEF TANK 311
80118327 COVER DEF TANK 313
80118329 PANEL DEF TANK COVER 315
Manitowoc Cranes
MACHINE COMPONENT INDEX
Date: May 14, 2019 Rev: 002
Model Number Serial Number
MLC100-1 91001008
Item Part Description Page
V
32 80119865 500HR SERVICE KIT MLC100-1 317
33 80119866 1000HR SERVICE KIT MLC100-1 319
80119867 2000HR SERVICE KIT MLC100-1 NO DWG
LOWERWORKS
1 84054298 CARBODY ASSY 323
80115609 HYD LINES INSTL CARBODY 329
1 84054299 CRAWLER ASSY 333
80103985 CRAWLER DRIVE ASSY 335
84032137 ROLLER CRAWLER FRONT ASSY 337
2 84054353 CRAWLER 900.0 W SHOE ASSY 339
3 80115329 MOD CARBODY 341
21 84054313 COUNTERWEIGHT CARBODY ASSY 343
ATTACHMENTS
1 84054317 BOOM RIGGING B10:290 345
1 84054262 WIRE ROPE 0.75 IN ASSY X112LG NO DWG
2 84054806 BUTT ASSY #290 6M 349
84054809 BUTT #290 6M 351
84054318 EQUALIZER ASSY 353
80112762 STOP BOOM #290 355
80107141 SHEAVE ASSY CTWT #290BM 357
80107053 CATWALK #290 BUTT 359
2 80102942 WIRE ROPE 26MM X 177 LG NO DWG
3 80101587 TOP ASSY #290, 7.0M 363
80101590 TOP #290 7M 365
A180274 LINK ASSY 367
84054355 ESI BOOM TOP 369
80091847 SWITCH ASSY. ATB, W/DUST CAP 371
9333102633 A2B FLAG ASSY 373
3 80102944 WIRE ROPE 26MM X 214 LG NO DWG
4 80114857 WIRE ROPE 22MM ASSY X 160LG NO DWG
5 80105216 SHAFT 127 DIA X 524.6 LG NO DWG
5 80105991 BUSHING 115OD X 100ID X 70 LG NO DWG
5 80104395 OVERHAUL BALL 12.5MTON NO DWG
5 80115699 DECAL KIT MLC100-1 BOOM INSERT 375
6 80107136 TIMBER ASSY, #290 TOP 377
Manitowoc Cranes
MACHINE COMPONENT INDEX
Date: May 14, 2019 Rev: 002
Model Number Serial Number
MLC100-1 91001008
Item Part Description Page
VI
80118405 TIMBER ASSY 1.33M 379
80105702 TIMBER ASSY .81M 381
8 80115699 DECAL KIT MLC100-1 BOOM INSERT 383
9 80113407 PENDANT NO DWG
9 80115699 DECAL KIT MLC100-1 BOOM INSERT 385
10 80101585 INSERT ASSY #290 3M 387
80101586 INSERT #290 3M 389
10 80104622 PENDANT NO DWG
11 80118408 TIMBER ASSY, #290 12M INSERT 391
80103561 TIMBER ASSY 393
80118405 TIMBER ASSY 1.33M 395
13 80104624 PENDANT NO DWG
14 80104624 PENDANT NO DWG
16 80101579 INSERT ASSY #290 12M 397
80101581 INSERT #290 12M 399
16 80107447 SLING 3L X 40.4MT X 1.37M NO DWG
17 80118408 TIMBER ASSY, #290 12M INSERT 401
80103561 TIMBER ASSY 403
80118405 TIMBER ASSY 1.33M 405
18 80101579 INSERT ASSY #290 12M 407
80101581 INSERT #290 12M 409
19 80118408 TIMBER ASSY, #290 12M INSERT 411
80103561 TIMBER ASSY 413
80118405 TIMBER ASSY 1.33M 415
22 80104216 UPPER POINT ASSEMBLY 417
80107810 ESI UPPER POINT 419
80091847 SWITCH ASSY. ATB, W/DUST CAP 421
9333102633 A2B FLAG ASSY 423
28 80119795 A2B ASSY 425
80075460 WEIGHT-LMI A2B 427
29 80119795 A2B ASSY 429
80075460 WEIGHT-LMI A2B 431
38 80116393 MOD #290 TOP 80101590 NO DWG
