Manitowoc Crane MLC100-1 Parts Manual SN 91001050 – PDF DOWNLOAD

Manitowoc Crane MLC100-1 Parts Manual SN 91001050 – PDF DOWNLOAD

The Manitowoc Crane MLC100-1 Parts Manual (SN 91001050) is a downloadable PDF guide for maintenance. It includes specifications, diagrams, and part numbers, ensuring accurate component identification for effective operational support.

FILE DETAILS:

Manitowoc Crane MLC100-1 Parts Manual SN 91001050 – PDF DOWNLOAD

Language : English
Pages : 573
Downloadable : Yes
File Type : PDF

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Manitowoc Crane MLC100-1 Parts Manual SN 91001050 – PDF DOWNLOAD

ROTATING STRUCTURE
1 84054265 CAB INSTL CAB MOUNTING ASSY 3
84055197 CAB ASSY 5

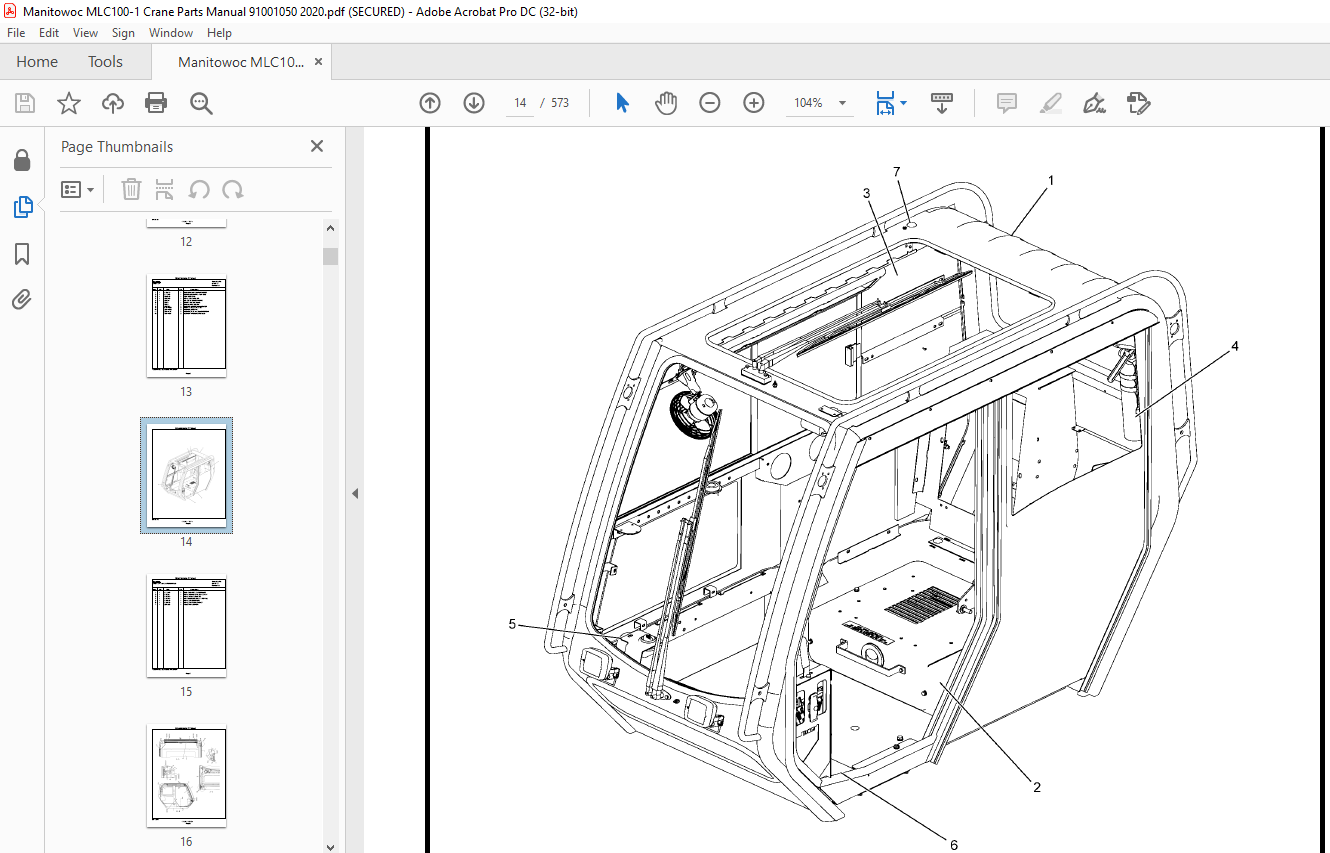

80103175 CAB ASSY 24V CCS PURCHASED 7
80113644 CAB – SUB ASSY 24V CRAWLER 11
80103172 GLASS DOOR ASSEMBLY 15
80071856 WINDOW ASSY. RH SIDE 19
90039109 GLASS ASSY. SLIDING 21
90039110 GLASS ASSY. FIXED 23
80118622 LIGHT ASSY-LED FLOOD
80004449 KIT – FRONT WIPER 25
(24 VOLT)
(COMPLETE ASSEMBLY)
80124600 WORK LIGHT HA – JUMPER 27
80102531 INSTL, HEATER & AC S/S CAB 24V 29

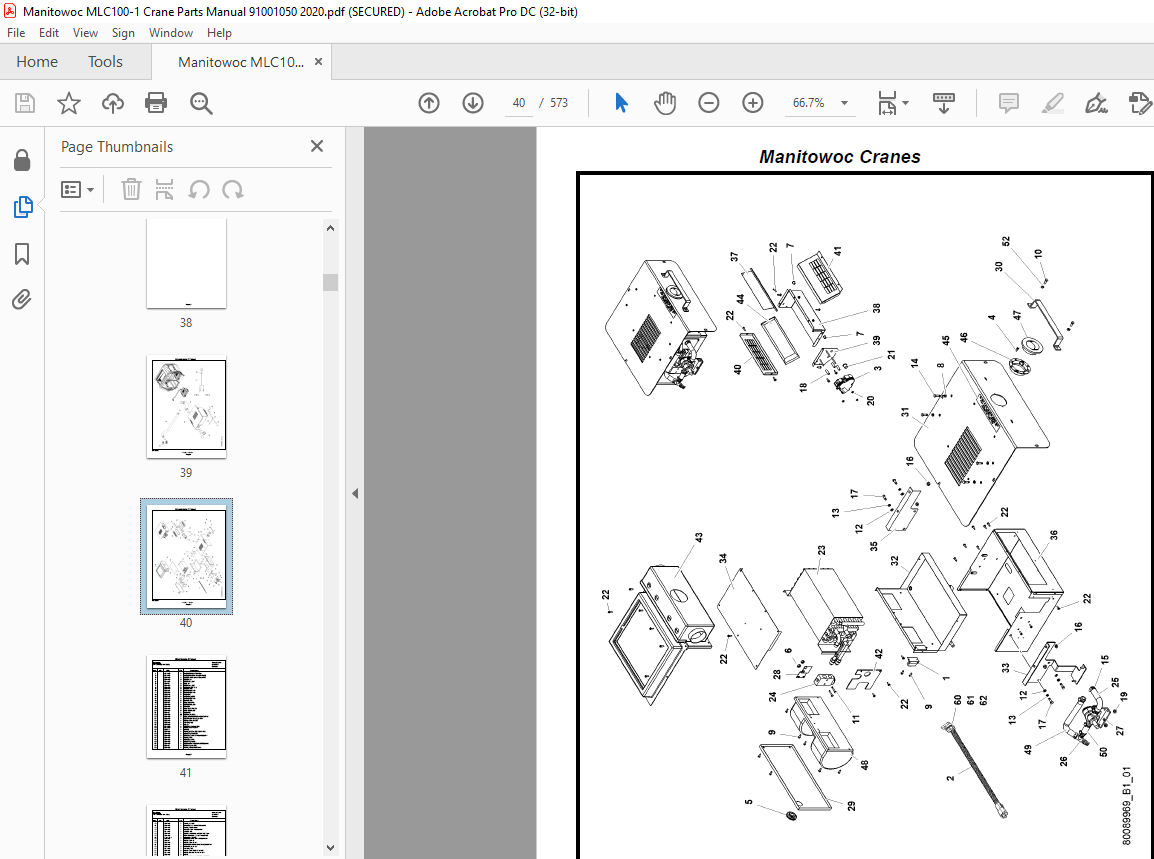

80089969 KIT – 24V HEATER/COOL 33
80104074 INSTL – CAB ACOUSTICS 37
80104075 MISC CAB COMPONENTS INSTALL 39
80104188 INSTL, CAB BRACKETS 41
80104189 INSTL, CAB PEDAL GROUP 43
80079452 PLUG INSTALLATION 45
80117809 CONSOLE CONTROL ASSY CAB 47
80102334 CONSOLE OVERHEAD ASSY 49
80117366 CONSOLE RIGHT HAND ASSY 53
84054782 DISPLAY CCS COLOR 57
80102336 CONSOLE LEFT HAND ASSY 61
A024680 CONTROLLER, JOYSTICK 63
80102338 CONSOLE REAR ASSY 67
80107986 PANEL ASSY ELEC REAR CAB UPPER 69
80107988 PANEL ASSY ELEC REAR CAB LOWER 71
80107991 PANEL ASSY ELEC REAR CAB INNER 73
A02019 FOOT PEDAL ASSY THROTTLE CONTR 75
84055199 SEAT ASSY CAB 77
84055200 INSTL, CAB INTERIOR 83
84055201 ESI CAB INTERIOR WIRING 87
Manitowoc Cranes

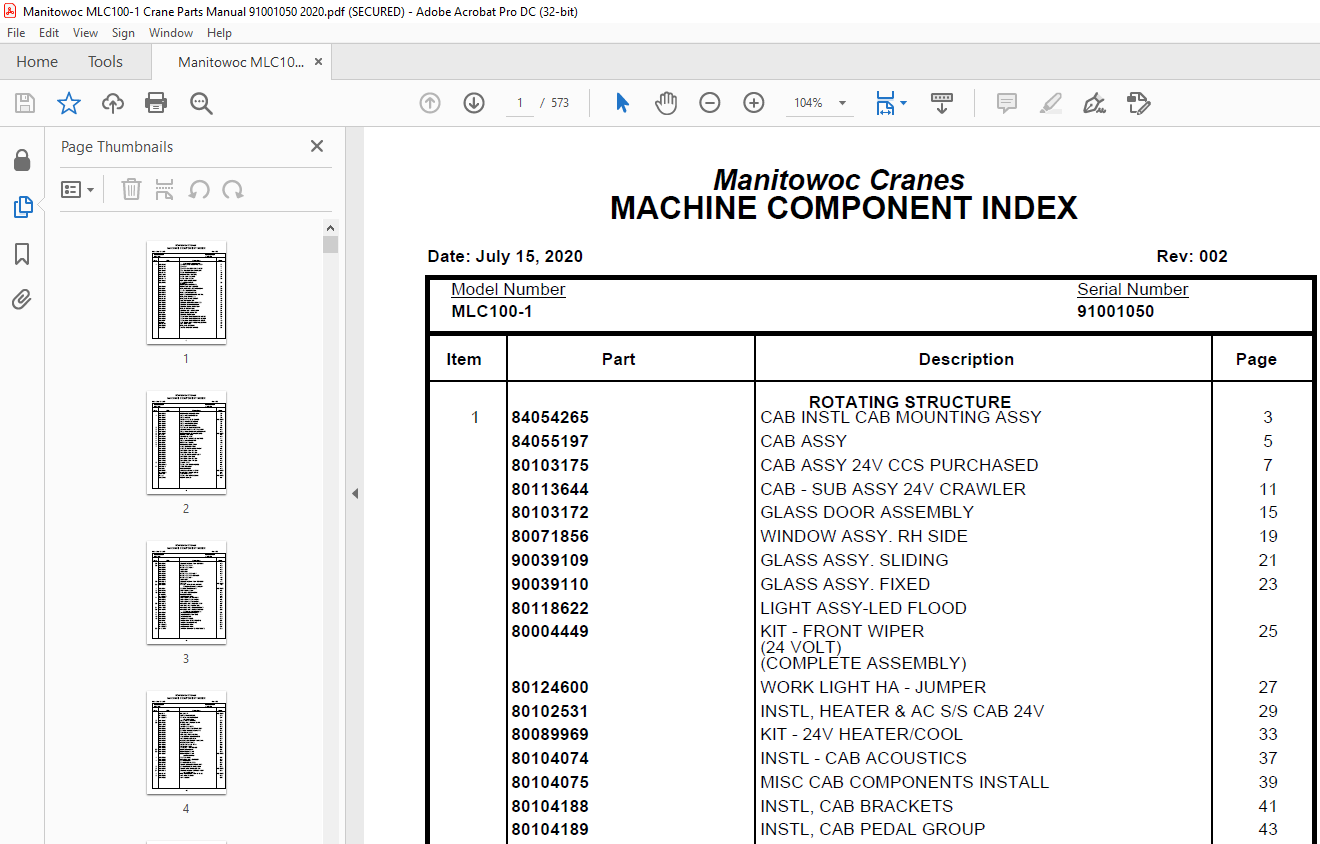

MACHINE COMPONENT INDEX
Date: July 15, 2020 Rev: 002
Model Number Serial Number
MLC100-1 91001050
Item Part Description Page
II
80108575 WINDSHIELD WASHER ASSY 89
1 80115677 DECAL KIT STANDARD EN 91
80115687 DECAL KIT CAB 93
80102744 PLATE CRANE ID MFG IN SG NO DWG
80115688 DECAL KIT LOWERWORKS 95
80115689 DECAL KIT UPPERWORKS 97
80115690 DECAL KIT BASIC BOOM 99
2 80109482 ACCESSORY SUN VISOR CAB 101
2 84054310 SLEWING RING BRG INSTALL ASSY 103
2 80115696 DECAL KIT MLC100-1 NOMENCLATUR 105
2 80114334 DIAGRAM OUTLINE DIMENSIONS NO DWG
3 A171371 MIRROR ASSY CAB 107
3 84054266 SLEW DRIVE ASSY 109
4 80102500 LUBE SYST TURNTABLE BEARING 111
4 80115698 DECAL KIT CRANESTAR 113
5 80125501 MOD LIGHT TOWER 115
6 80103734 PIN PULLER ASSY, CTWT 117
7 84054270 FRAME SUPPORT ASSY 119
80116959 FRAME PLATFORM ASSY RIGHT 121
80105550 PLATFORM ASSY 935 MM 123
80105553 PLATFORM ASSY 782 MM 125
84054272 FRAME PLATFORM ASSY LEFT 127
80104559 PLATFORM ASSY CAB 129
80105550 PLATFORM ASSY 935 MM 131
80114489 PLATFORM ASSY 774 MM 133
8 84054245 GANTRY ASSY 137
7826000641 SOCKET, 3/4” OPEN WEDGE 141
17 84054316 PARTS BOX ASSY 143
3856530 JACK CYLINDER 145
80107447 SLING 3L X 40.4MT X 1.37M NO DWG
810249430 VALVE ASSY QUICK DRAIN 147
A041430 PUMP HYD HAND 149
A11041 SOCKET BUTTON 22-26MM NO DWG
80075460 WEIGHT-LMI A2B 151
Manitowoc Cranes
MACHINE COMPONENT INDEX
Date: July 15, 2020 Rev: 002
Model Number Serial Number
MLC100-1 91001050
Item Part Description Page
III
22 84057027 COUNTERWEIGHT ASSY SERIES 2 153
25 84054267 ENCLOSURE ASSY 155
80120544 ENCLOSURE RIGHT 159
80108370 DOOR ASSY 163
80114094 DOOR ASSY 165
84054269 ENCLOSURE ASSY LEFT 169
80107993 ENCLOSURE ASSY COOLER 171
80107994 ENCLOSURE LEFT 173
80108370 DOOR ASSY 175
26 84054314 COUNTERWEIGHT ASSY ROT BED 177
80102497 PENDANT NO DWG
35 80102504 BRACKET INSTL CTWT RAISING 179
UPPERWORKS MACHINERY
1 84054321 SCHEMATIC HYDRAULIC NO DWG
9 84054260 HOIST ASSY BOOM 181
10 80107687 PAWL ASSY BOOM HOIST 183
81019943 CYLINDER HYDR 185
810238652 SWITCH LIMIT ASSY 187
11 80107020 HOIST ASSY OPTION FP/FP 189
84054326 HOIST ASSY DRUM 1 W/O FF 191
84054327 HOIST ASSY DRUM 2 W/O FF 193
20 80116315 HYD LINES INSTL SUCTION ASSY 197
80117629 TANK 314 L RET FILTRATION 201
21 80101629 HYD LINES INSTL DRUM CIRCUITS 205
22 80116343 HYD LINES INSTL ACCESSSORIES 215
CONTROLS, ELECTRICAL
8 80107595 ESI ANEMOMETER POSN LT 221
11 80109831 ESI BOOM POS LIGHT CAB 223
13 80109483 ESI CRANESTAR 225
15 84054249 ESI ROTATING BED 229
80107601 SWITCH ASSY SETUP REMOTE 231
84055178 ESI ROT BED MOUNTING 235
810238652 SWITCH LIMIT ASSY 239
810238652 SWITCH LIMIT ASSY 241
39 810316421 ESI POSITION LIGHT & ANEMOMETE 243
Manitowoc Cranes
MACHINE COMPONENT INDEX
Date: July 15, 2020 Rev: 002
Model Number Serial Number
MLC100-1 91001050
Item Part Description Page
IV
5638710 PIN, SAFETY NO DWG
810209900 SENSOR WIND SPEED 245
810250570 SUBASSY POSITION LIGHT 247
POWER PLANT
3 80115697 DECAL KIT T4F ENGINE 249
23 84054252 ENGINE INSTL POWER PLANT 251
80101949 BATTERY ASSY 253
80122067 BATTERY BOX ASSY 255
80105328 ENGINE ASSY PUMP DRIVE Q6.7 257
80102235 ADAPTER TORQUE COUPLING 259
84054258 PUMP DRIVE ASSY 261
80105340 TANK FUEL INSTL 100 GAL 263
84054255 FUEL CIRCUIT CUMMINS QSB 265
84054256 HVAC AC/HEATER ASSY 269
80027884 A/C CONDENSER-VERT. MTG. 24V. 271
80109243 AIR COND KIT HOSES 273
80115289 COVER INSTL DEF TANK 275
80118327 COVER DEF TANK 277
80118329 PANEL DEF TANK COVER 279
32 80119865 500HR SERVICE KIT 281
33 80119866 1000HR SERVICE KIT 283
80119867 2000HR SERVICE KIT NO DWG
LOWERWORKS
1 84054298 CARBODY ASSY 287
80115609 HYD LINES INSTL CARBODY 293
1 84054299 CRAWLER ASSY 297
80103985 CRAWLER DRIVE ASSY 299
84032137 ROLLER CRAWLER FRONT ASSY 301
2 84054353 CRAWLER 900.0 W SHOE ASSY 303
3 80103986 ROLLER ASSY CRAWLER TOP NO DWG
21 84054313 COUNTERWEIGHT CARBODY ASSY 305
ATTACHMENTS
1 80105107 WIRE ROPE 0.75IN ASSY X112 LG NO DWG
2 84054806 BUTT ASSY #290 6M 309
84054809 BUTT #290 6M 313
Manitowoc Cranes
MACHINE COMPONENT INDEX
Date: July 15, 2020 Rev: 002
Model Number Serial Number
MLC100-1 91001050
Item Part Description Page
V
84054318 EQUALIZER ASSY 315
80112762 STOP BOOM #290 317
80106390 SHEAVE ASSY 26MM ROPE NO DWG
80107141 SHEAVE ASSY CTWT #290BM 319
80107053 CATWALK #290 BUTT 321
5638710 PIN, SAFETY NO DWG
80121698 ESI BOOM BUTT 323
2 80122760 WIRE ROPE 26MM X 177 LG NO DWG
3 80101587 TOP ASSY #290, 7.0M 327
80101590 TOP #290 7M 329
80106390 SHEAVE ASSY 26MM ROPE NO DWG
A180274 LINK ASSY 331
84054355 ESI BOOM TOP 333
80091847 SWITCH ASSY. ATB, W/DUST CAP 335
9333102633 A2B FLAG ASSY 337
3 80122761 WIRE ROPE 26MM X 214 LG NO DWG
3 84054323 JIB RIGGING FJ117 ON B10:290 NO DWG
4 80107642 CLAMP ASSY, 133 ID 339
5 80105216 SHAFT 127 DIA X 524.6 LG NO DWG
5 80105991 BUSHING 115OD X 100ID X 70 LG NO DWG
5 80104395 OVERHAUL BALL 12.5MTON NO DWG
5 80115699 DECAL KIT BOOM INSERT 341
6 80107136 TIMBER ASSY, #290 TOP 343
80118405 TIMBER ASSY 1.33M 345
80105702 TIMBER ASSY .81M 347
6 80115699 DECAL KIT BOOM INSERT 349
7 80117525 BLOCK 75 MTON 3 SHEAVE NO DWG
7 80115699 DECAL KIT BOOM INSERT 351
8 80115699 DECAL KIT BOOM INSERT 353
9 80113407 PENDANT NO DWG
9 80115699 DECAL KIT BOOM INSERT 355
10 80101585 INSERT ASSY #290 3M 357
80101586 INSERT #290 3M 359
10 80104622 PENDANT NO DWG
Manitowoc Cranes
MACHINE COMPONENT INDEX
Date: July 15, 2020 Rev: 002
Model Number Serial Number
MLC100-1 91001050
Item Part Description Page
VI
10 80115699 DECAL KIT BOOM INSERT 361
11 80118405 TIMBER ASSY 1.33M 363
11 80104622 PENDANT NO DWG
12 80101585 INSERT ASSY #290 3M 365
80101586 INSERT #290 3M 367
12 80104623 PENDANT NO DWG
13 80118405 TIMBER ASSY 1.33M 369
13 80104624 PENDANT NO DWG
14 80101583 INSERT ASSY #290 6M 371
80101584 INSERT #290 6M 373
14 80104624 PENDANT NO DWG
14 80123785 DECAL KIT FIXED JIB 375
15 80118405 TIMBER ASSY 1.33M 377
15 80104624 PENDANT NO DWG
15 80123786 DECAL KIT FJ INSERT 379
16 80101579 INSERT ASSY #290 12M 381
80101581 INSERT #290 12M 383
16 80123786 DECAL KIT FJ INSERT 385
17 80118408 TIMBER ASSY, #290 12M INSERT 387
80103561 TIMBER ASSY 389
80118405 TIMBER ASSY 1.33M 391
17 80123786 DECAL KIT FJ INSERT 393
18 80101579 INSERT ASSY #290 12M 395
80101581 INSERT #290 12M 397
19 80118408 TIMBER ASSY, #290 12M INSERT 399
80103561 TIMBER ASSY 401
80118405 TIMBER ASSY 1.33M 403
20 80101579 INSERT ASSY #290 12M 405
80101581 INSERT #290 12M 407
21 80118408 TIMBER ASSY, #290 12M INSERT 409
80103561 TIMBER ASSY 411
80118405 TIMBER ASSY 1.33M 413
22 80104216 UPPER POINT ASSEMBLY 415
80107810 ESI UPPER POINT 417
Manitowoc Cranes
MACHINE COMPONENT INDEX
Date: July 15, 2020 Rev: 002
Model Number Serial Number
MLC100-1 91001050
Item Part Description Page
VII
80091847 SWITCH ASSY. ATB, W/DUST CAP 419
9333102633 A2B FLAG ASSY 421
25 80107961 LINK INT SUSP ASSY 423
26 80113422 PENDANT INT SUSP NO DWG
27 80106953 JIB ASSY #117 BUTT 425
80106952 BUTT #117 15 FT 427
80107363 STRUT ASSY #117 429
5638710 PIN, SAFETY NO DWG
80106390 SHEAVE ASSY 26MM ROPE NO DWG
80107191 STRUT WELDMENT 431
80109151 STOP ASSY #117 STRUT 433
80109168 STOP ASSY INNER 435
80118702 ESI FIXED JIB #117 BOTTOM 437
28 80109828 TOP JIB #117 ASSY 439
80108914 JIB POINT ASSEMBLY 441
A07997 TOP 15FT JIB #138A 443
80109261 ESI FIXED JIB TOP #117 445
80091847 SWITCH ASSY. ATB, W/DUST CAP 447
9333102633 A2B FLAG ASSY 449
28 80119795 A2B ASSY 451
80075460 WEIGHT-LMI A2B 453
29 80109727 INSERT ASSY #117 10FT 455
0331202 10′ JIB INSERT #124 457
30 80109727 INSERT ASSY #117 10FT 459
0331202 10′ JIB INSERT #124 461
31 80109727 INSERT ASSY #117 10FT 463
0331202 10′ JIB INSERT #124 465
34 80111331 PENDANT 9647.0 NO DWG
35 80111341 PENDANT 1158.2 NO DWG
36 A05817 PENDANT NO DWG
37 2766910 PENDANT 9 FT 0 IN NO DWG
38 2766910 PENDANT 9 FT 0 IN NO DWG
39 2766910 PENDANT 9 FT 0 IN NO DWG
40 80128376 CVS SHIP OUT PAINT & MISC. NO DWG
