Manitowoc Crane MLC150-1 Parts Manual SN 91501009 - PDF

Manitowoc Crane MLC150-1 Parts Manual SN 91501009 – PDF DOWNLOAD

FILE DETAILS:

Manitowoc Crane MLC150-1 Parts Manual SN 91501009 – PDF DOWNLOAD

Language : English
Pages : 509
Downloadable : Yes
File Type : PDF

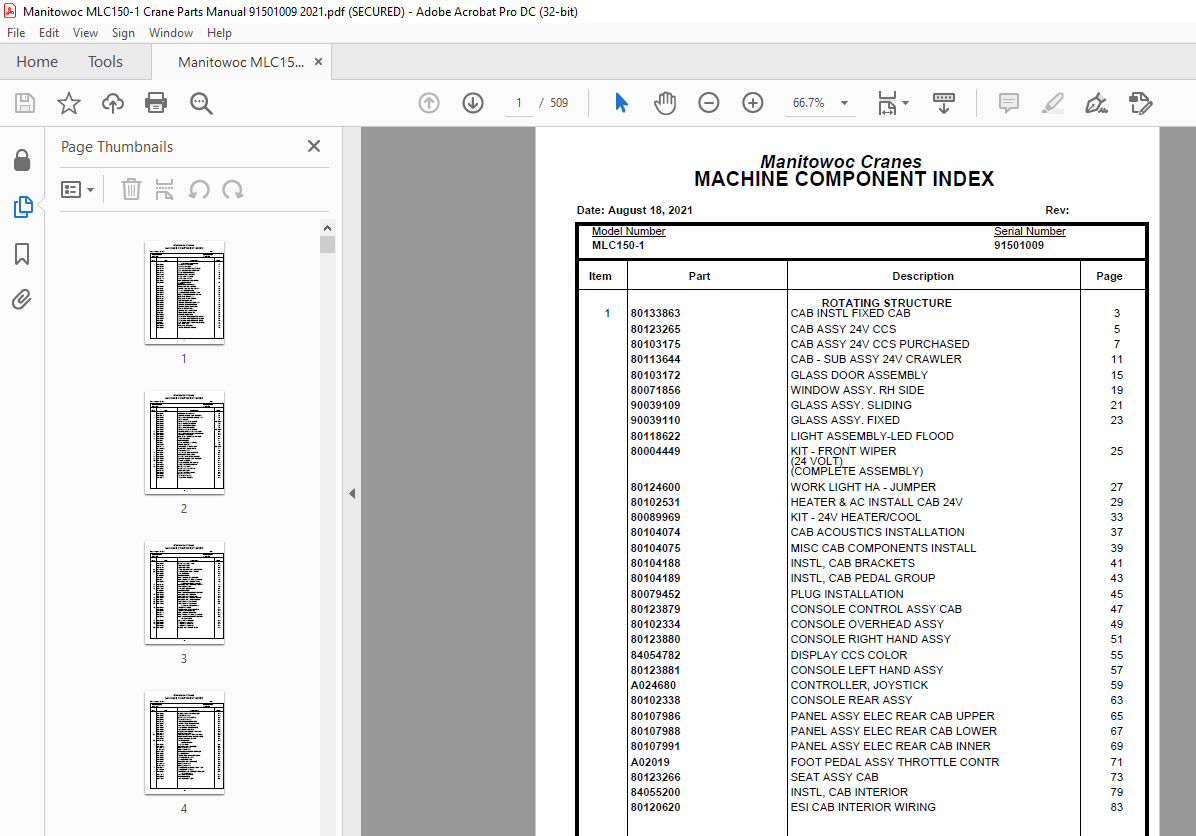

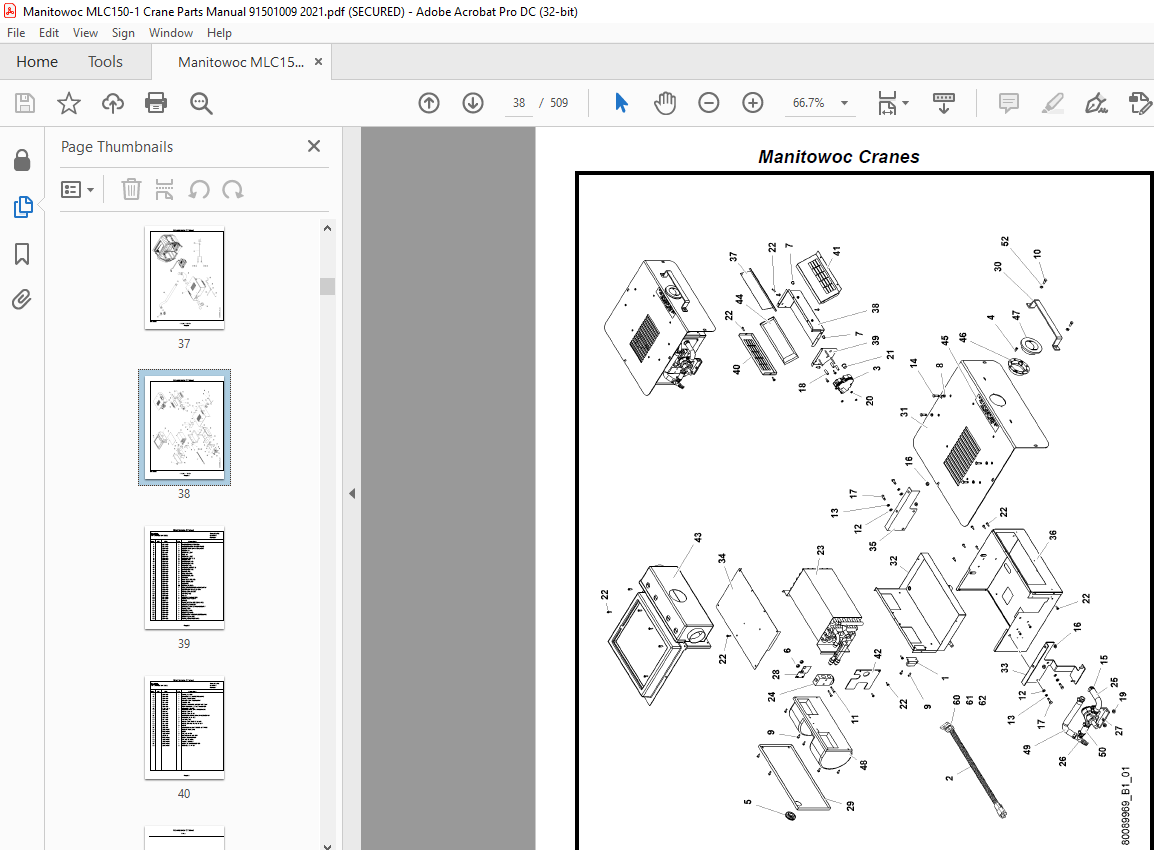

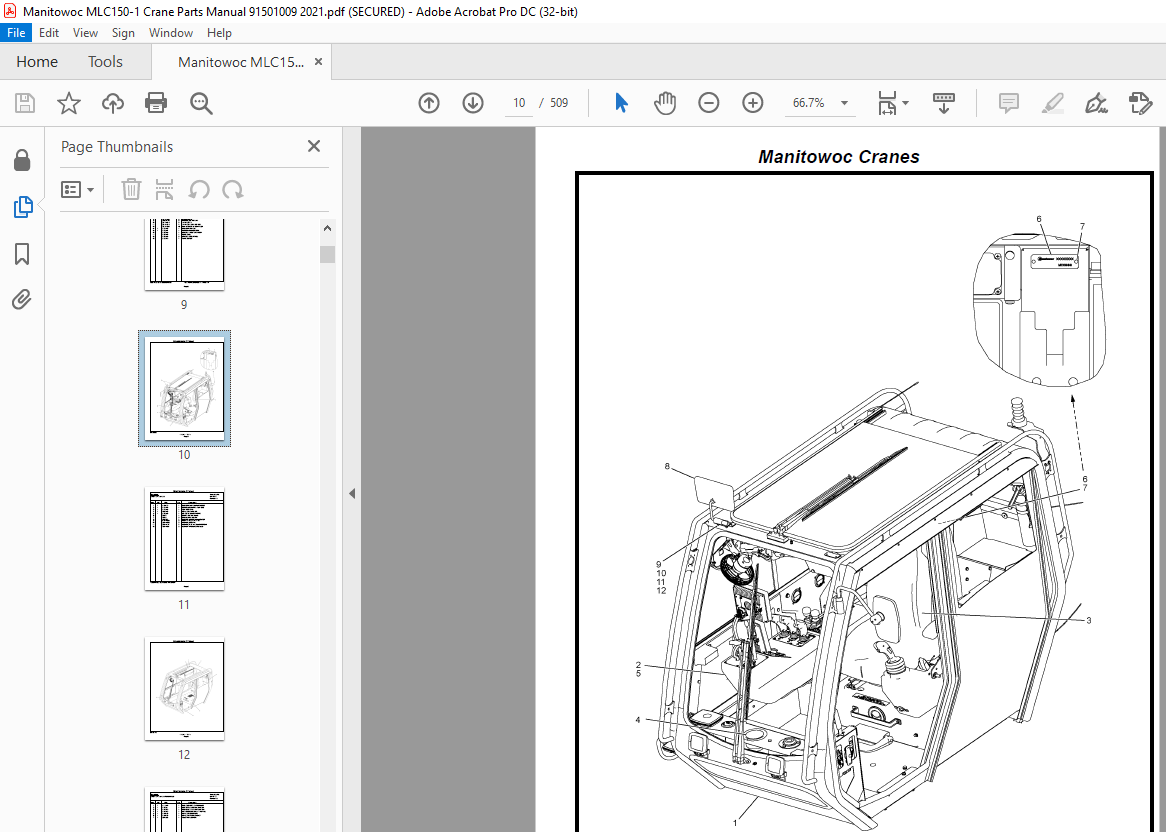

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Manitowoc Crane MLC150-1 Parts Manual SN 91501009 – PDF DOWNLOAD

ROTATING STRUCTURE
1 80133863 CAB INSTL FIXED CAB 3
80123265 CAB ASSY 24V CCS 5
80103175 CAB ASSY 24V CCS PURCHASED 7
80113644 CAB – SUB ASSY 24V CRAWLER 11
80103172 GLASS DOOR ASSEMBLY 15
80071856 WINDOW ASSY. RH SIDE 19
90039109 GLASS ASSY. SLIDING 21
90039110 GLASS ASSY. FIXED 23
80118622 LIGHT ASSEMBLY-LED FLOOD
80004449 KIT – FRONT WIPER 25
(24 VOLT)
(COMPLETE ASSEMBLY)
80124600 WORK LIGHT HA – JUMPER 27
80102531 HEATER & AC INSTALL CAB 24V 29
80089969 KIT – 24V HEATER/COOL 33
80104074 CAB ACOUSTICS INSTALLATION 37
80104075 MISC CAB COMPONENTS INSTALL 39
80104188 INSTL, CAB BRACKETS 41
80104189 INSTL, CAB PEDAL GROUP 43
80079452 PLUG INSTALLATION 45
80123879 CONSOLE CONTROL ASSY CAB 47
80102334 CONSOLE OVERHEAD ASSY 49
80123880 CONSOLE RIGHT HAND ASSY 51
84054782 DISPLAY CCS COLOR 55
80123881 CONSOLE LEFT HAND ASSY 57
A024680 CONTROLLER, JOYSTICK 59
80102338 CONSOLE REAR ASSY 63
80107986 PANEL ASSY ELEC REAR CAB UPPER 65
80107988 PANEL ASSY ELEC REAR CAB LOWER 67
80107991 PANEL ASSY ELEC REAR CAB INNER 69
A02019 FOOT PEDAL ASSY THROTTLE CONTR 71
80123266 SEAT ASSY CAB 73
84055200 INSTL, CAB INTERIOR 79
80120620 ESI CAB INTERIOR WIRING 83
Manitowoc Cranes
MACHINE COMPONENT INDEX
Date: August 18, 2021 Rev:
Model Number Serial Number
MLC150-1 91501009
Item Part Description Page
II
80123607 WINDOW WASHER ASSY 85
1 80134318 COUNTERWEIGHT ASSY SERIES 2 87
1 80127270 DECAL KIT STANDARD MLC150-1 EN 89
80127264 DECAL KIT CAB 91
80102744 PLATE CRANE ID MFG IN SG NO DWG
80127265 DECAL KIT LOWERWORKS 93
80127266 DECAL KIT UPPERWORKS 97
80127267 DECAL KIT BASIC BOOM 99
80102744 PLATE CRANE ID MFG IN SG NO DWG
2 80116943 SLEWING RING BRG INSTALL ASSY 101
2 80127268 DECAL KIT MLC150-1 NOMENCLATUR 103
3 80116898 SLEWING DRIVE ASSY 105
4 80119902 LUBE SYST TURNTABLE BEARING 107
5 80124069 PARTS BOX ASSY 109
3856530 JACK CYLINDER 111
6462460 SOCKET/WEDGE, 1″ (26 MM) 113
80075460 WEIGHT-LMI A2B 115
80124112 SLING 3 LEG 26.6 MT 2.13 M NO DWG
810249430 VALVE ASSY QUICK DRAIN 117
A041430 PUMP HYD HAND 119
6 80109482 ACCESSORY SUN VISOR CAB 121
7 80117501 PIN PULLER ASSY, CTWT 123
8 80122968 BRACKET INSTL CTWT RAISING 125
9 80117303 COUNTERWEIGHT ASSY ROT BED 127
10 80119087 GANTRY ASSEMBLY 129
6462450 SOCKET/WEDGE, 7/8″ (22 MM) 133
11 80132426 RADIO/SPEAKER COVER KIT 135
19 80126979 ENCLOSURE INSTL 139
80122832 ENCLOSURE ASSY RIGHT 143
80128164 DOOR ASSY ENCL 145
80122875 PANEL BATTERY COVER 147
80122893 ENCLOSURE ASSY 149
80122908 PANEL ENCLOSURE 151
80122912 PANEL ASSY ACCESS 153
Manitowoc Cranes
MACHINE COMPONENT INDEX
Date: August 18, 2021 Rev:
Model Number Serial Number
MLC150-1 91501009
Item Part Description Page
III
80127355 ENCLOSURE LEFT ASSY 157
80128164 DOOR ASSY ENCL 159
80128178 DOOR ASSY ENCL 161
31 810425865 PARTS BOX ASSY OPT 5 A/C OR SP 163
36 80123290 ROTATING BED ASSY LJ PREP 165
80119689 PAWL ASSEMBLY 167
81019943 CYLINDER HYDR 169
80123291 LIMIT SWITCH LJ BOOM STOP 171
80129711 LIMIT SWITCH SUBASSY 6P LINEAR 173
80123670 HYD LINES INSTL DRUM 2 PAWL 175
UPPERWORKS MACHINERY
3 80120105 HYD LINES INSTL CARBODY JACKIN 177
11 80115479 HOIST ASSY BOOM 179
12 80121244 PAWL ASSY BOOM HOIST 181
81019943 CYLINDER HYDR 183
80129368 LIMIT SWITCH MOLDED 3P SUBASSY 185
13 80115269 HYD LINES INSTL RETURN 189
80119055 TANK 436 L RET FILTRATION 193
14 80115270 HYD LINES INSTL DRUM & TRAVEL 199
15 80115271 HYD LINES INSTL ACCESSORIES 211
20 80115476 HOIST ASSY DRUM 1 W/O FF 219
23 80115485 HOIST ASSY DRUM 2 W/O FF 221
CONTROLS, ELECTRICAL
16 80120823 ESI ROTATING BED 223
80107601 SWITCH ASSY SETUP REMOTE 225
80120824 ESI ROT BED MOUNTING 229
80122110 LIMIT SWITCH BOOM STOP 233
80129711 LIMIT SWITCH SUBASSY 6P LINEAR 235
80129368 LIMIT SWITCH MOLDED 3P SUBASSY 237
POWER PLANT
3 80127269 DECAL KIT T4F ENGINE 239
18 90047705 KIT SERVICE 500 HRS 241
19 90047706 KIT SERVICE 1000 HRS 243
90047707 KIT SERVICE 2000 HRS 245
30 80118284 ENGINE INSTL POWER PLANT 249
Manitowoc Cranes
MACHINE COMPONENT INDEX
Date: August 18, 2021 Rev:
Model Number Serial Number
MLC150-1 91501009
Item Part Description Page
IV
80118286 ENGINE ASSY PUMP DRIVE Q6.7 253
80118288 PUMP DRIVE ASSY 255
80122757 ENCLOSURE ASSY ENGINE 257
80122770 PANEL ENCLOSURE 259
80128156 DOOR ENCLOSURE ENGINE 261
80118290 BATTERY INSTL CUMMINS QSB 263
80118291 TANK FUEL INSTL 125 GAL 265
80118292 FUEL CIRCUIT CUMMINS QSB 269
80118293 HVAC AC/HEATER ASSY 273
80027884 A/C CONDENSER-VERT. MTG. 24V. 275
80119713 AIR COND KIT HOSES 277
34 80122818 COLD WEATHER KIT ROT BED INSTL 279
80110914 JUNCTION BOX ASSY ENG HEATERS 281
80122733 HEATER HYDRUALIC TANK 283
35 80124153 ESI AC COMMON 285
LOWERWORKS
1 80117547 CARBODY ASSY 287
80115273 HYD LINES INSTL CARBODY 291
810039140 Q DISCON FITTING 295
810121650 Q DISCON FITTING 297
80121397 PIN PULLER CARBODY CRAWLER 299
1 80116888 CRAWLER ASSY 301
80112367 ROLLER ASSY CRAWLER FRONT 303
80116893 CRAWLER DRIVE ASSY 305
80123686 CRAWLER PAD ASSY 307
80124367 HYD LINES INSTL CRAWLER 309
810039130 Q DISCON FITTING 313
810121640 Q DISCON FITTING 315
2 80123317 OUTRIGGER BEAM ASSY INSTL JACK 317
810247561 OUTRIGGER PAD ASSY 319
4 80123352 COUNERWEIGHT CARBODY ASSY INST 321
ATTACHMENTS
1 80121510 BUTT ASSY #350 6.8M 323
80120866 STOP BOOM #350 325
80121275 BUTT WELD #350 6.8M 327
Manitowoc Cranes
MACHINE COMPONENT INDEX
Date: August 18, 2021 Rev:
Model Number Serial Number
MLC150-1 91501009
Item Part Description Page
V
80123530 EQUALIZER ASSY 329
80126798 ESI BUTT ASSY #350 331
2 80124550 SHEAVE SELF ASSY INSTL 333
80106390 SHEAVE ASSY 26MM ROPE NO DWG
4 80121512 TOP ASSY #350, 8.2 M 335
80106390 SHEAVE ASSY 26MM ROPE NO DWG
80121513 TOP WELD #350 8.20 M 339
80124557 ESI BOOM TOP 343
80091847 SWITCH ASSY ATB, W/DUST CAP 345
9333102633 A2B FLAG ASSY 347
5 80124692 TIMBER ASSY #350, TOP 349
5 810292880 BUSHING, COMPOSITE NO DWG
5 80115699 DECAL KIT BOOM INSERT 351
6 80107642 CLAMP ASSY, 133 ID 353
6 80121571 BUSHING 950D X 85ID X 80LG NO DWG
6 80115699 DECAL KIT BOOM INSERT 355
7 80119795 A2B ASSY 357
80075460 WEIGHT-LMI A2B 359
7 80115699 DECAL KIT BOOM INSERT 361
8 80115699 DECAL KIT BOOM INSERT 363
10 80123745 WIRE ROPE 7/8″ ASSY X 158M NO DWG
11 80117700 INSERT ASSY #350 3M 365
80117701 INSERT WELD #350 3M 367
11 80120391 BLOCK 30 MTON 1 SHEAVE NO DWG
12 80123958 TIMBER ASSY #350 3M 369
12 80120390 BLOCK 85 MTON 3 SHEAVE NO DWG
13 80117702 INSERT ASSY #350 6 M 371
80117703 INSERT WELD #350 6M 373
14 80123959 TIMBER ASSY #350 6M 375
14 80120392 OVERHAUL BALL 15 MTON NO DWG
15 80123748 WIRE ROPE 26MM ASSY X 324M NO DWG
16 80123749 WIRE ROPE 26MM ASSY X 253M NO DWG
17 80118954 INSERT ASSY #350 12M W/LUG 377
80118955 INSERT WELD #350 12M W/LUG 379
Manitowoc Cranes
MACHINE COMPONENT INDEX
Date: August 18, 2021 Rev:
Model Number Serial Number
MLC150-1 91501009
Item Part Description Page
VI
18 80123960 TIMBER ASSY #350 12M 381
19 80117704 INSERT ASSY #350 12 M 383
80117705 INSERT WELD #350 12M 385
20 80123960 TIMBER ASSY #350 12M 387
25 80118578 UPPER POINT ASSY 389
80124556 ESI UPPER POINT 391
80091847 SWITCH ASSY ATB, W/DUST CAP 393
9333102633 A2B FLAG ASSY 395
1712501 SHEAVE ASSY 397
25 80128376 CVS SHIP OUT PAINT & MISC. 399
