Manitowoc Crane MLC150-1 Parts Manual SN 91501014 – PDF DOWNLOAD

Manitowoc Crane MLC150-1 Parts Manual SN 91501014 – PDF DOWNLOAD

FILE DETAILS:

Manitowoc Crane MLC150-1 Parts Manual SN 91501014 – PDF DOWNLOAD

Language : English
Pages : 579
Downloadable : Yes
File Type : PDF

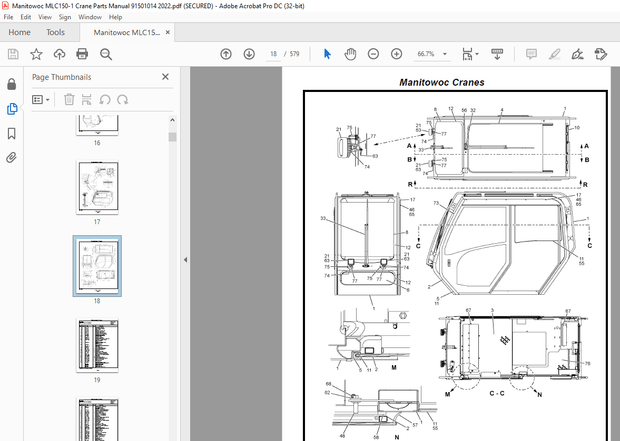

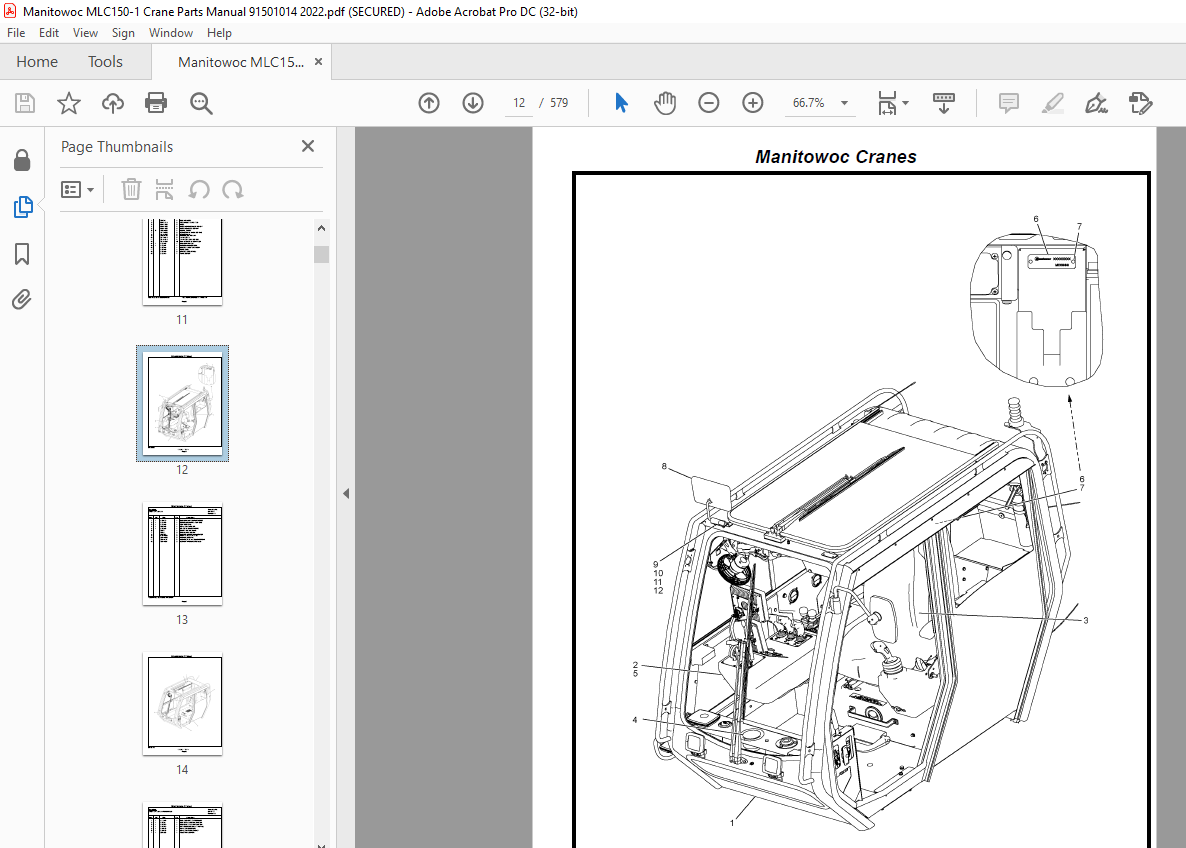

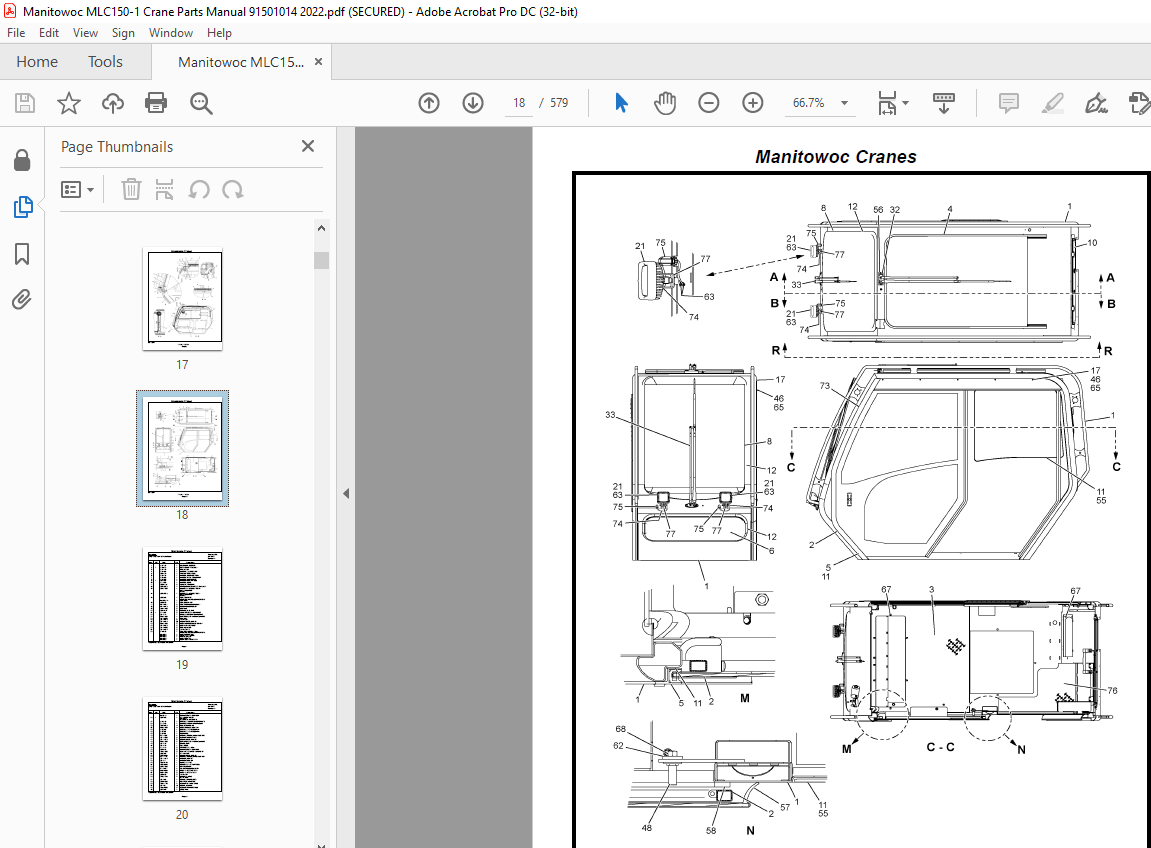

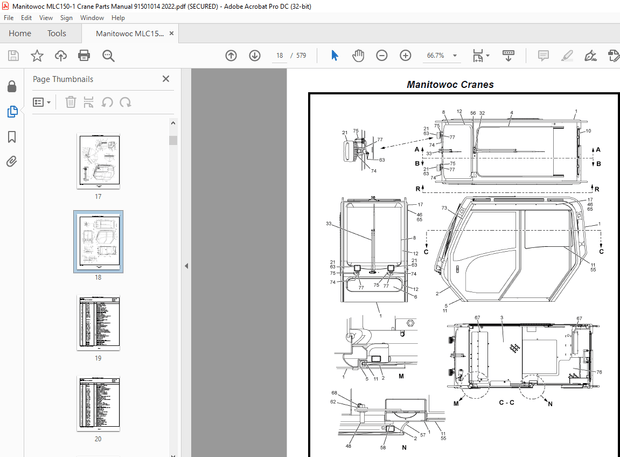

IMAGES PREVIEW OF THE MANUAL:

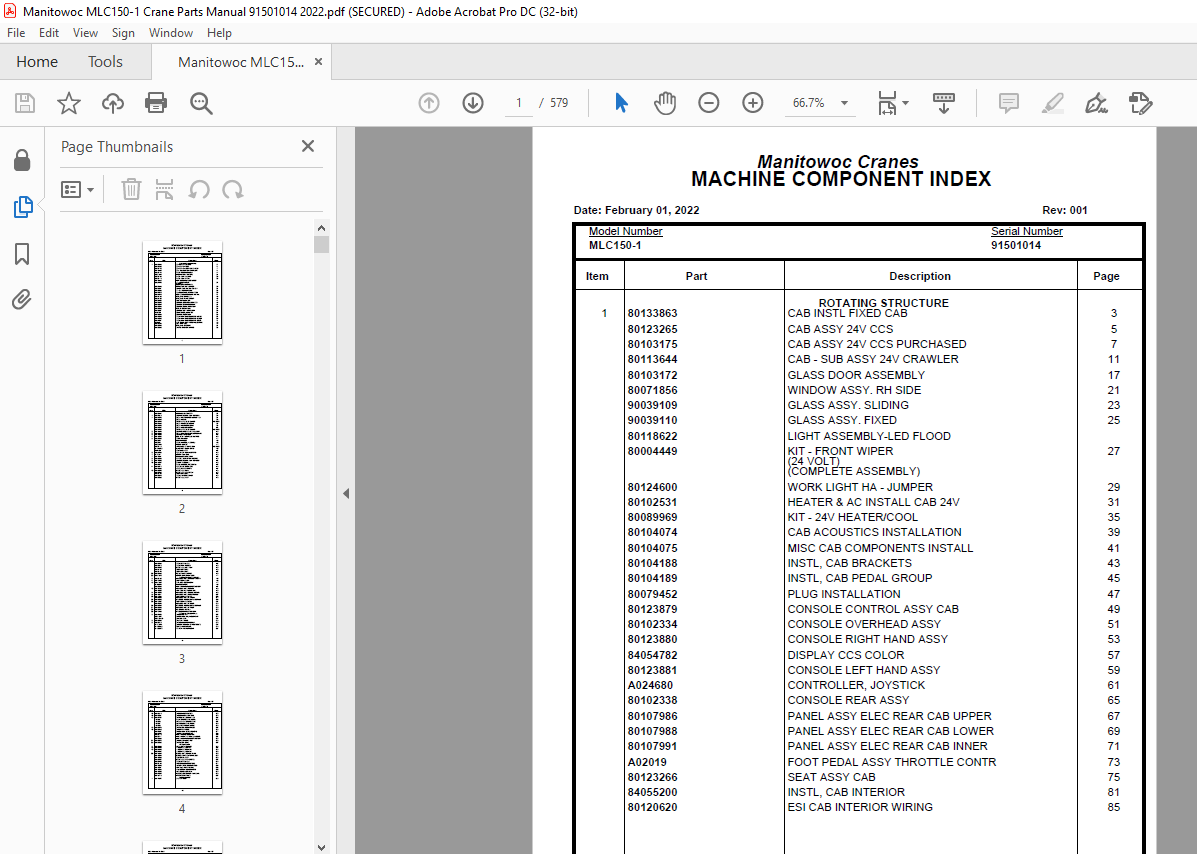

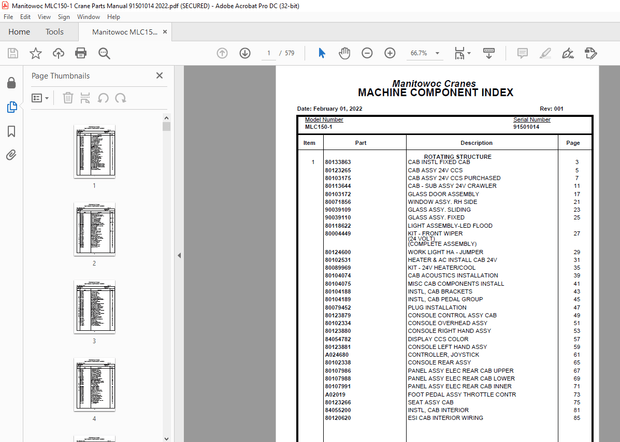

TABLE OF CONTENTS:

Manitowoc Crane MLC150-1 Parts Manual SN 91501014 – PDF DOWNLOAD

ROTATING STRUCTURE
1 80133863 CAB INSTL FIXED CAB 3
80123265 CAB ASSY 24V CCS 5
80103175 CAB ASSY 24V CCS PURCHASED 7
80113644 CAB – SUB ASSY 24V CRAWLER 11
80103172 GLASS DOOR ASSEMBLY 17
80071856 WINDOW ASSY. RH SIDE 21
90039109 GLASS ASSY. SLIDING 23
90039110 GLASS ASSY. FIXED 25
80118622 LIGHT ASSEMBLY-LED FLOOD
80004449 KIT – FRONT WIPER 27
(24 VOLT)
(COMPLETE ASSEMBLY)
80124600 WORK LIGHT HA – JUMPER 29
80102531 HEATER & AC INSTALL CAB 24V 31
80089969 KIT – 24V HEATER/COOL 35
80104074 CAB ACOUSTICS INSTALLATION 39
80104075 MISC CAB COMPONENTS INSTALL 41
80104188 INSTL, CAB BRACKETS 43
80104189 INSTL, CAB PEDAL GROUP 45
80079452 PLUG INSTALLATION 47
80123879 CONSOLE CONTROL ASSY CAB 49
80102334 CONSOLE OVERHEAD ASSY 51
80123880 CONSOLE RIGHT HAND ASSY 53
84054782 DISPLAY CCS COLOR 57
80123881 CONSOLE LEFT HAND ASSY 59
A024680 CONTROLLER, JOYSTICK 61
80102338 CONSOLE REAR ASSY 65
80107986 PANEL ASSY ELEC REAR CAB UPPER 67
80107988 PANEL ASSY ELEC REAR CAB LOWER 69
80107991 PANEL ASSY ELEC REAR CAB INNER 71
A02019 FOOT PEDAL ASSY THROTTLE CONTR 73
80123266 SEAT ASSY CAB 75
84055200 INSTL, CAB INTERIOR 81
80120620 ESI CAB INTERIOR WIRING 85
80123607 WINDOW WASHER ASSY 87
1 80134318 COUNTERWEIGHT ASSY SERIES 2 89
1 80127270 DECAL KIT STANDARD MLC150-1 EN 91
80127264 DECAL KIT CAB 93
80102744 PLATE CRANE ID MFG IN SG NO DWG
80127265 DECAL KIT LOWERWORKS 95
80127266 DECAL KIT UPPERWORKS 99
80127267 DECAL KIT BASIC BOOM 101
80102744 PLATE CRANE ID MFG IN SG NO DWG
2 80116943 SLEWING RING BRG INSTALL ASSY 103
2 80127268 DECAL KIT MLC150-1 NOMENCLATUR 105
3 80116898 SLEWING DRIVE ASSY 107
4 80119902 LUBE SYST TURNTABLE BEARING 109
5 80124069 PARTS BOX ASSY 111
3856530 JACK CYLINDER 113
6462460 SOCKET/WEDGE, 1″ (26 MM) 115
80075460 WEIGHT-LMI A2B 117
80124112 SLING 3 LEG 26.6 MT 2.13 M NO DWG
810249430 VALVE ASSY QUICK DRAIN 119
A041430 PUMP HYD HAND 121
6 80109482 ACCESSORY SUN VISOR CAB 123
7 A171371 MIRROR ASSY CAB 125
7 80117501 PIN PULLER ASSY, CTWT 127
8 80122968 BRACKET INSTL CTWT RAISING 129
9 80117303 COUNTERWEIGHT ASSY ROT BED 131
10 80119087 GANTRY ASSEMBLY 133
6462450 SOCKET/WEDGE, 7/8″ (22 MM) 137
11 80102717 ACCESSORY RADIO CAB 139
80108386 HARNESS ASSY-RADIO 141
19 80126979 ENCLOSURE INSTL 145
80122832 ENCLOSURE ASSY RIGHT 149
80128164 DOOR ASSY ENCL 151
80122875 PANEL BATTERY COVER 153
80122893 ENCLOSURE ASSY 155
80122908 PANEL ENCLOSURE 157
80122912 PANEL ASSY ACCESS 159
80127355 ENCLOSURE LEFT ASSY 163
80128164 DOOR ASSY ENCL 165
80128178 DOOR ASSY ENCL 167
36 80138488 W/O LUFFING JIB PREP 169
39 80121975 MIRROR INSTL RIGHT SIDE 171
UPPERWORKS MACHINERY
3 80120105 HYD LINES INSTL CARBODY JACKIN 173
11 80115479 HOIST ASSY BOOM 175
12 80121244 PAWL ASSY BOOM HOIST 177
81019943 CYLINDER HYDR 179
80129368 LIMIT SWITCH MOLDED 3P SUBASSY 181
13 80115269 HYD LINES INSTL RETURN 185
80119055 TANK 436 L RET FILTRATION 189
14 80115270 HYD LINES INSTL DRUM & TRAVEL 195
15 80115271 HYD LINES INSTL ACCESSORIES 207
20 80115482 HOIST ASSY DRUM 1 FF 215
80120369 HYD LINES INSTL FF FRONT 217
22 80126838 ENCODER, INCREMENTAL 500 PULS 219
23 80115487 HOIST ASSY DRUM 2 FF 221
80120370 HYD LINES INSTL FF REAR 223
25 80126838 ENCODER, INCREMENTAL 500 PULS 225
27 80120368 HYD LINES INSTL FF PREP 229
28 80138487 W/O DRUM 3 INSTALL 233
29 80115498 ENCODER SWING LIMIT ASSY 235
CONTROLS, ELECTRICAL
8 80124559 ESI SECOND A2B 237
80091847 SWITCH ASSY ATB, W/DUST CAP 239
9333102633 A2B FLAG ASSY 241
8 80123593 ESI LIGHT TOWER 243
9 80125213 ESI ANEMOMETER POSN LT 245
810316421 ESI POSITION LIGHT & ANEMOMETE 247
810209900 SENSOR WIND SPEED 249
810250570 SUBASSY POSITION LIGHT 251
10 80125214 ESI BOOM TOP CAMERA 253
10 80109831 ESI BOOM POS LIGHT CAB 255
12 80124757 ESI FREEFALL DRUMS 1 & 2 257
1965291 FRONT DRUM BRAKE PEDAL 259
1965299 PEDAL FRONT DRUM BRAKE 261
1965301 REAR DRUM BRAKE PEDAL 263
1965309 PEDAL REAR DRUM BRAKE 265
13 80125073 ESI CAMERA MONITOR CAB 267
16 80120823 ESI ROTATING BED 269
80107601 SWITCH ASSY SETUP REMOTE 271
80120824 ESI ROT BED MOUNTING 275
80122110 LIMIT SWITCH BOOM STOP 279
80129711 LIMIT SWITCH SUBASSY 6P LINEAR 281
80129368 LIMIT SWITCH MOLDED 3P SUBASSY 283
37 80123272 ESI ROT BED LEVEL IND 285
38 80123992 ESI CAMERA INSTL 287
POWER PLANT
3 80127269 DECAL KIT T4F ENGINE 289
18 90047705 KIT SERVICE 500 HRS 291
19 90047706 KIT SERVICE 1000 HRS 293
90047707 KIT SERVICE 2000 HRS 295
30 80118284 ENGINE INSTL POWER PLANT 299
80118286 ENGINE ASSY PUMP DRIVE Q6.7 303
80118288 PUMP DRIVE ASSY 305
80122757 ENCLOSURE ASSY ENGINE 307
80122770 PANEL ENCLOSURE 309
80128156 DOOR ENCLOSURE ENGINE 311
80118290 BATTERY INSTL CUMMINS QSB 313
80118291 TANK FUEL INSTL 125 GAL 315
80118292 FUEL CIRCUIT CUMMINS QSB 319
80118293 HVAC AC/HEATER ASSY 323
80027884 A/C CONDENSER-VERT. MTG. 24V. 325
80119713 AIR COND KIT HOSES 327
80115273 HYD LINES INSTL CARBODY 333
810039140 Q DISCON FITTING 337
810121650 Q DISCON FITTING 339
80121397 PIN PULLER CARBODY CRAWLER 341
1 80116888 CRAWLER ASSY 343
80112367 ROLLER ASSY CRAWLER FRONT 347
80116893 CRAWLER DRIVE ASSY 349
80123686 CRAWLER PAD ASSY 351
80124367 HYD LINES INSTL CRAWLER 353
810039130 Q DISCON FITTING 357
810121640 Q DISCON FITTING 359
2 80123317 OUTRIGGER BEAM ASSY INSTL JACK 361
810247561 OUTRIGGER PAD ASSY 363
4 80123352 COUNERWEIGHT CARBODY ASSY INST 365
26 80125095 ESI FREEFALL DRUMS 1 & 2 367
ATTACHMENTS
1 80121510 BUTT ASSY #350 6.8M 369
80120866 STOP BOOM #350 371
80121275 BUTT WELD #350 6.8M 373
80123530 EQUALIZER ASSY 375
80126798 ESI BUTT ASSY #350 377
2 80124550 SHEAVE SELF ASSY INSTL 379
80106390 SHEAVE ASSY 26MM ROPE NO DWG
4 80121512 TOP ASSY #350, 8.2 M 381
80106390 SHEAVE ASSY 26MM ROPE NO DWG
80121513 TOP WELD #350 8.20 M 385
80124557 ESI BOOM TOP 389
80091847 SWITCH ASSY ATB, W/DUST CAP 391
9333102633 A2B FLAG ASSY 393
5 80124692 TIMBER ASSY #350, TOP 395
5 810292880 BUSHING, COMPOSITE NO DWG
5 80115699 DECAL KIT BOOM INSERT 397
6 80107642 CLAMP ASSY, 133 ID 399
6 80121571 BUSHING 950D X 85ID X 80LG NO DWG
6 80115699 DECAL KIT BOOM INSERT 401
7 80119795 A2B ASSY 403
80075460 WEIGHT-LMI A2B 405
7 80115699 DECAL KIT BOOM INSERT 407
8 80119795 A2B ASSY 409
80075460 WEIGHT-LMI A2B 411
8 80115699 DECAL KIT BOOM INSERT 413
9 80109800 KIT BOOM TOP CAMERA 415
9 80115699 DECAL KIT BOOM INSERT 417
10 80123745 WIRE ROPE 7/8″ ASSY X 158M NO DWG
11 80117700 INSERT ASSY #350 3M 419
80117701 INSERT WELD #350 3M 421
11 80120391 BLOCK 30 MTON 1 SHEAVE NO DWG
12 80123958 TIMBER ASSY #350 3M 423
12 80120390 BLOCK 85 MTON 3 SHEAVE NO DWG
13 80117702 INSERT ASSY #350 6 M 425
80117703 INSERT WELD #350 6M 427
14 80123959 TIMBER ASSY #350 6M 429
14 80120392 OVERHAUL BALL 15 MTON NO DWG
15 80123748 WIRE ROPE 26MM ASSY X 324M NO DWG
16 80123749 WIRE ROPE 26MM ASSY X 253M NO DWG
16 80127276 DECAL KIT FREE FALL ID 431
17 80118954 INSERT ASSY #350 12M W/LUG 433
80118955 INSERT WELD #350 12M W/LUG 435
18 80123960 TIMBER ASSY #350 12M 437
19 80117704 INSERT ASSY #350 12 M 439
80117705 INSERT WELD #350 12M 441
20 80123960 TIMBER ASSY #350 12M 443
21 80117704 INSERT ASSY #350 12 M 445
80117705 INSERT WELD #350 12M 447
22 80123960 TIMBER ASSY #350 12M 449
25 80118578 UPPER POINT ASSY 451
80124556 ESI UPPER POINT 453
80091847 SWITCH ASSY ATB, W/DUST CAP 45502633 A2B FLAG ASSY 457
1712501 SHEAVE ASSY 459
25 80128376 CVS SHIP OUT PAINT & MISC. 461
