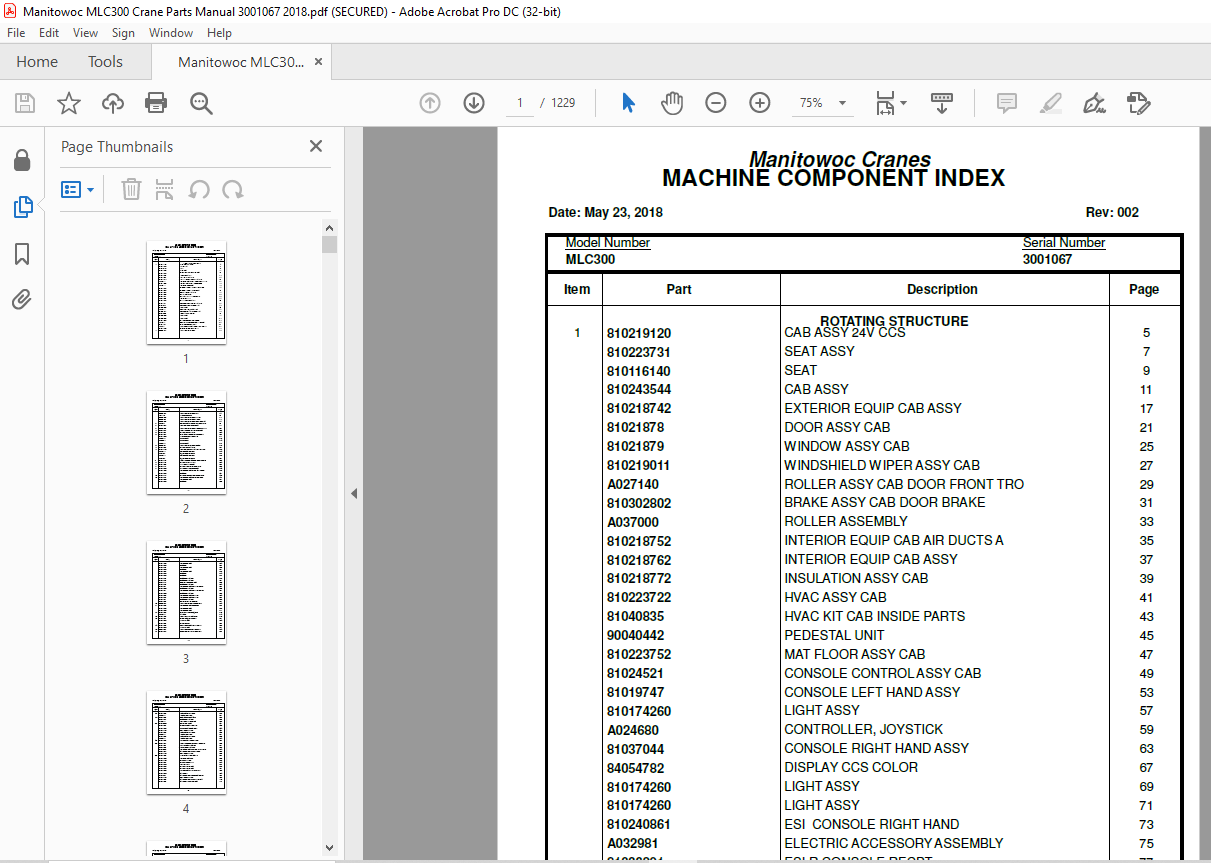

ROTATING STRUCTURE

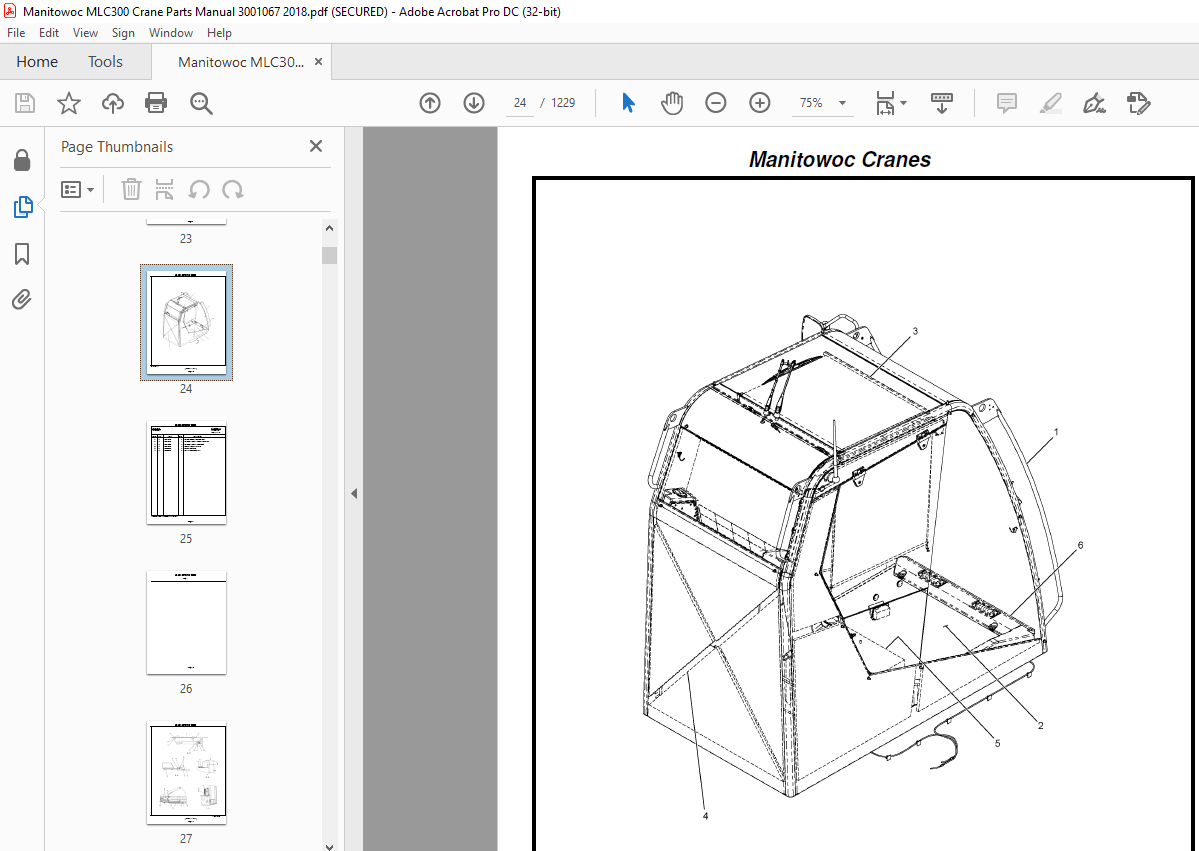

1 810219120 CAB ASSY 24V CCS 5
810223731 SEAT ASSY 7
810116140 SEAT 9
810243544 CAB ASSY 11
810218742 EXTERIOR EQUIP CAB ASSY 17
81021878 DOOR ASSY CAB 21
81021879 WINDOW ASSY CAB 25
810219011 WINDSHIELD WIPER ASSY CAB 27
A027140 ROLLER ASSY CAB DOOR FRONT TRO 29
810302802 BRAKE ASSY CAB DOOR BRAKE 31
A037000 ROLLER ASSEMBLY 33
810218752 INTERIOR EQUIP CAB AIR DUCTS A 35
810218762 INTERIOR EQUIP CAB ASSY 37
810218772 INSULATION ASSY CAB 39
810223722 HVAC ASSY CAB 41
81040835 HVAC KIT CAB INSIDE PARTS 43
90040442 PEDESTAL UNIT 45
810223752 MAT FLOOR ASSY CAB 47
81024521 CONSOLE CONTROL ASSY CAB 49
81019747 CONSOLE LEFT HAND ASSY 53
810174260 LIGHT ASSY 57
A024680 CONTROLLER, JOYSTICK 59

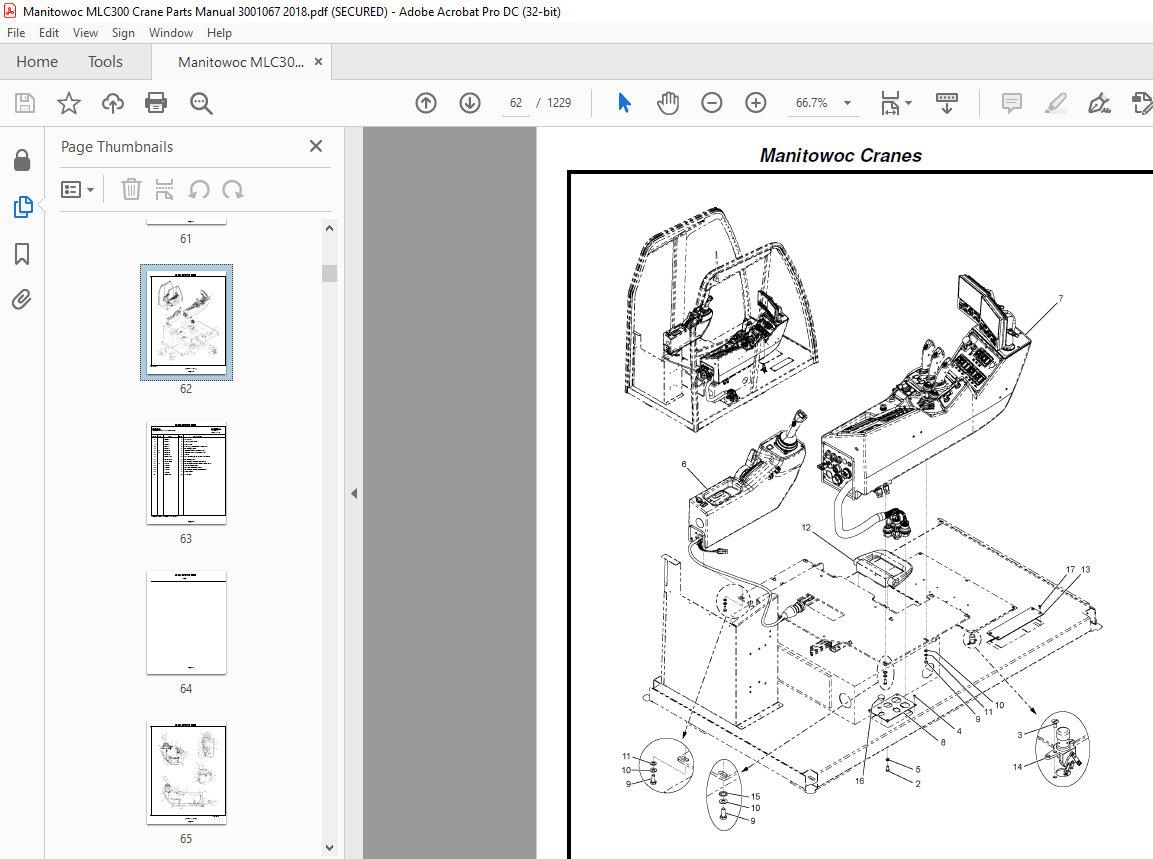

81037044 CONSOLE RIGHT HAND ASSY 63
84054782 DISPLAY CCS COLOR 67
810174260 LIGHT ASSY 69
810174260 LIGHT ASSY 71
810240861 ESI CONSOLE RIGHT HAND 73
A032981 ELECTRIC ACCESSORY ASSEMBLY 75
81036291 ESI R CONSOLE RECPT 77
A02019 FOOT PEDAL ASSY THROTTLE CONTR 79
810259061 ESI CAB INTERIOR WIRING 81
1 80097654 DECAL INSTL-MLC300 83
I
Manitowoc Cranes
MACHINE COMPONENT INDEX
Date: May 23, 2018 Rev: 002
Model Number
MLC300
Serial Number
3001067
Item Part Description Page
80097655 DECAL INSTL-MLC300-CAB 85
1815030 BUILDERS DECAL 87
80097656 DECAL INSTL-MLC300-UPPER 91
80097657 DECAL INSTL-MLC300-BOOM 93
80097658 DECAL INSTL-MLC300-CRAW/CBODY 95
2 A03316 COVER ASSY WINDOWS VISION CAB 97
2 81023984 SLEWING RING BRG ASSY 99
2 80097660 DECAL INSTL-MLC300-NOMENCLATUR 101
3 84028005 ROTATING BED STRUT SUBASSY 103
4 81025807 SWITCH DRUM 2 CAB 105
4 81023985 LUBE SYST TURNTABLE BEARING 107
810260460 PUMP GREASE 24VDC/2.0A 111
A067160 VALVE ASSY 113
A067170 VALVE ASSY 115
A067180 VALVE ASSY 117
4 80097661 DECAL INSTL-MLC300-JACKS 119
6 81025809 SWITCH DRUM 5 CAB 121
6 810240152 SLEWING DRIVE ASSY LEFT SWING 123
A056890 MOTOR HYD PISTON 125
5364675 KIT, OVERHAUL/SEAL 127
A056890 MOTOR HYD PISTON 129
5364675 KIT, OVERHAUL/SEAL 131
7 81028816 ROTATING BED HYDRAZORB INSTALL 133
8 81025812 SWITCH CAB TILT CAB 135
8 81026236 BUSHING ASSEMBLY 137
9 81025813 SWITCH TIER 4F ENGINE CAB 139
9 810239780 CAB MOUNTING ASSEMBLY 145
810296433 PLATFORM ASSY 2327 X 540 CAB S 149
810293652 LANYARD 151
10 81025814 SWITCH AIRCRAFT WARNING CAB 153
10 81029179 PLATFORM ASSY ROTATING BED 157
810298032 PLATFORM ASSY 161
810293652 LANYARD 163
II
Manitowoc Cranes
MACHINE COMPONENT INDEX
Date: May 23, 2018 Rev: 002
Model Number
MLC300
Serial Number
3001067
Item Part Description Page
810300292 PLATFORM ASSY 165
810293652 LANYARD 167
81040149 PLATFORM ASSY 169
810293652 LANYARD 171
81041286 PLATFORM ASSY 173
810293652 LANYARD 175
810293652 LANYARD 177
81041142 LANYARD ASSY PIN 179
81041140 LANYARD ASSY PIN 181
84025515 LADDER FOLDING ASSY 183
81041140 LANYARD ASSY PIN 185
81040151 PLATFORM ASSY ROT BED REAR 187
810315282 LANYARD ASSY PIN 189
81042241 PLATFORM ASSY ROT BED INSIDE 191
810315282 LANYARD ASSY PIN 193
81042928 PLATFORM ASSY ROT BED 195
81042929 PLATFORM ASSY ROT BED 197
81042931 LANYARD ASSY PIN 199
84043542 PANEL EXHAUST SHIELD 201
10 80097855 DECAL INSTL-BASIC HANDRAIL 205
11 81029348 PLATFORM ASSY GENERAL 207
810269922 PLATFORM ASSY 209
810292552 PLATFORM ASSY 211
12 81023986 MAST RAISING ASSY, LIVE 213
A055540 CYL HYD 215
13 81023038 FLOOR PLATE ASSY CAB 219
13 81023987 MAST ASSY, LIVE MAST 221
810258220 SHEAVE ASSY 225
81033389 ESI LIVE MAST 227
15 81026648 EQUALIZER ASSY MAST HOIST 229
810258220 SHEAVE ASSY 231
16 80098803 DECAL PERSONAL TIE DOWN 235
17 81028324 COUNTERWEIGHT WELDMENT 237
III
Manitowoc Cranes
MACHINE COMPONENT INDEX
Date: May 23, 2018 Rev: 002
Model Number
MLC300
Serial Number
3001067
Item Part Description Page
20 81042356 LINK ASSY DEAD END 239
A062780 SOCKET BUTTON 241
24 84053582 TANK HYDR ASSY 552L 243
84019925 LANYARD ASSY PIN 247
A164380 VENT BREATHER TANK 249
30 810287691 PARTS BOX ASSY 251
81038439 KIT SELF ASSY RIGGING 253
810249430 VALVE ASSY QUICK DRAI 255
810039130 Q DISCON FITTING 257
81042356 LINK ASSY DEAD END 259
A062780 SOCKET BUTTON 261
81042356 LINK ASSY DEAD END 263
A062780 SOCKET BUTTON 265
59 81042358 GUARD CYL & HOSE STOW 267
68 84045983 ROTATING BED VPC COMPONENTS 269
81026037 GEAR RACK ASSY VPC 271
84028440 WEAR PAD ASSY VPC 273
81034766 BRACKET ASSY VPC-MAX WEAR PAD 275
84045984 HYD LINES INSTL VPC LINES 279
810039140 Q DISCON FITTING 283
69 81025626 TROLLEY ASSEMBLY VPC 287
810240551 ROLLER ASSY VPC 289
810282121 ESI VPC WIRING 293
81028670 ESI VPC MOUNTING 295
810293291 LIMIT SWITCH 297
810238652 SWITCH LIMIT ASSY 299
810238652 SWITCH LIMIT ASSY 301
810293281 GUARD ASSY VPC WEAR PAD 303
810295501 HYD EQUIP 305
81011301 HYD LINES INSTL ENERGY CHAIN 307
810039130 Q DISCON FITTING 309
81024056 HYD LINES INSTL VPC TROLLEY 313
81028880 HYD EQUIP VPC TROLLEY 317
IV
Manitowoc Cranes
MACHINE COMPONENT INDEX
Date: May 23, 2018 Rev: 002
Model Number
MLC300
Serial Number
3001067
Item Part Description Page
810136490 VALVE MANIFOLD ASSY 2 BK D03 2 321
810136500 VALVE MANIFOLD 323
810239070 VALVE DIRECTIONAL CONTROL 325
810255720 VALVE MANIFOLD 327
810357471 ENERGY CHAIN TRAY SUPPORT 329
810300471 GUARD ASSY VPC 331
810366431 WEAR PAD ASSY VPC TROLLEY 333
81040002 ENCODER ASSY VPC POSITION 335
81042362 ENERGY CHAIN ASSY SHIPPING 337
81042177 GUARD ASSY VPC ROLLERS 339
81042257 GUARD ASSY ROLLER 341
84030409 HYD MOTOR TROLLEY LEFT SIDE 343
84030410 HYD MOTOR TROLLEY RIGHT SIDE 345
81037248 HYD LINES INSTL VPC-MAX PREP 347
810039140 Q DISCON FITTING 349
70 81024050 COUNTERWEIGHT TRAY ASSY 351
810289431 ESI COUNTERWEIGHT TRAY 353
810289450 LIGHT ASSY VPC WARNING INDICAT 355
810299161 CHAIN ASSY 357
71 84030423 MOD BED LEVEL SENSOR NO DWG
74 81042919 ROTATING BED MOD LIFT LUG PLUG NO DWG
UPPERWORKS MACHINERY
3 81025061 DRUM 1 ASSY MAIN LOAD HOIST 359
810240160 GEAR BOX HOIST 84.7:1 RATIO 361
810256240 HYD MOTOR 250CC PIS VAR B1 24V 367
90038633 OVERHAUL SEAL KIT, H1B160 371
81039856 ROLLER ASSY 373
84021470 HYD LINES INSTL BOOM BUTT DRUM 375
810239070 VALVE DIRECTIONAL CONTROL 379
4 81027708 HOIST ASSY LUFFING 381
81041533 CYL HYD 383
810259471 ESI DRUM 6 385
810245252 LIMIT SWITCH 387
V
Manitowoc Cranes
MACHINE COMPONENT INDEX
Date: May 23, 2018 Rev: 002
Model Number
MLC300
Serial Number
3001067
Item Part Description Page
81041430 HYD MOTOR 389
90038633 OVERHAUL SEAL KIT, H1B160 393
810277041 HOIST ASSY LUFFING HOIST 395
810284644 PAWL ASSY 397
810345341 HYD EQUIP DRUM 6 401
810136400 VALVE MANIFOLD 405
810239070 VALVE DIRECTIONAL CONTROL 407
5 81027453 HYD LINES INSTL DRUM 0 DRUM 7 409
810039140 Q DISCON FITTING 411
6 81027454 HYD LINES INSTL DRUM 1 PREP 415
810039140 Q DISCON FITTING 419
7 81027455 HYD LINES INSTL DRUM 6 PREP 423
810039140 Q DISCON FITTING 427
14 81024009 HOIST LIVE MAST 429
81041430 HYD MOTOR 433
90038633 OVERHAUL SEAL KIT, H1B160 437
810267791 PAWL 439
810277261 ESI DRUM 4 441
810245252 LIMIT SWITCH 443
810426831 HYD EQUIP DRUM 4 447
810039140 Q DISCON FITTING 453
810121650 Q DISCON FITTING 455
810136400 VALVE MANIFOLD 457
810239070 VALVE DIRECTIONAL CONTROL 459
25 81037691 HYD LINES INSTL 461
26 81026734 HYD LINES INSTL FAN COOLING 465
27 81026882 HYD EQUIP ROT BED VALVES 469
7041130 VALVE, DOUBLE COUNTERBALANCE 473
810136400 VALVE MANIFOLD 475
810239070 VALVE DIRECTIONAL CONTROL 477
810136500 VALVE MANIFOLD 479
810239070 VALVE DIRECTIONAL CONTROL 481
810247280 VALVE BANK 5 BANK D07 3POS 4WA 483
VI
Manitowoc Cranes
MACHINE COMPONENT INDEX
Date: May 23, 2018 Rev: 002
Model Number
MLC300
Serial Number
3001067
Item Part Description Page
810255720 VALVE MANIFOLD 485
810337762 VALVE MANIFOLD 487
81042925 VALVE RELIEF ASSY 489
84019665 VALVE RELIEF ASSY 491
28 81035571 PIPING HYDR ASSY 493
29 81027438 HYD EQUIP LIVE MAST RAISE CYL 495
30 81027441 HYD EQUIP TRANSDUCER INSTL 497
31 81038266 HYD LINES INSTL TANK RETURN 501
810039140 Q DISCON FITTING 507
810391712 MANIFOLD BLOCK 2 BAR CHECK 12 509
81042207 PIN HOSE STOWAGE 511
32 81038067 HYD LINES INSTL CIRC COOLER FI 513
33 81042684 HYD LINES INSTL DRUM 4 517
810039130 Q DISCON FITTING 521
810114700 Q DISCON FITTING 523
810121640 Q DISCON FITTING 525
81042207 PIN HOSE STOWAGE 527
34 81027447 HYD LINES INSTL ROT BED ACCESS 531
810121650 Q DISCON FITTING 535
810210270 Q DISCON FITTING 537
35 81027459 HYD EQUIP HYD SYS FILTERS 539
36 81027460 HYD LINES INSTL ACCES LOW PRES 543
37 81027461 HYD LINES INSTL ACC HIGH PRES 547
38 81027956 HYD LINES INSTL SWIVEL ROT BED 549
39 810279571 HYD LINES INSTL SWING MOTOR CI 551
84022262 HYD LINES INSTL SWING MOTOR CI 553
40 81029633 HYD LINES INSTL LIVE MAST CYL 555
810210270 Q DISCON FITTING 557
41 84045991 HYD LINES INSTL DRUM 0 PREP 561
810039130 Q DISCON FITTING 565
81040102 VALVE 567
81042207 PIN HOSE STOWAGE 569
42 81027445 HYD LINES INSTL DRUM 2 573
VII
Manitowoc Cranes
MACHINE COMPONENT INDEX
Date: May 23, 2018 Rev: 002
Model Number
MLC300
Serial Number
3001067
Item Part Description Page
810039130 Q DISCON FITTING 577
81041424 FRAME HOSE STOWAGE 579
81042207 PIN HOSE STOWAGE 581
43 84045990 HYD LINES INSTL DRUM 1 PREP 585
81042207 PIN HOSE STOWAGE 587
44 81033602 HYD LINES INSTL ROTATING BED D 589
810039140 Q DISCON FITTING 593
810114710 Q DISCON FITTING 595
810121650 Q DISCON FITTING 597
45 81034016 HYD LINES INSTL DRUM 6 599
810039130 Q DISCON FITTING 601
81042207 PIN HOSE STOWAGE 603
46 81029382 HYD LINES INSTL LIVE MAST CYL 605
CONTROLS, ELECTRICAL
10 81025946 ESI BOOM BUTT CCTV 609
11 81041880 ESI CCTV DRUM 6 611
12 81041916 ESI BOOM TOP CAM PREP 613
14 81025818 SWITCH CAMERA LIGHTS CAB 615
15 81025501 ACCESSORY CAMERA MONITORS CAB 617
810244000 MONITOR ASSY LED 7 IN 619
17 81028247 ESI RCL LIGHT 621
84037426 LIGHT ASSY RCL 623
18 81034282 ESI ROTATING BED 627
81029114 ESI CAB EXTERIOR WIRING 631
810328761 ESI MOUNTING ASSEMBLY 635
810238652 SWITCH LIMIT ASSY 639
84036350 JUNCTION BOX DC LOAD CENTER 641
81034121 ESI CAN RECEPTACLE MOUNT 645
81029825 KIT BASE/REMOTE 2.4 GHZ 647
81038809 ESI SERVICE LIGHTS 649
81038813 LIGHT SERVICE LIGHT ASSY 651
19 81037054 SWITCH 653
19 81026120 ESI BED CAMERAS 655
VIII
Manitowoc Cranes
MACHINE COMPONENT INDEX
Date: May 23, 2018 Rev: 002
Model Number
MLC300
Serial Number
3001067
Item Part Description Page
20 81041734 ESI 12M INSERT CCTV 657
20 84050450 SWITCH VPC SHUTDOWN 659
20 81041991 ESI CCTV DRUM 2 EQUIP 661
21 81041958 ESI VPCMAX CAMERA EQUIP 663
22 81041072 ESI VPC-MAX PREP 665
810245252 LIMIT SWITCH 667
810245252 LIMIT SWITCH 669
22 84032601 ESI BOOM TOP CAMERA 671
54 81025886 ESI CUMMINS QSG12 T4F 673
81042368 BRACKET FUSE PANEL 675
63 81041448 COLD WEATHER KIT ROT BED INSTL 679
81040030 BOX JUNCTION ASSY 681
81040031 BOX JUNCTION ASSY 683
64 81041449 ESI AC COMMON 685
POWER PLANT
5 81028434 TANK FUEL INSTALLATION 687
23 81041522 GENERATOR INSTL COMPONENTS 689
27 90038764 250 HR SERVICE KIT 691
28 90038765 500 HR SERVICE KIT 693
47 81023960 POWERTRAIN QSG12 TIER 4F 697
810248891 GEAR BOX ASSY 450 HP 699
810247210 PUMP 701
810247220 PUMP HYD PIS 165CC EH24V 705
810247230 PUMP HYD CL PIS VAR 100CC 711
810249430 VALVE ASSY QUICK DRAI 713
A097353 CLUTCH ASSY CUMMINS QSG-12 717
810155850 CLUTCH 719
48 81023962 EXHAUST SYST QSG12 T4 FINAL 721
49 81023968 AIR CLEANER INST 450HP CUMMINS 725
810333972 ENCLOSURE ASSY 729
50 81023970 COOLER ASSY 450 HP CUMMINS 735
810295572 PANEL ENCL ASSY 739
810295582 PANEL ENCL ASSY 741
IX
Manitowoc Cranes
MACHINE COMPONENT INDEX
Date: May 23, 2018 Rev: 002
Model Number
MLC300
Serial Number
3001067
Item Part Description Page
810295592 PANEL ENCL ASSY 743
51 81023972 FUEL CIRCUIT 450 HP CUMMINS 745
81041516 FUEL CIRCUIT 747
52 81023973 BATTERY INSTL CUMMINS QSG12 749
53 81023974 HVAC INSTL 450 HP CUMMINS 753
810287752 AIR COND ASSY KIT OUTSIDE CAB 757
55 81027419 DEF SYSTEM INSTL CUMMINS QSG12 759
56 81028410 CLUTCH RELEASE ASSY 763
57 81026650 ENCLOSURE ASSEMBLY POWER PLANT 765
810324152 COVER ASSY ENCLOSURE 767
810293652 LANYARD 769
810318962 PANEL POWER PLANT ENCL 771
810318992 PANEL ENCL ASSY POWER PLANT 773
810319022 PANEL POWER PLANT ENCL 775
81042535 COVER ASSY ENCLOSURE 777
81042536 COVER ASSY ENCLOSURE 779
60 81037290 GENERATOR ASSY PREP 781
81037291 HEATER APU 783
81037292 AIR COND ASSY APU 785
81037293 FUEL CIRCUIT APU 787
81041768 ESI APU PREP 791
81040179 JUNCTION BOX ASSY APU DC 795
62 81037289 GENERATOR ASSY EQUIP 797
81031997 GENERATOR ASSY 801
LOWERWORKS
1 810239541 CARBODY ASSY 805
81024034 SWIVEL MOUNTING PLATE ASSY 807
810090270 ROTATING JOINT 809
81024036 PIN PULLER CARBODY-CRAWLER 811
810259310 CYLINDER HYDR 813
84030412 ESI CARBODY 815
81028815 HYD EQUIP CARBODY ASSY 817
81026883 HYD EQUIP CARBODY VALVES 819
X
Manitowoc Cranes
MACHINE COMPONENT INDEX
Date: May 23, 2018 Rev: 002
Model Number
MLC300
Serial Number
3001067
Item Part Description Page
81028704 VALVE ASSY 1 BANK D03 ALUMINUM 823
810239070 VALVE DIRECTIONAL CONTROL 825
810279320 VALVE MANIFOLD 827
81027449 HYD LINES INSTL CARBODY 829
810114710 Q DISCON FITTING 833
81029218 HYD LINES INSTL CBODY PIN PULL 835
810039140 Q DISCON FITTING 839
81028817 CARBODY HYDRAZORB INSTALL 841
81026991 PLATFORM CARBODY 843
84032560 JACK CYL ASSY CARBODY 845
81027448 HYD LINES INS CARBODY JACK CYL 847
81027972 JACK CYL ASSY LOWERWORKS 851
81040882 OUTRIGGER PAD ASSY 853
84032559 HYD EQUIP JACKING CYL VALVES 855
810136490 VALVE MANIFOLD ASSY 2 BK D03 2 857
1 80098606 MLC300 TRACK ASSY W/AUTOLUBE 859
810311600 CRAWLER ASSEMBLY 863
81024041 CRAWLER DRIVE ASSY 867
810240480 ROLLER ASSY CRAWLER INTER 869
810261189 ESI CRAWLER 871
81027451 HYD LINES INSTL CRAWLER 875
810039130 Q DISCON FITTING 879
810114700 Q DISCON FITTING 881
81042207 PIN HOSE STOWAGE 883
81040547 ROLLER ASSY TOP 885
810309632 COVER ASSY ROLLER 887
81033912 GREASE PIPING ASSY AUTOLUBE 889
81032924 CRAWLER GREASE GUARD ASSY 891
81033911 CRAWLER GREASE PIPING ASSY 895
A067180 VALVE ASSY 899
A067180 VALVE ASSY 901
810268840 PUMP GREASE 24VDC/2 .0 A 903
810268890 VALVE ASSY 905
XI
Manitowoc Cranes
MACHINE COMPONENT INDEX
Date: May 23, 2018 Rev: 002
Model Number
MLC300
Serial Number
3001067
Item Part Description Page
810349820 VALVE ASSY 907
81028767 CRAWLER 48 INCH SHOE ASSY 909
ATTACHMENTS
1 810280360 BOOM BUTT ASSY #500 8.00 M 911
1687791 INDICATOR 913
81025601 PIN PULLER BOOM HINGE 915
3856240 CYLINDER, HYDRAULIC 919
3856245 KIT, SEAL 921
810121640 Q DISCON FITTING 923
81025653 BOOM STOP ASSEMBLY #500 BOOM 925
810259451 ESI BOOM BUTT 927
810295781 CATWALK ASSY #500 8.00M BUTT 929
84020120 MANIFOLD BLOCK RETURN ASSY 931
2 81024072 WINCH RIGGING ASSY 933
810099570 WINCH 939
810280071 GUIDE ASSY 943
A131815 BLOCK .3125 IN WIRE ROPE, 4MT 945
A131810 BLOCK 947
84030729 ADAPTER RIGGING WINCH ASSY 949
84044934 WIRE ROPE RIGGING W/ FITTING 951
3 810253001 WIRE ROPE 28MM ASSY X 440 LG 953
13 810278030 INSERT ASSY 12M HEAVY #500 955
810296271 GUIDE ASSY 959
810300071 CATWALK ASSY #500 12M HEAVY 961
810338541 ESI 12M INSERT 963
14 81030008 INSERT LUFF JIB PREP 12M HEAVY 965
A120120 SHEAVE ASSY RIG WINCH ZINC RIC 967
16 81027946 GUIDE ASSY DRUM 6 UPPER 969
810258190 SHEAVE ASSY 971
16 81040830 WEDGE & SOCKET ASSY 26 MM 973
A152810 SOCKET/WEDGE, 1-1/4″ (32 MM) 975
17 81027949 GUIDE ASSY DRUM 6 LOWER 977
810258190 SHEAVE ASSY 979
XII
Manitowoc Cranes
MACHINE COMPONENT INDEX
Date: May 23, 2018 Rev: 002
Model Number
MLC300
Serial Number
3001067
Item Part Description Page
18 81029022 GUIDE ASSY DRUM 2,3 LOWER 981
810258190 SHEAVE ASSY 983
19 81029628 GUIDE ASSY DRUM 2,3 UPPER 985
810258190 SHEAVE ASSY 987
24 84018961 SLING 50000 LBS 6.15 FT NO DWG
28 810278200 INSERT ASSY 6M #500 989
810312801 CATWALK ASSY #500 6M INSERT 991
29 81031626 INSERT LJ PREP 6M MEDIUM 993
31 6462460 SOCKET/WEDGE, 1″ (26 MM) 995
32 84028327 PENDANT ASSY DEAD END 997
33 810278110 INSERT ASSY 12M WITH EQ M #500 999
81036544 CATWALK #500 12M MED W/EQ 1003
33 84018961 SLING 50000 LBS 6.15 FT NO DWG
34 81036541 INSERT LJ PREP 12M MED W/EQ 1005
37 810333440 WEIGHT BALL SWIVEL 22.2 MTON 2 NO DWG
38 810278080 INSERT ASSY 12M M #500 1007
810279002 CATWALK ASSY #500 12.0 M LIGHT 1009
39 81029537 INSERT LUFF JIB PREP 12M MED 1011
40 80109068 WIRE ROPE 28MM ASSY X 732 LG NO DWG
58 81028313 PIN PULLER MAST & EQUALIZER 1013
81032872 CYLINDER HYD LIVE MAST PIN PUL 1015
67 81039609 MAST SUPPORT ASSY 1017
81040796 HINGE SUPPORT ASSY 1021
