Manitowoc Crane MLC300 Parts Manual SN 3001087 PDF

Manitowoc Crane MLC300 Parts Manual SN 3001087  – PDF DOWNLOAD

The Manitowoc Crane MLC300 Parts Manual (SN 3001087) is a comprehensive PDF guide for assembly, maintenance, and troubleshooting. Download for easy access to essential information, ensuring efficient management of the specified crane model.

FILE DETAILS:

Manitowoc Crane MLC300 Parts Manual SN 3001087  – PDF DOWNLOAD

Language : English
Pages :1305
Downloadable : Yes
File Type : PDF

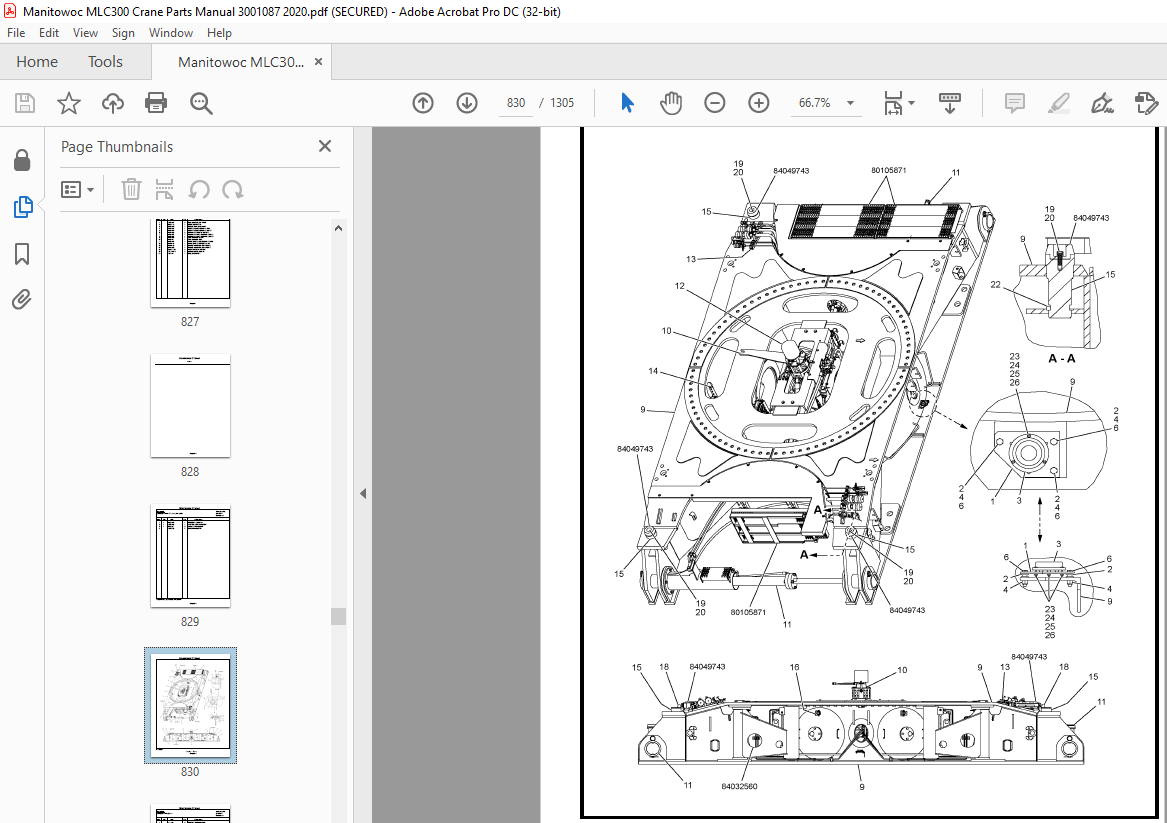

IMAGES PREVIEW OF THE MANUAL:

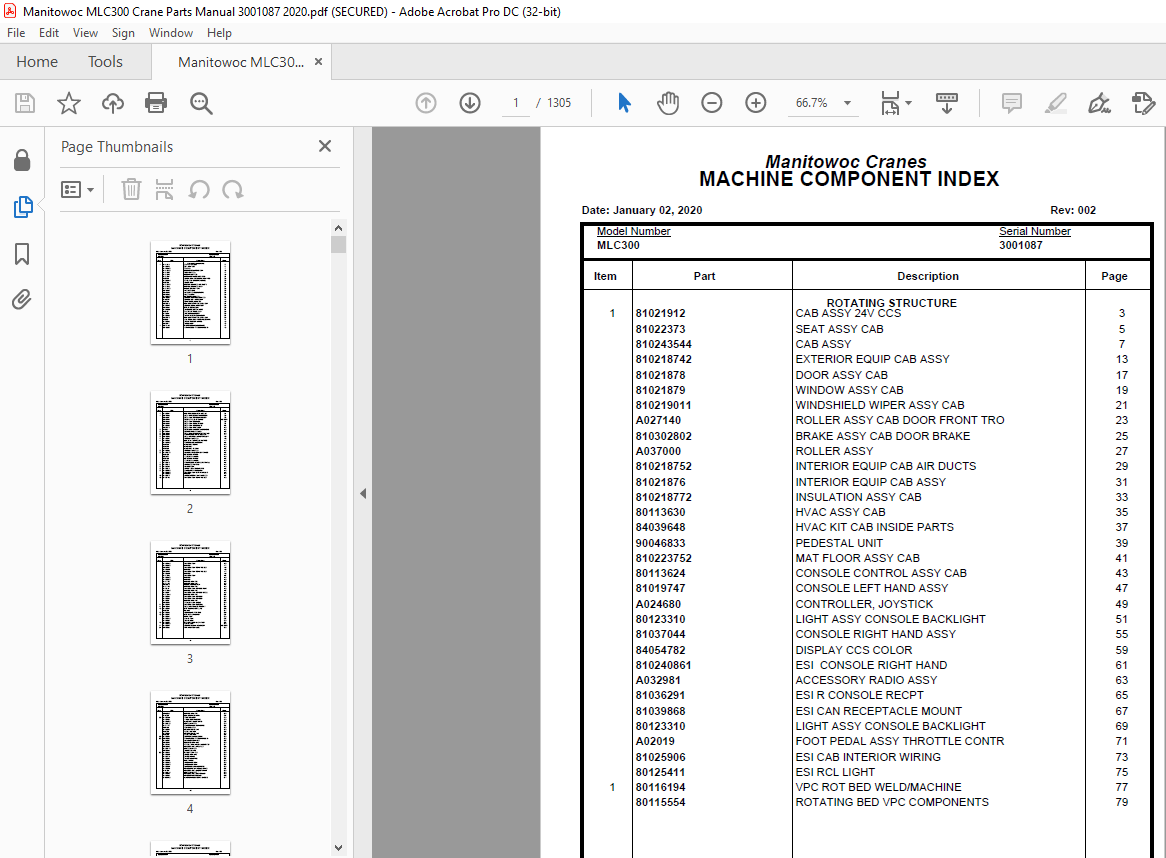

TABLE OF CONTENTS:

Manitowoc Crane MLC300 Parts Manual SN 3001087  – PDF DOWNLOAD

ROTATING STRUCTURE
1 81021912 CAB ASSY 24V CCS 3
81022373 SEAT ASSY CAB 5
810243544 CAB ASSY 7
810218742 EXTERIOR EQUIP CAB ASSY 13
81021878 DOOR ASSY CAB 17
81021879 WINDOW ASSY CAB 19
810219011 WINDSHIELD WIPER ASSY CAB 21
A027140 ROLLER ASSY CAB DOOR FRONT TRO 23
810302802 BRAKE ASSY CAB DOOR BRAKE 25
A037000 ROLLER ASSY 27
810218752 INTERIOR EQUIP CAB AIR DUCTS 29
81021876 INTERIOR EQUIP CAB ASSY 31
810218772 INSULATION ASSY CAB 33
80113630 HVAC ASSY CAB 35
84039648 HVAC KIT CAB INSIDE PARTS 37
90046833 PEDESTAL UNIT 39
810223752 MAT FLOOR ASSY CAB 41
80113624 CONSOLE CONTROL ASSY CAB 43
81019747 CONSOLE LEFT HAND ASSY 47
A024680 CONTROLLER, JOYSTICK 49
80123310 LIGHT ASSY CONSOLE BACKLIGHT 51
81037044 CONSOLE RIGHT HAND ASSY 55
84054782 DISPLAY CCS COLOR 59
810240861 ESI CONSOLE RIGHT HAND 61
A032981 ACCESSORY RADIO ASSY 63
81036291 ESI R CONSOLE RECPT 65
81039868 ESI CAN RECEPTACLE MOUNT 67
80123310 LIGHT ASSY CONSOLE BACKLIGHT 69
A02019 FOOT PEDAL ASSY THROTTLE CONTR 71
81025906 ESI CAB INTERIOR WIRING 73
80125411 ESI RCL LIGHT 75
1 80116194 VPC ROT BED WELD/MACHINE 77
80115554 ROTATING BED VPC COMPONENTS 79
1 810253011 WIRE ROPE 28MM ASSY X 950 LG 81
1 80110863 DECAL KIT MLC300 STANDARD EN 83
80106691 DECAL ASSY ROT BED/CARBODY 89
80102744 PLATE CRANE ID MFG IN SG NO DWG
80106692 DECAL ASSY CRAWLER 93
80106693 DECAL ASSY BOOM B10:500 97
81033968 DECAL ASSY HANDRAIL ID 101
84020213 DECAL ASSY PARTS BOX 103
2 A03316 COVER ASSY WINDOWS VISION CAB 105
2 81023984 SLEWING RING BRG ASSY 107
2 80110864 DECAL KIT MLC300 NOMENCLAT STD 109
3 84028005 ROTATING BED STRUT SUBASSY 111
3 80110896 DECAL KIT VPCMAX PREP STD LETT 113
4 81025807 SWITCH DRUM 2 CAB 115
4 81023985 LUBE SYST TURNTABLE BEARING 117
810260460 PUMP GREASE 24VDC/2.0A 121
A067160 VALVE ASSY 6 BANK 123
A067170 VALVE ASSY 125
A067180 VALVE ASSY 12 BANK 127
6 81025809 SWITCH DRUM 5 CAB 129
6 810240152 SLEWING DRIVE ASSY LEFT SWING 131
A056890 MOTOR HYD PISTON 133
5364675 KIT, OVERHAUL/SEAL 135
A056890 MOTOR HYD PISTON 137
5364675 KIT, OVERHAUL/SEAL 139
7 81028816 ROTATING BED HYDRAZORB INSTALL 141
8 81025812 SWITCH CAB TILT CAB 143
8 81026236 BUSHING ASSY 145
9 81025813 SWITCH TIER 4F ENGINE CAB 147
9 810239780 CAB MOUNTING ASSEMBLY 153
810296433 PLATFORM ASSY 2327 X 540 CAB S 157
810293652 LANYARD 159
10 81025814 SWITCH AIRCRAFT WARNING CAB 161
10 81029179 PLATFORM ASSY ROTATING BED 165
810298032 PLATFORM ASSY 169
810293652 LANYARD 171
84046402 PLATFORM ASSY ROTATING BED 173
810293651 LANYARD 175
84046403 PLATFORM ASSY ROTATING BED 177
810293651 LANYARD 179
81041286 PLATFORM ASSY 181
810293652 LANYARD 183
810293652 LANYARD 185
81041142 LANYARD ASSY PIN 187
81041140 LANYARD ASSY PIN 189
84025515 LADDER FOLDING ASSY 191
81041140 LANYARD ASSY PIN 193
81040151 PLATFORM ASSY ROT BED REAR 195
810315282 LANYARD ASSY PIN 197
81042241 PLATFORM ASSY ROT BED INSIDE 199
810315282 LANYARD ASSY PIN 201
81042928 PLATFORM ASSY ROT BED 203
81042929 PLATFORM ASSY ROT BED 205
81042931 LANYARD ASSY PIN 207
84043542 PANEL EXHAUST SHIELD 209
11 81029348 PLATFORM ASSY GENERAL 211
11 80112860 DECAL KIT VARIABLE POS CWT 213
12 81023986 MAST RAISING ASSY, LIVE 215
A055540 CYL HYD 217
13 81023038 FLOOR PLATE ASSY CAB 219
13 81023987 MAST ASSY, LIVE MAST 221
81042537 STRAP ASSY 225
810258220 SHEAVE ASSY 227
81033389 ESI LIVE MAST 229
15 81026648 EQUALIZER ASSY MAST HOIST 231
810258220 SHEAVE ASSY 233
17 81028324 COUNTERWEIGHT WELDMENT NO DWG
24 84053582 TANK HYDR ASSY 552L 235
84019925 LANYARD ASSY PIN 239
A164380 VENT BREATHER TANK 241
30 810287691 PARTS BOX ASSY 243
81038439 KIT SELF ASSY RIGGING 245
810249430 VALVE ASSY QUICK DRAIN 247
810039130 Q DISCON FITTING 249
81041177 PUMP CRAWLER TENSIONING 251
A041430 PUMP HYD HAND 253
81042356 LINK ASSY DEAD END 255
A062780 SOCKET BUTTON 257
81042356 LINK ASSY DEAD END 259
A062780 SOCKET BUTTON 261
59 81042358 GUARD CYL & HOSE STOW 263
68 84045983 ROTATING BED VPC COMPONENTS 265
81026037 GEAR RACK ASSY VPC 267
84028440 WEAR PAD ASSY VPC 269
81034766 BRACKET ASSY VPC-MAX WEAR PAD 271
84045984 HYD LINES INSTL VPC LINES 275
810039140 Q DISCON FITTING 277
84049860 ESI ROT BED VPC 279
69 81025626 TROLLEY ASSY VPC 283
810240551 ROLLER ASSY VPC 285
810282121 ESI VPC WIRING 289
81028670 ESI VPC MOUNTING 291
810293291 LIMIT SWITCH 293
810238652 SWITCH LIMIT ASSY 295
810238652 SWITCH LIMIT ASSY 297
810293281 GUARD ASSY VPC WEAR PAD 299
810295501 HYD EQUIP CTWT TROLLEY DRIVE 301
81011301 HYD LINES INSTL ENERGY CHAIN 303
810039130 Q DISCON FITTING 305
81024056 HYD LINES INSTL VPC TROLLEY 309
81028880 HYD EQUIP VPC TROLLEY 313
810136490 VALVE MANIFOLD ASSY 2 BK D03 2 317
810136500 VALVE MANIFOLD 319
810239070 VALVE DIRECTIONAL CONTROL 321
810255720 VALVE MANIFOLD 323
810357471 ENERGY CHAIN TRAY SUPPORT 325
810300471 GUARD ASSY VPC 327
810366431 WEAR PAD ASSY VPC TROLLEY 329
81040002 ENCODER ASSY VPC POSITION 331
81042362 ENERGY CHAIN ASSY SHIPPING 333
81042177 GUARD ASSY VPC ROLLERS 335
81042257 GUARD ASSY ROLLER 337
84030409 HYD MOTOR TROLLEY LEFT SIDE 339
84030410 HYD MOTOR TROLLEY RIGHT SIDE 341
81037248 HYD LINES INSTL VPC-MAX PREP 343
810039140 Q DISCON FITTING 345
80106581 PIN LANYARD ASSY 347
70 81024050 COUNTERWEIGHT TRAY ASSY 349
810289431 ESI COUNTERWEIGHT TRAY 351
810289450 LIGHT ASSY VPC WARNING INDICAT 353
810299161 CHAIN ASSY 355
71 84030423 MOD BED LEVEL SENSOR NO DWG
74 81042919 ROTATING BED MOD LIFT LUG PLUG 357
75 80104950 PLATFORM ASSY 48 INCH SHOE 359
810269922 PLATFORM ASSY 361
810292552 PLATFORM ASSY 363
UPPERWORKS MACHINERY
1 81023948 SCHEMATIC HYDRAULIC NO DWG
3 81025061 DRUM 1 ASSY MAIN LOAD HOIST 365
810240160 GEAR BOX HOIST 84.7:1 RATIO 367
810256240 HYD MOTOR 250CC PIS VAR B1 24V 373
90038633 OVERHAUL SEAL KIT, H1B160 377
81039856 ROLLER ASSY 379
810300010 SENSOR 381
84021470 HYD LINES INSTL BOOM BUTT DRUM 383
810239070 VALVE DIRECTIONAL CONTROL 387
4 81027708 HOIST ASSY LUFFING 389
81041533 CYL HYD 391
810259471 ESI DRUM 6 393
810245252 LIMIT SWITCH 395
81041430 HYD MOTOR 397
90038633 OVERHAUL SEAL KIT, H1B160 401
810277041 HOIST ASSY LUFFING HOIST 403
810284644 PAWL ASSY 405
810345341 HYD EQUIP DRUM 6 409
810136400 VALVE MANIFOLD 413
810239070 VALVE DIRECTIONAL CONTROL 415
810300010 SENSOR 417
5 81027453 HYD LINES INSTL DRUM 0 DRUM 7 419
810039140 Q DISCON FITTING 421
6 81027454 HYD LINES INSTL DRUM 1 PREP 425
810039140 Q DISCON FITTING 429
7 81027455 HYD LINES INSTL DRUM 6 PREP 433
810039140 Q DISCON FITTING 437
14 81024009 HOIST LIVE MAST 439
81041430 HYD MOTOR 441
90038633 OVERHAUL SEAL KIT, H1B160 445
810267791 PAWL 447
810277261 ESI DRUM 4 449
810245252 LIMIT SWITCH 451
810300010 SENSOR 453
810426831 HYD EQUIP DRUM 4 457
810039140 Q DISCON FITTING 463
810121650 Q DISCON FITTING 465
810136400 VALVE MANIFOLD 467
810239070 VALVE DIRECTIONAL CONTROL 469
25 81037691 HYD LINES INSTL POWER PLANT SU 471
26 81026734 HYD LINES INSTL FAN COOLING 475
810254400 VALVE FLOW CONTROL 479
27 81026882 HYD EQUIP ROT BED VALVES 483
7041130 VALVE, DOUBLE COUNTERBALANCE 487
810136400 VALVE MANIFOLD 489
810239070 VALVE DIRECTIONAL CONTROL 491
810136500 VALVE MANIFOLD 493
810239070 VALVE DIRECTIONAL CONTROL 495
810247280 VALVE BANK 5 BANK D07 3POS 4WA 497
810255720 VALVE MANIFOLD 499
810337762 VALVE MANIFOLD 501
81042925 VALVE RELIEF ASSY 503
84019665 VALVE RELIEF ASSY 505
28 81035571 PIPING HYDR ASSY 507
29 81027438 HYD EQUIP LIVE MAST RAISE CYL 509
30 81027441 HYD EQUIP TRANSDUCER INSTL 511
31 81038266 HYD LINES INSTL TANK RETURN 515
810039140 Q DISCON FITTING 521
810391712 MANIFOLD BLOCK 523
81042207 PIN HOSE STOWAGE 525
32 81038067 HYD LINES INSTL CIRC COOLER FI 527
33 81042684 HYD LINES INSTL DRUM 4 531
810039130 Q DISCON FITTING 535
810114700 Q DISCON FITTING 537
810121640 Q DISCON FITTING 539
81042207 PIN HOSE STOWAGE 541
34 81027447 HYD LINES INSTL ROT BED ACCESS 545
810121650 Q DISCON FITTING 549
810210270 Q DISCON FITTING 551
35 81027459 HYD EQUIP HYD SYS FILTERS 553
36 81027460 HYD LINES INSTL ACCES LOW PRES 555
37 81027461 HYD LINES INSTL ACC HIGH PRES 559
38 81027956 HYD LINES INSTL SWIVEL ROT BED 561
39 810279571 HYD LINES INSTL SWING MOTOR CI 563
84022262 HYD LINES INSTL SWING MOTOR CI 565
40 81029633 HYD LINES INSTL LIVE MAST CYL 567
810210270 Q DISCON FITTING 569
41 84045991 HYD LINES INSTL DRUM 0 PREP 573
810039130 Q DISCON FITTING 575
81040102 VALVE 577
81042207 PIN HOSE STOWAGE 579
42 81027445 HYD LINES INSTL DRUM 2 583
810039130 Q DISCON FITTING 585
810114700 Q DISCON FITTING 587
81041424 FRAME HOSE STOWAGE 589
81042207 PIN HOSE STOWAGE 591
43 84045990 HYD LINES INSTL DRUM 1 PREP 595
810039130 Q DISCON FITTING 597
81042207 PIN HOSE STOWAGE 599
44 81033602 HYD LINES INSTL ROT BED DRUM 5 601
810039140 Q DISCON FITTING 605
810114710 Q DISCON FITTING 607
810121650 Q DISCON FITTING 609
45 81034016 HYD LINES INSTL DRUM 6 611
810039130 Q DISCON FITTING 613
81042207 PIN HOSE STOWAGE 615
46 81029382 HYD LINES INSTL LIVE MAST CYL 617
CONTROLS, ELECTRICAL
2 81023949 ELECTRICAL SCHEMATIC MLC300 NO DWG
3 81023950 DIAGRAM ELECTRICAL MLC300 NO DWG
10 81025946 ESI BOOM BUTT CCTV 619
11 81041880 ESI CCTV DRUM 6 621
12 81041916 ESI BOOM TOP CAM PREP 623
14 81025818 SWITCH CAMERA LIGHTS CAB 625
15 81025501 ACCESSORY CAMERA MONITORS CAB 627
17 81028247 ESI RCL LIGHT 629
84037426 LIGHT ASSY RCL 631
18 81034282 ESI ROTATING BED 635
81029114 ESI CAB EXTERIOR WIRING 639
80114385 WINDOW WIPER RELAY ASSY 641
81032876 ESI MOUNTING ASSY 645
810238652 SWITCH LIMIT ASSY 649
84036350 JUNCTION BOX DC LOAD CENTER 651
81034121 ESI CAN RECEPTACLE MOUNT 655
81041521 LIMIT SWITCH 657
1768064 BRACKET W/2-289797 BUSHING 659
810249950 LIMIT SWITCH 661
81029825 KIT BASE/REMOTE 2.4 GHZ 663
81038809 ESI SERVICE LIGHTS 665
81038813 LIGHT SERVICE LIGHT ASSY 667
19 81037054 SWITCH AUX. POWER UNIT CAB 669
19 81026120 ESI BED CAMERAS 671
20 81041734 ESI 12M INSERT CCTV 673
20 84050450 SWITCH VPC SHUTDOWN 675
20 81041991 ESI CCTV DRUM 2 EQUIP 677
21 81041958 ESI VPCMAX CAMERA EQUIP 679
22 81041072 ESI VPC-MAX PREP 681
810245252 LIMIT SWITCH 683
810245252 LIMIT SWITCH 685
22 84032601 ESI BOOM TOP CAMERA 687
54 81025886 ESI CUMMINS QSG12 T4F 689
81042368 BRACKET FUSE PANEL 691
63 81041448 COLD WEATHER KIT ROT BED INSTL 695
81040030 BOX JUNCTION ASSY 697
81040031 BOX JUNCTION ASSY 699
64 81041449 ESI AC COMMON 701
POWER PLANT
5 81028434 TANK FUEL INSTALLATION 703
5 80110905 DECAL KIT T4F ENGINE 705
23 81041522 GENERATOR INSTL COMPONENTS 707
27 90046856 SERVICE KIT 250 HRS 709
28 90046857 SERVICE KIT 500 HRS 711
47 81023960 POWERTRAIN QSG12 TIER 4F 715
810248891 GEAR BOX ASSY 450 HP 717
810247220 PUMP HYD PIS 165CC EH24V 723
810247230 PUMP HYD CL PIS VAR 100CC 729
810249430 VALVE ASSY QUICK DRAIN 731
A097353 CLUTCH ASSY CUMMINS QSG-12 735
810155850 CLUTCH 737
48 81023962 EXHAUST SYST QSG12 T4 FINAL 739
49 81023968 AIR CLEANER INST 450HP CUMMINS 741
810333972 COVER AIR CLEANER ENCL 745
50 81023970 COOLER ASSY 450 HP CUMMINS 751
810295572 PANEL ENCL ASSY 755
810295582 PANEL ENCL ASSY 757
810295592 PANEL ENCL ASSY 759
51 80110213 FUEL CIRCUIT 450 HP CUMMINS 761
81041516 FUEL CIRCUIT 763
52 81023973 BATTERY INSTL CUMMINS QSG12 765
53 84039655 HVAC 450 HP CUMMINS 769
810287752 AIR COND KIT OUTSIDE CAB 773
55 81027419 DEF SYSTEM INSTL CUMMINS QSG12 775
56 81028410 CLUTCH RELEASE ASSY 779
57 81026650 ENCLOSURE ASSY POWER PLANT 781
810324152 COVER ASSY ENCLOSURE 783
810293652 LANYARD 785
810318962 PANEL POWER PLANT ENCL 787
810318992 PANEL ENCL ASSY POWER PLANT 789
810319022 PANEL POWER PLANT ENCL 791
81042535 COVER ASSY ENCLOSURE 793
81042536 COVER ASSY ENCLOSURE 795
60 81037290 GENERATOR ASSY PREP 797
81037291 HEATER APU 799
81037292 AIR COND ASSY APU 801
81037293 FUEL CIRCUIT APU 803
81041768 ESI APU PREP 807
81040179 JUNCTION BOX ASSY APU DC 811
1 80109914 CARBODY ASSY 48″ SHOES W/ JACK 813
81023954 CARBODY ASSEMBLY 815
81024034 SWIVEL MOUNTING PLATE ASSY 817
810090270 ROTATING JOINT 819
81024036 PIN PULLER CARBODY-CRAWLER 821
810259310 CYLINDER HYDR 823
84030412 ESI CARBODY 825
81028815 HYD EQUIP CARBODY ASSY 827
81026883 HYD EQUIP CARBODY VALVES 829
810254400 VALVE FLOW CONTROL 831
81028704 VALVE ASSY 1 BANK D03 ALUMINUM 833
810239070 VALVE DIRECTIONAL CONTROL 835
810279320 VALVE MANIFOLD 837
81027449 HYD LINES INSTL CARBODY 839
810114710 Q DISCON FITTING 843
81029218 HYD LINES INSTL CBODY PIN PULL 845
810039140 Q DISCON FITTING 849
81028817 CARBODY HYDRAZORB INSTALL 851
84032560 JACK CYL ASSY CARBODY 853
81027448 HYD LINES INS CARBODY JACK CYL 855
81027972 JACK CYL ASSY LOWERWORKS 857
81040882 OUTRIGGER PAD ASSY 859
84032559 HYD EQUIP JACKING CYL VALVES 861
810136490 VALVE MANIFOLD ASSY 2 BK D03 2 863
81026991 PLATFORM CARBODY 865
1 80105893 CRAWLER ASSY W/ A-LUBE 48″SHOE 867
84040523 CRAWLER ASSEMBLY 871
81024041 CRAWLER DRIVE ASSY 873
810240480 ROLLER ASSY CRAWLER INTER 875
81040547 ROLLER ASSY TOP 877
84040527 CRAWLER TENSIONING ASSY 879
84043010 HYD LINES INSTL CRAWLER 881
810039130 Q DISCON FITTING 885
81042207 PIN HOSE STOWAGE 889
84046047 ESI CRAWLER 891
84043587 CRAWLER GREASE PIPING ASSY 893
84043588 CRAWLER GREASE PIPING ASSY 897
810268840 PUMP GREASE 24VDC/2 .0 A 901
810268890 VALVE ASSY 903
810349820 VALVE ASSY 905
A067180 VALVE ASSY 12 BANK 907
A067180 VALVE ASSY 12 BANK 909
84044205 CRAWLER GREASE GUARD ASSY 911
81028767 CRAWLER 48 INCH SHOE ASSY 913
ATTACHMENTS
1 810280360 BOOM BUTT ASSY #500 8.00 M 915
1687791 BOOM ANGLE INDICATOR ASSY 917
81025601 PIN PULLER BOOM HINGE 919
3856240 CYLINDER, HYDRAULIC 923
3856245 KIT, SEAL 925
810121640 Q DISCON FITTING 927
80110581 STOP ASSY #500 929
810259451 ESI BOOM BUTT 931
810295781 CATWALK ASSY #500 8.00M BUTT 933
84020120 MANIFOLD BLOCK RETURN ASSY 935
2 81024072 WINCH RIGGING ASSY 937
810099570 WINCH 943
810280071 GUIDE ASSY 947
A131815 BLOCK .3125 IN WIRE ROPE, 4MT 949
A131810 BLOCK 951
84030729 ADAPTER RIGGING WINCH ASSY 953
84044934 WIRE ROPE RIGGING W/ FITTING 955
2 810260241 WIRE ROPE 26MM ASSY X 425M LG NO DWG
3 810253001 WIRE ROPE 28MM ASSY X 440 LG 957
4 81023380 BOOM RIGGING B10:500 NO DWG
5 81023382 BOOM RIGGING B60:500 NO DWG
6 81023385 JIB RIGGING JIB NO.148 NO DWG
7 81025690 MAST RIGGING M10:503 NO DWG
8 81023383 LUFFING JIB RIGGING LJ10:501 O NO DWG
9 81023384 LUFFING JIB RIGGING LJ10:501 NO DWG
10 81038141 REEVING DIAGRM #500 TOP 1 DRUM NO DWG
11 81038142 REEVING DIAGRM #500 TOP 2 DRUM NO DWG
12 80112861 DECAL KIT MLC300 BOOM INSERT 959
12 84050216 BOOM RIGGING B65:505-500 NO DWG
13 810278030 INSERT ASSY 12M HEAVY #500 961
810296271 GUIDE ASSY 963
810300071 CATWALK ASSY #500 12M HEAVY 965
810338541 ESI 12M INSERT 967
13 80112862 DECAL KIT MLC300 BOOM INS W/EQ 969
13 84050217 LUFFING JIB RIGGING LJ ON B65 NO DWG
14 81030008 INSERT LUFF JIB PREP 12M HEAVY 971
A120120 SHEAVE ASSY RIG WINCH ZINC RIC 973
14 80112861 DECAL KIT MLC300 BOOM INSERT 975
15 80112861 DECAL KIT MLC300 BOOM INSERT 977
16 81027946 GUIDE ASSY DRUM 6 UPPER 979
810258190 SHEAVE ASSY 981
16 80112861 DECAL KIT MLC300 BOOM INSERT 983
17 81027949 GUIDE ASSY DRUM 6 LOWER 985
810258190 SHEAVE ASSY 987
18 81029022 GUIDE ASSY DRUM 2,3 LOWER 989
810258190 SHEAVE ASSY 991
19 81029628 GUIDE ASSY DRUM 2,3 UPPER 993
810258190 SHEAVE ASSY 995
22 810277190 TOP ASSY #500 10M 997
81025353 ESI BOOM TOP WIRING 1001
81025948 ESI BOOM TOP 1003
84019148 A2B DEVICE MOD TWO SPRINGS 1005
810245702 A2B DEVICE 1007
1770784 LEVER 1009
810238652 SWITCH LIMIT ASSY 1011
810316421 ESI POSITION LIGHT & ANEMOMETE 1013
810209900 SENSOR WIND SPEED 1015
810250570 SUBASSY POSITION LIGHT 1017
810277671 GUIDE WIRE ROPE ASSY 1019
810258190 SHEAVE ASSY 1021
810315121 SHEAVE SPEED SENSOR PREP 1023
81042564 ESI WIRE ROPE GUIDE 1025
810290361 CATWALK ASSY #500, BOOM TOP 1027
23 81027736 POINT #500 LOWER ASSY 1029
24 81034794 SHEAVE ASSY #500 LWR PT DE 1031
84028414 SHEAVE ASSY #500 DEAD END 1033
81028932 LINK DEAD END ASSY 1035
24 84018961 SLING 50000 LBS 6.15 FT NO DWG
25 81034795 SHEAVE ASSY #500 LOWER POINT 1037
81027766 SHEAVE BANK ASSY #500 LOWER PT 1039
27 81042719 TOP 10.0 M LUFF JIB PREP 1041
28 810278200 INSERT ASSY 6M #500 1043
810312801 CATWALK ASSY #500 6M INSERT 1045
29 81031626 INSERT LJ PREP 6M MEDIUM 1047
31 6462460 SOCKET/WEDGE, 1″ (26 MM) 1049
33 810278110 INSERT ASSY 12M WITH EQ M #500 1051
81036544 CATWALK #500 12M MED W/EQ 1055
33 84018961 SLING 50000 LBS 6.15 FT NO DWG
34 81036541 INSERT LJ PREP 12M MED W/EQ 1057
37 810333440 WEIGHT BALL SWIVEL 22.2 MTON 2 NO DWG
38 810278080 INSERT ASSY 12M M #500 1059
810279002 CATWALK ASSY #500 12 M INSERT 1061
39 81029537 INSERT LUFF JIB PREP 12M MED 1063
39 80103460 LINK ASSY A2B 1065
43 810278080 INSERT ASSY 12M M #500 1067
810279002 CATWALK ASSY #500 12 M INSERT 1069
44 81029537 INSERT LUFF JIB PREP 12M MED 1071
48 810278170 INSERT LUFF #500 L 12M W/SUSP 1073
810319501 CATWALK ASSY #500 12M W/SUSP 1077
49 81032279 INSERT LJ PREP-12M W/SUSPN 1079
58 81028313 PIN PULLER MAST & EQUALIZER 1081
81032872 CYLINDER HYD LIVE MAST PIN PUL 1083
64 810297695 BOOM PT UPR FRAME ASSY 28MMSHE 1085
81034286 ESI UPPER BOOM POINT 1087
810245682 A2B DEVICE 1089
1770804 LEVER ASSY 1091
810238652 SWITCH LIMIT ASSY 1093
81033846 SHEAVE 1095
65 81036285 ROLLER ASSY BOOM POINT UPPER F 1097
67 81039609 MAST SUPPORT ASSY 1099
81040796 HINGE SUPPORT ASSY 1101
