Manitowoc MLC300 Crane Parts Manual SN 3001092 – PDF

Manitowoc MLC300 Crane Parts Manual SN 3001092 – PDF DOWNLOAD

The Manitowoc MLC300 Crane Parts Manual (SN 3001092) in PDF format is a vital resource for maintenance, offering detailed insights into genuine parts and schematics. Download for easy reference, ensuring efficient upkeep and peak performance of your crane.

FILE DETAILS:

Manitowoc MLC300 Crane Parts Manual SN 3001092 – PDF DOWNLOAD

Language : English
Pages :1399
Downloadable : Yes
File Type : PDF

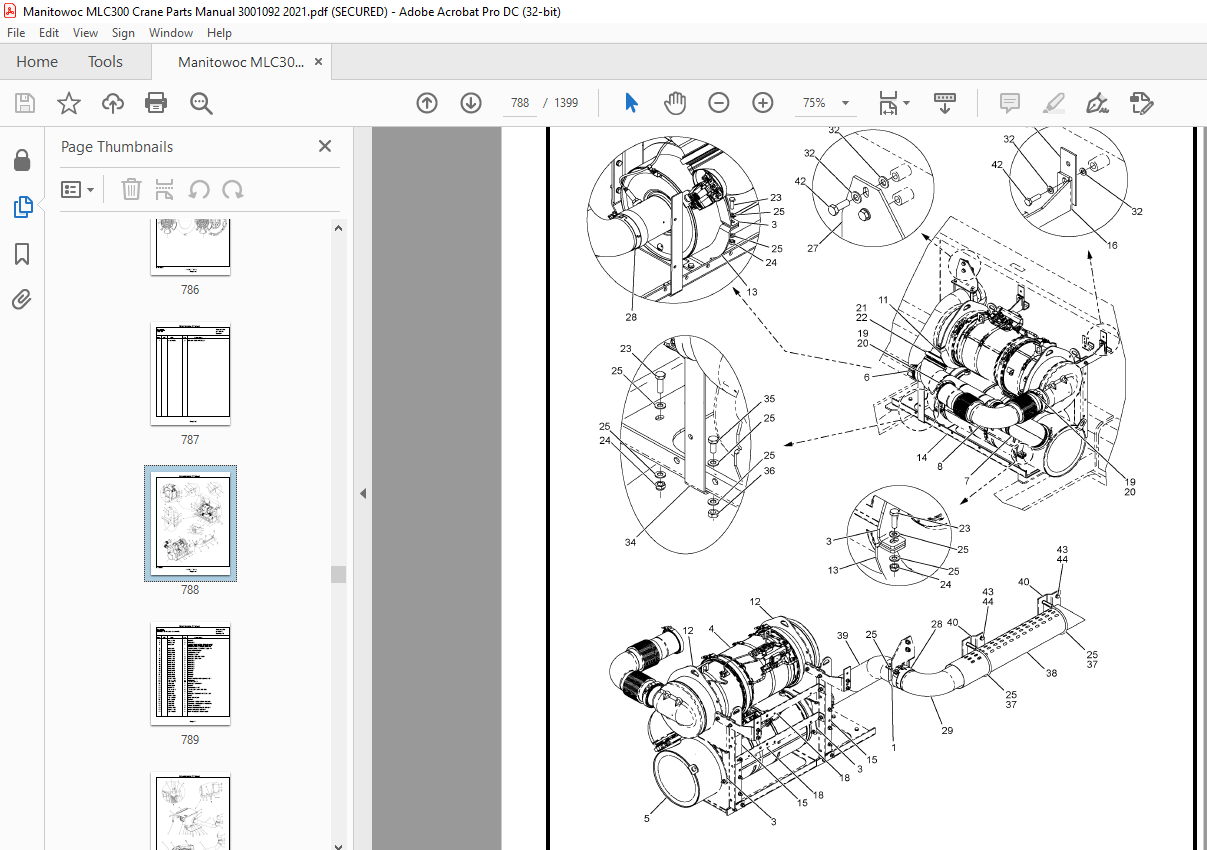

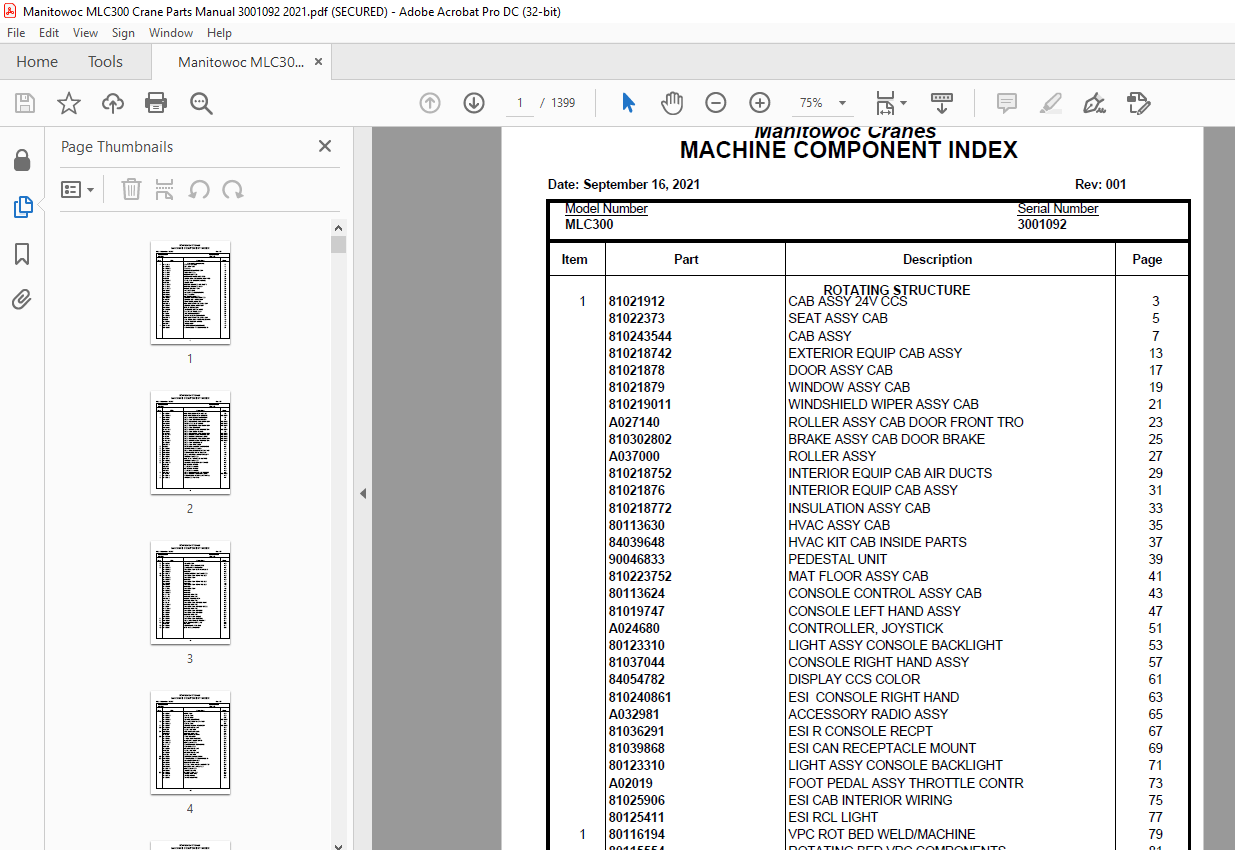

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Manitowoc MLC300 Crane Parts Manual SN 3001092 – PDF DOWNLOAD

1 81021912 CAB ASSY 24V CCS 3
81022373 SEAT ASSY CAB 5
810243544 CAB ASSY 7
810218742 EXTERIOR EQUIP CAB ASSY 13
81021878 DOOR ASSY CAB 17
81021879 WINDOW ASSY CAB 19
810219011 WINDSHIELD WIPER ASSY CAB 21
A027140 ROLLER ASSY CAB DOOR FRONT TRO 23
810302802 BRAKE ASSY CAB DOOR BRAKE 25
A037000 ROLLER ASSY 27
810218752 INTERIOR EQUIP CAB AIR DUCTS 29
81021876 INTERIOR EQUIP CAB ASSY 31
810218772 INSULATION ASSY CAB 33
80113630 HVAC ASSY CAB 35
84039648 HVAC KIT CAB INSIDE PARTS 37
90046833 PEDESTAL UNIT 39
810223752 MAT FLOOR ASSY CAB 41
80113624 CONSOLE CONTROL ASSY CAB 43
81019747 CONSOLE LEFT HAND ASSY 47
A024680 CONTROLLER, JOYSTICK 51
80123310 LIGHT ASSY CONSOLE BACKLIGHT 53
81037044 CONSOLE RIGHT HAND ASSY 57
84054782 DISPLAY CCS COLOR 61
810240861 ESI CONSOLE RIGHT HAND 63
A032981 ACCESSORY RADIO ASSY 65
81036291 ESI R CONSOLE RECPT 67
81039868 ESI CAN RECEPTACLE MOUNT 69
80123310 LIGHT ASSY CONSOLE BACKLIGHT 71
A02019 FOOT PEDAL ASSY THROTTLE CONTR 73
81025906 ESI CAB INTERIOR WIRING 75
80125411 ESI RCL LIGHT 77
1 80116194 VPC ROT BED WELD/MACHINE 79
80115554 ROTATING BED VPC COMPONENTS 81
1 810253011 WIRE ROPE 28MM ASSY X 950 LG 83
810253010 WIRE ROPE 28MM ASSY GENERIC NO DWG
1 80110863 DECAL KIT MLC300 STANDARD EN 85
80106691 DECAL ASSY ROT BED/CARBODY 91
81017794 DECAL-PERSONNEL TIE DOWN POINT NO DWG
80102744 PLATE CRANE ID MFG IN SG NO DWG
81017794 DECAL-PERSONNEL TIE DOWN POINT NO DWG
80106692 DECAL ASSY CRAWLER 95
810121832 DECAL WARNING FALL PROTECTION NO DWG
80106693 DECAL ASSY BOOM B10:500 99
81017794 DECAL-PERSONNEL TIE DOWN POINT NO DWG
810121832 DECAL WARNING FALL PROTECTION NO DWG
A134940 DECAL WARNING CRUSH HAZARD NO DWG
81017794 DECAL-PERSONNEL TIE DOWN POINT NO DWG
810121832 DECAL WARNING FALL PROTECTION NO DWG
81033968 DECAL ASSY HANDRAIL ID 103
84020213 DECAL ASSY PARTS BOX 105
2 A03316 COVER ASSY WINDOWS VISION CAB 107
2 81023984 SLEWING RING BRG ASSY 109
2 80110864 DECAL KIT MLC300 NOMENCLAT STD 111
3 84028005 ROTATING BED STRUT SUBASSY 113
3 80110896 DECAL KIT VPCMAX PREP STD LETT 115
4 81025807 SWITCH DRUM 2 CAB 117
4 80119013 LUBE SYST TURNTABLE BEARING 121
6 81025809 SWITCH DRUM 5 CAB 125
6 810240152 SLEWING DRIVE ASSY LEFT SWING 127
A056890 MOTOR HYD PISTON 129
5364675 KIT, OVERHAUL/SEAL 131
A056890 MOTOR HYD PISTON 133
5364675 KIT, OVERHAUL/SEAL 135
6 80112312 DECAL KIT DRUM 2 OR 3 STANDARD 137
A134940 DECAL WARNING CRUSH HAZARD NO DWG
7 81028816 ROTATING BED HYDRAZORB INSTALL 139
8 81025812 SWITCH CAB TILT CAB 141
8 81026236 BUSHING ASSY 143
9 81025813 SWITCH TIER 4F ENGINE CAB 145
9 810239780 CAB MOUNTING ASSEMBLY 151
810296433 PLATFORM ASSY 2327 X 540 CAB S 155
810293652 LANYARD 157
10 81025814 SWITCH AIRCRAFT WARNING CAB 159
10 81029179 PLATFORM ASSY ROTATING BED 163
810298032 PLATFORM ASSY 167
810293652 LANYARD 169
84046402 PLATFORM ASSY ROTATING BED 171
810293651 LANYARD 173
84046403 PLATFORM ASSY ROTATING BED 175
810293651 LANYARD 177
81041286 PLATFORM ASSY 179
810293652 LANYARD 181
810293652 LANYARD 183
81041142 LANYARD ASSY PIN 185
81041140 LANYARD ASSY PIN 187
84025515 LADDER FOLDING ASSY 189
81041140 LANYARD ASSY PIN 191
81040151 PLATFORM ASSY ROT BED REAR 193
810315282 LANYARD ASSY PIN 195
81042241 PLATFORM ASSY ROT BED INSIDE 197
810315282 LANYARD ASSY PIN 199
81042928 PLATFORM ASSY ROT BED 201
81042929 PLATFORM ASSY ROT BED 203
81042931 LANYARD ASSY PIN 205
84043542 PANEL EXHAUST SHIELD 207
11 81029348 PLATFORM ASSY GENERAL 209
11 80112860 DECAL KIT VARIABLE POS CWT 211
12 81023986 MAST RAISING ASSY, LIVE 213
A055540 CYL HYD 215
13 81023038 FLOOR PLATE ASSY CAB 217
13 81023987 MAST ASSY, LIVE MAST 219
81042537 STRAP ASSY 223
810258220 SHEAVE ASSY 225
81033389 ESI LIVE MAST 227
810292880 BUSHING, COMPOSITE NO DWG
15 81026648 EQUALIZER ASSY MAST HOIST 229
810258220 SHEAVE ASSY 231
17 81028324 COUNTERWEIGHT WELDMENT NO DWG
20 81042356 LINK ASSY DEAD END 233
A062780 SOCKET BUTTON 235
24 84053582 TANK HYDR ASSY 552L 237
84019925 LANYARD ASSY PIN 241
A164380 VENT BREATHER TANK 243
30 810287691 PARTS BOX ASSY 245
81038439 KIT SELF ASSY RIGGING 247
810249430 VALVE ASSY QUICK DRAIN 249
810039130 Q DISCON FITTING 251
81041177 PUMP CRAWLER TENSIONING 253
A041430 PUMP HYD HAND 255
81042356 LINK ASSY DEAD END 257
A062780 SOCKET BUTTON 259
81042356 LINK ASSY DEAD END 261
A062780 SOCKET BUTTON 263
59 81042358 GUARD CYL & HOSE STOW 265
68 84045983 ROTATING BED VPC COMPONENTS 267
81026037 GEAR RACK ASSY VPC 269
84028440 WEAR PAD ASSY VPC 271
81034766 BRACKET ASSY VPC-MAX WEAR PAD 273
84045984 HYD LINES INSTL VPC LINES 277
810039140 Q DISCON FITTING 279
84049860 ESI ROT BED VPC 281
69 81025626 TROLLEY ASSY VPC 285
810240551 ROLLER ASSY VPC 287
810282121 ESI VPC WIRING 291
81028670 ESI VPC MOUNTING 293
810293291 LIMIT SWITCH 295
810238652 SWITCH LIMIT ASSY 297
810238652 SWITCH LIMIT ASSY 299
810293281 GUARD ASSY VPC WEAR PAD 301
810295501 HYD EQUIP CTWT TROLLEY DRIVE 303
81011301 HYD LINES INSTL ENERGY CHAIN 305
810039130 Q DISCON FITTING 307
81024056 HYD LINES INSTL VPC TROLLEY 311
81028880 HYD EQUIP VPC TROLLEY 315
810136490 VALVE MANIFOLD ASSY 2 BK D03 2 319
810136500 VALVE MANIFOLD 321
810239070 VALVE DIRECTIONAL CONTROL 323
810255720 VALVE MANIFOLD 325
810357471 ENERGY CHAIN TRAY SUPPORT 327
810300471 GUARD ASSY VPC 329
810366431 WEAR PAD ASSY VPC TROLLEY 331
81040002 ENCODER ASSY VPC POSITION 333
81042362 ENERGY CHAIN ASSY SHIPPING 335
81042366 BRACKET ASSY HOSE STOWAGE 337
81042207 PIN HOSE STOWAGE 339
81042177 GUARD ASSY VPC ROLLERS 341
81042257 GUARD ASSY ROLLER 343
84030409 HYD MOTOR TROLLEY LEFT SIDE 345
84030410 HYD MOTOR TROLLEY RIGHT SIDE 347
81037248 HYD LINES INSTL VPC-MAX PREP 349
810039140 Q DISCON FITTING 351
80106581 PIN LANYARD ASSY 353
70 81024050 COUNTERWEIGHT TRAY ASSY 355
810289431 ESI COUNTERWEIGHT TRAY 357
80124066 LIGHT ASSY VPC WARNING 359
810299161 CHAIN ASSY 361
71 84030423 MOD BED LEVEL SENSOR NO DWG
74 81042919 ROTATING BED MOD LIFT LUG PLUG 363
75 80104950 PLATFORM ASSY 48 INCH SHOE 365
810269922 PLATFORM ASSY 367
810292552 PLATFORM ASSY 369
UPPERWORKS MACHINERY
1 81023948 SCHEMATIC HYDRAULIC NO DWG
3 81025061 DRUM 1 ASSY MAIN LOAD HOIST 371
810240160 GEAR BOX HOIST 84.7:1 RATIO 373
810256240 HYD MOTOR 250CC PIS VAR B1 24V 379
90038633 OVERHAUL SEAL KIT, H1B160 383
81039856 ROLLER ASSY 385
810300010 SENSOR 387
84021470 HYD LINES INSTL BOOM BUTT DRUM 389
810239070 VALVE DIRECTIONAL CONTROL 393
4 81027708 HOIST ASSY LUFFING 395
81041533 CYL HYD 397
810259471 ESI DRUM 6 399
810245252 LIMIT SWITCH 401
81041430 HYD MOTOR 403
90038633 OVERHAUL SEAL KIT, H1B160 407
810277041 HOIST ASSY LUFFING HOIST 409
810284644 PAWL ASSY 411
810345341 HYD EQUIP DRUM 6 415
810136400 VALVE MANIFOLD 419
810239070 VALVE DIRECTIONAL CONTROL 421
810300010 SENSOR 423
5 81027453 HYD LINES INSTL DRUM 0 DRUM 7 425
810039140 Q DISCON FITTING 427
6 81027454 HYD LINES INSTL DRUM 1 PREP 431
810039140 Q DISCON FITTING 435
7 81027455 HYD LINES INSTL DRUM 6 PREP 439
810039140 Q DISCON FITTING 443
14 81024009 HOIST LIVE MAST 445
81041430 HYD MOTOR 447
90038633 OVERHAUL SEAL KIT, H1B160 451
810267791 PAWL 453
810277261 ESI DRUM 4 455
810245252 LIMIT SWITCH 457
810300010 SENSOR 459
810426831 HYD EQUIP DRUM 4 463
810039140 Q DISCON FITTING 469
810121650 Q DISCON FITTING 471
810136400 VALVE MANIFOLD 473
810239070 VALVE DIRECTIONAL CONTROL 475
16 81024019 HOIST ASSEMBLY DRUM #2 AND #3 477
810240222 GEARBOX HOIST 120.5 481
810361101 ESI DRUM 2/3 483
810340131 HYD EQUIP DRUM 2 OR 3 487
810114710 Q DISCON FITTING 491
810239070 VALVE DIRECTIONAL CONTROL 493
810039140 Q DISCON FITTING 495
810300010 SENSOR 497
25 81037691 HYD LINES INSTL POWER PLANT SU 499
26 81026734 HYD LINES INSTL FAN COOLING 503
810254400 VALVE FLOW CONTROL 507
27 81026882 HYD EQUIP ROT BED VALVES 511
7041130 VALVE, DOUBLE COUNTERBALANCE 515
810136400 VALVE MANIFOLD 517
810239070 VALVE DIRECTIONAL CONTROL 519
810136500 VALVE MANIFOLD 521
810239070 VALVE DIRECTIONAL CONTROL 523
810247280 VALVE BANK 5 BANK D07 3POS 4WA 525
810255720 VALVE MANIFOLD 527
810337762 VALVE MANIFOLD 529
81042925 VALVE RELIEF ASSY 531
84019665 VALVE RELIEF ASSY 533
28 81035571 PIPING HYDR ASSY 535
29 81027438 HYD EQUIP LIVE MAST RAISE CYL 537
30 81027441 HYD EQUIP TRANSDUCER INSTL 539
31 81038266 HYD LINES INSTL TANK RETURN 543
810039140 Q DISCON FITTING 549
810391712 MANIFOLD BLOCK 551
81042207 PIN HOSE STOWAGE 553
32 81038067 HYD LINES INSTL CIRC COOLER FI 555
33 81042684 HYD LINES INSTL DRUM 4 559
810039130 Q DISCON FITTING 563
810114700 Q DISCON FITTING 565
810121640 Q DISCON FITTING 567
81042207 PIN HOSE STOWAGE 569
34 81027447 HYD LINES INSTL ROT BED ACCESS 573
810121650 Q DISCON FITTING 577
810210270 Q DISCON FITTING 579
35 81027459 HYD EQUIP HYD SYS FILTERS 581
36 81027460 HYD LINES INSTL ACCES LOW PRES 583
37 81027461 HYD LINES INSTL ACC HIGH PRES 587
38 81027956 HYD LINES INSTL SWIVEL ROT BED 589
39 810279571 HYD LINES INSTL SWING MOTOR CI 591
84022262 HYD LINES INSTL SWING MOTOR CI 593
40 81029633 HYD LINES INSTL LIVE MAST CYL 595
810210270 Q DISCON FITTING 597
41 84045991 HYD LINES INSTL DRUM 0 PREP 601
810039130 Q DISCON FITTING 603
81040102 VALVE 605
81042207 PIN HOSE STOWAGE 607
42 81027445 HYD LINES INSTL DRUM 2 611
810039130 Q DISCON FITTING 613
810114700 Q DISCON FITTING 615
81041424 FRAME HOSE STOWAGE 617
81042207 PIN HOSE STOWAGE 619
43 84045990 HYD LINES INSTL DRUM 1 PREP 623
810039130 Q DISCON FITTING 625
81042207 PIN HOSE STOWAGE 627
44 81033602 HYD LINES INSTL ROT BED DRUM 5 629
810039140 Q DISCON FITTING 633
810114710 Q DISCON FITTING 635
810121650 Q DISCON FITTING 637
45 81034016 HYD LINES INSTL DRUM 6 639
810039130 Q DISCON FITTING 641
81042207 PIN HOSE STOWAGE 643
46 81029382 HYD LINES INSTL LIVE MAST CYL 645
CONTROLS, ELECTRICAL
2 81023949 ELECTRICAL SCHEMATIC MLC300 NO DWG
3 81023950 DIAGRAM ELECTRICAL MLC300 NO DWG
10 81025946 ESI BOOM BUTT CCTV 647
11 81041880 ESI CCTV DRUM 6 649
12 81041916 ESI BOOM TOP CAM PREP 651
14 81025818 SWITCH CAMERA LIGHTS CAB 653
15 81025501 ACCESSORY CAMERA MONITORS CAB 655
18 81034282 ESI ROTATING BED 659
81029114 ESI CAB EXTERIOR WIRING 663
80114385 WINDOW WIPER RELAY ASSY 665
81032876 ESI MOUNTING ASSY 669
810238652 SWITCH LIMIT ASSY 673
84036350 JUNCTION BOX DC LOAD CENTER 675
81034121 ESI CAN RECEPTACLE MOUNT 679
81041521 LIMIT SWITCH 681
1768064 BRACKET W/2-289797 BUSHING 683
810249950 LIMIT SWITCH 685
81029825 KIT BASE/REMOTE 2.4 GHZ 687
81038809 ESI SERVICE LIGHTS 689
81038813 LIGHT SERVICE LIGHT ASSY 691
19 81037054 SWITCH AUX. POWER UNIT CAB 693
19 81026120 ESI BED CAMERAS 695
20 81041734 ESI 12M INSERT CCTV 697
20 84050450 SWITCH VPC SHUTDOWN 699
20 81041991 ESI CCTV DRUM 2 EQUIP 701
21 81041958 ESI VPCMAX CAMERA EQUIP 703
22 81041072 ESI VPC-MAX PREP 705
810245252 LIMIT SWITCH 707
810245252 LIMIT SWITCH 709
22 84032601 ESI BOOM TOP CAMERA 711
54 81025886 ESI CUMMINS QSG12 T4F 713
81042368 BRACKET FUSE PANEL 715
63 81041448 COLD WEATHER KIT ROT BED INSTL 719
81040030 BOX JUNCTION ASSY 721
81040031 BOX JUNCTION ASSY 723
64 81041449 ESI AC COMMON 725
POWER PLANT
5 81028434 TANK FUEL INSTALLATION 727
5 80110905 DECAL KIT T4F ENGINE 729
23 81041522 GENERATOR INSTL COMPONENTS 731
81041523 HOSE ASSY FUEL APU SUPPLY 733
81041524 HOSE ASSY FUEL APU RETURN 735
27 90046856 SERVICE KIT 250 HRS 737
28 90046857 SERVICE KIT 500 HRS 739
90048403 KIT SERVICE 1000 HRS 741
90048404 KIT SERVICE 2000 HRS 743
47 81023960 POWERTRAIN QSG12 TIER 4F 747
810248891 GEAR BOX ASSY 450 HP 749
810247210 PUMP 751
810247220 PUMP HYD PIS 165CC EH24V 755
810247230 PUMP HYD CL PIS VAR 100CC 761
810249430 VALVE ASSY QUICK DRAIN 763
A097353 CLUTCH ASSY CUMMINS QSG-12 767
810155850 CLUTCH 769
48 81023962 EXHAUST SYST QSG12 T4 FINAL 771
49 81023968 AIR CLEANER INST 450HP CUMMINS 773
810333972 COVER AIR CLEANER ENCL 777
50 81023970 COOLER ASSY 450 HP CUMMINS 783
810295572 PANEL ENCL ASSY 787
810295582 PANEL ENCL ASSY 789
810295592 PANEL ENCL ASSY 791
51 80110213 FUEL CIRCUIT 450 HP CUMMINS 793
81041516 FUEL CIRCUIT 795
52 81023973 BATTERY INSTL CUMMINS QSG12 797
53 84039655 HVAC 450 HP CUMMINS 801
810287752 AIR COND KIT OUTSIDE CAB 805
55 81027419 DEF SYSTEM INSTL CUMMINS QSG12 807
56 81028410 CLUTCH RELEASE ASSY 811
57 81026650 ENCLOSURE ASSY POWER PLANT 813
810324152 COVER ASSY ENCLOSURE 815
810293652 LANYARD 817
810318962 PANEL POWER PLANT ENCL 819
810318992 PANEL ENCL ASSY POWER PLANT 821
810319022 PANEL POWER PLANT ENCL 823
81042535 COVER ASSY ENCLOSURE 825
81042536 COVER ASSY ENCLOSURE 827
60 81037290 GENERATOR ASSY PREP 829
81037291 HEATER APU 831
81037292 AIR COND ASSY APU 833
81037293 FUEL CIRCUIT APU 835
81041768 ESI APU PREP 839
81040179 JUNCTION BOX ASSY APU DC 843
62 81037289 GENERATOR ASSY EQUIP 845
81031997 GENERATOR ASSY 849
LOWERWORKS
1 80109914 CARBODY ASSY 48″ SHOES W/ JACK 851
81023954 CARBODY ASSEMBLY 853
81024034 SWIVEL MOUNTING PLATE ASSY 855
810090270 ROTATING JOINT 857
81024036 PIN PULLER CARBODY-CRAWLER 859
810259310 CYLINDER HYDR 861
84030412 ESI CARBODY 863
81028815 HYD EQUIP CARBODY ASSY 865
81026883 HYD EQUIP CARBODY VALVES 867
81028704 VALVE ASSY 1 BANK D03 ALUMINUM 871
810239070 VALVE DIRECTIONAL CONTROL 873
810279320 VALVE MANIFOLD 875
81027449 HYD LINES INSTL CARBODY 877
810114710 Q DISCON FITTING 881
81029218 HYD LINES INSTL CBODY PIN PULL 883
810039140 Q DISCON FITTING 887
81028817 CARBODY HYDRAZORB INSTALL 889
84032560 JACK CYL ASSY CARBODY 891
81027448 HYD LINES INS CARBODY JACK CYL 893
81027972 JACK CYL ASSY LOWERWORKS 895
81040882 OUTRIGGER PAD ASSY 897
84032559 HYD EQUIP JACKING CYL VALVES 899
810136490 VALVE MANIFOLD ASSY 2 BK D03 2 901
81026991 PLATFORM CARBODY 903
1 80105894 CRAWLER ASSY W/O A-LUBE 48″ SH 905
84040523 CRAWLER ASSEMBLY 909
81024041 CRAWLER DRIVE ASSY 911
810240480 ROLLER ASSY CRAWLER INTER 913
81040547 ROLLER ASSY TOP 915
84040527 CRAWLER TENSIONING ASSY 917
84043010 HYD LINES INSTL CRAWLER 919
810039130 Q DISCON FITTING 923
810114700 Q DISCON FITTING 925
81042207 PIN HOSE STOWAGE 927
84046047 ESI CRAWLER 929
81035174 GREASE PIPING ASSY W/O AUTOLUB 931
81028767 CRAWLER 48 INCH SHOE ASSY 933
2 80125418 CRAWLER AUTOLUBE ASSY GRACO 935
80119012 CRAWLER GREASE PIPING GRACO 939
84044205 CRAWLER GREASE GUARD ASSY 943
ATTACHMENTS
1 810280360 BOOM BUTT ASSY #500 8.00 M 945
1687791 BOOM ANGLE INDICATOR ASSY 947
81025601 PIN PULLER BOOM HINGE 949
3856240 CYLINDER, HYDRAULIC 953
3856245 KIT, SEAL 955
810121640 Q DISCON FITTING 957
80110581 STOP ASSY #500 959
810259451 ESI BOOM BUTT 961
810295781 CATWALK ASSY #500 8.00M BUTT 963
84020120 MANIFOLD BLOCK RETURN ASSY 965
2 81024072 WINCH RIGGING ASSY 967
810099570 WINCH 973
810280071 GUIDE ASSY 977
A131815 BLOCK .3125 IN WIRE ROPE, 4MT 979
A131810 BLOCK 981
84030729 ADAPTER RIGGING WINCH ASSY 983
84044934 WIRE ROPE RIGGING W/ FITTING 985
2 810260241 WIRE ROPE 26MM ASSY X 425M LG NO DWG
3 810253001 WIRE ROPE 28MM ASSY X 440 LG 987
810253000 WIRE ROPE 28MM ASSY GENERIC NO DWG
4 81039219 WIRE ROPE 28MM ASSY X 460 LG NO DWG
4 81023380 BOOM RIGGING B10:500 NO DWG
5 81023382 BOOM RIGGING B60:500 NO DWG
6 81023385 JIB RIGGING JIB NO.148 NO DWG
7 81025690 MAST RIGGING M10:503 NO DWG
8 A134940 DECAL WARNING CRUSH HAZARD NO DWG
8 81023383 LUFFING JIB RIGGING LJ10:501 O NO DWG
9 81023384 LUFFING JIB RIGGING LJ10:501 NO DWG
10 81038141 REEVING DIAGRM #500 TOP 1 DRUM NO DWG
11 81038142 REEVING DIAGRM #500 TOP 2 DRUM NO DWG
12 80112861 DECAL KIT MLC300 BOOM INSERT 989
81041859 DECAL INSERT LIFTING NO DWG
81017794 DECAL-PERSONNEL TIE DOWN POINT NO DWG
810121832 DECAL WARNING FALL PROTECTION NO DWG
12 84050216 BOOM RIGGING B65:505-500 NO DWG
13 810278030 INSERT ASSY 12M HEAVY #500 991
810296271 GUIDE ASSY 993
810300071 CATWALK ASSY #500 12M HEAVY 995
810338541 ESI 12M INSERT 997
13 80112862 DECAL KIT MLC300 BOOM INS W/EQ 999
81041859 DECAL INSERT LIFTING NO DWG
81017794 DECAL-PERSONNEL TIE DOWN POINT NO DWG
810121832 DECAL WARNING FALL PROTECTION NO DWG
1941832 DECAL (EN) CAUTION BOOM EQUALI NO DWG
13 84050217 LUFFING JIB RIGGING LJ ON B65 NO DWG
14 81030008 INSERT LUFF JIB PREP 12M HEAVY 1001
A120120 SHEAVE ASSY RIG WINCH ZINC RIC 1003
14 80112861 DECAL KIT MLC300 BOOM INSERT 1005
81041859 DECAL INSERT LIFTING NO DWG
81017794 DECAL-PERSONNEL TIE DOWN POINT NO DWG
810121832 DECAL WARNING FALL PROTECTION NO DWG
15 80112861 DECAL KIT MLC300 BOOM INSERT 1007
81041859 DECAL INSERT LIFTING NO DWG
81017794 DECAL-PERSONNEL TIE DOWN POINT NO DWG
810121832 DECAL WARNING FALL PROTECTION NO DWG
16 81027946 GUIDE ASSY DRUM 6 UPPER 1009
810258190 SHEAVE ASSY 1011
16 80112861 DECAL KIT MLC300 BOOM INSERT 1013
81041859 DECAL INSERT LIFTING NO DWG
81017794 DECAL-PERSONNEL TIE DOWN POINT NO DWG
810121832 DECAL WARNING FALL PROTECTION NO DWG
17 81027949 GUIDE ASSY DRUM 6 LOWER 1015
810258190 SHEAVE ASSY 1017
17 80112861 DECAL KIT MLC300 BOOM INSERT 1019
81041859 DECAL INSERT LIFTING NO DWG
81017794 DECAL-PERSONNEL TIE DOWN POINT NO DWG
810121832 DECAL WARNING FALL PROTECTION NO DWG
18 81029022 GUIDE ASSY DRUM 2,3 LOWER 1021
810258190 SHEAVE ASSY 1023
19 81029628 GUIDE ASSY DRUM 2,3 UPPER 1025
810258190 SHEAVE ASSY 1027
21 80106821 DECAL ASSY FIXED JIB #148 1029
22 81027719 TOP ASSY #500, 10.0 M 1031
81025353 ESI BOOM TOP WIRING 1035
81025948 ESI BOOM TOP 1037
84019148 A2B DEVICE MOD TWO SPRINGS 1039
810245702 A2B DEVICE 1041
1770784 LEVER 1043
810238652 SWITCH LIMIT ASSY 1045
810316421 ESI POSITION LIGHT & ANEMOMETE 1047
810209900 SENSOR WIND SPEED 1049
810250570 SUBASSY POSITION LIGHT 1051
81027767 GUIDE WIRE ROPE ASSY 1053
810258190 SHEAVE ASSY 1055
810315121 SHEAVE SPEED SENSOR PREP 1057
81042564 ESI WIRE ROPE GUIDE 1059
810290361 CATWALK ASSY #500, BOOM TOP 1061
23 81027736 POINT #500 LOWER ASSY 1063
24 81034794 SHEAVE ASSY #500 LWR PT DE 1065
84028414 SHEAVE ASSY #500 DEAD END 1067
81028932 LINK DEAD END ASSY 1069
24 84018961 SLING 50000 LBS 6.15 FT NO DWG
25 81034795 SHEAVE ASSY #500 LOWER POINT 1071
81027766 SHEAVE BANK ASSY #500 LOWER PT 1073
27 81042719 TOP 10.0 M LUFF JIB PREP 1075
28 810278200 INSERT ASSY 6M #500 1077
810312801 CATWALK ASSY #500 6M INSERT 1079
29 81031626 INSERT LJ PREP 6M MEDIUM 1081
31 6462460 SOCKET/WEDGE, 1″ (26 MM) 1083
33 810278110 INSERT ASSY 12M WITH EQ M #500 1085
81036544 CATWALK #500 12M MED W/EQ 1089
33 84018961 SLING 50000 LBS 6.15 FT NO DWG
34 81036541 INSERT LJ PREP 12M MED W/EQ 1091
37 810333440 WEIGHT BALL SWIVEL 22.2 MTON 2 NO DWG
38 810278080 INSERT ASSY 12M M #500 1093
810279002 CATWALK ASSY #500 12 M INSERT 1095
39 81029537 INSERT LUFF JIB PREP 12M MED 1097
39 80103460 LINK ASSY A2B 1099
40 80128376 CVS SHIP OUT PAINT & MISC. 1101
43 810278080 INSERT ASSY 12M M #500 1103
810279002 CATWALK ASSY #500 12 M INSERT 1105
44 81029537 INSERT LUFF JIB PREP 12M MED 1107
48 810278170 INSERT LUFF #500 L 12M W/SUSP 1109
810319501 CATWALK ASSY #500 12M W/SUSP 1113
49 81032279 INSERT LJ PREP-12M W/SUSPN 1115
53 810278140 INSERT ASSY 12M #500 L 1119
810279002 CATWALK ASSY #500 12 M INSERT 1121
54 81029537 INSERT LUFF JIB PREP 12M MED 1123
58 81028313 PIN PULLER MAST & EQUALIZER 1125
81032872 CYLINDER HYD LIVE MAST PIN PUL 1127
64 810297695 BOOM PT UPR FRAME ASSY 28MMSHE 1129
81034286 ESI UPPER BOOM POINT 1131
810245682 A2B DEVICE 1133
1770804 LEVER ASSY 1135
810238652 SWITCH LIMIT ASSY 1137
81033846 SHEAVE 1139
65 81036285 ROLLER ASSY BOOM POINT UPPER F 1141
66 81035648 FIXED JIB #148 BOTTOM ASSY 1143
81023843 STRUT ASSY #148 JIB 6.4M 1145
81033463 STOP ASSY #148 JIB 1147
81034170 BUTT ASSY #148, 6.00M 1149
810253521 ESI FIXED JIB BUTT 1151
81035649 STOP RIGGING #148 JIB 1153
84022405 STOP RIGGING SUBASSY 1155
84022405 STOP RIGGING SUBASSY 1157
67 810335865 TOP ASSY #148, 6M, 32MM SHEAVE 1159
84036875 WINCH BOAT ASSY 1163
81027176 ESI FIX JIB TOP MOUNTING 1167
810245702 A2B DEVICE 1169
1770784 LEVER 1171
810238652 SWITCH LIMIT ASSY 1173
81040828 SHEAVE PACK ASSY 32 MM 1175
81033846 SHEAVE 1177
67 81039609 MAST SUPPORT ASSY 1179
81040796 HINGE SUPPORT ASSY 1181
68 81032966 INSERT ASSY #148, 6M 1183
69 81032985 INSERT ASSY #148, 12M 1185
