Manitowoc Crane MLC300 Parts Manual SN 3001112 PDF

Manitowoc Crane MLC300 Parts Manual SN 3001112  –  PDF DOWNLOAD

The Manitowoc Crane MLC300 Parts Manual (SN 3001112) is a comprehensive PDF guide for assembly, maintenance, and troubleshooting. Download for easy access to essential information, ensuring efficient management of the specified crane model.

FILE DETAILS:

Manitowoc Crane MLC300 Parts Manual SN 3001112  –  PDF DOWNLOAD

Language : English
Pages :1293
Downloadable : Yes
File Type : PDF

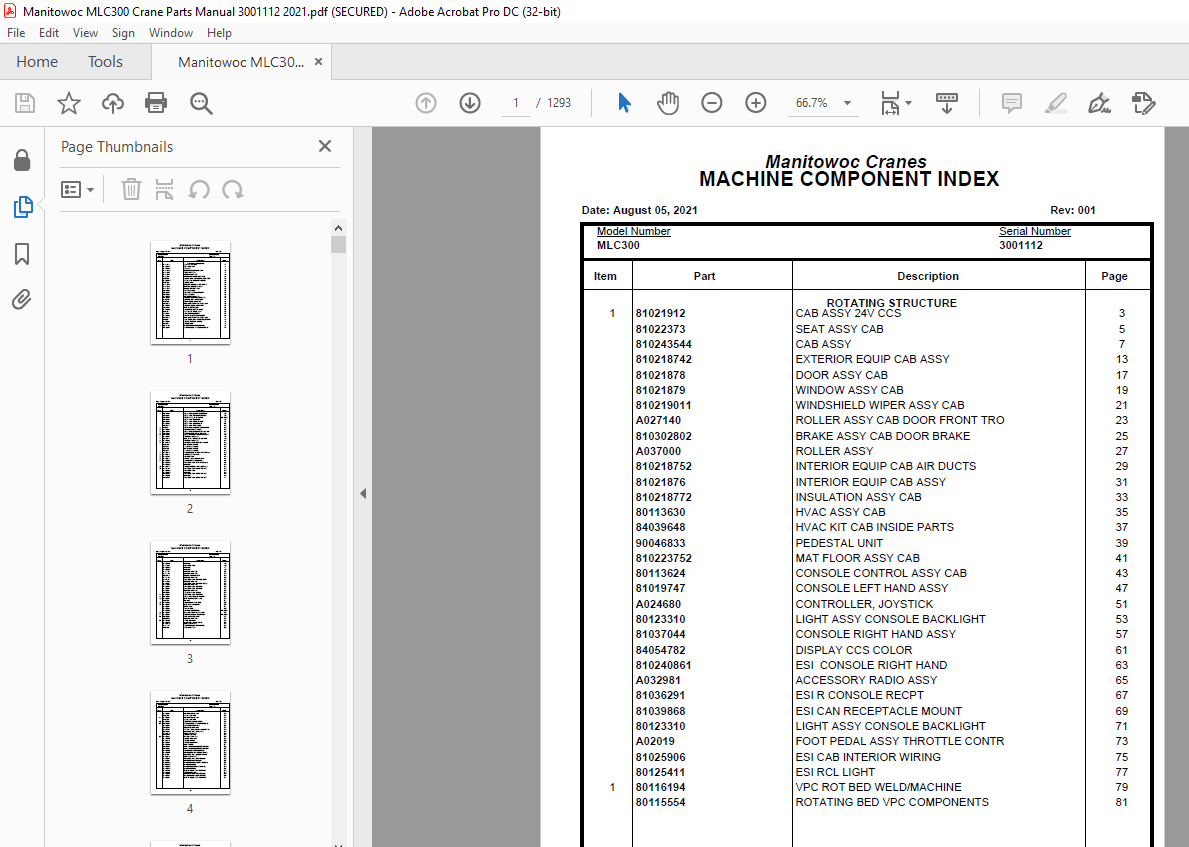

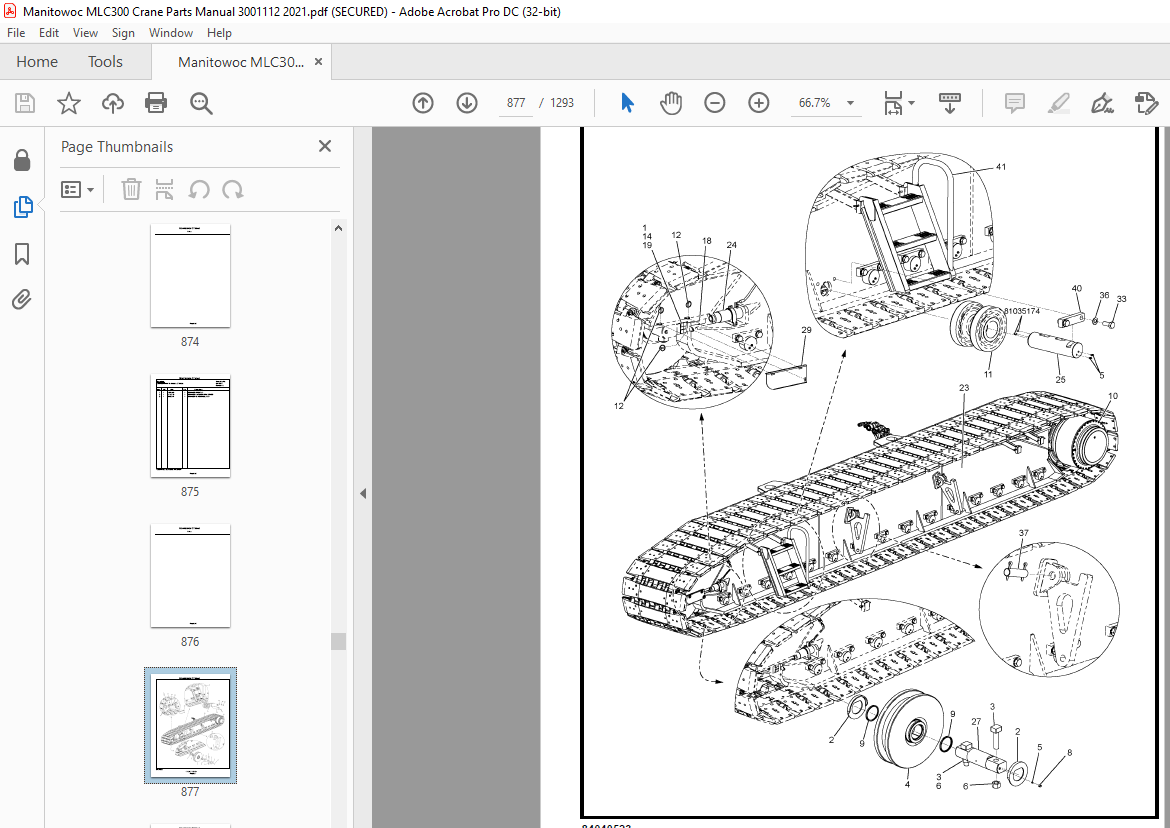

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Manitowoc Crane MLC300 Parts Manual SN 3001112  –  PDF DOWNLOAD

ROTATING STRUCTURE
1 81021912 CAB ASSY 24V CCS 3
81022373 SEAT ASSY CAB 5
810243544 CAB ASSY 7
810218742 EXTERIOR EQUIP CAB ASSY 13
81021878 DOOR ASSY CAB 17
81021879 WINDOW ASSY CAB 19
810219011 WINDSHIELD WIPER ASSY CAB 21
A027140 ROLLER ASSY CAB DOOR FRONT TRO 23
810302802 BRAKE ASSY CAB DOOR BRAKE 25
A037000 ROLLER ASSY 27
810218752 INTERIOR EQUIP CAB AIR DUCTS 29
81021876 INTERIOR EQUIP CAB ASSY 31
810218772 INSULATION ASSY CAB 33
80113630 HVAC ASSY CAB 35
84039648 HVAC KIT CAB INSIDE PARTS 37
90046833 PEDESTAL UNIT 39
810223752 MAT FLOOR ASSY CAB 41
80113624 CONSOLE CONTROL ASSY CAB 43
81019747 CONSOLE LEFT HAND ASSY 47
A024680 CONTROLLER, JOYSTICK 51
80123310 LIGHT ASSY CONSOLE BACKLIGHT 53
81037044 CONSOLE RIGHT HAND ASSY 57
84054782 DISPLAY CCS COLOR 61
810240861 ESI CONSOLE RIGHT HAND 63
A032981 ACCESSORY RADIO ASSY 65
81036291 ESI R CONSOLE RECPT 67
81039868 ESI CAN RECEPTACLE MOUNT 69
80123310 LIGHT ASSY CONSOLE BACKLIGHT 71
A02019 FOOT PEDAL ASSY THROTTLE CONTR 73
81025906 ESI CAB INTERIOR WIRING 75
80125411 ESI RCL LIGHT 77
1 80116194 VPC ROT BED WELD/MACHINE 79
80115554 ROTATING BED VPC COMPONENTS 81
1 80110863 DECAL KIT MLC300 STANDARD EN 83
80106691 DECAL ASSY ROT BED/CARBODY 89
80102744 PLATE CRANE ID MFG IN SG NO DWG
80106692 DECAL ASSY CRAWLER 93
80106693 DECAL ASSY BOOM B10:500 97
81033968 DECAL ASSY HANDRAIL ID 101
84020213 DECAL ASSY PARTS BOX 103
2 A03316 COVER ASSY WINDOWS VISION CAB 105
2 81023984 SLEWING RING BRG ASSY 107
2 80110864 DECAL KIT MLC300 NOMENCLAT STD 109
3 84028005 ROTATING BED STRUT SUBASSY 111
3 80110896 DECAL KIT VPCMAX PREP STD LETT 113
4 81025807 SWITCH DRUM 2 CAB 115
4 80119013 LUBE SYST TURNTABLE BEARING 119
6 81025809 SWITCH DRUM 5 CAB 123
6 810240152 SLEWING DRIVE ASSY LEFT SWING 125
A056890 MOTOR HYD PISTON 127
5364675 KIT, OVERHAUL/SEAL 129
A056890 MOTOR HYD PISTON 131
5364675 KIT, OVERHAUL/SEAL 133
7 81028816 ROTATING BED HYDRAZORB INSTALL 135
8 81025812 SWITCH CAB TILT CAB 137
8 81026236 BUSHING ASSY 139
9 81025813 SWITCH TIER 4F ENGINE CAB 141
9 810239780 CAB MOUNTING ASSEMBLY 147
810296433 PLATFORM ASSY 2327 X 540 CAB S 151
810293652 LANYARD 153
10 81025814 SWITCH AIRCRAFT WARNING CAB 155
10 81029179 PLATFORM ASSY ROTATING BED 159
810298032 PLATFORM ASSY 163
810293652 LANYARD 165
84046402 PLATFORM ASSY ROTATING BED 167
810293651 LANYARD 169
84046403 PLATFORM ASSY ROTATING BED 171
810293651 LANYARD 173
81041286 PLATFORM ASSY 175
810293652 LANYARD 177
810293652 LANYARD 179
81041142 LANYARD ASSY PIN 181
81041140 LANYARD ASSY PIN 183
84025515 LADDER FOLDING ASSY 185
81041140 LANYARD ASSY PIN 187
81040151 PLATFORM ASSY ROT BED REAR 189
810315282 LANYARD ASSY PIN 191
81042241 PLATFORM ASSY ROT BED INSIDE 193
810315282 LANYARD ASSY PIN 195
81042928 PLATFORM ASSY ROT BED 197
81042929 PLATFORM ASSY ROT BED 199
81042931 LANYARD ASSY PIN 201
84043542 PANEL EXHAUST SHIELD 203
11 81029348 PLATFORM ASSY GENERAL 205
11 80112860 DECAL KIT VARIABLE POS CWT 207
12 81023986 MAST RAISING ASSY, LIVE 209
A055540 CYL HYD 211
13 81023038 FLOOR PLATE ASSY CAB 213
13 81023987 MAST ASSY, LIVE MAST 215
81042537 STRAP ASSY 217
81033389 ESI LIVE MAST 219
810292880 BUSHING, COMPOSITE NO DWG
15 81026648 EQUALIZER ASSY MAST HOIST 221
17 81028324 COUNTERWEIGHT WELDMENT NO DWG
24 84053582 TANK HYDR ASSY 552L 223
84019925 LANYARD ASSY PIN 227
30 810287691 PARTS BOX ASSY 229
810249430 VALVE ASSY QUICK DRAIN 231
810039130 Q DISCON FITTING 233
81041177 PUMP CRAWLER TENSIONING 235
A041430 PUMP HYD HAND 237
81042356 LINK ASSY DEAD END 239
A062780 SOCKET BUTTON 241
41 81042356 LINK ASSY DEAD END 243
A062780 SOCKET BUTTON 245
59 81042358 GUARD CYL & HOSE STOW 247
68 84045983 ROTATING BED VPC COMPONENTS 249
81026037 GEAR RACK ASSY VPC 251
84028440 WEAR PAD ASSY VPC 253
81034766 BRACKET ASSY VPC-MAX WEAR PAD 255
84045984 HYD LINES INSTL VPC LINES 259
810039140 Q DISCON FITTING 261
84049860 ESI ROT BED VPC 263
69 81025626 TROLLEY ASSY VPC 267
810240551 ROLLER ASSY VPC 269
810282121 ESI VPC WIRING 273
81028670 ESI VPC MOUNTING 275
810293291 LIMIT SWITCH 277
80129368 LIMIT SWITCH MOLDED 3P SUBASSY 279
80129368 LIMIT SWITCH MOLDED 3P SUBASSY 281
810293281 GUARD ASSY VPC WEAR PAD 283
810295501 HYD EQUIP CTWT TROLLEY DRIVE 285
81011301 HYD LINES INSTL ENERGY CHAIN 287
810039130 Q DISCON FITTING 289
81024056 HYD LINES INSTL VPC TROLLEY 293
81028880 HYD EQUIP VPC TROLLEY 297
810136490 VALVE MANIFOLD ASSY 2 BK D03 2 301
810136500 VALVE MANIFOLD 303
810239070 VALVE DIRECTIONAL CONTROL 305
810255720 VALVE MANIFOLD 307
810357471 ENERGY CHAIN TRAY SUPPORT 309
810300471 GUARD ASSY VPC 311
810366431 WEAR PAD ASSY VPC TROLLEY 313
81040002 ENCODER ASSY VPC POSITION 315
81042362 ENERGY CHAIN ASSY SHIPPING 317
81042366 BRACKET ASSY HOSE STOWAGE 319
81042207 PIN HOSE STOWAGE 321
81042177 GUARD ASSY VPC ROLLERS 323
81042257 GUARD ASSY ROLLER 325
84030409 HYD MOTOR TROLLEY LEFT SIDE 327
84030410 HYD MOTOR TROLLEY RIGHT SIDE 329
81037248 HYD LINES INSTL VPC-MAX PREP 331
810039140 Q DISCON FITTING 333
80106581 PIN LANYARD ASSY 335
70 81024050 COUNTERWEIGHT TRAY ASSY 337
810289431 ESI COUNTERWEIGHT TRAY 339
80124066 LIGHT ASSY VPC WARNING 341
810299161 CHAIN ASSY 343
71 84030423 MOD BED LEVEL SENSOR NO DWG
74 81042919 ROTATING BED MOD LIFT LUG PLUG 345
75 80104950 PLATFORM ASSY 48 INCH SHOE 347
810269922 PLATFORM ASSY 349
810292552 PLATFORM ASSY 351
81 810239872 MAST ASSY, LIVE MAST-SELF EREC 353
UPPERWORKS MACHINERY
1 81023948 SCHEMATIC HYDRAULIC NO DWG
3 81025061 DRUM 1 ASSY MAIN LOAD HOIST 355
810240160 GEAR BOX HOIST 84.7:1 RATIO 357
810256240 HYD MOTOR 250CC PIS VAR B1 24V 363
90038633 OVERHAUL SEAL KIT, H1B160 367
81039856 ROLLER ASSY 369
810300010 SENSOR 371
84021470 HYD LINES INSTL BOOM BUTT DRUM 373
810039140 Q DISCON FITTING 377
810239070 VALVE DIRECTIONAL CONTROL 379
4 81027708 HOIST ASSY LUFFING 381
810259471 ESI DRUM 6 383
81041430 HYD MOTOR 385
90038633 OVERHAUL SEAL KIT, H1B160 389
Manitowoc Cranes
810277041 HOIST ASSY LUFFING HOIST 391
810284644 PAWL ASSY 393
810345341 HYD EQUIP DRUM 6 397
810136400 VALVE MANIFOLD 401
810239070 VALVE DIRECTIONAL CONTROL 403
810300010 SENSOR 405
5 81027453 HYD LINES INSTL DRUM 0 DRUM 7 407
810039140 Q DISCON FITTING 409
6 81027454 HYD LINES INSTL DRUM 1 PREP 413
810039140 Q DISCON FITTING 417
7 81027455 HYD LINES INSTL DRUM 6 PREP 421
810039140 Q DISCON FITTING 425
14 81024009 HOIST LIVE MAST 427
81041430 HYD MOTOR 429
90038633 OVERHAUL SEAL KIT, H1B160 433
810267791 PAWL 435
810277261 ESI DRUM 4 437
810300010 SENSOR 439
810426831 HYD EQUIP DRUM 4 443
810039140 Q DISCON FITTING 449
810121650 Q DISCON FITTING 451
810136400 VALVE MANIFOLD 453
810239070 VALVE DIRECTIONAL CONTROL 455
25 81037691 HYD LINES INSTL POWER PLANT SU 457
26 81026734 HYD LINES INSTL FAN COOLING 461
810254400 VALVE FLOW CONTROL 465
27 81026882 HYD EQUIP ROT BED VALVES 469
7041130 VALVE, DOUBLE COUNTERBALANCE 473
810136400 VALVE MANIFOLD 475
810239070 VALVE DIRECTIONAL CONTROL 477
810136500 VALVE MANIFOLD 479
810239070 VALVE DIRECTIONAL CONTROL 481
810247280 VALVE BANK 5 BANK D07 3POS 4WA 483
810255720 VALVE MANIFOLD 485
810337762 VALVE MANIFOLD 487
81042925 VALVE RELIEF ASSY 489
84019665 VALVE RELIEF ASSY 491
28 81035571 PIPING HYDR ASSY 493
29 81027438 HYD EQUIP LIVE MAST RAISE CYL 495
30 81027441 HYD EQUIP TRANSDUCER INSTL 497
31 81038266 HYD LINES INSTL TANK RETURN 501
810039140 Q DISCON FITTING 507
810391712 MANIFOLD BLOCK 509
81042207 PIN HOSE STOWAGE 511
32 81038067 HYD LINES INSTL CIRC COOLER FI 513
33 81042684 HYD LINES INSTL DRUM 4 517
810039130 Q DISCON FITTING 521
810114700 Q DISCON FITTING 523
810121640 Q DISCON FITTING 525
81042207 PIN HOSE STOWAGE 527
34 81027447 HYD LINES INSTL ROT BED ACCESS 531
810121650 Q DISCON FITTING 535
810210270 Q DISCON FITTING 537
35 81027459 HYD EQUIP HYD SYS FILTERS 539
36 81027460 HYD LINES INSTL ACCES LOW PRES 541
37 81027461 HYD LINES INSTL ACC HIGH PRES 545
38 81027956 HYD LINES INSTL SWIVEL ROT BED 547
39 810279571 HYD LINES INSTL SWING MOTOR CI 549
84022262 HYD LINES INSTL SWING MOTOR CI 551
40 81029633 HYD LINES INSTL LIVE MAST CYL 553
810210270 Q DISCON FITTING 555
41 84045991 HYD LINES INSTL DRUM 0 PREP 559
810039130 Q DISCON FITTING 561
81040102 VALVE 563
81042207 PIN HOSE STOWAGE 565
42 81027445 HYD LINES INSTL DRUM 2 569
810039130 Q DISCON FITTING 571
810114700 Q DISCON FITTING 573
81041424 FRAME HOSE STOWAGE 575
81042207 PIN HOSE STOWAGE 577
43 84045990 HYD LINES INSTL DRUM 1 PREP 581
810039130 Q DISCON FITTING 583
81042207 PIN HOSE STOWAGE 585
44 81033602 HYD LINES INSTL ROT BED DRUM 5 587
810039140 Q DISCON FITTING 591
810114710 Q DISCON FITTING 593
810121650 Q DISCON FITTING 595
45 81034016 HYD LINES INSTL DRUM 6 597
810039130 Q DISCON FITTING 599
81042207 PIN HOSE STOWAGE 601
46 81029382 HYD LINES INSTL LIVE MAST CYL 603
80 80133261 MOD DRUM 1 605
CONTROLS, ELECTRICAL
2 81023949 ELECTRICAL SCHEMATIC MLC300 NO DWG
3 81023950 DIAGRAM ELECTRICAL MLC300 NO DWG
10 81025946 ESI BOOM BUTT CCTV 607
11 81041880 ESI CCTV DRUM 6 609
12 81041916 ESI BOOM TOP CAM PREP 611
14 81025818 SWITCH CAMERA LIGHTS CAB 613
15 81025501 ACCESSORY CAMERA MONITORS CAB 615
18 81034282 ESI ROTATING BED 619
81029114 ESI CAB EXTERIOR WIRING 623
80114385 WINDOW WIPER RELAY ASSY 625
81032876 ESI MOUNTING ASSY 629
80129368 LIMIT SWITCH MOLDED 3P SUBASSY 633
84036350 JUNCTION BOX DC LOAD CENTER 635
81034121 ESI CAN RECEPTACLE MOUNT 639
81041521 LIMIT SWITCH 641
1768064 BRACKET W/2-289797 BUSHING 643
80129731 LIMIT SWITCH SUBASSY LINEAR 645
81029825 KIT BASE/REMOTE 2.4 GHZ 647
81038809 ESI SERVICE LIGHTS 649
81038813 LIGHT SERVICE LIGHT ASSY 651
19 81037054 SWITCH AUX. POWER UNIT CAB 653
19 81026120 ESI BED CAMERAS 655
20 81041734 ESI 12M INSERT CCTV 657
20 84050450 SWITCH VPC SHUTDOWN 659
20 81041991 ESI CCTV DRUM 2 EQUIP 661
21 81041958 ESI VPCMAX CAMERA EQUIP 663
22 81041072 ESI VPC-MAX PREP 665
22 84032601 ESI BOOM TOP CAMERA 667
54 81025886 ESI CUMMINS QSG12 T4F 669
81042368 BRACKET FUSE PANEL 671
63 81041448 COLD WEATHER KIT ROT BED INSTL 675
81040030 BOX JUNCTION ASSY 677
81040031 BOX JUNCTION ASSY 679
64 81041449 ESI AC COMMON 681
POWER PLANT
5 81028434 TANK FUEL INSTALLATION 683
5 80110905 DECAL KIT T4F ENGINE 685
23 81041522 GENERATOR INSTL COMPONENTS 687
81041523 HOSE ASSY FUEL APU SUPPLY 689
81041524 HOSE ASSY FUEL APU RETURN 691
27 90046856 SERVICE KIT 250 HRS 693
28 90046857 SERVICE KIT 500 HRS 695
90048403 KIT SERVICE 1000 HRS 697
90048404 KIT SERVICE 2000 HRS 699
47 81023960 POWERTRAIN QSG12 TIER 4F 703
810248891 GEAR BOX ASSY 450 HP 705
810247210 PUMP 707
810247220 PUMP HYD PIS 165CC EH24V 711
810247230 PUMP HYD CL PIS VAR 100CC 717
810249430 VALVE ASSY QUICK DRAIN 719
A097353 CLUTCH ASSY CUMMINS QSG-12 723
810155850 CLUTCH 725
48 81023962 EXHAUST SYST QSG12 T4 FINAL 727
49 81023968 AIR CLEANER INST 450HP CUMMINS 729
810333972 COVER AIR CLEANER ENCL 733
50 81023970 COOLER ASSY 450 HP CUMMINS 739
810295572 PANEL ENCL ASSY 743
810295582 PANEL ENCL ASSY 745
810295592 PANEL ENCL ASSY 747
51 80110213 FUEL CIRCUIT 450 HP CUMMINS 749
81041516 FUEL CIRCUIT 751
52 81023973 BATTERY INSTL CUMMINS QSG12 753
53 84039655 HVAC 450 HP CUMMINS 757
810287752 AIR COND KIT OUTSIDE CAB 761
55 81027419 DEF SYSTEM INSTL CUMMINS QSG12 763
56 81028410 CLUTCH RELEASE ASSY 767
57 81026650 ENCLOSURE ASSY POWER PLANT 769
810324152 COVER ASSY ENCLOSURE 771
810293652 LANYARD 773
810318962 PANEL POWER PLANT ENCL 775
810318992 PANEL ENCL ASSY POWER PLANT 777
810319022 PANEL POWER PLANT ENCL 779
81042535 COVER ASSY ENCLOSURE 781
81042536 COVER ASSY ENCLOSURE 783
60 81037290 GENERATOR ASSY PREP 785
81037291 HEATER APU 787
81037292 AIR COND ASSY APU 789
81037293 FUEL CIRCUIT APU 791
81041768 ESI APU PREP 795
81040179 JUNCTION BOX ASSY APU DC 799
62 81037289 GENERATOR ASSY EQUIP 801
81031997 GENERATOR ASSY 805
LOWERWORKS
1 80109914 CARBODY ASSY 48″ SHOES W/ JACK 807
81023954 CARBODY ASSEMBLY 809
81024034 SWIVEL MOUNTING PLATE ASSY 811
810090270 ROTATING JOINT 813
81024036 PIN PULLER CARBODY-CRAWLER 815
84030412 ESI CARBODY 817
81028815 HYD EQUIP CARBODY ASSY 819
81026883 HYD EQUIP CARBODY VALVES 821
810254400 VALVE FLOW CONTROL 823
81028704 VALVE ASSY 1 BANK D03 ALUMINUM 825
810239070 VALVE DIRECTIONAL CONTROL 827
810279320 VALVE MANIFOLD 829
81027449 HYD LINES INSTL CARBODY 831
810114710 Q DISCON FITTING 835
81029218 HYD LINES INSTL CBODY PIN PULL 837
810039140 Q DISCON FITTING 841
81028817 CARBODY HYDRAZORB INSTALL 843
84032560 JACK CYL ASSY CARBODY 845
81027448 HYD LINES INS CARBODY JACK CYL 847
81027972 JACK CYL ASSY LOWERWORKS 849
81040882 OUTRIGGER PAD ASSY 851
84032559 HYD EQUIP JACKING CYL VALVES 853
810136490 VALVE MANIFOLD ASSY 2 BK D03 2 855
81026991 PLATFORM CARBODY 857
1 80105893 CRAWLER ASSY W/ A-LUBE 48″SHOE 859
84040523 CRAWLER ASSEMBLY 863
81024041 CRAWLER DRIVE ASSY 865
810240480 ROLLER ASSY CRAWLER INTER 867
81040547 ROLLER ASSY TOP 869
84040527 CRAWLER TENSIONING ASSY 871
84043010 HYD LINES INSTL CRAWLER 873
810039130 Q DISCON FITTING 877
810114700 Q DISCON FITTING 879
81042207 PIN HOSE STOWAGE 881
84046047 ESI CRAWLER 883
80125418 CRAWLER AUTOLUBE ASSY GRACO 885
80119012 CRAWLER GREASE PIPING GRACO 889
84044205 CRAWLER GREASE GUARD ASSY 893
Manitowoc Cranes
MACHINE COMPONENT INDEX
1 810280360 BOOM BUTT ASSY #500 8.00 M 897
1687791 BOOM ANGLE INDICATOR ASSY 899
81025601 PIN PULLER BOOM HINGE 901
810121640 Q DISCON FITTING 905
80110581 STOP ASSY #500 907
810259451 ESI BOOM BUTT 909
810295781 CATWALK ASSY #500 8.00M BUTT 911
84020120 MANIFOLD BLOCK RETURN ASSY 913
1 810260770 WIRE ROPE 28 MM ASSY X 950 M L NO DWG
2 81024072 WINCH RIGGING ASSY 915
810099570 WINCH 921
810280071 GUIDE ASSY 925
A131815 BLOCK .3125 IN WIRE ROPE, 4MT 927
A131810 BLOCK 929
84030729 ADAPTER RIGGING WINCH ASSY 931
84044934 WIRE ROPE RIGGING W/ FITTING 933
2 810260271 WIRE ROPE 26MM ASSY X 425M LG NO DWG
3 81026078 WIRE ROPE 28 MM ASSY X 440 M L NO DWG
4 81023380 BOOM RIGGING B10:500 NO DWG
5 81023382 BOOM RIGGING B60:500 NO DWG
6 81023385 JIB RIGGING JIB NO.148 NO DWG
7 81025690 MAST RIGGING M10:503 NO DWG
8 81023383 LUFFING JIB RIGGING LJ10:501 O NO DWG
9 81023384 LUFFING JIB RIGGING LJ10:501 NO DWG
10 81038141 REEVING DIAGRM #500 TOP 1 DRUM NO DWG
11 81038142 REEVING DIAGRM #500 TOP 2 DRUM NO DWG
12 80112861 DECAL KIT MLC300 BOOM INSERT 935
81041859 DECAL INSERT LIFTING NO DWG
12 84050216 BOOM RIGGING B65:505-500 NO DWG
13 810278030 INSERT ASSY 12M HEAVY #500 937
810296271 GUIDE ASSY 939
810300071 CATWALK ASSY #500 12M HEAVY 941
810338541 ESI 12M INSERT 943
13 80112862 DECAL KIT MLC300 BOOM INS W/EQ 945
81041859 DECAL INSERT LIFTING NO DWG
13 84050217 LUFFING JIB RIGGING LJ ON B65 NO DWG
14 81030008 INSERT LUFF JIB PREP 12M HEAVY 947
A120120 SHEAVE ASSY RIG WINCH ZINC RIC 949
14 80112861 DECAL KIT MLC300 BOOM INSERT 951
81041859 DECAL INSERT LIFTING NO DWG
15 80112861 DECAL KIT MLC300 BOOM INSERT 953
81041859 DECAL INSERT LIFTING NO DWG
16 81027946 GUIDE ASSY DRUM 6 UPPER 955
810258190 SHEAVE ASSY 957
16 80112861 DECAL KIT MLC300 BOOM INSERT 959
81041859 DECAL INSERT LIFTING NO DWG
17 81027949 GUIDE ASSY DRUM 6 LOWER 961
810258190 SHEAVE ASSY 963
17 80112861 DECAL KIT MLC300 BOOM INSERT 965
81041859 DECAL INSERT LIFTING NO DWG
18 81029022 GUIDE ASSY DRUM 2,3 LOWER 967
810258190 SHEAVE ASSY 969
19 81029628 GUIDE ASSY DRUM 2,3 UPPER 971
810258190 SHEAVE ASSY 973
22 81027719 TOP ASSY #500, 10.0 M 975
81025353 ESI BOOM TOP WIRING 979
81025948 ESI BOOM TOP 981
84019148 A2B DEVICE MOD TWO SPRINGS 983
810245702 A2B DEVICE 985
1770784 LEVER 987
80129368 LIMIT SWITCH MOLDED 3P SUBASSY 989
810316421 ESI POSITION LIGHT & ANEMOMETE 991
810209900 SENSOR WIND SPEED 993
810250570 SUBASSY POSITION LIGHT 995
81027767 GUIDE WIRE ROPE ASSY 997
810258190 SHEAVE ASSY 999
810315121 SHEAVE SPEED SENSOR PREP 1001
81042564 ESI WIRE ROPE GUIDE 1003
810290361 CATWALK ASSY #500, BOOM TOP 1005
23 81027736 POINT #500 LOWER ASSY 1007
24 81034794 SHEAVE ASSY #500 LWR PT DE 1009
84028414 SHEAVE ASSY #500 DEAD END 1011
81028932 LINK DEAD END ASSY 1013
24 84018961 SLING 50000 LBS 6.15 FT NO DWG
25 81034795 SHEAVE ASSY #500 LOWER POINT 1015
81027766 SHEAVE BANK ASSY #500 LOWER PT 1017
27 81042719 TOP 10.0 M LUFF JIB PREP 1019
28 810278200 INSERT ASSY 6M #500 1021
810312801 CATWALK ASSY #500 6M INSERT 1023
29 81031626 INSERT LJ PREP 6M MEDIUM 1025
31 6462460 SOCKET/WEDGE, 1″ (26 MM) 1027
33 810278110 INSERT ASSY 12M WITH EQ M #500 1029
81036544 CATWALK #500 12M MED W/EQ 1033
33 84018961 SLING 50000 LBS 6.15 FT NO DWG
34 81036541 INSERT LJ PREP 12M MED W/EQ 1035
37 810333440 WEIGHT BALL SWIVEL 22.2 MTON 2 NO DWG
38 810278080 INSERT ASSY 12M M #500 1037
810279002 CATWALK ASSY #500 12 M INSERT 1039
39 81029537 INSERT LUFF JIB PREP 12M MED 1041
40 80128376 CVS SHIP OUT PAINT & MISC. 1043
42 80130019 SHIM PACK 1045
43 810278080 INSERT ASSY 12M M #500 1047
810279002 CATWALK ASSY #500 12 M INSERT 1049
43 81038439 KIT SELF ASSY RIGGING 1051
44 81029537 INSERT LUFF JIB PREP 12M MED 1053
48 810278170 INSERT LUFF #500 L 12M W/SUSP 1055
810319501 CATWALK ASSY #500 12M W/SUSP 1059
49 81032279 INSERT LJ PREP-12M W/SUSPN 1061
53 810278140 INSERT ASSY 12M #500 L 1065
810279002 CATWALK ASSY #500 12 M INSERT 1067
54 81029537 INSERT LUFF JIB PREP 12M MED 1069
58 81028313 PIN PULLER MAST & EQUALIZER 1071
64 810297695 BOOM PT UPR FRAME ASSY 28MMSHE 1073
81034286 ESI UPPER BOOM POINT 1075
810245682 A2B DEVICE 1077
1770804 LEVER ASSY 1079
80129368 LIMIT SWITCH MOLDED 3P SUBASSY 1081
81033846 SHEAVE 1083
65 81036285 ROLLER ASSY BOOM POINT UPPER F 1085
67 81039609 MAST SUPPORT ASSY 1087
81040796 HINGE SUPPORT ASSY 1089
